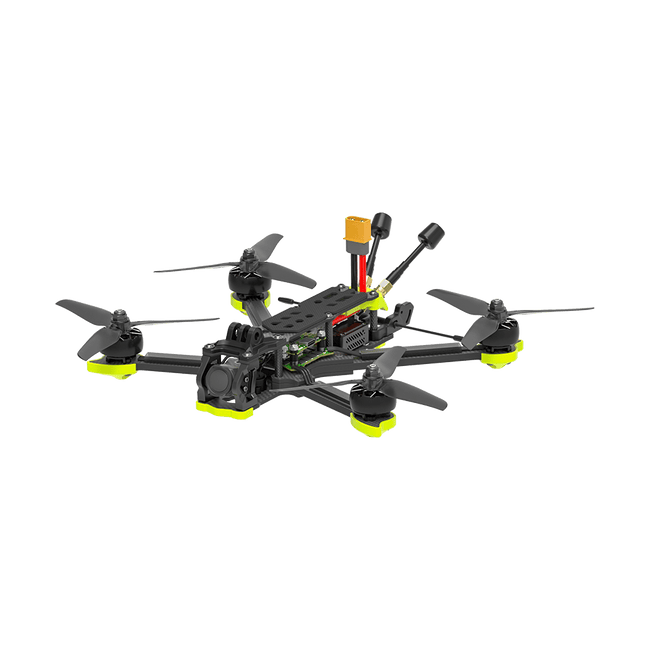

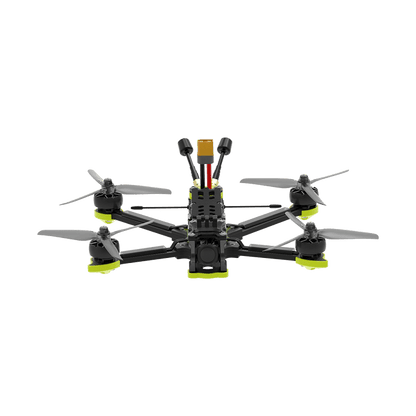

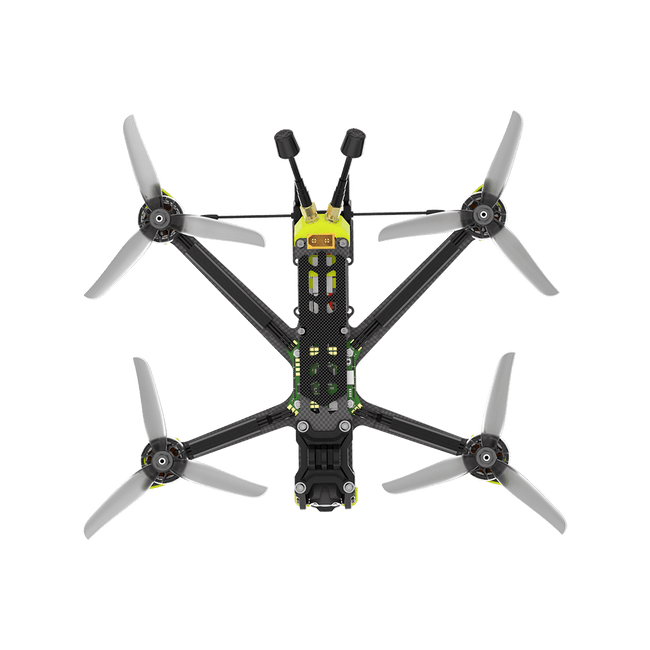

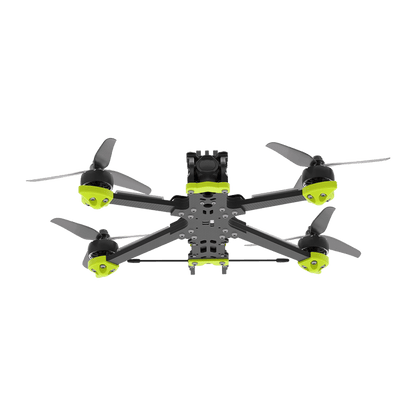

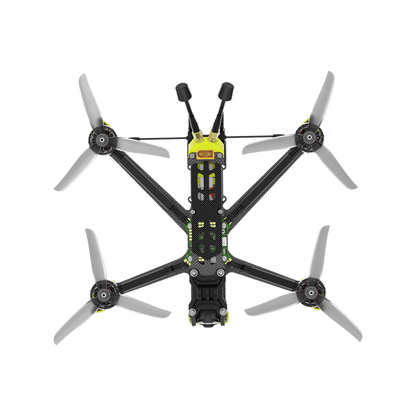

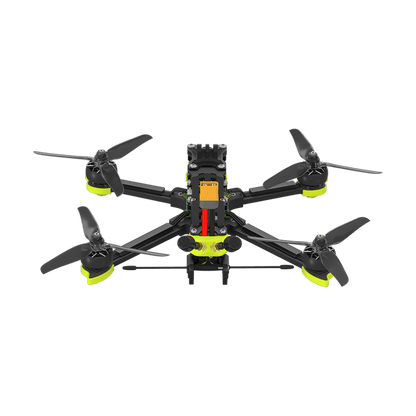

FPV drone iFlight Nazgul DC5 ECO HD O3 6S BNF TBS

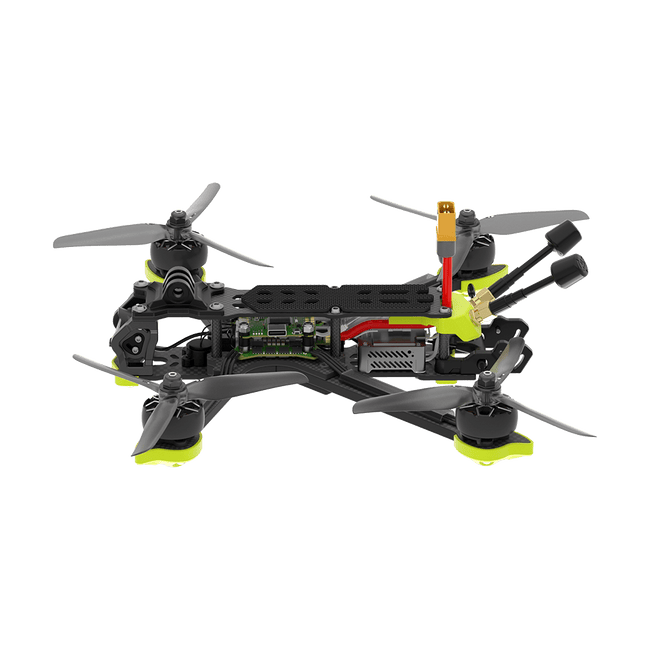

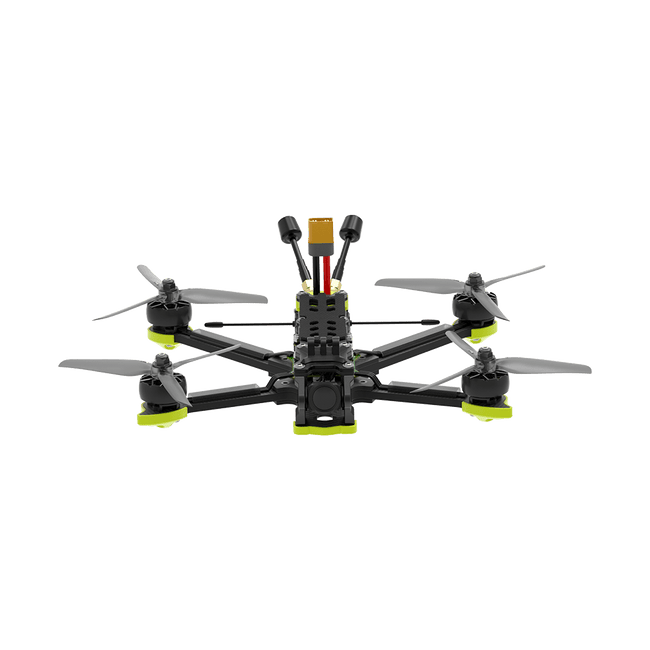

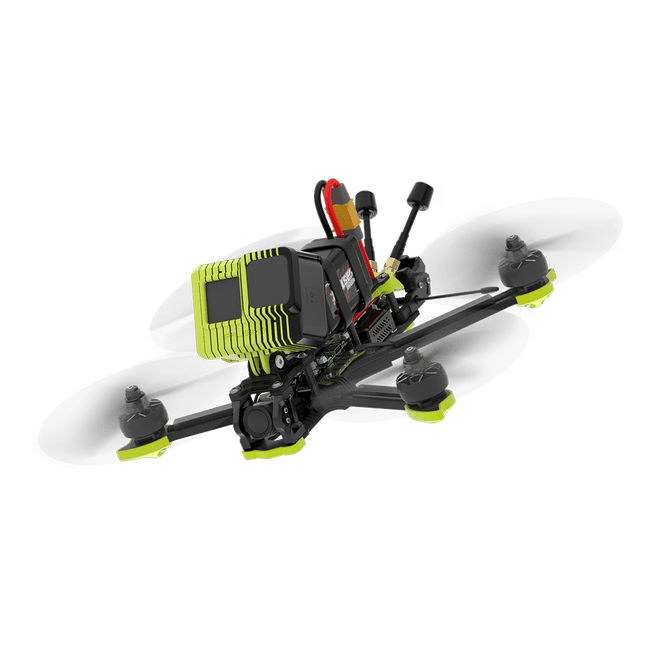

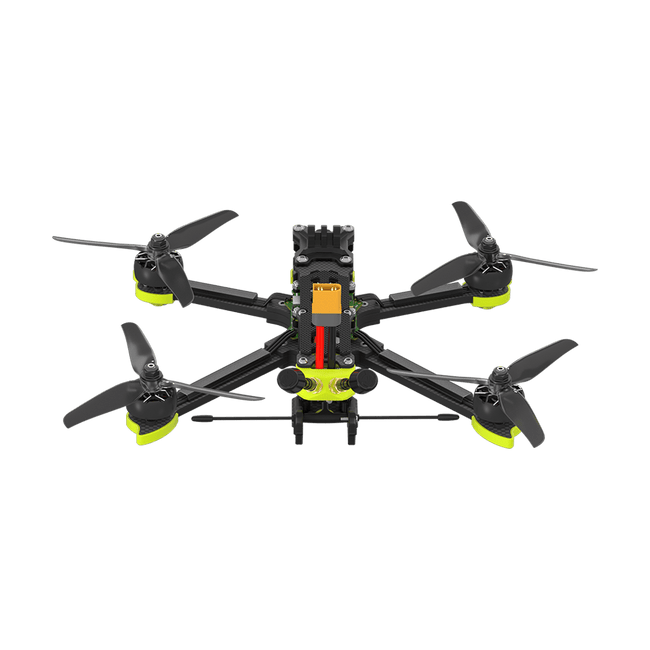

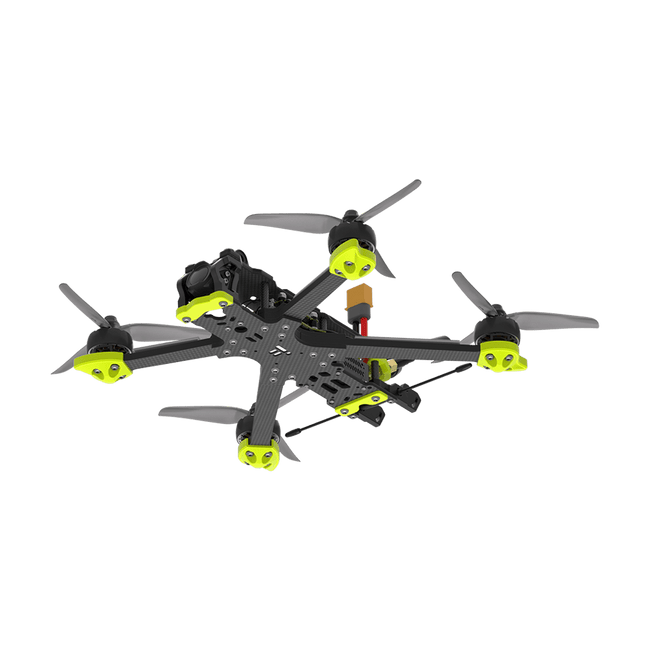

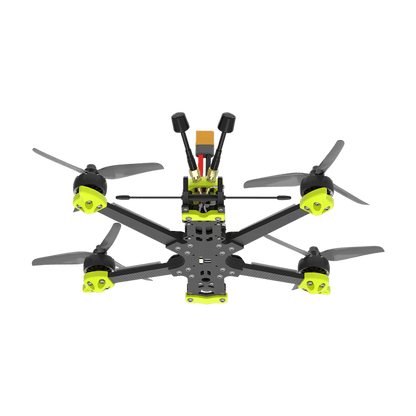

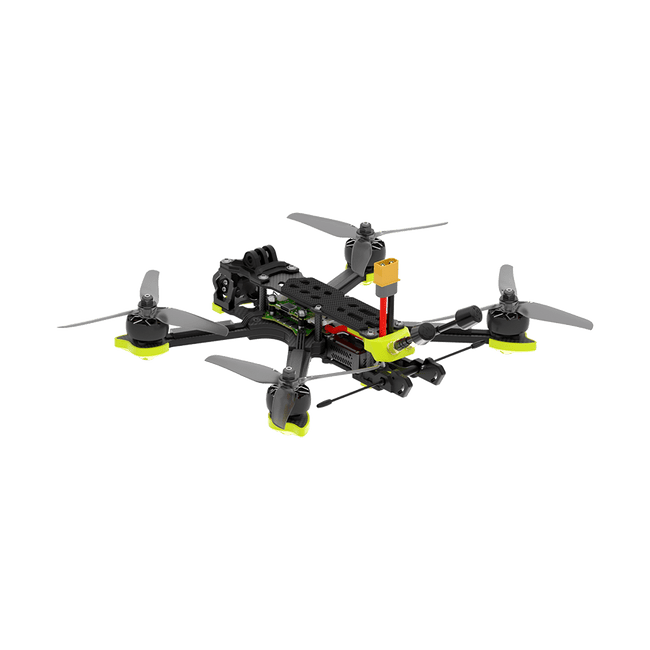

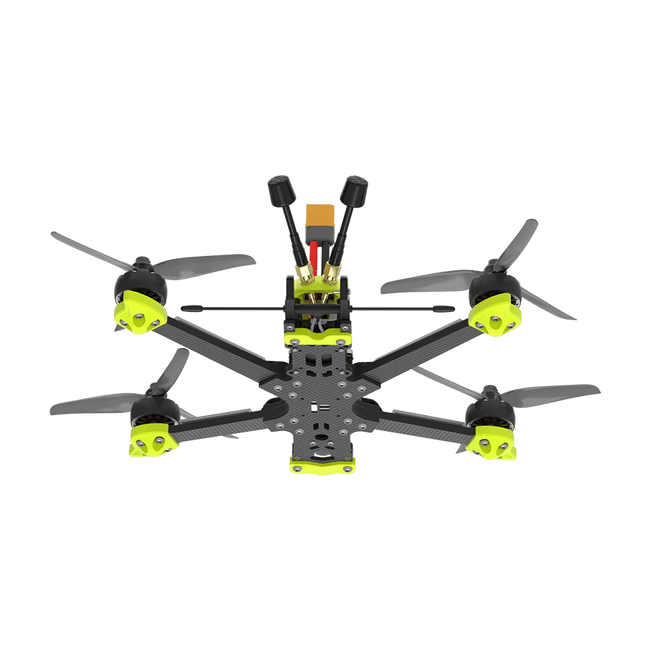

The Nazgul DC5 ECO is a 5-inch freestyle drone equipped with the latest DJI O3 digital HD system. Its unique design ensures that no support is visible, allowing direct use of the O3 air unit video. With ATF435 flight controller and BLITZ E55S 2-6S 55A ESC, it provides unmatched performance and reliability. The carbon fiber frame with aluminum camera mount is lightweight yet durable, while the included GoPro mount offers the versatility to capture your epic freestyle flights.
Function
- Lightweight and durable: Made of carbon fiber and aluminum, it provides a strong yet lightweight construction for camera equipment. Ensures clear video without propeller obstructions.
- Anti-Spark Filter: Contains a protection circuit that prevents sparks and extends the life of XT60 connectors, protects electronics from voltage or current peaks.
- Improved user experience and maintenance: Includes built-in buzzer and receiver holder for easy receiver maintenance and adjustment.
- Custom Space: Offers 20x20 and 30.5x30.5 mounting holes for compatibility with popular flight magazines and VTX systems, allowing for personalized setup and seamless integration.
- DJI O3 HD Air Unit digital transmission with low latency: Video transmission range up to 10 km. The HD version allows for the installation of ND filters, giving more control over the camera's exposure settings.
- 4K stabilized video with 155° ultra-wide angle.
Specifications:
Product Name: Nazgul DC5 ECO 6S O3 HD
Geometry: DC (DeadCat)
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 55A 4-IN-1 ESC
Video transmission: DJI O3 Air Unit
Receiver option: TBS Crossfire NANO RX
Frame: wheelbase 240 mm
Motor: XING-E Pro 2207 1800KV motors
Prop: Nazgul F5 propeller
Weight: 437 g (without battery)
Dimensions (L×W×H): 193×144×34 mm
Maximum speed: 190 km/h (manual mode)
Maximum take-off height: 7000 m
Maximum Hover Time: Approx. 7.5 minutes (no load with 6S 1400 mAh)
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)
Video transfer:
Product Name: DJI O3 Air Unit
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz (RX only)/5.725-5.850 GHz (RX and TX)
End-to-End latency
With DJI FPV Goggles V2:
- 810p/120fps video transmission quality: Latency is lower than 28ms.
- 810p/60fps video transmission quality: Latency is lower than 40ms.
With DJI Goggles 2:
- 1080p/100fps video transmission quality: Latency is only 30ms.
- 1080p/60fps video transmission quality: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x Nazgul DC5 ECO 6S O3 HD BNF TBS
2x antenna
2 x battery pads
2 x support (pairs)
