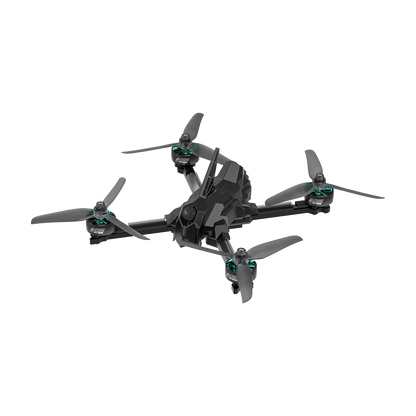

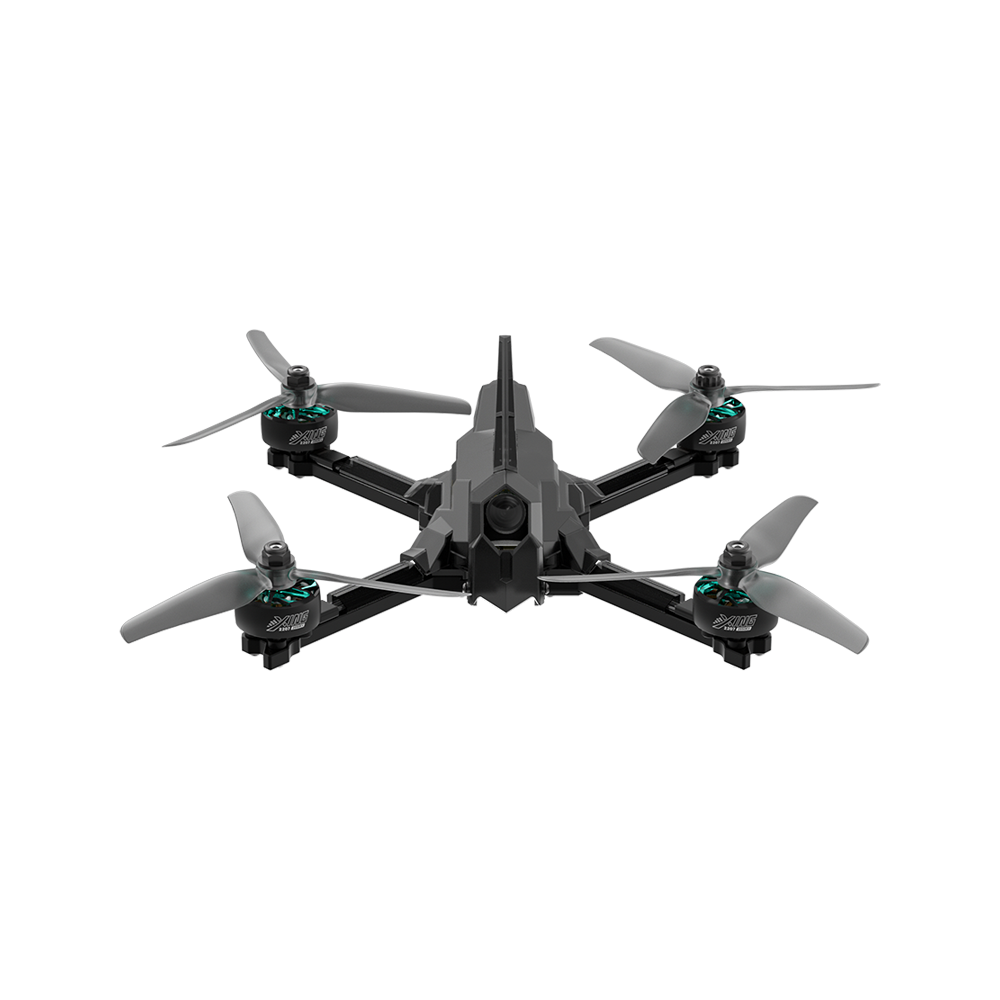

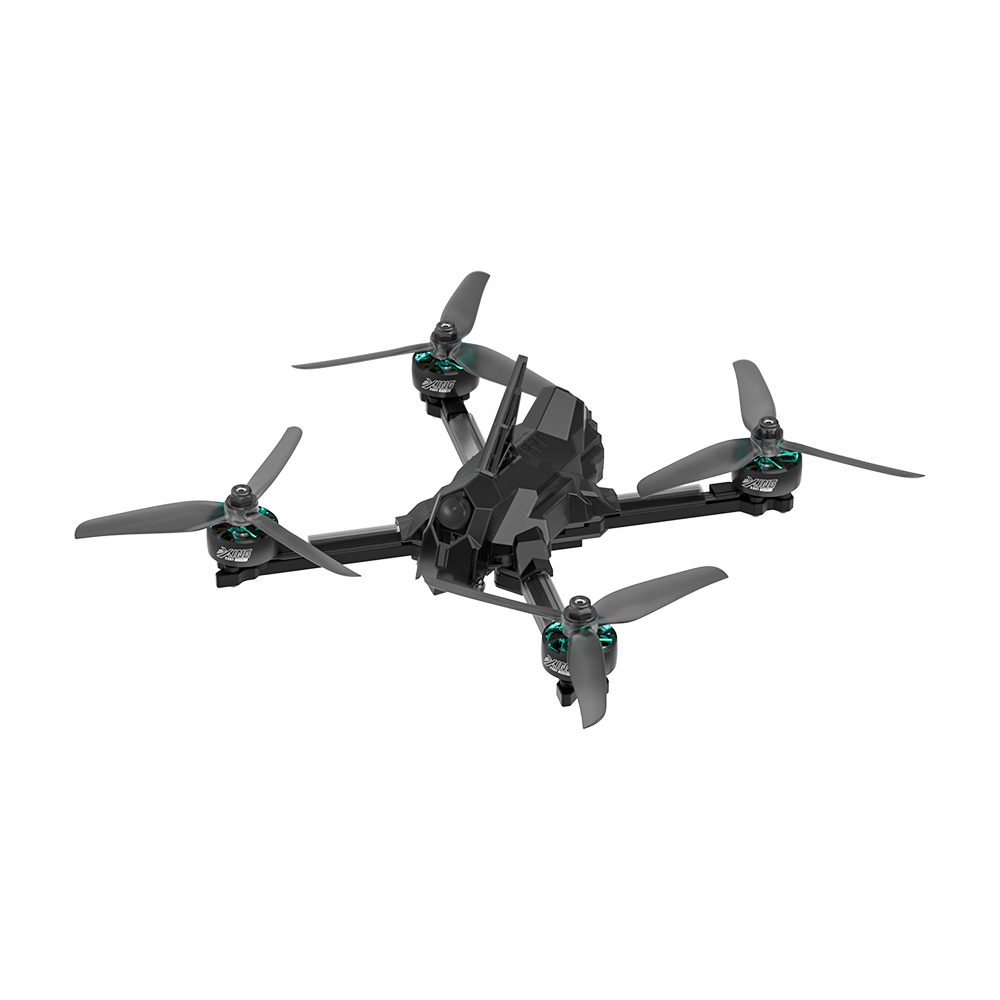

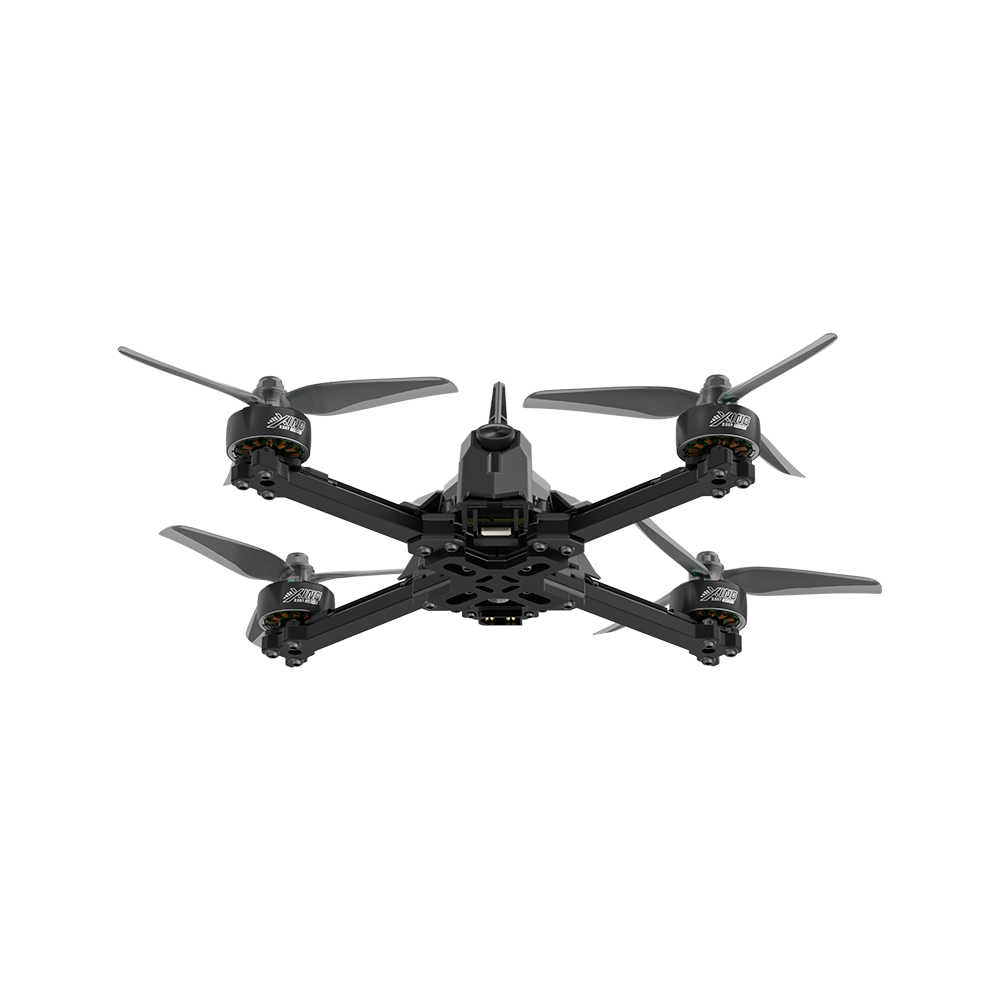

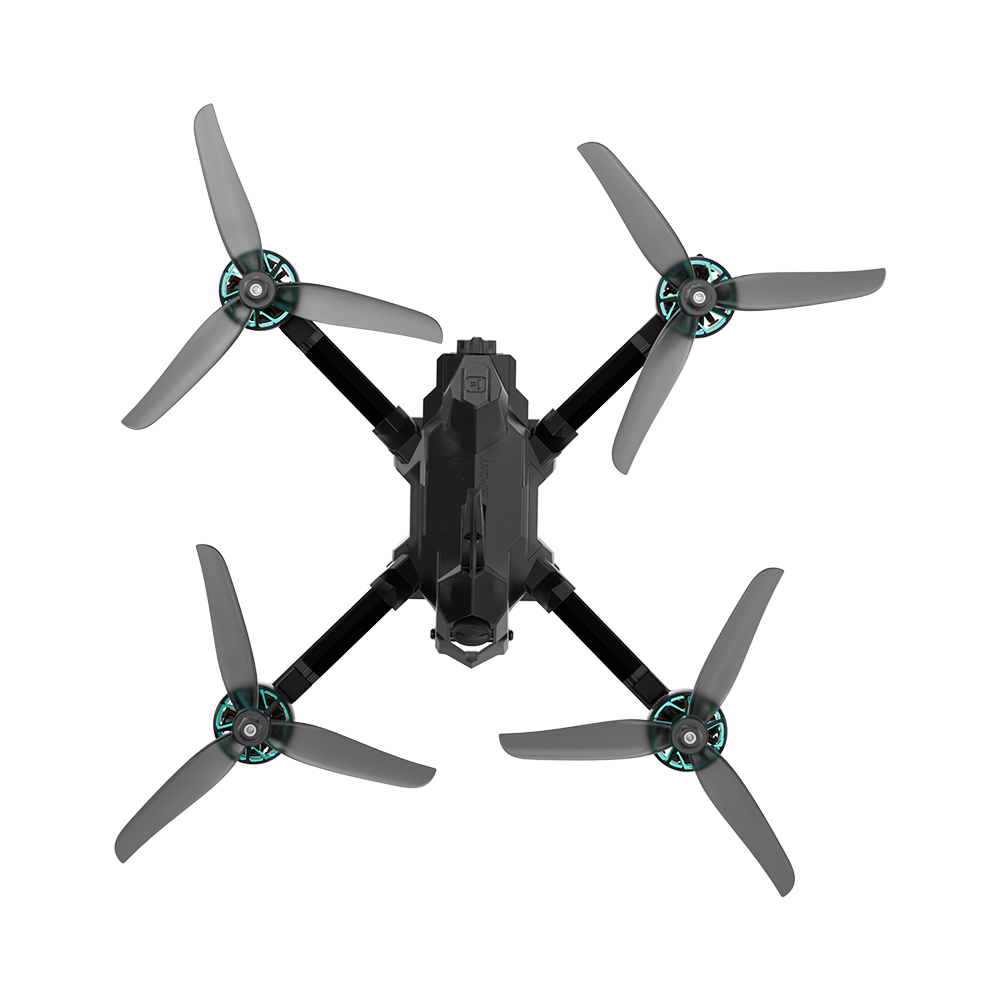

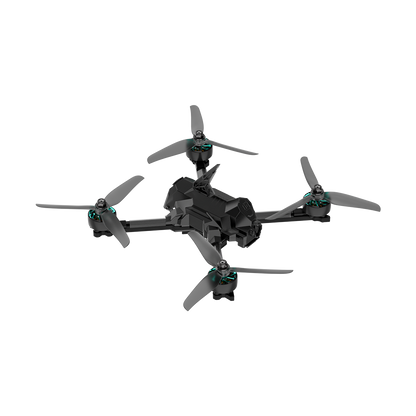

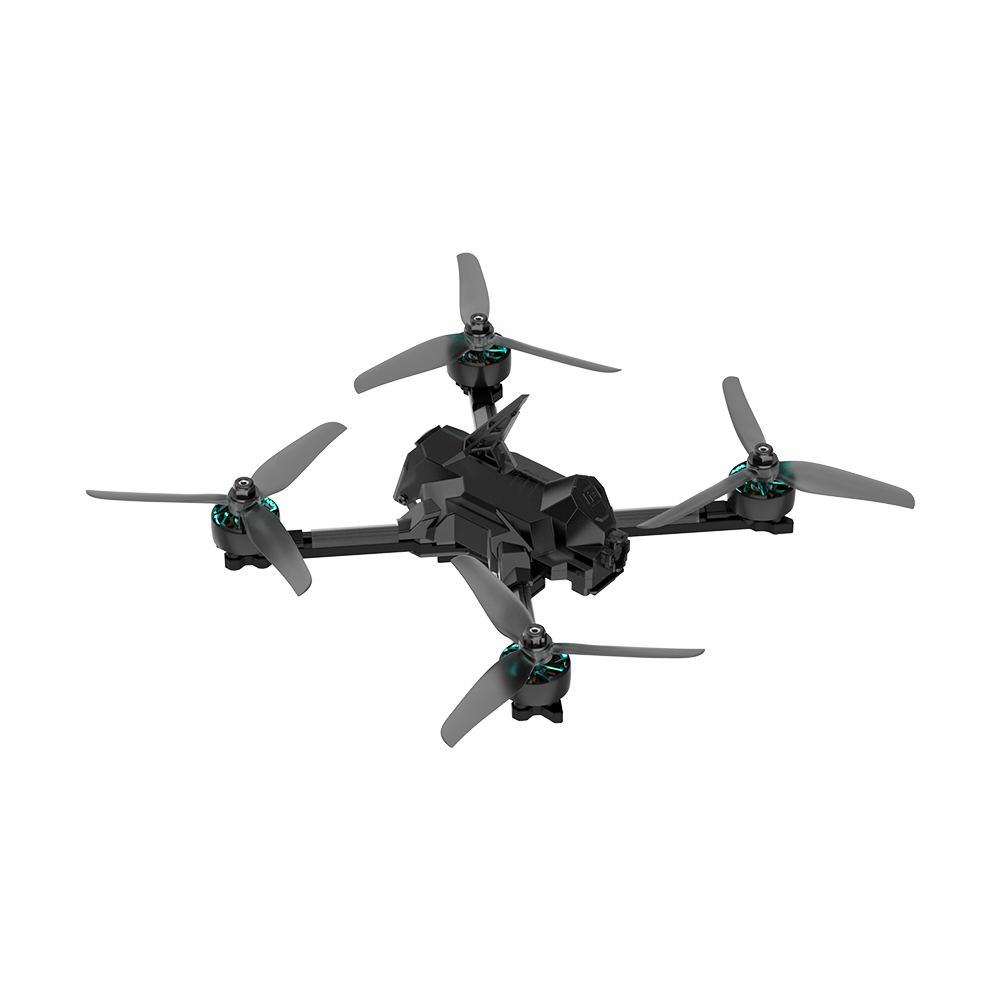

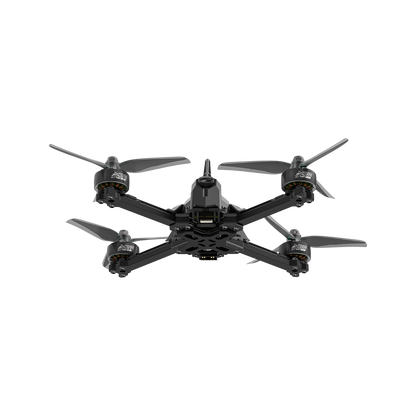

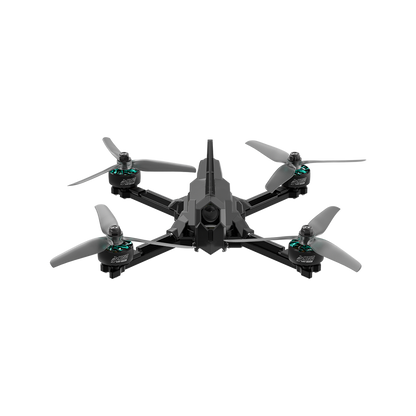

FPV drone iFlight Mach R5 Sport HD Zero 6S BNF 6S PNP
Light and compact
As a well-built 5-inch drone, the Mach R5 Sport weighs only 300 grams. Its redesigned frame ensures precise seating of all components under the cover, maximizing space utilization and overall compactness.
Innovative aerodynamic cover with quick release
The unique cover is designed not only with aerodynamics in mind, but also has a quick-release buckle that enables easy replacement and maintenance with a simple turn. The cover also protects the electronics from dirt and moisture, which increases safety in critical situations.
Convenient to use
The secured battery connector prevents the power cable from getting hit by the propellers, and the built-in antenna protects everything while improving the look of the drone.
The front slot for the receiver makes it easy to replace, and the new design of the cable shield allows the installation of LED strips for protection and damage prevention.
DIY customizable space
Standard mounting holes 20*20, compatible with HDZERO and other VTX.
The antenna holder can be supplemented with silicone pads, adaptable for common VTX antennas.
The cover can be made of carbon sheet with TPU and can be replaced by removing 6 screws.
Specifications: Product Name: Mach R5 Sport 6S HDZero
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ E55R 4-in-1 2-6S 55A ESC
Video transmission: HDZero Race V3 VTX
Camera: HDZero Nano 90 CAM
Frame: 210mm wheelbase
Motor: R5 2207 2050KV motors
Propeller: Nazgul R5 V2 propeller
Weight: 300g
Take-off weight: About 525g (with 6S 1400mAh battery)
Dimensions (L×W): 14814851 mm
Maximum speed: 208 km/h
Maximum take-off altitude: 6000 m
Maximum flight time in place: About 12 minutes (with 6S 1400mAh without load)
Wind Resistance: Level 6
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: One antenna
GNSS: Not available
Video transfer:
Product Name: HDZero Race V3 VTX
Antenna interface: IPEX
Input voltage: 4~12V
Output power: 25 mW, 200 mW
Frequency: 5.725~5.850GHz
FC protocol: Smart Audio/MSP
Weight: 5.5g
Mounting pattern: 20*20mm M4
Dimensions: 32285 mm
Package contents:
1x Mach R5 Sport 6S HDZero BNF
1x Battery strap
2x R5 propellers (pairs)
1x Battery pad
