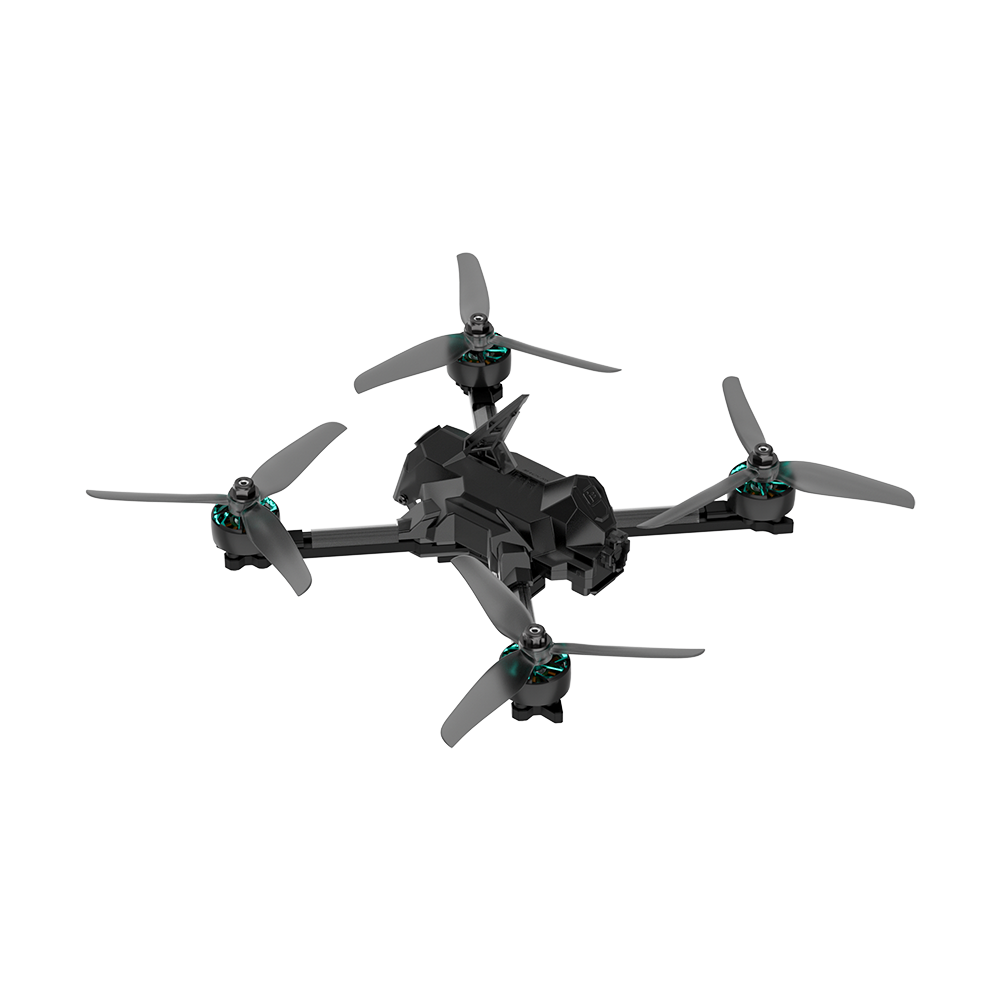

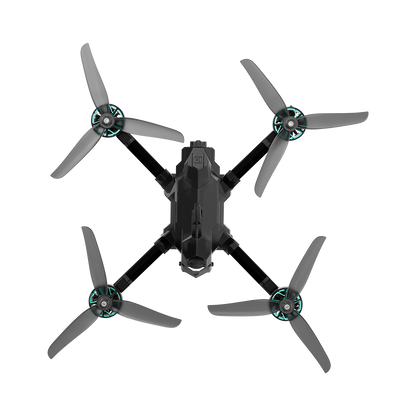

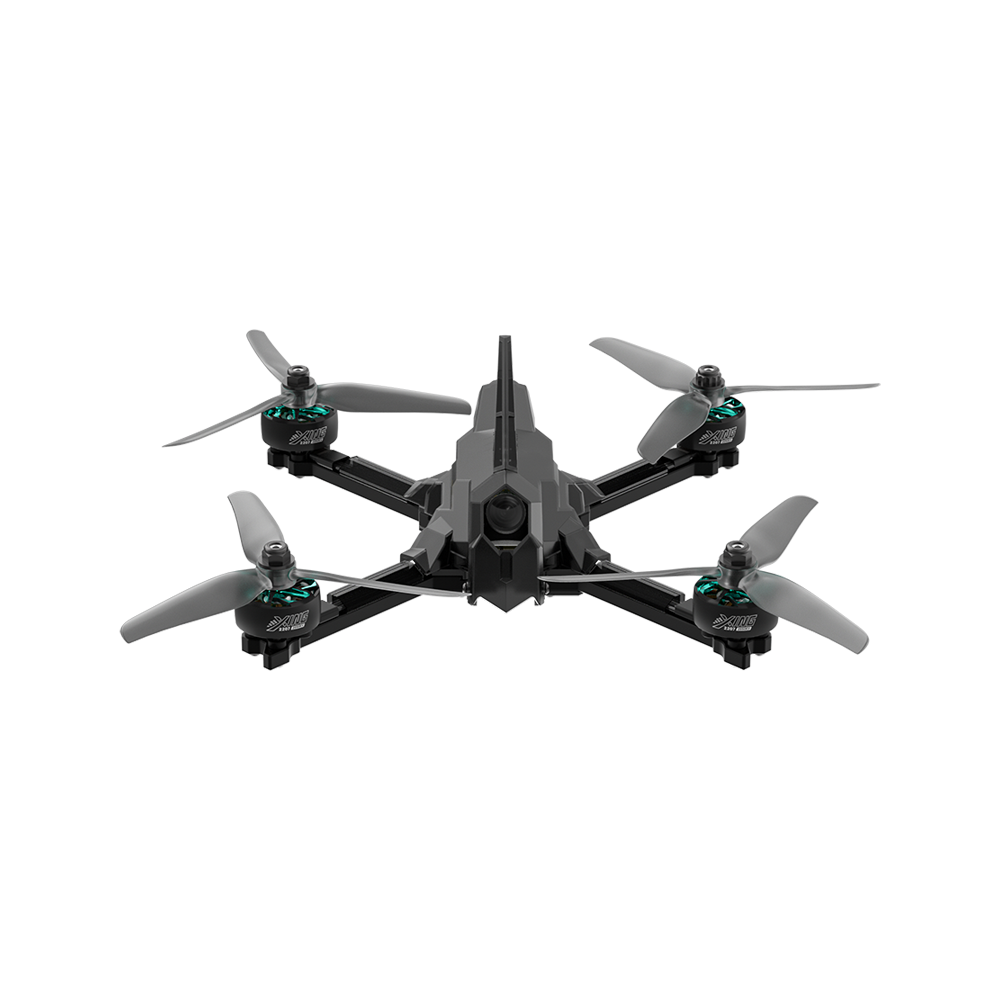

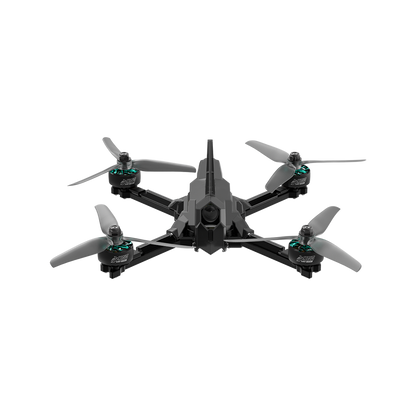

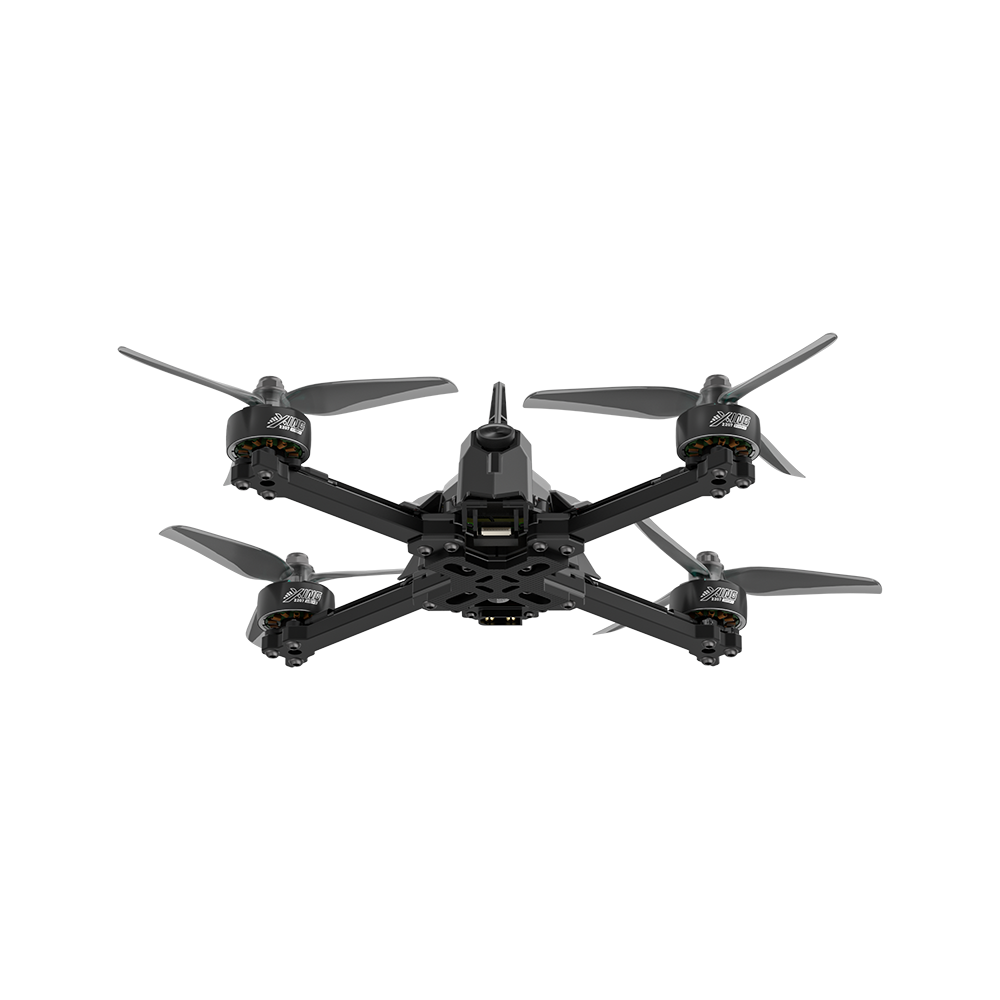

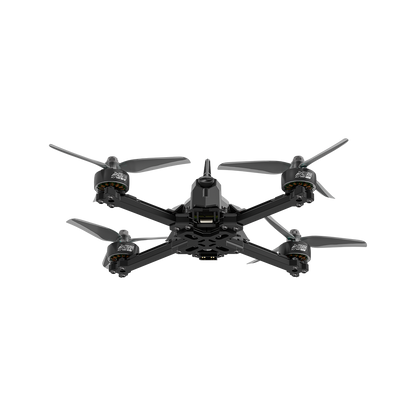

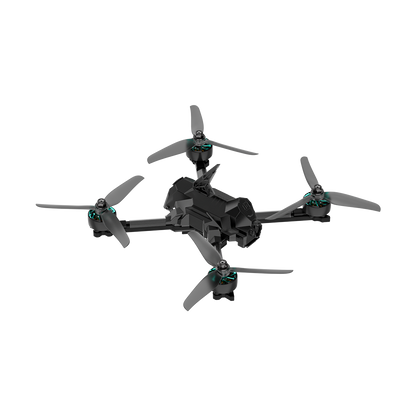

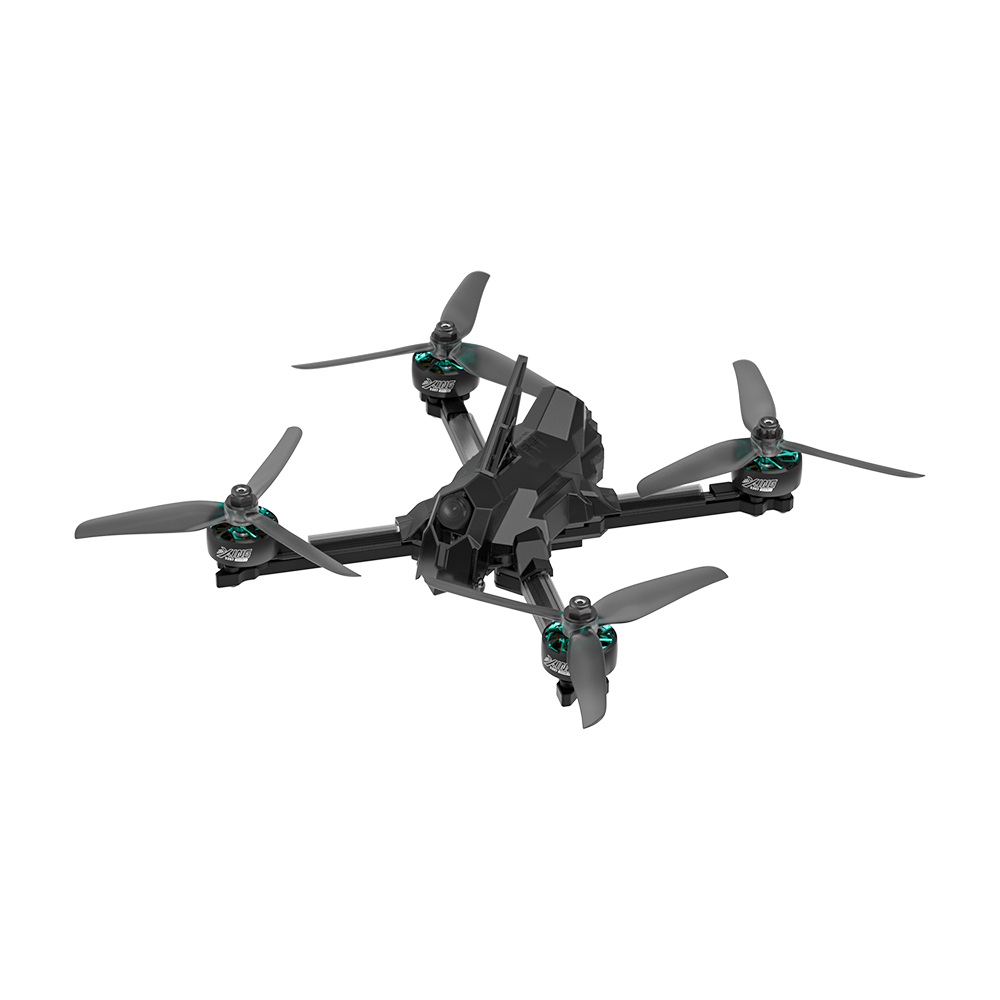

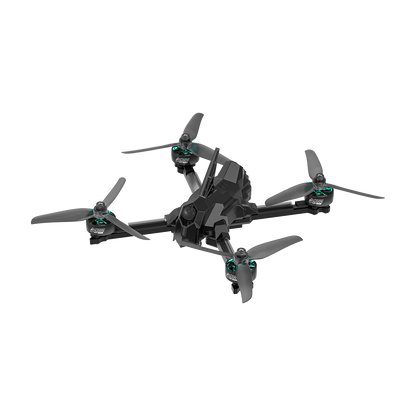

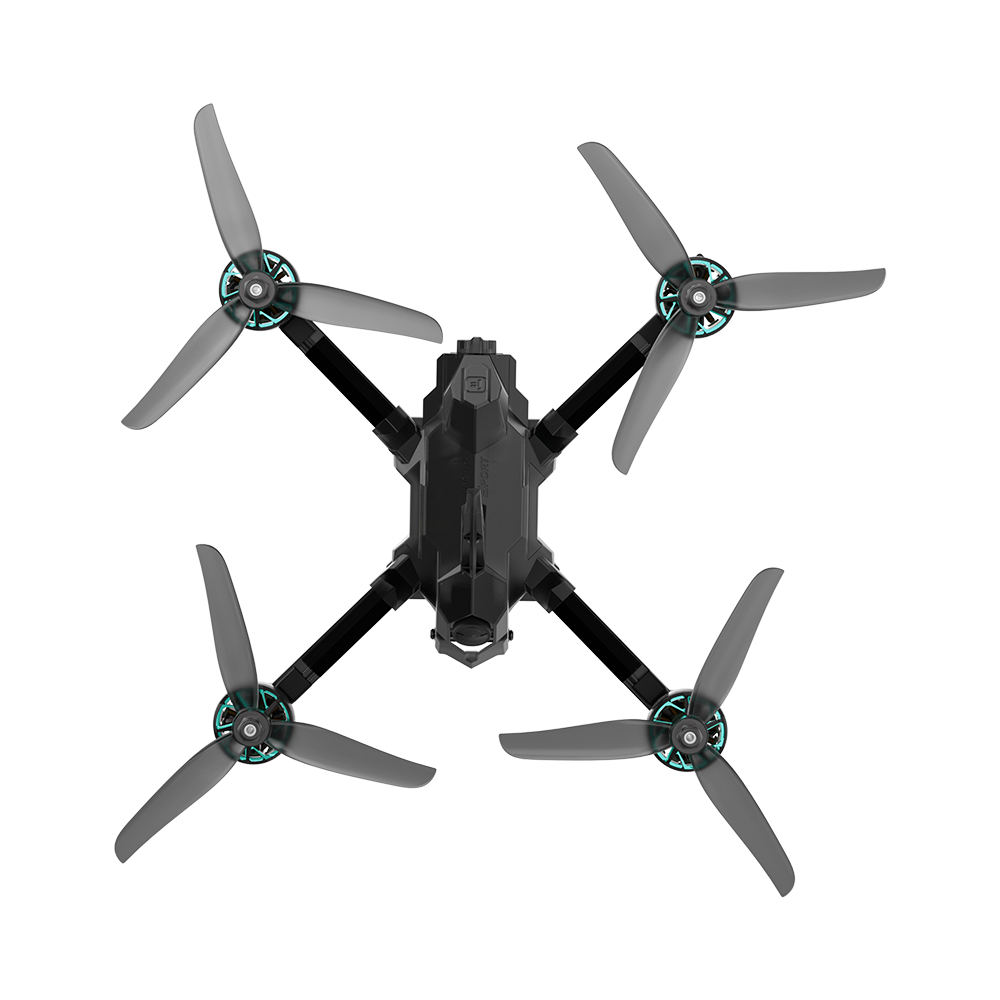

Mach R5 Sport Analog 6S BNF (TBS)
Function:
- Light and compact -
As a well-built 5-inch drone, the Mach R5 Sport weighs just 302 grams. Its redesigned frame layout ensures precise seating of all components inside the canopy, maximizing space utilization and overall compactness.
- Innovative quick release Aero Sell -
The unique canopy is not only designed with aerodynamics in mind, but also features a quick release buckle for easy replacement and maintenance with just a twist. The shell also helps protect the electronics from dirt and moisture, so you can be more confident in critical situations.
Comfortable user experience
- Secured battery plug to prevent the power cable from being hit by the propellers, and with a built-in antenna to keep everything well protected and improve the overall appearance.
- The receiver slot on the front makes it easy to replace the receiver, and the new design of the wire shield tubes can place the LED strips for protection, effectively preventing damage.
- DIY customized space
- Standard 20*20 mounting holes, compatible with HDZERO and other VTX.
- The antenna holder can be supplemented with silicone pads that adapt to more common VTX antennas.
- Cabin cover available in carbon plate with TPU, it can be replaced by removing 6 screws.
Specifications:
Product name: Mach R5 Sport 6S Analog
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC
Video transmission: BLITZ Force VTX 600mW
Camera: RaceCam Micro 1200TVL
Frame: wheelbase 210 mm
Motor: R5 2207 2050KV motors
Prop: Nazgul R5 V2 propeller
Takeoff Weight: Approx. 295 g (without battery)
Dimensions (LxW): 148*148*51 mm
Maximum speed: 208 km/h
Maximum take-off height: 6000 m
Maximum Hover Time: Approx. 12 minutes (with 6S 1400mAh without load)
Maximum Wind Speed Resistance: Level 6
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: One antenna
GNSS: N/A
Receiver option: TBS Crossfire Nano RX
Video transfer:
Product name: BLITZ Force VTX 600mW
Output power: 0-25-200-400-600 mw
Input voltage: 5V
Operating current: ≤ pit @ 80 mA, ≤ 25 mw @ 280 mA, ≤ 100 mw @ 405 mA, ≤ 400 mw @ 485 mA, ≤ 600 mw @ 575 mA
Free gear: 40CH (A-B-E-F-R)
Antenna interface: MMCX
Mounting hole: 20×20/Φ3mm/25×25/Φ2mm
Weight: 4g (W/O antenna)
Dimensions: 29×29 mm
The package includes:
1 x Mach R5 6S Sport Analog BNF
1 x battery strap
2 x R5 Prop (pairs)
1 x battery pad
