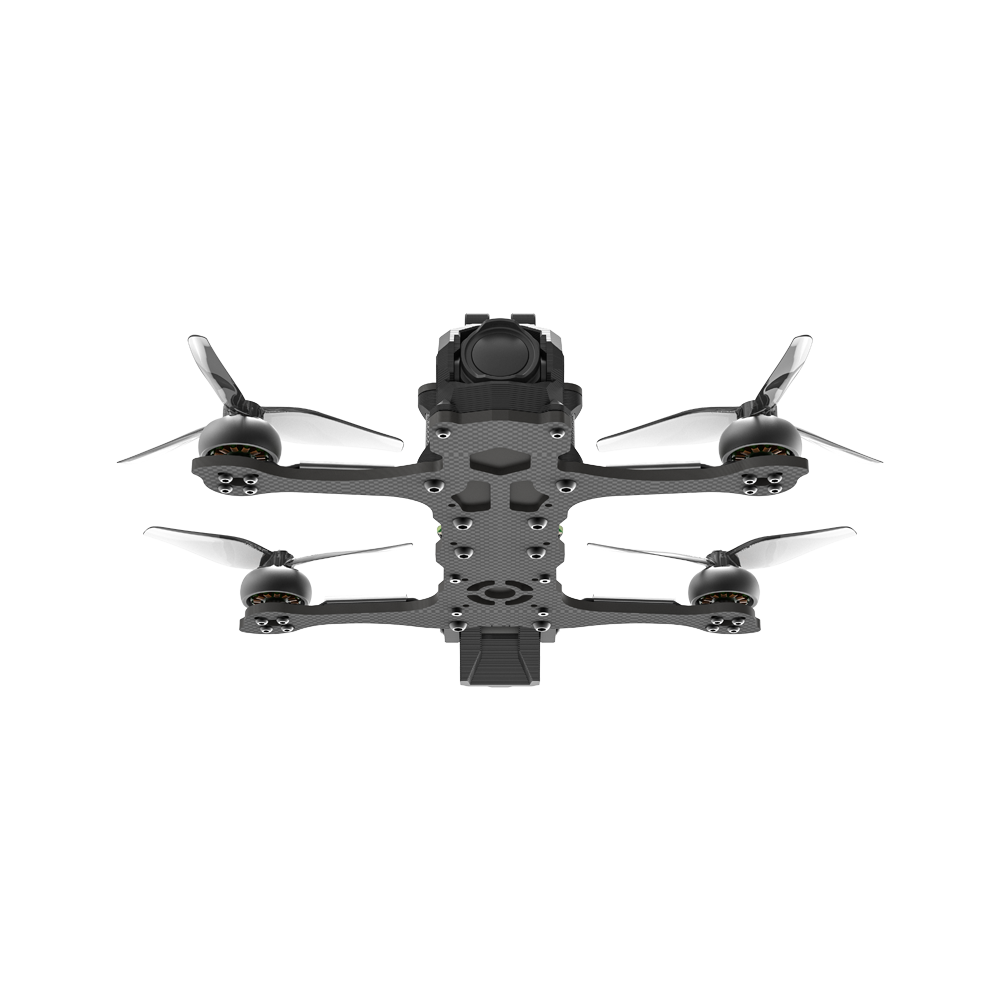

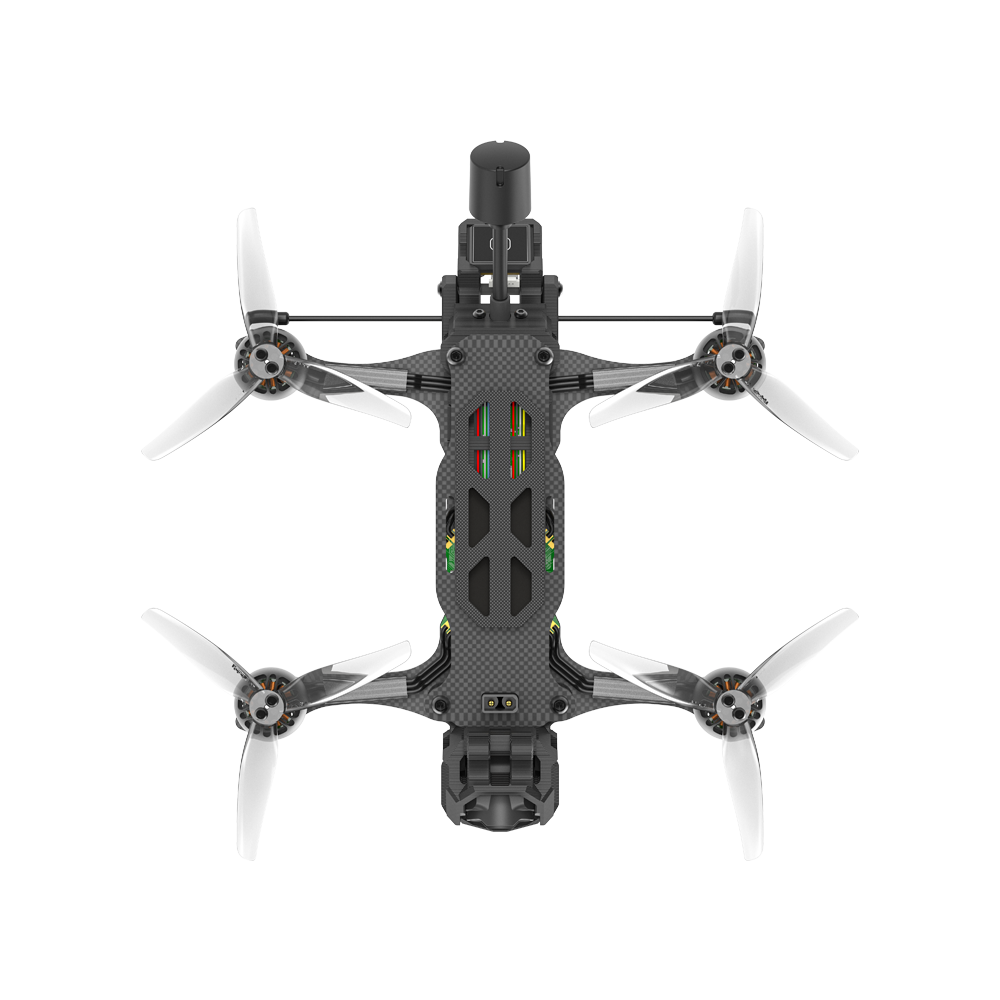

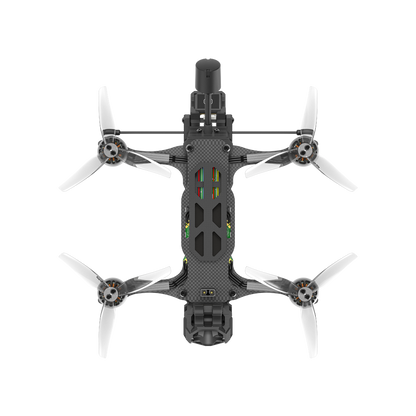

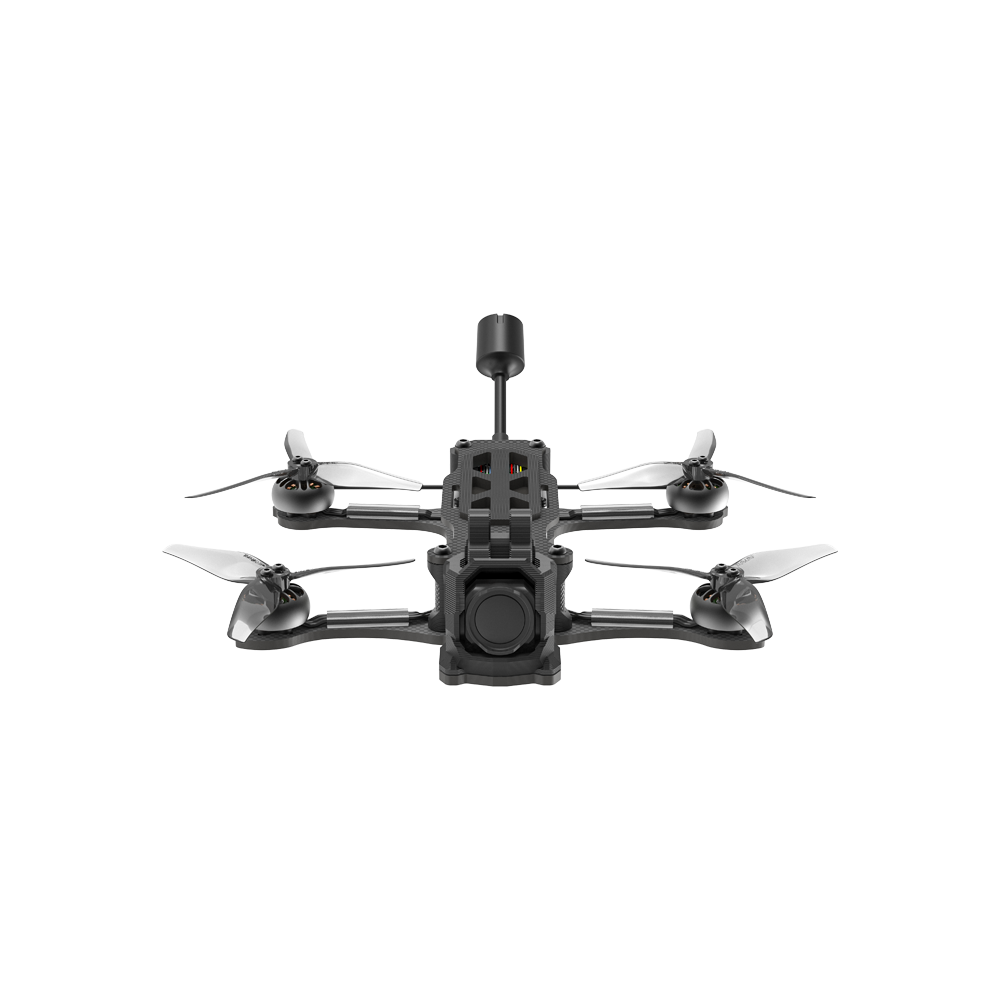

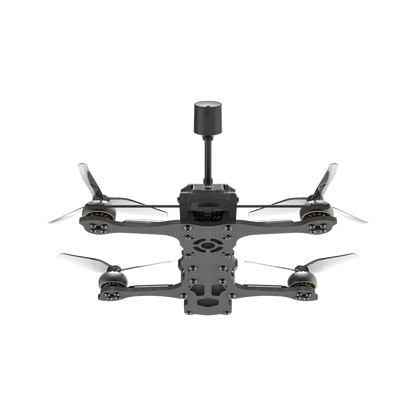

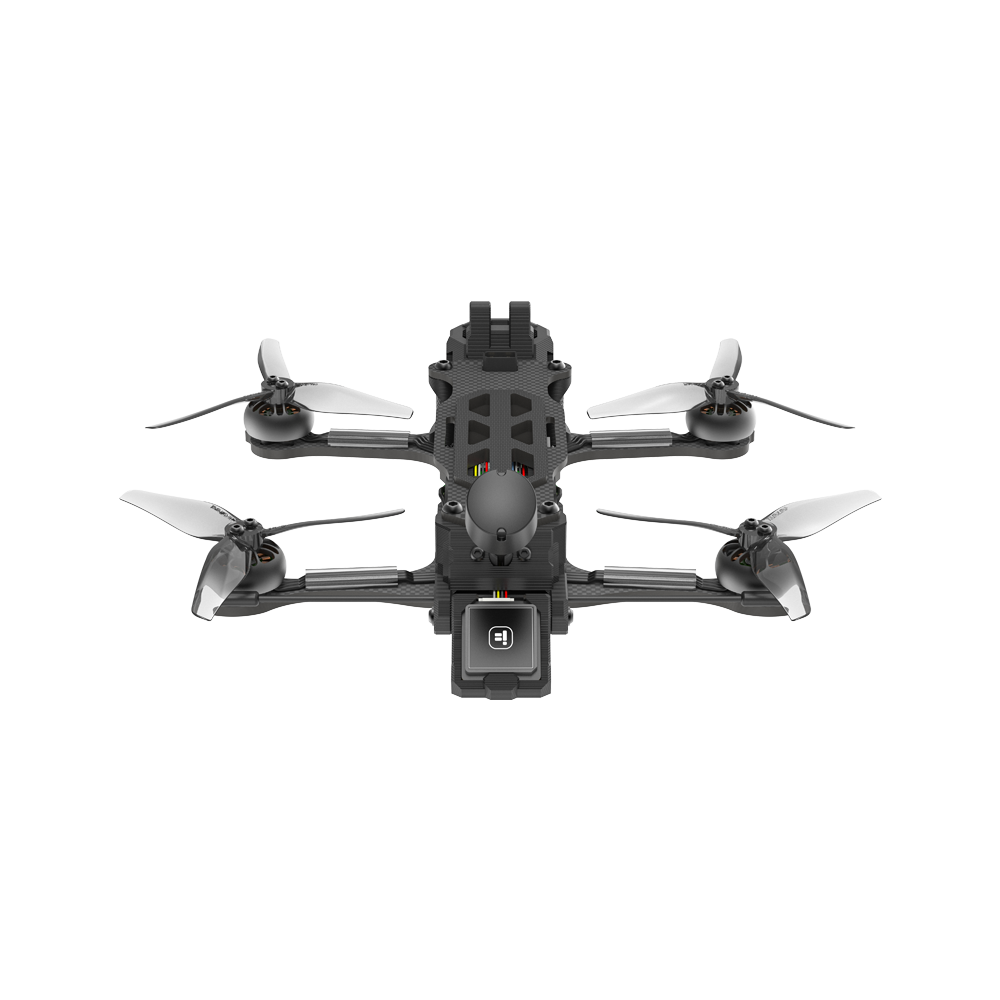

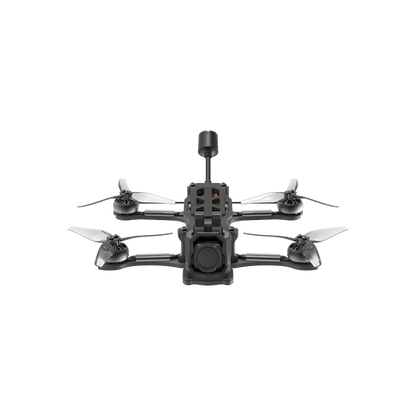

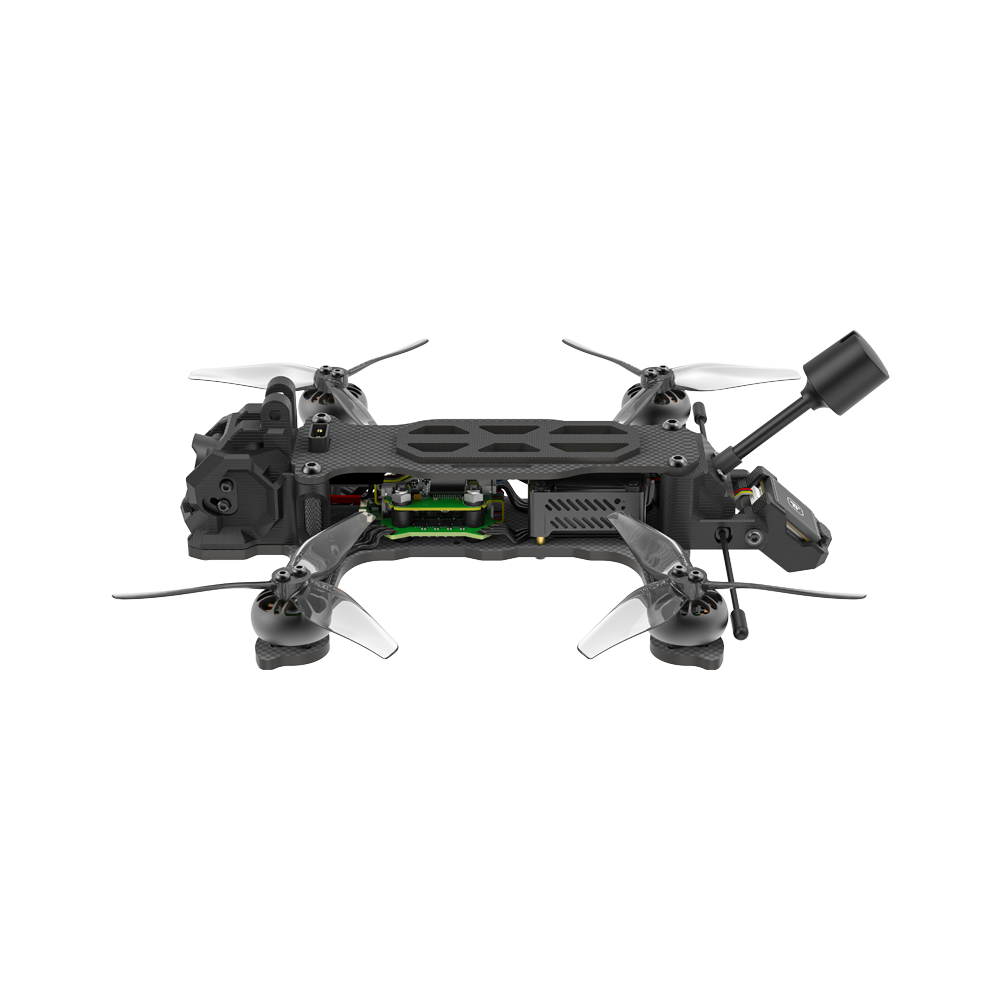

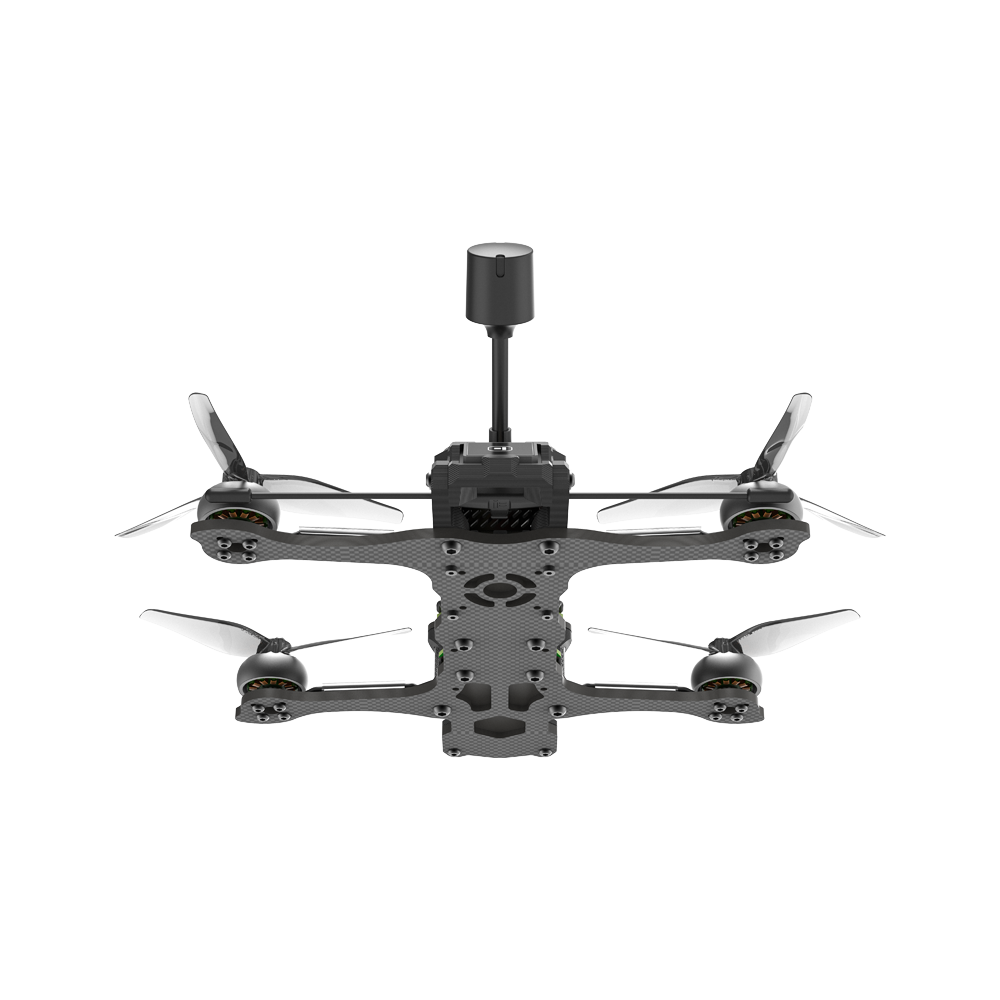

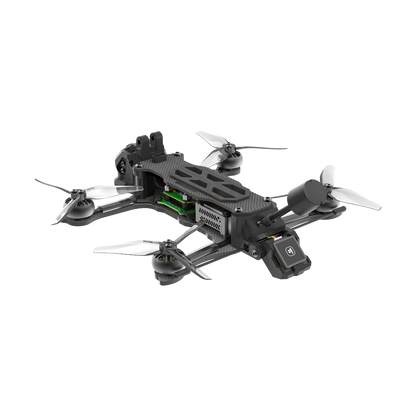

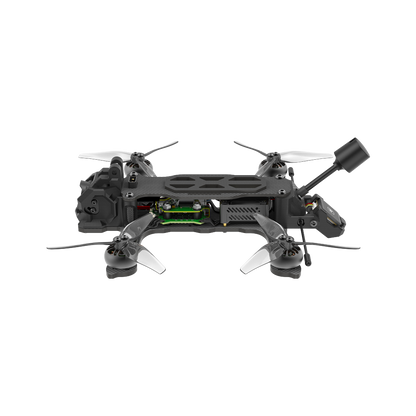

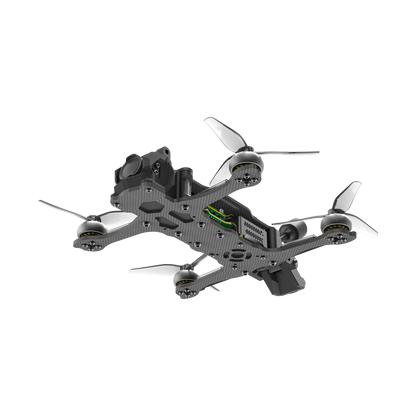

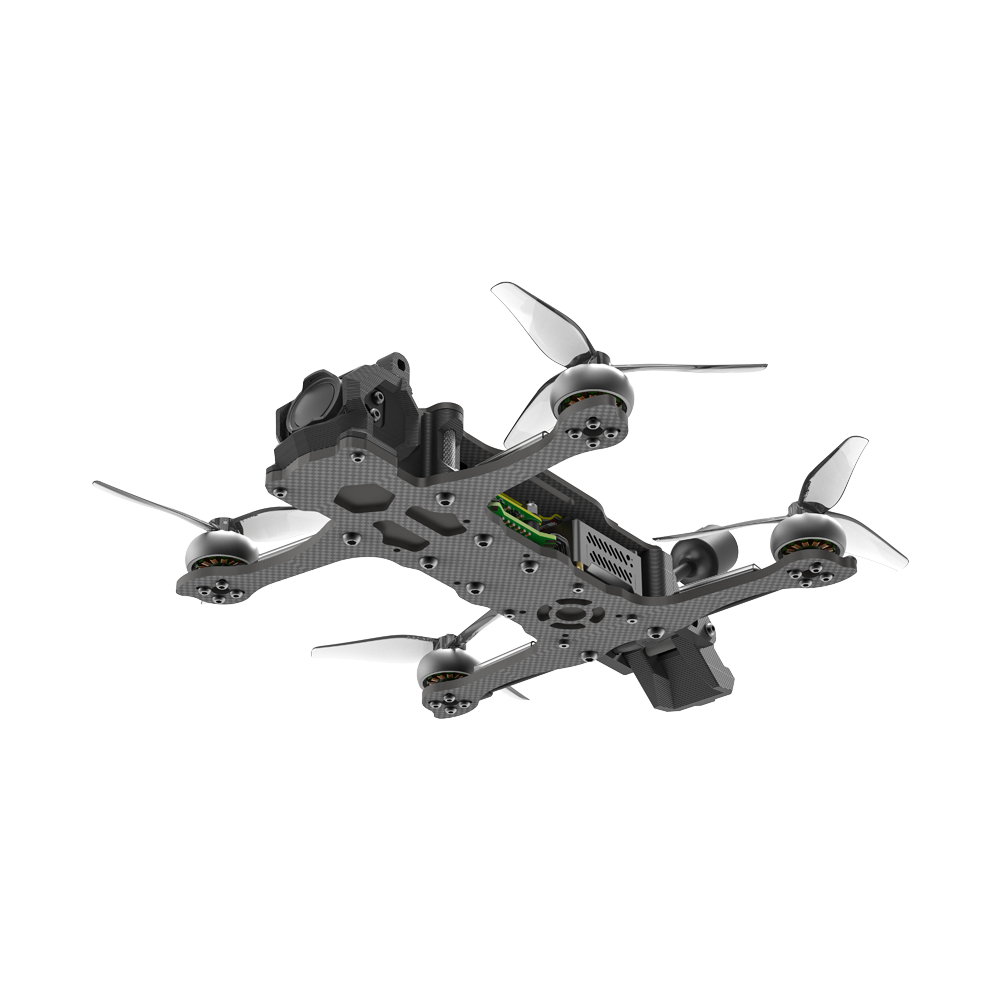

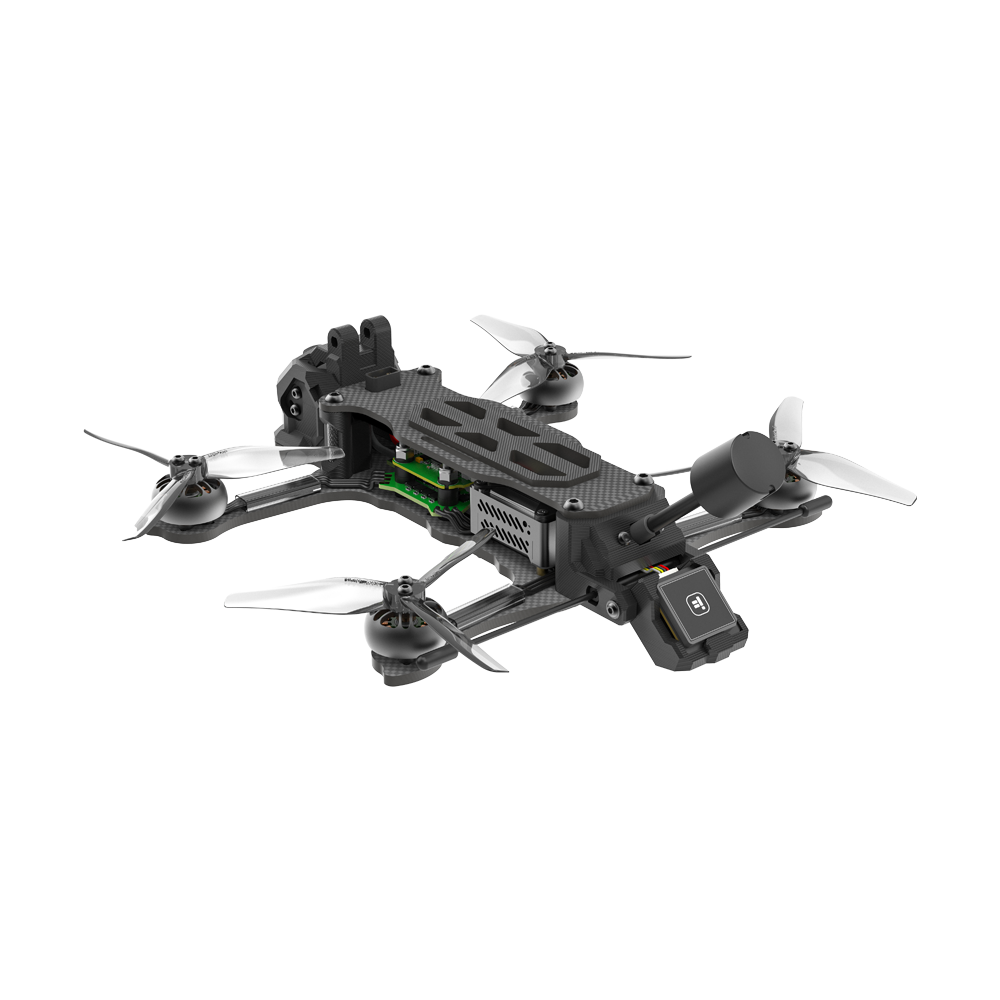

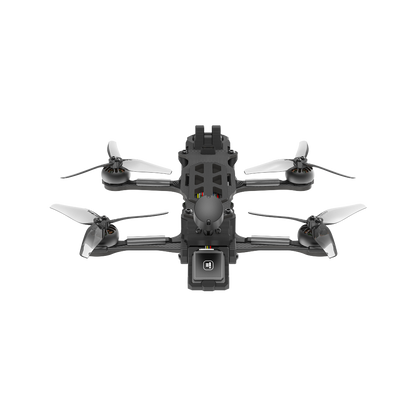

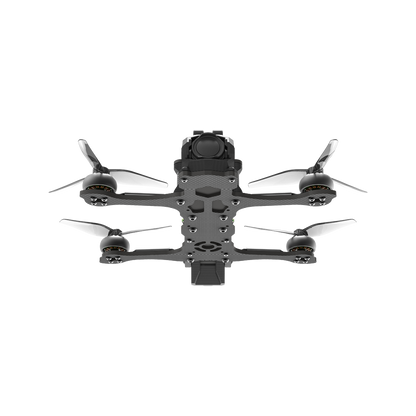

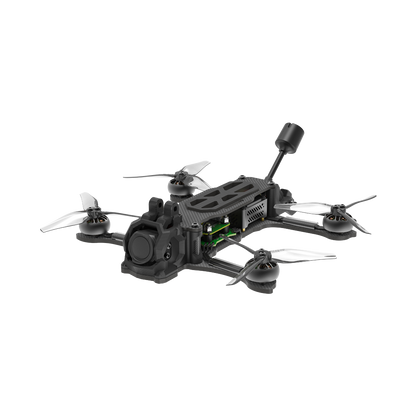

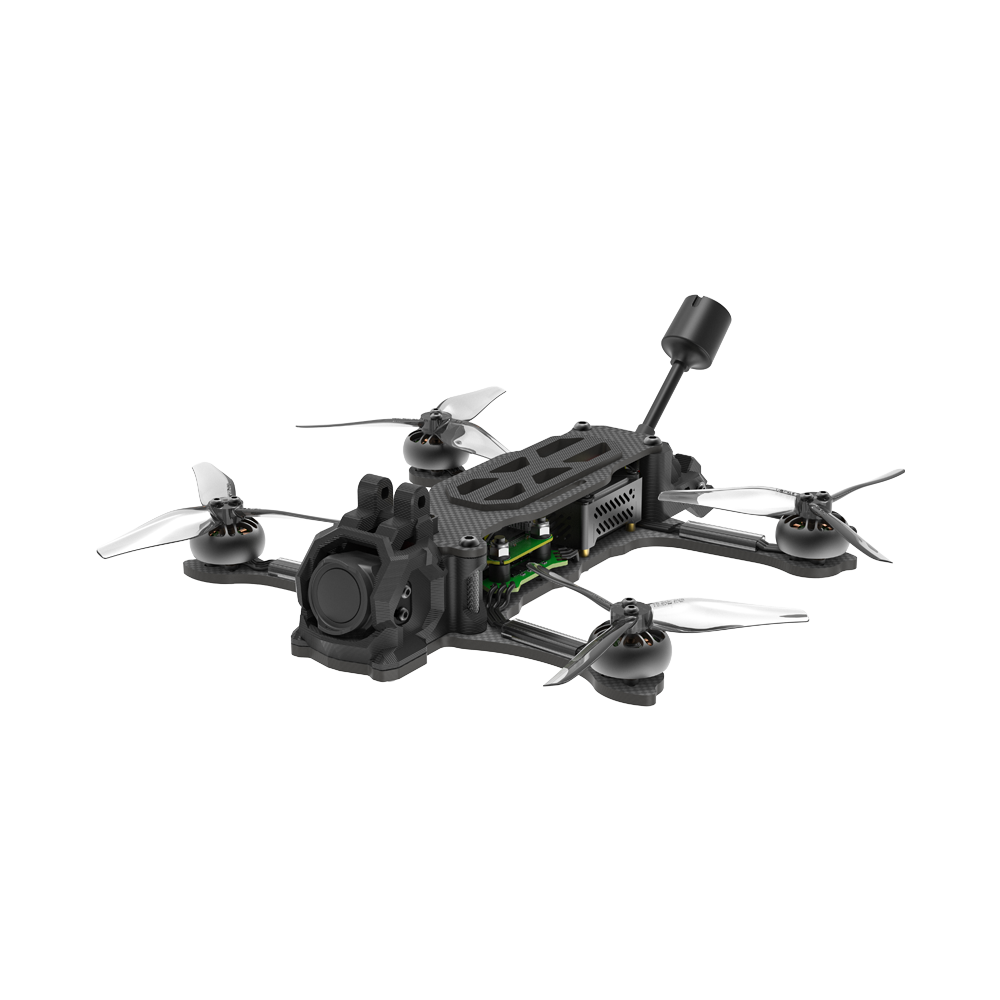

iH3 HD O3 Air Unit 4S BNF ELRS 2.4GHz
Function:
- DJI O3 HD Air Unit digital transmission with low latency
- 4K stabilized video with 155° ultra-wide angle
- Secure battery plug with spark filter
- Pre-installed GPS for greater safety at a distance
- Special canopy for carrying naked GoPro or Gopro Bones.
- H-shaped frame design for balance, no supports in sight.
Specifications:
Product name: iH3 O3 4S HD BNF
FC: BLITZ Mini F7 FC
ESC: BLITZ Mini E55 4-IN-1 ESC
Video transmission: DJI O3 Air Unit
Geometry: H-shaped
Frame: 168 mm (wheelbase)
Motor: XING 1504 3100KV motors
Propeller: HQ 3.5*2.5*3 propeller
Aircraft Weight: Approx. 216 g (without battery)
Dimensions (L×W×H): 135×100×40 mm (from canopy)
Maximum speed: 110 km/h (manual mode)
Maximum take-off height: 3200m
Maximum transition time:
Approx. 12 minutes (no load with 4S 850mAh battery)
Approx. 18 minutes (no load with 4S 1050mAh battery)
Maximum Wind Speed Resistance: Level 5
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: DJI O3 Air Unit Dual band antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Receiver option: iFlight ELRS 2.4 GHz RX
Video transfer
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (including headband)
Dimensions (L×W×H): L32.5 * W30.5 * H 14.5 mm
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
End-to-End latency
With DJI FPV Goggles V2:
-810p/120fps Video transmission quality: Latency is lower than 28ms.
-810p/60fps Video transmission quality: Latency is less than 40ms.
With DJI Goggles 2:
Video transmission quality -1080p/100fps: Latency is only 30ms.
Video transmission quality -1080p/60fps: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x iH3 O3 4S HD BNF (ELRS2.4)
1 x DJI O3 Air Unit Antenna
1 x battery pads
1 x Prop (Pair)
1 x bag of screws
1 x Gopro Bare Cable
