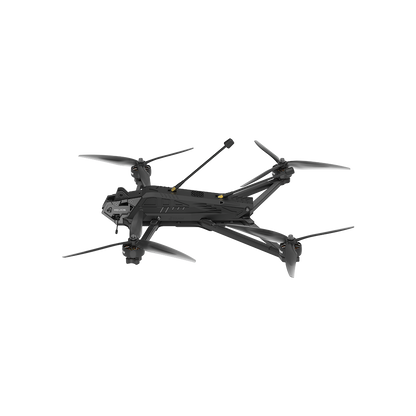

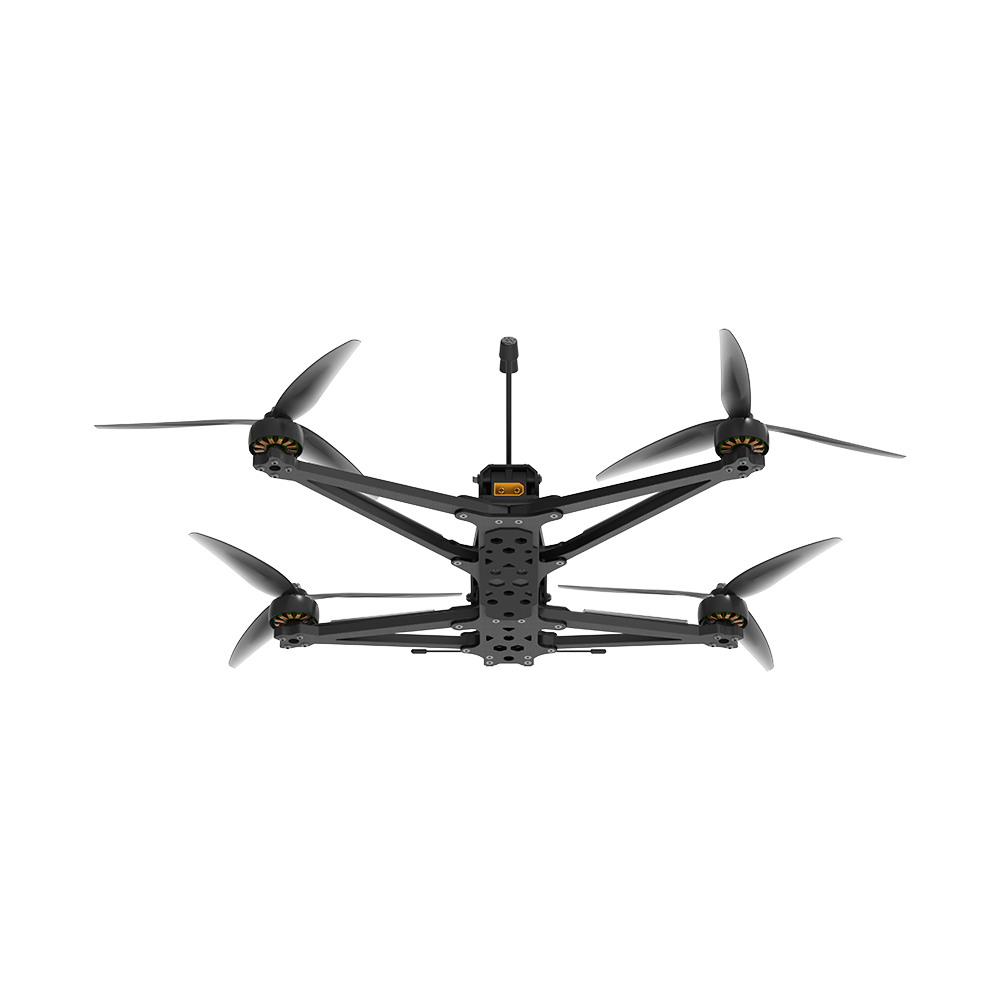

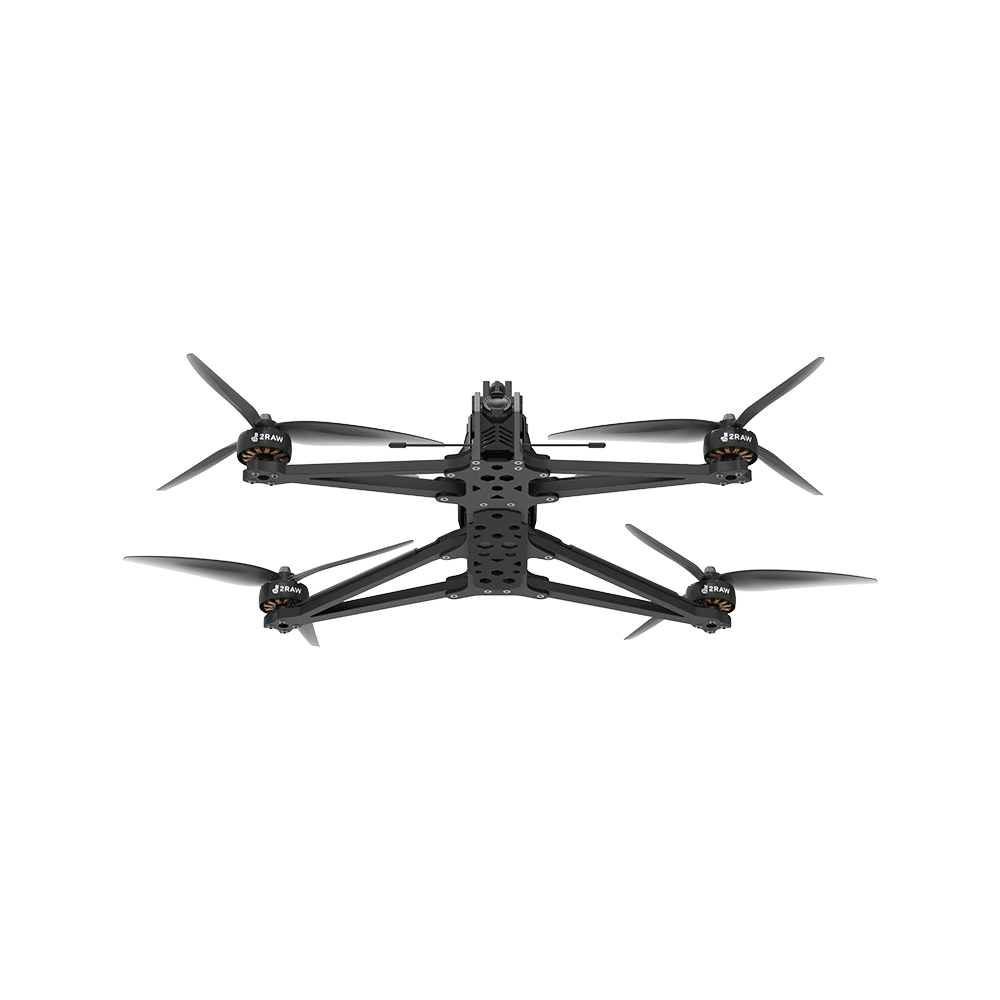

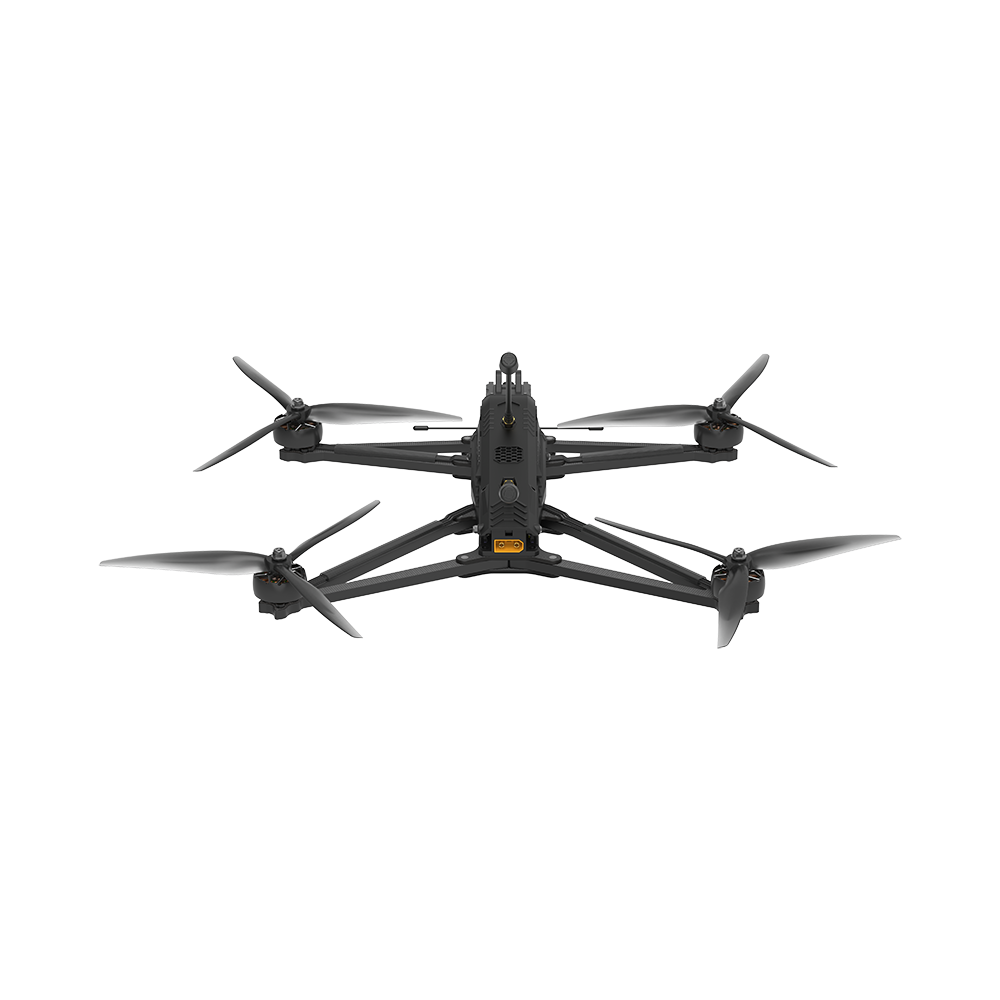

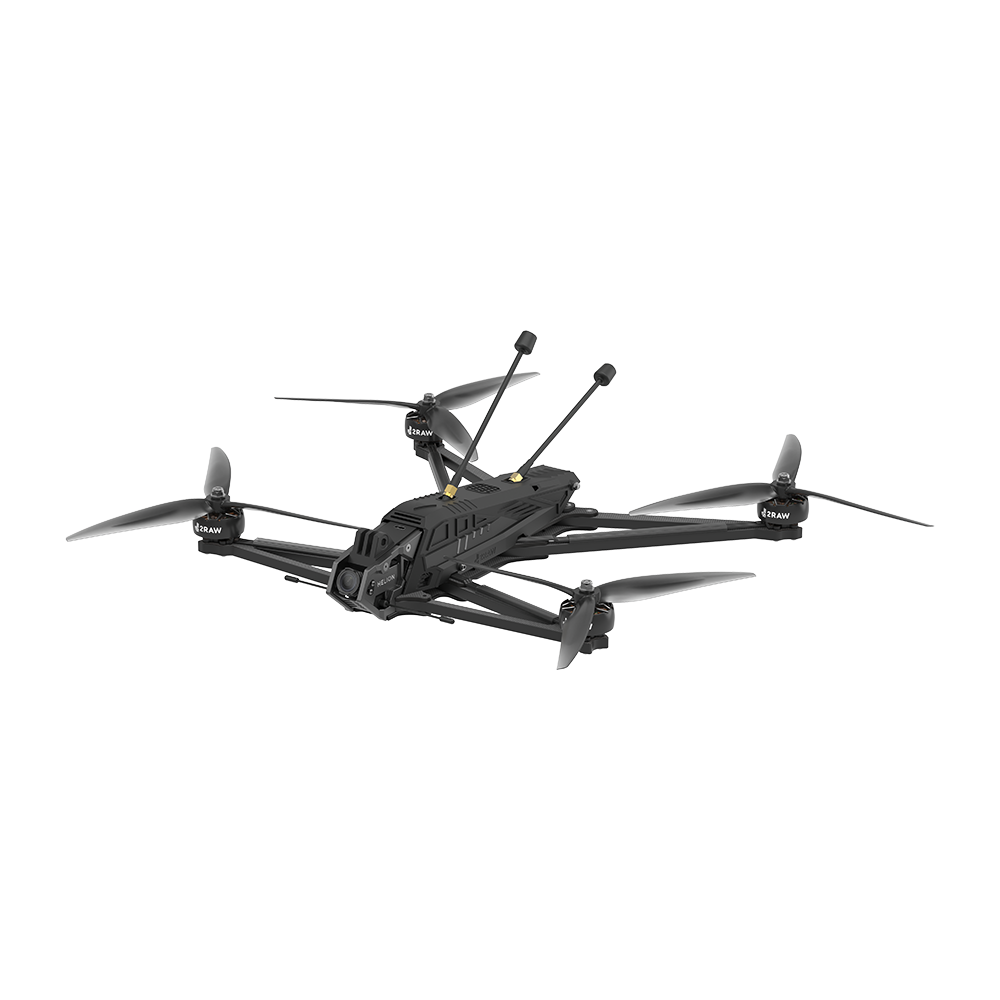

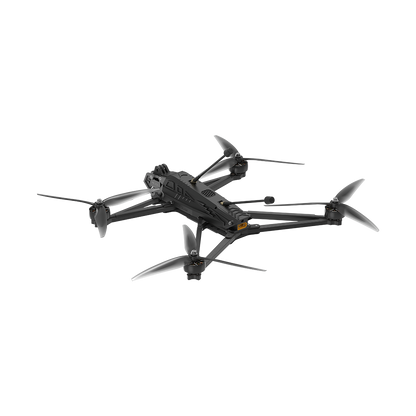

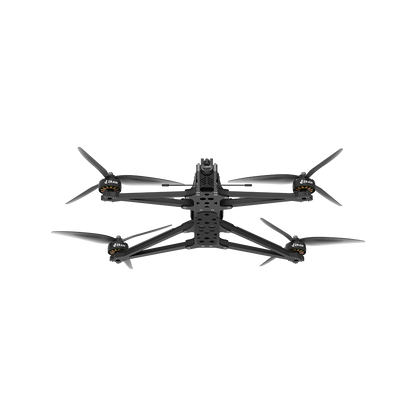

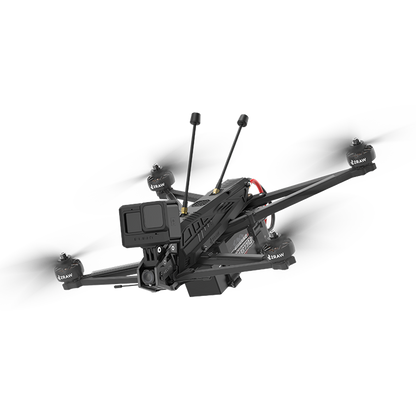

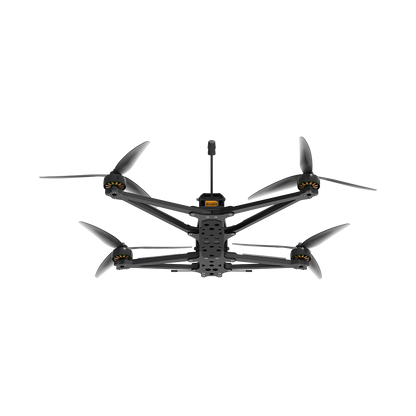

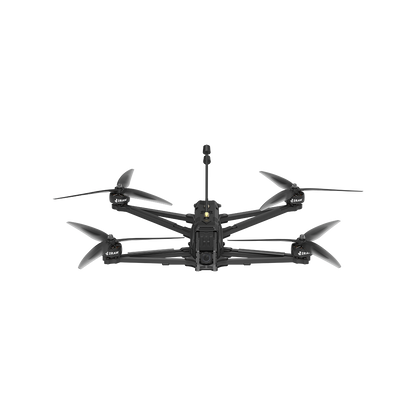

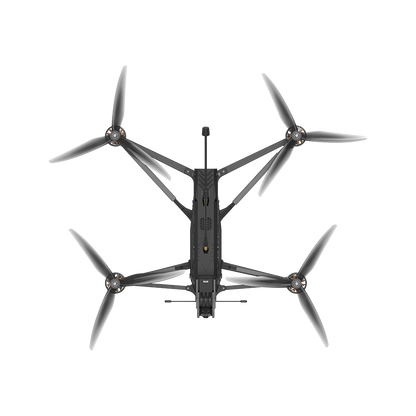

Air unit Helion 10 HD O3 6S BNF (ELRS 868/915 MHz)
HELION - Long range flagship from 2RAW and iFlight
This drone was designed to revolutionize long-distance flight. It meets the requirement for increased range and flight time while maintaining stability even in windy conditions. With 10-inch propellers, the Helion can effectively carry large batteries (4500mAh Lipo and above recommended), providing better overall control compared to traditional long-range drones. Its aerodynamic fairing allows for easy maintenance while protecting the drive train. The Helion's frame design has been scientifically optimized to balance stability, weight and stiffness.
Function:
- Optimized engines and propellers.

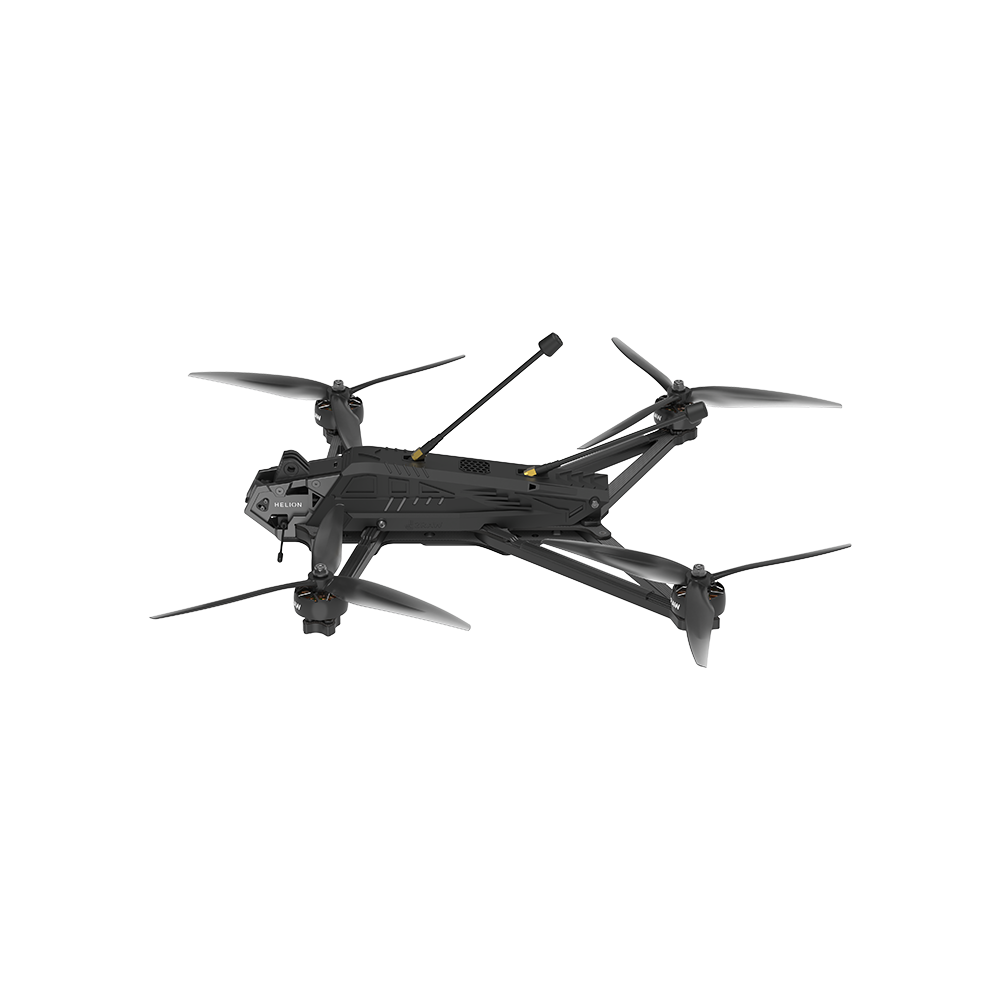

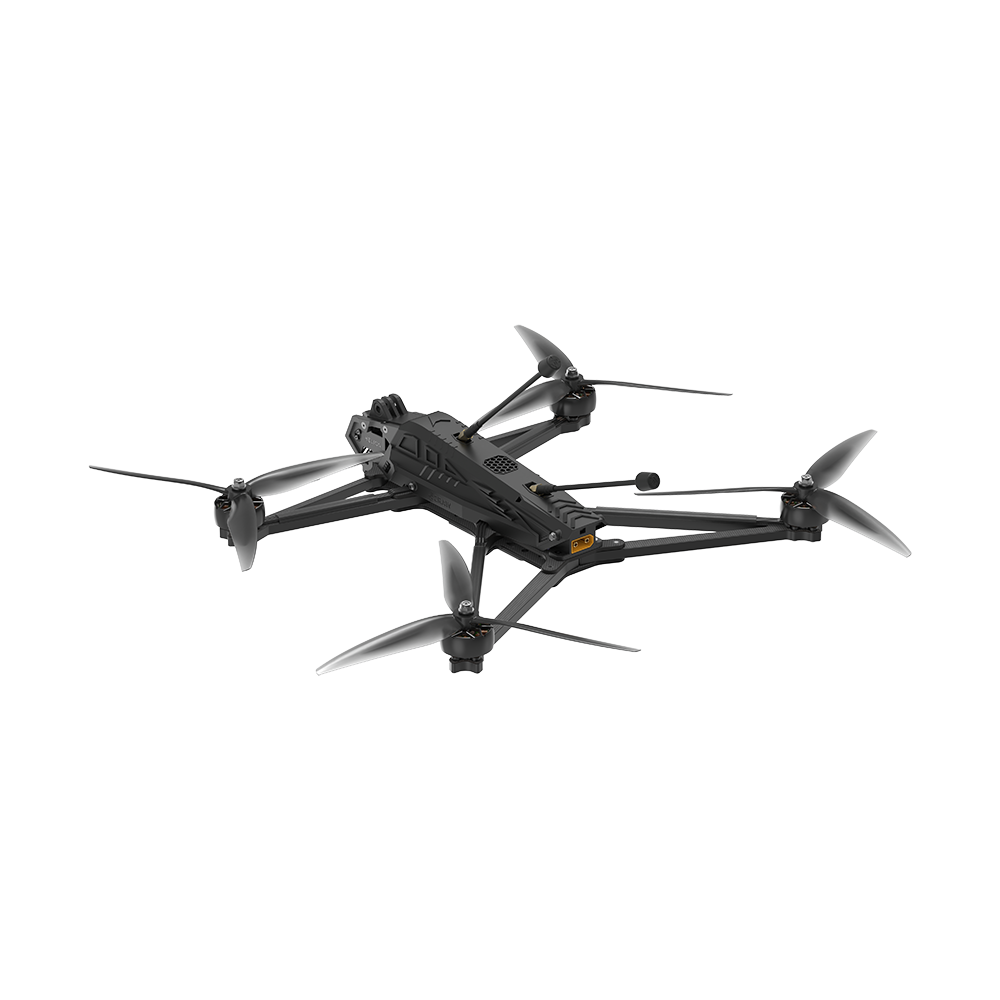

- Unique aerodynamic shell. Users can simply open and close the cover while working on the drone.

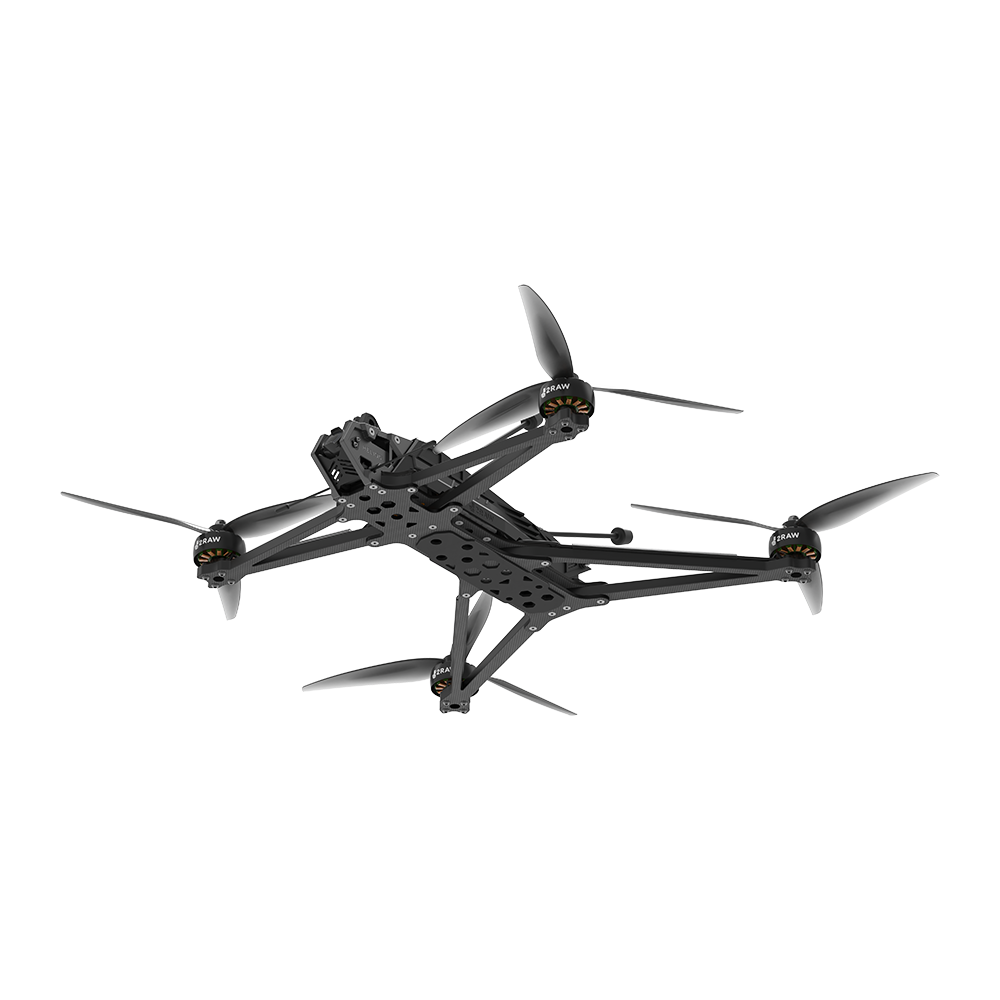

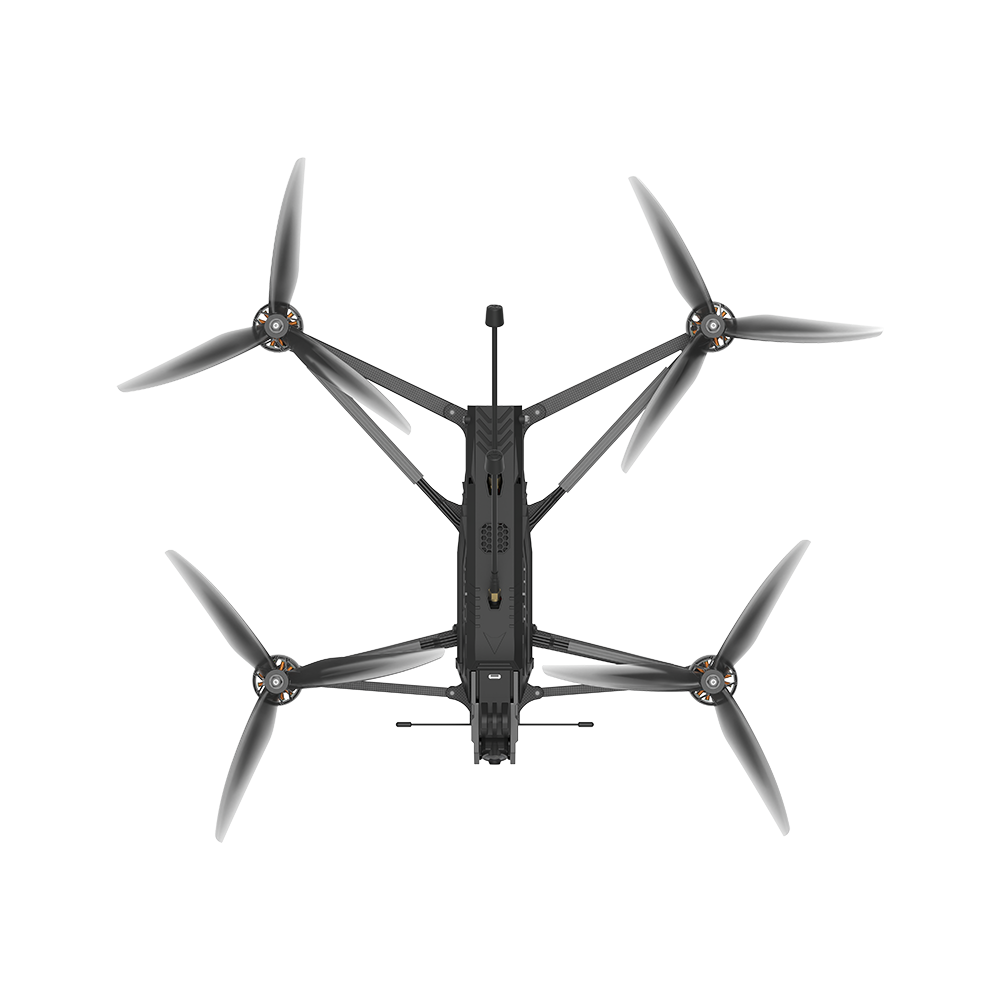

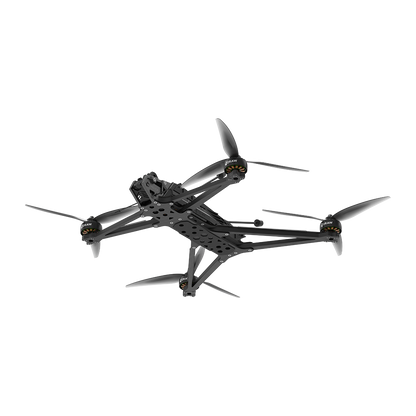

- Innovative A-frame for maximum performance. The A-Frame construction minimizes vibration as well as twisting, which is one of the biggest problems with larger drones.
- USB-C power supply.
- DJI O3 HD Air Unit Low Latency Digital Transmission.
- 4K stabilized video with 155° ultra-wide angle.
- Pre-installed GPS for greater safety at a distance.
Specifications:
Product name: Helion10 O3 6S HD
FC: BLITZ F7 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video transmission: DJI O3 Air Unit
Geometry: A-Frame
Frame: wheelbase 418 mm
Motor: XING2 3110 900KV motors
Propeller: GEMFAN 1050 propeller
Receiver option: iFlight ELRS 868/915MHz RX
Weight: 950±20g (without battery)
Dimensions (L×W×H): 324x264x63mm
Maximum speed: 140 km/h
Maximum take-off height: 7000 m
Maximum Hover Time: Approx. 26 minutes with 6S Lipo 5600mAh battery / 30 minutes with 6S 8000mAh Li-ion battery
Maximum sailing time: Approx. 23 minutes with 6S Lipo 5600mAh battery / 26 minutes with 6S 8000mAh Li-ion battery
Operating temperature range: -20° to 40° C
Antennas: Dual antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Video transfer
Product Name: DJI O3 Air Unit
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End latency
With DJI FPV Goggles V2:
- 810p/120fps video transmission quality: Latency is lower than 28ms.
- 810p/60fps video transmission quality: Latency is lower than 40ms.
With DJI Goggles 2:
- 1080p/100fps video transmission quality: Latency is only 30ms.
- 1080p/60fps video transmission quality: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x Helion 10 6S HD (iFlight ELRS 868/915 MHz RX)
2 x battery pad
2 x GEMFAN 1050 propellers (pairs)
2x battery strap
1 x bag of screws
1 x Amass XT90 to XT60 H adapter cable
