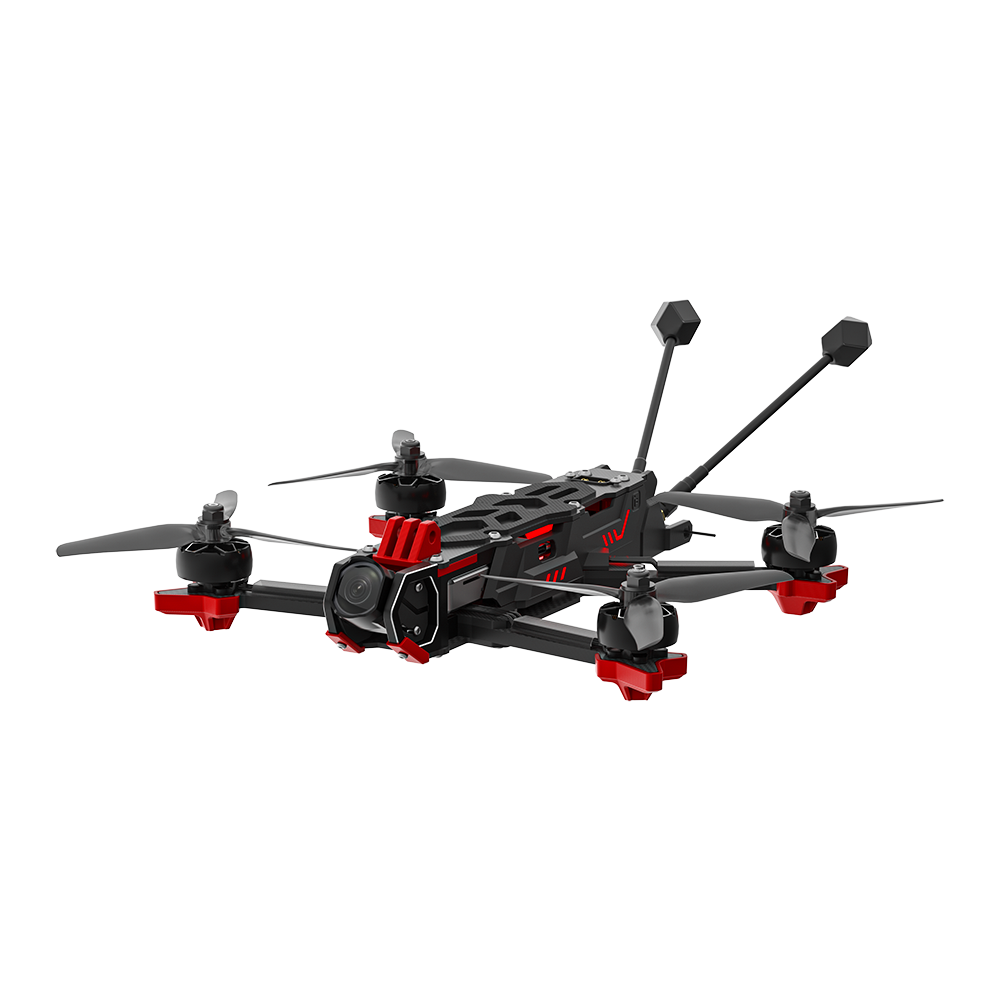

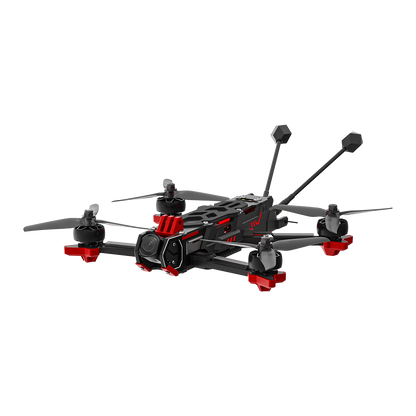

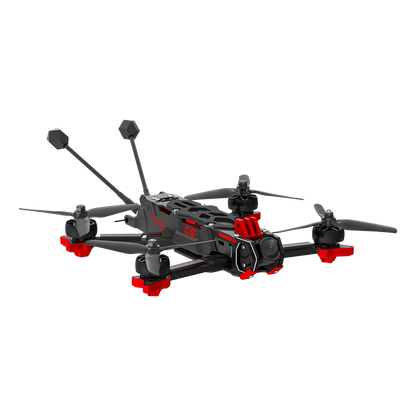

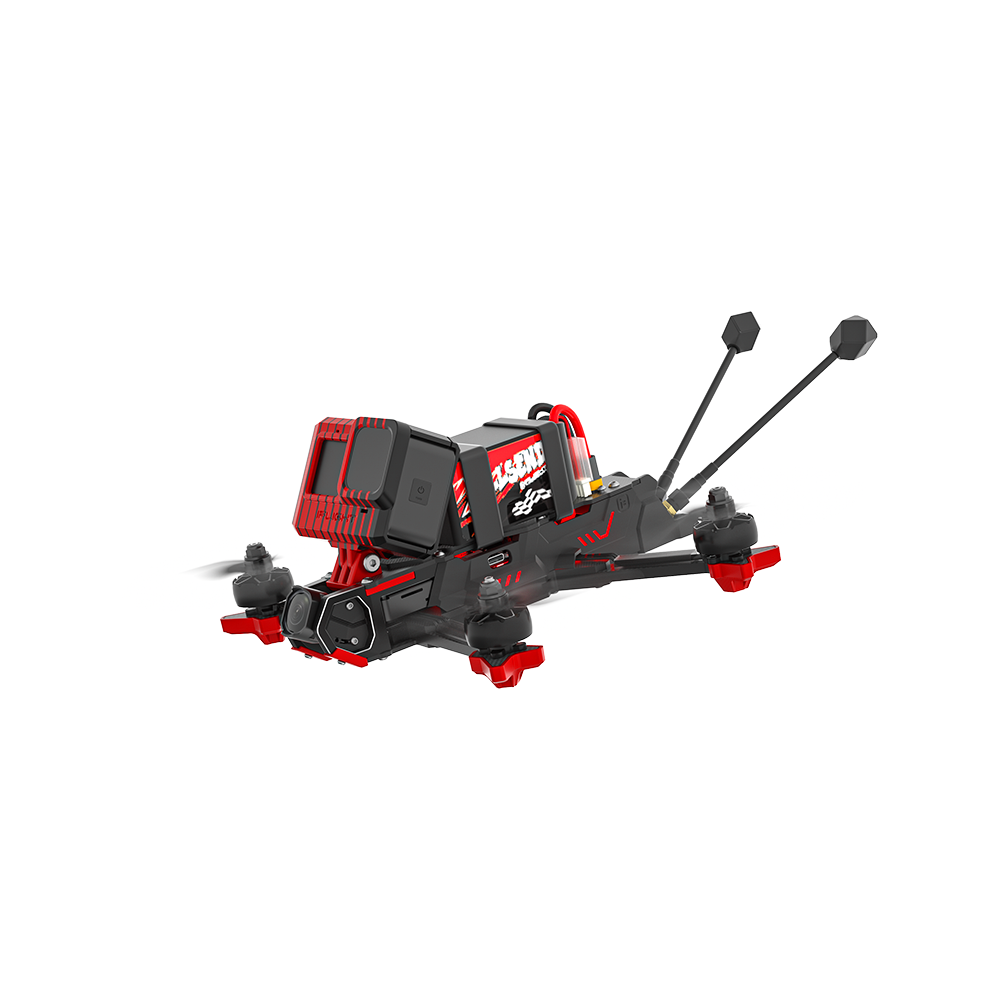

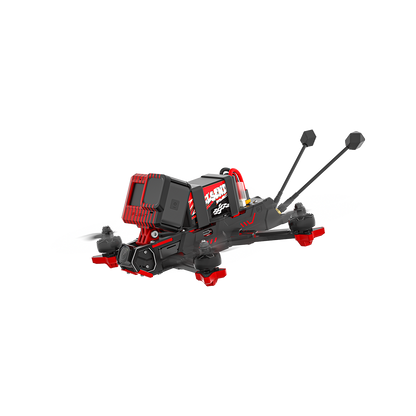

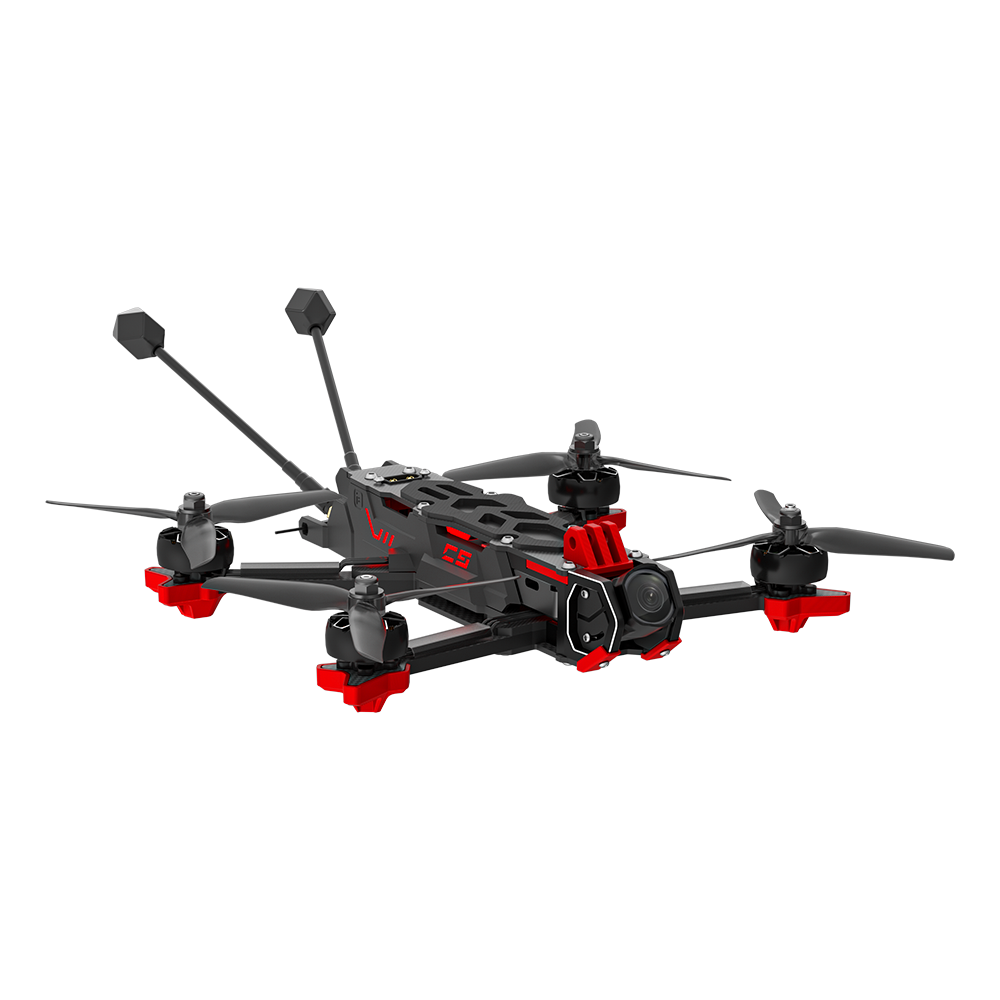

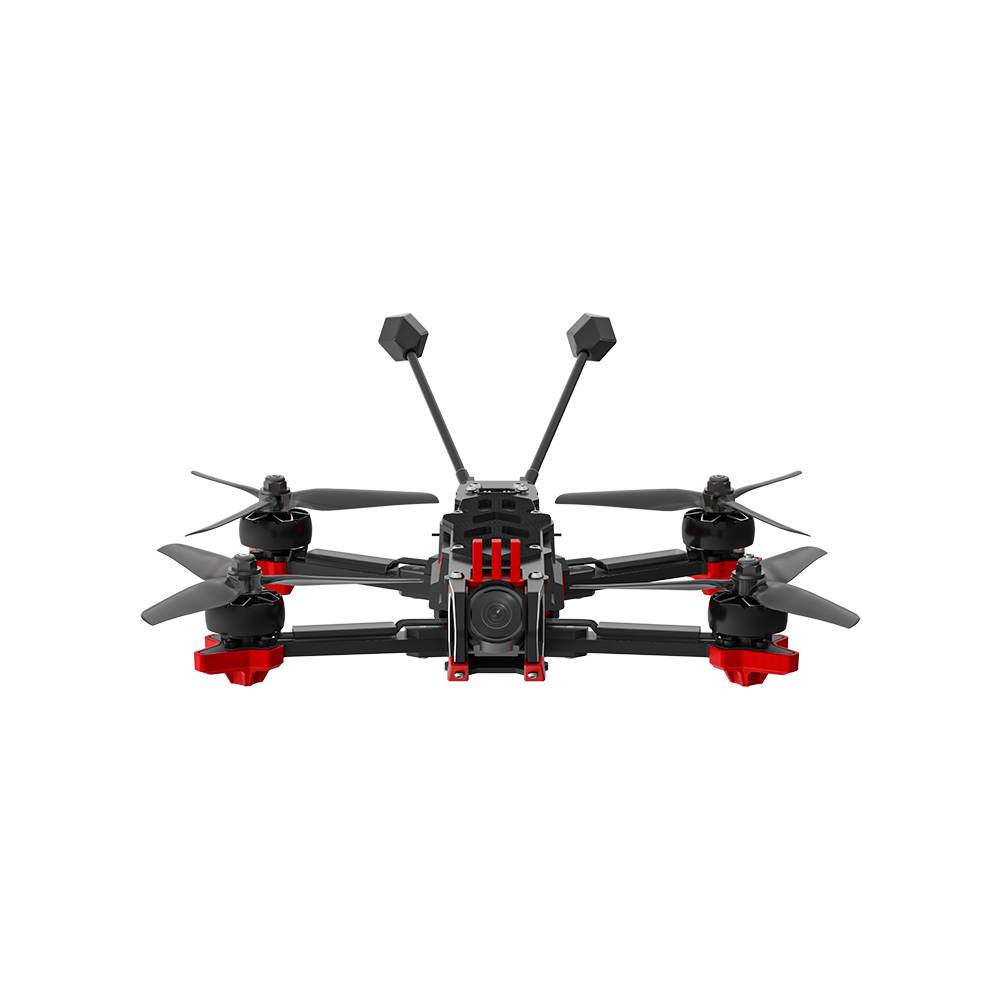

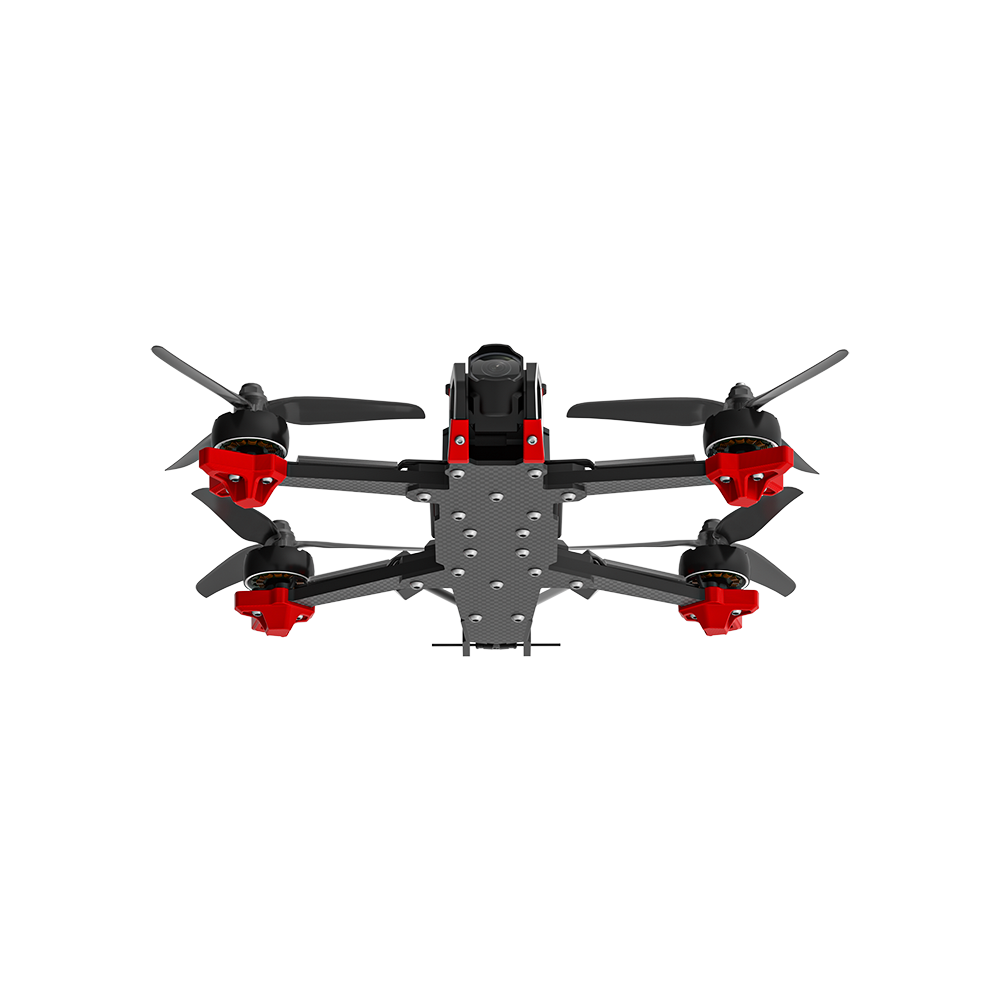

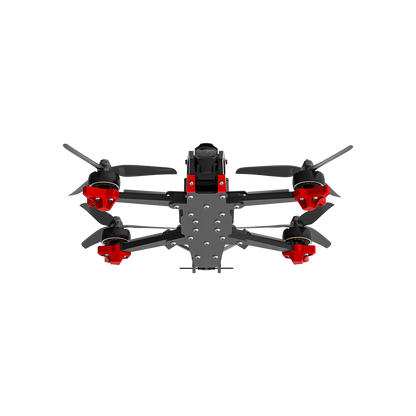

FPV Drone iFlight CineFlow 5 O4 Pro BNF 6S ELRS 2.4GHz

FPV Drone iFlight CineFlow 5 O4 Pro BNF 6S ELRS 2.4GHz

The new generation of iFlight's FPV drone, the 5-inch cinematic freestyle CineFlow 5, combines elegant design, easy maintenance and a high-performance electronics system. Designed for immersive FPV experiences and professional video recording, CineFlow 5 delivers exceptional flight performance and cinema-quality footage. Whether you're tackling freestyle stunts, high-speed chases or long-range filming, the CineFlow 5 is engineered to accurately and reliably meet a variety of flight needs.

Features:

- Innovative frame construction, no props in sight. The SH series has adopted an innovative frame design with no struts in sight while allowing flexibility for freestyle tricks. Due to balanced engine performance, it provides better overall flight performance.

- Quick release side panels. Quick-release side panels provide dirt protection and ease of maintenance while ensuring a cleaner setup without tangled cables.

- O4 video transmission, better perception. The SH series is equipped with the latest DJI O4 Pro Air unit, upgraded with a 1.1/1.3-inch image sensor, capturing fine details in low-light environments. Thanks to the ultra-wide angle of view of 155°, it captures a breathtaking image. Enjoy real-time video streaming at up to 1080p/100fps for an immersive flying experience.

- Throttle up to 17% when hovering. With strong flight performance, the CineFlow 5 can achieve a minimum take-off throttle of 17% and improved maneuverability for extreme high-speed pursuit or aerobatic flight.

- High performance basic electronics system. It is equipped with a BLITZ Mini F7 FC racing controller and a BLITZ E55R 4-IN-1 ESC controller for high-intensity flight maneuvers. It is equipped with a larger MOS and offers a maximum inrush current of 65 A, which increases stability and improves heat dissipation.

- Built-in high precision GPS module. The integrated high-precision GPS module with TPU cover prevents signal loss due to external damage, thus reducing the risk of flying away and increasing the safety of the device.

Specifications:

- Receiver variant: ELRS 2.4 GHz
- Geometry: H-shaped
- FC: BLITZ Mini F7 Flight Controller
- ESC: BLITZ Mini E55R 4-IN-1 ESC
- Video transmission: DJI O4 Air Unit Pro
- Frame wheelbase: 222 mm
- Motor: XING2 2207 2050KV
- Propeller: Nazgul F5
- Dimensions (L×W×H): 182*133*42mm
- Weight: 488±5g
- Take-off weight: About 733±5g (with 6S 1400mAh battery)
- Maximum speed: 190 km/h
- Maximum take-off height: 7000 m
- Maximum hover time: Approximately 12 minutes
- Maximum flight distance: 5 km
- Maximum Wind Speed ​​Resistance: Level 7
- Operating temperature range: -20° to 40° C
- Antennas: Two antennas
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video transmission:

- Product name: DJI O4 Air Unit Pro
- Image Sensor: 1/1.3 inch
- Lens: FOV: 155°
- ISO: 100-25600
- Video resolution: 1080p/100fps H.265
- Video format: MP4, max. video data rate: 130 Mb/s
- Color Mode: Normal Mode/D-Log M
- Stabilization: RockSteady 3.0+ (When RockSteady is on, the shooting angle only supports standard.)
- Live view quality: 1080P@100fps
- Operating frequency: 5.170-5.250 GHz and 5.725-5.850 GHz
- Transmitter power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
- Maximum video transmission range: With DJI Goggles 3/DJI Goggles N3: 15km (FCC), 8km (CE), 8km (SRRC).
- Communication bandwidth: max. 60 MHz
- Antenna: Two antennas
- Built-in memory: 4 GB
- Supported SD cards: microSD (up to 512 GB)
- Operating temperature: -10° to 40° C
- Weight: 40 to 40 °C Air unit (including camera module): Approx. 32 g
- Dimensions: Transmission module: 2.5 mm: 33.5 × 33.5 × 13 mm (L × W × H)

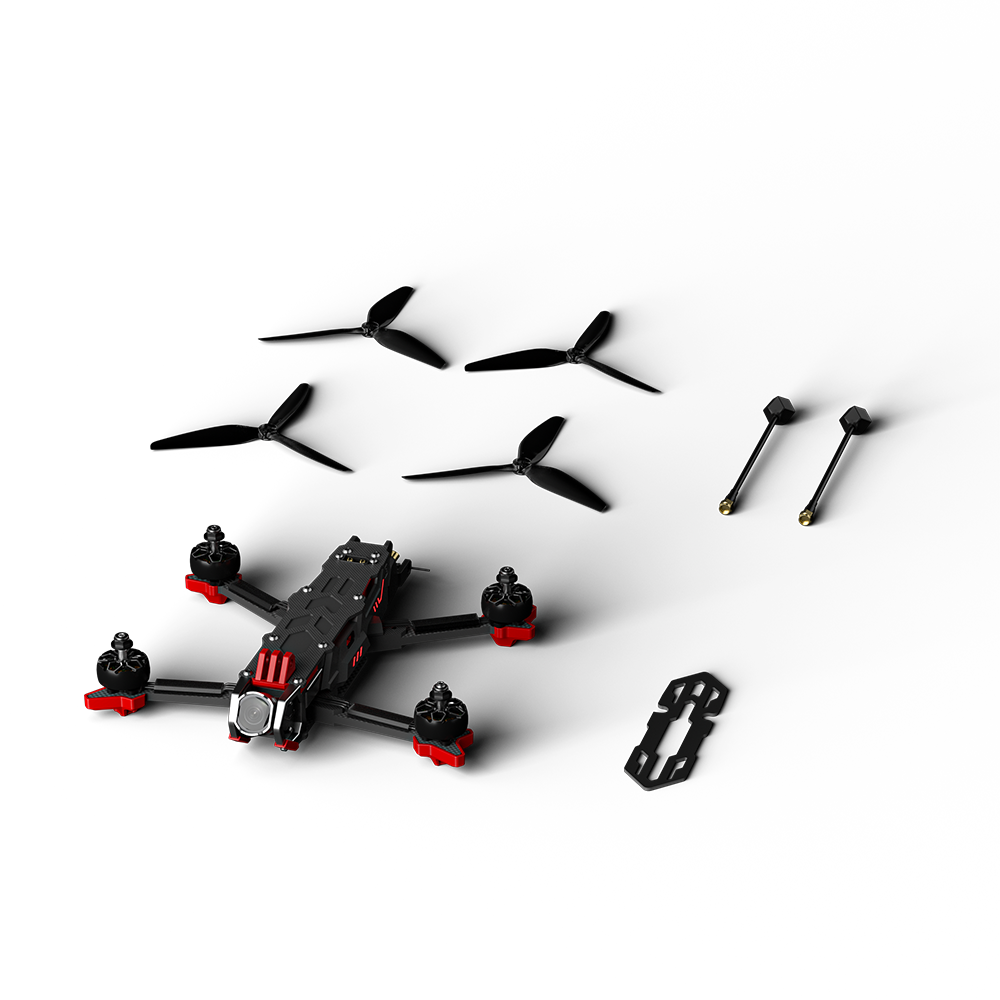

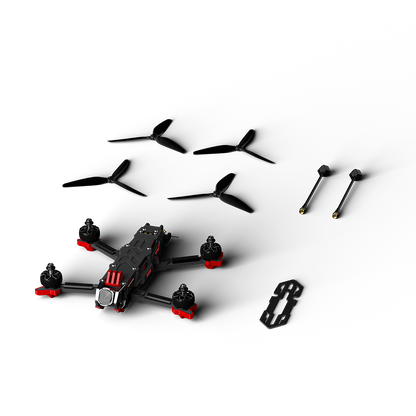

The package contains:

- 1 x SH CineFlow 5 O4 6S HD BNF
- 2 x antennas
- 1 x pad under the battery
- 2 x propellers (in a pair)
- 1 x battery strap
