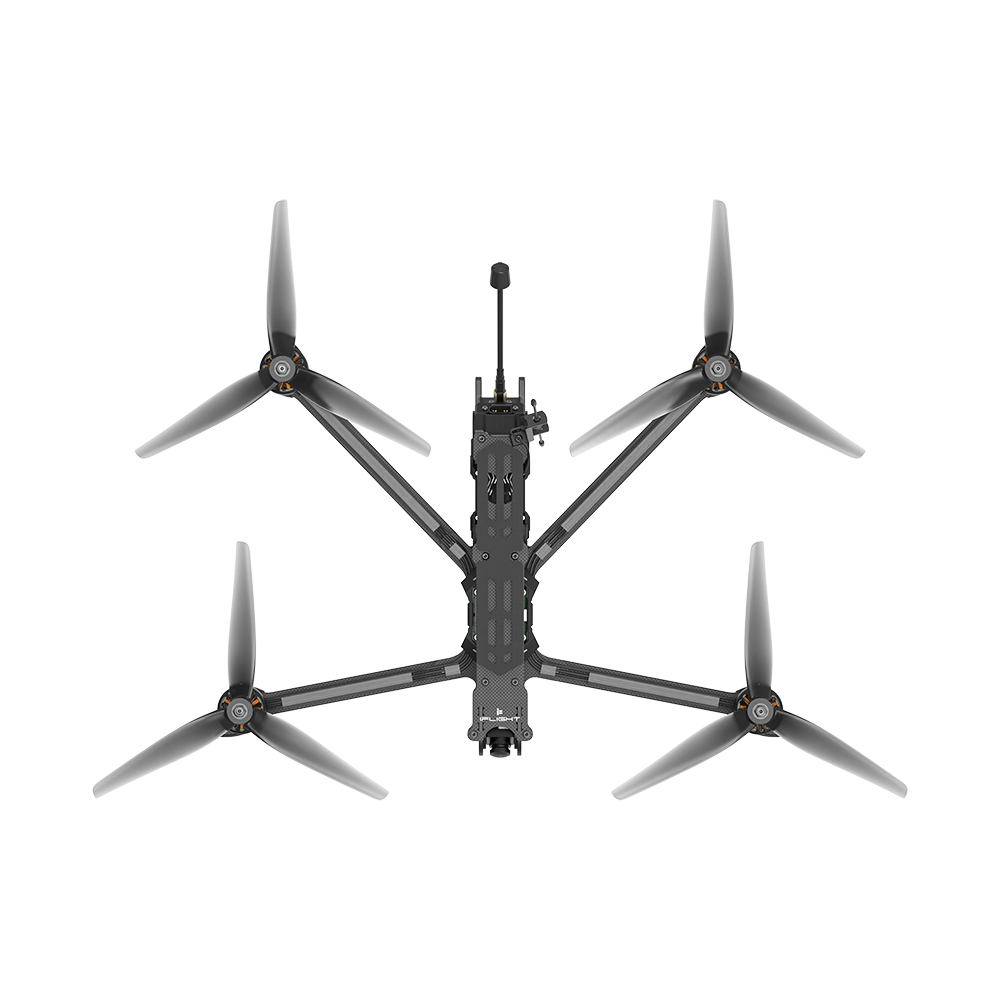

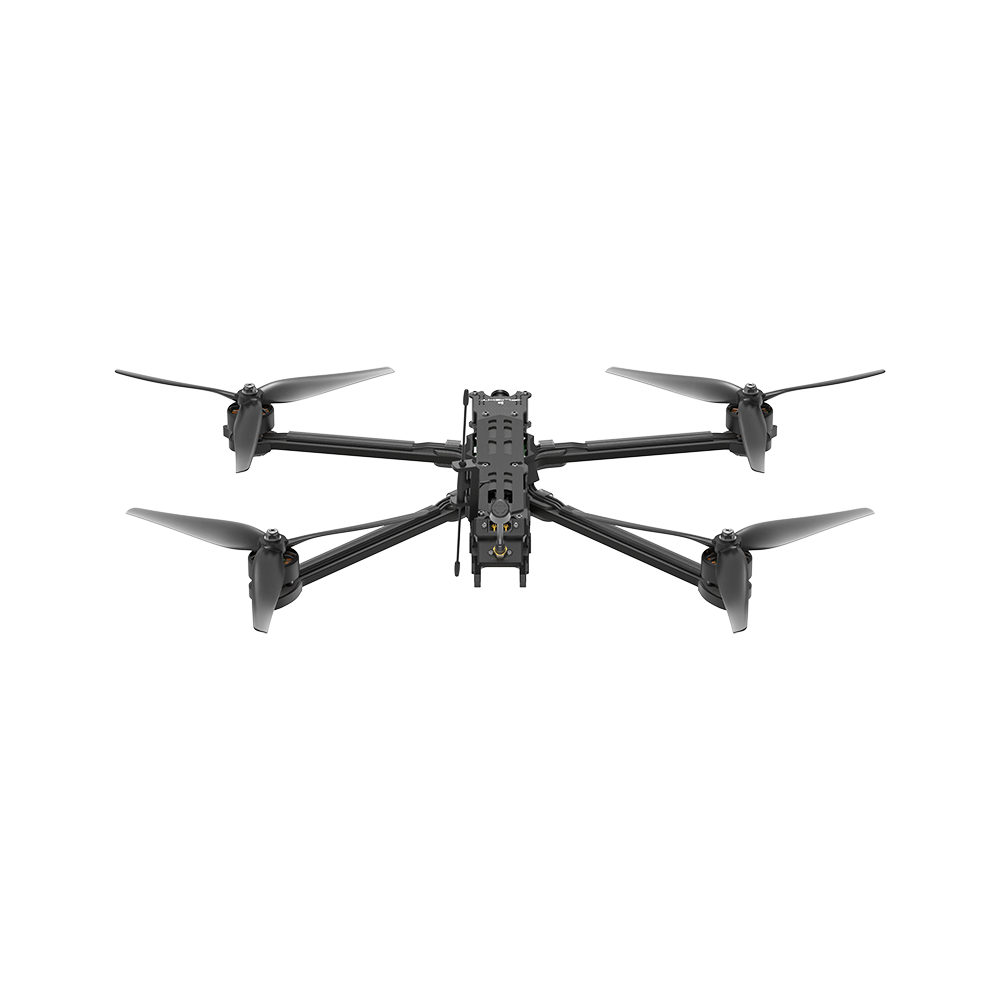

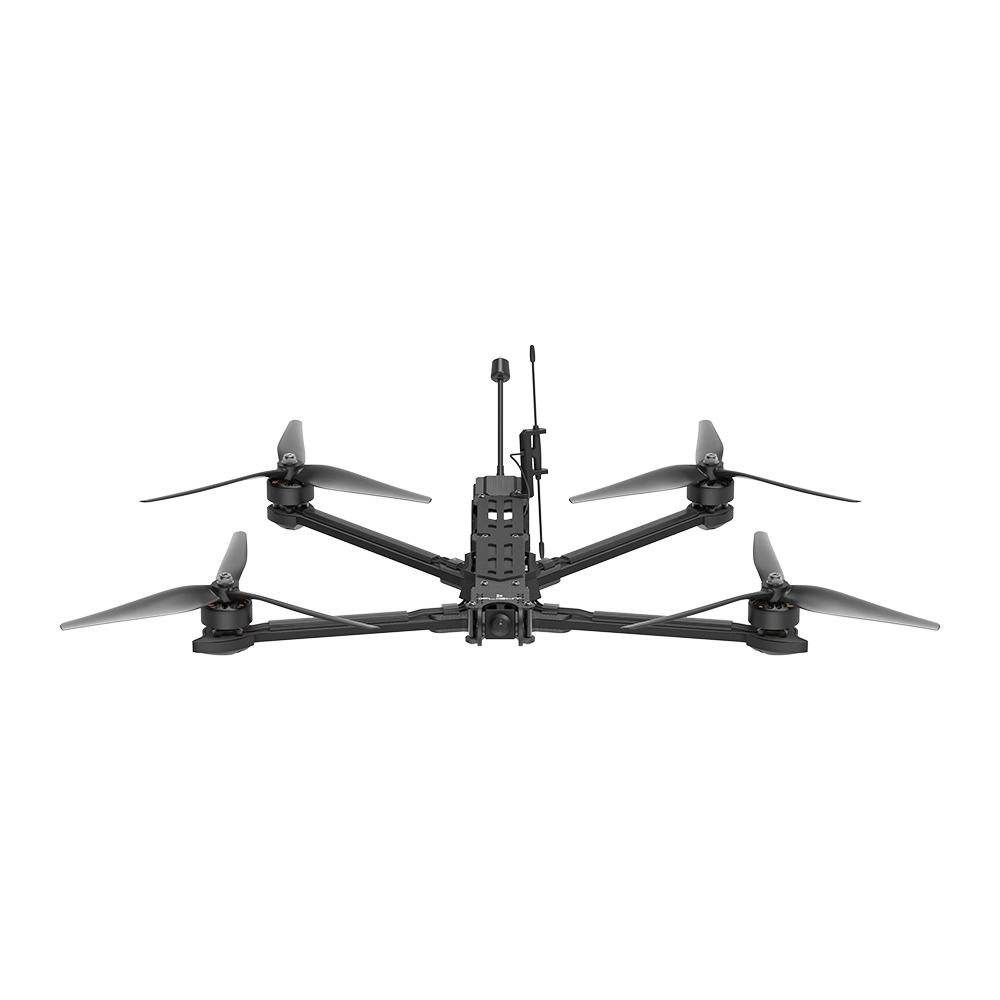

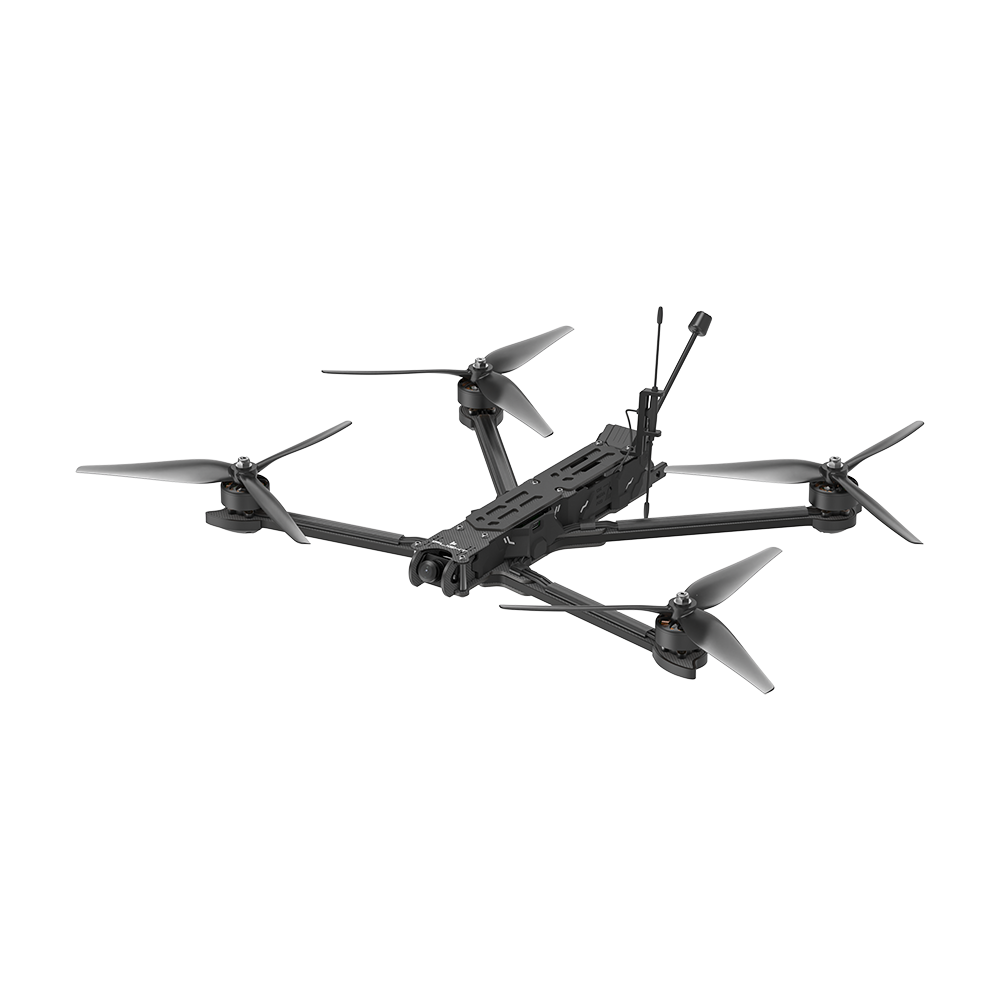

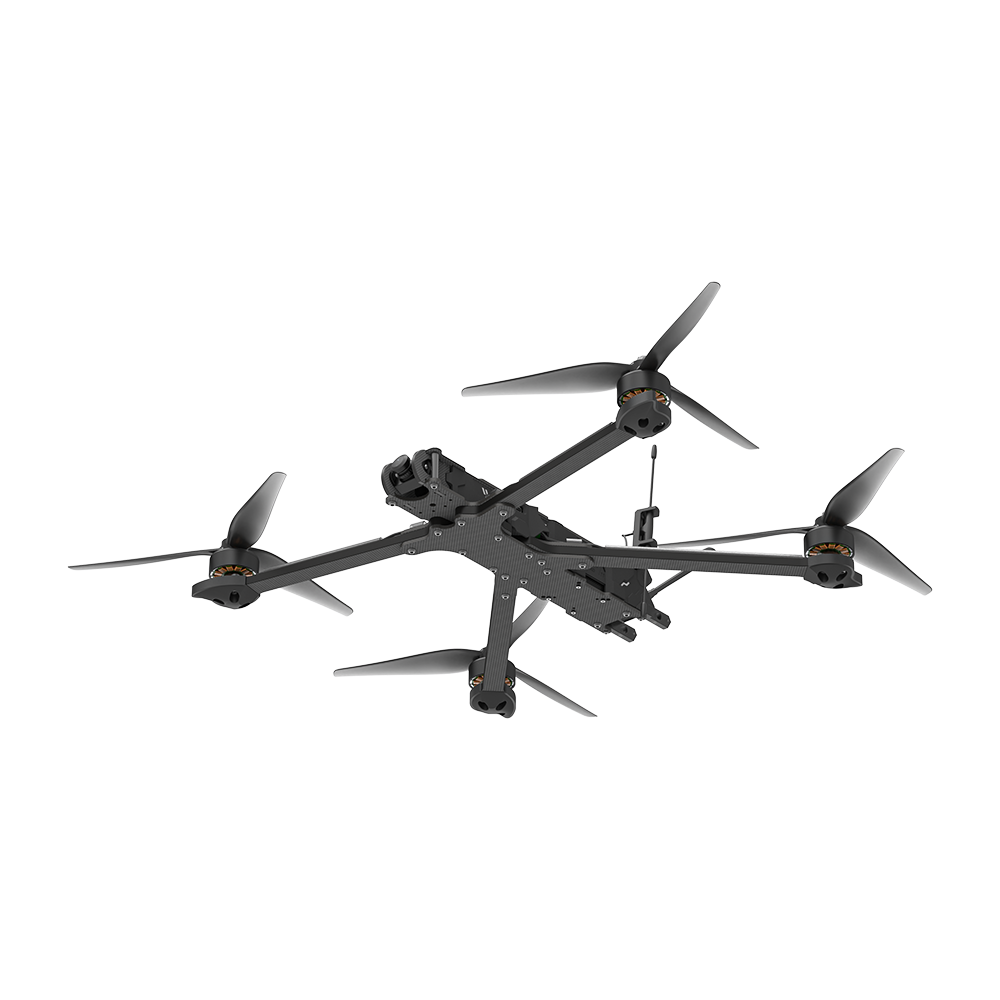

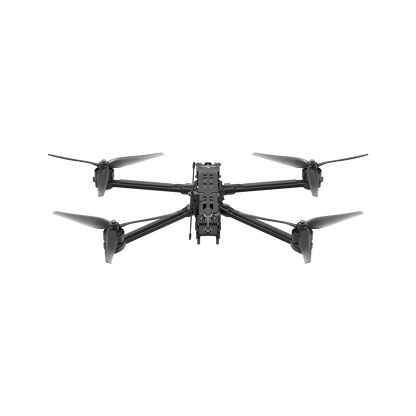

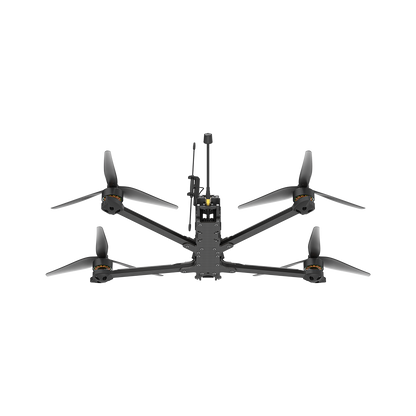

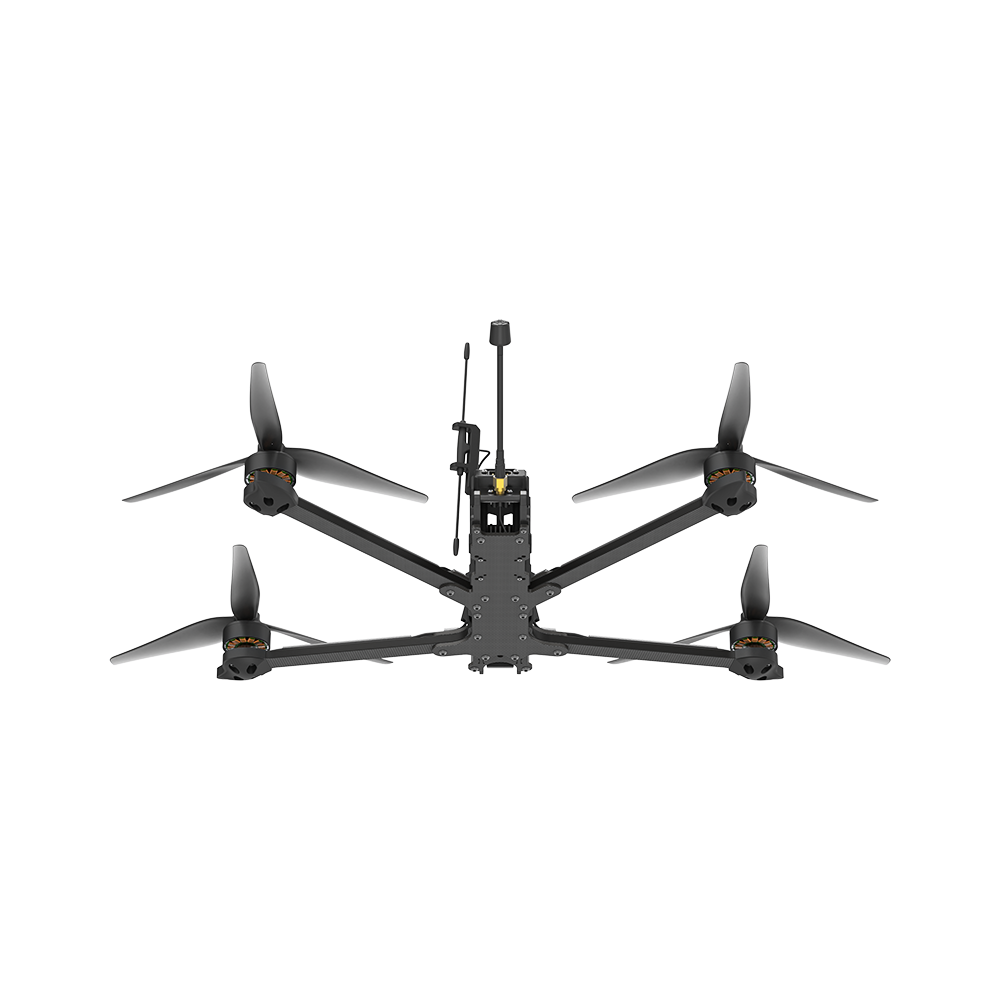

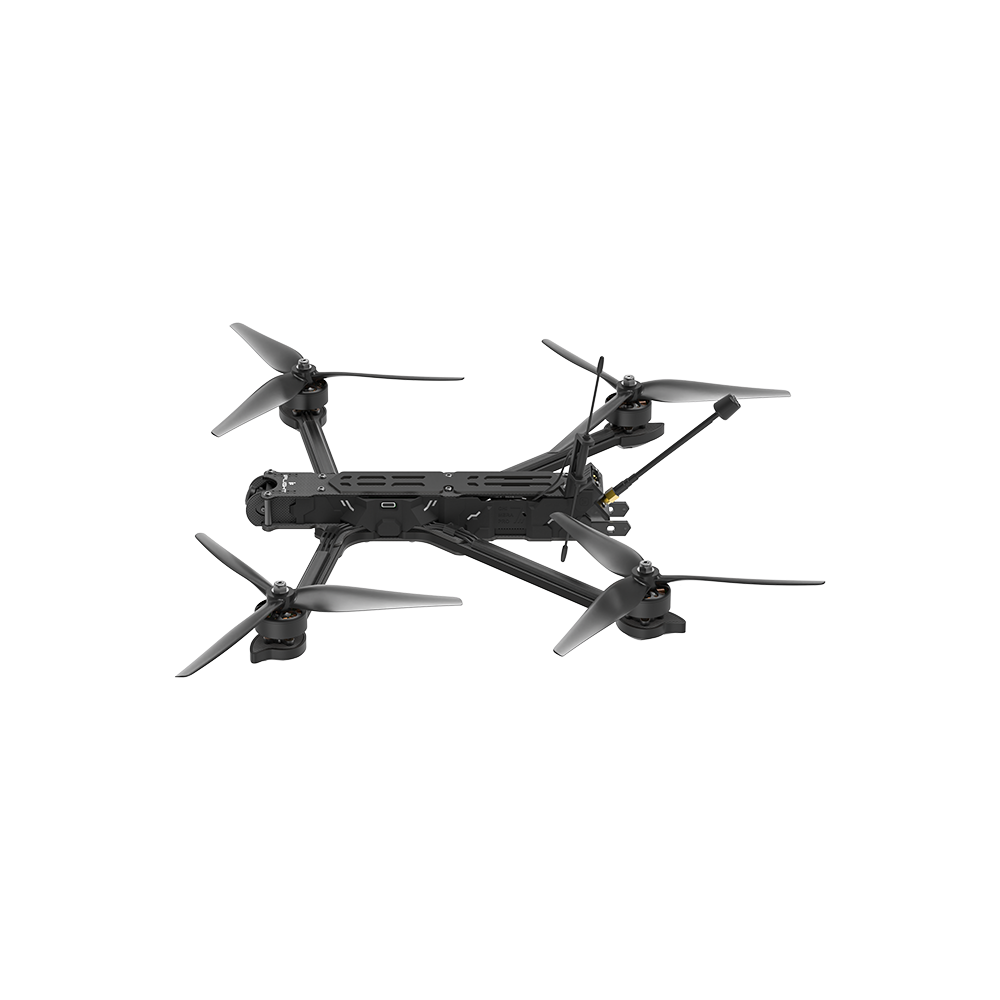

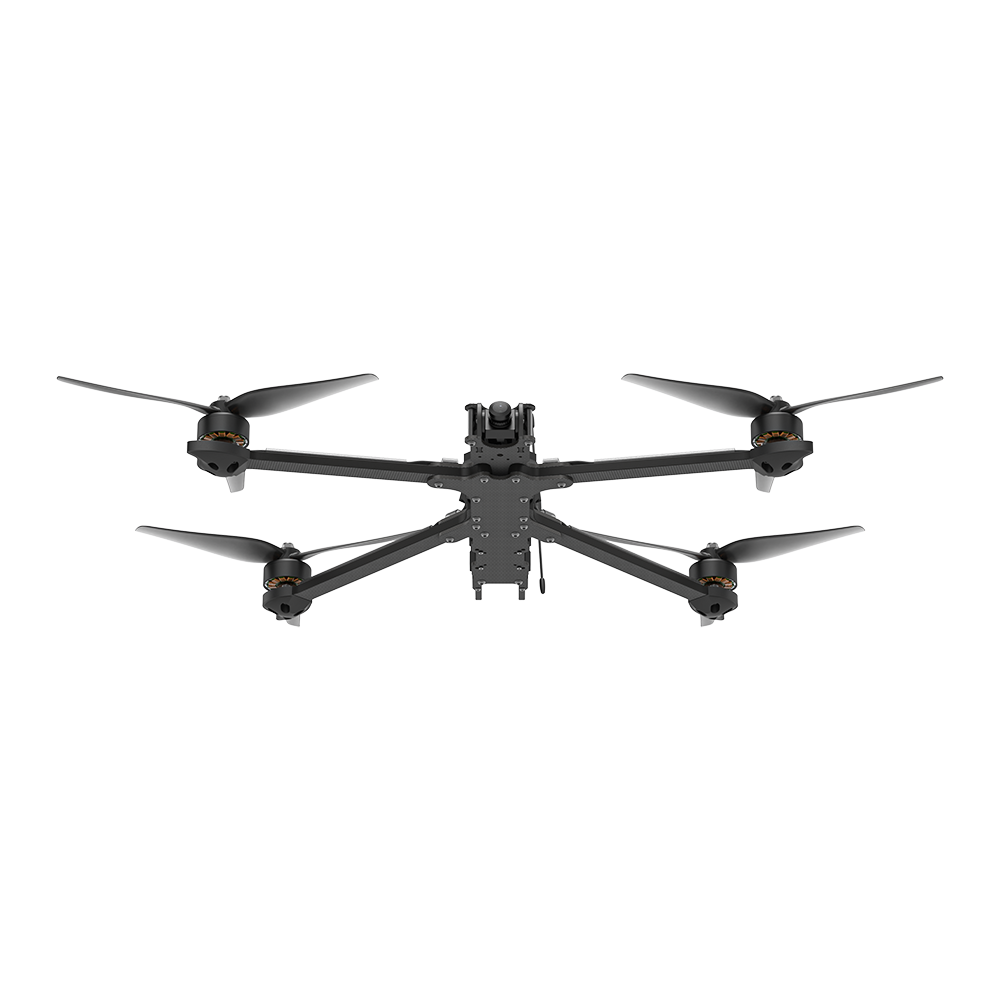

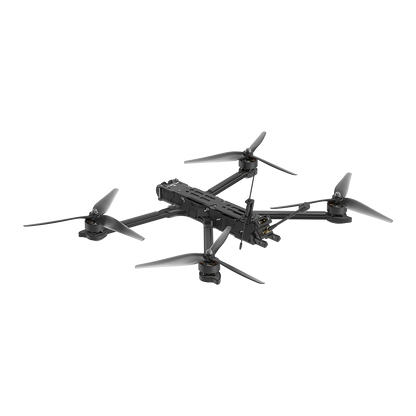

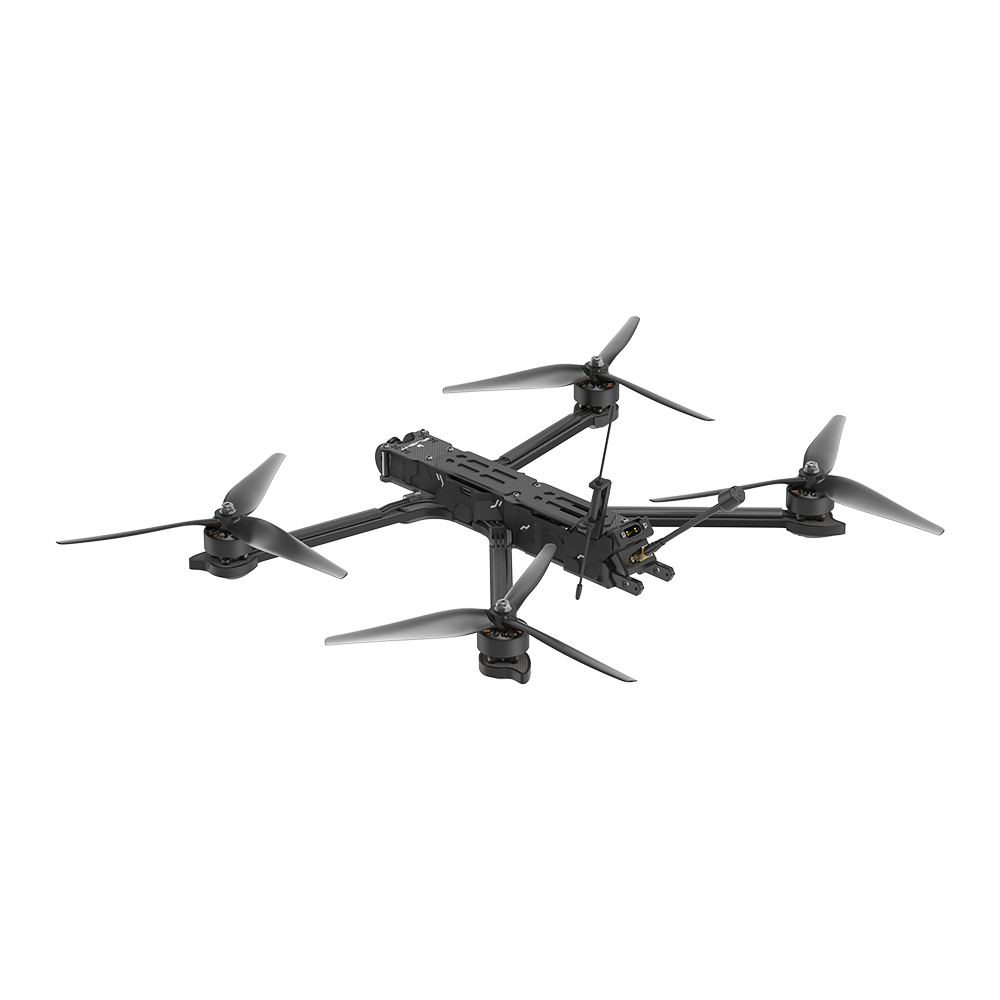

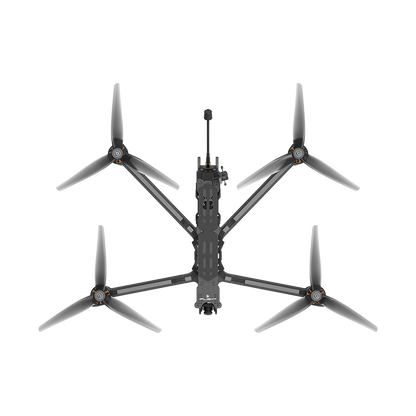

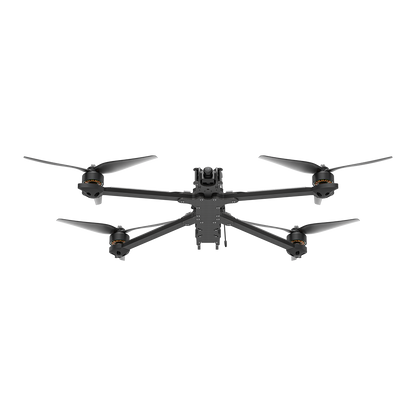

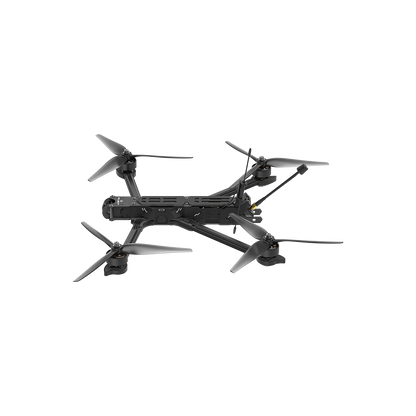

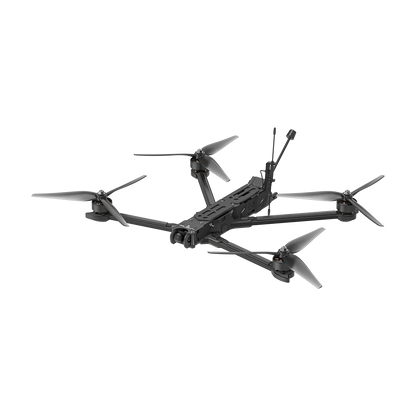

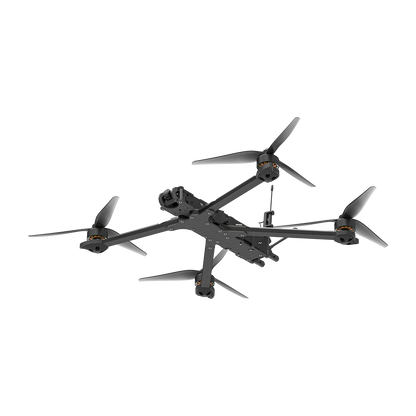

Chimera9 ECO 6S analog (PNP)
Function:
- Latest Chimera9 ECO frame for maximum protection.
The new frame reduces dirt that could build up on your flight controller or ESC, preventing failures or short circuits. Strategic airflow that keeps your components cool and clean without sacrificing weight or performance. Illuminated side panels and 360 degree TPU protective parts.
- Economical and efficient electrical system.
Featuring a BLITZ ATF435 flight controller, BLITZ 1.6W Whoop VTX and BLITZ E55S 4-in-1 ESC, this setup offers a high level of performance and functionality.
Not included in the BNF Lite version:
- Cooler for DJI O3 air unit
- Dual 5.8G VTX antenna holder TPU
- Anti-spark filter
- TPU Kit (GPS Mount / Buzzer Mount / GoPro Mount etc.)
- LED board with LED strips
Specifications:
Product name: Chimera9 ECO 6S Analog
Receiver Option: Without RX (PNP)
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC
Video transmission: BLITZ Whoop 1.6W VTX
Geometry: DeadCat (DC)
Frame: wheelbase 405 mm
Motor: XING-E 2809 800KV motors
Propeller: 9X4X3 propeller
Camera: RaceCam R1 Mini 1200TVL 2.5mm
Weight: 739 g (without battery)
Dimensions (L×W×H): 360x235x34mm
Maximum speed: 140 km/h
Maximum take-off height: 6000 m
Maximum Hover Time: Approx. 33 minutes (with 6S2P 8000mAh without load)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Individual antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)
Payload: 1.5-2.2 kg
Video transfer
Product Name: BLITZ Whoop 5.8G 1.6W VTX
Output power: 0-25-400-800-1600 mw
Input voltage: 12V
Operating current: ≤ pit @40 mA, ≤ 25 mw @ 150 mA, ≤ 400 mw @ 330 mA, ≤ 800 mw @ 460 mA, ≤ 1600 mw @ 660 mA
Free gear: 40CH (A-B-E-F-R)
Antenna interface: IPEX
Mounting hole: 25*25/φ1.6mm
Weight: 16.5g (antenna not included)
Dimensions: 37*31.5*10mm
The package includes:
1 x Chimera9 ECO 6S Analog BNF (PNP)
1 x battery pad
1x Antenna
2 x propellers (pairs)
2x battery strap
