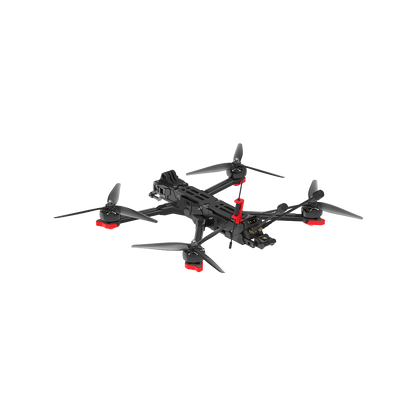

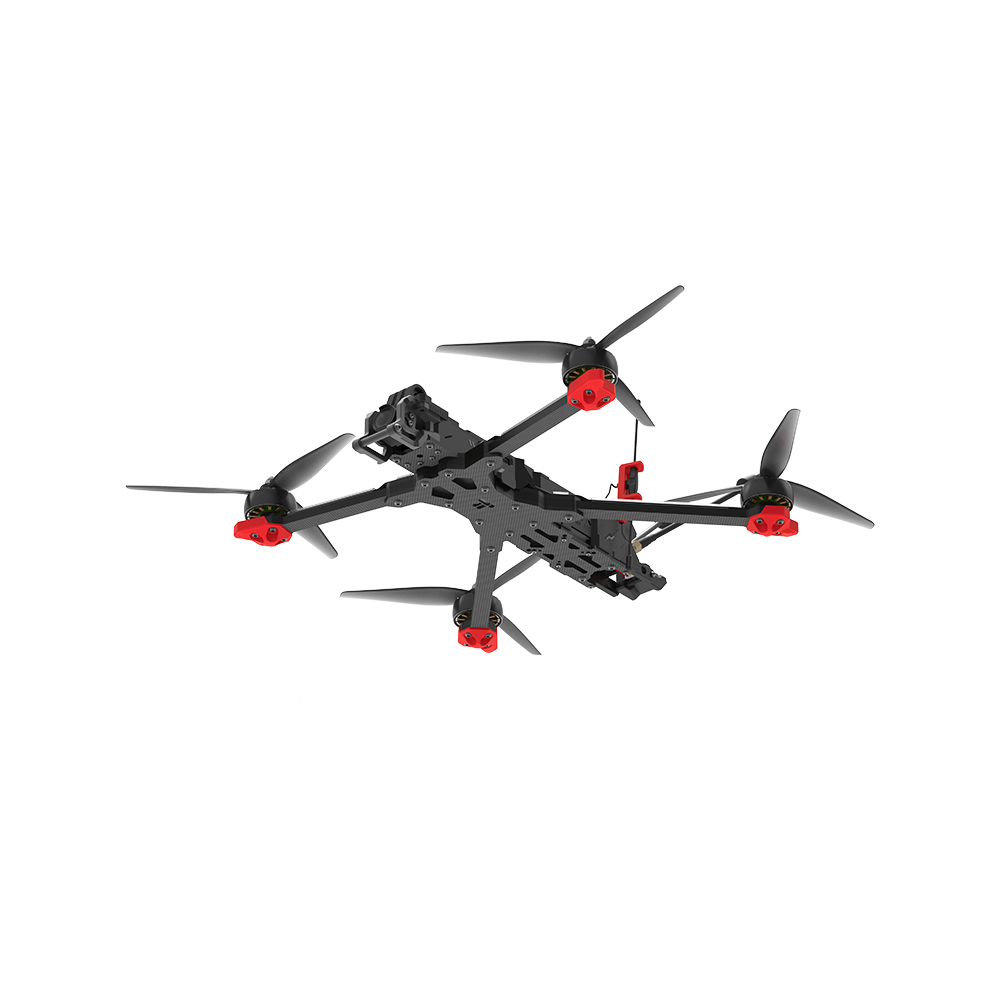

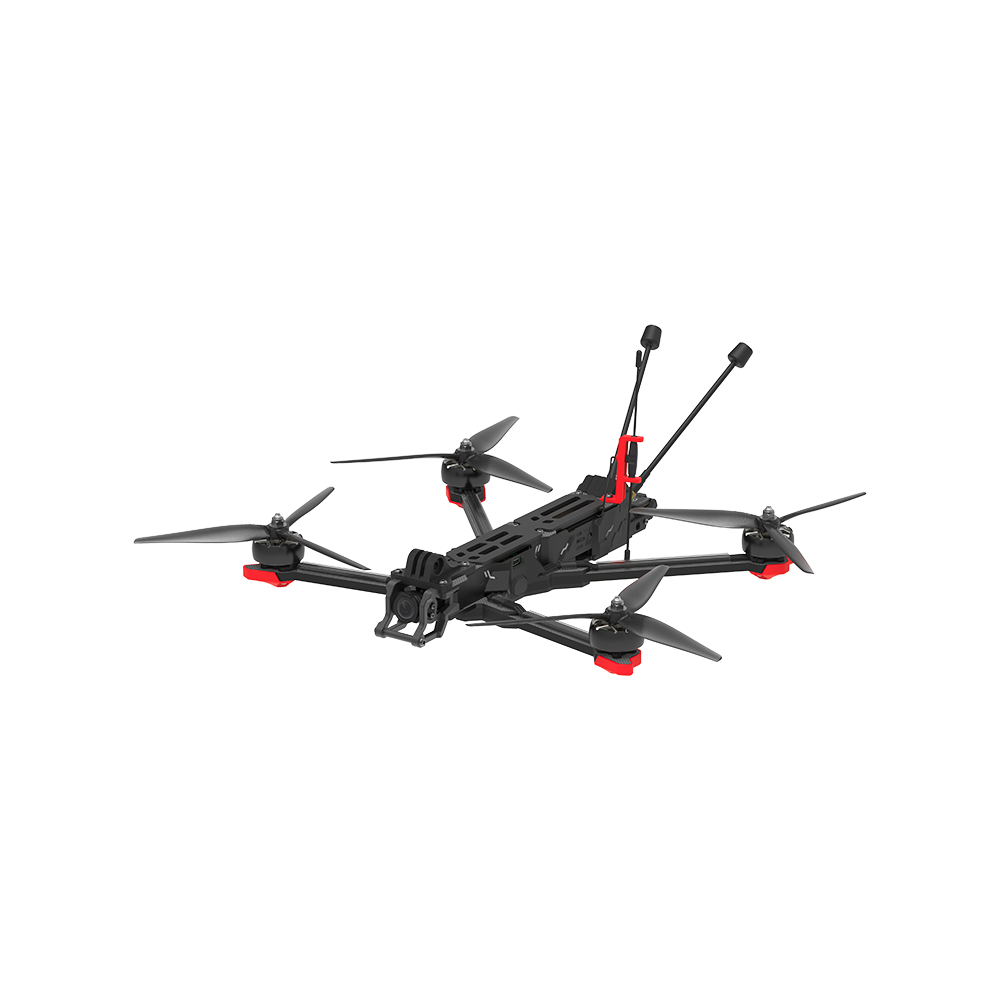

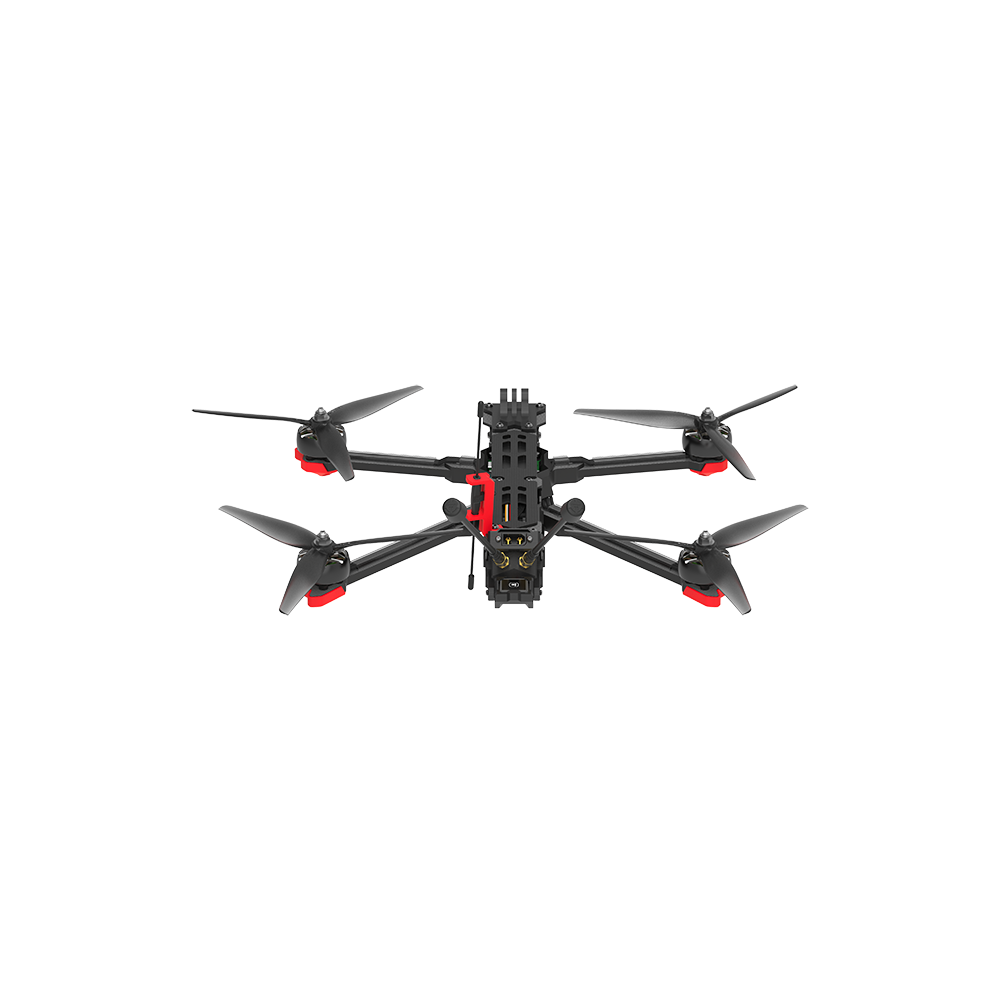

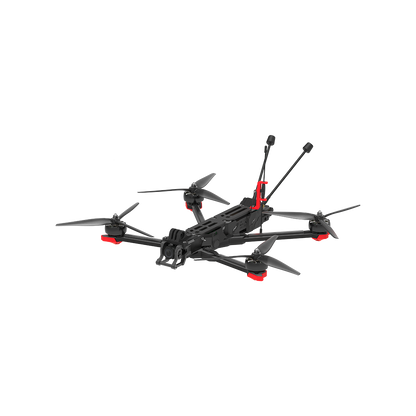

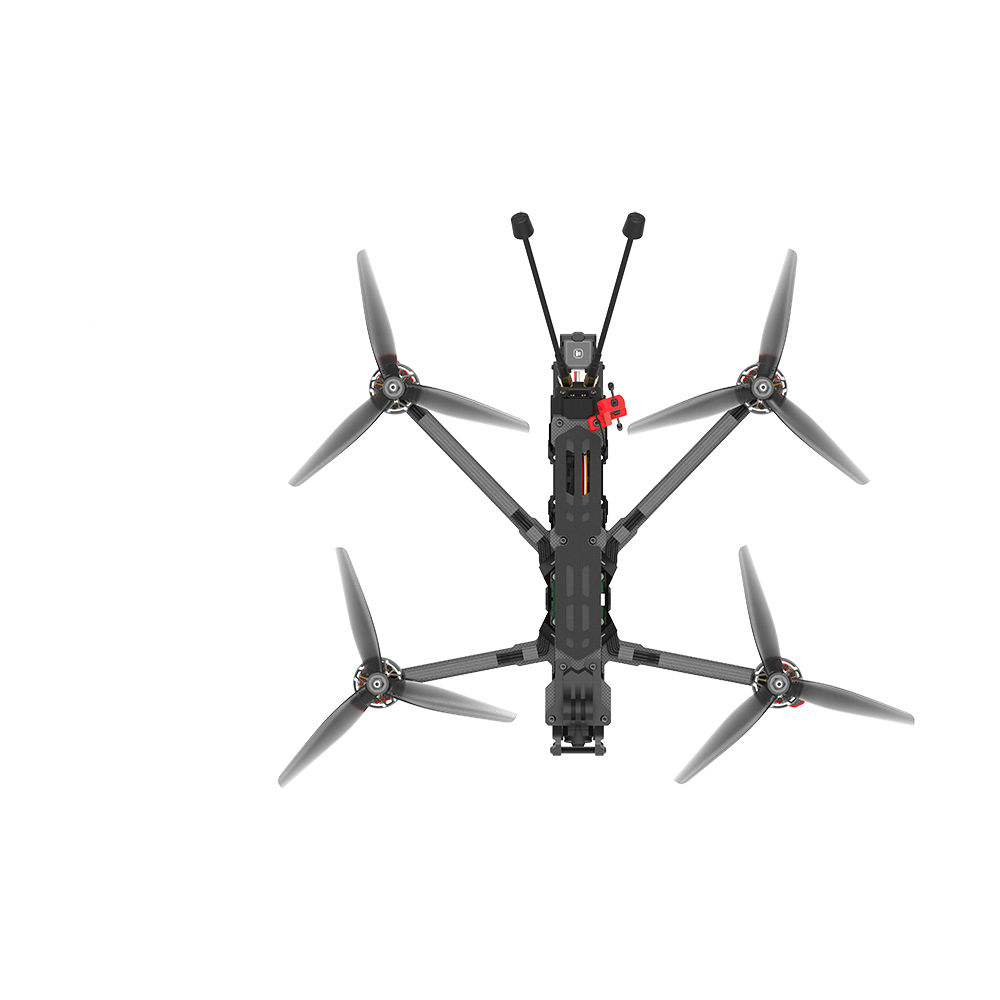

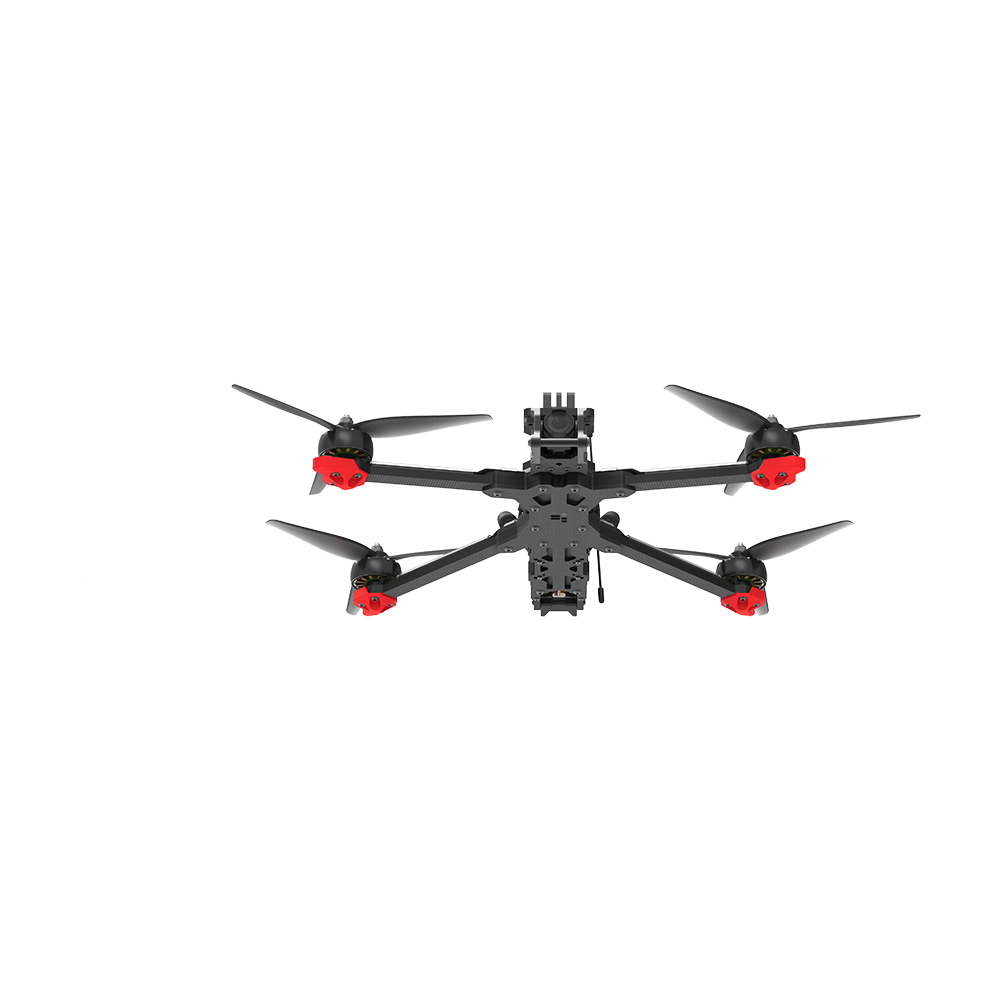

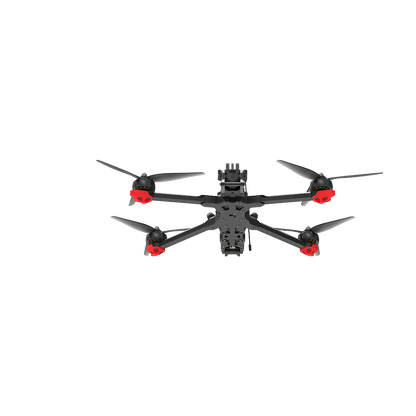

Chimera7 Pro V2 HD BNF 6S (ELRS 868/915 MHz)

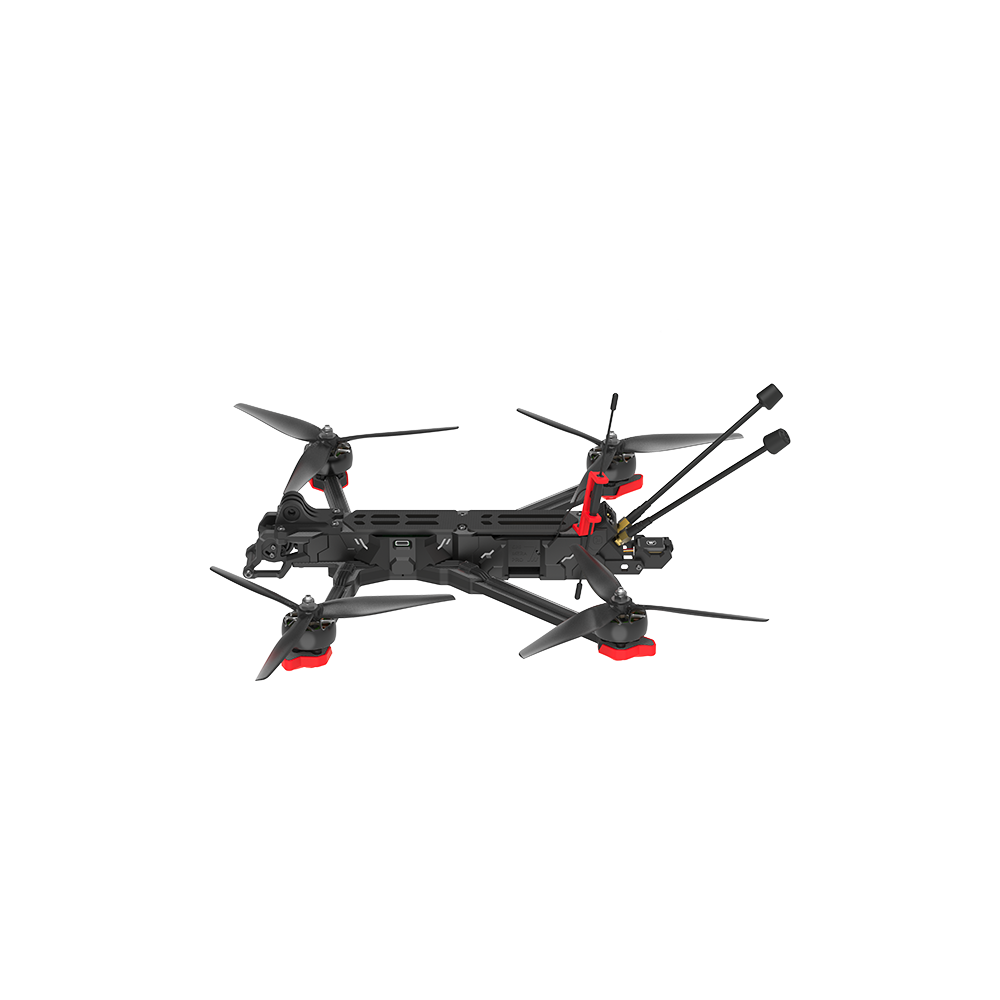

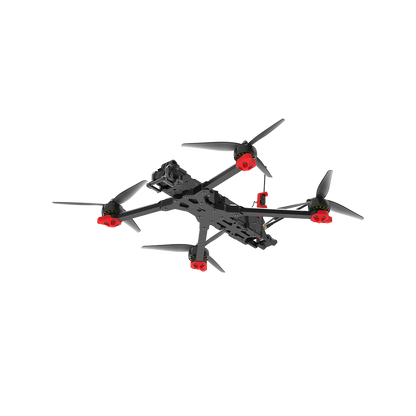

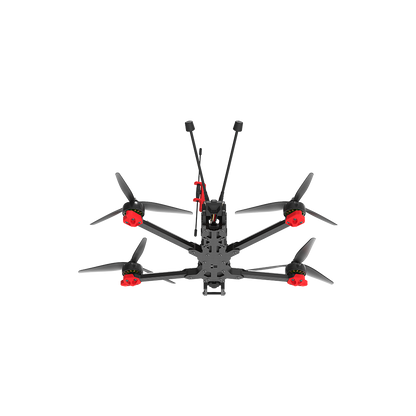

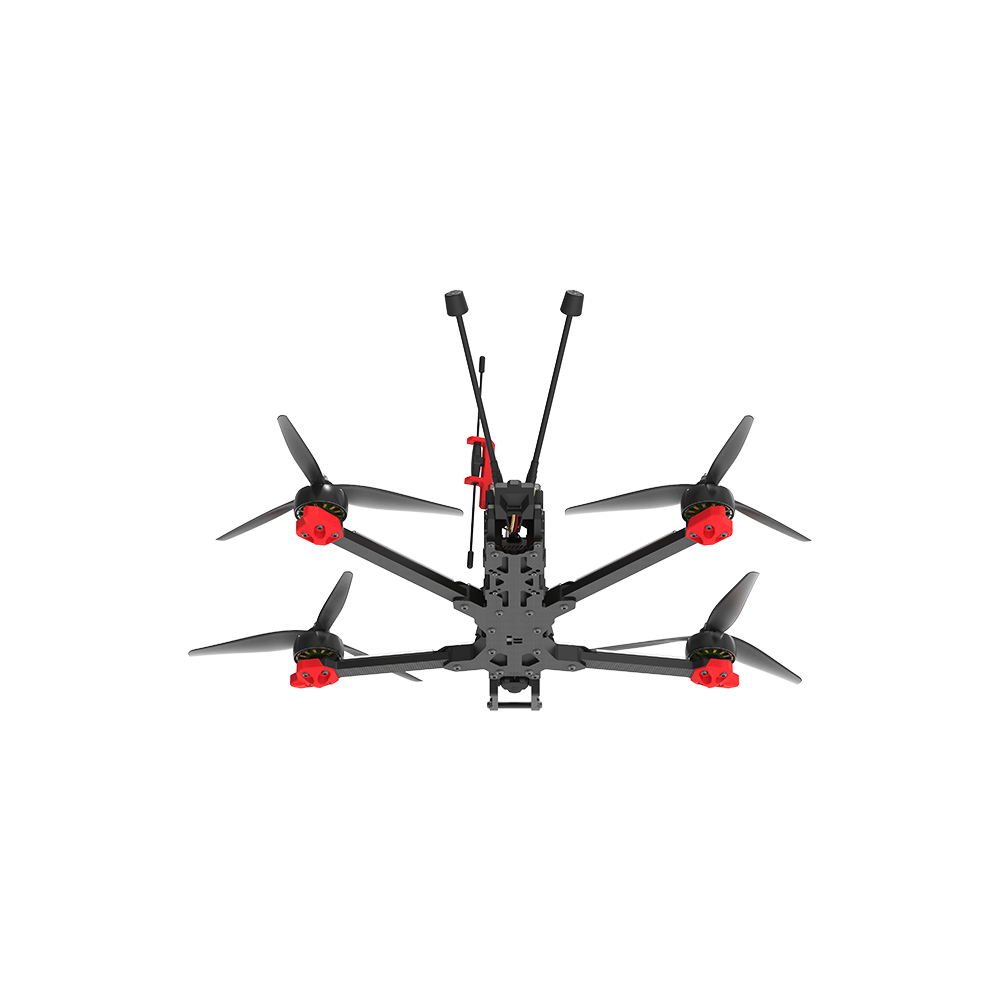

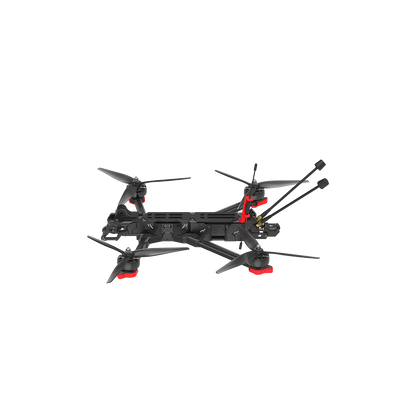

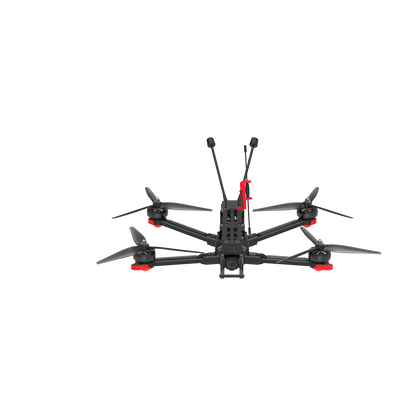

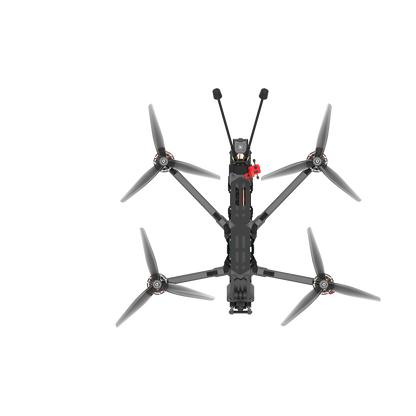

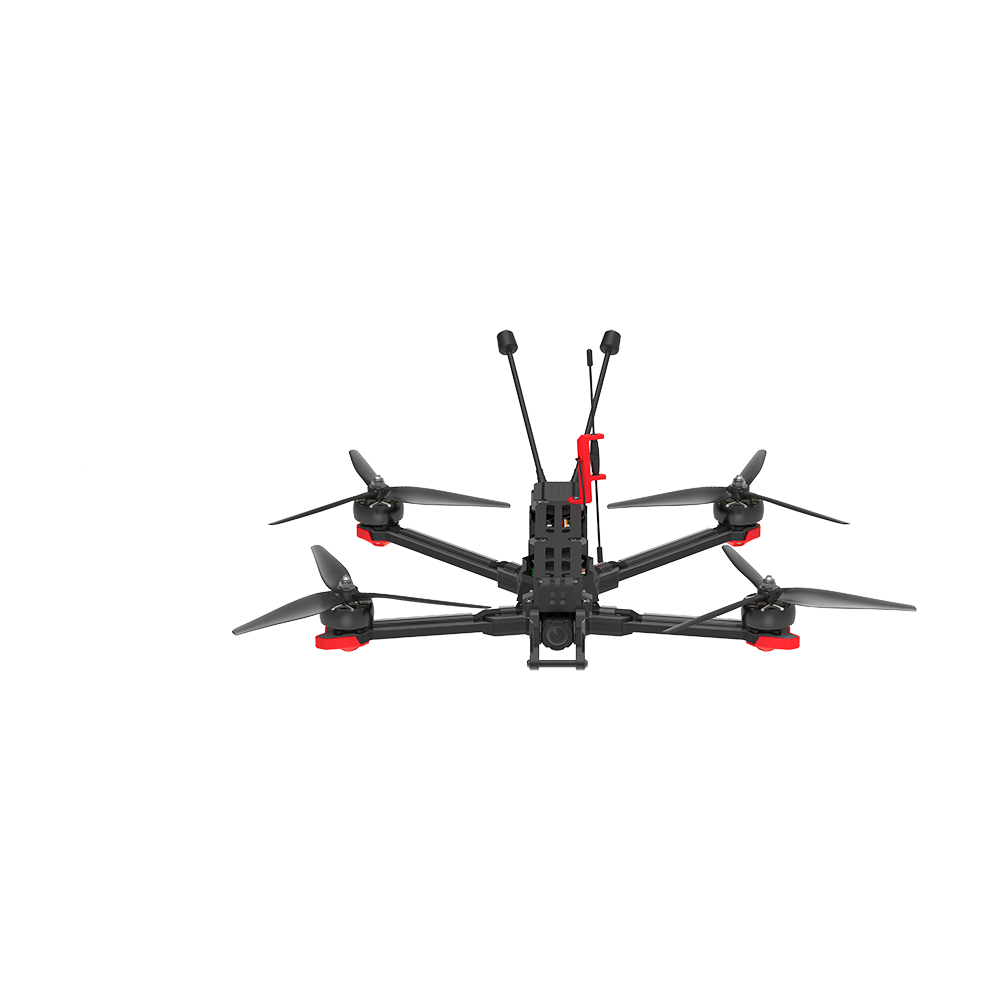

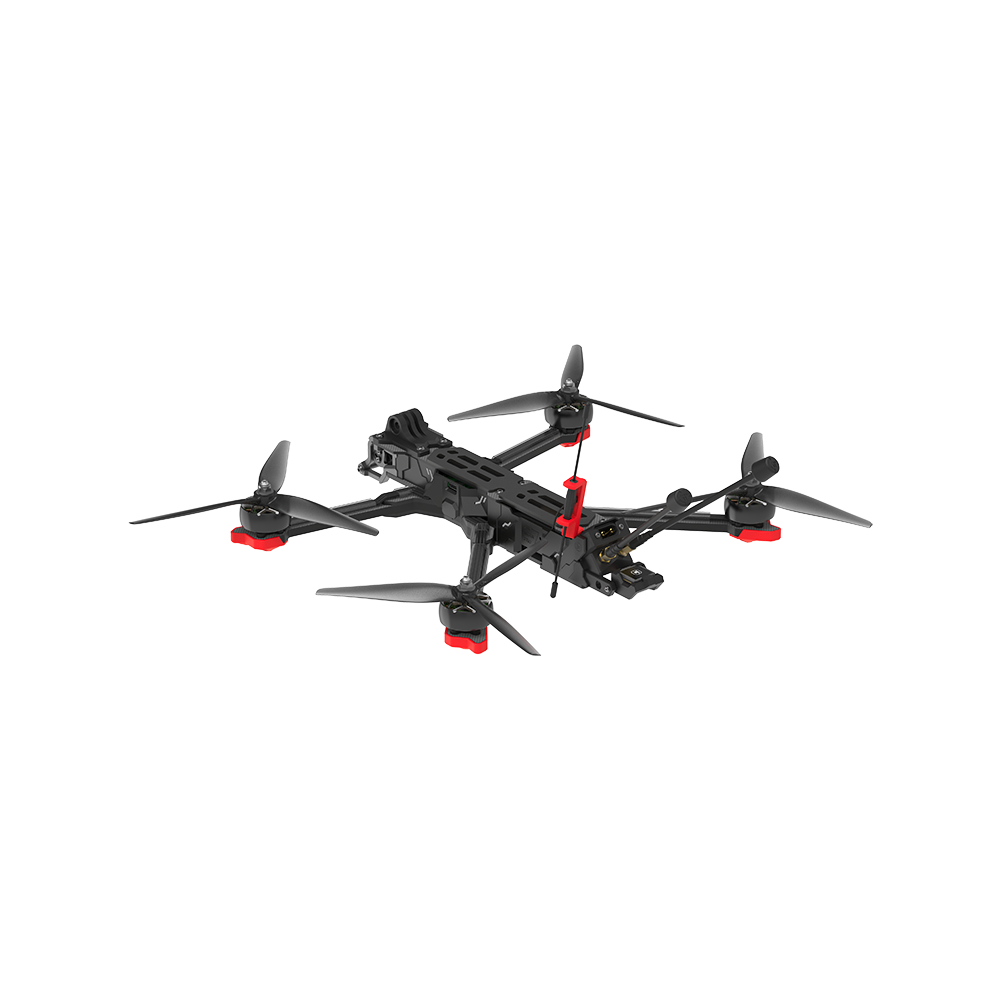

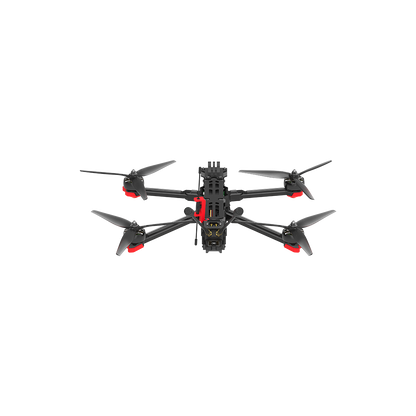

The Chimera7 Pro V2 6S HD is a high-performance 7.5-inch long-range drone from iFlight. It has a super stiff frame for minimal resonance and XING2 2809 motors for maximum control of the 7.5 inch propeller. Recommended 5S 3000mAh above (slow driving) or 6S 3300mAh battery.
Function:
- Smooth and powerful XING2 engines
- Latest Chimera7 Pro frame for maximum protection
- DJI O3 HD Air Unit digital transmission with low latency
- 4K stabilized video with an ultra-wide angle of 155°
- Secure battery plug with spark filter
- Specially designed cooler for DJI O3 HD air unit
- Pre-installed GPS for greater safety at a distance
Specifications:
Product Name: Chimera7 Pro V2 6S HD
FC: BLITZ F722 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video transmission: DJI O3 Air Unit
Frame: wheelbase 327 mm
Motor: XING2 2809 1250KV motors
Propeller: 7.5X3.7X3 propeller
Receiver option: iFlight ELRS 868/915MHz RX
Weight: 725 g (without battery)
Model: Chimera7 Pro
Take-off weight incl. 8000 mAH: Approx. 1619±10g
Take-off weight incl. 3300mAh: Approx. 1165±10g
Dimensions (L×W×H): 270x199x34mm
Maximum speed: 140 km/h
Maximum take-off height: 7000 m
Maximum Hover Time: Approx. 30 minutes
Maximum flight distance: 18 km
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Transmit Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm
Antennas: Dual antennas (DJI O3 Air Unit) / Single antenna (Runcam Link WASP)
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Video transfer
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (including headband)
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End latency
With DJI FPV Goggles V2:
- 810p/120fps video transmission quality: Latency is lower than 28ms.
- 810p/60fps video transmission quality: Latency is lower than 40ms.
With DJI Goggles 2:
- 1080p/100fps video transmission quality: Latency is only 30ms.
- 1080p/60fps video transmission quality: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x Chimera7 Pro V2 6S HD (ELRS 868/915 MHz)
2 x battery pad
2 x 7.5 inch struts (pairs)
2x battery strap
1 x bag of screws
