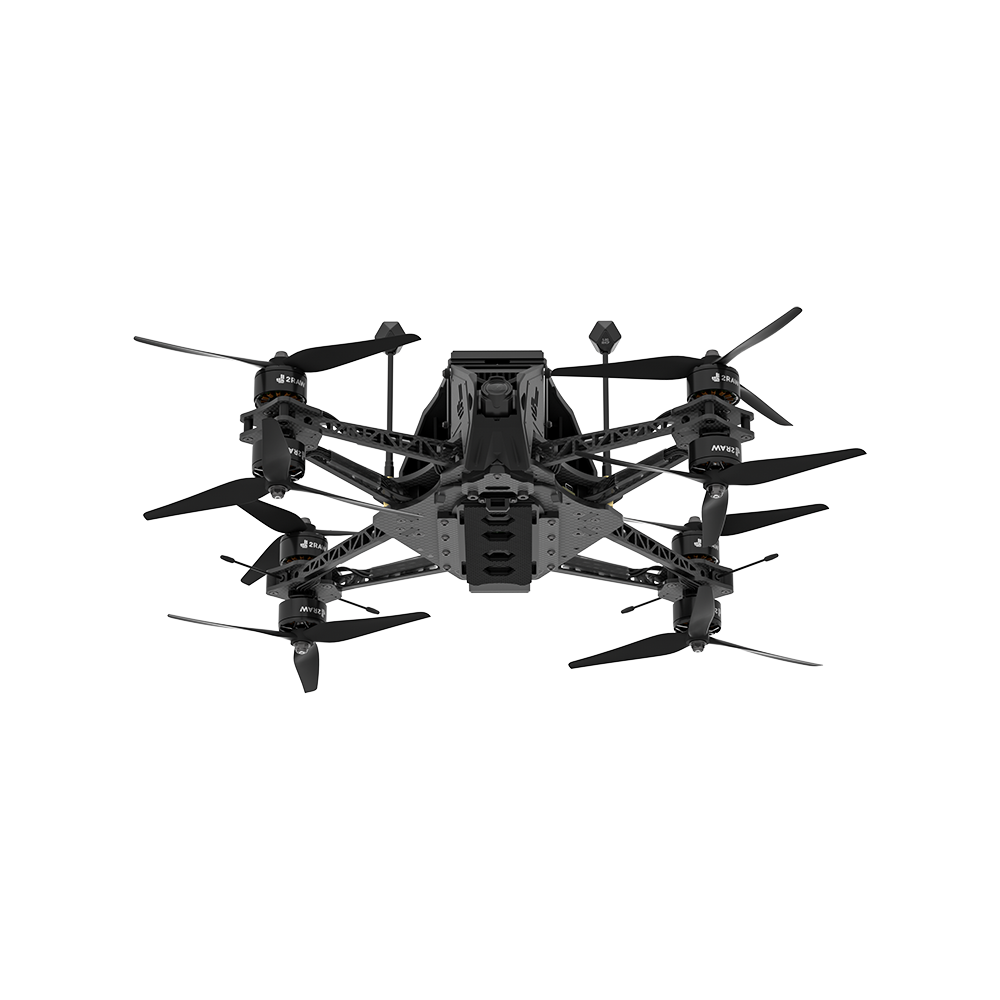

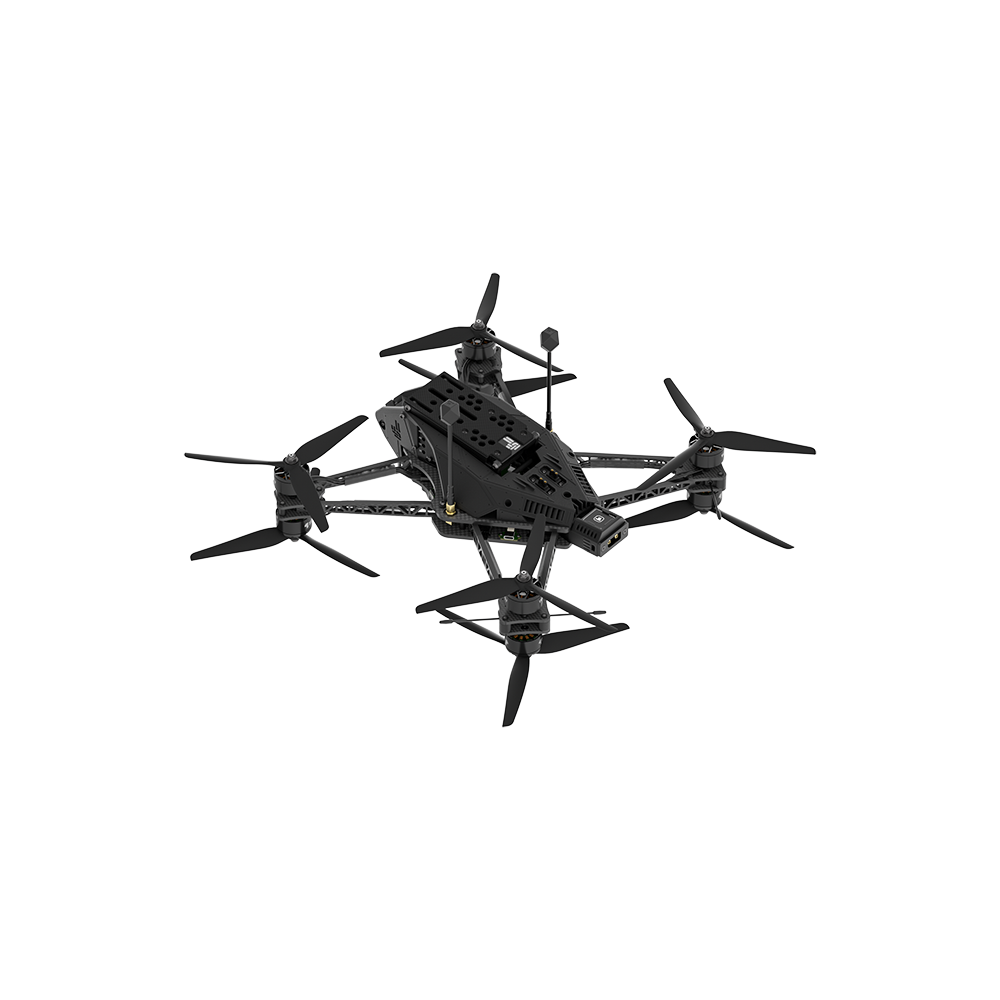

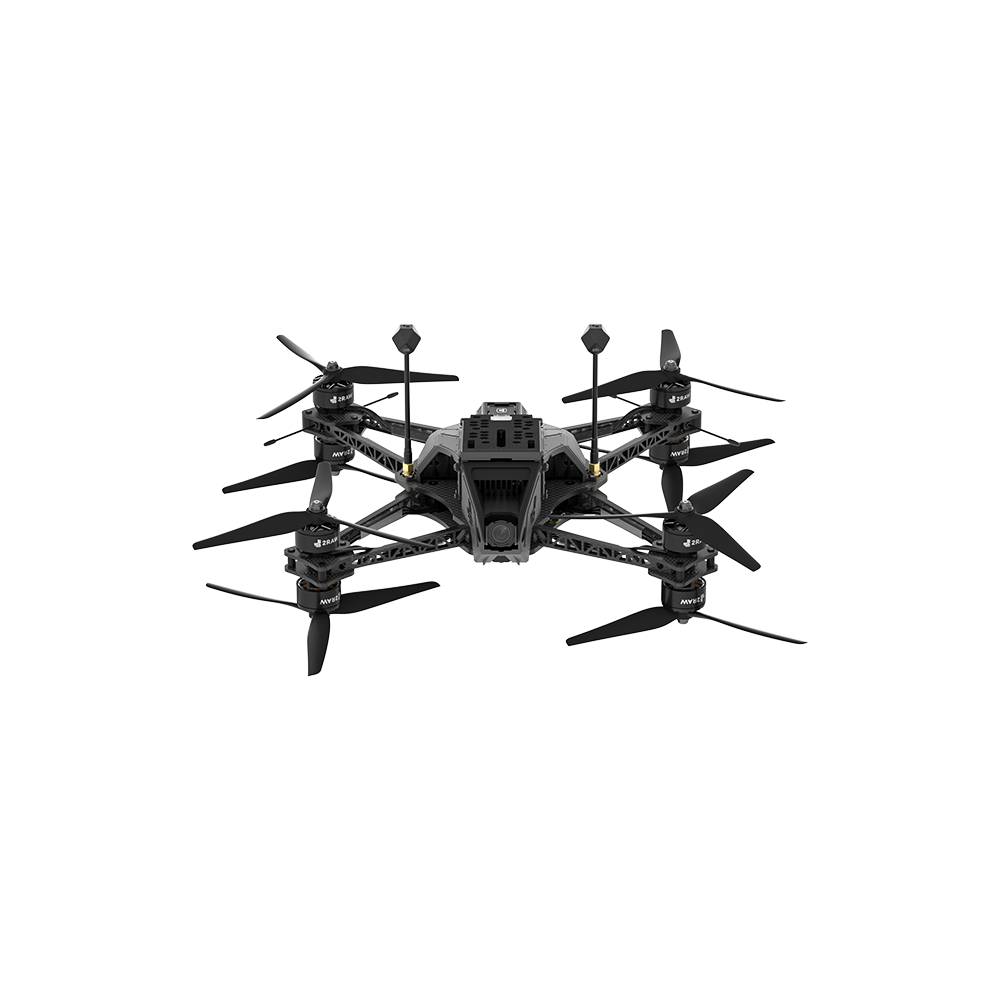

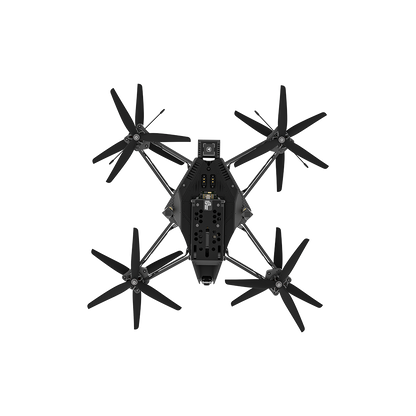

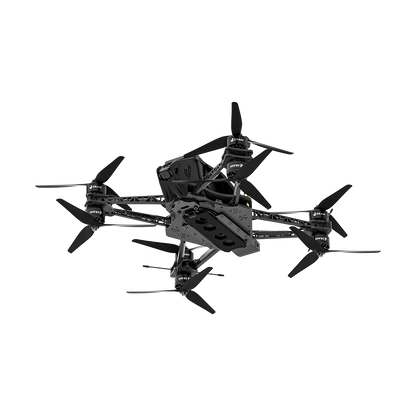

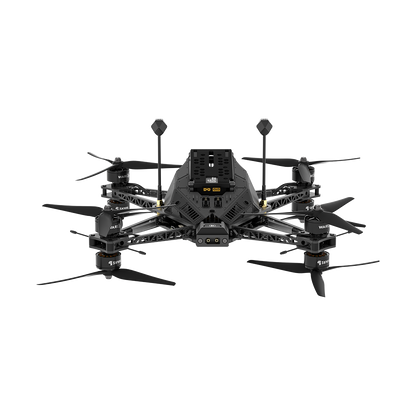

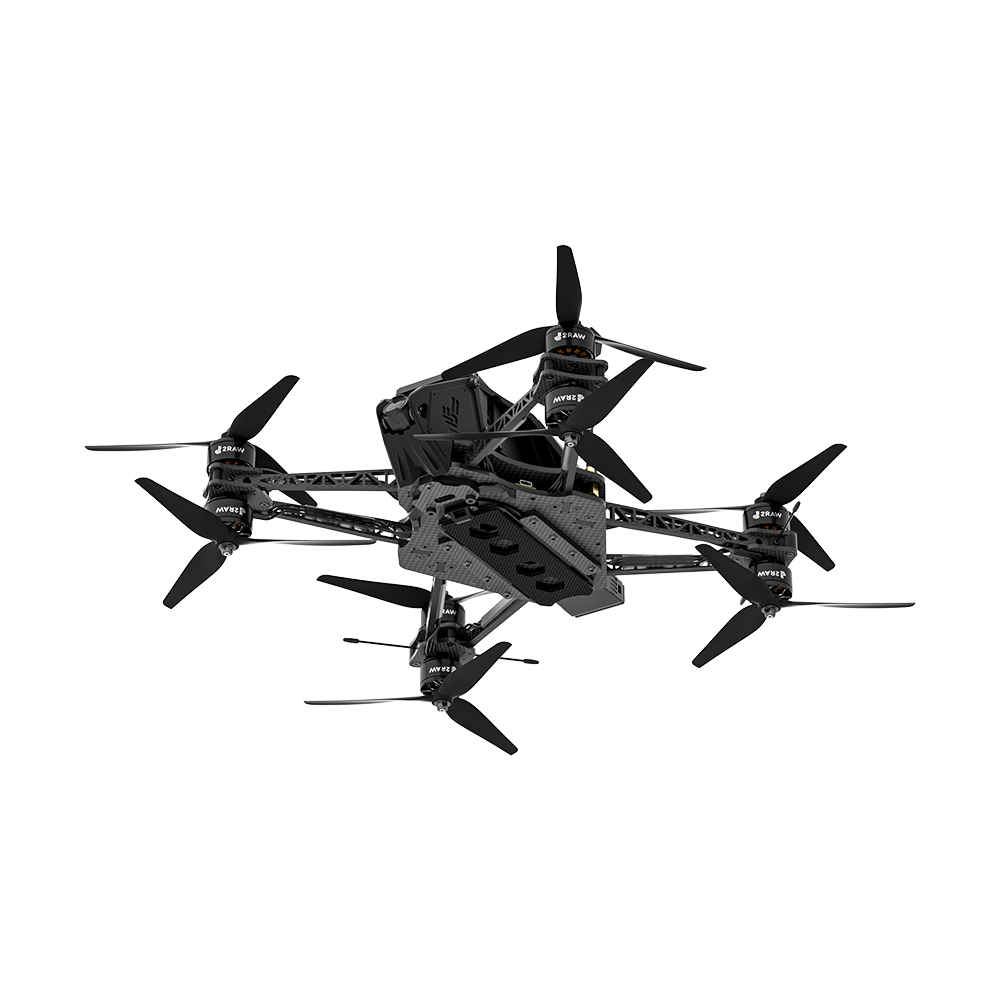

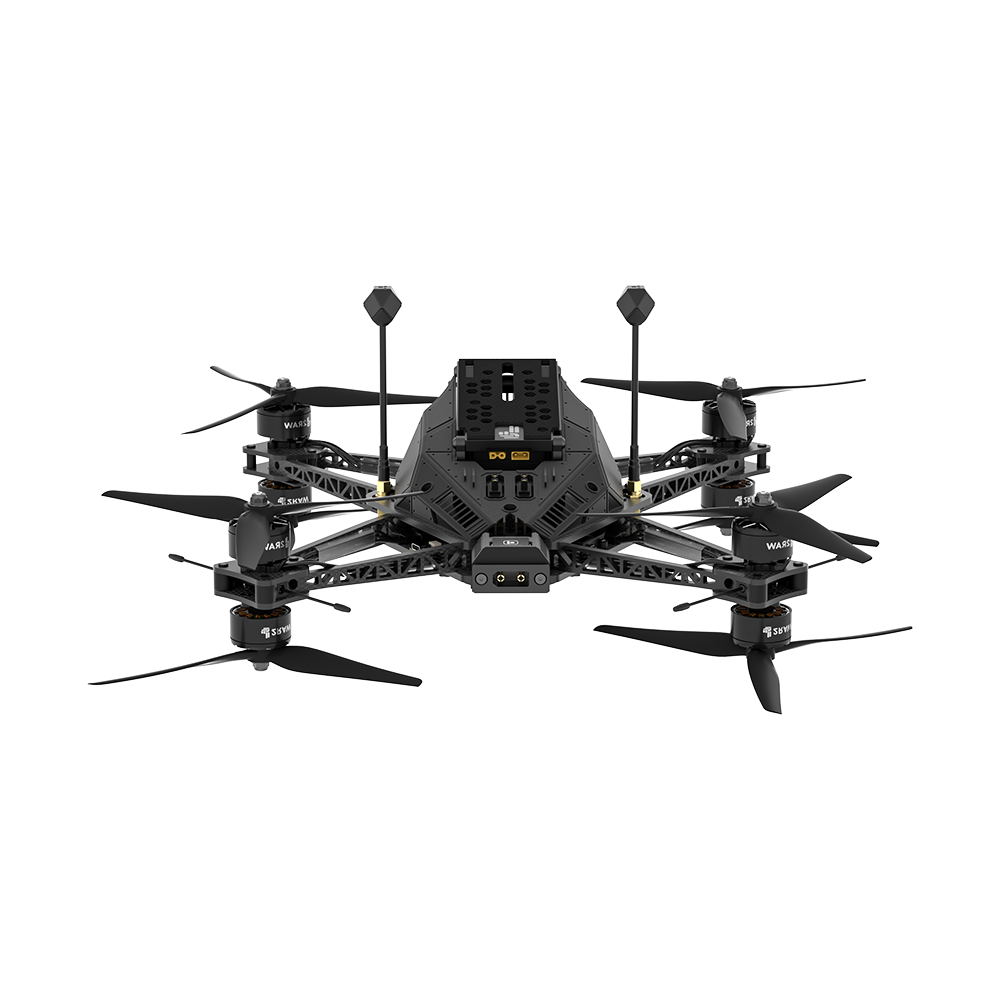

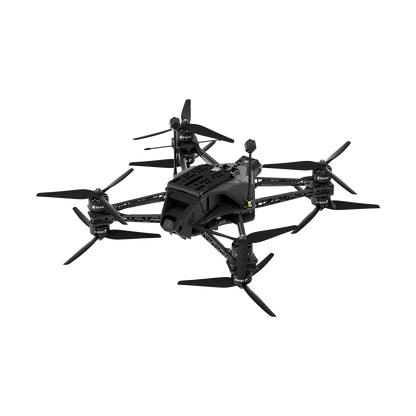

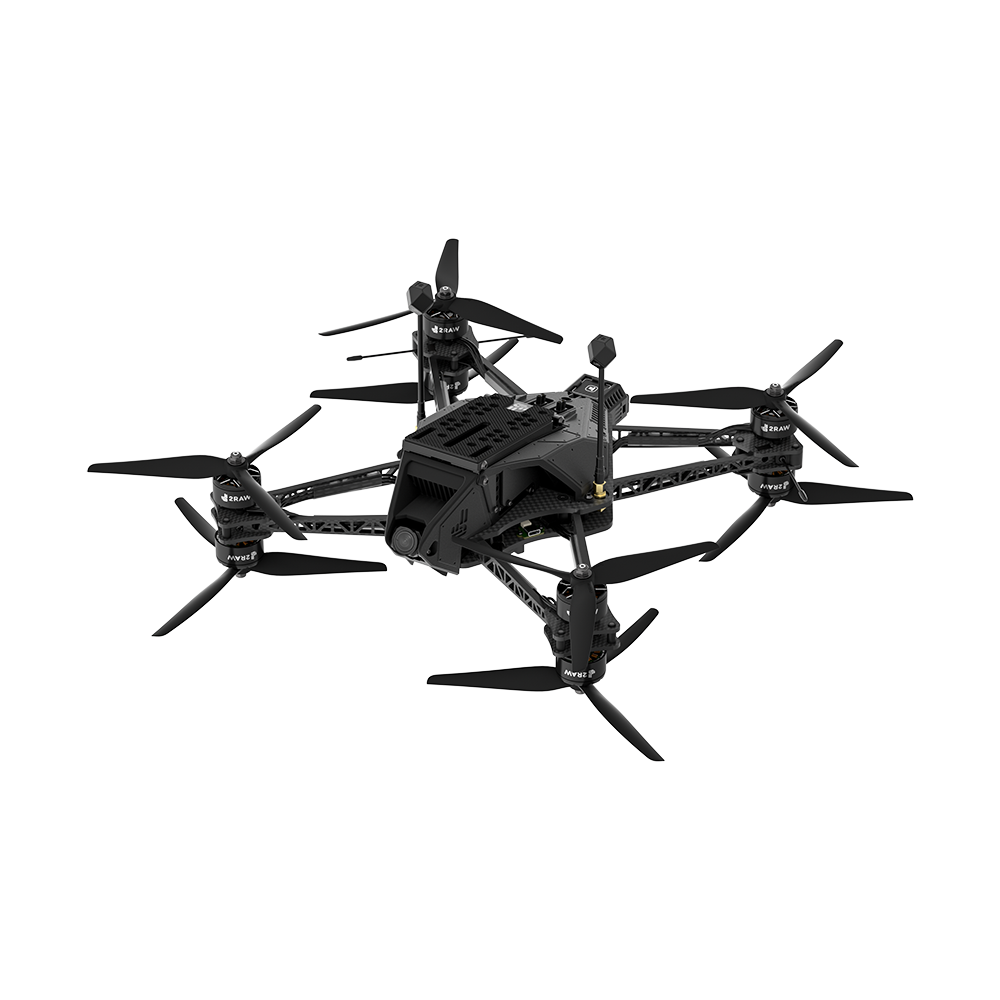

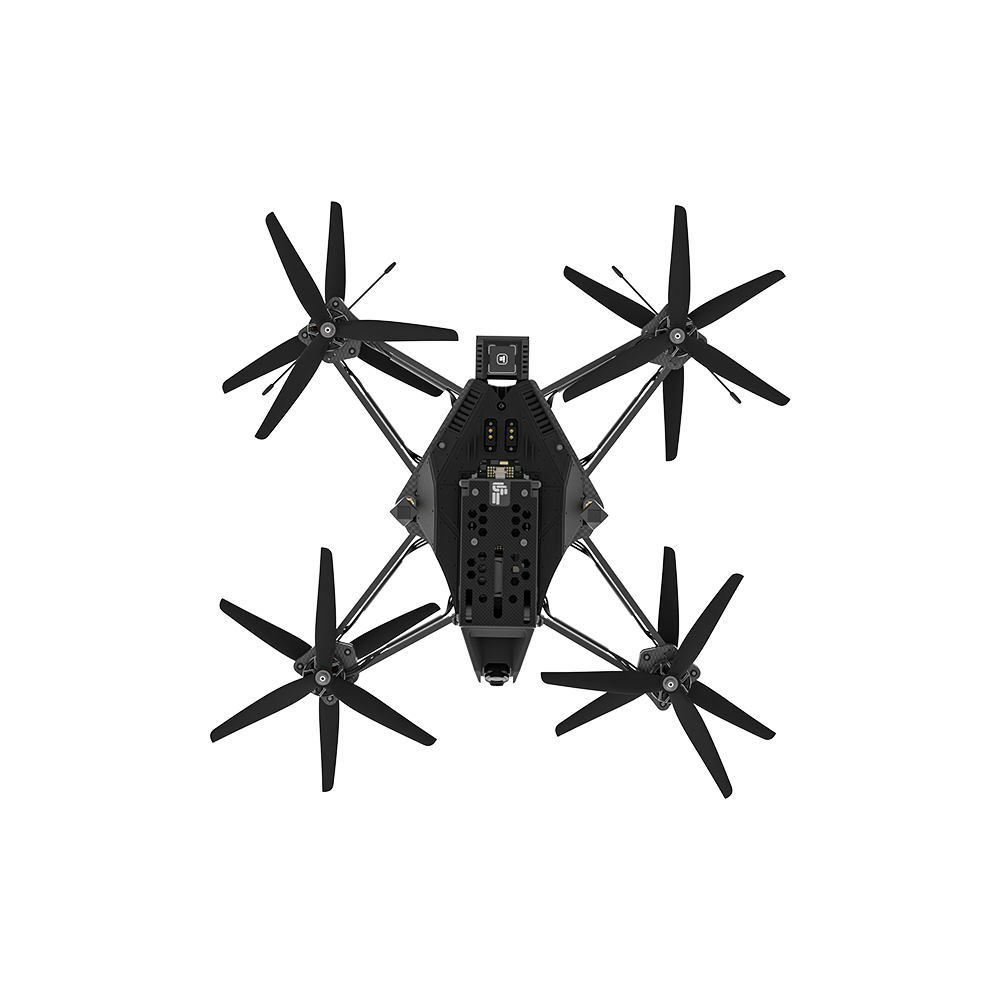

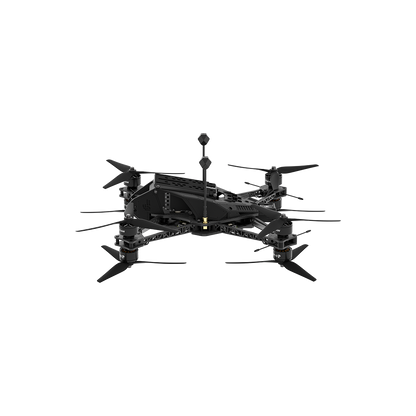

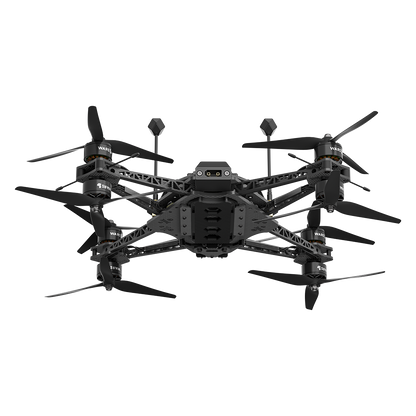

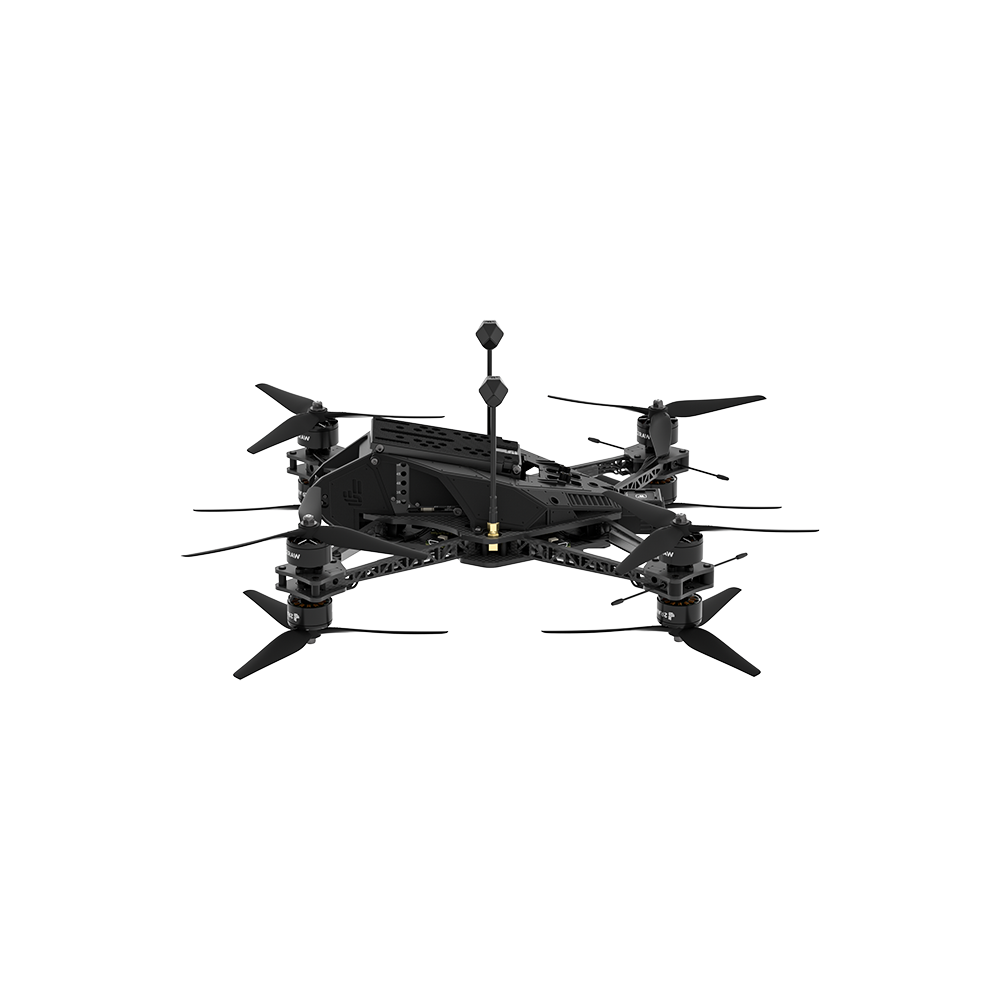

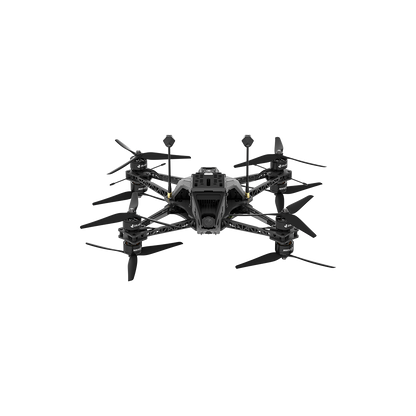

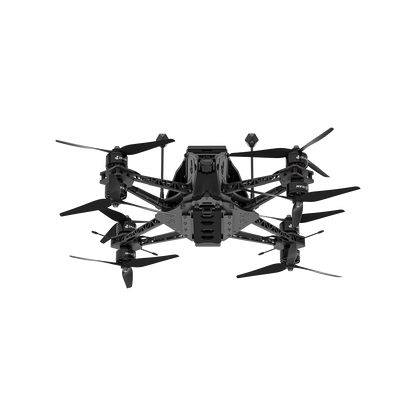

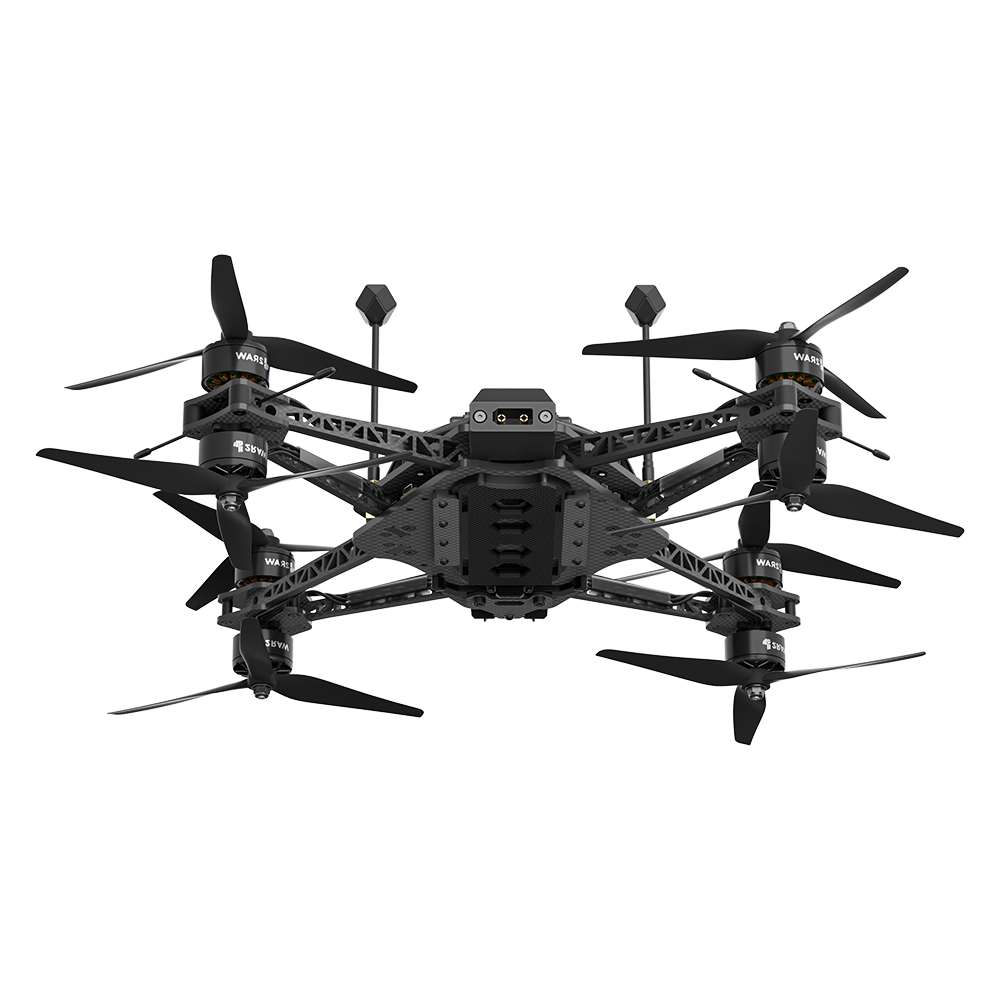

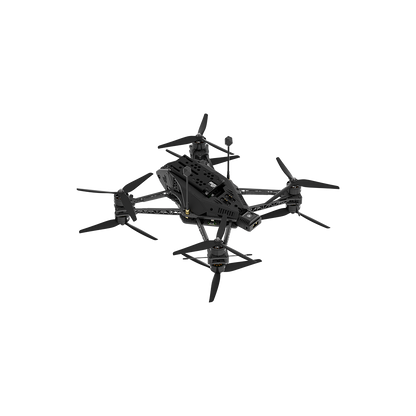

Centurion 8 HD O3 6S BNF Air Unit (No Additional Receiver)
Developed by 2RAW in collaboration with iFlight, the Centurion represents a pioneering step in cinelifter technology. It boasts custom designed electronics, including motors and the signature Thunder 8-in-1 ESC known for its exceptional filtering capabilities. Coupled with the formidable computing power of the 2RAW Thunder H7 Flight Controller, this combination provides unmatched performance for a 6S craft. In addition, the Centurion is equipped with high-end GPS chips with an enlarged antenna that facilitates fast and accurate satellite acquisition.
Function:
- Advanced Truss Arms -
The integration of A-frame construction with braces ensures exceptional stiffness while effectively managing weight, resulting in superior performance.
- Innovative camera holder -

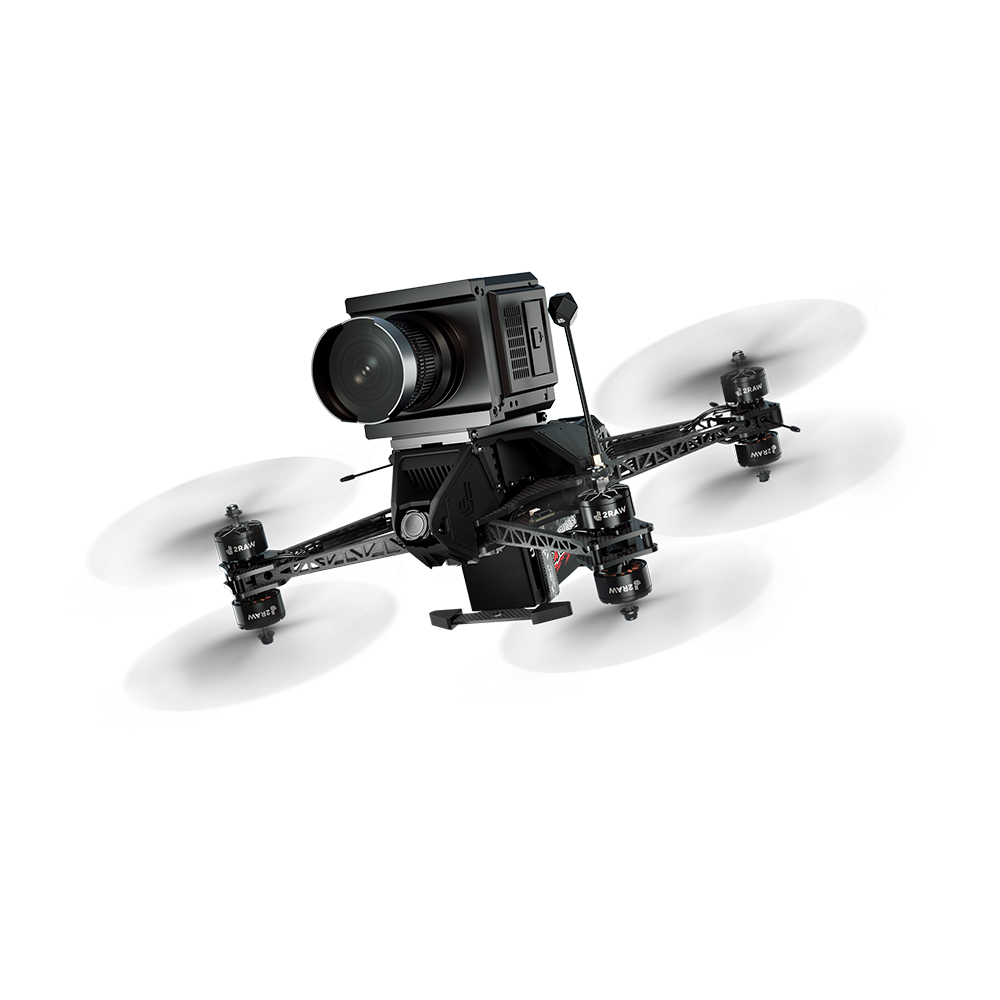

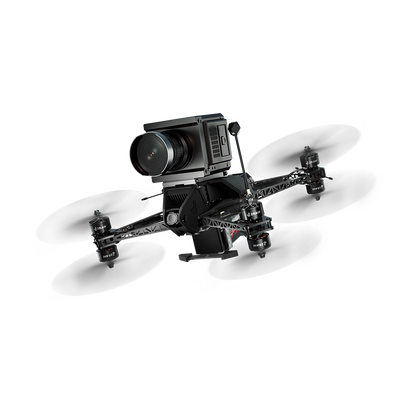

The Centurion camera mount stands out from others on the market with its adjustable angles ranging from 10 to 50 degrees. The mount is made of 7075 aircraft grade aluminum and is elevated to eliminate the propellers from the view of the movie camera. Importantly, it is supported along both the horizontal and vertical axes to mitigate payload resonances. As the camera angle increases for higher speed, the mount provides more and more support.
- AeroShell -
The AeroShell not only gives the Centurion a distinctive look, but has also been carefully designed with the help of PHD students to regulate airflow around the body and inside the drone. Air enters through intakes to cool the ESC, while exit is facilitated by rear exhausts. As the drone's speed escalates, the AeroShell acts as an air splitter, deflecting the airflow away from the flat top plate. The casing also serves as a barrier against the penetration of dirt into the electronics.
- Thermal cooling -
The casing design allows direct airflow over the electronics and ensures consistent cooling. In addition, the O3 air unit features an aluminum heatsink and fan assembly installed on top of it to prevent overheating, even in the most extreme desert conditions, instilling confidence in operation.
- Quick release battery system -
Equipped with a seamlessly integrated quick release battery system, the Centurion optimizes efficiency in demanding film environments. Unlike competing models, it uses battery straps and carbon plates, which eliminates the need for individual battery tying. This quick battery change option allows users to return to flight in seconds, increasing productivity.
Specifications:
Product name: Centurion 8 O3 6S HD
FC: Thunder H7 Flight Controller
ESC: Thunder 80A 8-IN-1 ESC
Video transmission: DJI O3 Air Unit
Frame: wheelbase 384 mm
Motor: XING2 2812 1150KV motors
Propeller: GEMFAN 8046 propeller
Weight: 1837 g (without battery)
Dimensions (L×W×H): 272×272×96 mm
Maximum speed: 160 km/h
Maximum take-off height: 7000m
Maximum Hover Time: Approx. 6 minutes with 6S Lipo 5600 mAh battery
Maximum sailing time: Approx. 5 minutes with 6S Lipo 5600mAh battery
Max Wind Speed Resistance: Level 8
Operating temperature range: -10° to 40° C
Antennas: Dual antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Receiver option: No other receiver
Video transfer:
Product Name: DJI O3 Air Unit
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End latency
With DJI FPV Goggles V2:
-810p/120fps Video transmission quality: Latency is lower than 28ms.
-810p/60fps Video transmission quality: Latency is less than 40ms.
With DJI Goggles 2:
Video transmission quality -1080p/100fps: Latency is only 30ms.
Video transmission quality -1080p/60fps: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x Centurion 8 O3 6S HD BNF
4 x GEMFAN 8046 CW propellers
4 x GEMFAN 8046 CCW propellers
2 x Albatross LHCP 5.8GHz SMA FPV Antenna
1 x XT90 male to XT60 female adapter cable
4 x iFlight Lipo strap 20*300mm
2 x iFlight Lipo strap 15*250mm (black)
1 x XT90 Smart Smoke Stopper
