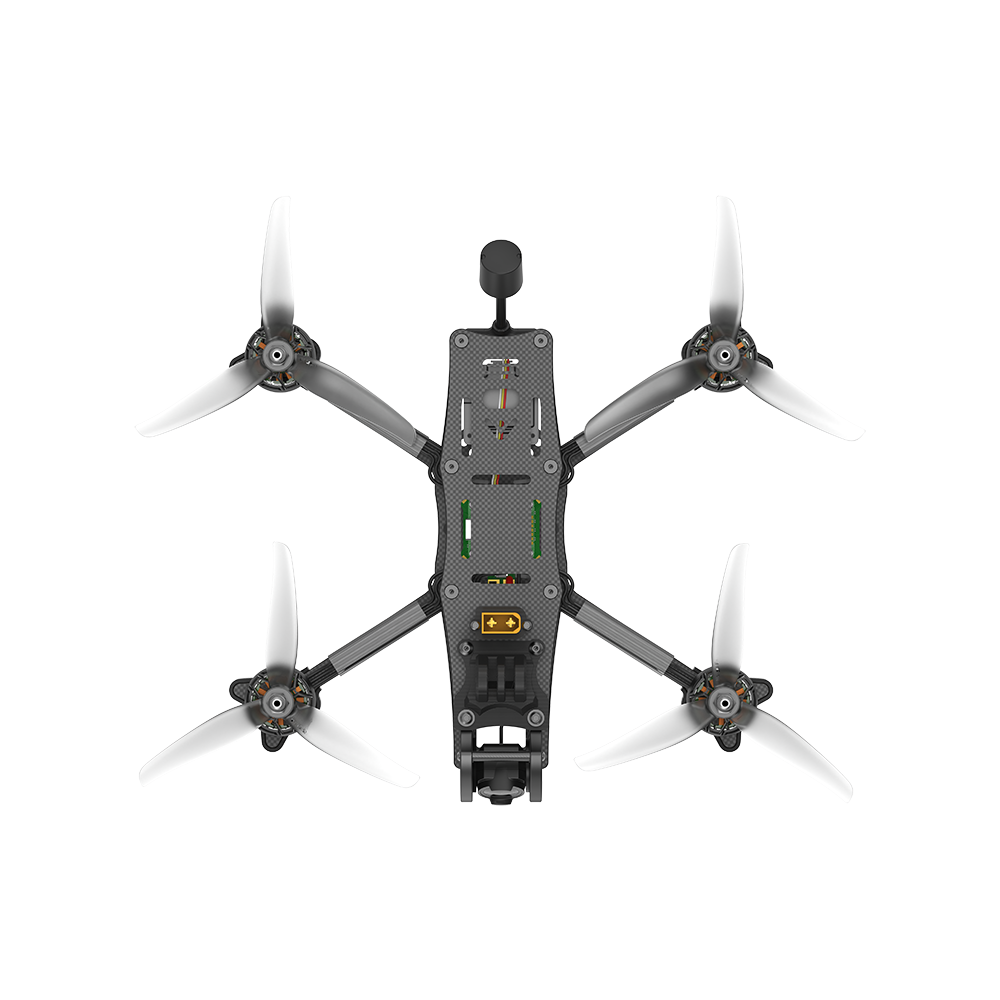

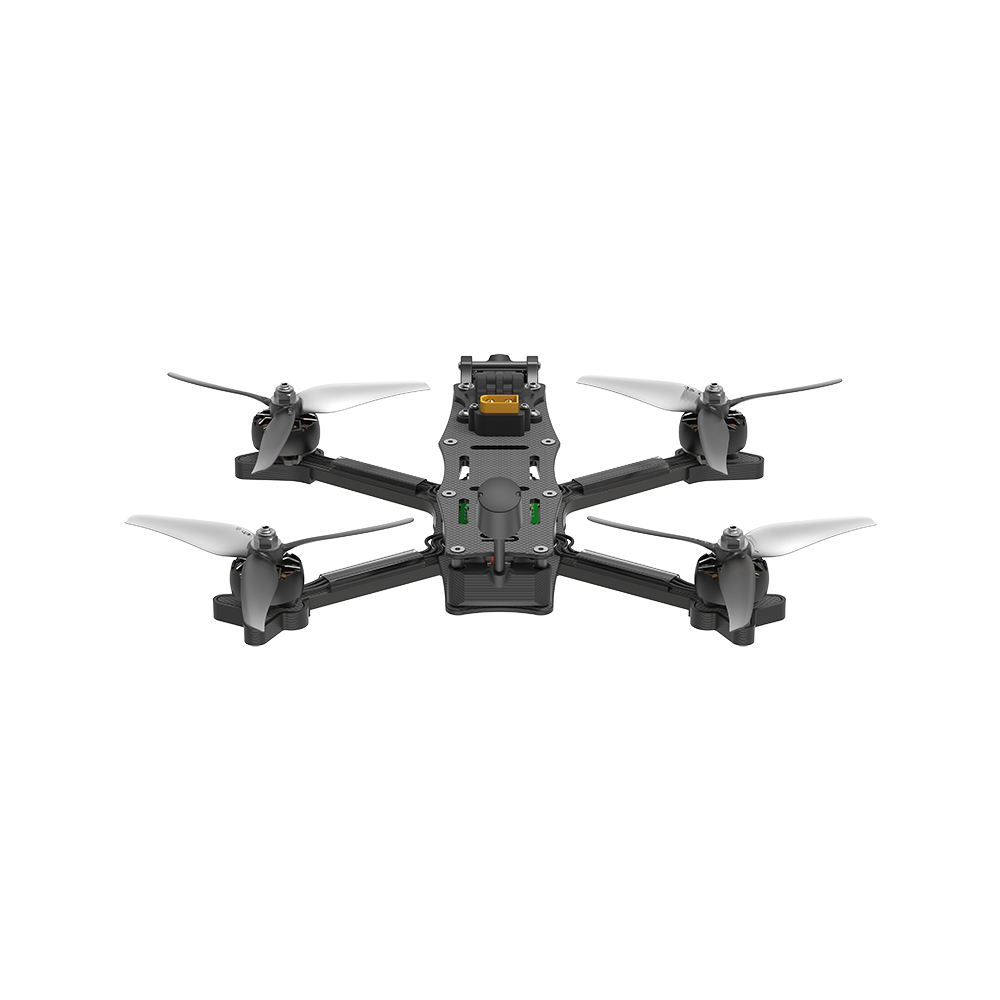

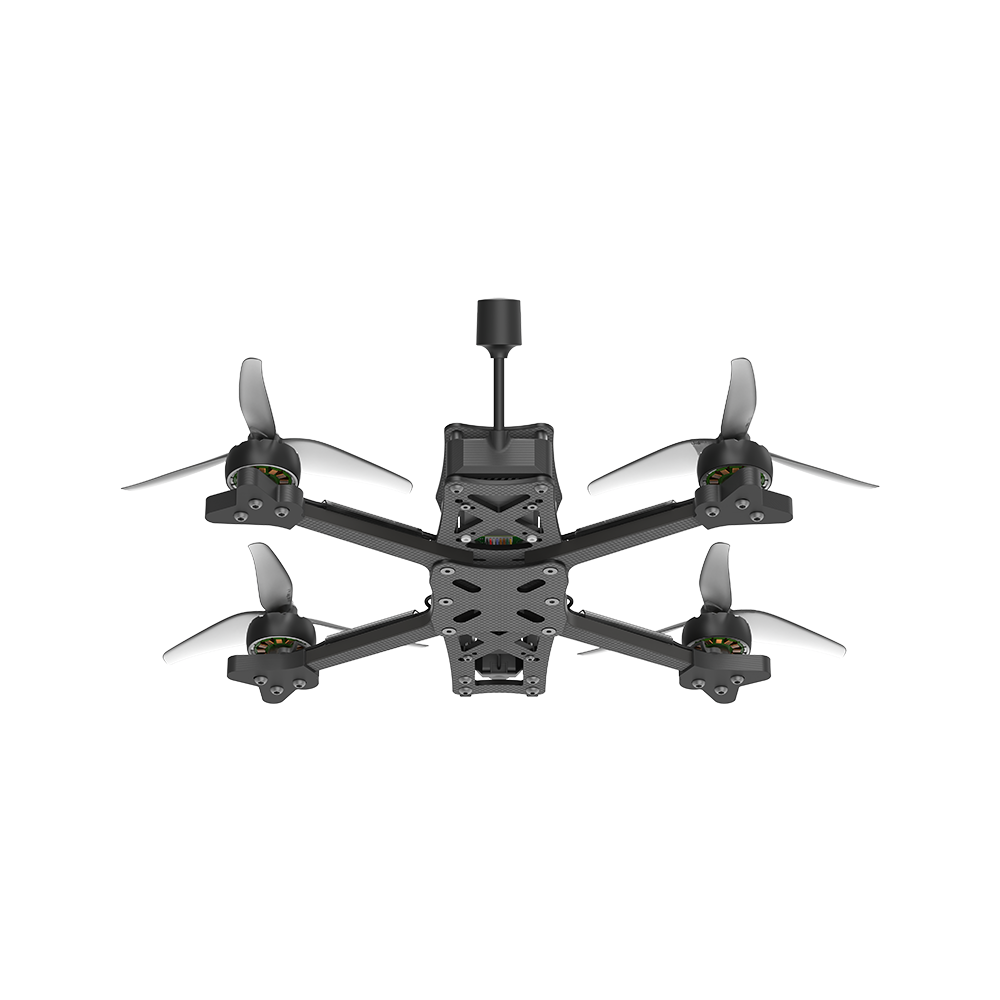

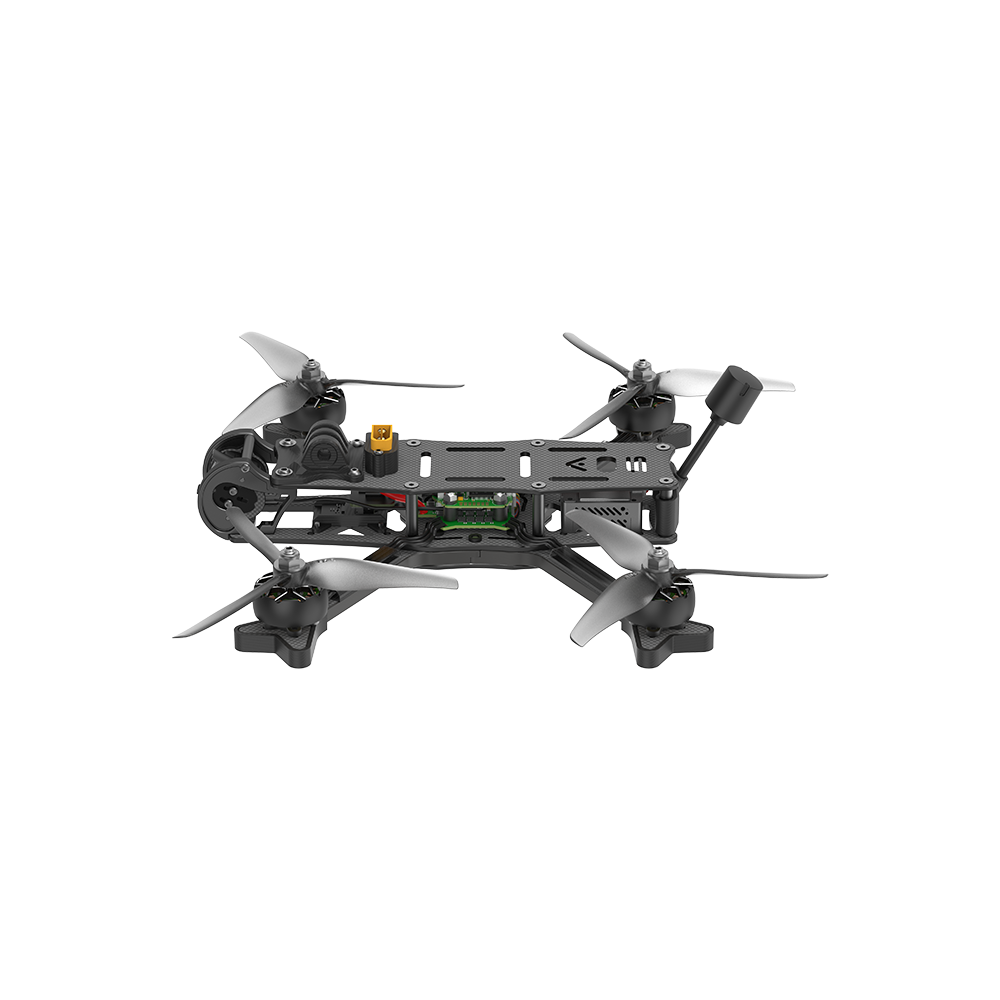

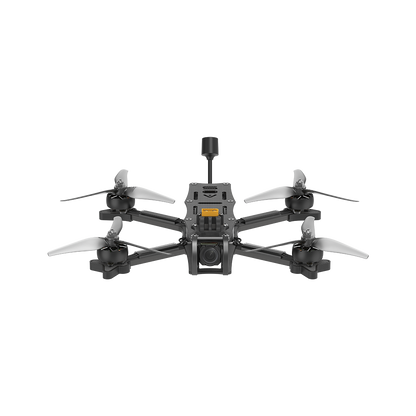

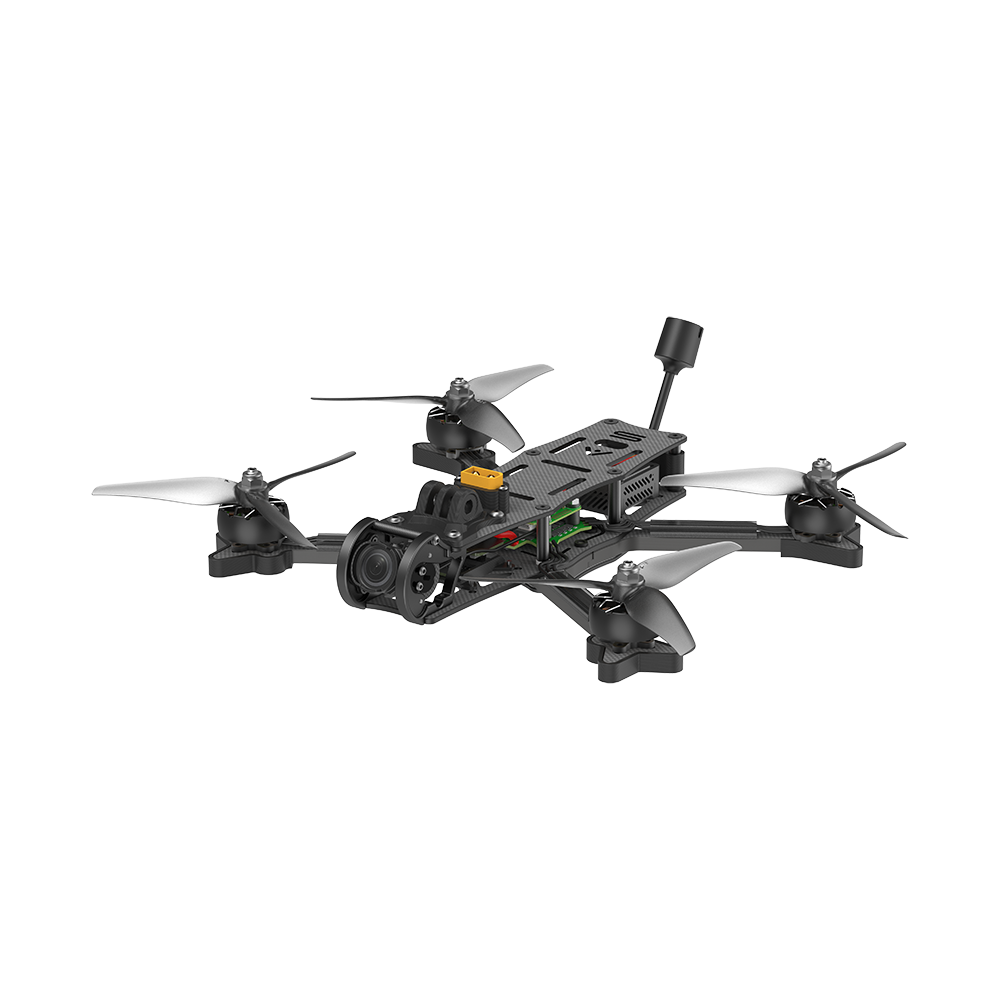

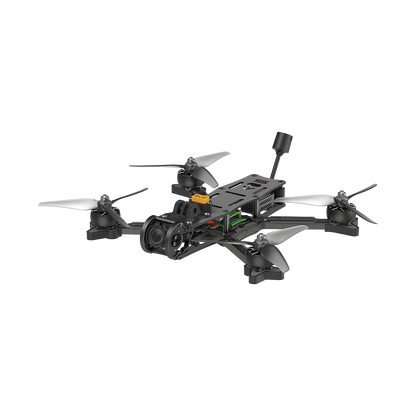

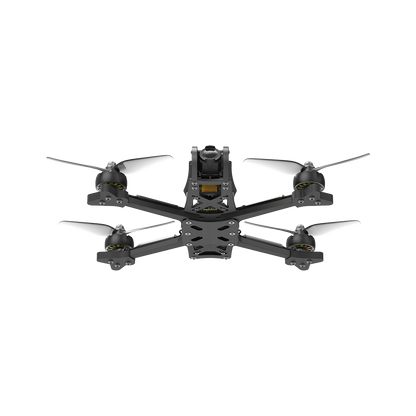

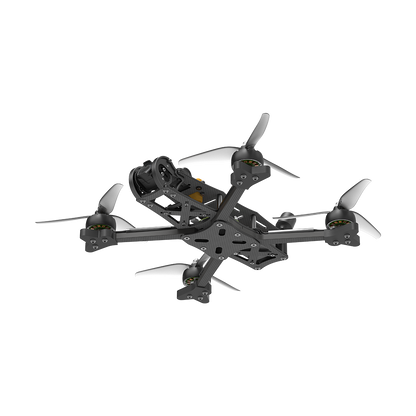

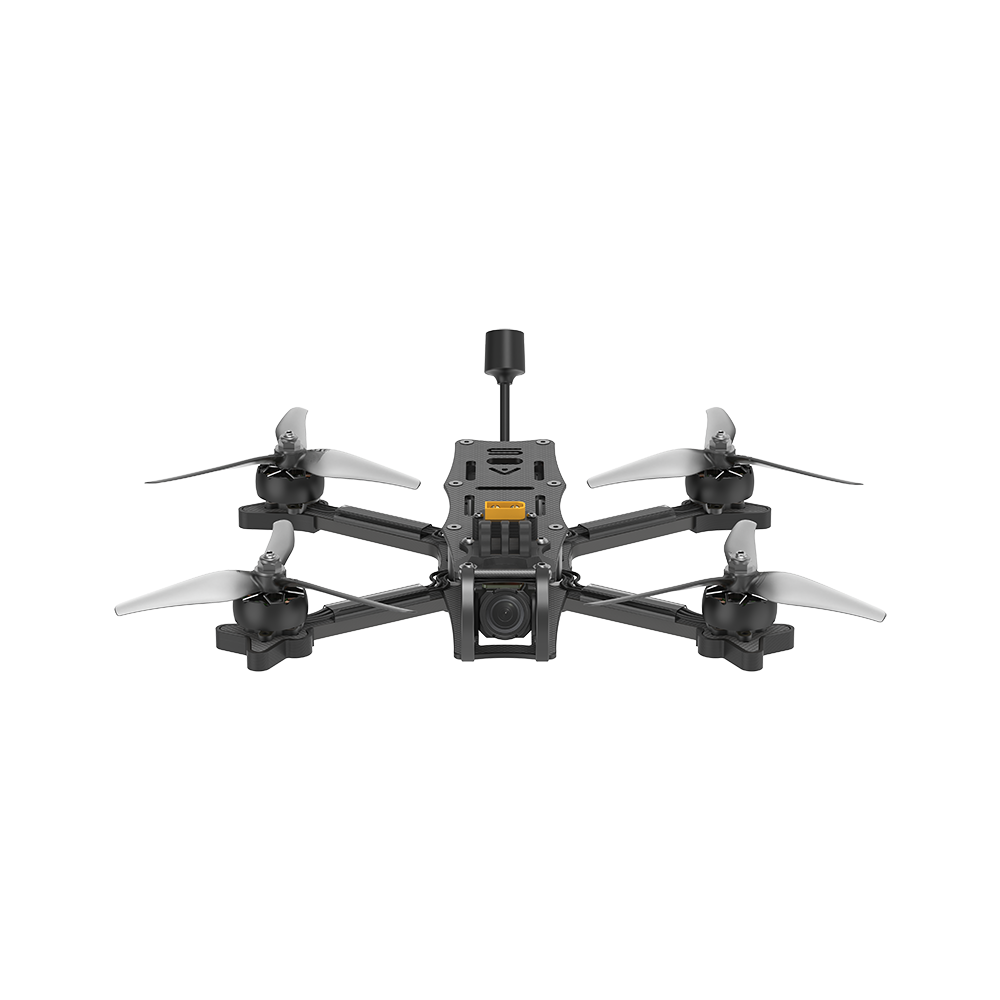

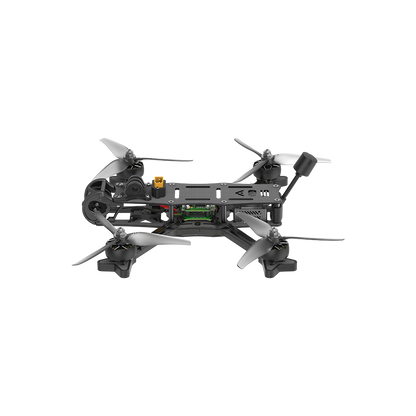

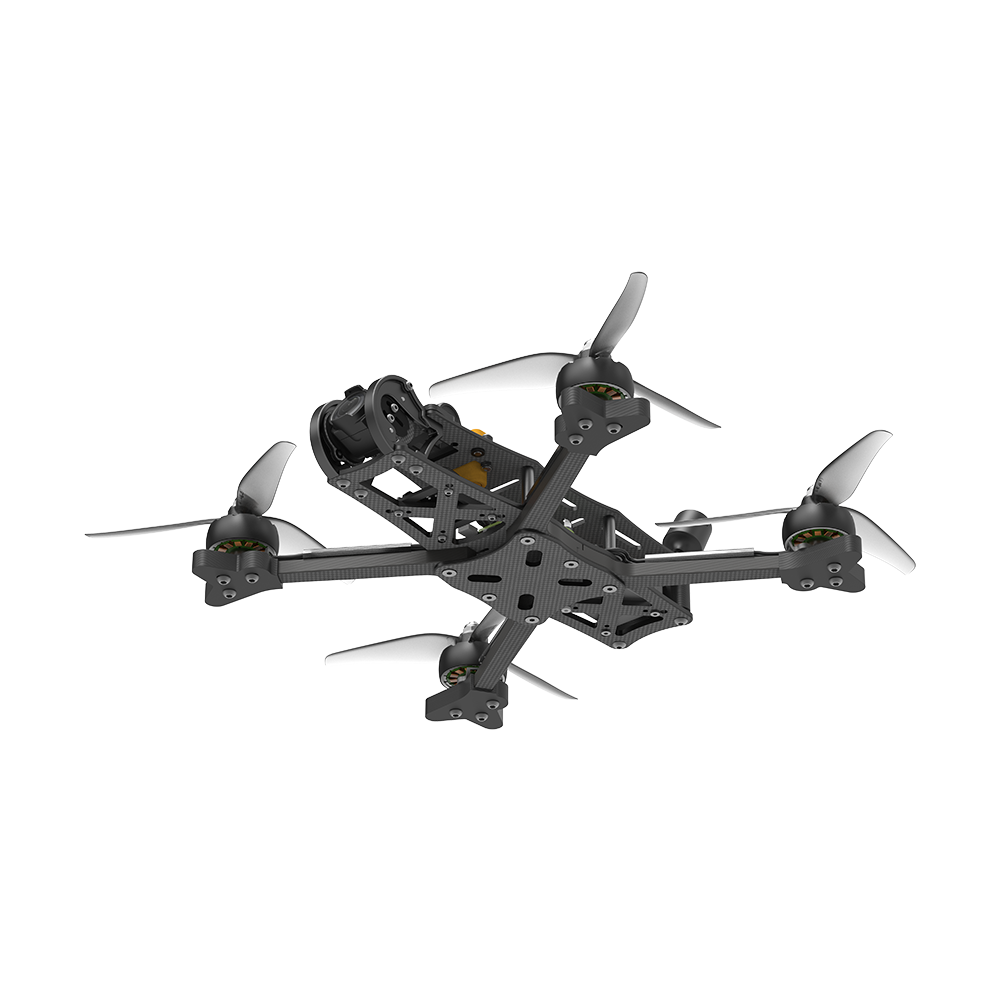

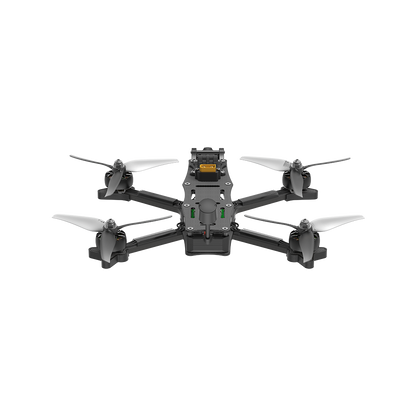

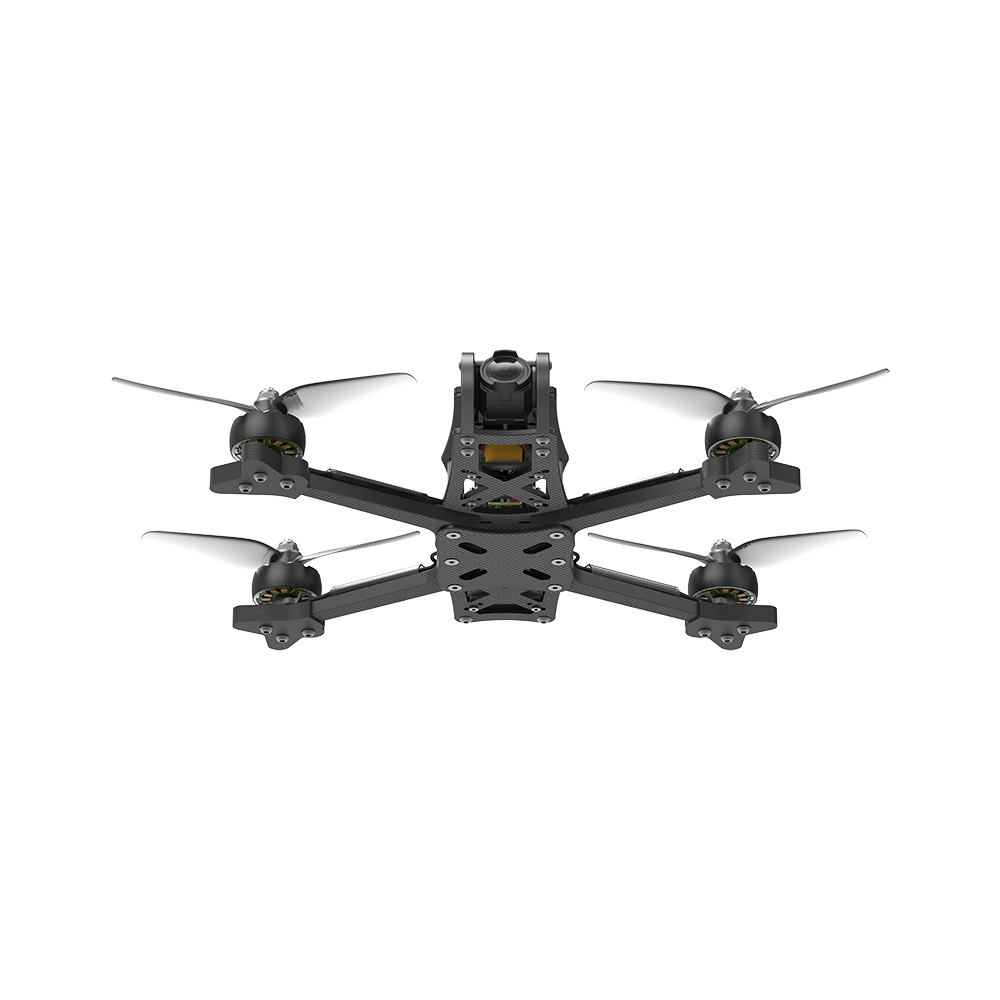

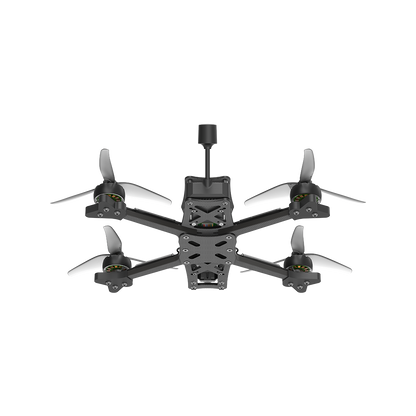

FPV Drone iFlight AOS 5 V5 HD 6S PNP
Discover the future of 5" FPV with the AOS 5 V5, designed to revolutionize your freestyle experience. Designed with cutting-edge patented technology and premium materials, the AOS 5 V5 is the ultimate choice for drone enthusiasts.
Elevate your FPV game with AOS 5 V5. This drone is built to deliver unmatched performance, durability and customizability in the 5" category, making it the ideal choice for professionals, enthusiasts and beginners alike. Unleash your creativity and push the boundaries of what's possible in your freestyle flying.
Specifications
Geometry: Squashed-X
Flight Controller: BLITZ Mini F7 FC
ESC: BLITZ Mini E55 4-in-1 ESC
Video Transmission: DJI O3 Air Unit
Frame: Wheelbase 228 mm
Motor: XING 2207 1750KV motors
Propellers: Nazgul F5 propellers
Takeoff Weight: Approximately 407g (without battery)
Dimensions (L×W×H): 180×140×34 mm
Maximum Speed: 190 km/h (Manual Mode)
Maximum Take-off Altitude: 6000 m
Maximum Hover Time: About 7.5 minutes with 1400mAh without load
Maximum Reached Distance: 5 km
Wind Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: 1 antenna (DJI O3 Air Unit Antenna)
GNSS: Not available
Video Transmission:
Product Name: DJI O3 Air Unit
Bandwidth: Max 40 MHz
Field of View (one screen): 155°
Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-End Latency:
With DJI FPV Goggles V2:
- Video Transmission Quality 810p/120fps: Latency is lower than 28ms.
- Video Transmission Quality 810p/60fps: Latency is lower than 40ms.
With DJI Goggles 2:
- Video Transmission Quality 1080p/100fps: Latency is up to 30ms.
- Video Transmission Quality 1080p/60fps: Latency is up to 40ms.
Maximum Video Transmission Bitrate: 50 Mbps
Maximum Video Transmission Range: 10km (FCC), 2km (CE), 6km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Input Voltage: 7.4-26.4 V
Audio Transmission: Not available
Package Contents
1 x AOS 5 V5 6S O3 HD PNP
2 x Pads for Batteries
2 x Pairs of Propellers
