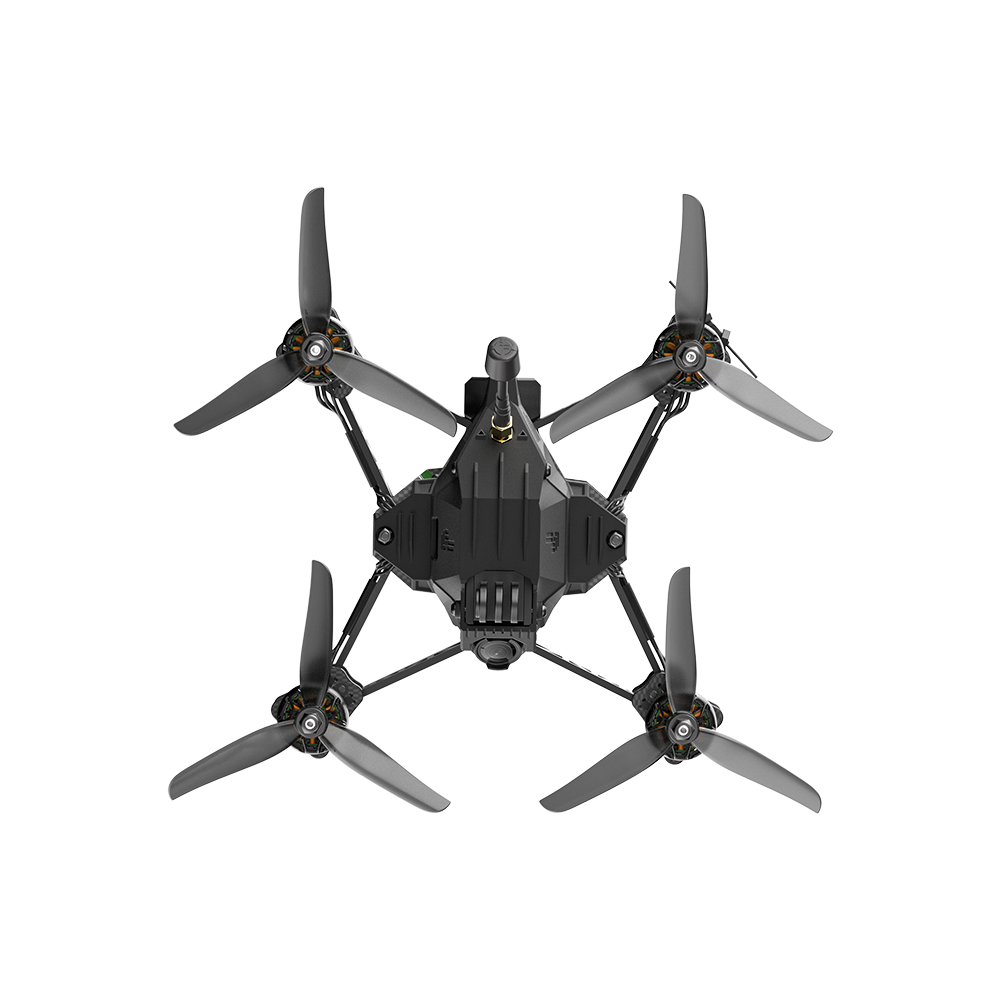

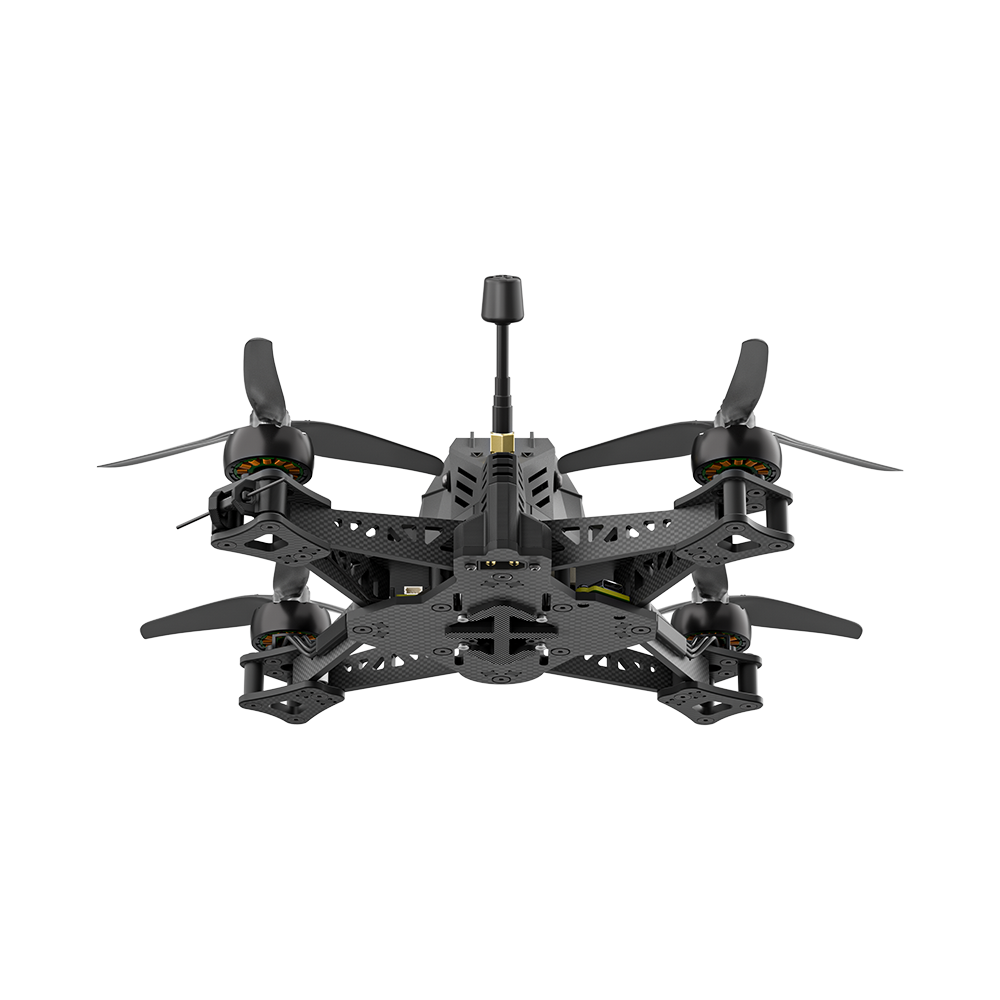

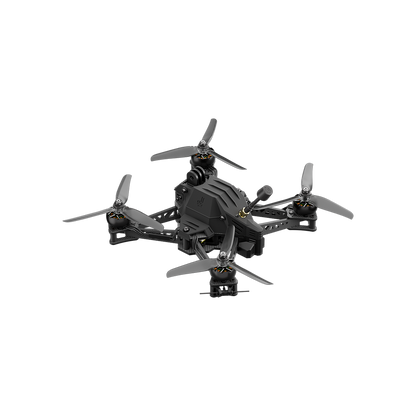

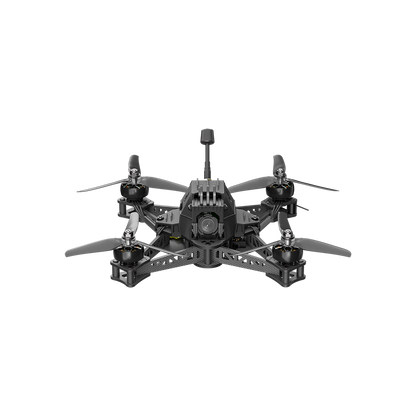

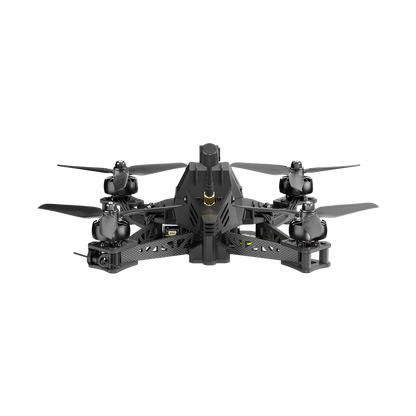

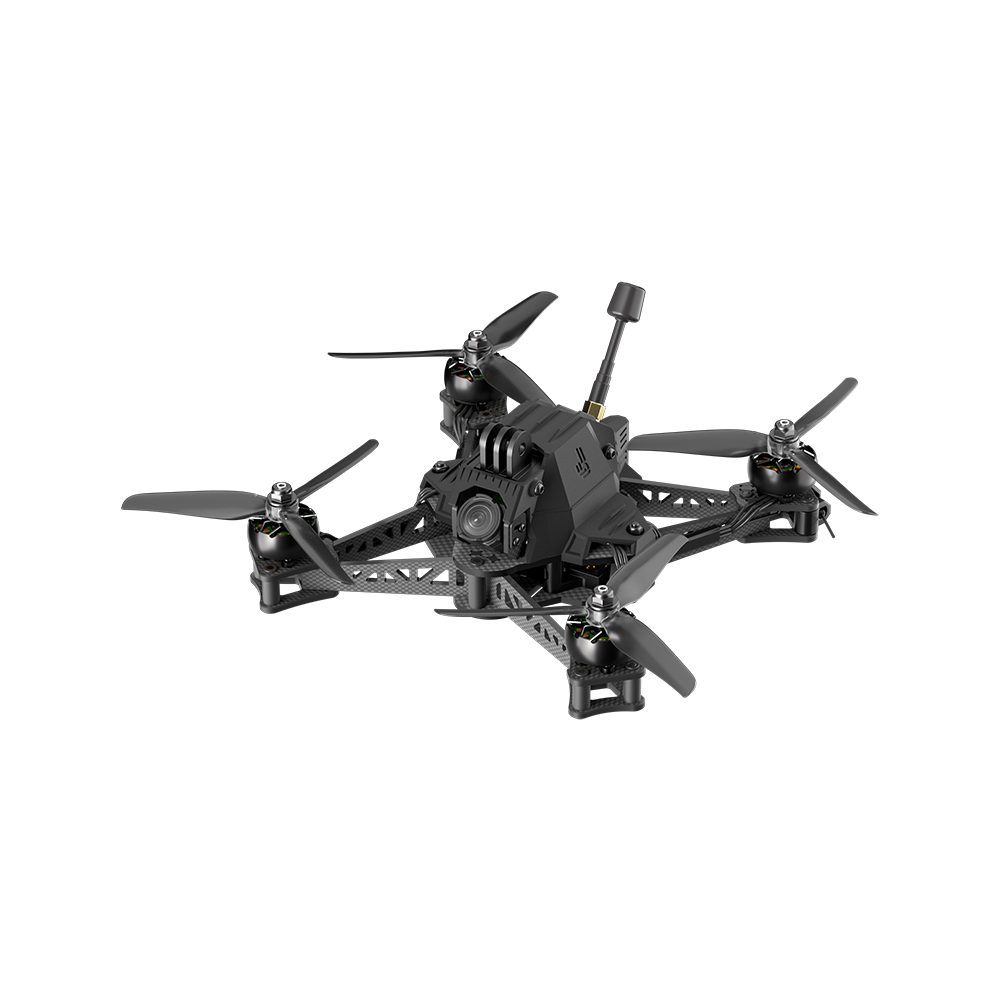

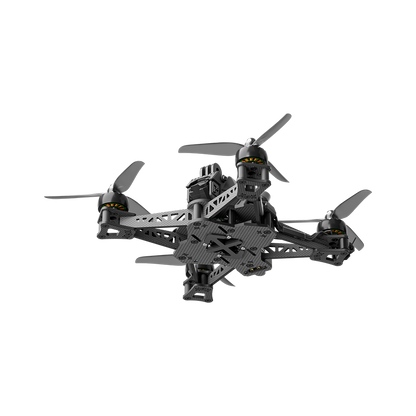

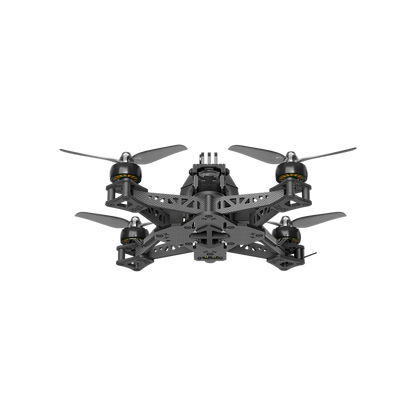

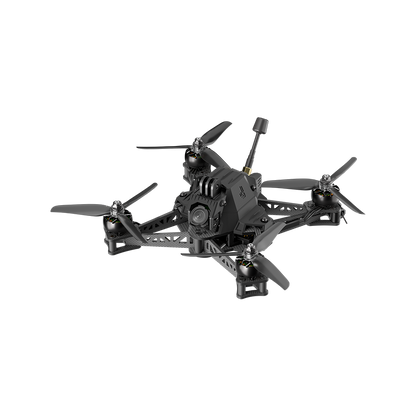

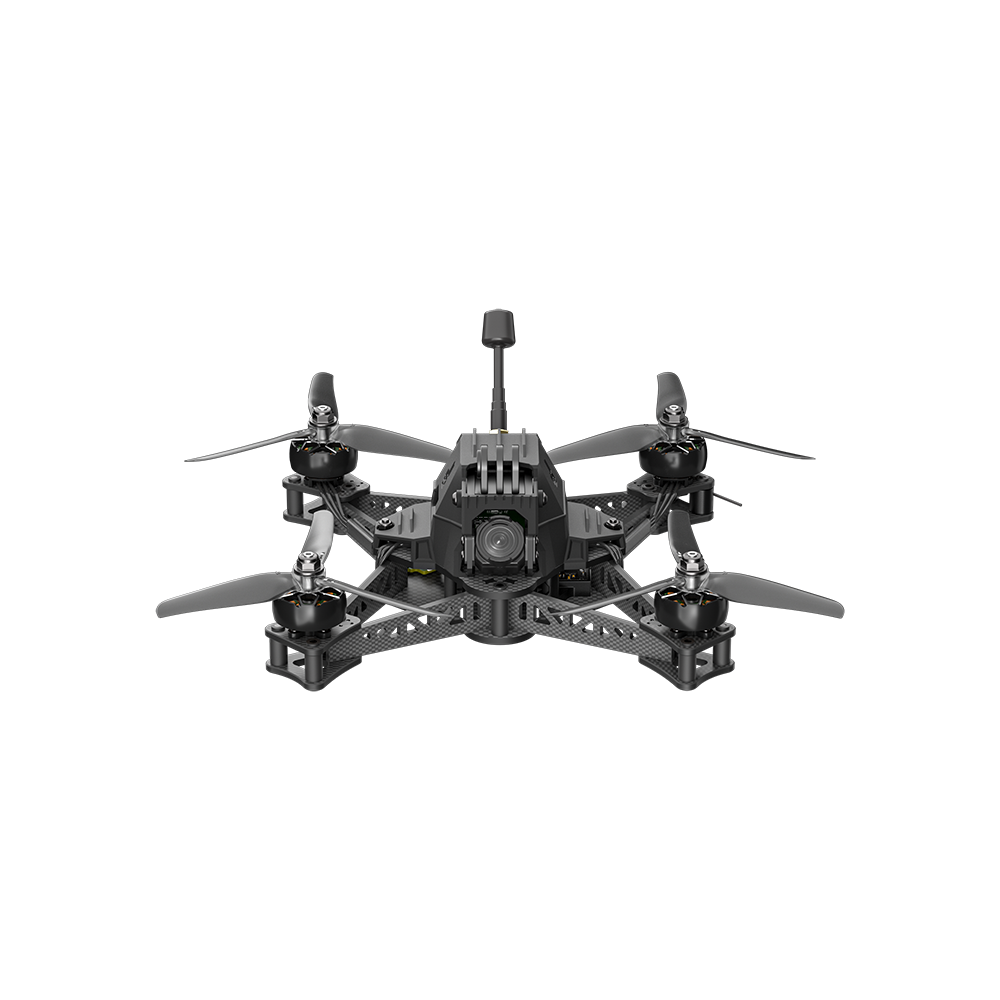

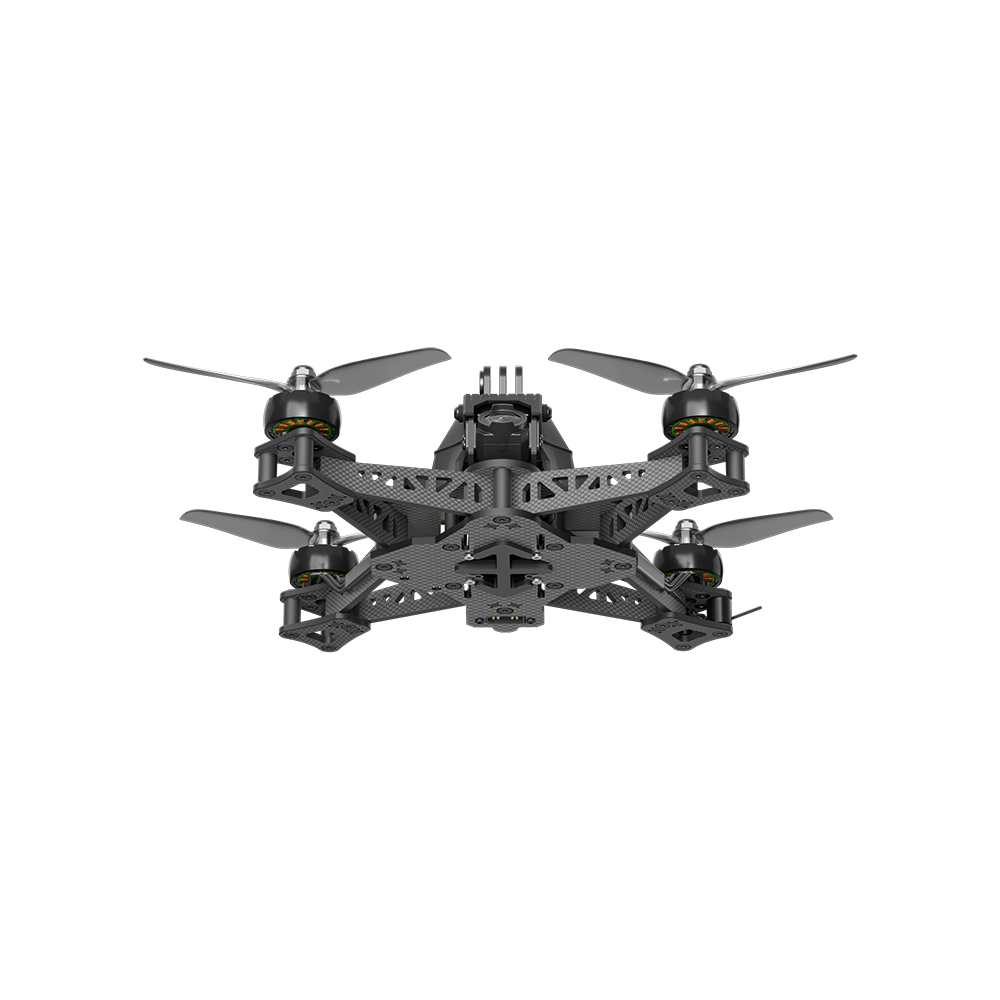

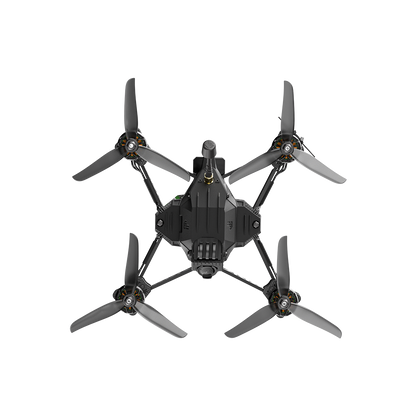

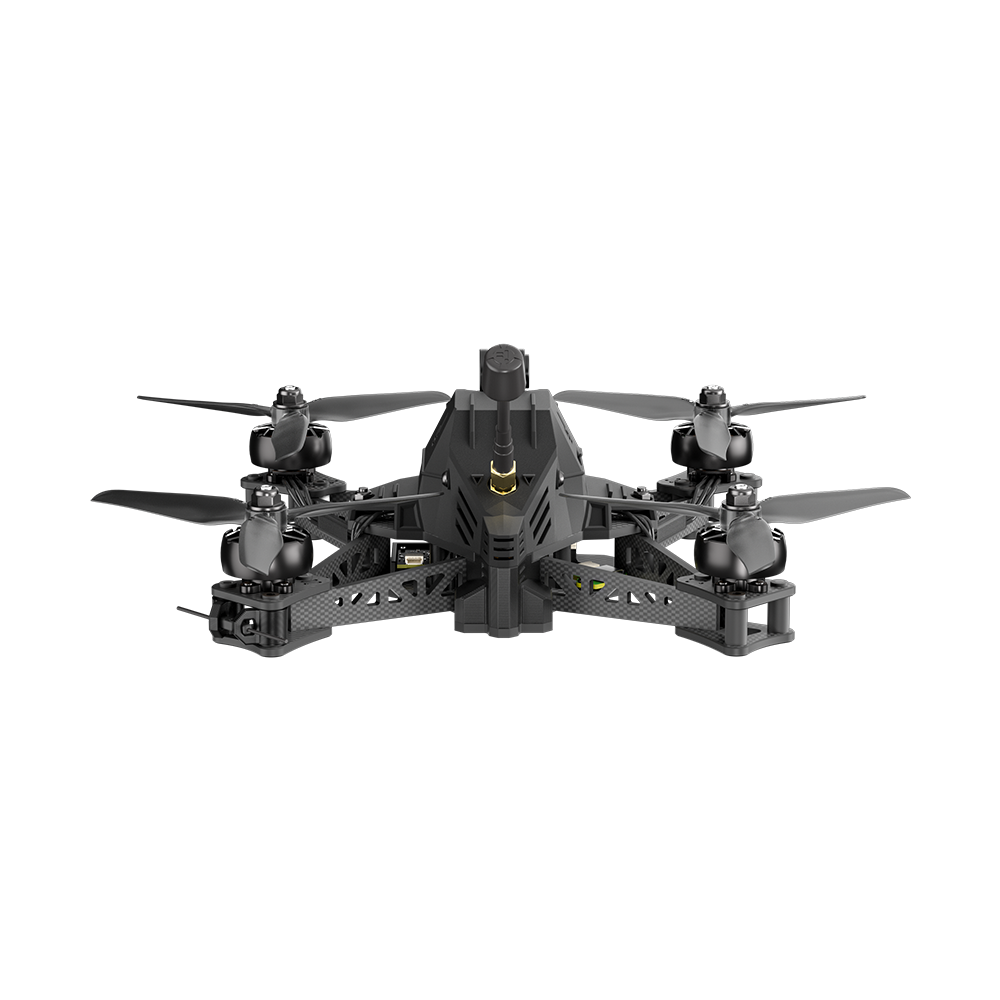

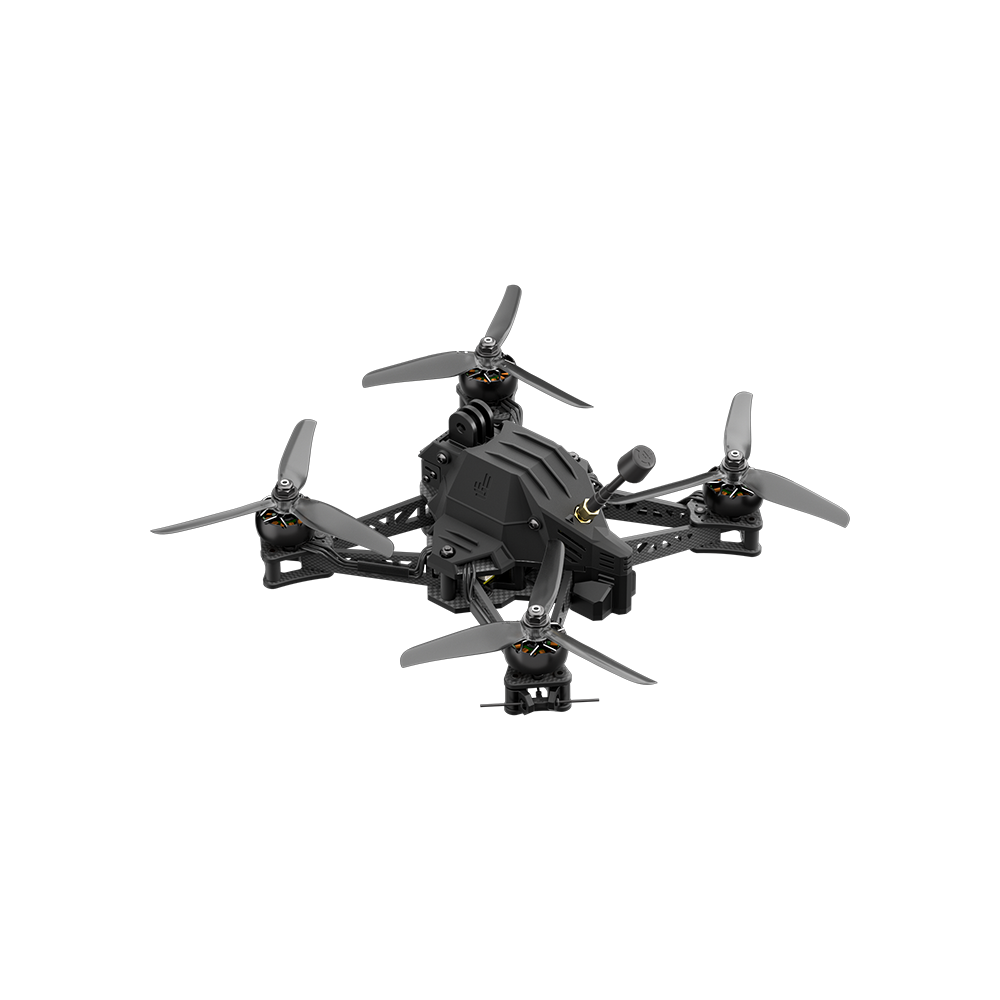

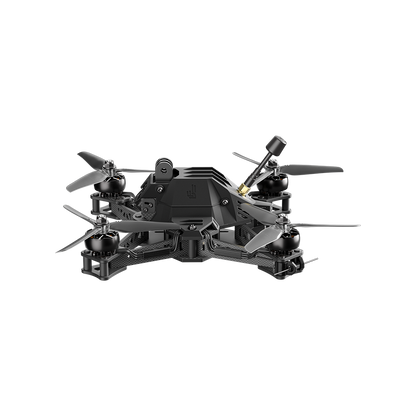

Afterburner 5 HD O3 6S BNF Air Unit (ELRS 2.4GHz)
Function:
- Afterburner has a 20% smaller footprint than traditional 5" freestyle frames, allowing for easier transport as well as increased agility and less drag for better all-round performance.

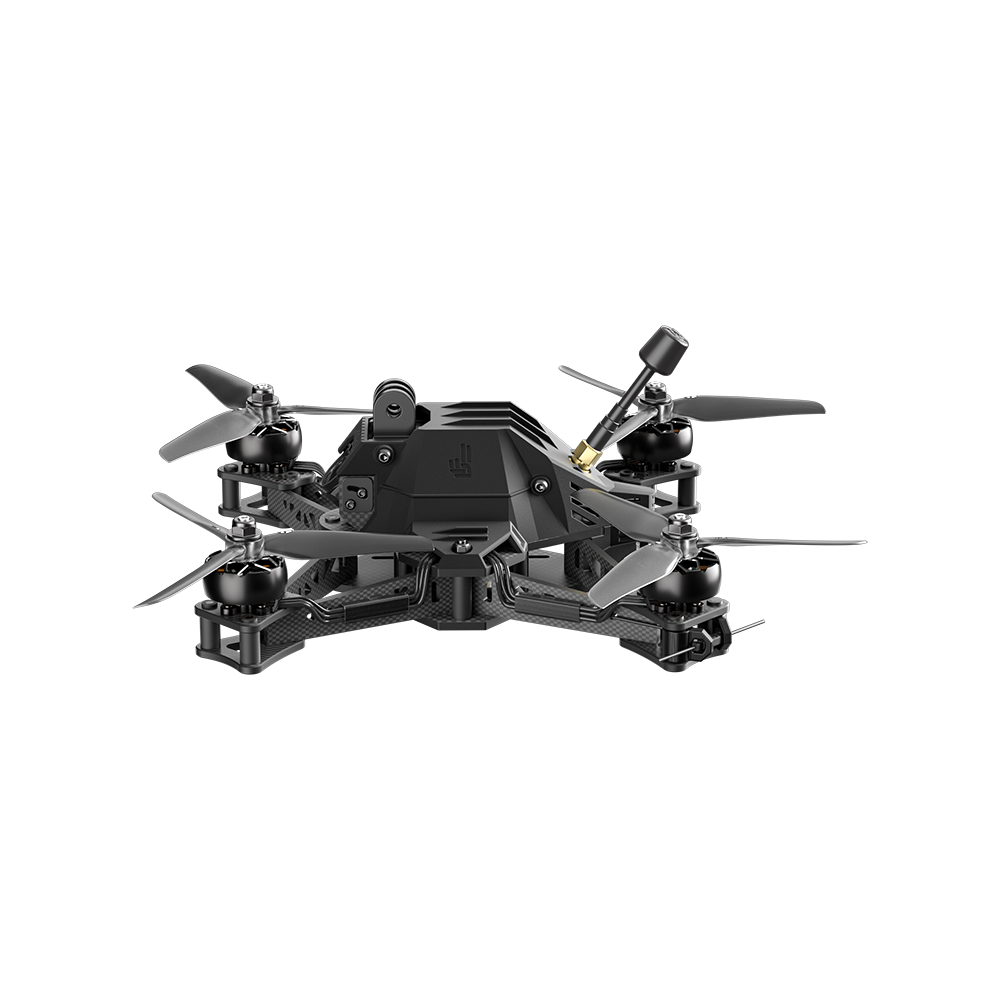

- Aeroshell controls airflow around the body and inside the drone. As the drone's speed increases, the shell acts as an air divider to prevent air from hitting the flat top plate. The shell also helps protect the electronics from dirt and moisture, so you can be more confident in critical situations.
- The star design combined with the beams ensures great rigidity while maintaining low weight and perfect balance, which delivers exceptional results when it comes to shooting buttery shots.

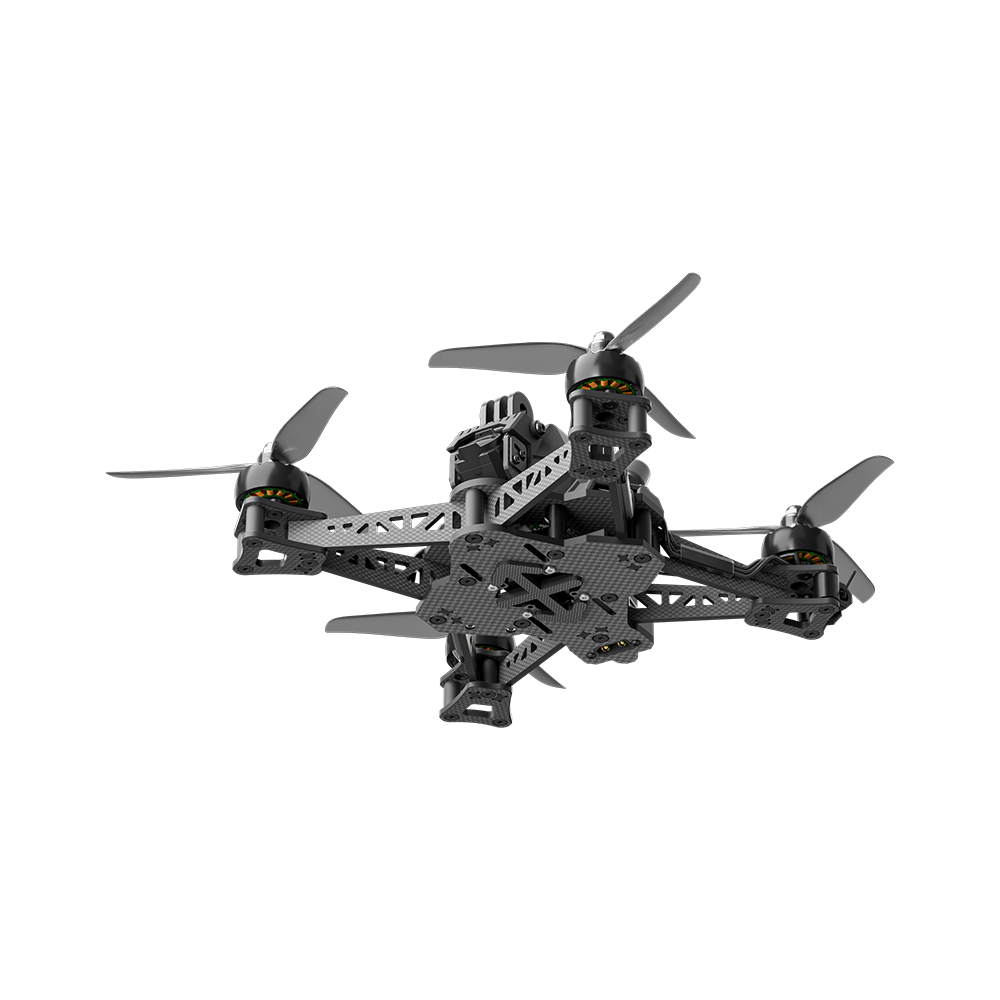

- Bottom mount battery. It allows for the least amount of drag possible and completely clears the top of the drone to allow for a Gopro mount as well as a clear line of sight for the GPS.

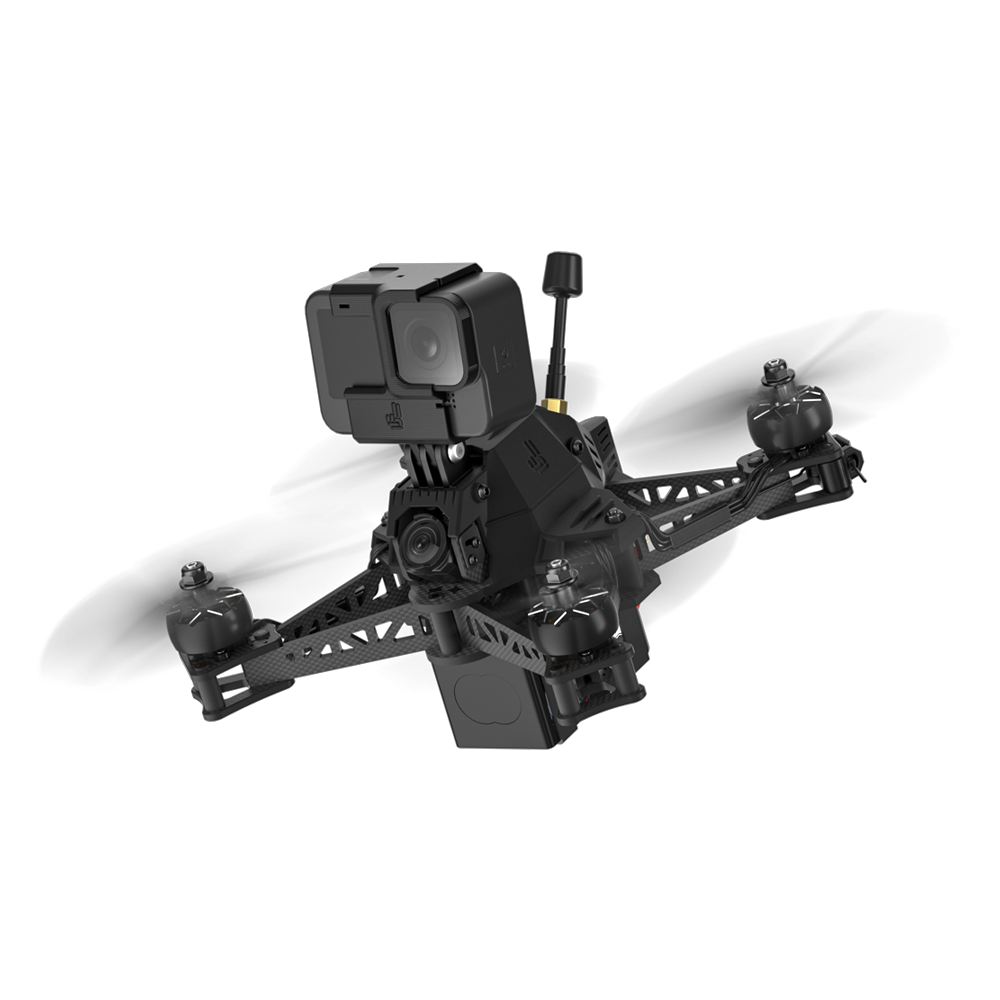

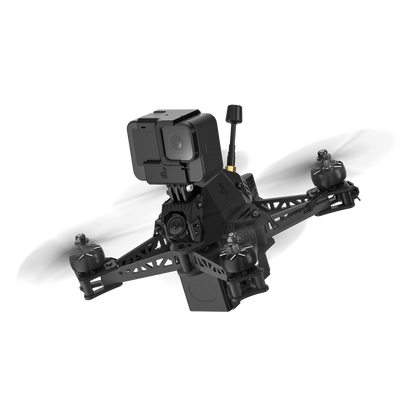

- No prop in view with Gopro.
- DJI O3 HD Air Unit Low Latency Digital Transmission.
- 4K stabilized video with 155° ultra-wide angle.
- Pre-installation of the GPS module.
Specifications:
Product name: Afterburner 5 O3 6S HD
Receiver option: iFlight ELRS 2.4 GHz RX
FC: BLITZ F7 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video transmission: DJI O3 Air Unit
Geometry: X-Frame
Frame: wheelbase 210 mm
Motor: XING2 2207 1750KV motors
Propeller: GEMFAN 5.1X3.6X3 propeller
Weight: 472±7g (without battery)
Dimensions (L×W×H): 148x148x64mm
Maximum speed: 160 km/h
Maximum take-off height: 7000 m
Maximum Hover Time: Approx. 11 minutes with 6S Lipo 1400mAh battery W/O Load
Operating temperature range: -10° to 40° C
Antennas: Individual antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Video transfer
Product Name: DJI O3 Air Unit
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End latency
With DJI FPV Goggles V2:
-810p/120fps Video transmission quality: Latency is lower than 28ms.
-810p/60fps Video transmission quality: Latency is less than 40ms.
With DJI Goggles 2:
Video transmission quality -1080p/100fps: Latency is only 30ms.
Video transmission quality -1080p/60fps: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x Afterburner 5 O3 6S HD BNF (ELRS 2.4)
1 x bag of screws
2 x battery strap
2x battery pads
