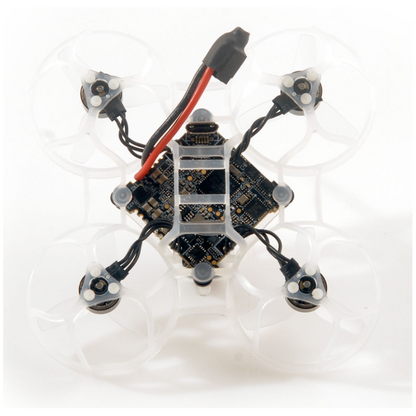

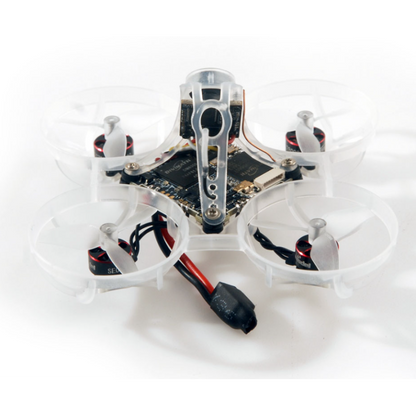

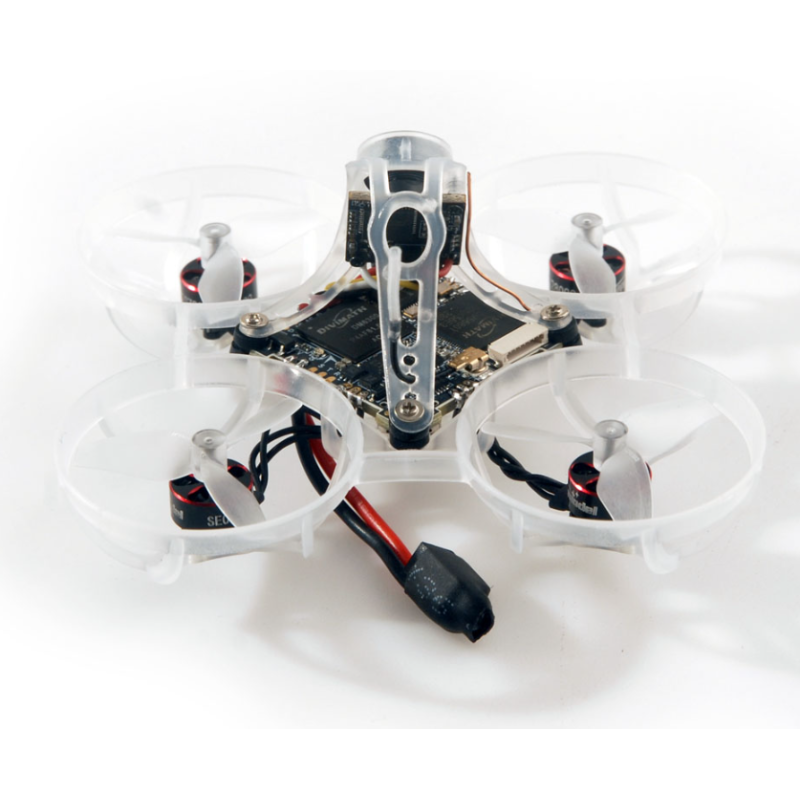

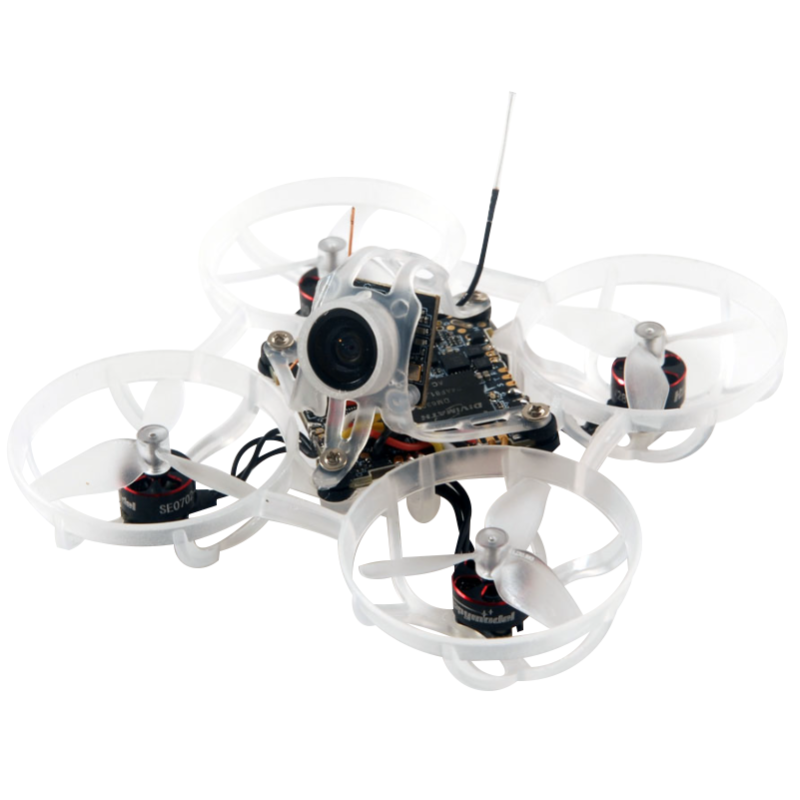

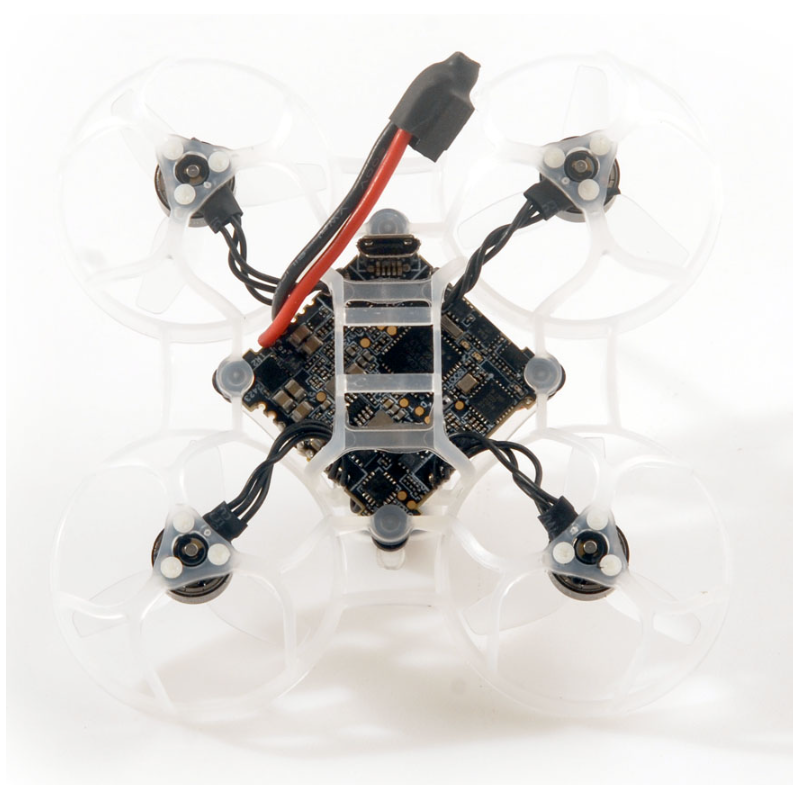

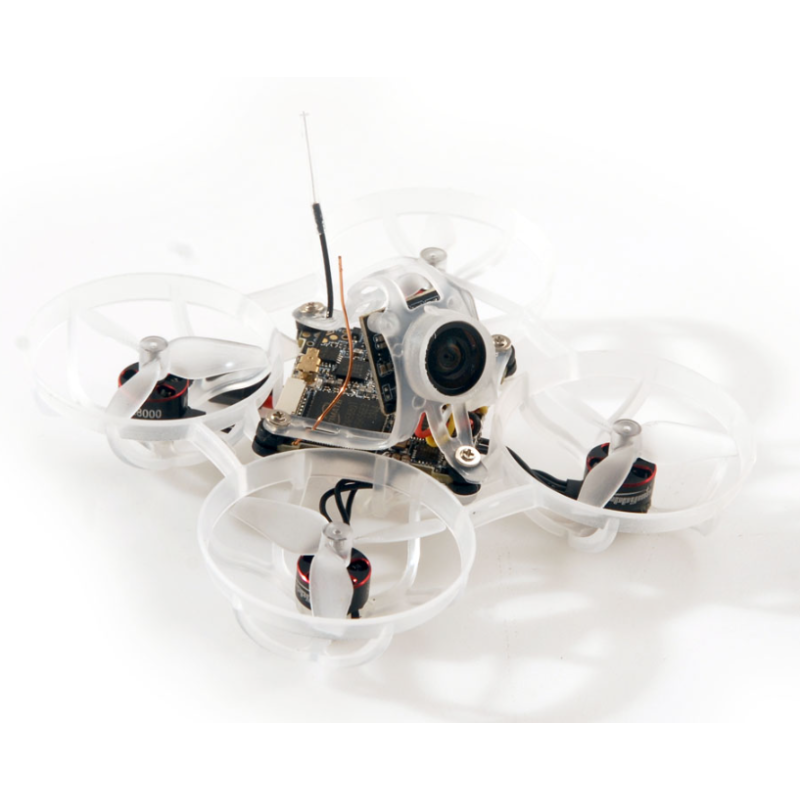

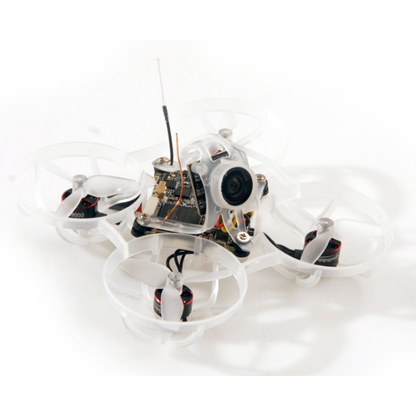

Happymodel Mobula6 Race HD - 65mm Brushless Drone
Happymodel Mobula6 Race HD represents a new standard in the field of micro drones and is the first 65mm brushless drone weighing under 19.4 grams. Designed for speed and agility, this lightweight wonder features an innovative 5in1 AIO board developed by HDZero that combines HDZero VTX, flight controller, ESC, RX (ELRS) and BEC 5V 1A - all on one rugged PCB. The model features a lightweight, durable 5.8G VTX antenna and genuine Japanese RENY screws, which keeps the weight under 20 grams and ensures great durability and performance.
Key Specifications:

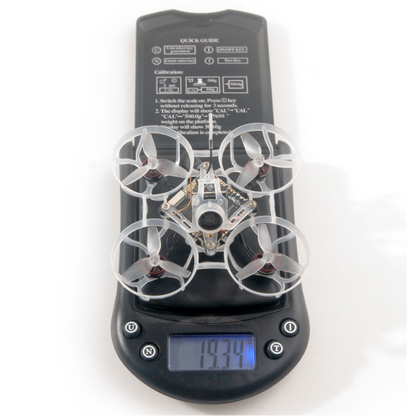

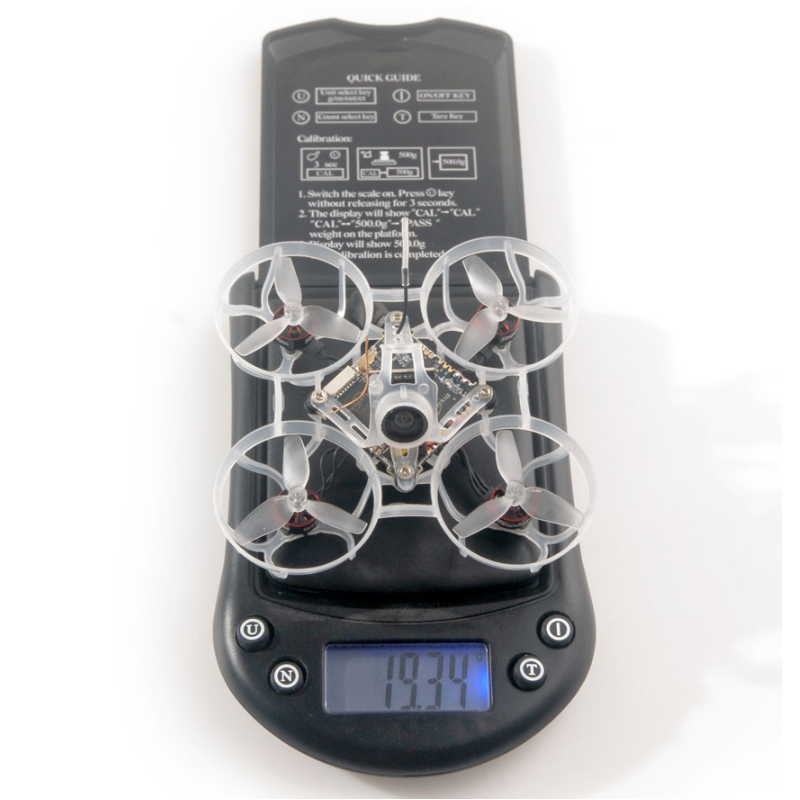

- Weight: 19.3 g
- Battery Compatibility: 1S 300mAh (recommended)
- Propeller: 31mm, optimized for agile handling
- AIO board: HDZero 5in1, including FC, ESC, VTX, RX and BEC
- Camera: HDZero Eco for HD image transmission
- Motors: SE0702 28000KV brushless motors for maximum performance
- MCU: STM32F411, 100MHz with 512K Flash memory
- Gyroscope: BMI270 for smooth and sensitive control
- ESC: BLHeli_S 5A, each 4in1 for efficiency and control
- Receiver: SPI ExpressLRS 2.4GHz
- BEC: 5V 1A for powering connected accessories
- Board dimensions: 28.5×28.5 mm, mounting holes 25.5×25.5 mm
- Firmware: CRAZYBEEF4SX1280

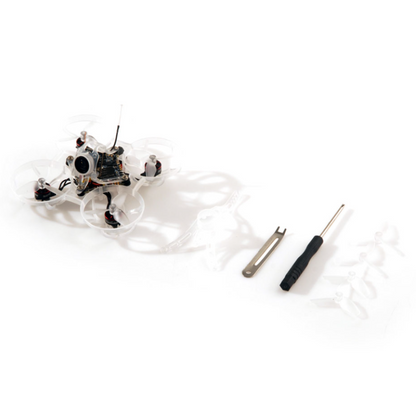

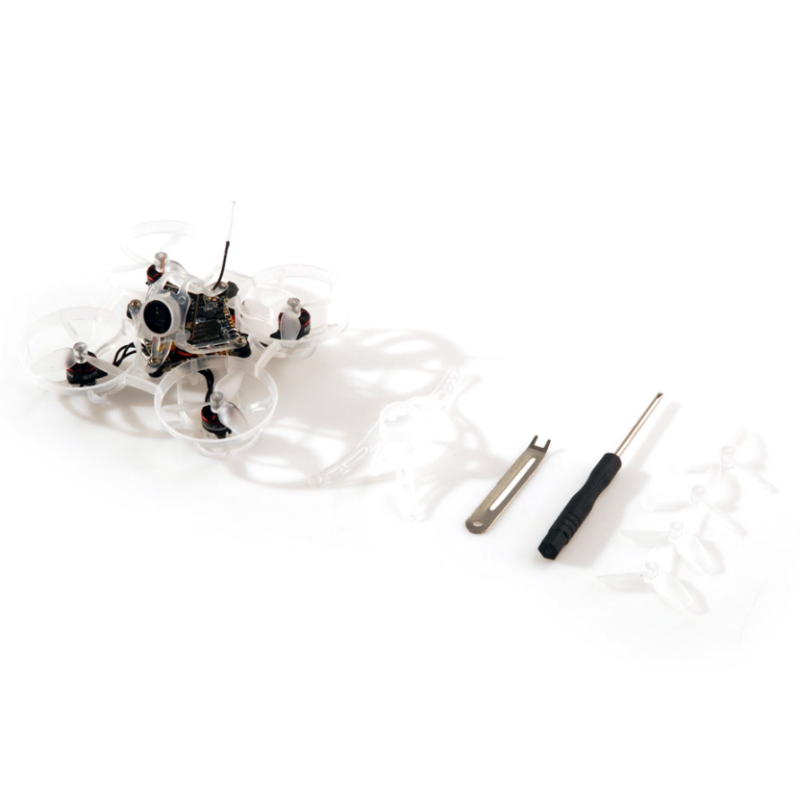

The package contains:
- 1x Happymodel Mobula6 Race HD BNF (Bind-and-Fly)
- 1x Replacement cover for greater durability
- 1x Spare set of propellers
- 1x Screwdriver and 1x propeller removal tool for easy maintenance
