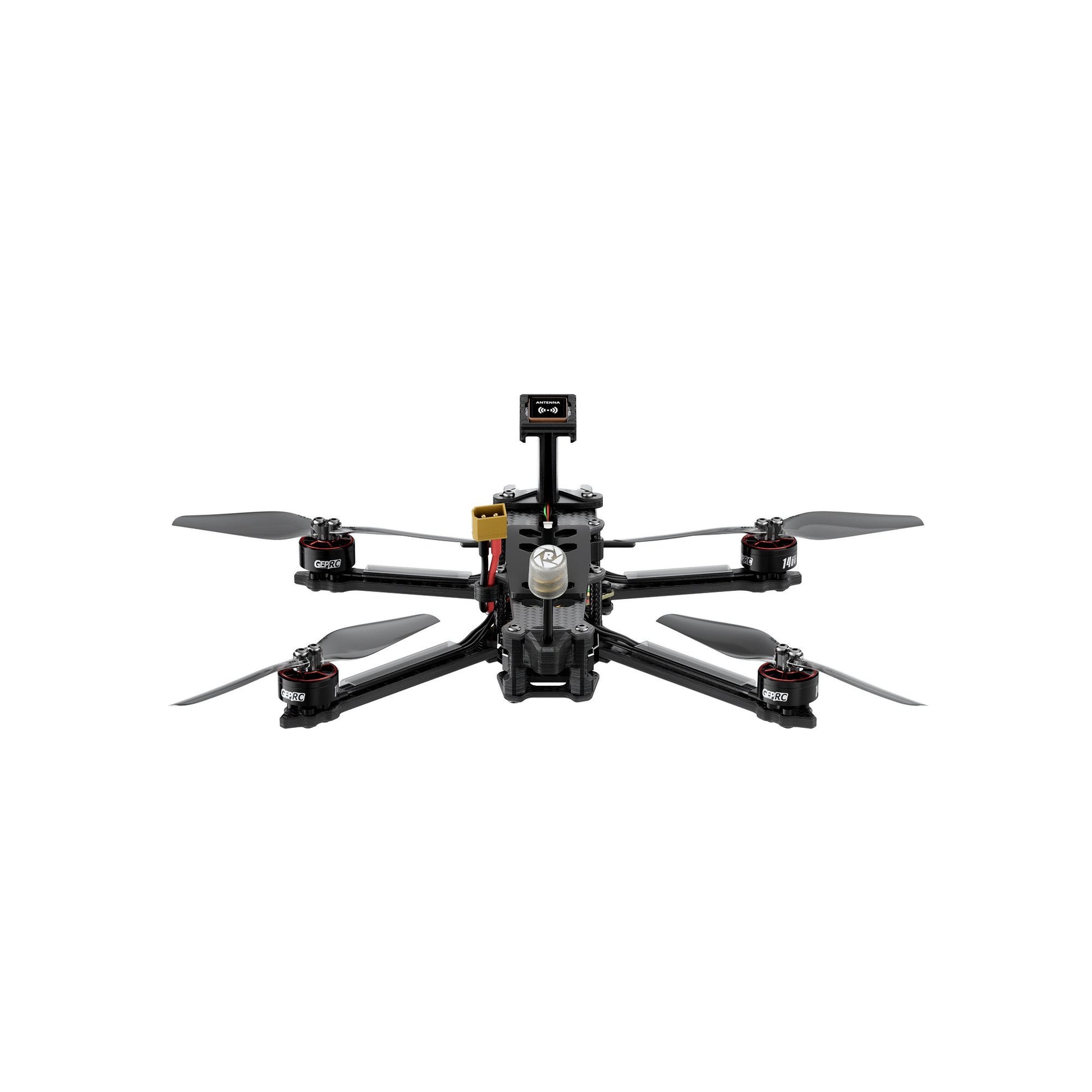

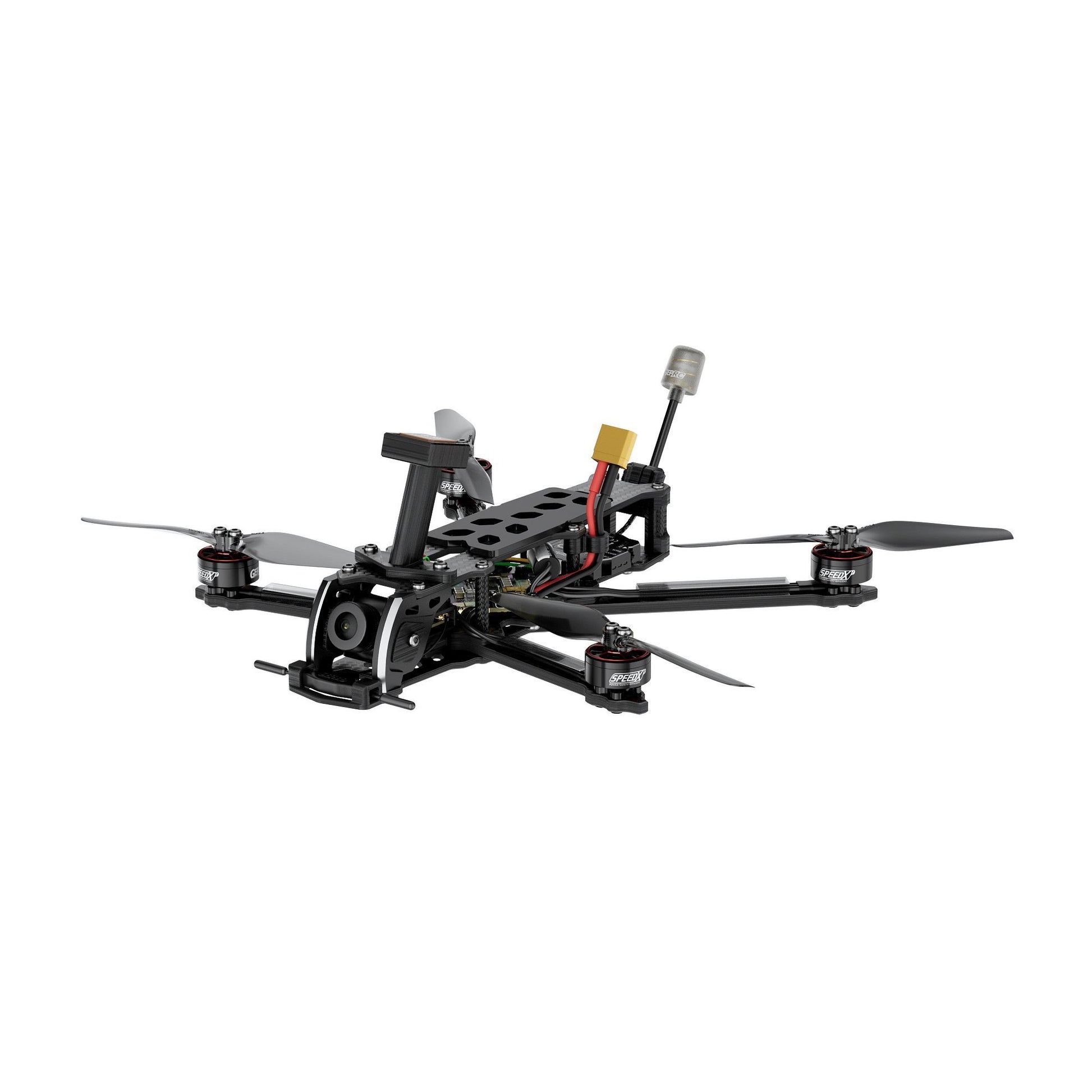

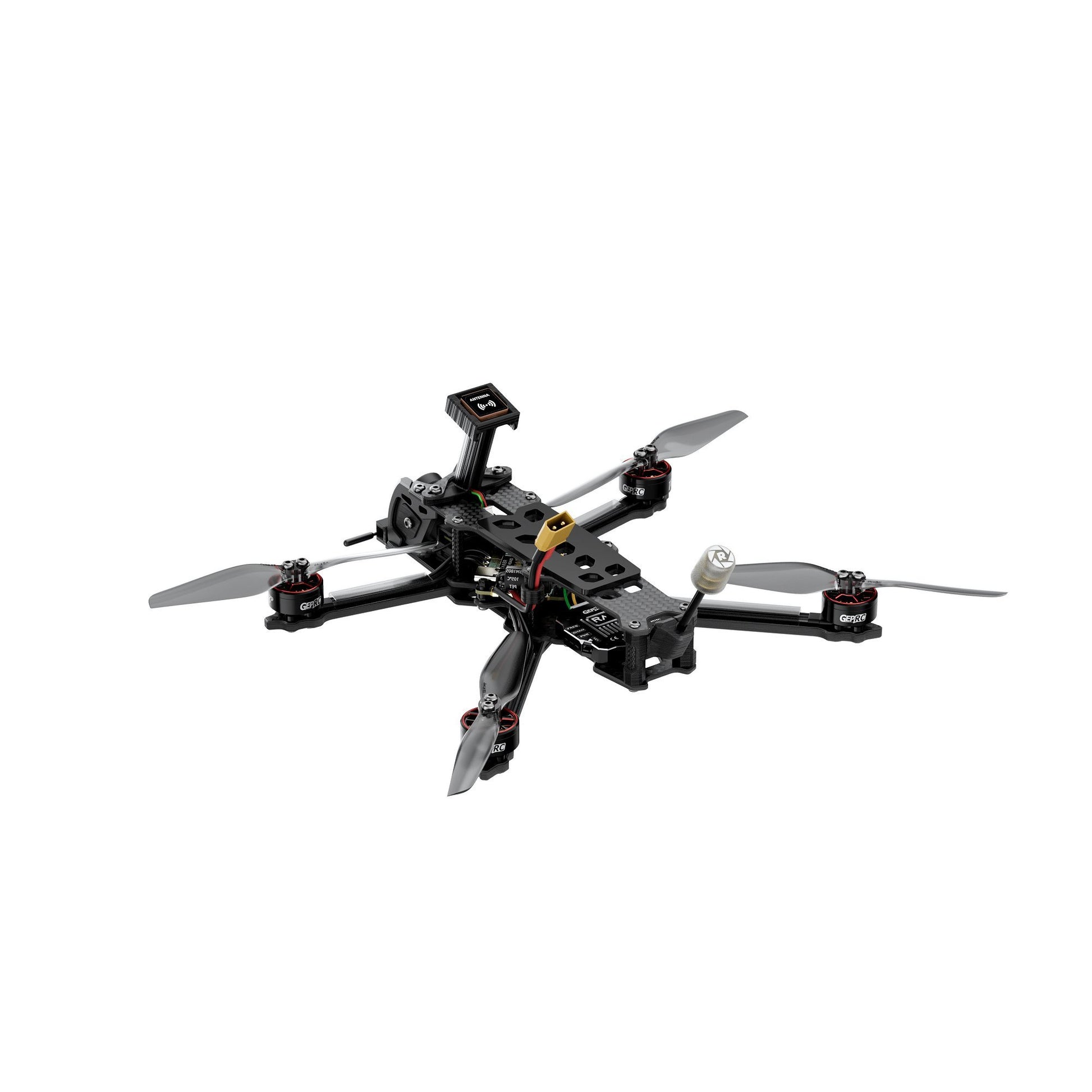

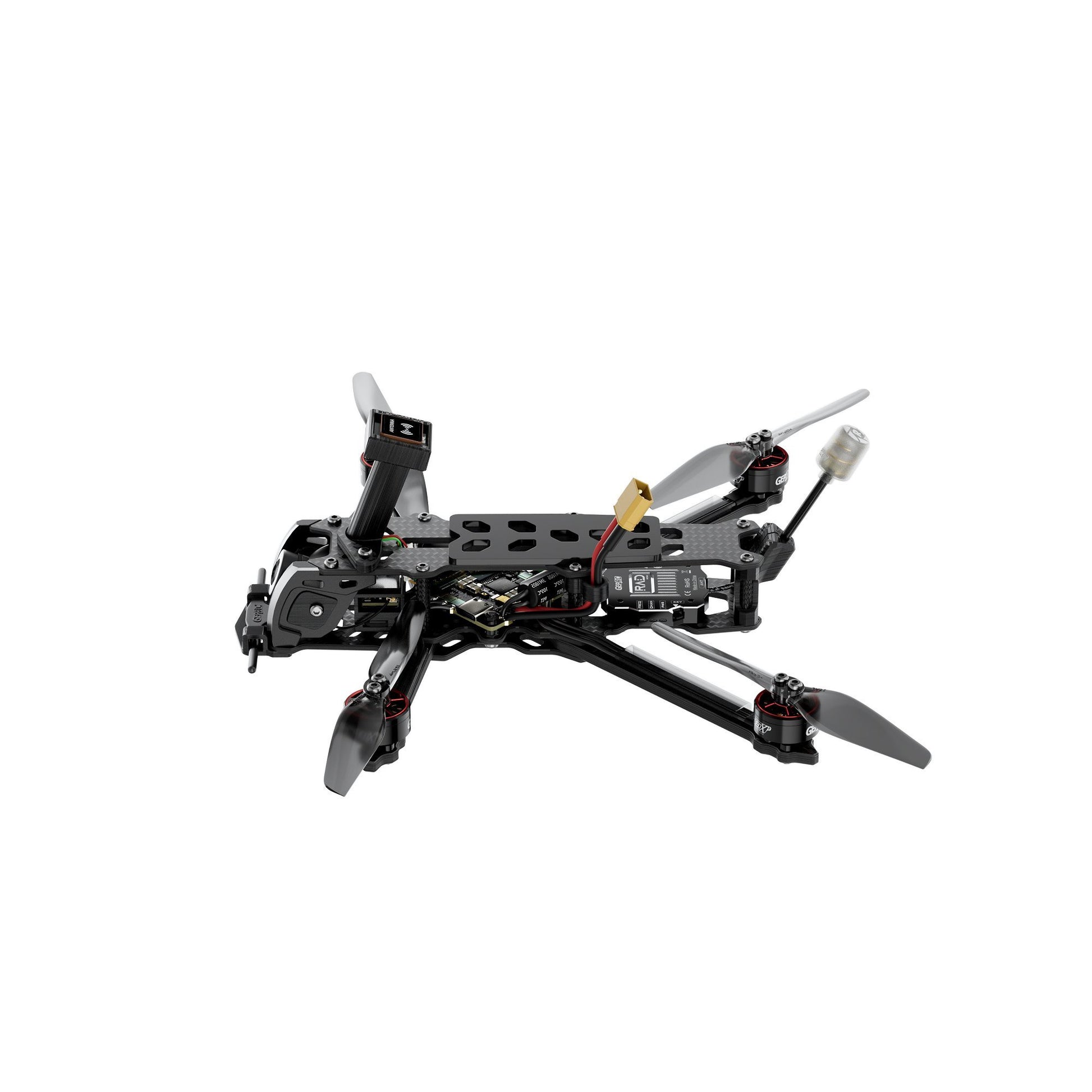

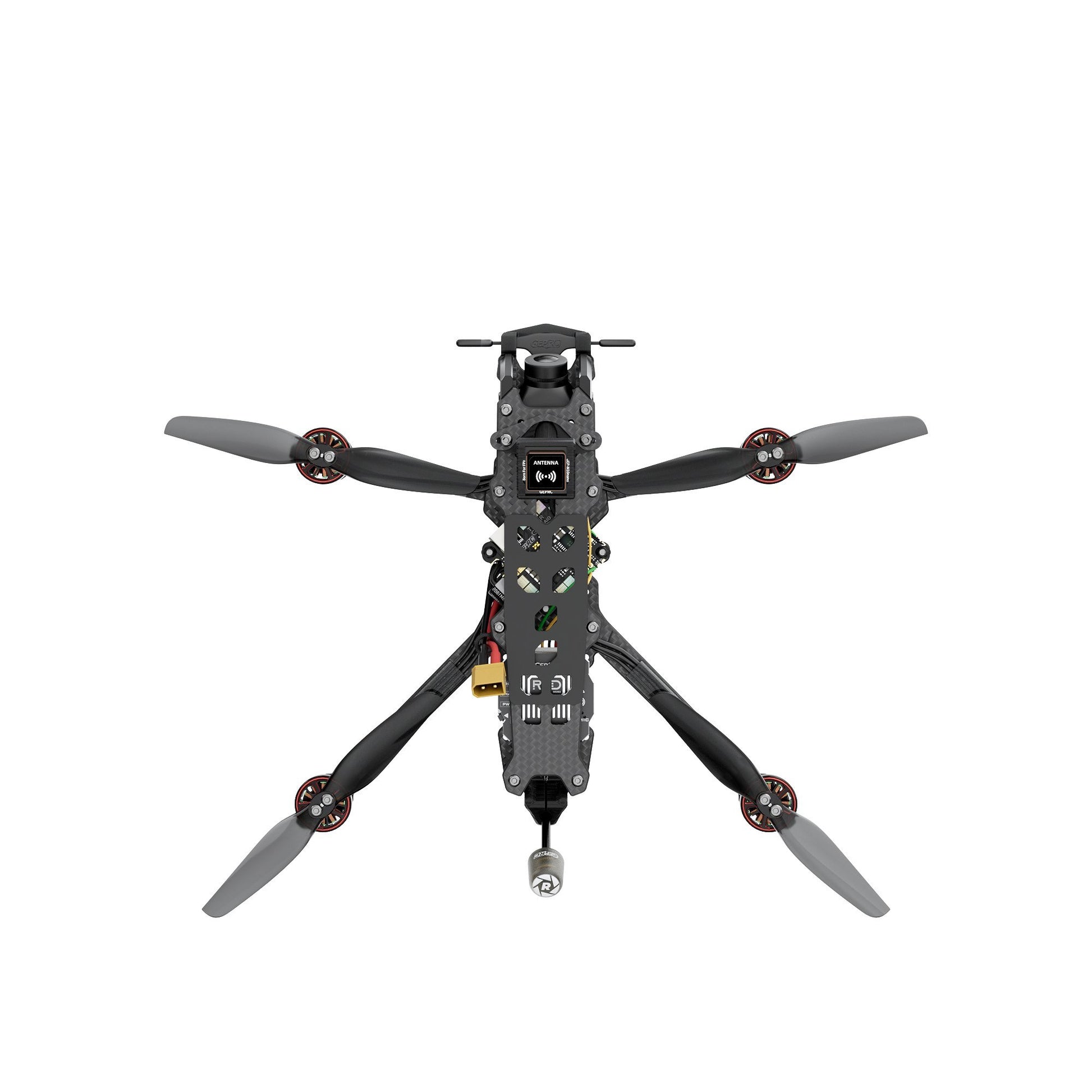

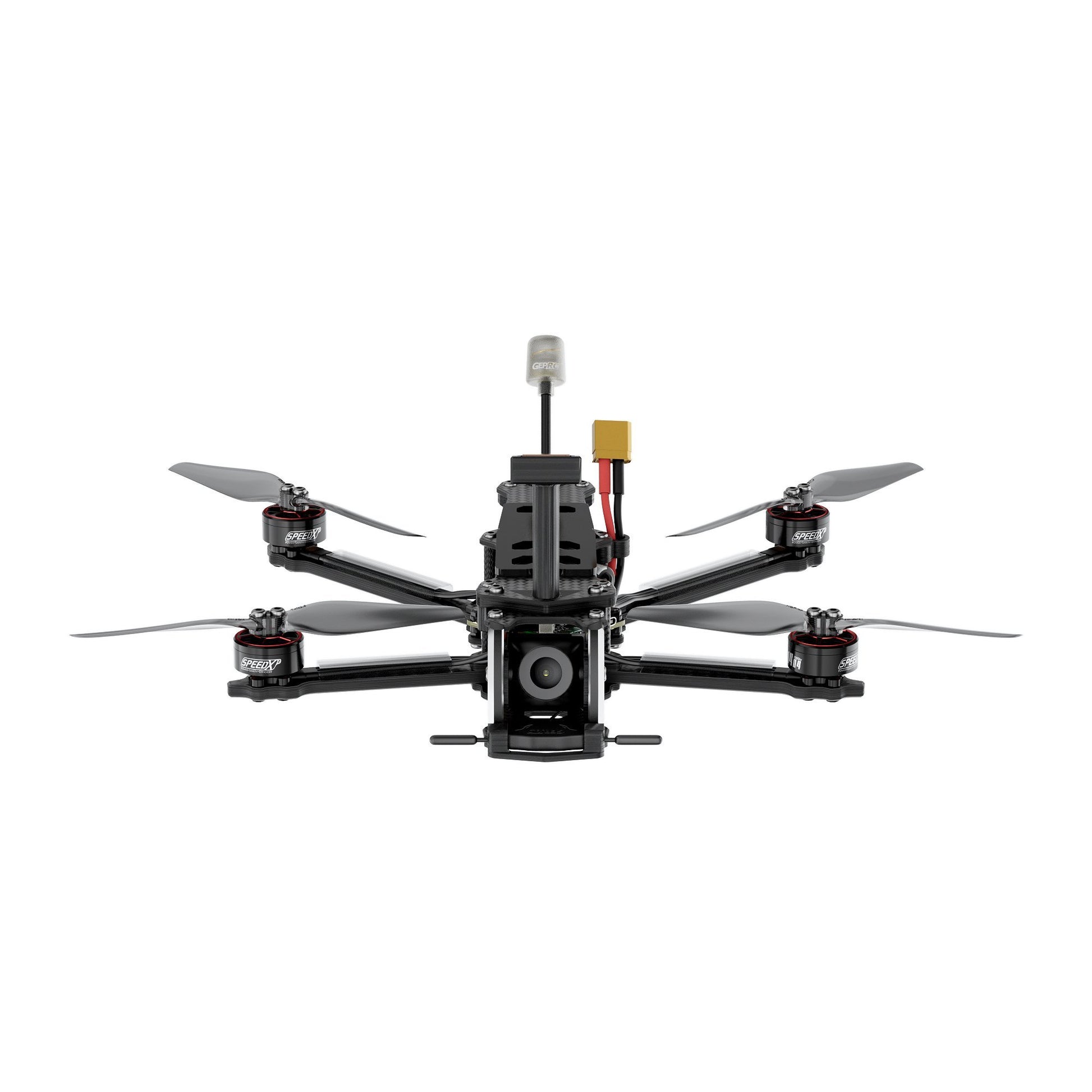

FPV Drone GEPRC Tern-LR40 Analog ELRS915
Please note that this version does not include the M-10 GPS. Features FPV Drone Tern-LR40 Analog ELRS915 New lightweight design, weight under 249 g. Expand the jamming method of the GPS fix and stay away from sources of jamming The DC design does not see the propeller during flight, which is more suitable for direct aerial photography. Install the BB ring to set the low battery alarm When using GPS GEP-M10nano, the satellite search speed is higher and the rescue mode is more stable. Compatible gopro mount installation, expandable shooting creation. Specifications Model: Tern-LR40 Frame: Tern-LR40 frame Top plate: 1.5 mm Middle plate: 2.0mm Bottom plate: 1.5 mm Arm thickness: 3.5 mm FC: Taker G4 45A AIO MCU: STM32G473CEU6 Gyroscope: ICM 42688-P OSD: Betaflight OSD with AT7456E ESC: 32bit 45A VTX: RAD mini 1W Camera: Caddx Ratel2 Antenna: GEPRC Peano 5.8G RHCP UFL Connector: XT30 Motors: GEP-SPEEDX2 1404 3000KV Propeller: HQProp T4X2.5Grey (2CW+2CCW) Weight of Tern -LR40 Analog ELRS915 version: 159g±5g Receiver: ELRS915 Recommended battery: LiPo 4S 660mah-850mah/18650 3000mah Flight time: 10-25 min Includes 1 x Tern-LR40 2 x HQProp T4X2.5 Gray (2CW+2CCW) 2x battery anti-slip mat 1 x pack of screws 4 x battery strap M15*170mm 1 x 1.5mm L-shaped screwdriver 1 x GoPro camera mount 1 x T-type antenna holder 1 x RC print
