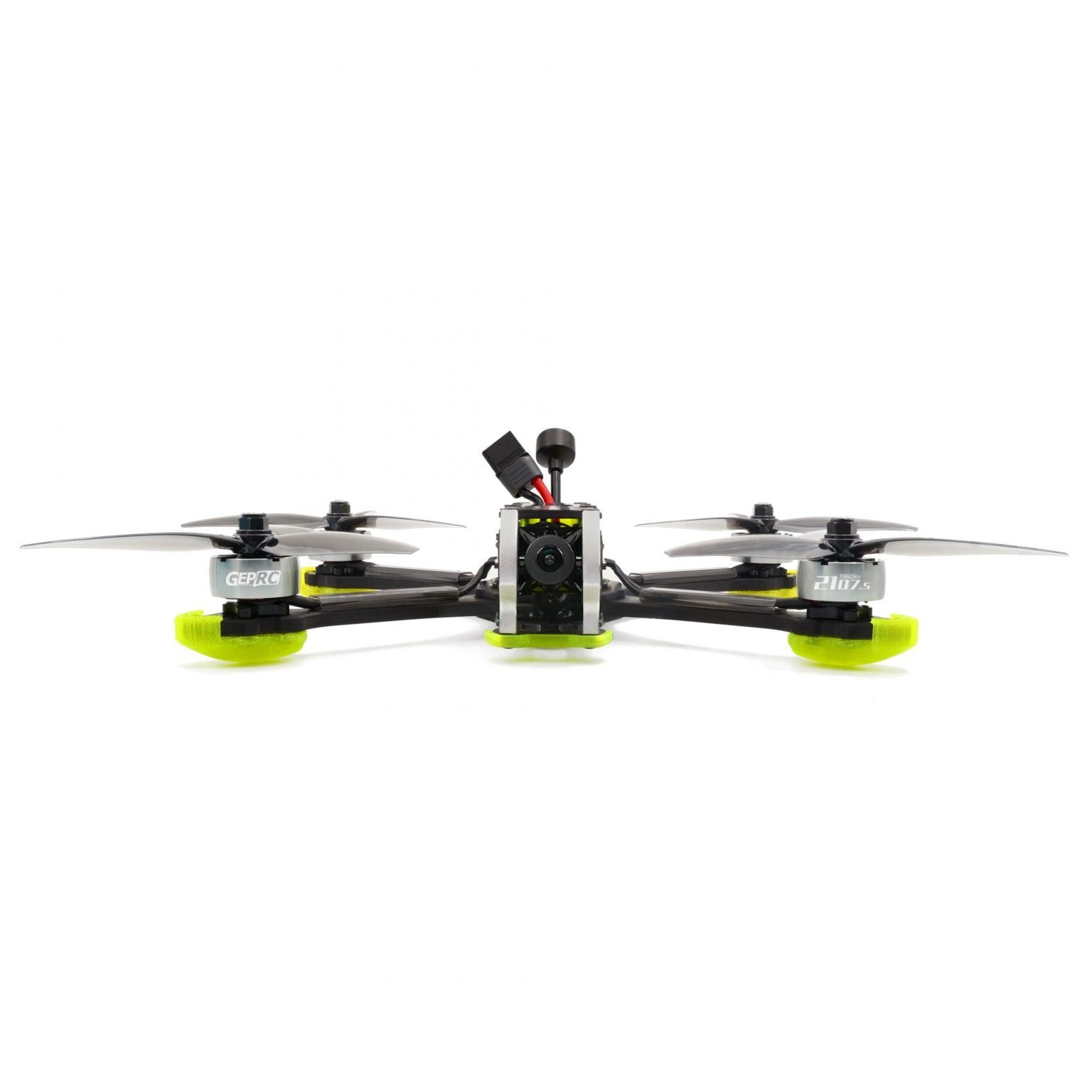

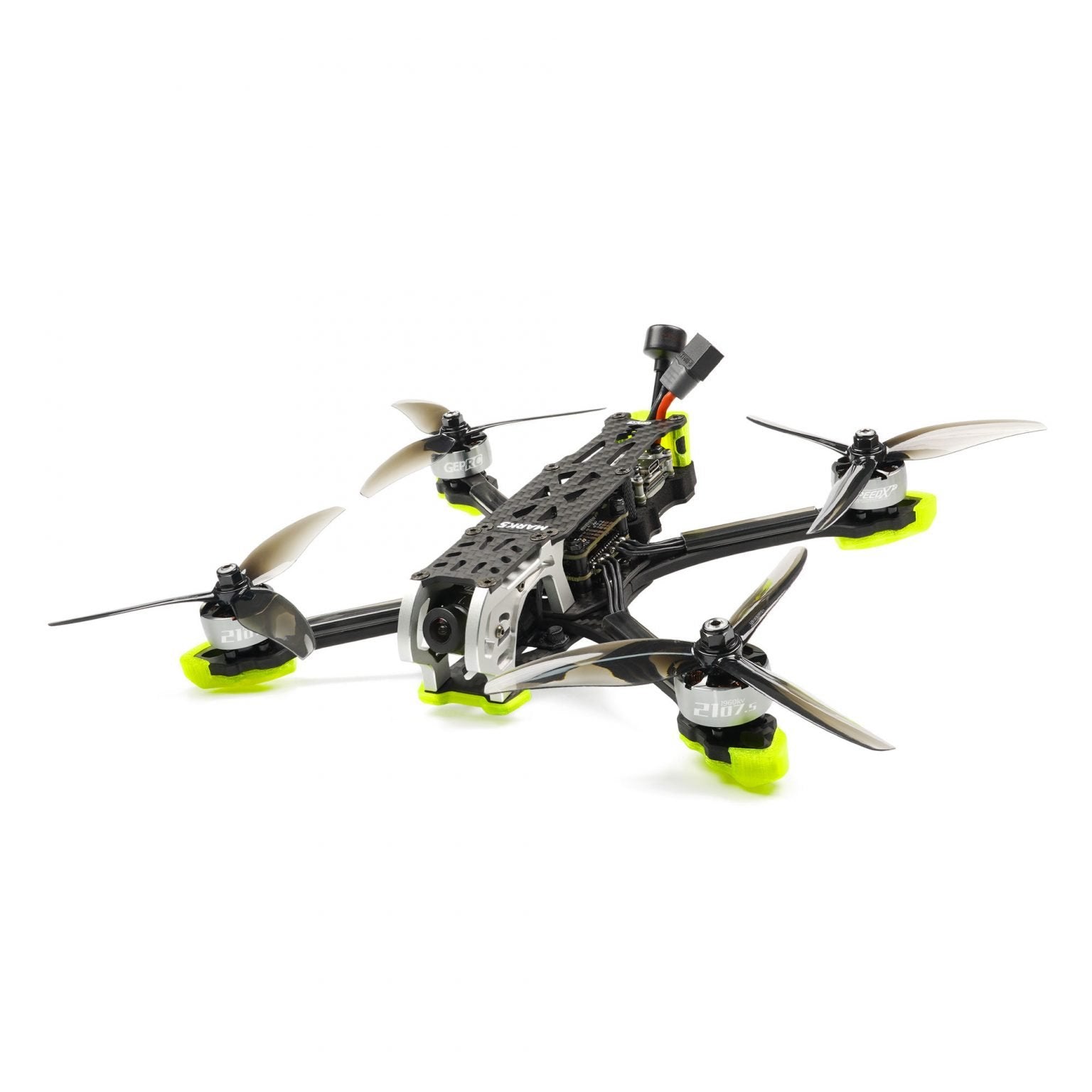

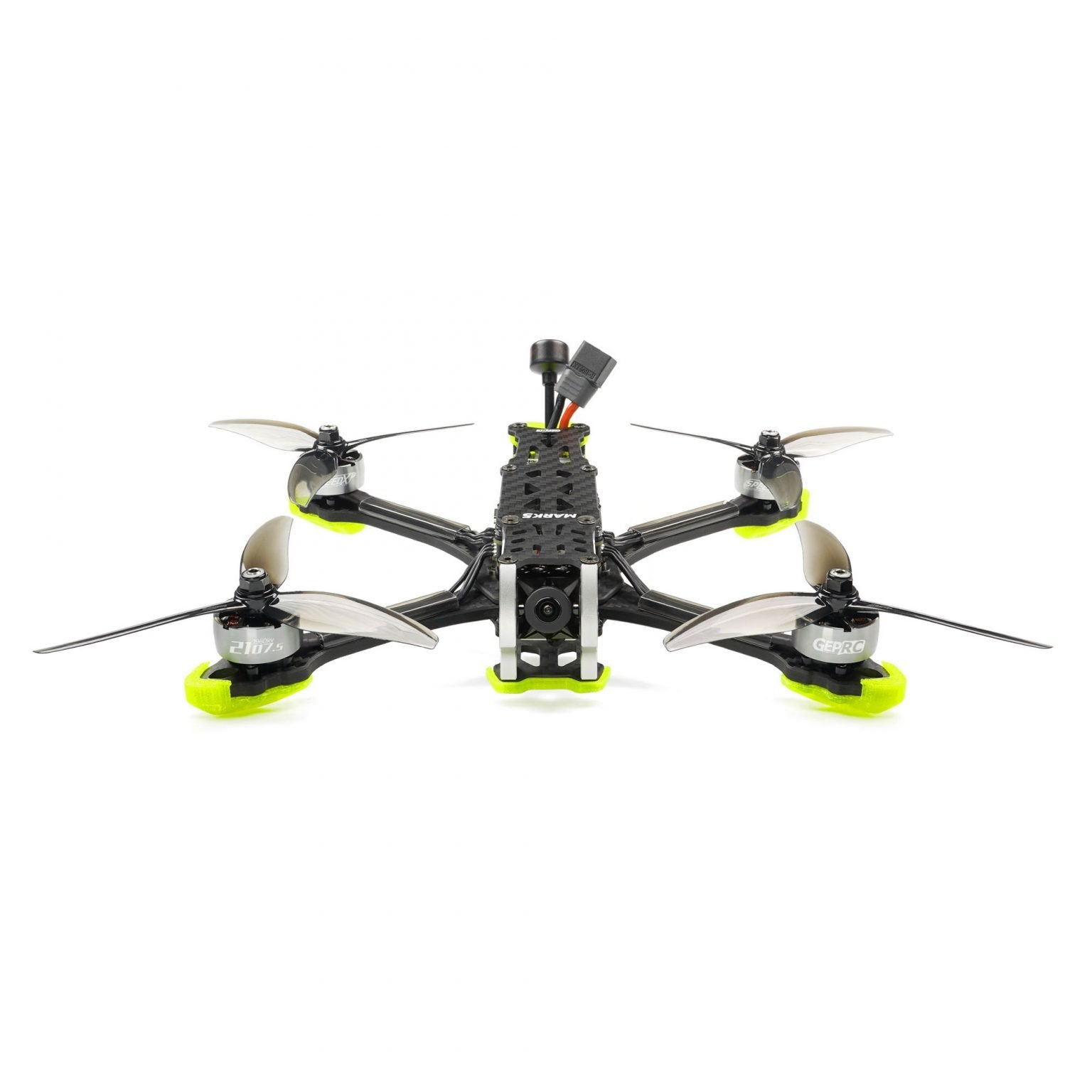

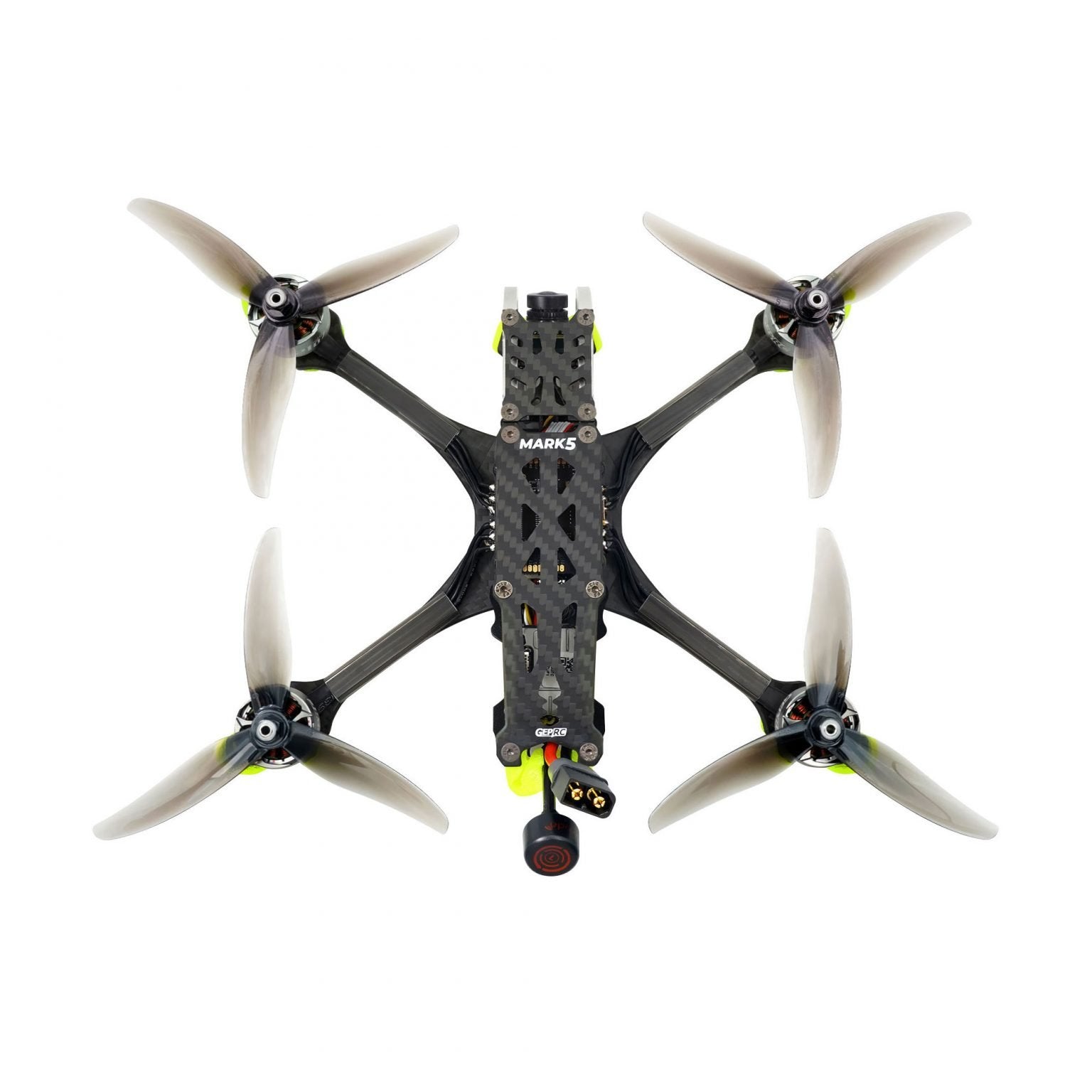

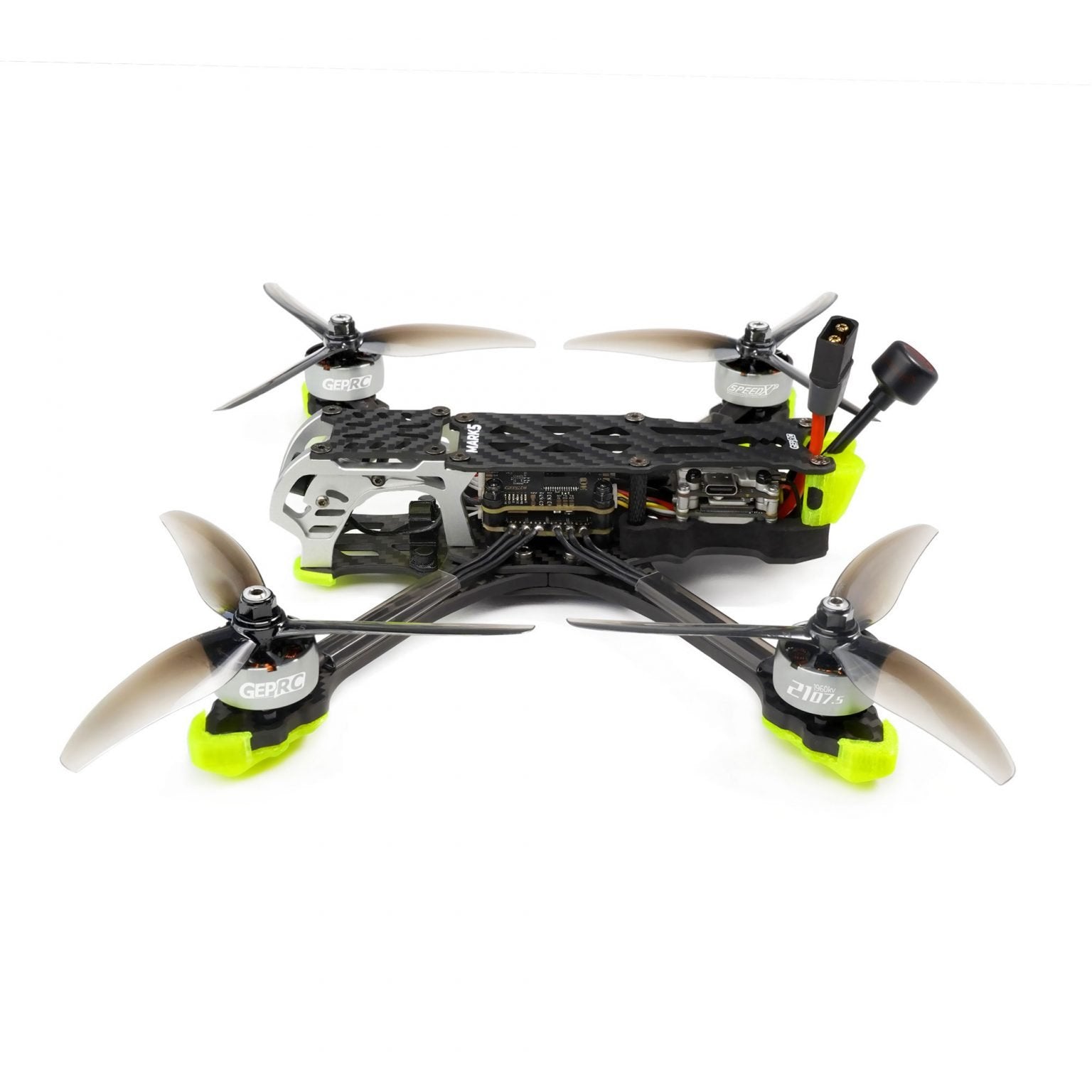

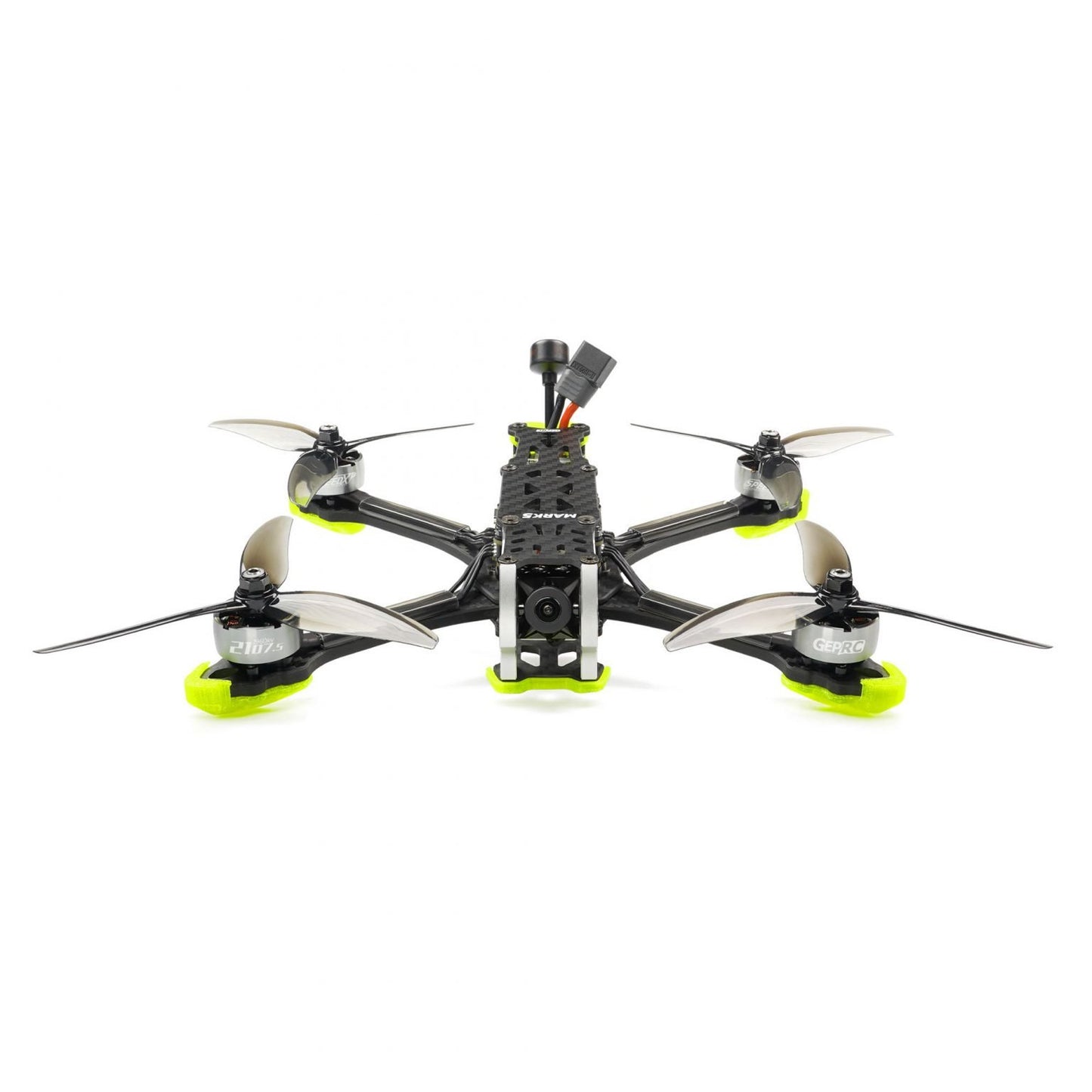

MARK5 HD Wasp ELRS 915M (4S)
The MARK5 is designed for freestyle with an innovative X-squeezed arm design. Its unique shock-absorbing structure minimizes vibration and resonance and provides a stable environment for the electronic system.
Key Features:
1. Aluminum alloy side plates improve aesthetics while reducing weight and improving durability.
2. Supports Bluetooth wireless connection for convenient field tuning.
3. Tailored for freestyle with a squished X-arm design.
4. HD version includes Caddx Vista HD System & Nebula Pro camera.
5. Offers a variety of receiver options, including the all-new ExpressLRS Rx.
6. Upgraded SPAN G50A BLHeli_32 4IN1 50A ESC, paired with the latest GEPRC 2107.5 motor, provides high performance and fast response.
7. Smooth flight experience with the new HQ Ethix S5 5×4×3 propellers.

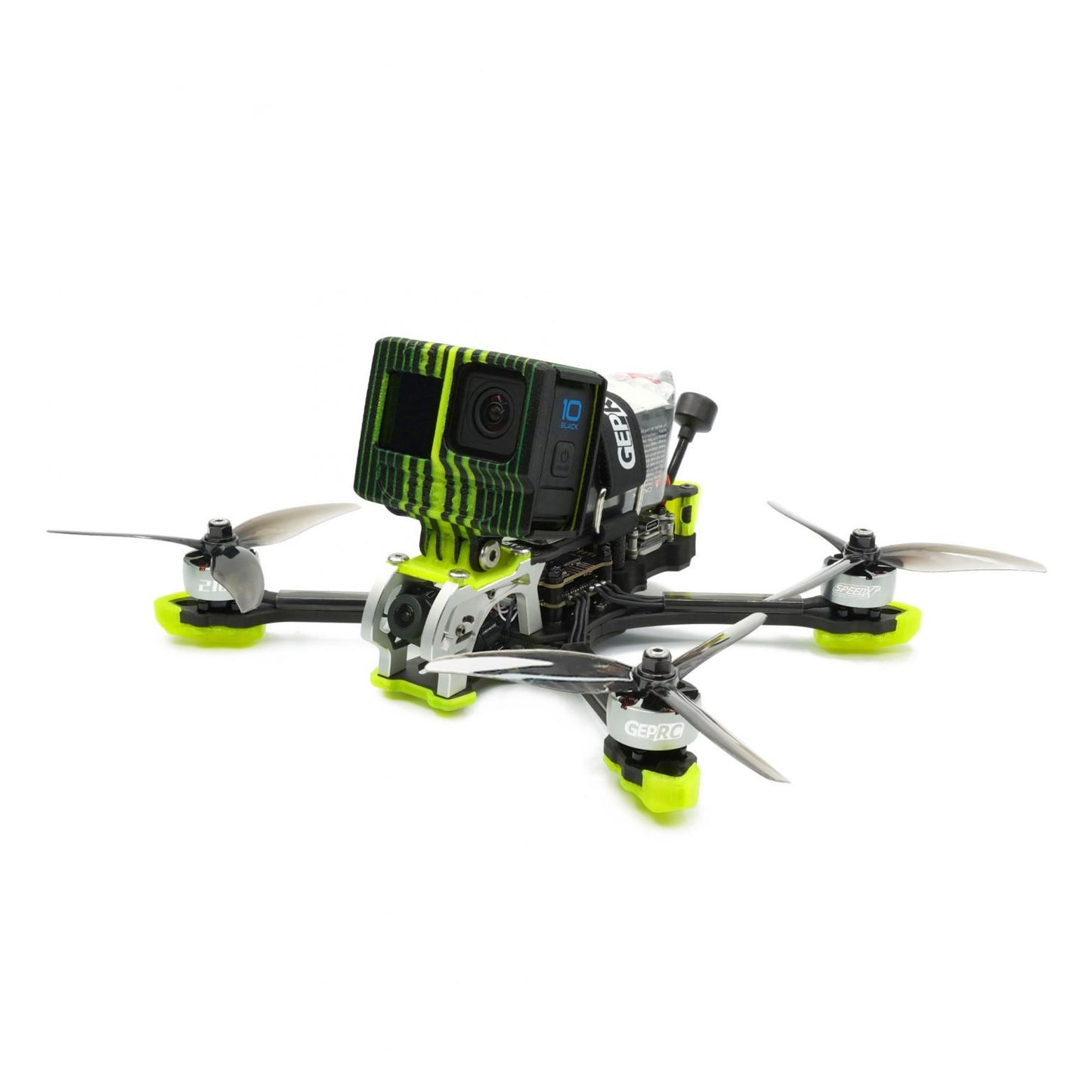

Includes two 3D printed action camera mounts compatible with GP, Naked GP8, Insta 360 GO2 and Caddx Peanut cameras.
Tips: To avoid setup errors, we recommend using the latest beta version 10.8.0 corresponding FC Firmware and Factory CLI Dump.
Specifications
Model: Quadcopter MARK5 HD Vista
Brand: GEPRC
Frame: GEP-MK5
Wheelbase: 225 mm
Top plate: 2.5mm
Bottom plate: 2.5 mm
Shoulder plate: 5 mm
FC system: SPAN F722-BT-HD V2 (No barometer, but more stable)
MCU: STM32F722
Gyroscope: 42688-P
OSD: BetaFlight OSD with AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: VISTA
Camera: Nebula Pro
Charging connector: XT60
Propeller: HQ Ethix S5 5×4×3
Antenna: GEPRC Momoda 5.8G UFL LHCP 85mm
Motor: SPEEDX2 2107.5-2450KV (4S version)
Weight: 385.5g (MARK5 HD VISTA 6S PNP including 3D printing)
Receiver: ELRS 915
Recommended battery: LiPo 4S 1300mAh-1800mAh (4S version)
