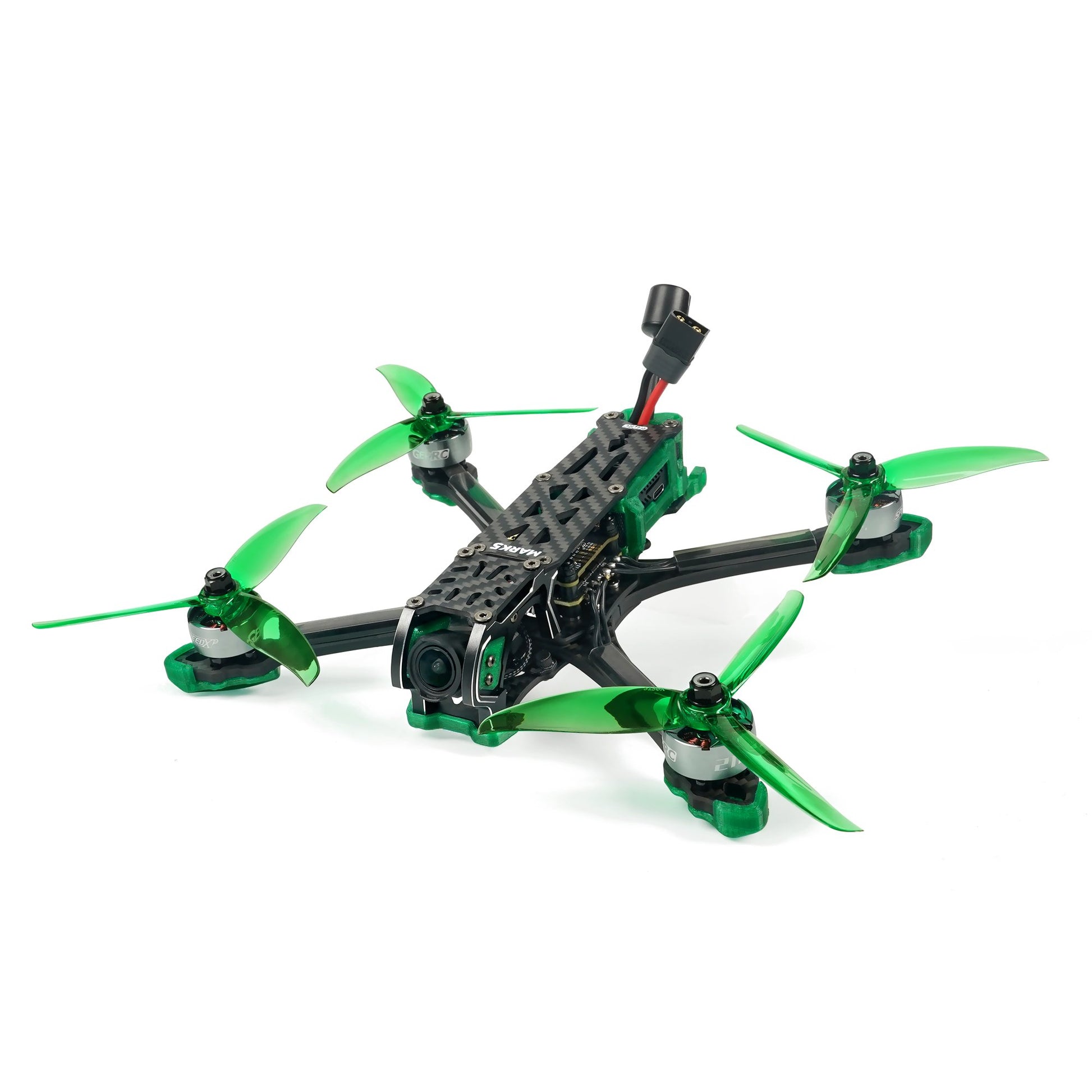

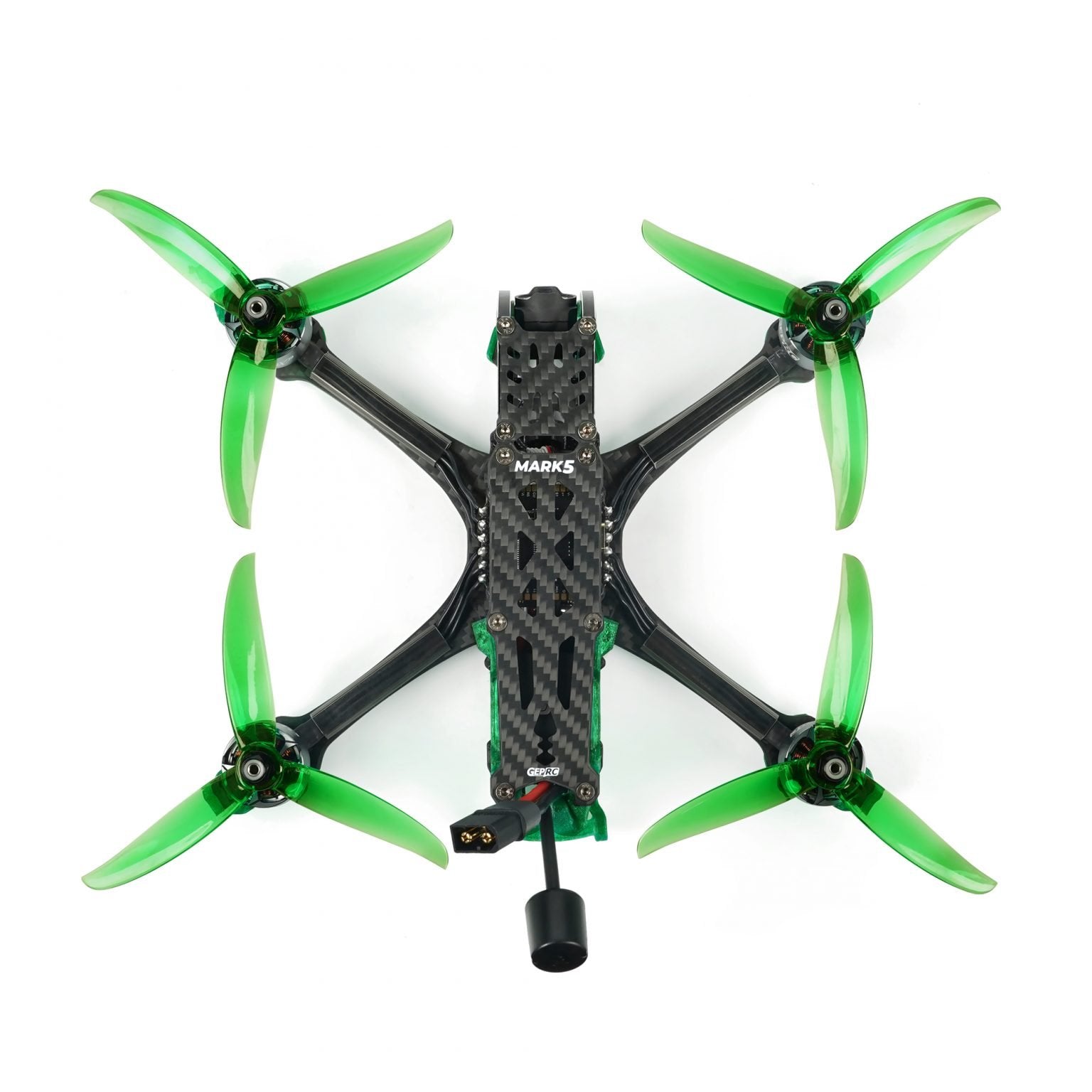

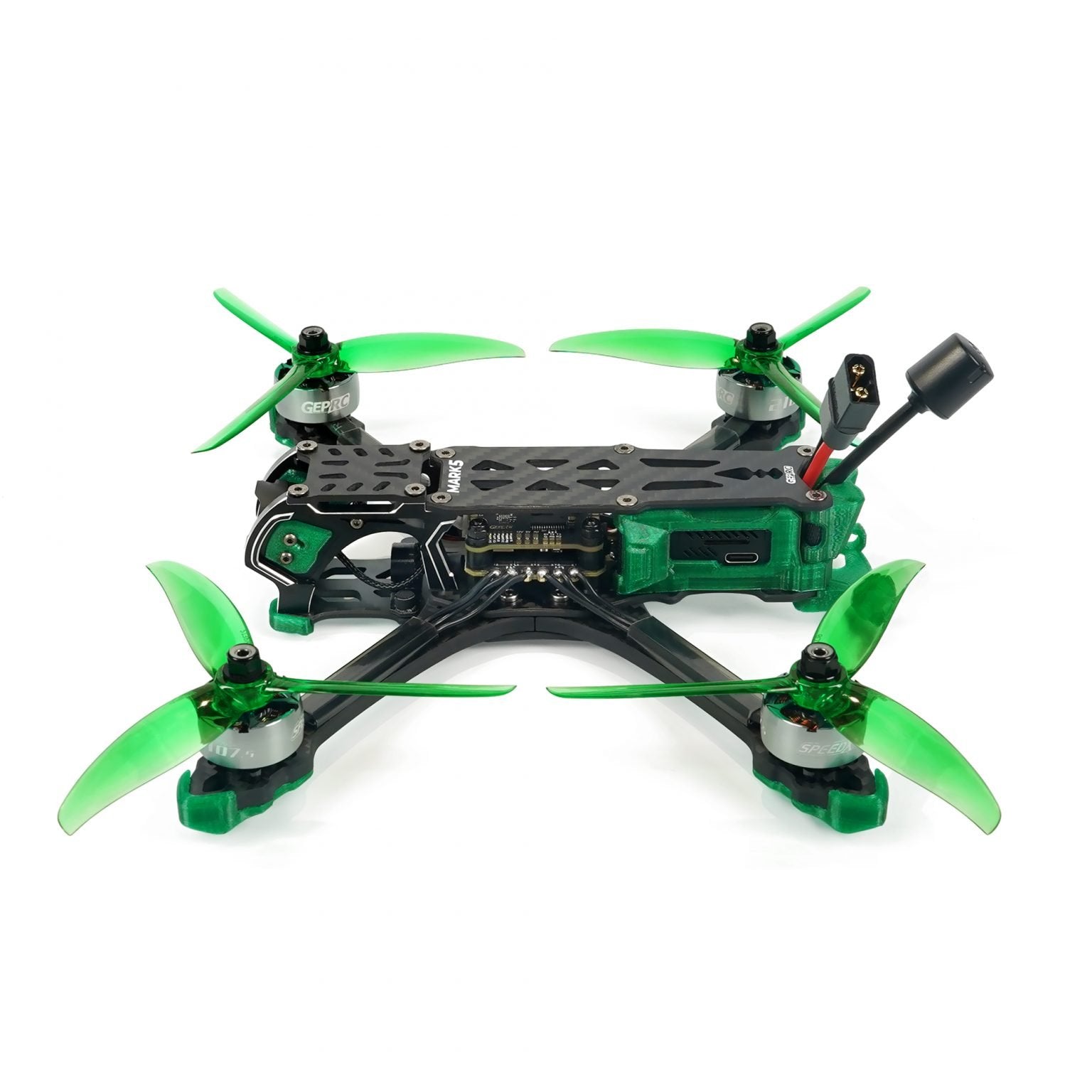

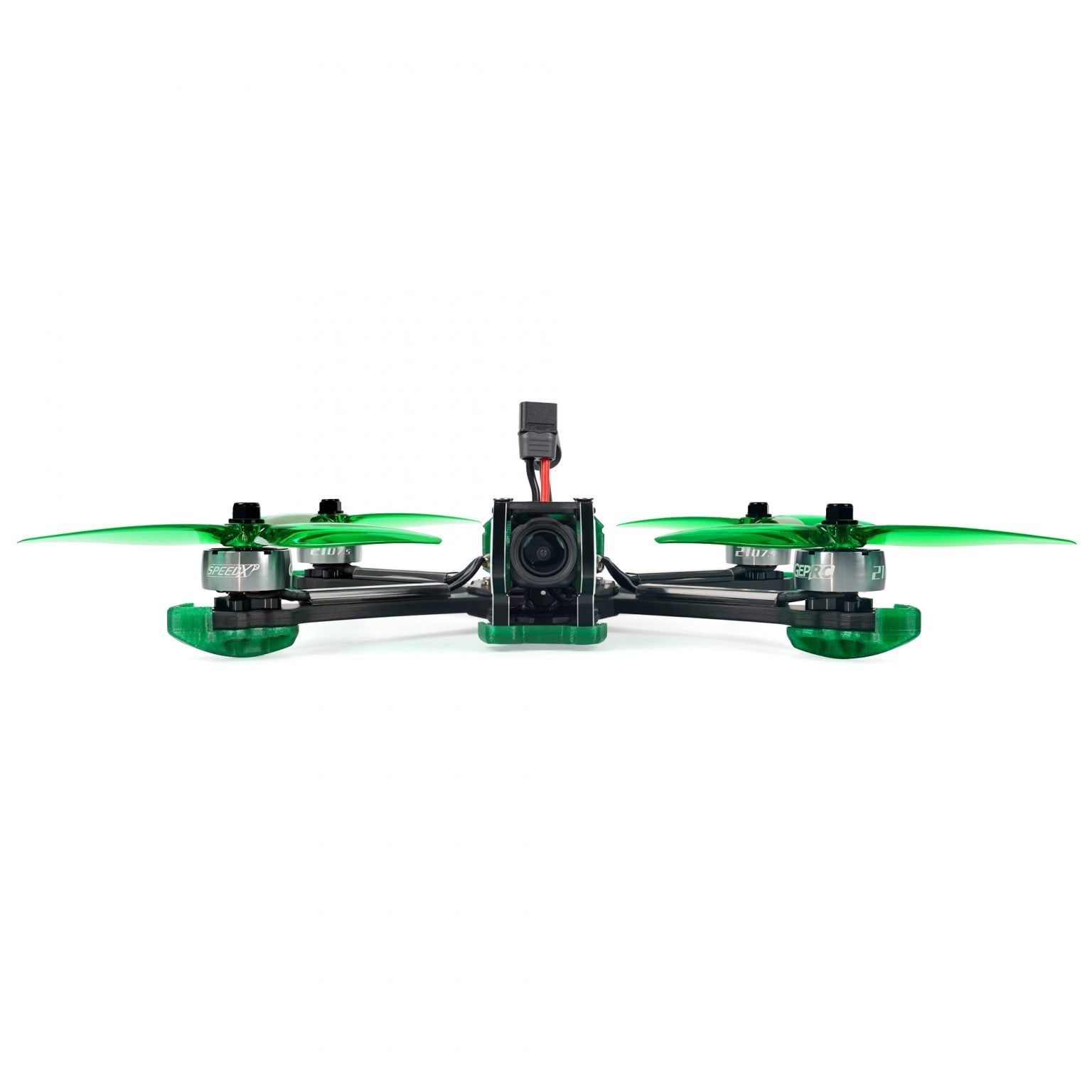

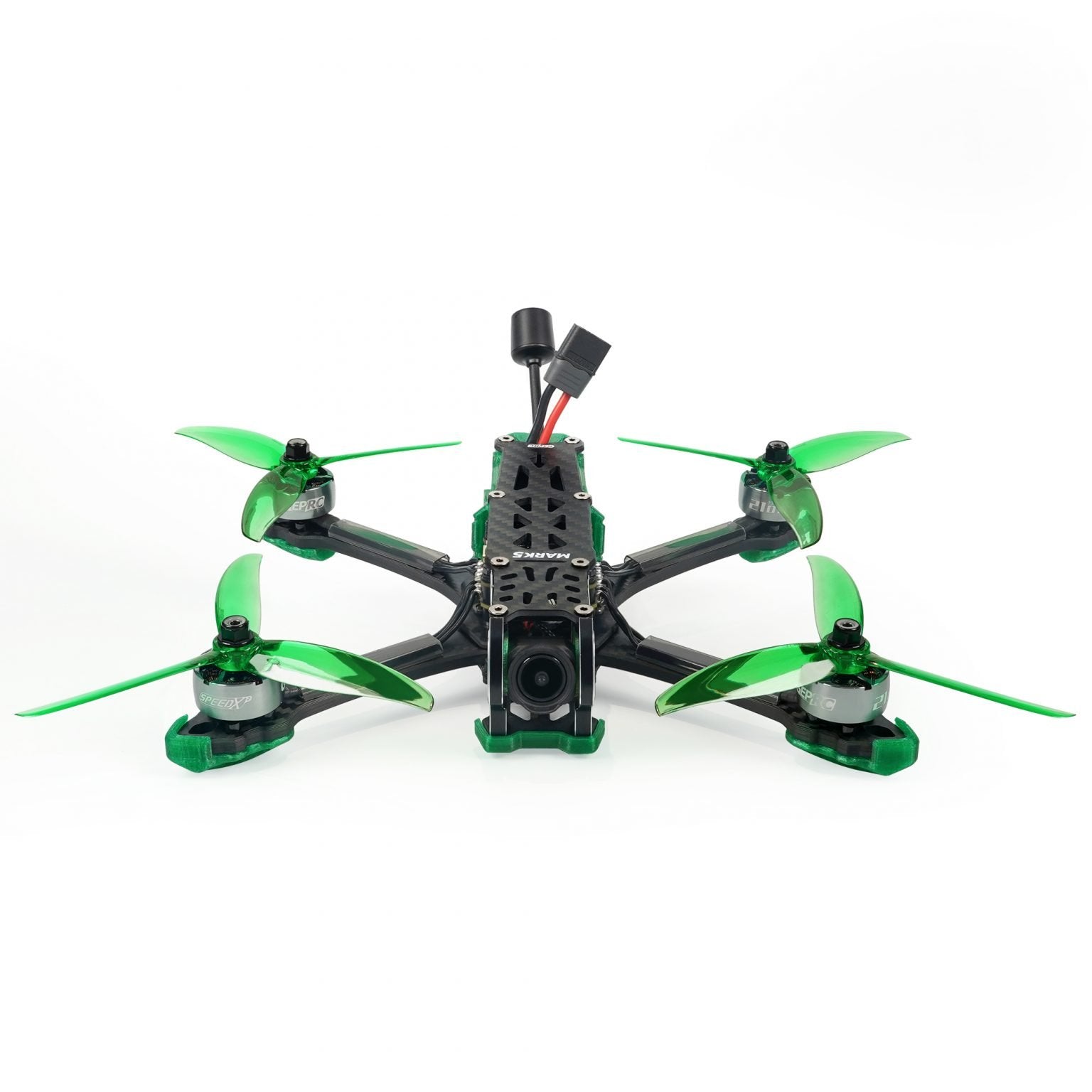

Mark5 HD O3 TBSNanoRX (6S)

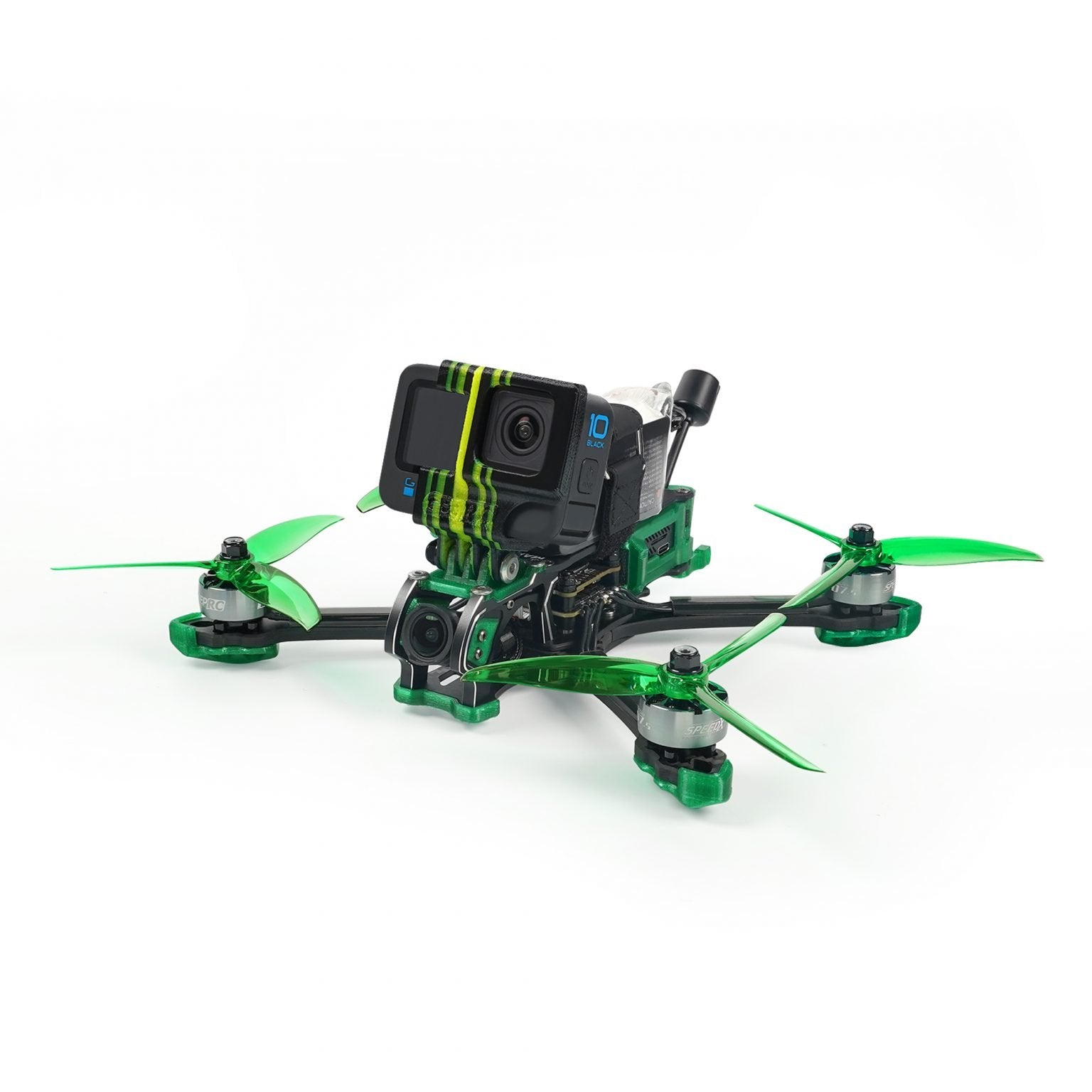

The camera's newly improved aluminum alloy side plate, 7075-T6 aluminum alloy, is strong and durable. It can be fully adapted to the new DJI O3 aerial unit camera with a field of view (FOV) of 155° and the recording specification can support up to 4K 60FPS. Specially designed TPU mounting parts for the O3 VTX module, equipped with a cooling air intake port, which contributes to sufficient heat dissipation in the air unit. MARK5 O3 uses the latest GEPRC SPAN F722-BT-HD V2 stack with ICM 42688P gyroscope for smooth flight, redundant power and ports and supports Bluetooth wireless connection for debugging. SPAN BLHeli_32 50A ESC with GEPRC 2107.5 motor and uses new Gemfan 5136 propellers which have strong performance. The MARK5 O3 comes with two different camera mounts that can be mounted with a wide range of GP action cameras, as well as GP 8/10 Naked Camera, Insta 360 GO2 and Caddx Peanut etc. to record the beautiful moments of your flight.
Specifications:
Model: MARK5 HD O3 quadcopter
Brand: GEPRC
Frame: GEP-MK5 O3
Wheelbase: 225 mm
Top plate: 2.5mm
Bottom plate: 2.5 mm
Shoulder plate: 5 mm
FC system: SPAN F722-BT-HD V2
MCU: STM32F722
Gyroscope: 42688-P (SPI)
OSD: BetaFlight OSD with AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: DJI O3 Air Unit
Camera: DJI O3
Propeller: Gemfan 5136
Antenna: DJI O3 antenna
Motor: SPEEDX2 2107.5-1960KV (6S version)
Weight: 404.9g (MARK5 HD O3 including 3D printed parts)
Receiver: TBS Nano RX
Recommended battery: LiPo 6S 1050mAh-1550mAh (6S version)
