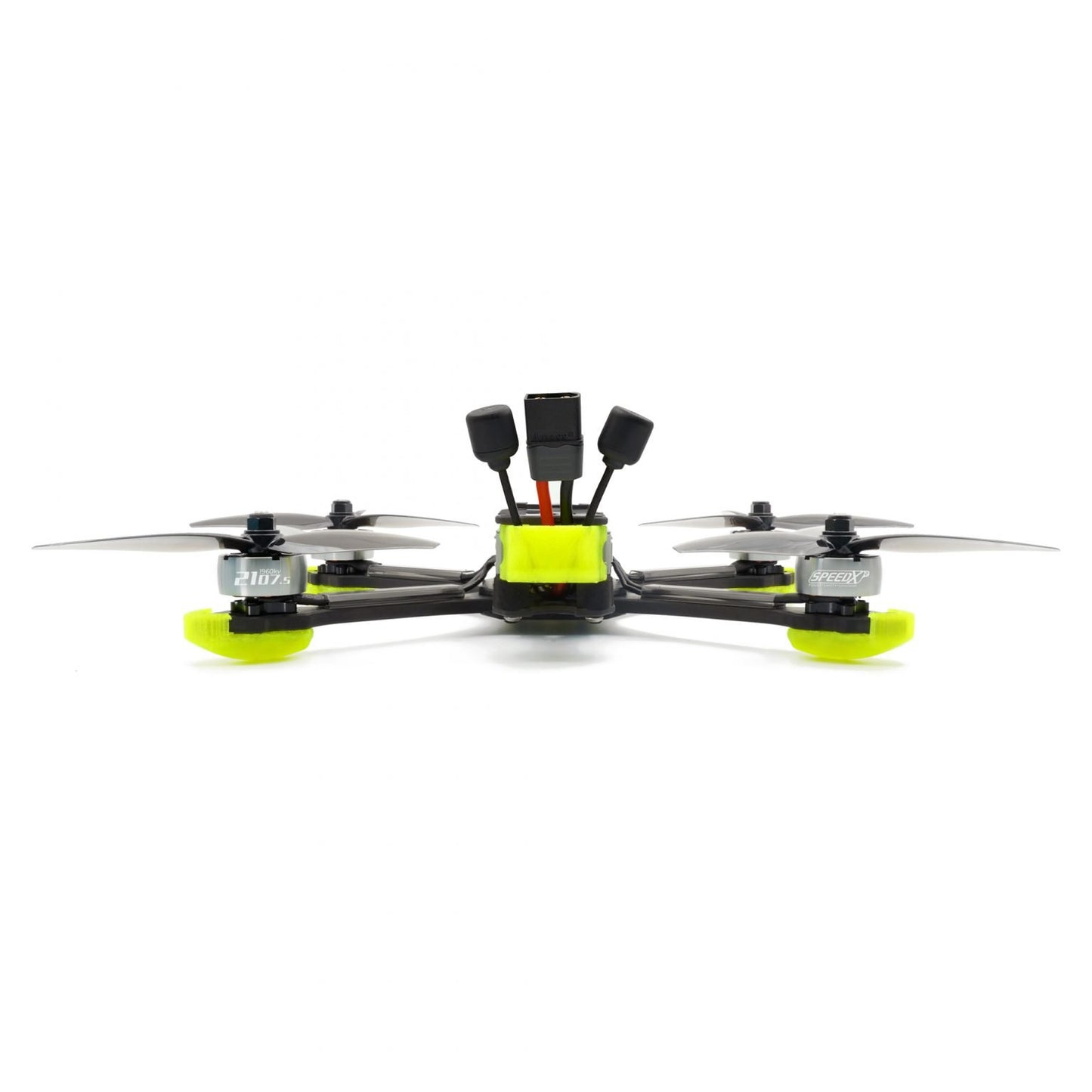

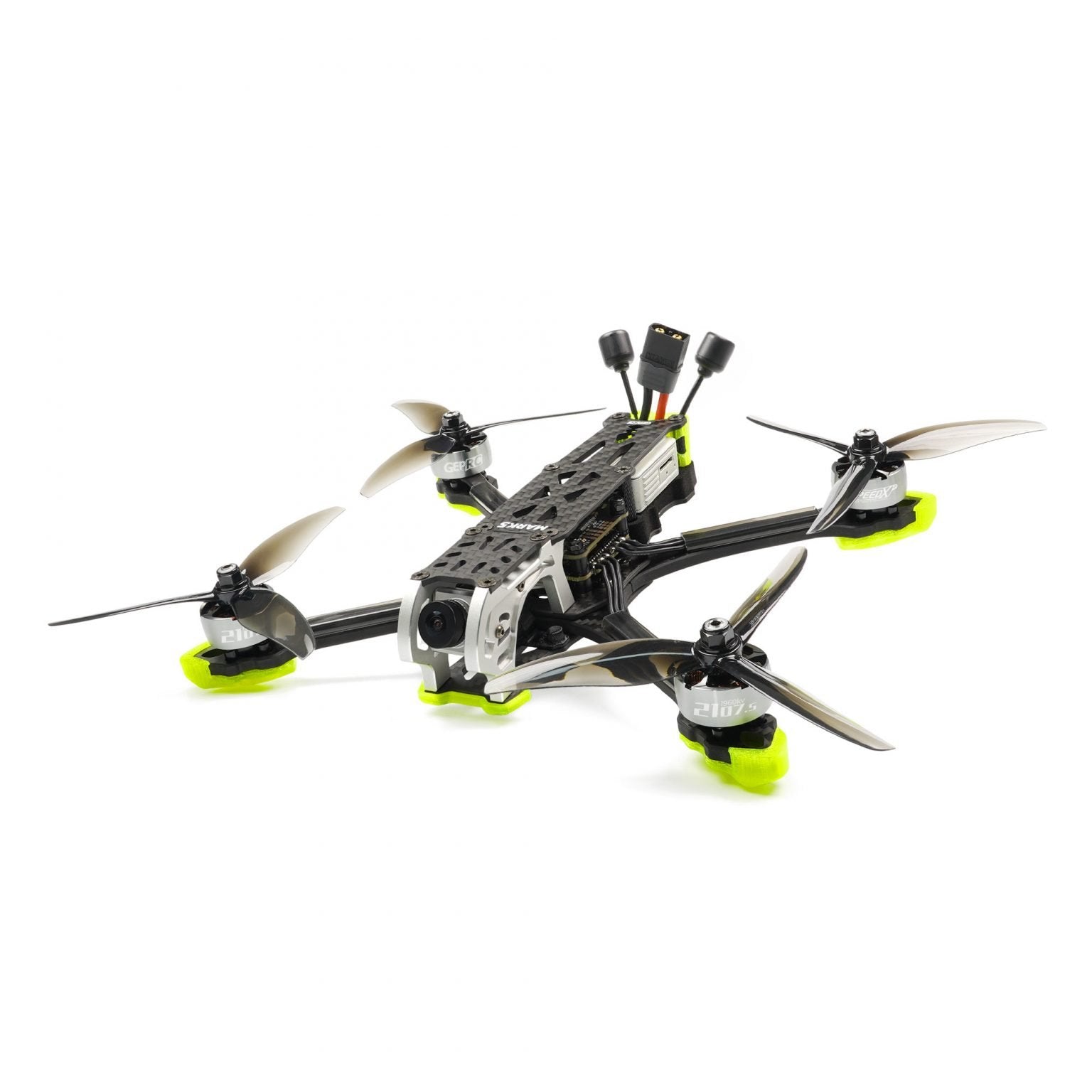

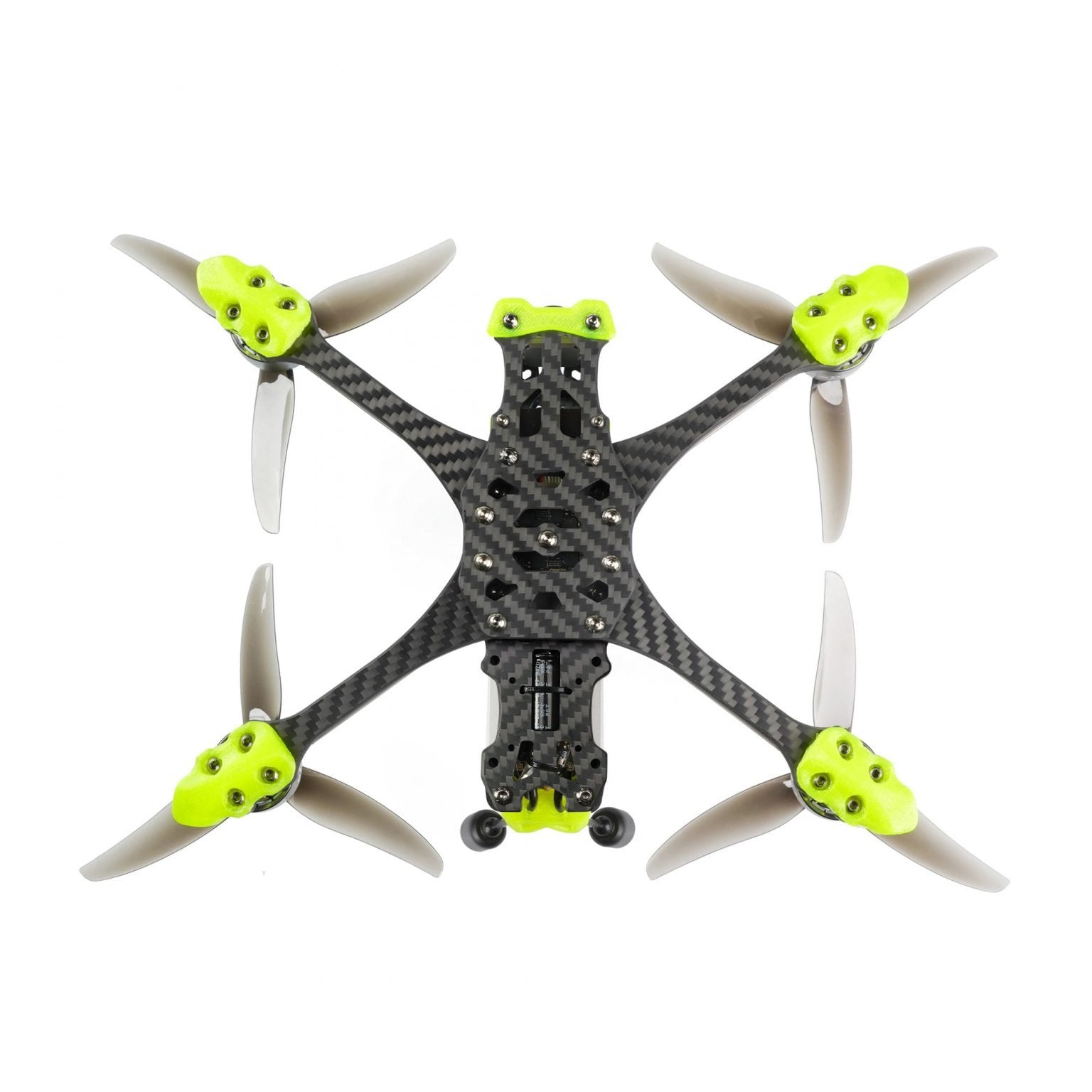

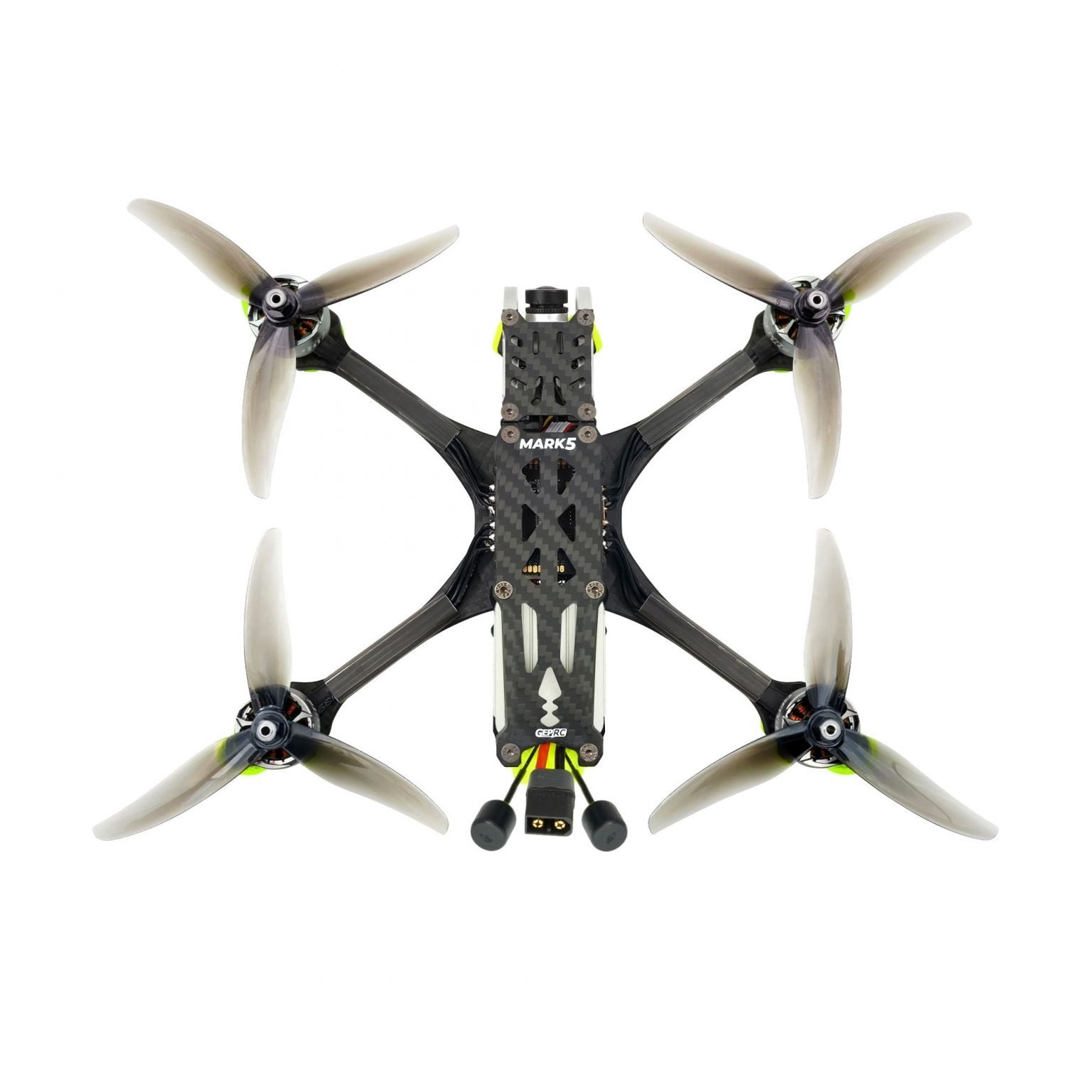

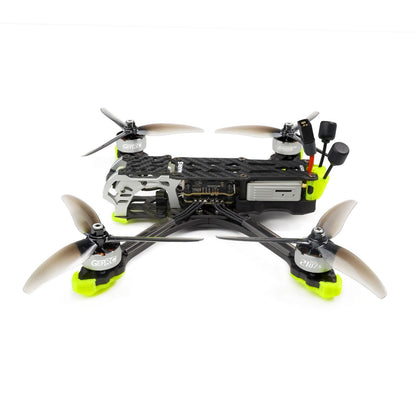

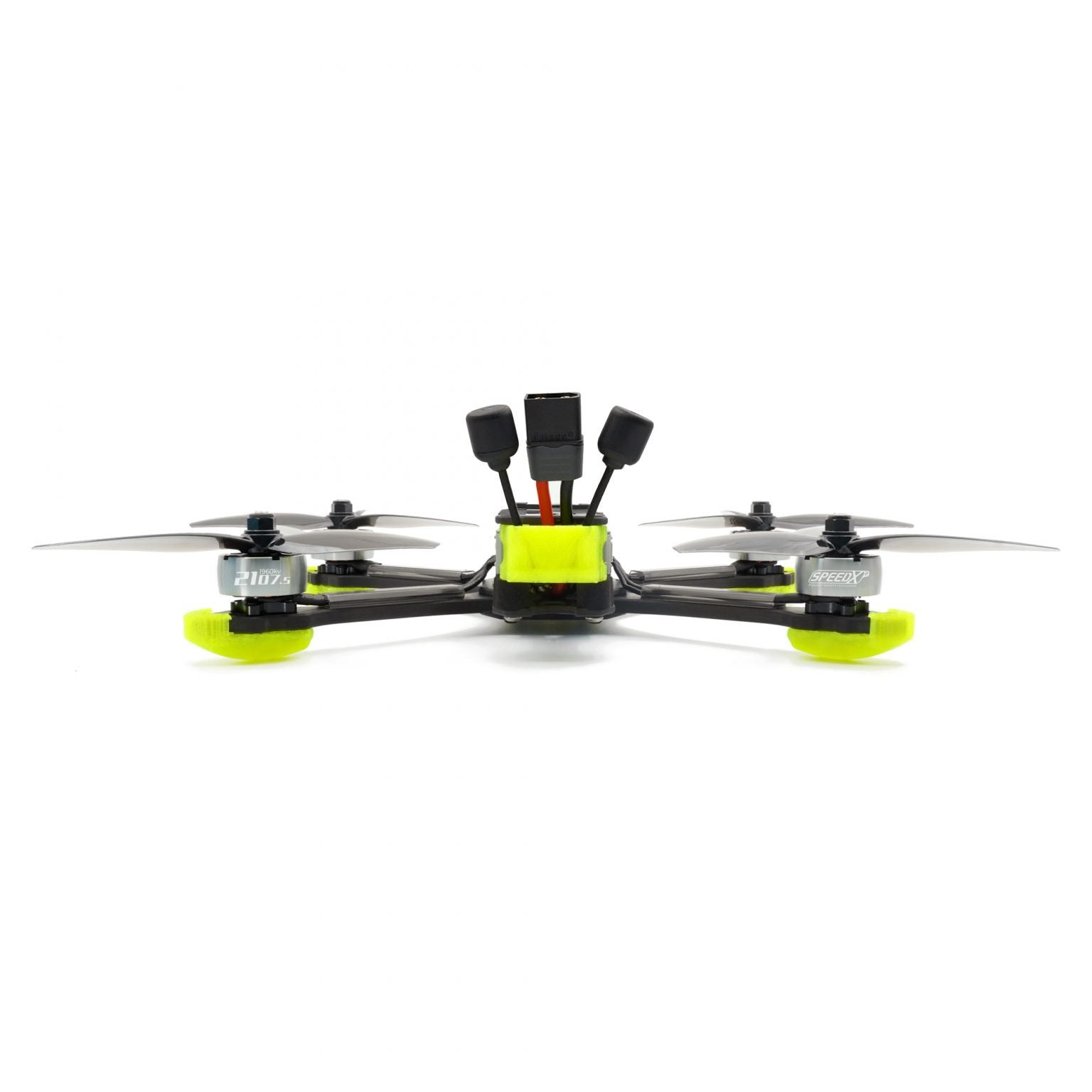

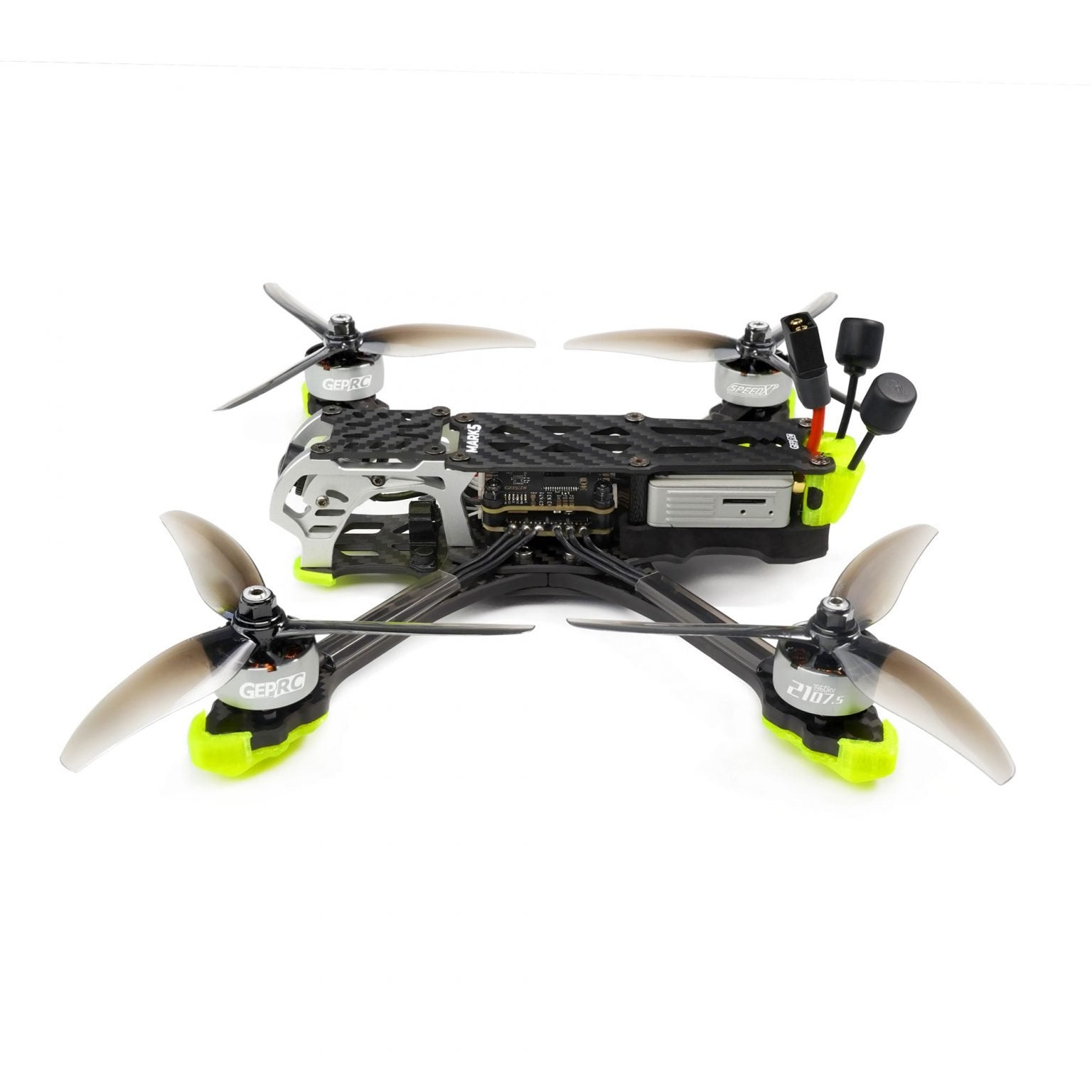

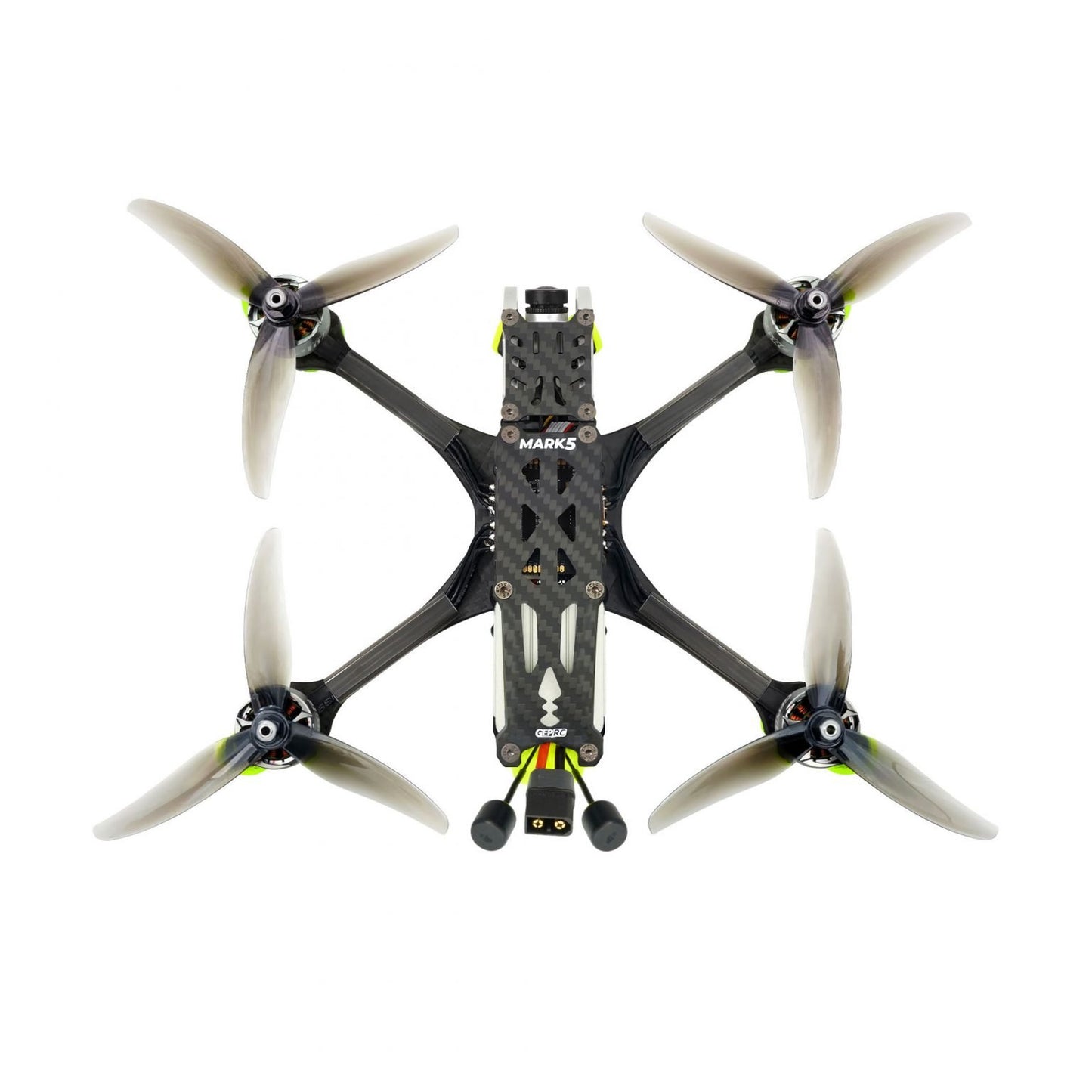

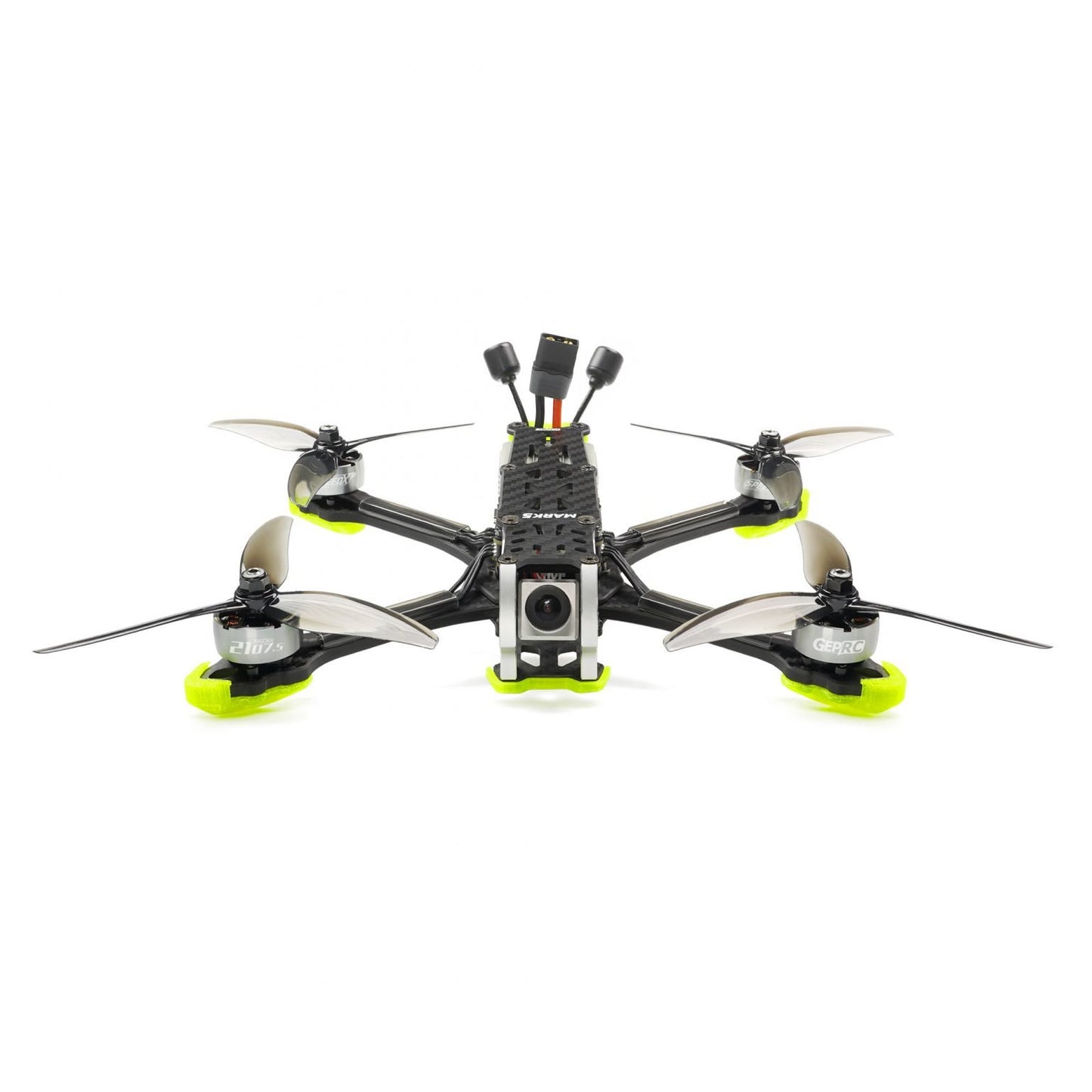

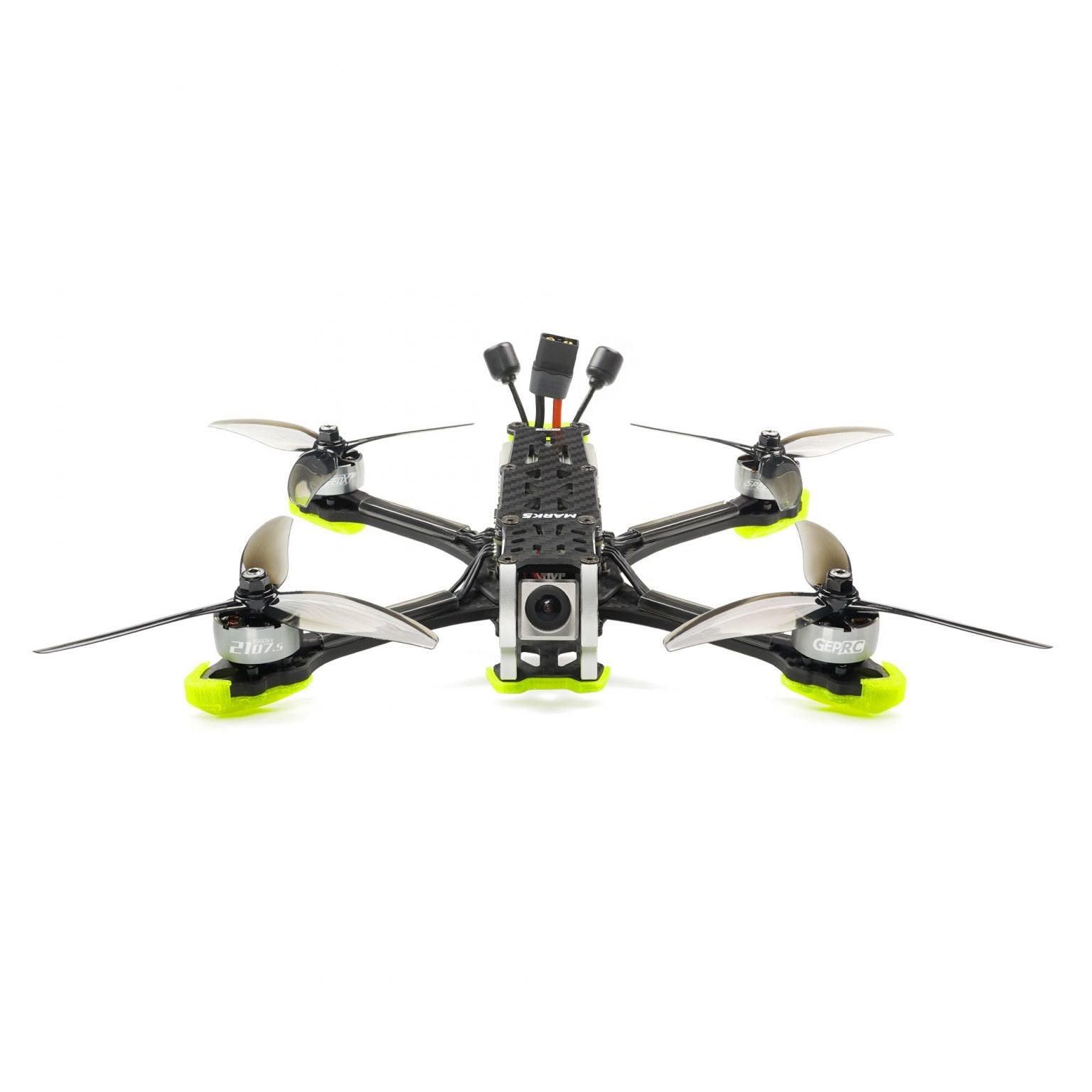

MARK5 HD DJI Air Unit PNP (4S)
MARK5, GEPRC's top-of-the-line freestyle drone, is specially designed for freestyle enthusiasts with an innovative squished X-arm design. Its unique shock-absorbing structure minimizes vibration and resonance and provides a stable electronic system environment.
Key Features:

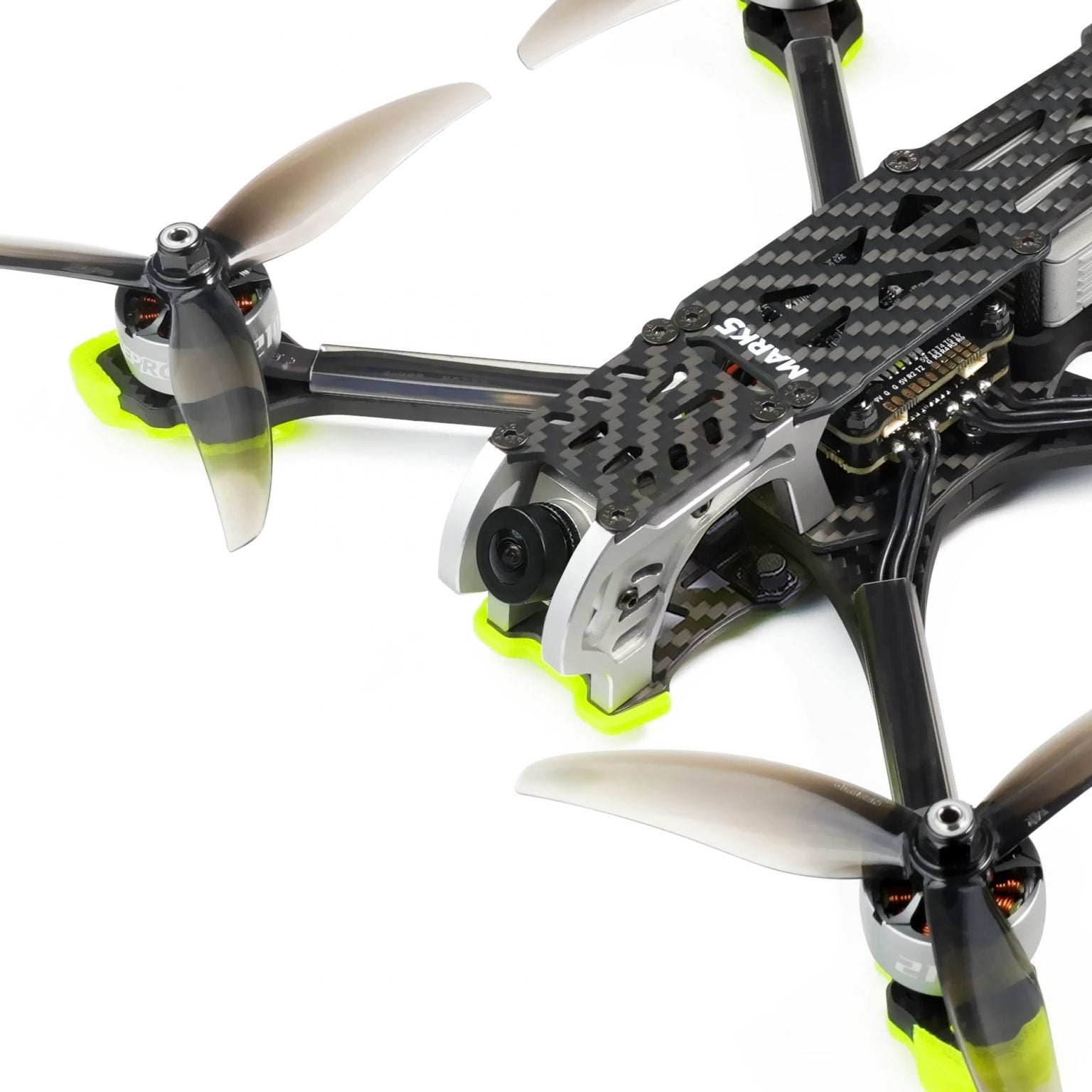

1. Aluminum alloy side plates improve aesthetics, reduce weight and increase durability.
2. Support Bluetooth wireless connection, simplifying debugging.
3. Tailored for freestyle with a pinched X-arm.
4. HD version equipped with Caddx Air Unit HD System & Caddx cam.
5. Wide selection of receivers, including the brand new ExpressLRS Rx.
6. Upgraded SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC coupled with the latest GEPRC 2107.5 motors provides impressive performance and fast response.
7. Smooth flight experience with the new HQ Ethix S5 5×4×3 propellers.

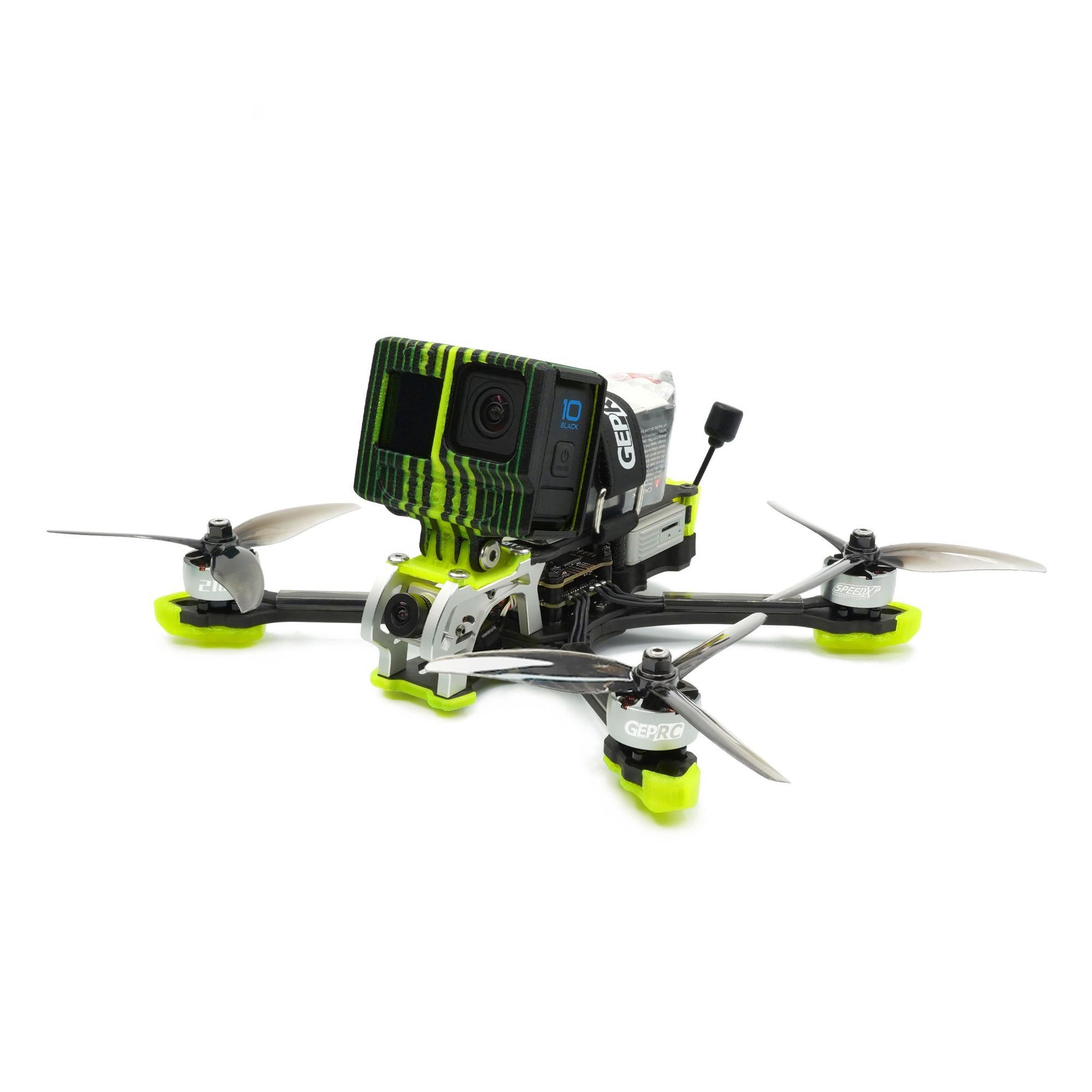

8. Includes two 3D printed action camera mounts, compatible with GP cameras, Naked camera GP8, Insta 360 GO2 and Caddx Peanut cameras.
Specifications:
Model: MARK5 HD AIR UNIT quadcopter
Brand: GEPRC
Frame: GEP-MK5
Wheelbase: 225 mm
Top plate: 2.5mm
Bottom plate: 2.5 mm
Shoulder plate: 5 mm
FC system: SPAN F722-BT-HD V2 (No barometer, but more stable)
MCU: STM32F722
Gyroscope: 42688-P
OSD: BetaFlight OSD with AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: AIR UNIT module
Camera: Caddx Camera
Charging connector: XT60
Propeller: HQ Ethix S5 5×4×3
Antenna: AIR UNIT antenna or you can use long version GEPRC Momoda 5.8G LHCP MMCX antenna
Motor: SPEEDX2 2107.5-2450KV (4S version)
Weight: 405.7g (MARK5 HD AIR UNIT 6S PNP including 3D printing)
Receiver: PNP
Recommended battery: LiPo 4S 1300mAh-1800mAh (4S version)
