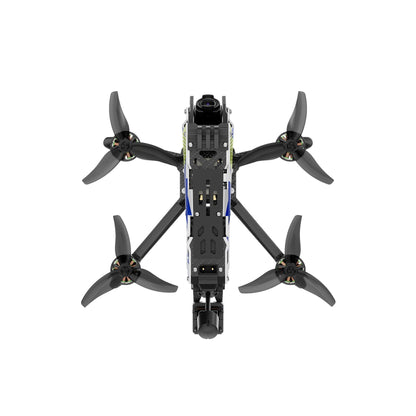

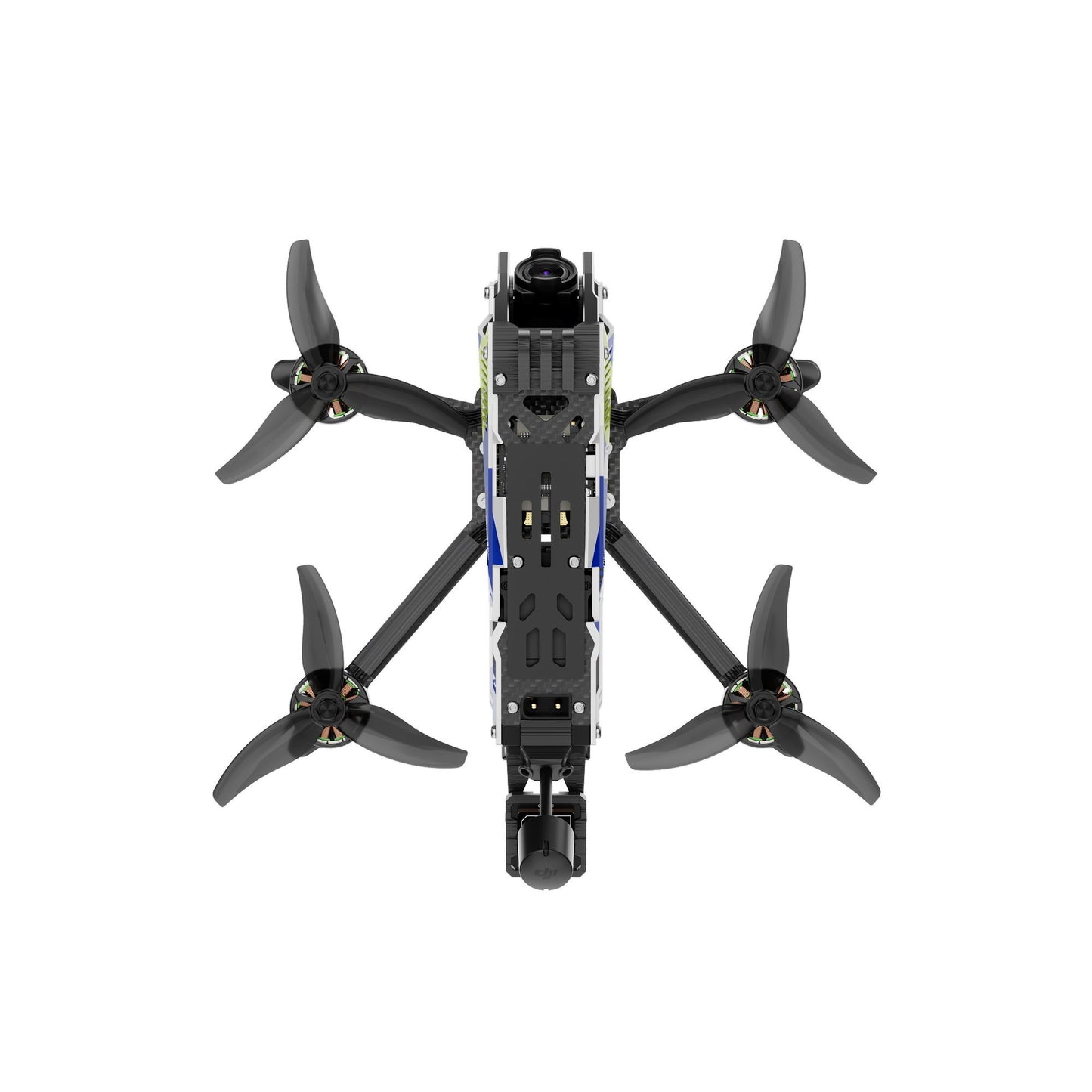

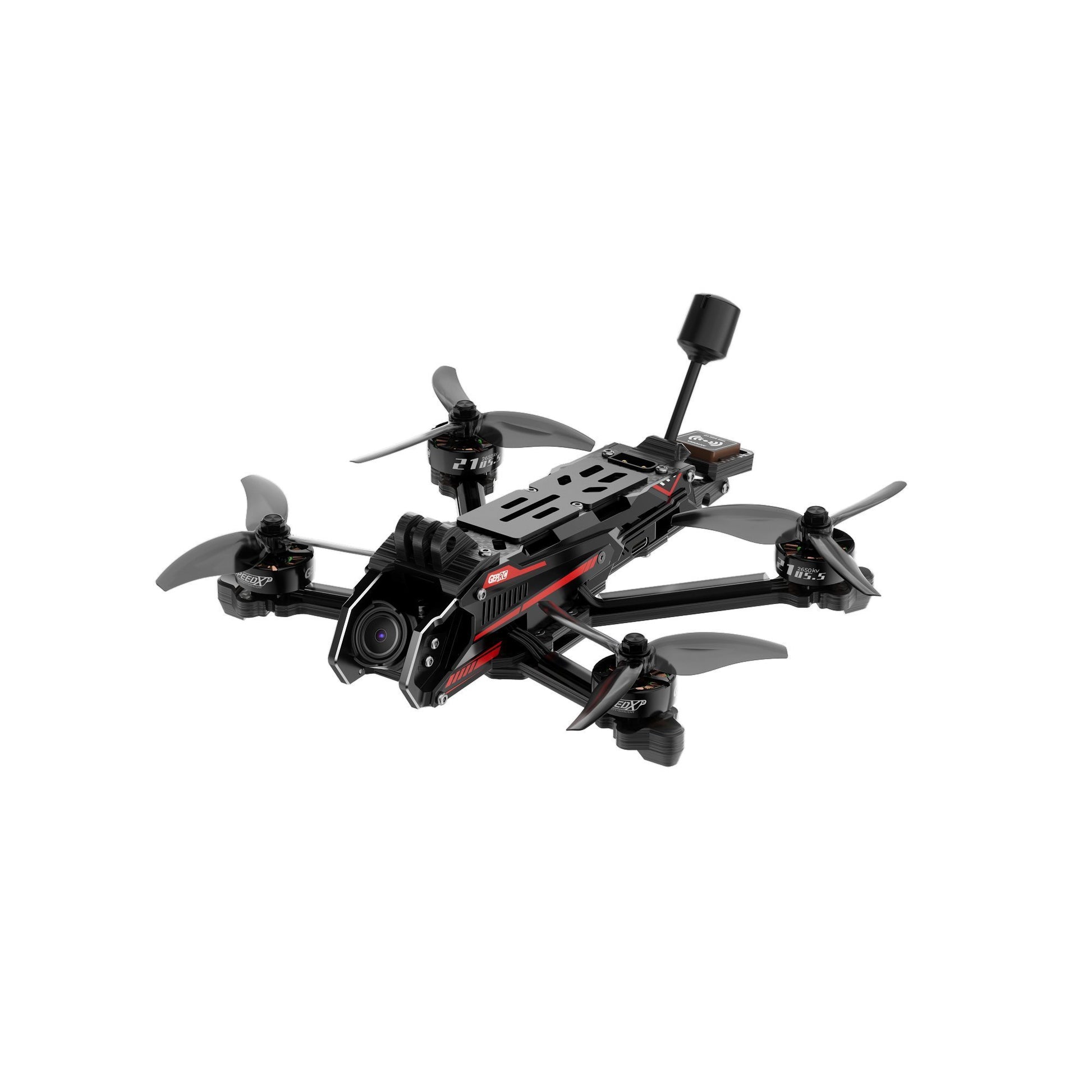

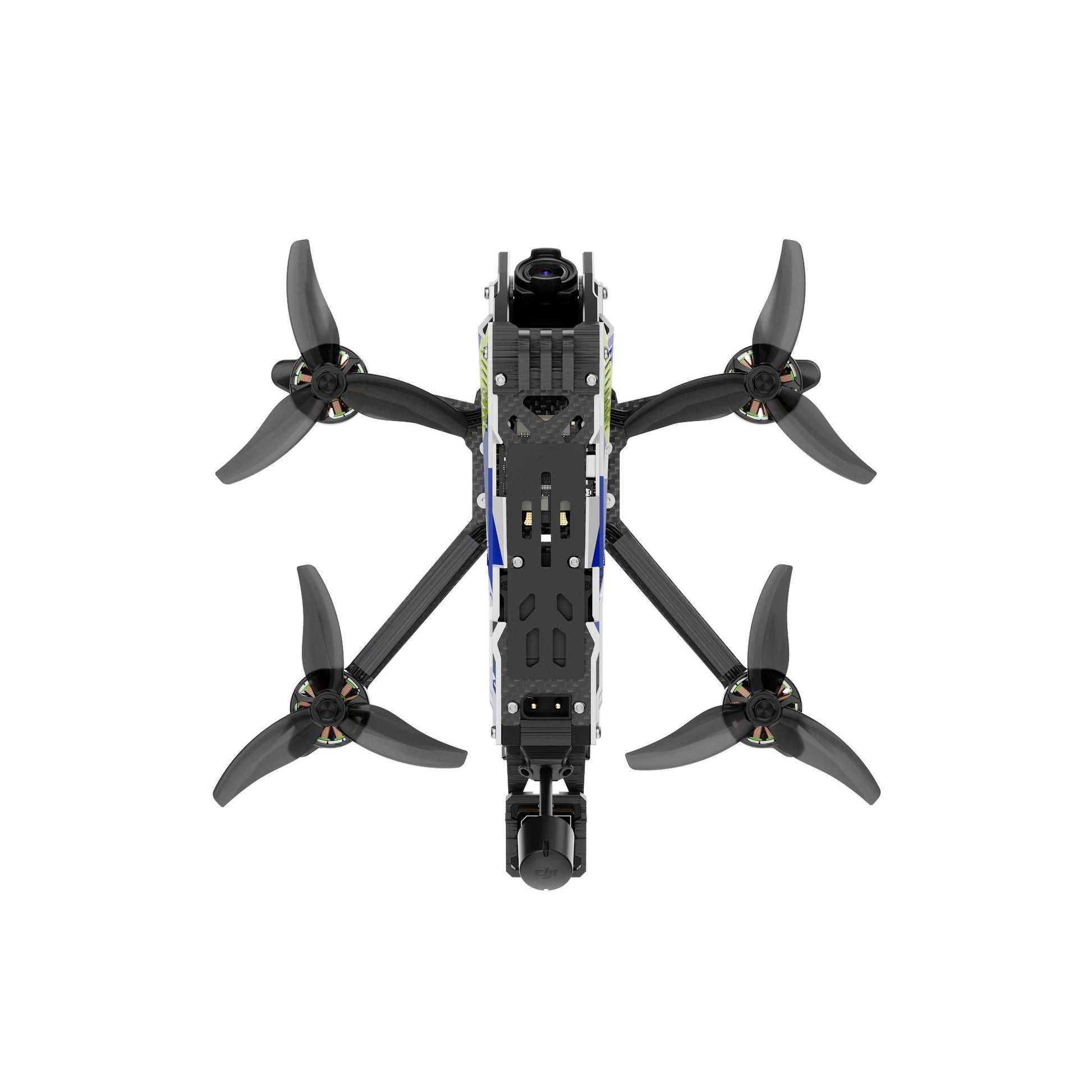

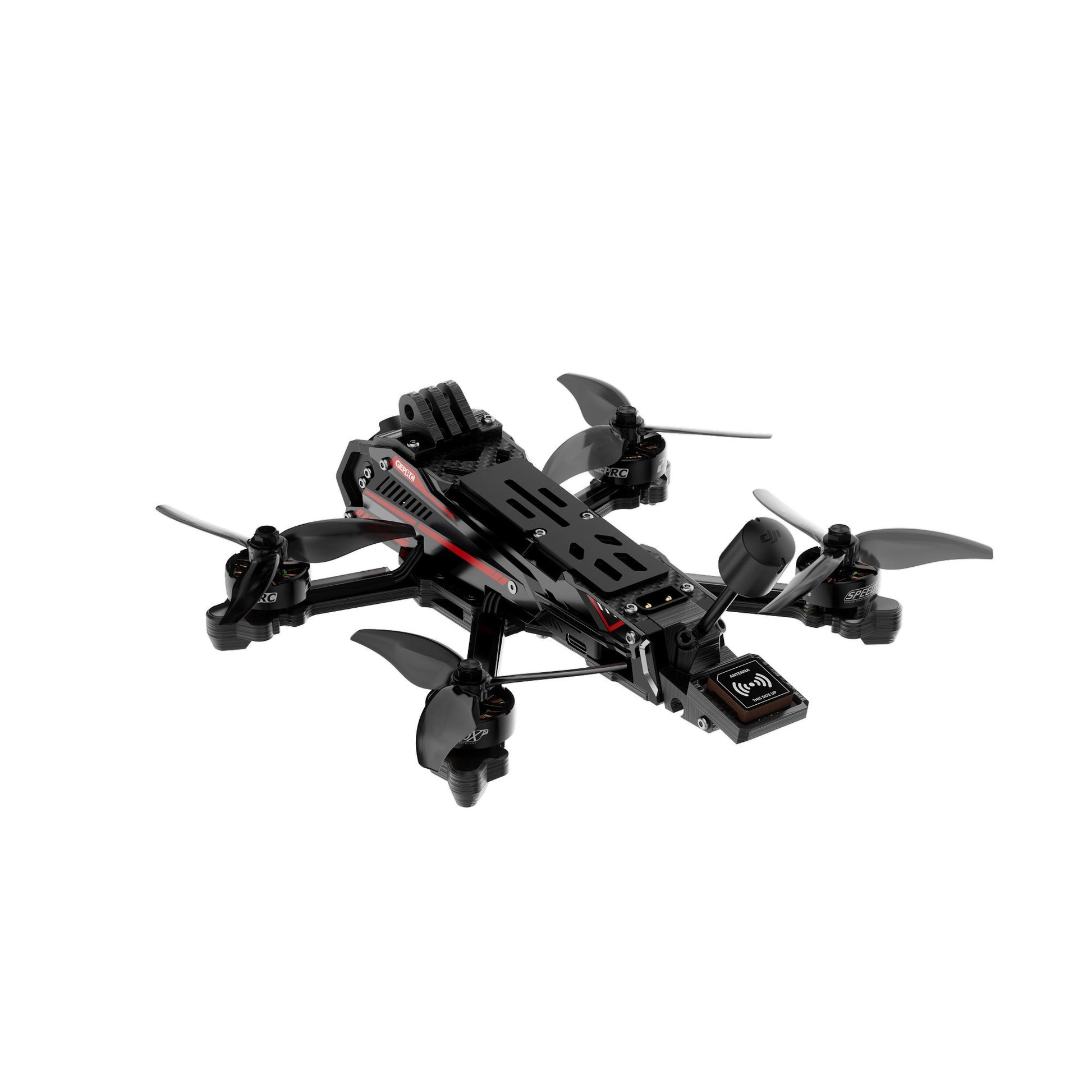

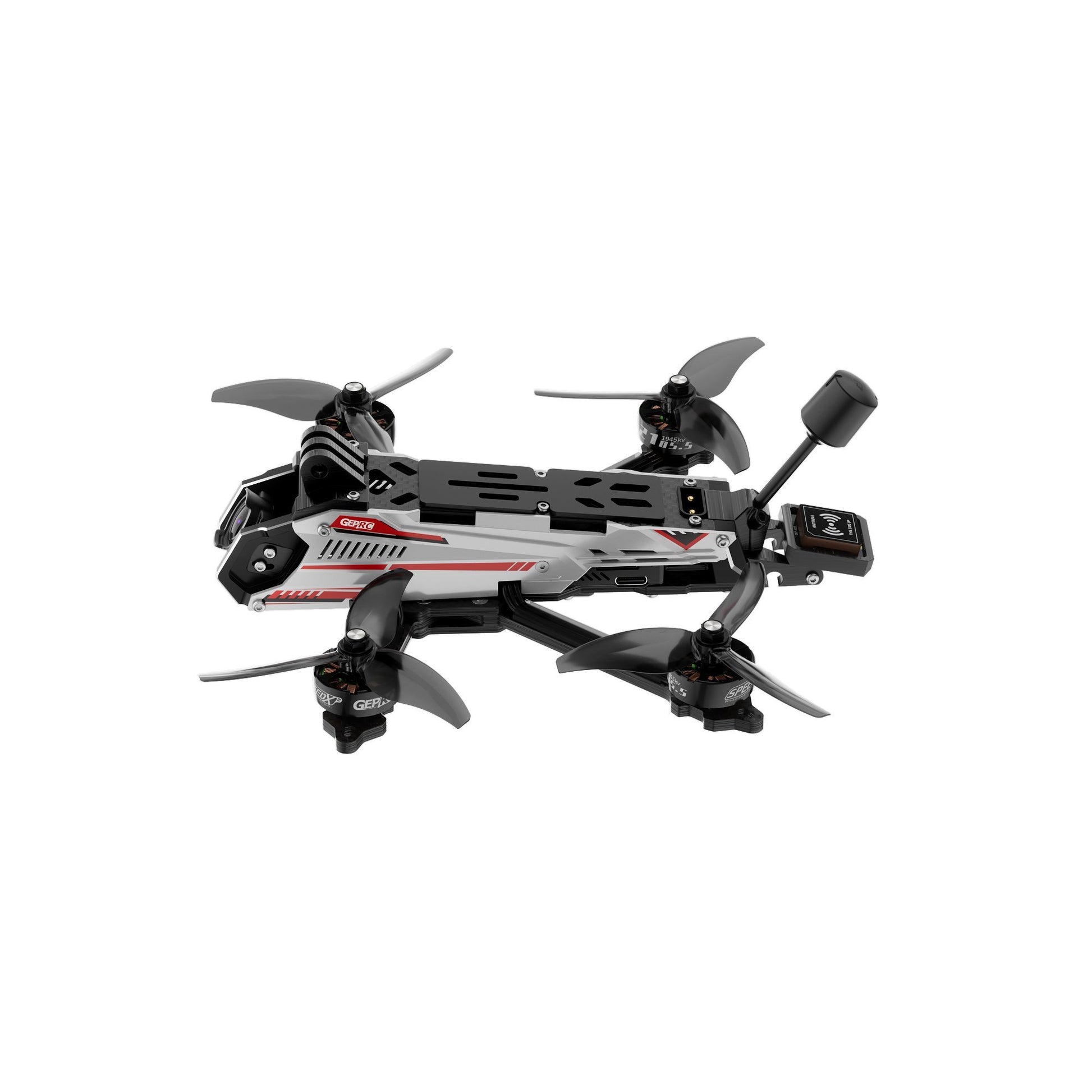

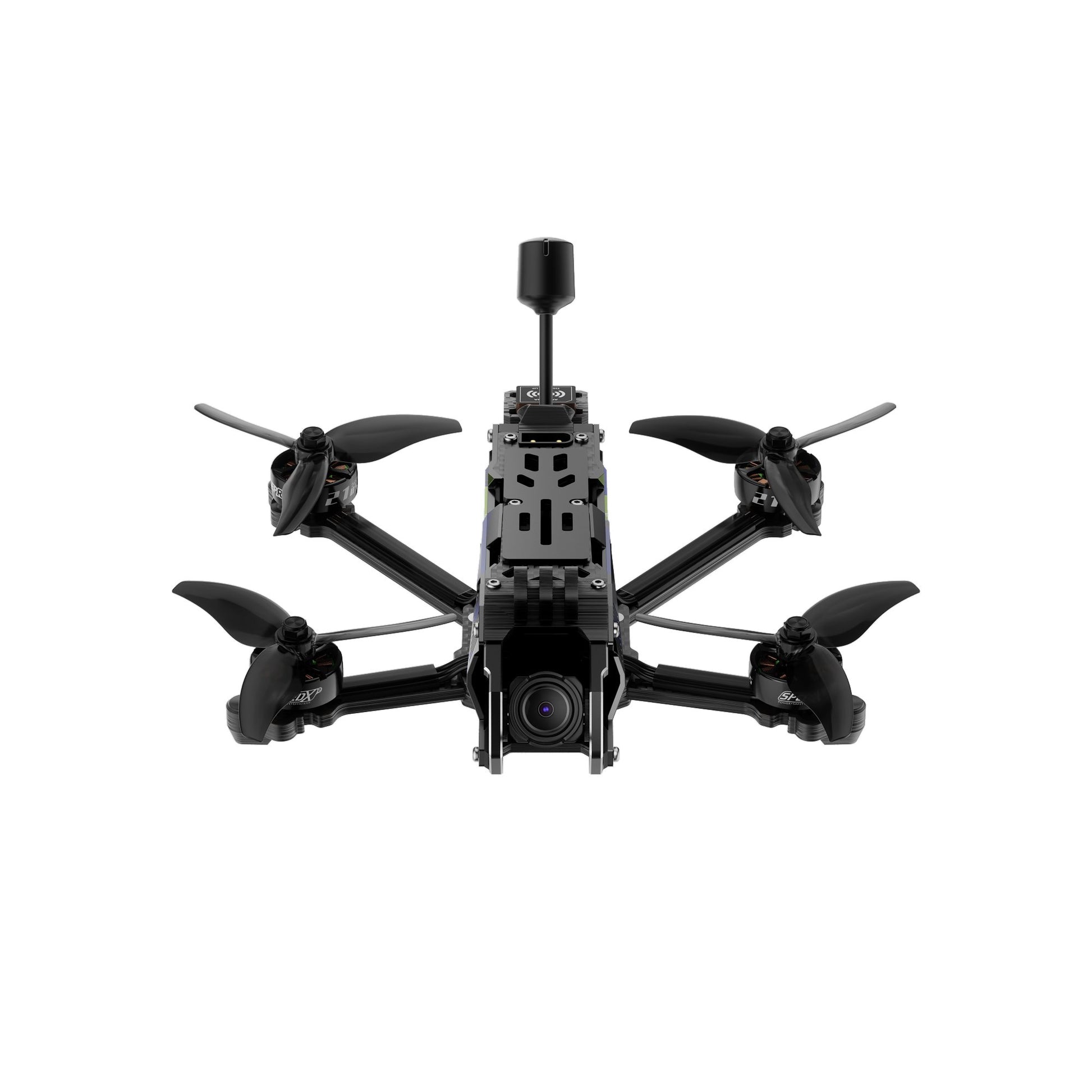

FPV Drone GEPRC DoMain 4.2 HD O3 GPS ELRS2.4G Features Unique design, increasing the stability of the frame structure. The new side panel design is integrated and supports DIY side panel stickers. Greater creativity and diversity. Equipped with sufficient power, it can handle demanding freestyle flights. It supports full frame GOPRO camera or GOPRO camera without cover, shoot all the perfect shots in the field of view. Design with DC structure, the frame looks elegant and compact. Extremely high integration, with no propeller in the field of view, displays a clear image. Specifications Product name: 4.2DoMain Frame: GEP-DoMain Wheelbase: 194 mm Thickness of the top plate: 2 mm Base plate thickness: 2.5 mm Arm thickness: 4.0 mm Middle plate thickness: 3 mm FC: TAKER F722 SE ESC: TAKER E55A 32Bit 4IN1 MCU: STM32F722RET6 Gyroscope: MPU6000 OSD: AT7456E VTX: O3 Air Unit Camera: O3 camera Antenna: 5.8G&2.4G Engine: SPEEDX2 2105.5 2650KV (M5 Shift) Propeller: GEMFAN 4023 – 3 Weight: 310 g ±5 g Receiver: ELRS2.4G Recommended battery: Lipo 6S 1050-1300 mAh Connector: XT60 Package Contents: 1 x Domain 2 x GEMFAN 4023 – 3 (1 pair) 2 x M15*200mm Battery cable clip 1 x Bag of spare screws 1 x L-shaped screwdriver (1.5 mm) 1 x L-shaped screwdriver (2 mm) 1 x M8 wrench 1x Left and right side panel
