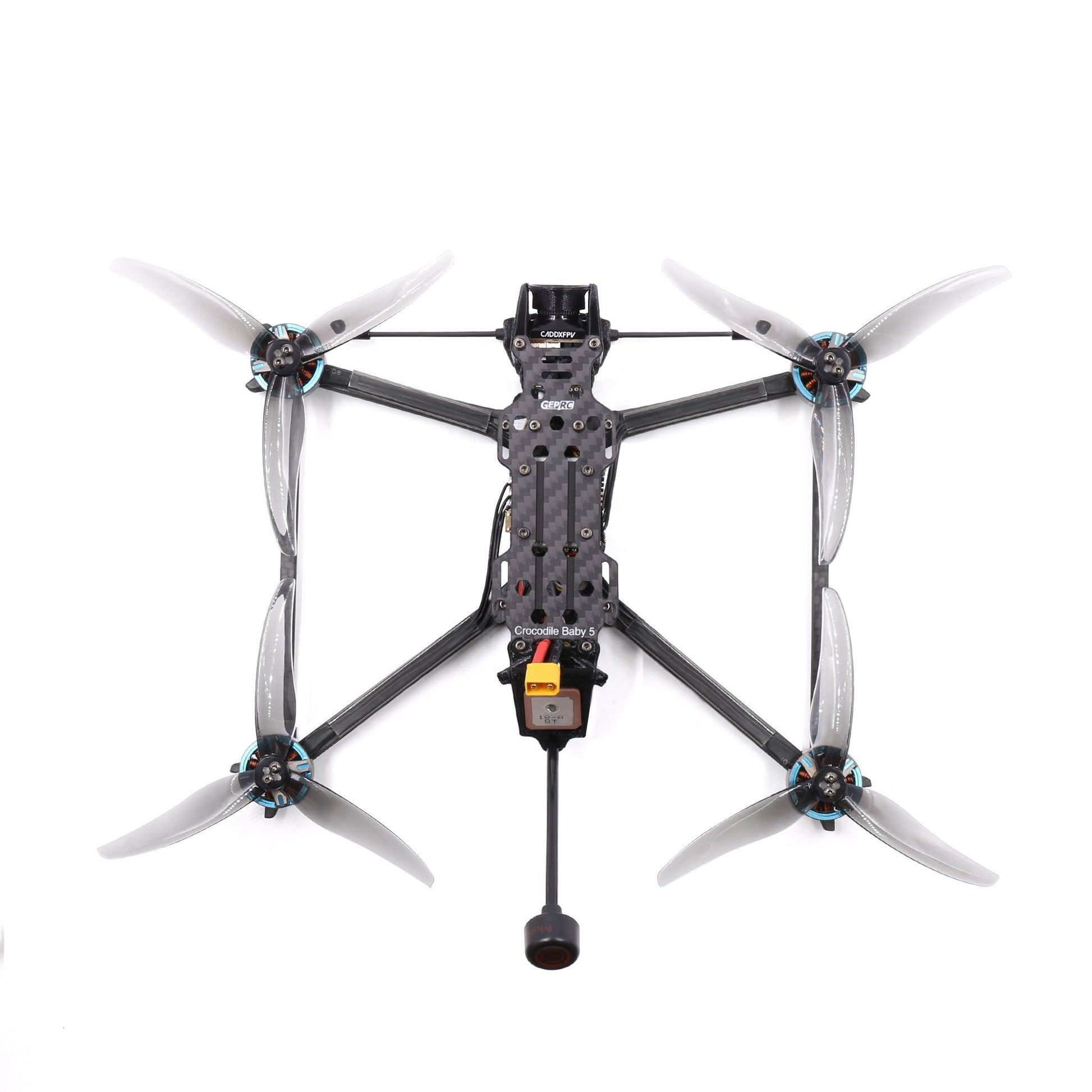

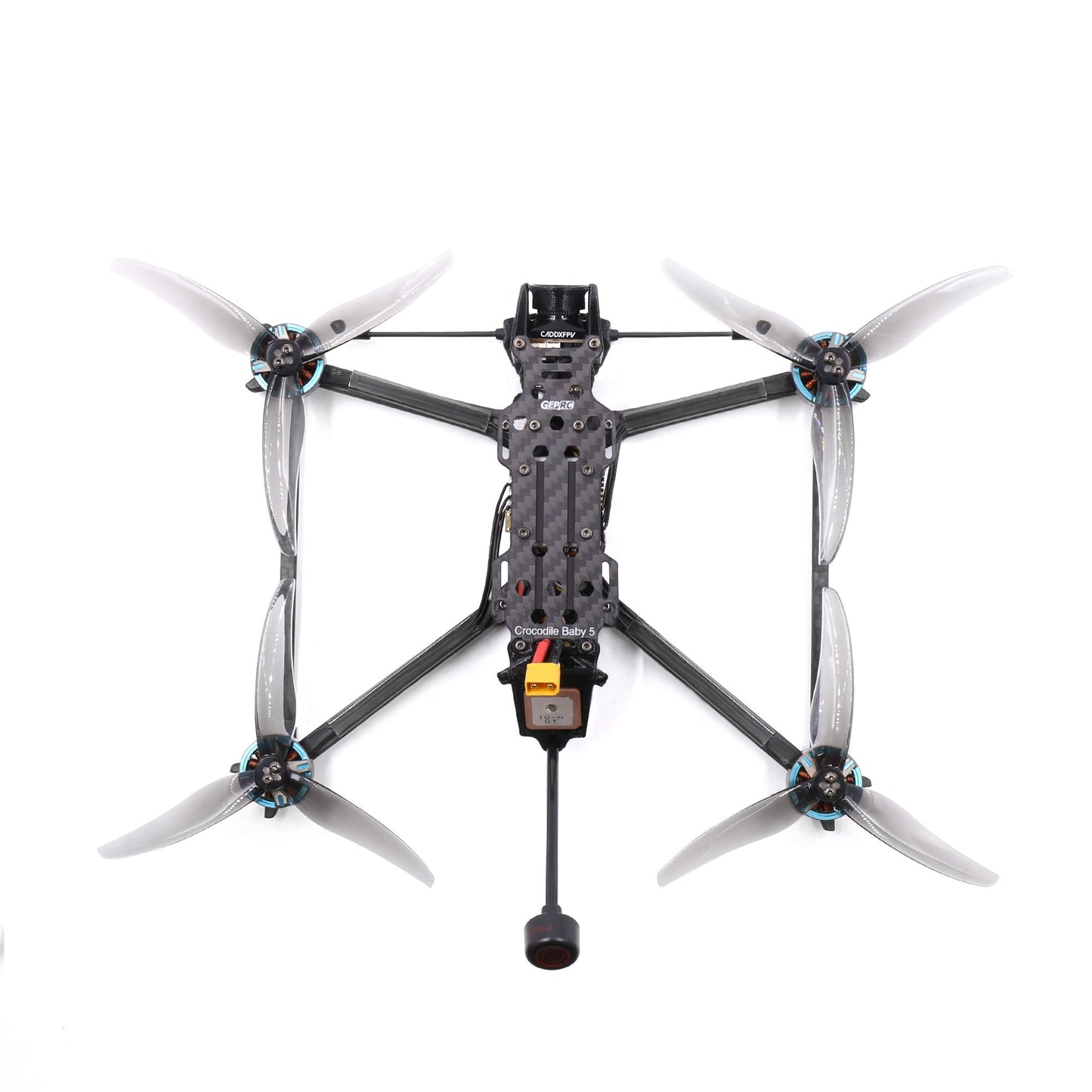

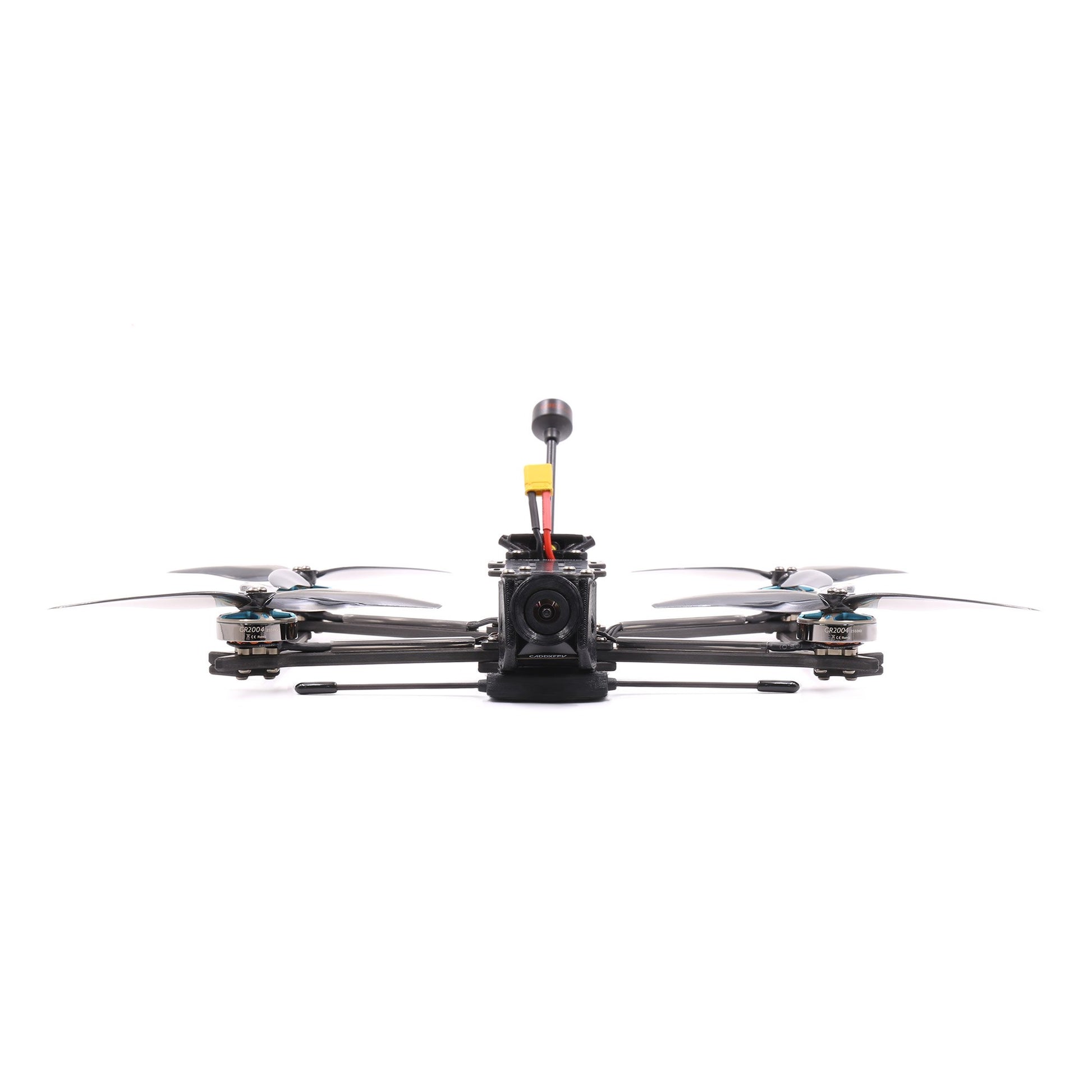

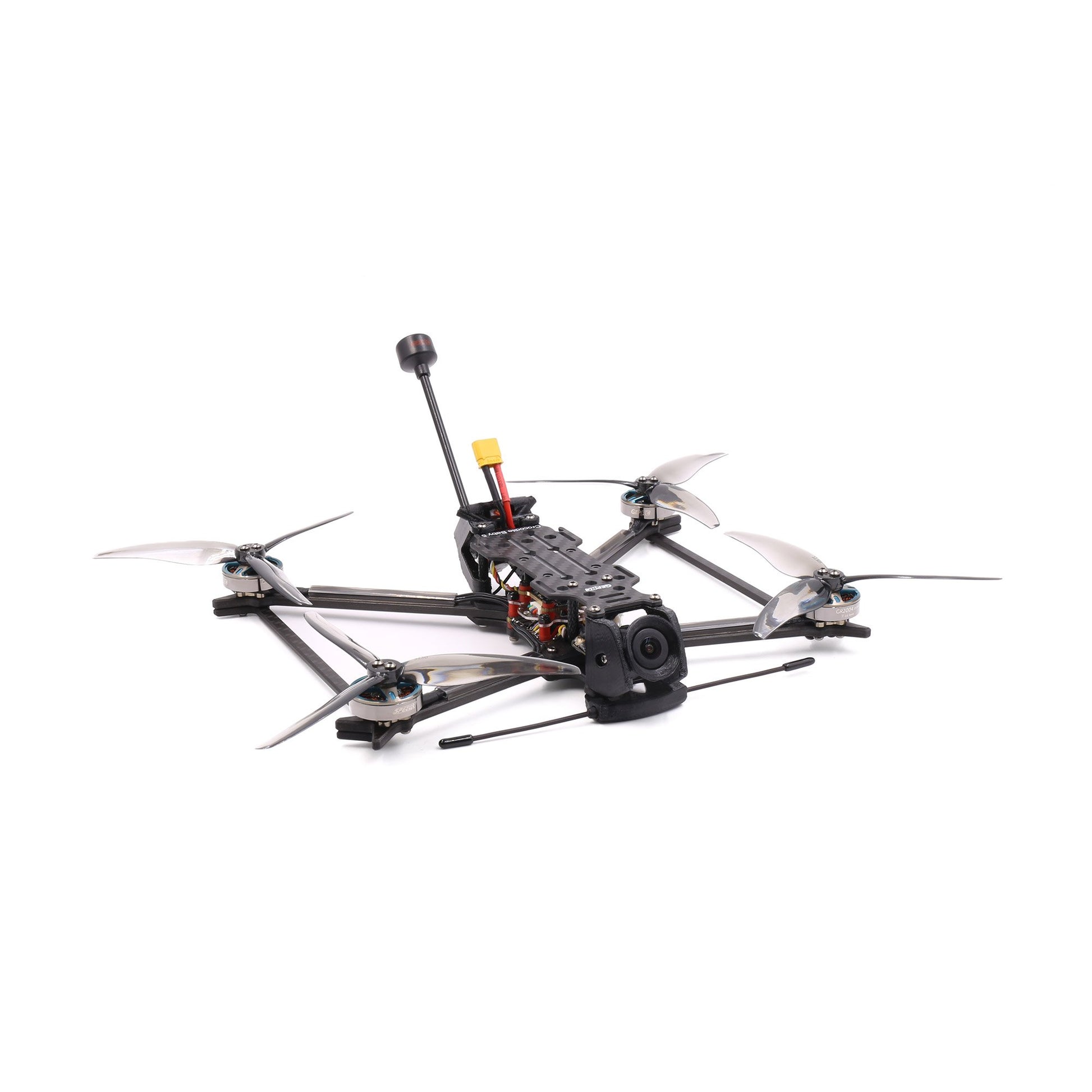

Crocodile5 Baby LR Analog TBS NanoRX
Crocodile5 Baby LR is a new 5 inch long range FPV. There are three versions: DJI Air Unit, Vista Nebula Nano and (Analog) 5.8G 600mW. It is a lightweight long-range FPV that can float smoothly for a long time or Freestyle. High efficiency power system: Latest GEP 2004 2550kV engine + Gemfan 5130 propeller.
If equipped with GEPRC VTC6 18650 4S1P 3000mAh batteries, the flight time can easily reach 27 minutes. Even though it comes with a GP Lite camera, 25 minutes of flight time is normally available.
Crocodile5 Baby LR has a 3D Print holder for the GPS module. When the signal is lost or the VTX is out of control, it can start the betalet rescue mode (in case of emergency, the FPV flies back to the approximate home position, if the signal is received again, remember to control the FPV to manual landing). Rescue mode will not automatically land. Crocodile Baby integrates GEPRC Finder. If the FPV is lost and the battery is disconnected, the GEPRC Finder buzzer will beep continuously.
Specifications:
Brand: GEPRC
Model: Crocodile5 Baby LR Analog
Frame: GEP-CB5
Engine to engine: 227mm
Top plate thickness: 2.0 mm
Bottom plate thickness: 2.0 mm
Arm plate thickness: 4.0 mm
Flight control system: GEP-F722-35A AIO
MCU: STM32F722
Gyroscope: 6-axis
OSD: BetaFlight OSD with AT7456E chip
Target firmware: GEPRCF722 AIO
Power: 4S LiPo/Lion
VTX: 600mW VTX
Camera: Caddx Ratel V2
Props: Gemfan 5130
Antenna: Momoda 5.8G long version RHCP
Engines: GR2004 2550KV
GPS: BN-228
Crocodile5 Baby LRHD Weight: 213.89g
Receiver: TBS Nano RX
Recommended motors and batteries:
Engines: GR2004 2550KV
Battery: Lipo 4S 850mAh – 1300mAh or Lion 4S 3000mAh
