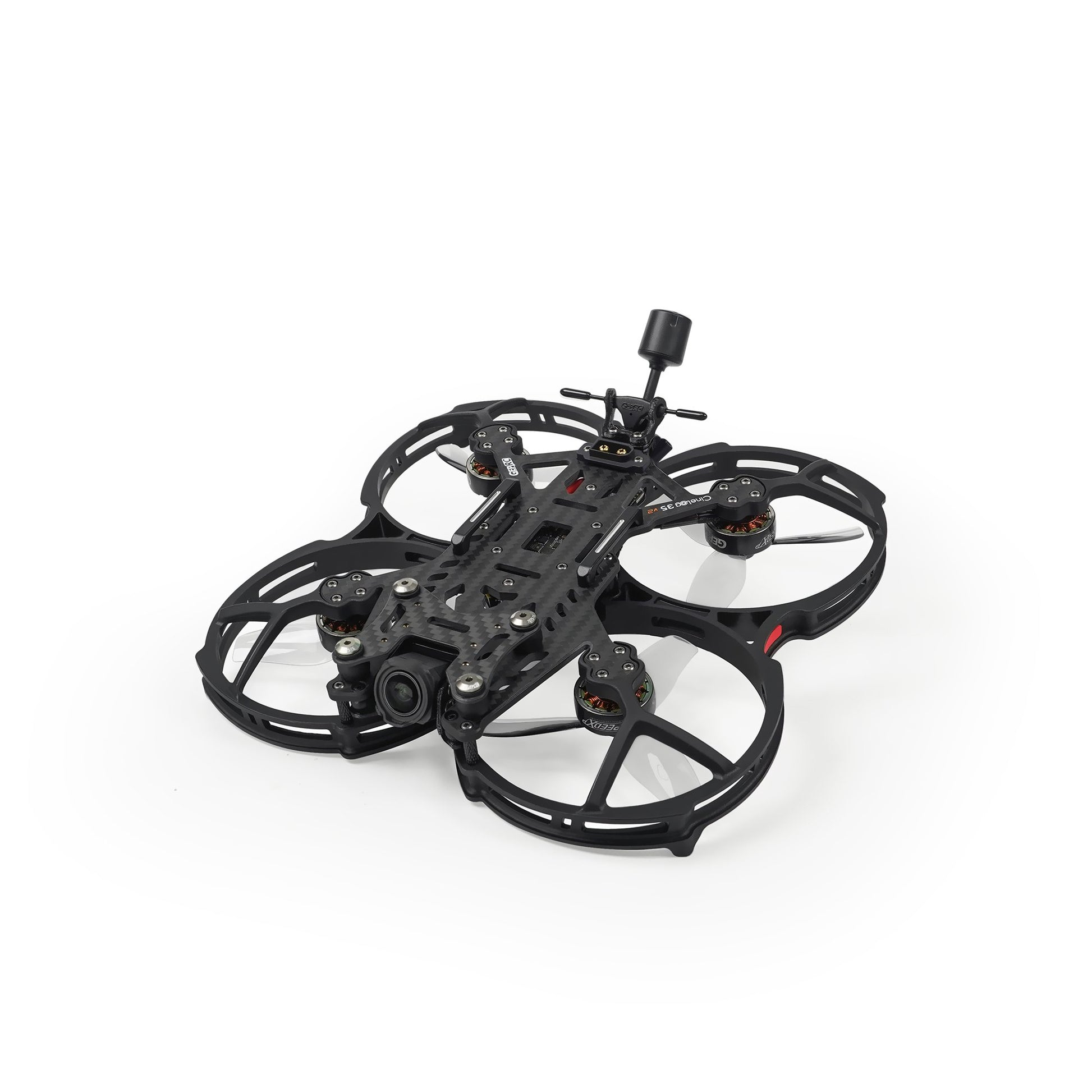

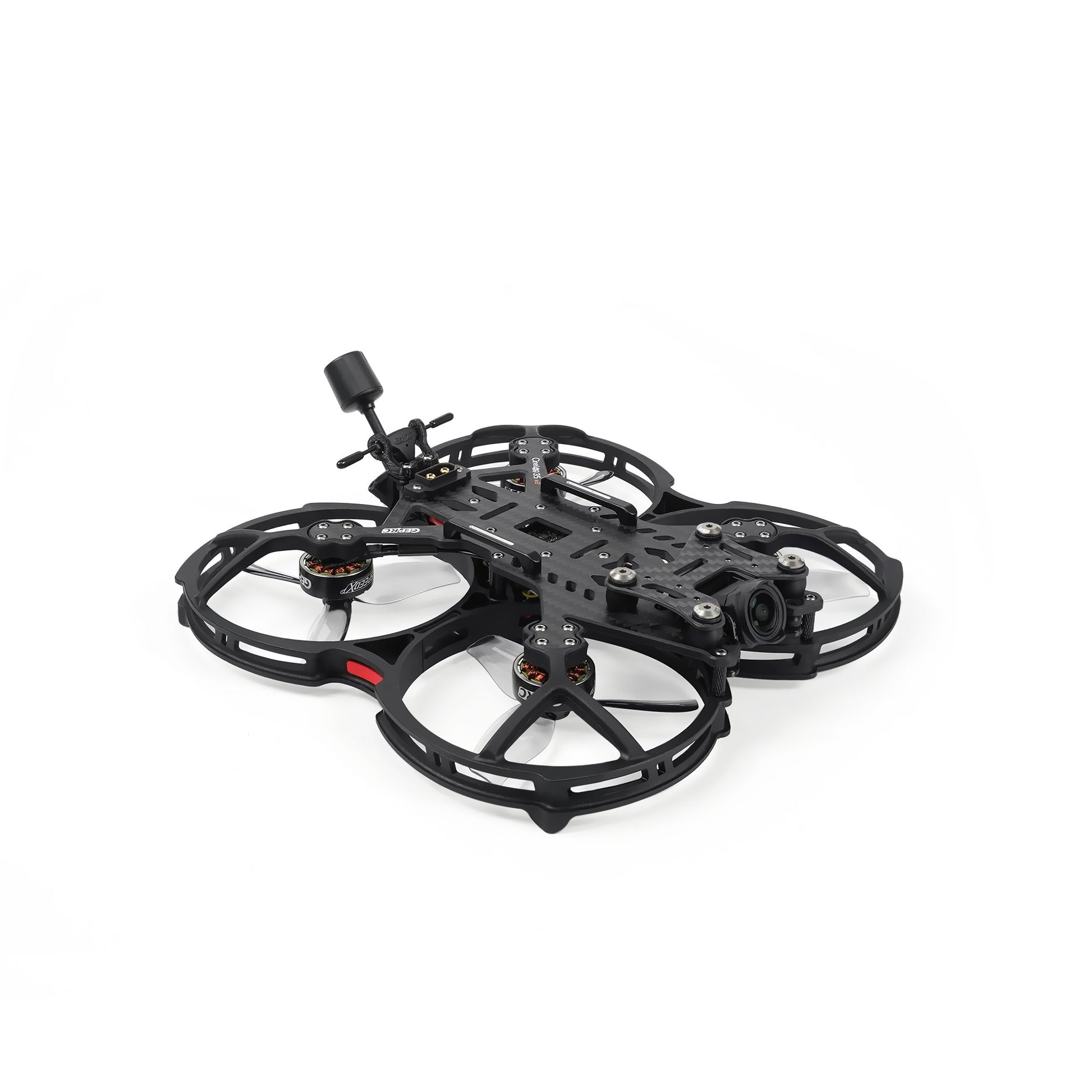

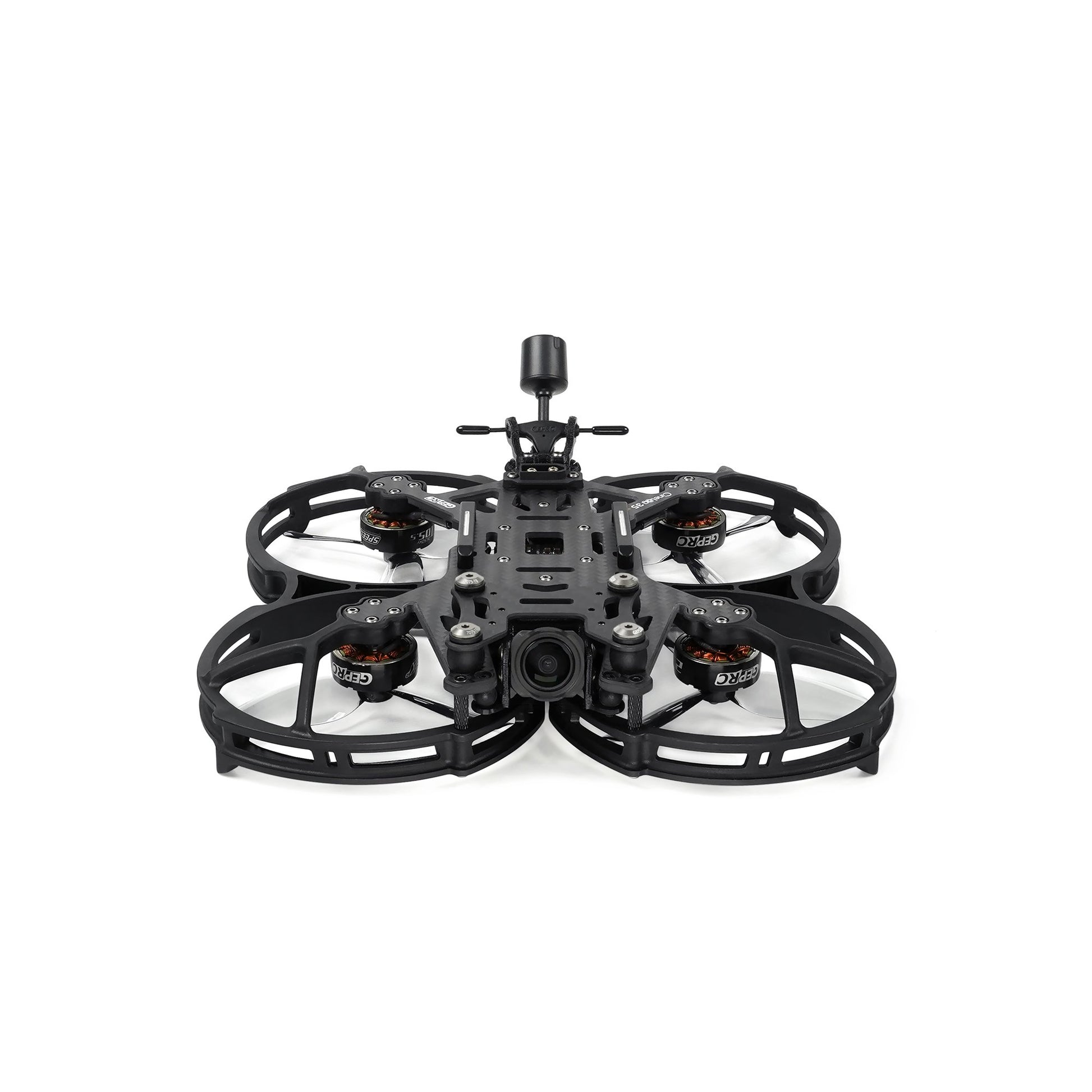

Cinelog35 V2 HD O3 GPS PNP
CineLog35 v2 version integrated with O3 VTX. The CineLog35 V2 version of the main carbon plate and injection guard frame increased the 7075 aluminum post for structural strengthening.
The battery mounting method uses a tie with 7075 aluminum parts attached. The XT60E1-M power plug is integrated with a carbon plate for convenient application. The protective frame for the O3 Air Unit adds a memory card and USB port for easy data reading. Equipped with F722-45A AIO and new SPEEDX2 2105.5 motor, more power with aggressive power system and faster response.
It is a 3.5 inch HD FPV drone that integrates film, freestyle, leisure and safety for indoor and outdoor flying and filming.
Specifications
Model: Cinelog35 V2 HD O3
Frame: GEP-CL35 V2
Wheelbase: 142 mm
Gimbal plate: 2.0 mm
Top plate: 3.5mm
Bottom plate: 1.5 mm
FC system: GEP-F722-45A AIO V2
MCU: STM32F722RET6
Gyroscope: ICM 42688-P
OSD: Betaflight OSD with AT7456E chip
ESC: 8bit 45A
VTX: Air Unit O3
Camera: O3
Antenna: 5.8G and 2.4G
Motor: SPEEDX2 2105.5-2650KV (6S)
Propeller: HQProp D-T90MM
GPS: GEP-M8U
Weight: 285.8g
Receiver: PNP, GEPRC ELRS 2.4G, TBS Nano RX
Recommended battery: LiPo 1050mah-1300mah
Flight time: 5 min - 8 min 30 sec
