Cinelog25 V2 HD O3: Accuracy, stability and high resolution FPV

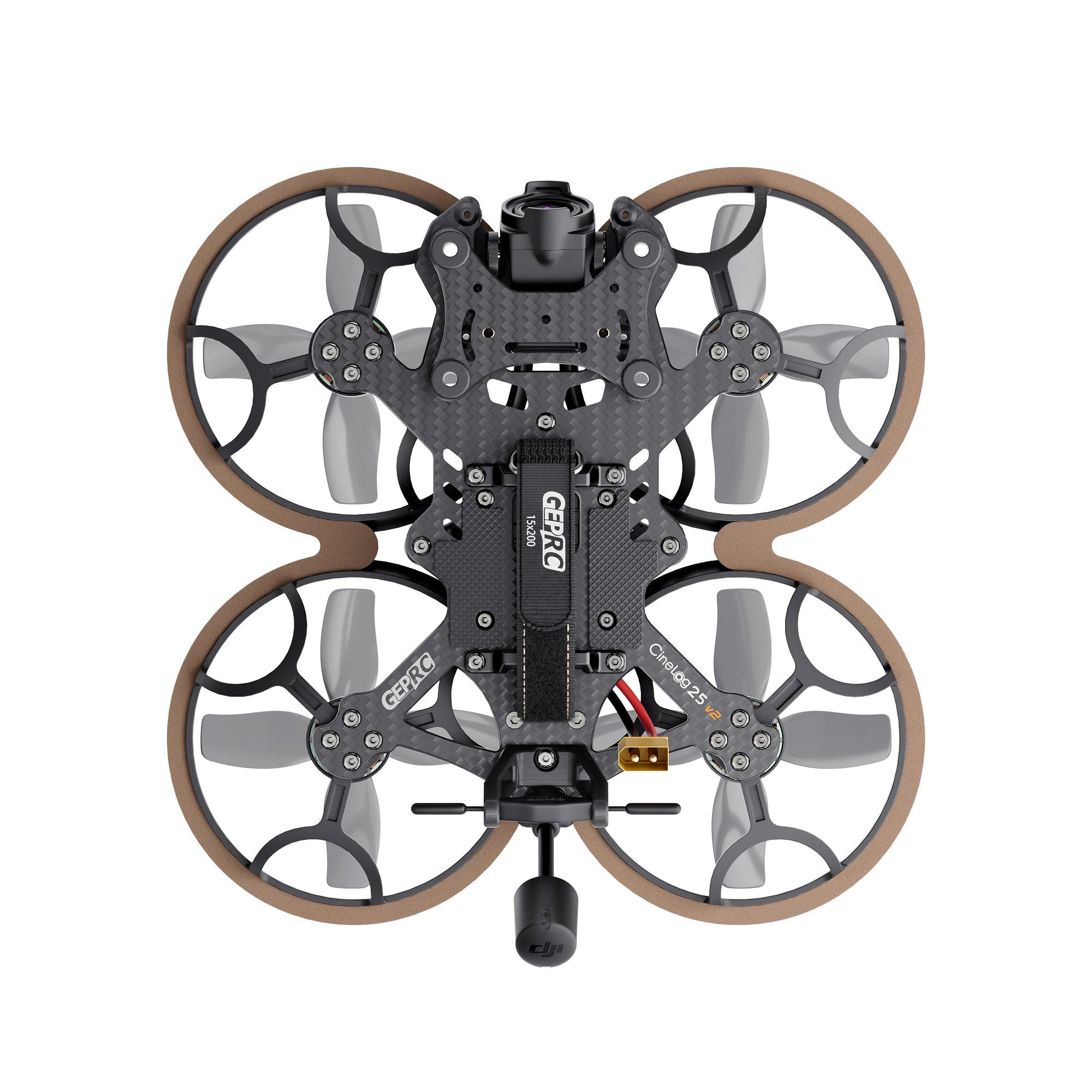

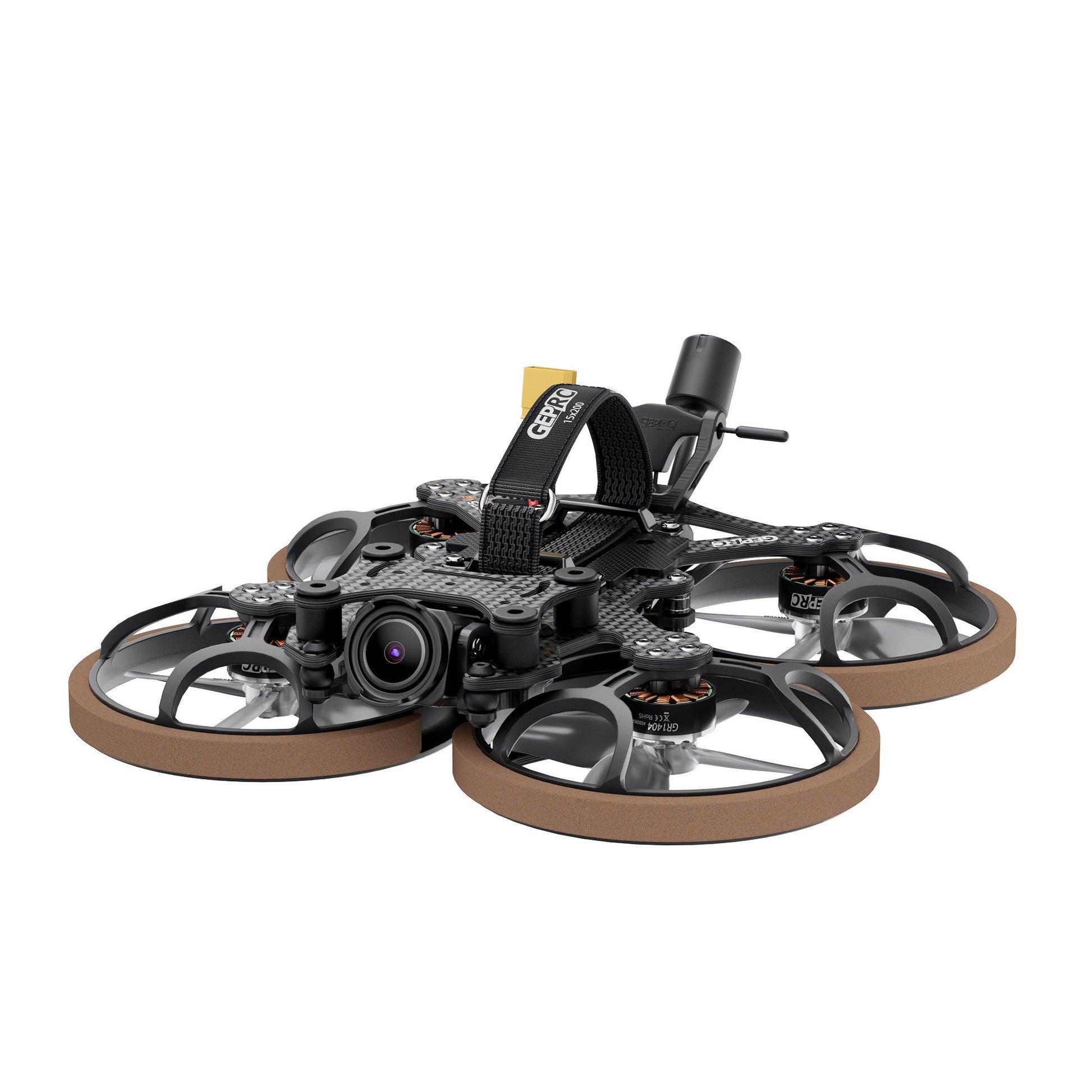

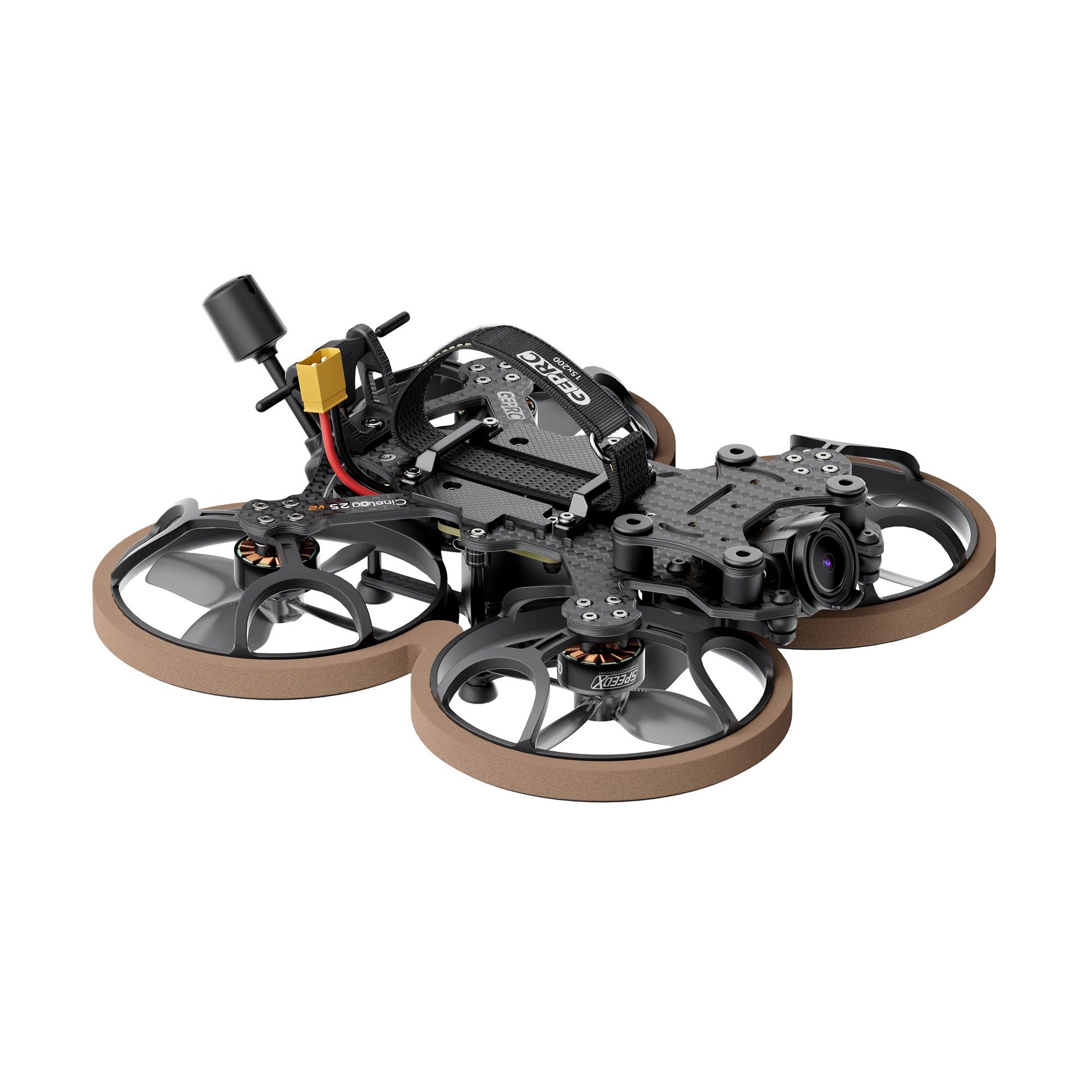

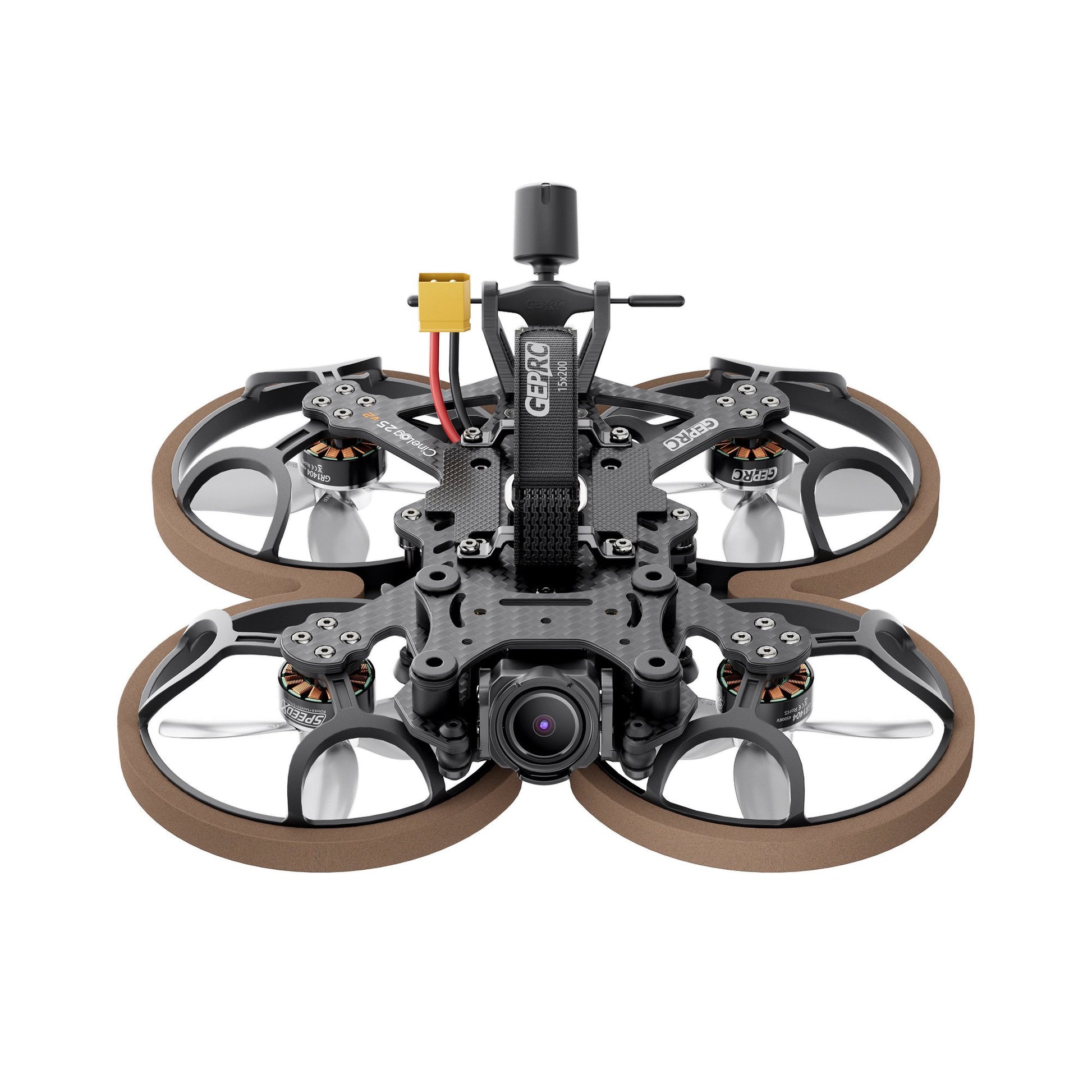

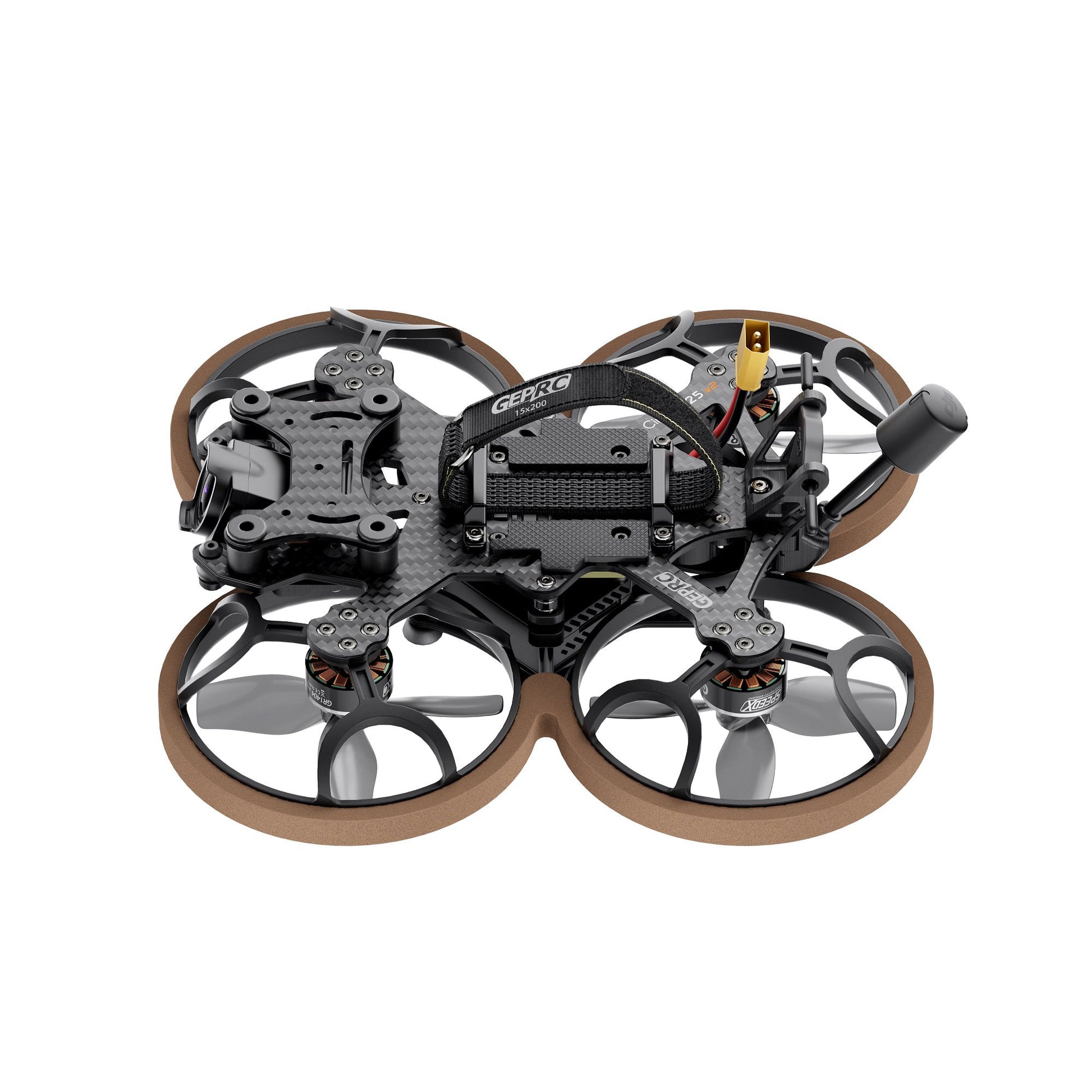

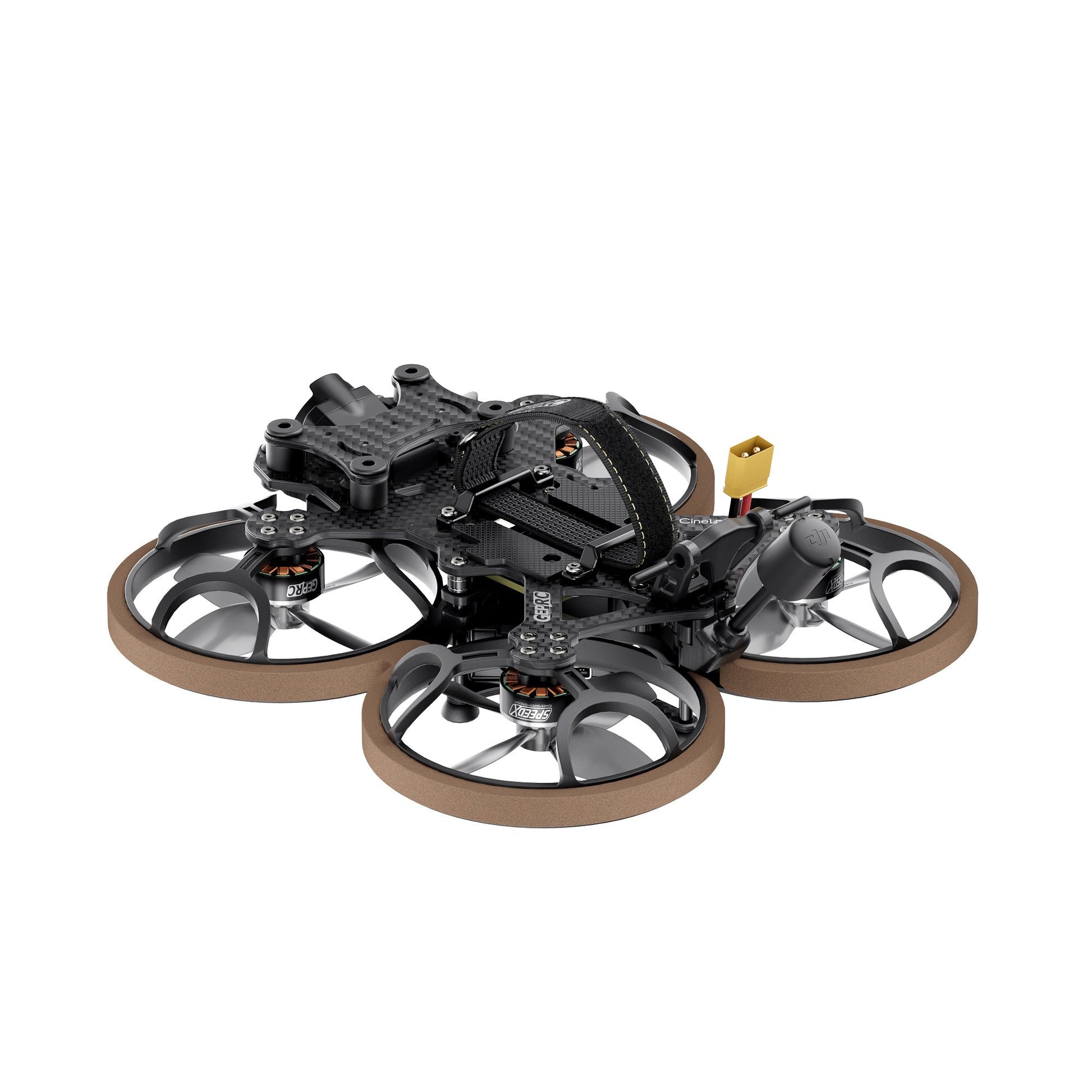

Cinelog25 V2 HD O3 is a compact 2.5 inch FPV quadcopter designed for both indoor and outdoor flight, providing high image resolution and excellent stability. It is equipped with an O3 Air Unit for excellent image transmission and with a weight of 250g it meets FAA aviation standards, making it an excellent choice for FPV enthusiasts and professional pilots alike.
One of the key features of the Cinelog25 V2 HD O3 is the shockproof gimbal, which independently mounts the O3 camera, effectively reducing IMU resonance and providing optimal video stabilization for smooth footage. Thanks to special aluminum parts and cable clips, changing batteries is quick and convenient. The new TAKER G4 35A AIO offers improved computing power and ESC overcurrent protection ensures stable and reliable performance.
Specifications:
- Model: Cinelog25 V2 HD O3 Quadcopter
- Frame: GEP-CL25 V2
- Wheelbase: 114 mm
- Hinger plate thickness: 2.0 mm
- Top plate thickness: 2.5mm
- Bottom plate thickness: 2.0 mm
- Flight controller system: TAKER G4 35A AIO
- MCU: SMT32G473CEU6
- Gyroscope: ICM 42688-P
- OSD: Betaflight OSD with AT7456E
- ESC: 8bit 35A
- VTX: O3 Air Unit
- Camera: O3 Camera
- Antenna: Original O3 antenna
- Motors: SPEEDX 1404 4500KV
- Propeller: HQProp DT63mm*4
- PNP weight: 174g ±5g
- Receiver: TBS Nano RX
- Recommended battery: LiPo 4S 660mAh-850mAh
- Flight time: 4-6 minutes
The package contains:
- 1 x Cinelog25 V2 HD O3 Quadcopter
- 2 x HQProp DT63mm*4 (2 pairs)
- 1 x M15*200mm battery strap
- 1 x M15*150mm battery strap
- 2 x silicone battery pads
- 1 x set of screws
- 1 x 1.5mm L-shaped screwdriver
- 1 x keychain
- 1 x GP8 Base Bare Camera
- 1 x T-shaped antenna holder
