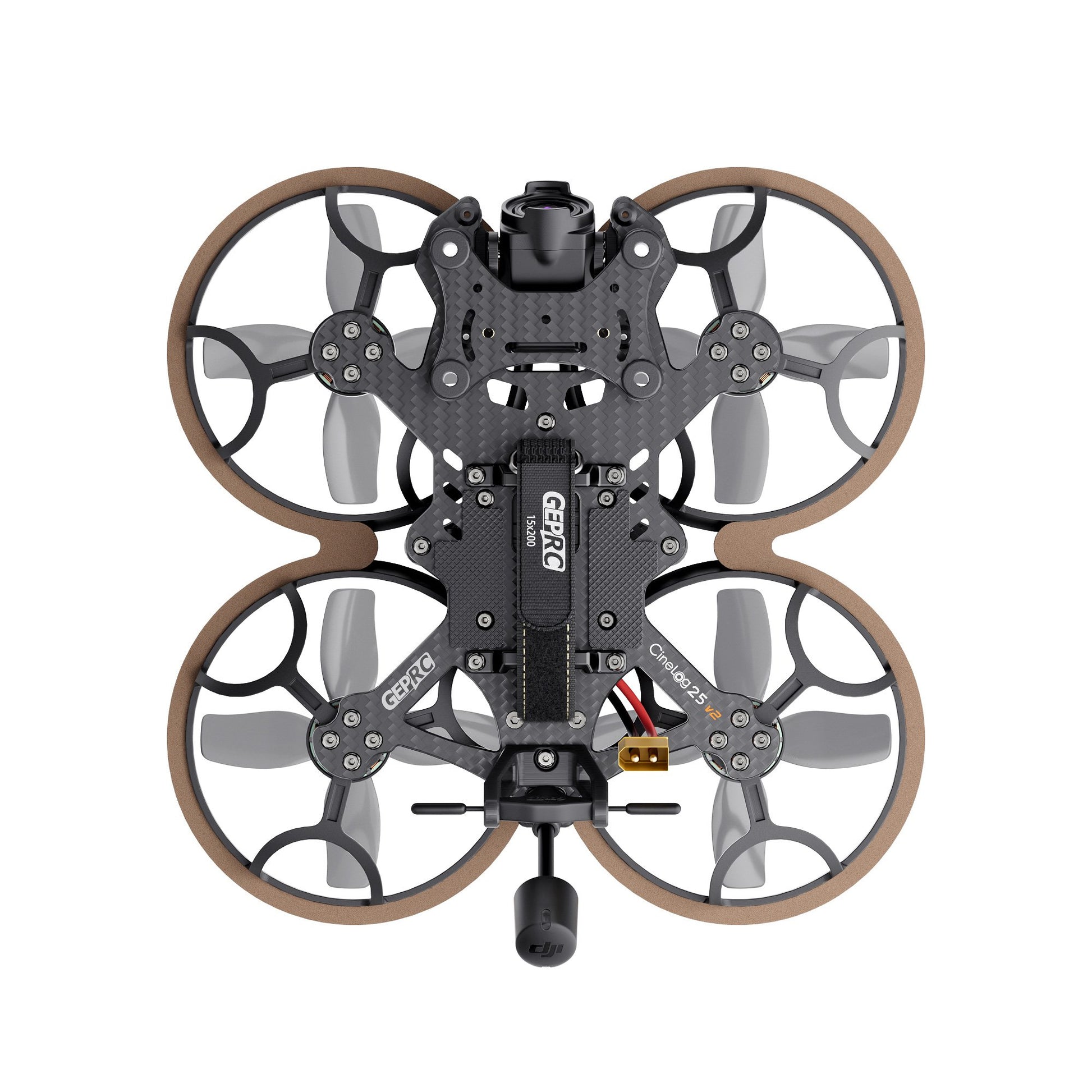

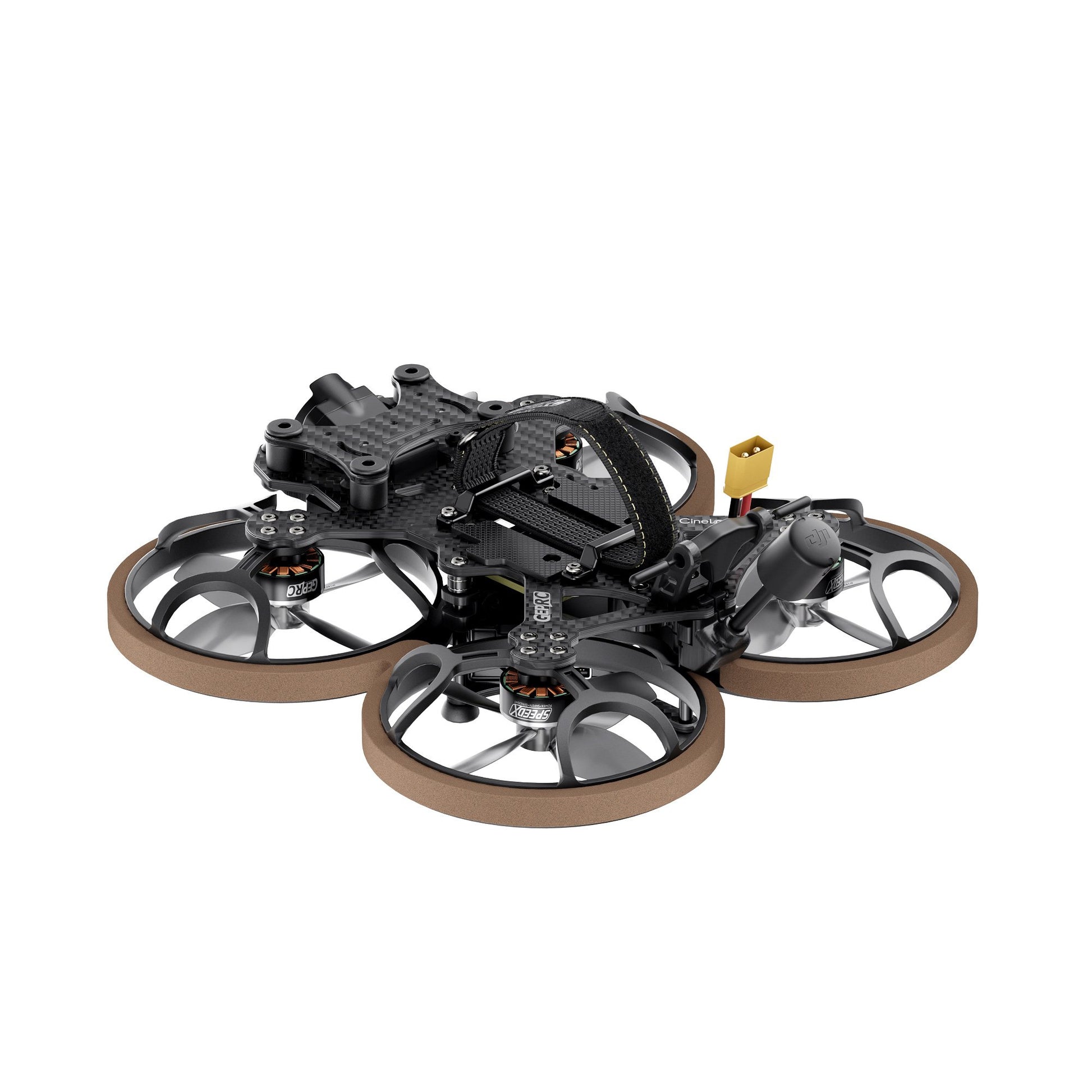

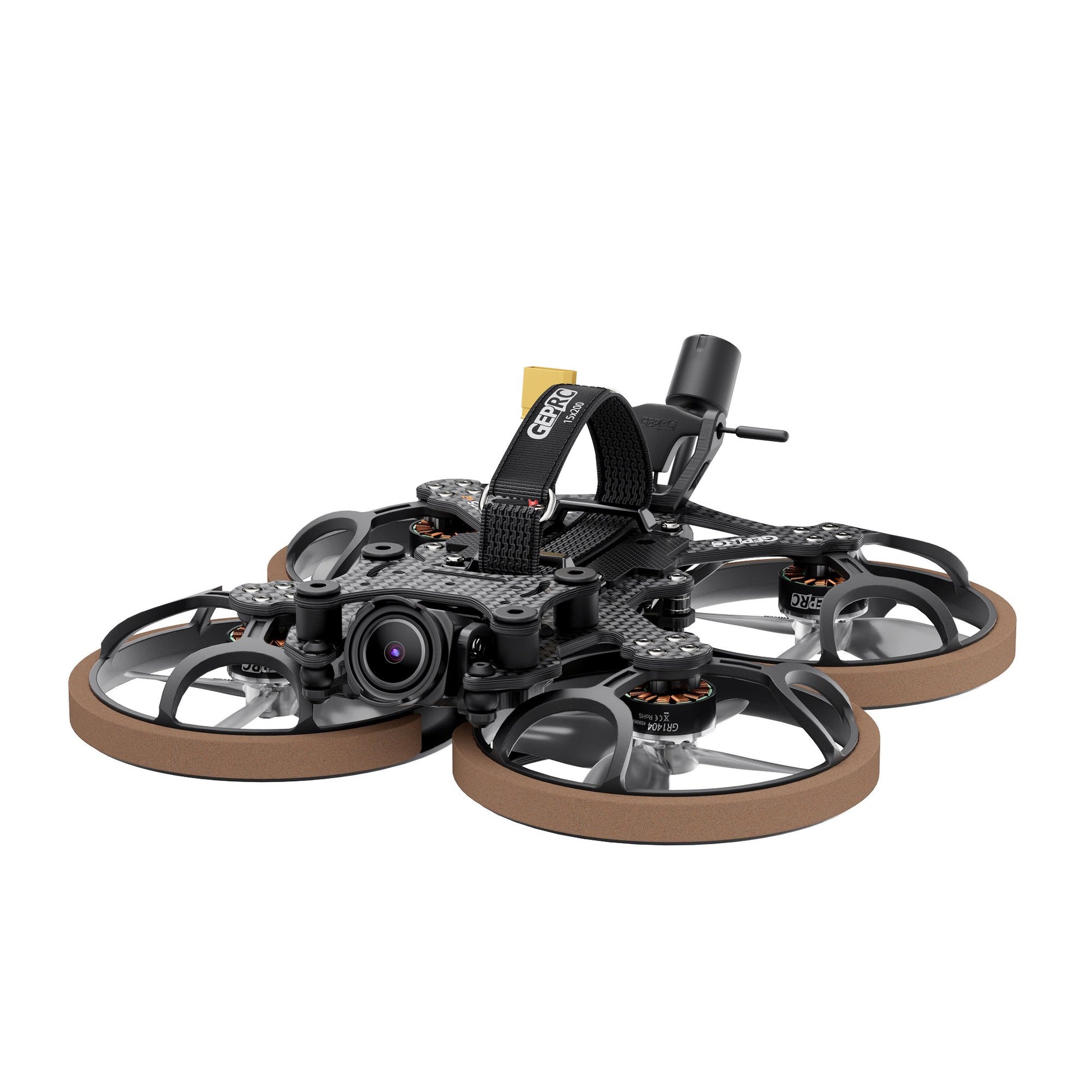

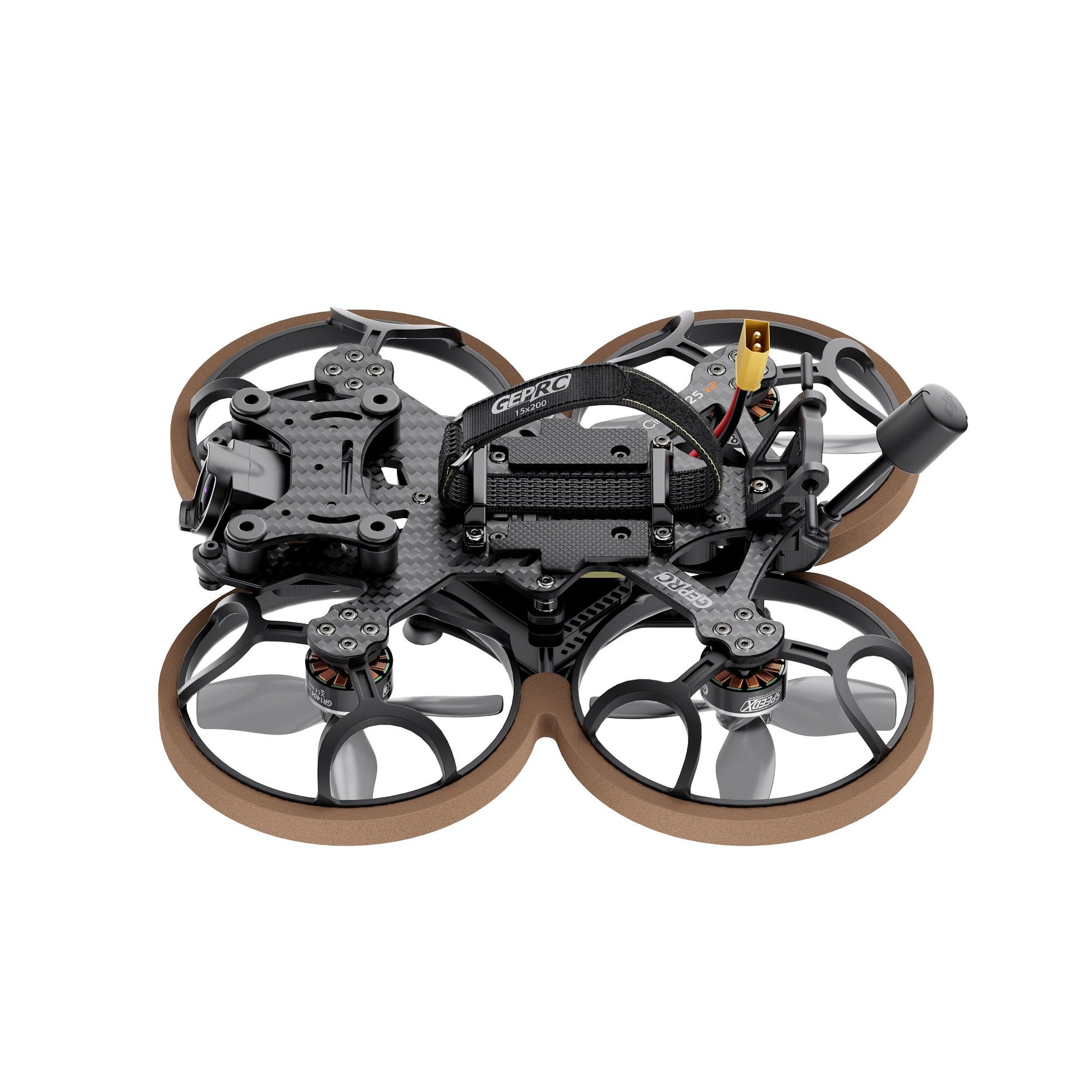

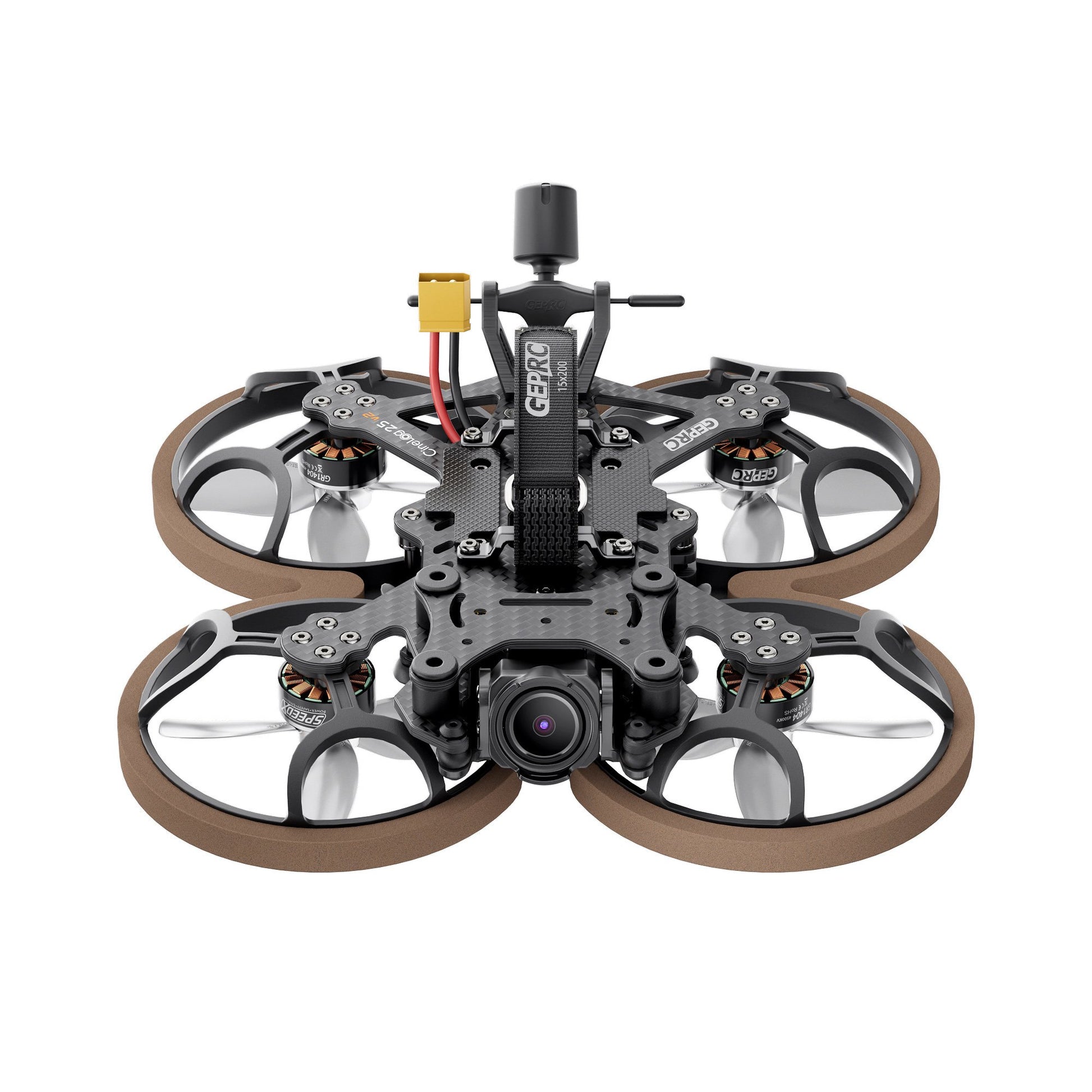

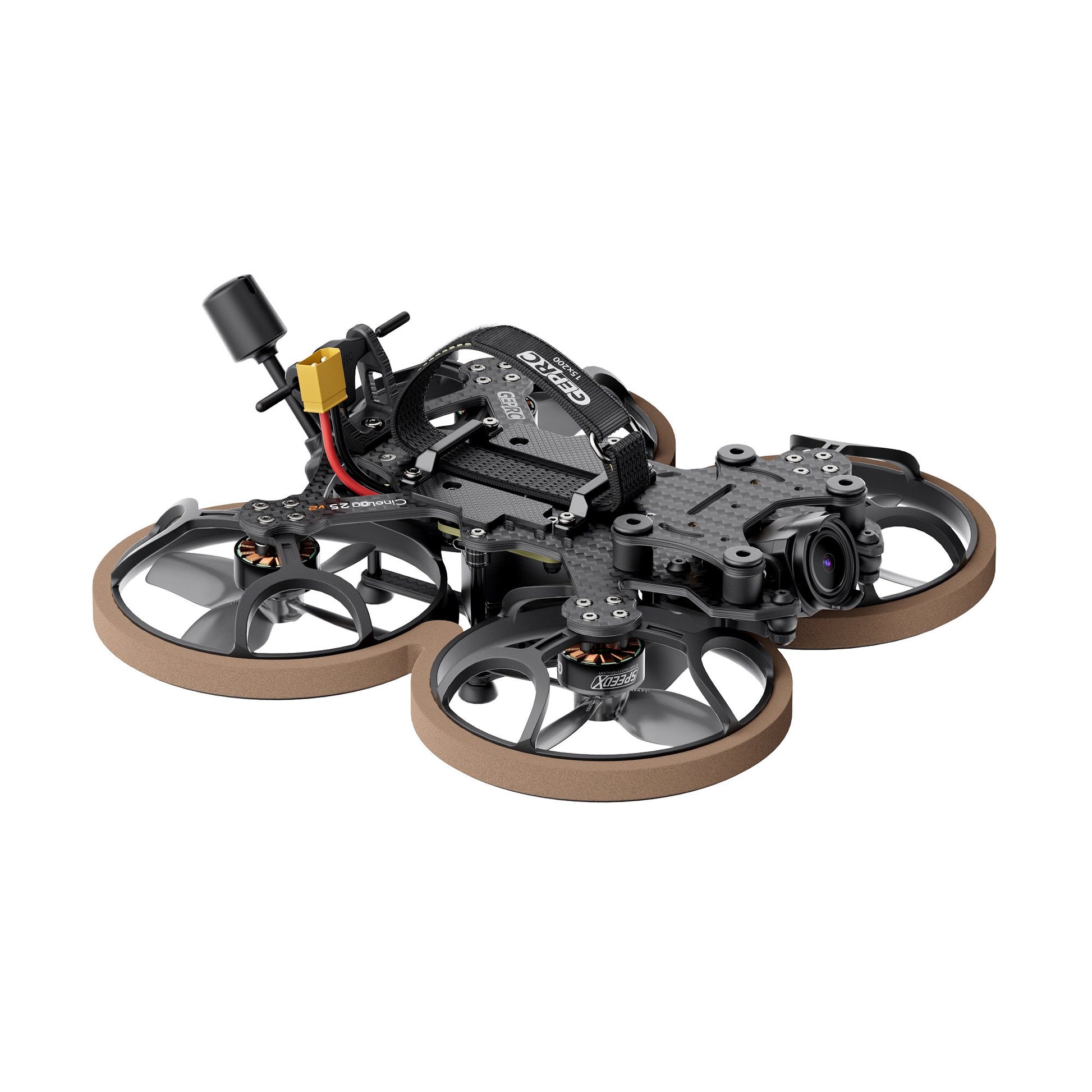

Cinelog25 V2 HD O3 Quadcopter Overview:
Cinelog25 V2 is an improved version of the previous model with advanced functions for indoor and outdoor FPV flying. The main improvement is the introduction of three versions of the video transmission, including the O3 Air Unit, which provides excellent image stabilization thanks to the damping of camera shake. The design includes an aluminum frame and pull-down straps for easier battery replacement.
Key features:
- Video transmission via O3 Air Unit for better image stability and performance.
- Ultra-low weight, meeting FAA requirements (up to 250 g).
- Gimbal Shock Damping which prevents IMU camera resonance.
- New TAKER G4 35A AIO flight system for better flight characteristics with ESC overload protection.
- Protective propeller cover to increase safety during flight.
- Compact design, suitable for indoor and outdoor flying.
- Support mounting Naked GoPro8 to record high quality videos.
Specifications:
- Model: Cinelog25 V2 HD O3 Quadcopter
- Frame: GEP-CL25 V2
- Wheelbase: 114 mm
- Flight controller: TAKER G4 35A AIO
- Camera: O3 Camera with O3 Air Unit
- Motors: SPEEDX 1404 4500KV
- Propeller: HQProp DT63mm*4
- Weight: 174g ± 5g
- Flight time: 4-6 minutes
- Receiver Options: GEPRC ELRS24
The package contains:
- Cinelog25 V2 HD O3 Quadcopter
- 2 pairs of HQProp DT63mm*4
- Battery tapes and silicone pads
- Set of screws and tools
- Base for Naked GoPro8 camera
- T type antenna holder.
