Cinelog20 Analog ELRS24

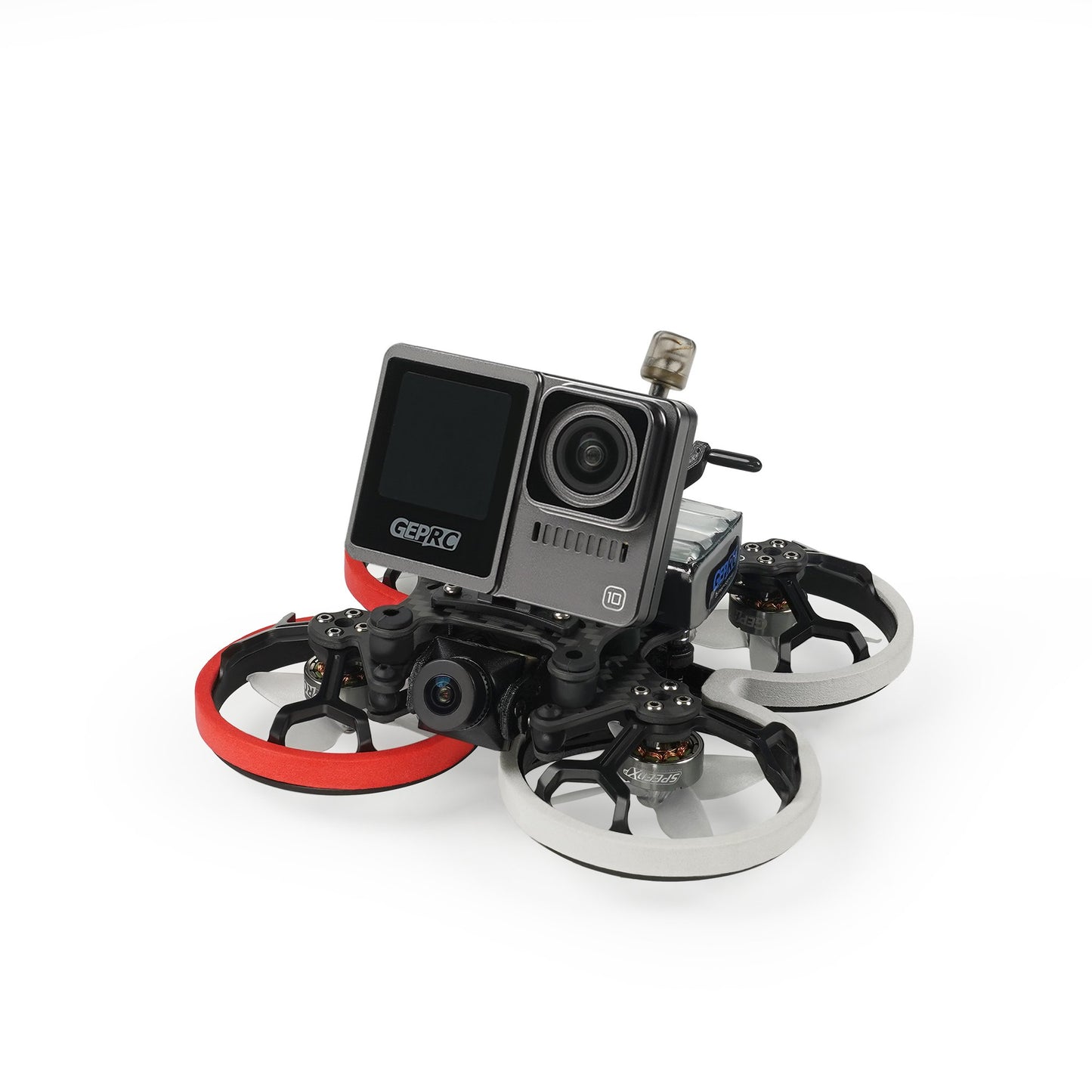

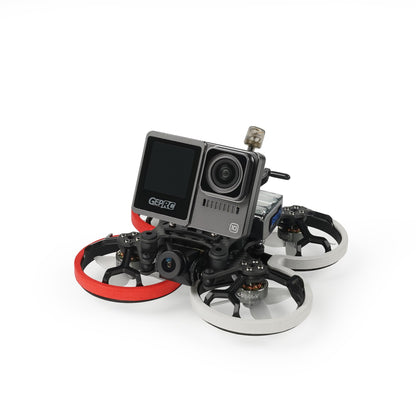

The 2-inch Cinewhoop CineLog20 is for filming in complex indoor environments. Available in four main video transmission systems Link Wasp, O3 Air Unit, Walksnail and Analog. The CineLog20 has a lightweight design and the redesigned gimbal camera vibration reduction solution provides a mounting platform for filming the O3 Air Unit with excellent anti-shake effect. The O3 Air Unit version can record 4K 120fps video without mounting any camera. It is lighter and has a longer battery life. GEPRC SPEEDX2 1303.5 5500KV motor and GEP-F411-35A AIO. The CineLog20 is equipped with Emax 4-blade propellers, with a reasonable and efficient power supply system, it is very quiet and has a long battery life. One-piece camera holder for quick mounting of naked cameras GEPRC GP 8/9/10/11, Action2, insta360 Go2, Peanut and other light and small action cameras.
Specifications
Model: CineLog20 Analog
Frame: GEP-CL20
Wheelbase: 100 mm
Gimbal plate: 2.0 mm
Top plate: 2.5mm
Bottom plate: 1.5 mm
FC system: GEP-F411-35A AIO
MCU: STM32F411CEU6
Gyroscope: ICM 42688-P
OSD: Betaflight OSD with AT7456E chip
ESC: 8bit 35A
VTX: GEPRC 5.8G@600mw
Camera: Caddx Ratel2
Antenna: GEPRC Peano 5.8G RHCP MMCX
Motor: GR1303.5 5500KV
Propellers: EMAX Avan Micro 2×2.4×4
Weight: 116g
Receiver: ELRS 2.4G
Recommended battery: LiHv 4S 450mAh-660mAh
Flight time: 4-6 min
