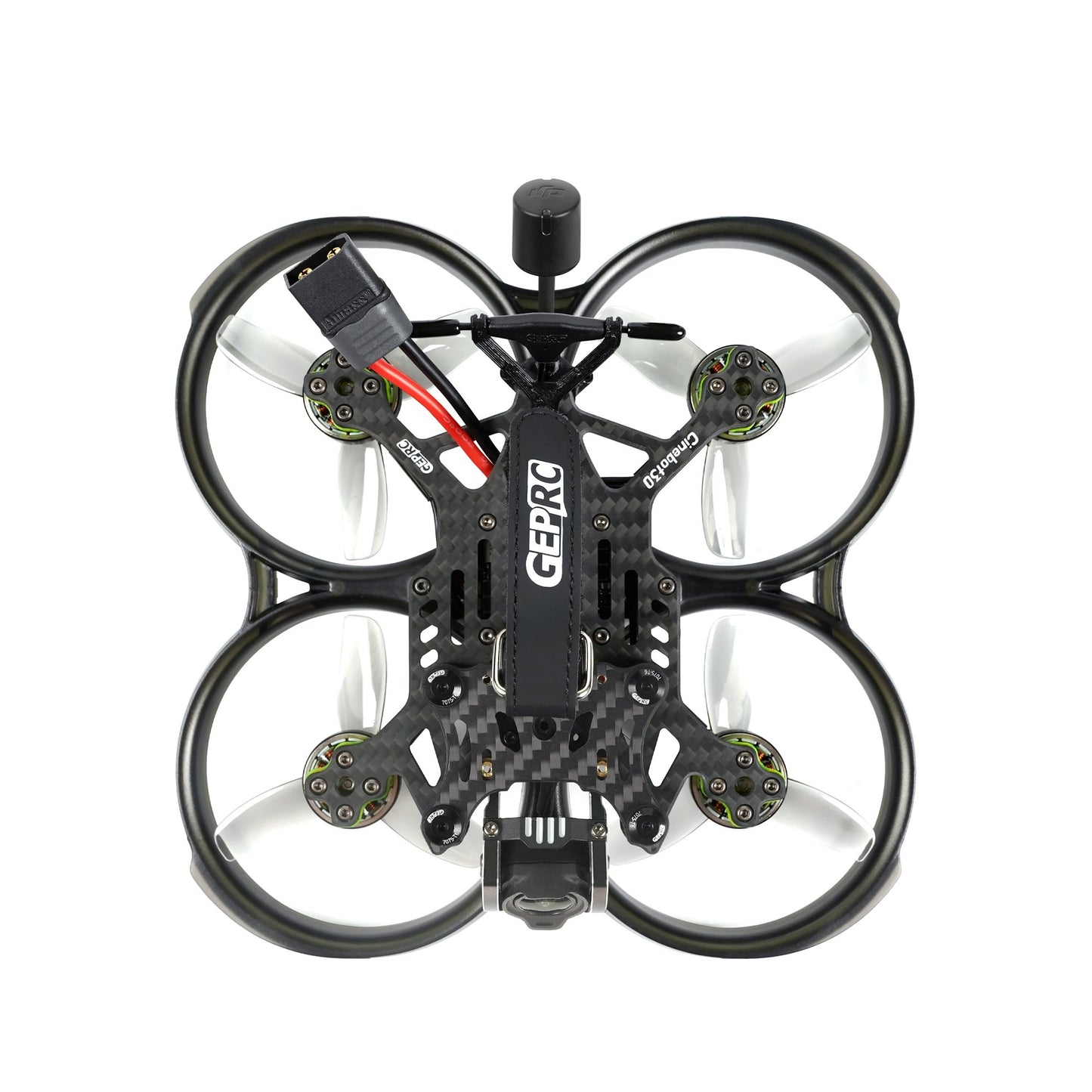

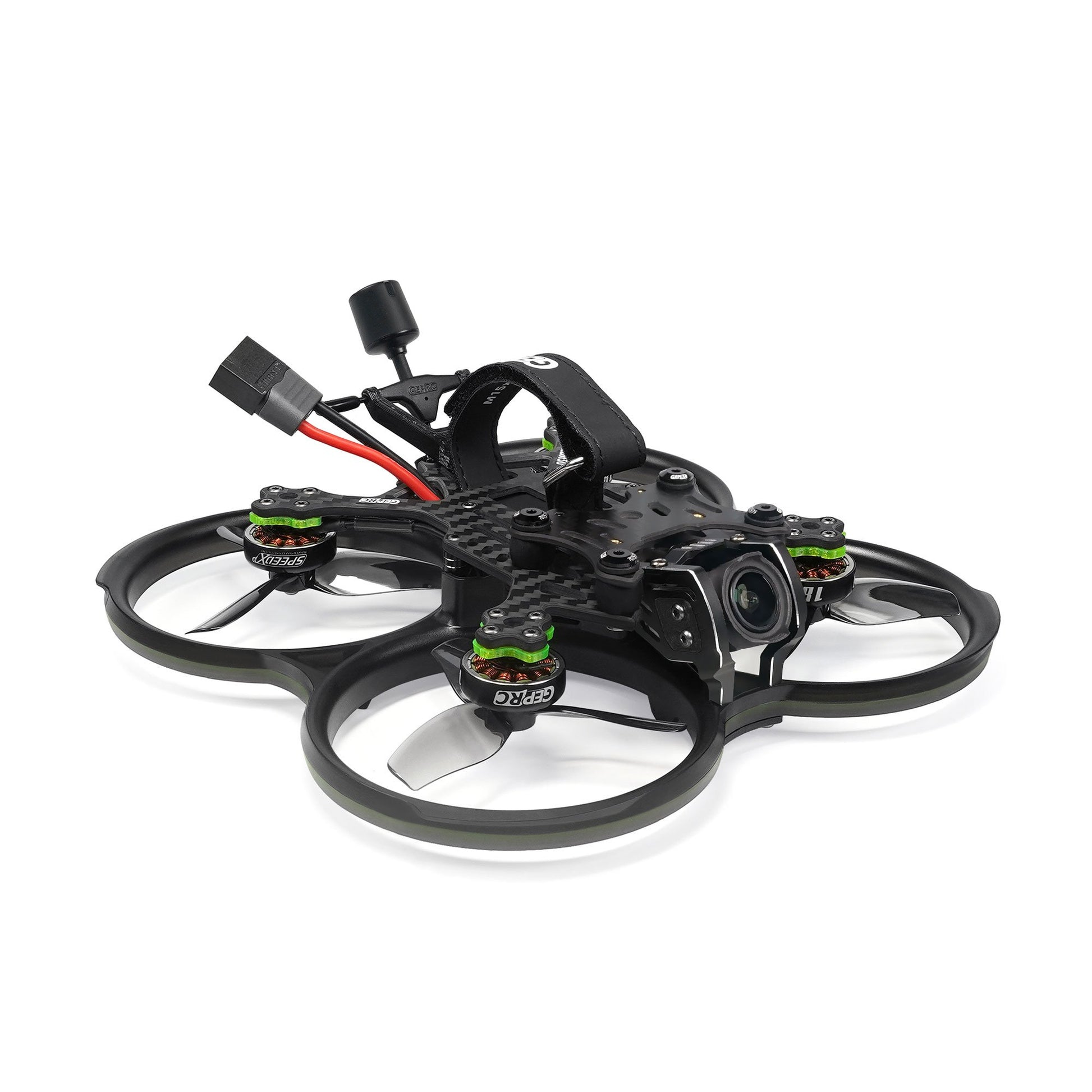

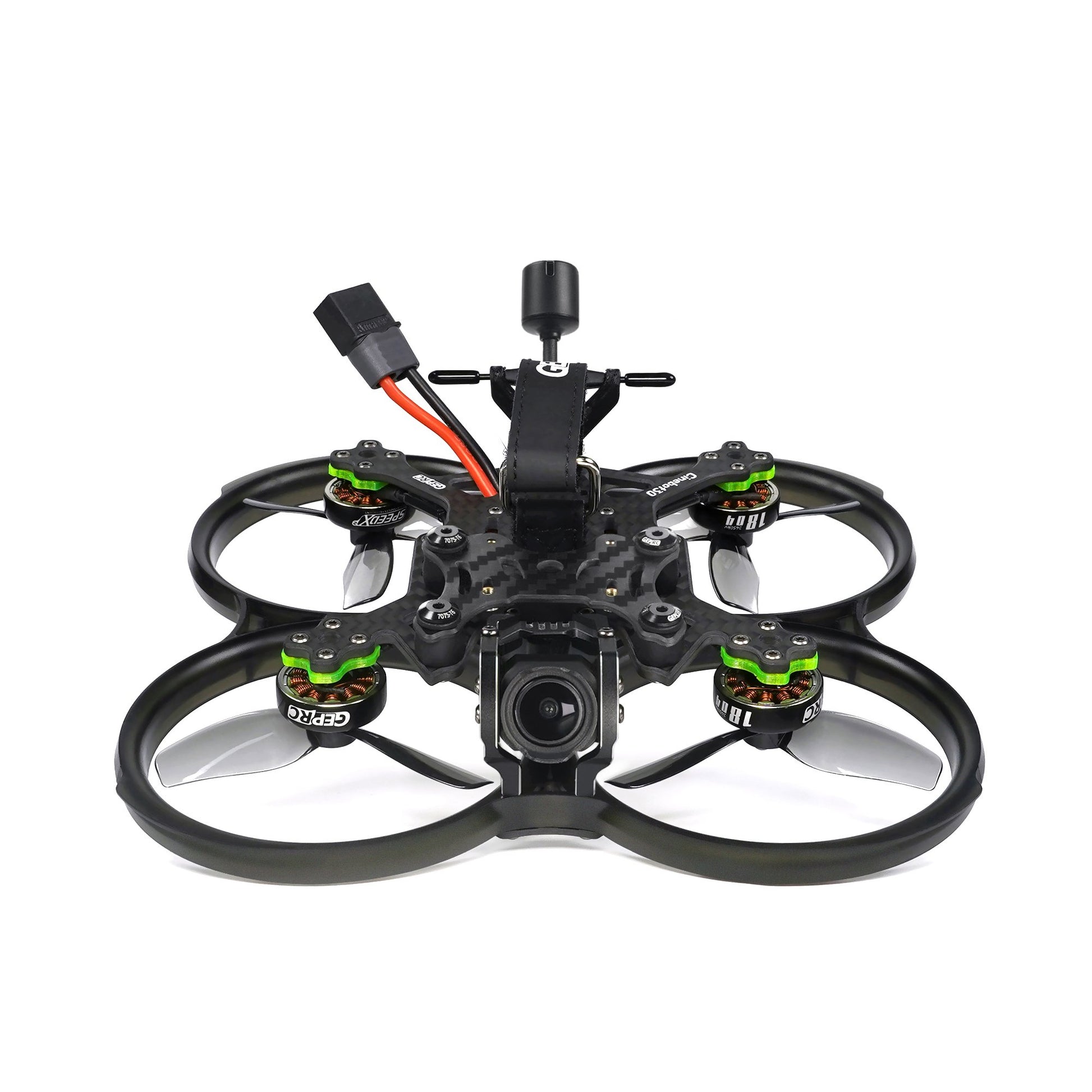

Cinebot30 HD O3 PNP (4S)
Cinebot30 is a new generation Cinematic FPV drone. The camera parts are made of high-strength materials, mainly 7075 aviation aluminum alloy. The shock-absorbing TPU pad is designed to isolate the high-frequency vibration of the fuselage, so that the camera can record high-definition video without image shake during high-speed flight. The mounting scheme allows the O3 video transmission to be completely installed inside the fuselage without affecting the USB Type-C data cable connected to the video data reader unit. The O3 Air Unit system can transmit 1080P 60fps real-time image and simultaneously record up to 4K 60fps image with anti-shake effect. The improved video transmission system is compatible with the camera base fixed with 4-hole screws. The Cinebot30 can be fitted with a full GP camera with a battery life of 5 minutes and 30 seconds. He recommends flying with the naked cam GP10 with a battery life of up to 10 minutes and 30 seconds. The drone body is high-strength, one-piece propeller cover and impact-resistant PC material ensure high impact resistance. A Cob ring light strip is embedded in the propeller cover, and the lighting effect is carefully tuned. Cinebot30 is equipped with a powerful 1804 motor with optimized magnetic motor circuit and strong torque for shooting even at ultra-low height. The HQ T76mm*3 propeller has the lowest noise level in its class. We recommend using the GEP-F722-45A AIO v2 flight controller.
Specifications
Model: Cinebot30 HD O3 quadcopter
Brand: GEPRC
Frame: GEP-CT30 O3
Wheelbase: 127 mm
Insulation board: 2 mm
Main plate: 3 mm
Bottom plate: 1.5 mm
FC: GEP-F722-45A AIO V2
MCU: STM32F722RET6
IMU: ICM-42688-P
VTX: Air unit DJI O3
Video resolution: 4K@50/60fps, 2.7K@50/60/100/120fps, 1080p@50/60/100/120fps
Camera: DJI O3
Propeller: HQ T76mm
Antenna: DJI O3 antenna
Charging connector: XT60H-M
Motor: SPEEDX2 1804-2450KV (6S version) / SPEEDX2 1804-3450KV (4S version)
Weight: Nebula Pro version 222.5g / Avatar version 221g / Analog version 209.2g / Link Wasp version 222.5g / O3 version 234.7g (without battery, above are TBS Nano RX versions)
Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
Recommended battery: LiPo 4S 1100mAh-1300mAh (4S version) / LiPo 6S 850mAh-1100mAh (6S version)
