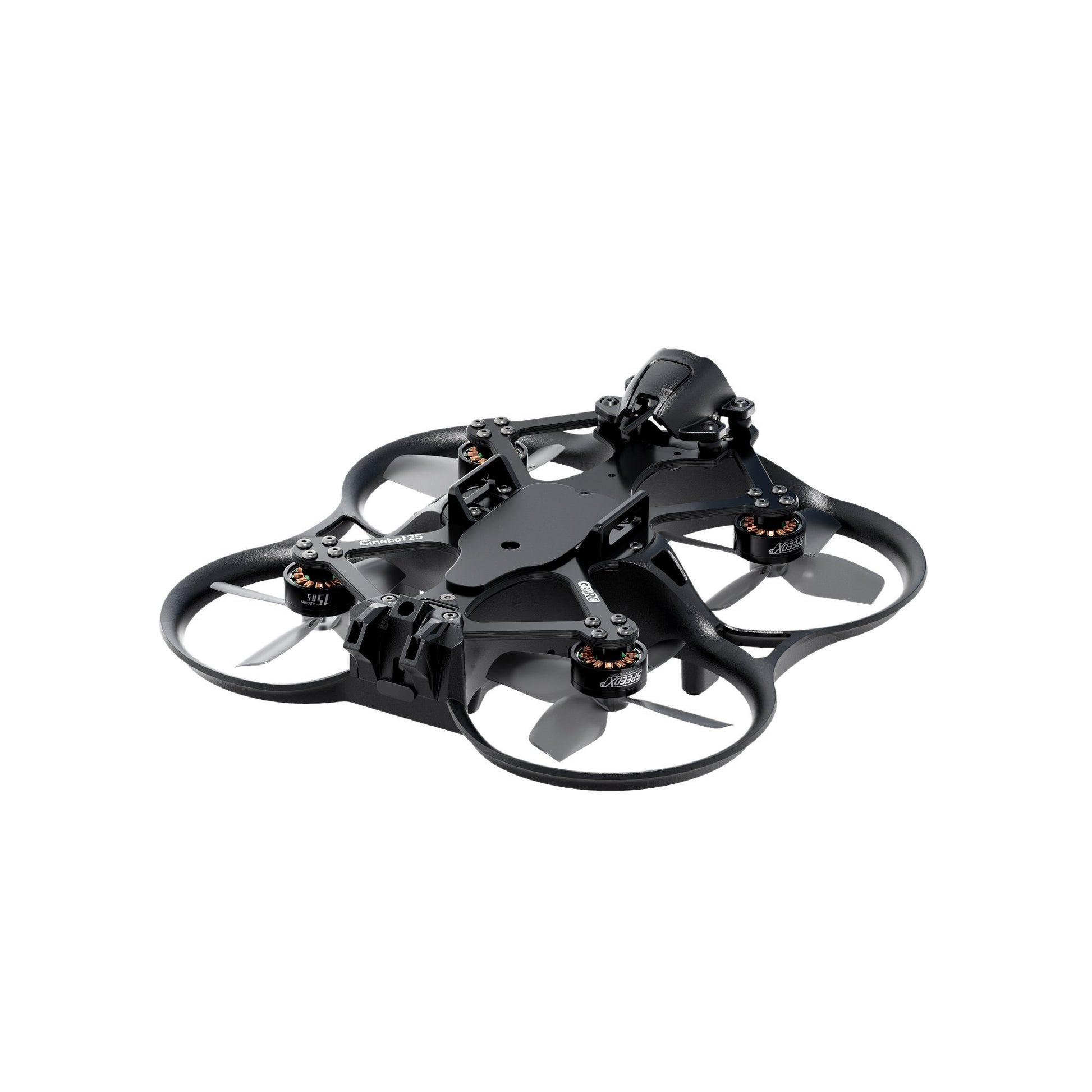

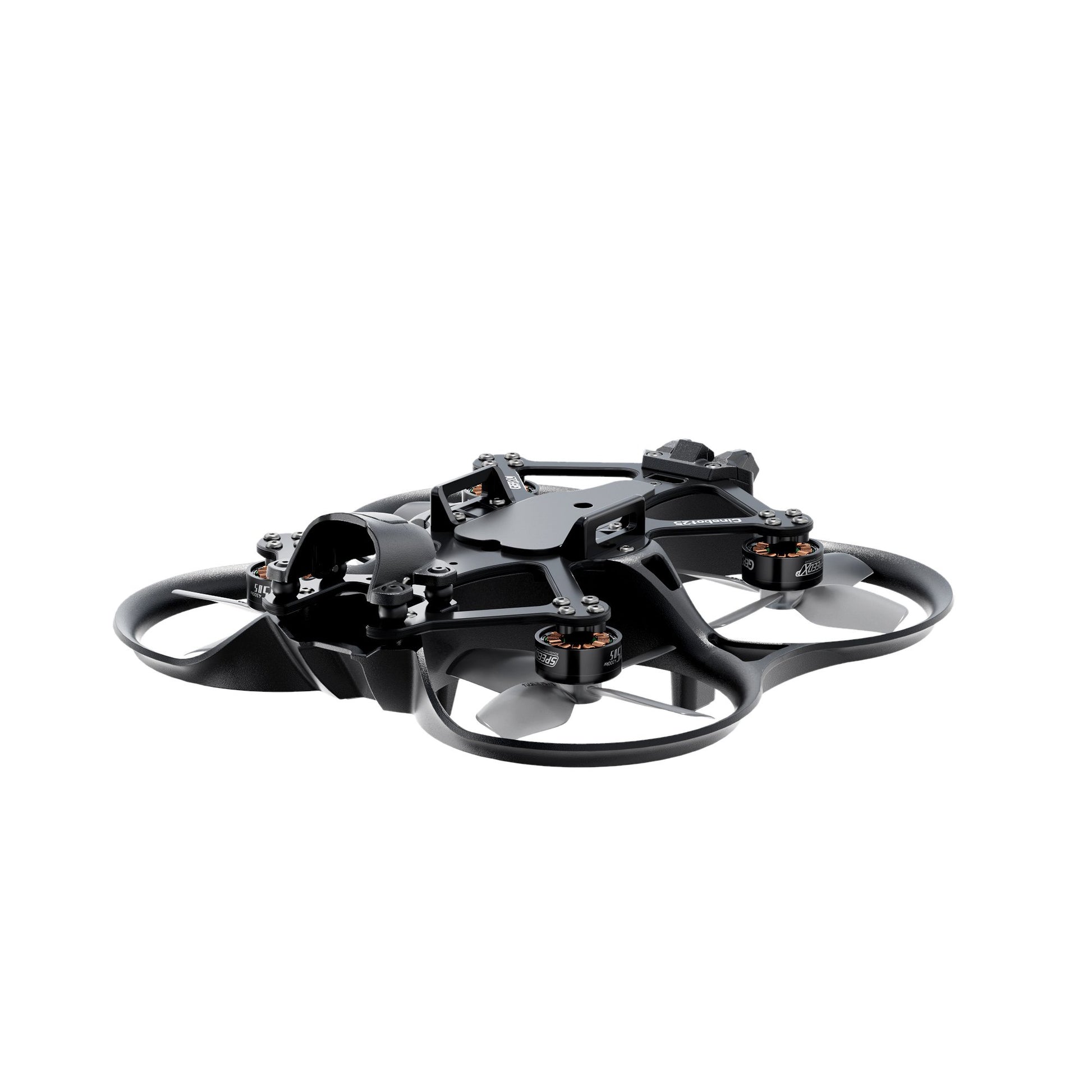

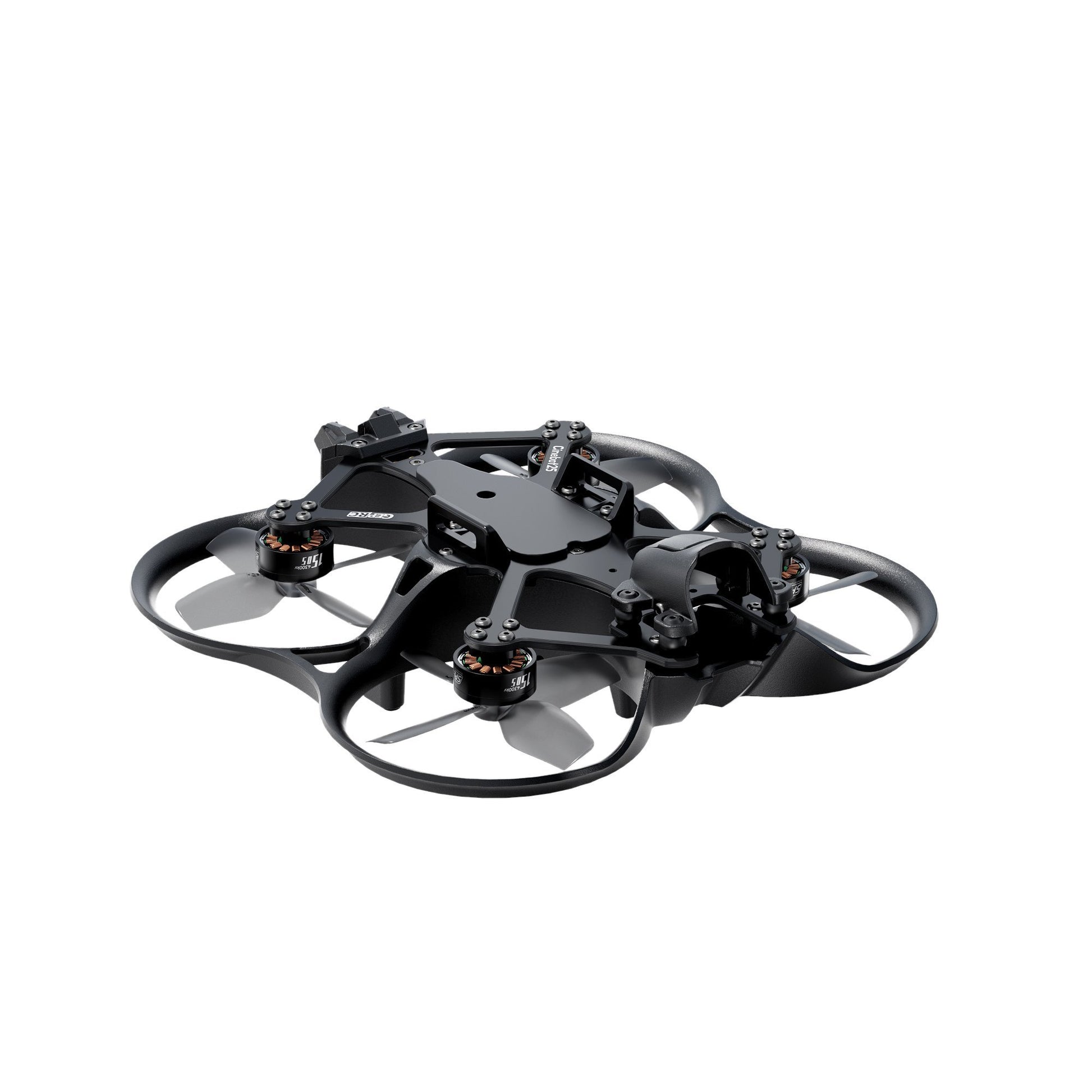

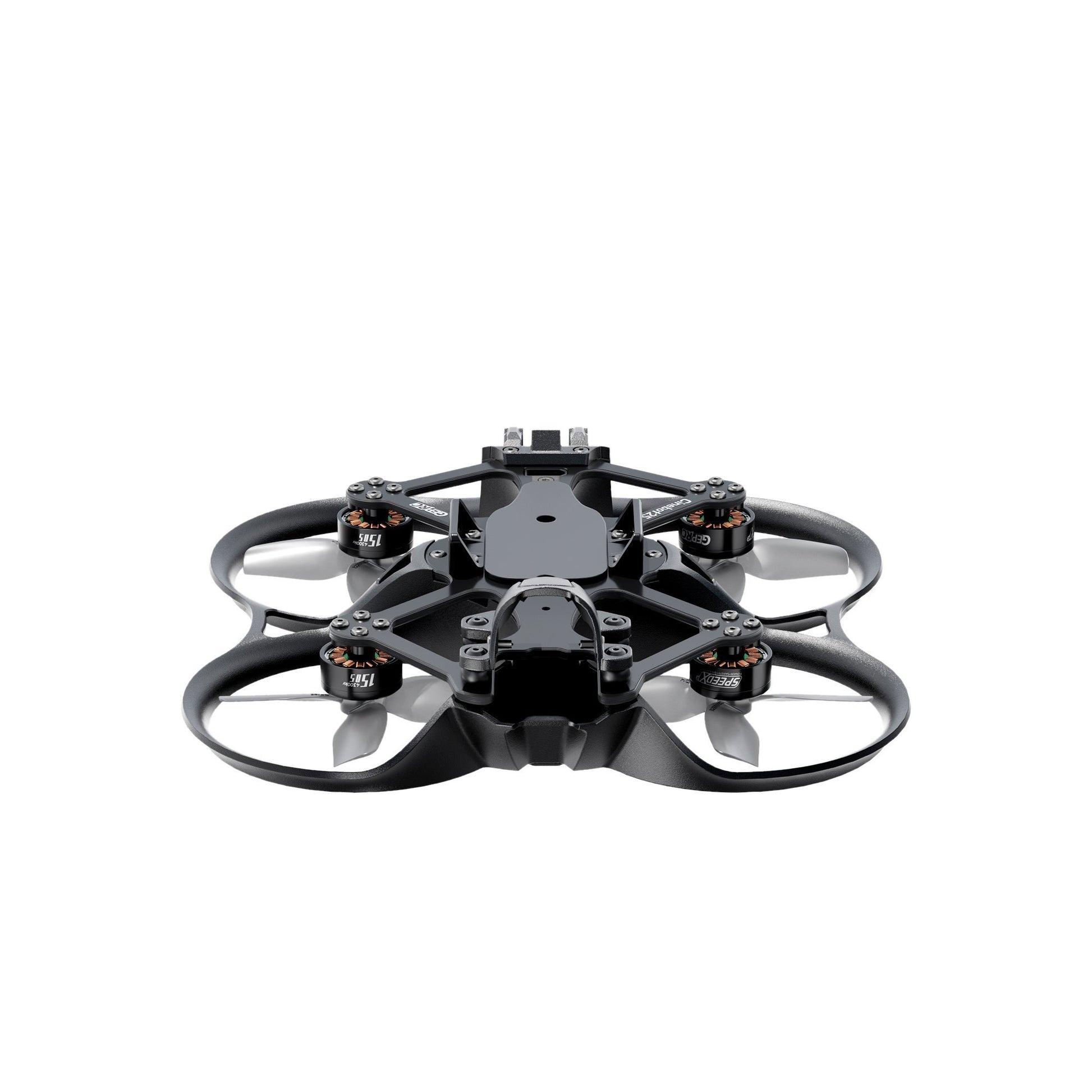

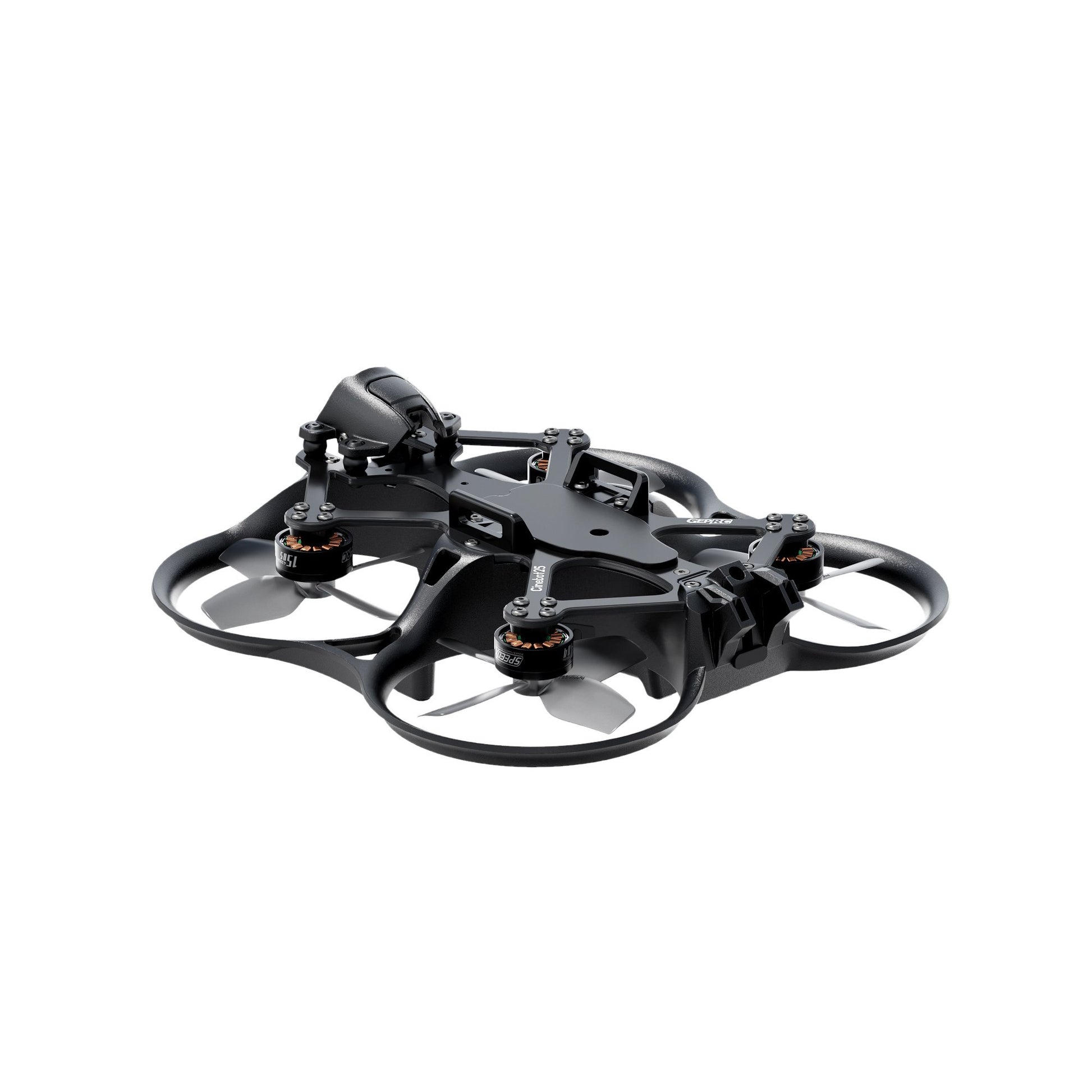

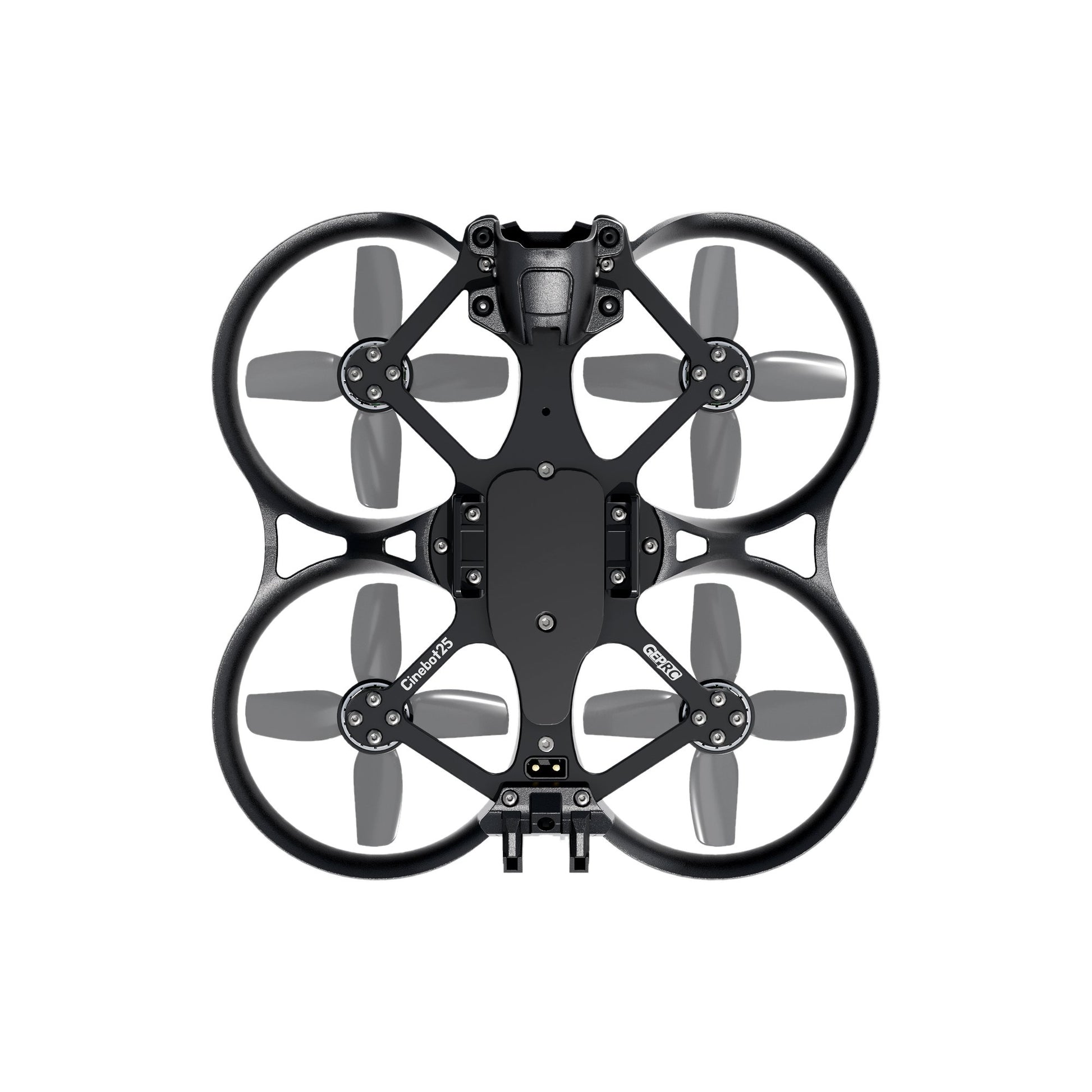

FPV Drone Cinebot25 With WTFPV PNP
Specifications
Model: Cinebot25 S WTFPV Quadcopter
Frame: GEP-CT25 Black
Wheelbase: 115mm
FC: TAKER G4 45A AIO
MCU: STM32G473CEU6
Gyro: ICM 42688-P
Firmware FC: TAKERG4AIO
ESC: 45A 8Bit ESC
Motor: SPEEDX2 1505 4300KV
Propeller: HQprop DT63mm x4
Connector: XT30
VTX: No
Camera: No
Antenna: No
Receiver: PNP (Internal VTX Receiver)
Weight: Cinebot25 S WTFPV PNP Version 145g ±1g
Recommended Battery: LiPo 4S 650mAh-850mAh
Flight time: 5′-7’30” (Reference time is based on low speed flight. Actual time depends on individual flying style.)
Package Contents 1 x Cinebot25 quadcopter
1 x HQprop DT63mm x4 Propeller Kit
2 x Anti-Slip Battery Pad
1 x Battery Strap 15150mm
1 x Battery Strap 15180mm
1 x Naked GoPro Mount
1 x O3 Cooler
1 x Lens Cover 19*19mm
2 x O3 Antenna Extension Cable
1 x Spare Set of Screws
1 x L-Shaped Screwdriver 1.5mm
1 x Frequency Pairing Indicator
1 x Damping Ball Punch
Spare Screw Set Includes 2 x Camera Silencers
4 x M2 Nuts
6 x M26 Countersunk Screws
4 x M218 Countersunk Screws
4 x M1.68 Round Collar Screws
4 x M25 Countersunk Screws
4 x M1.610 Screws with Allen head
2 x M212 countersunk screws
2 x M2 self-locking nuts
2 x T-shaped silicone antenna holders
