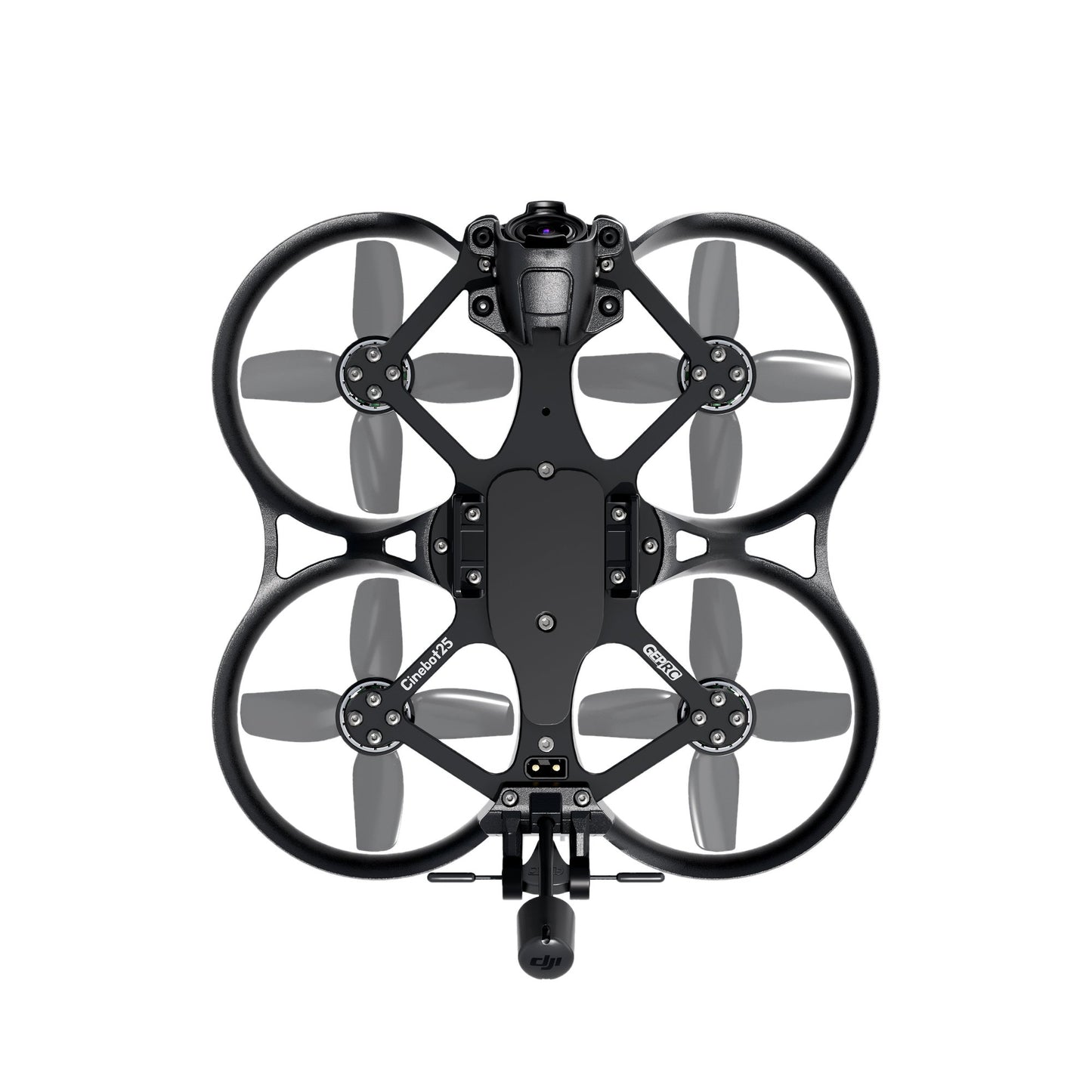

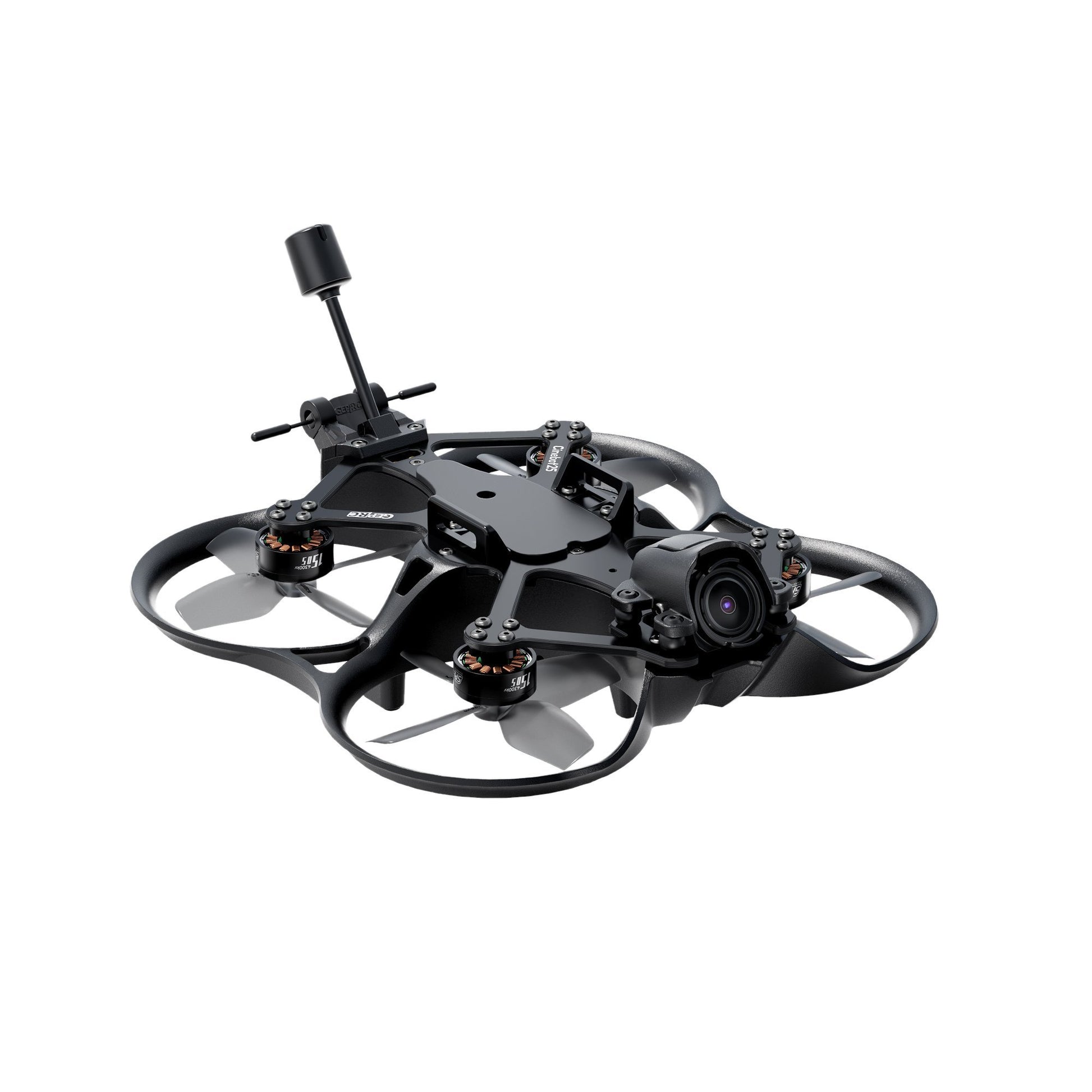

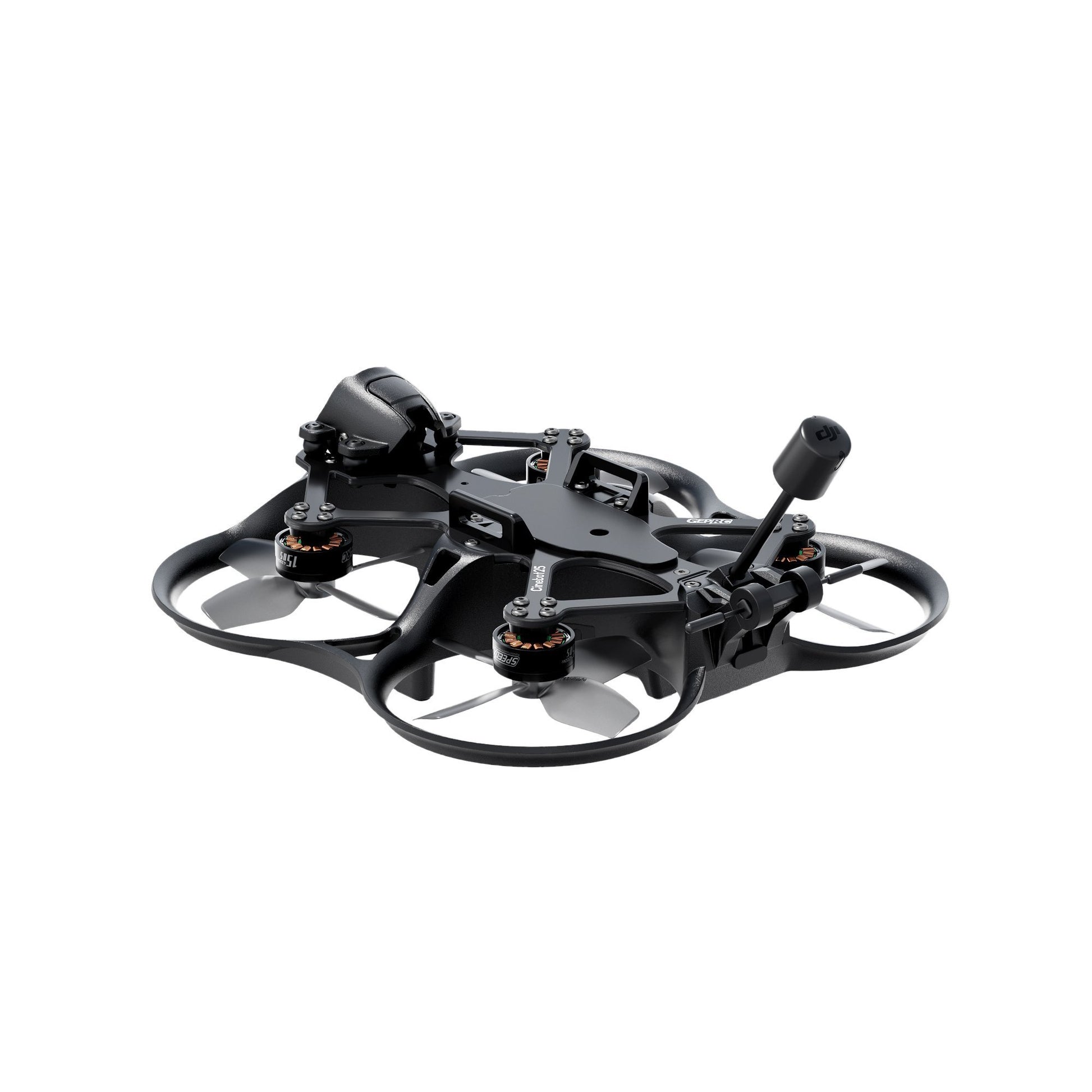

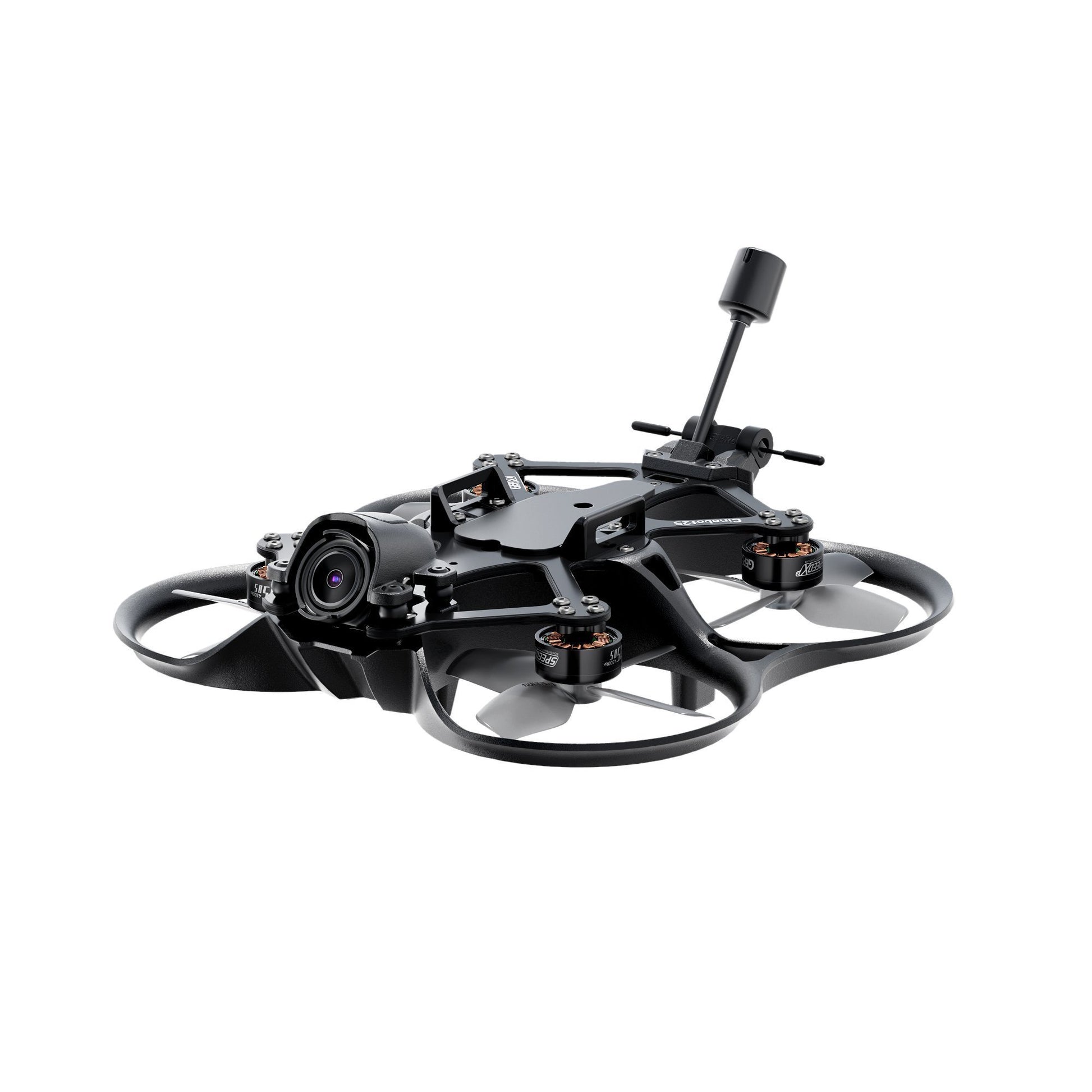

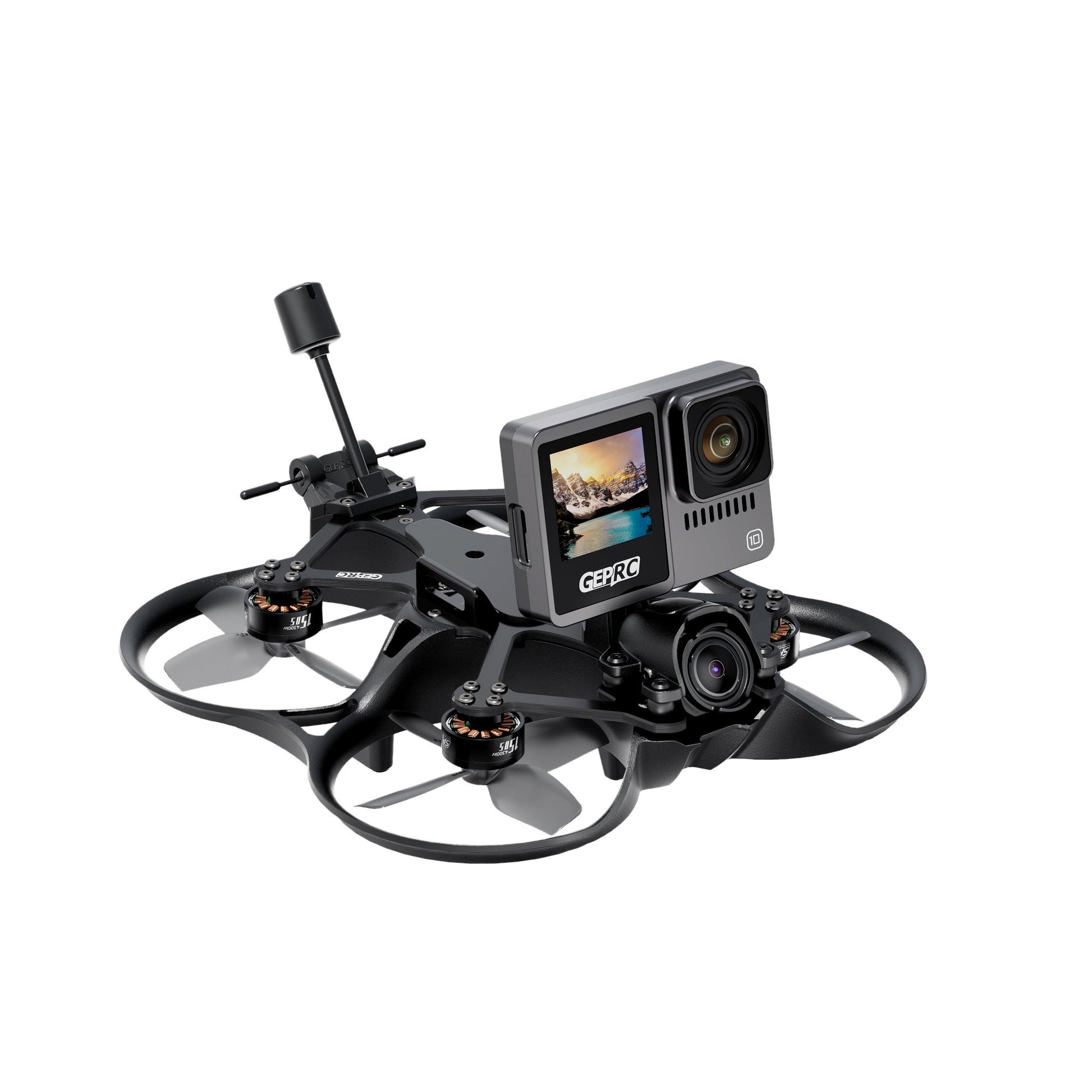

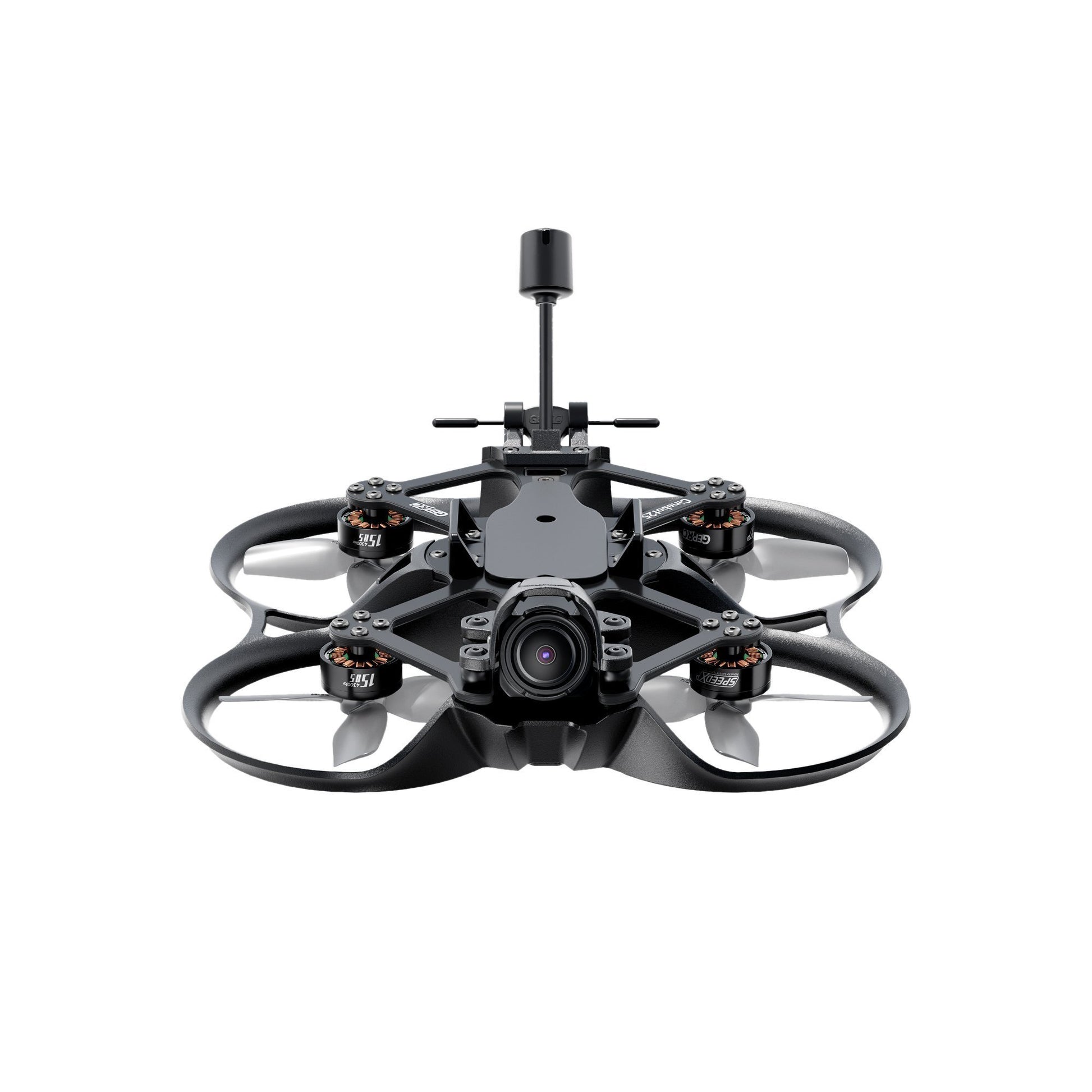

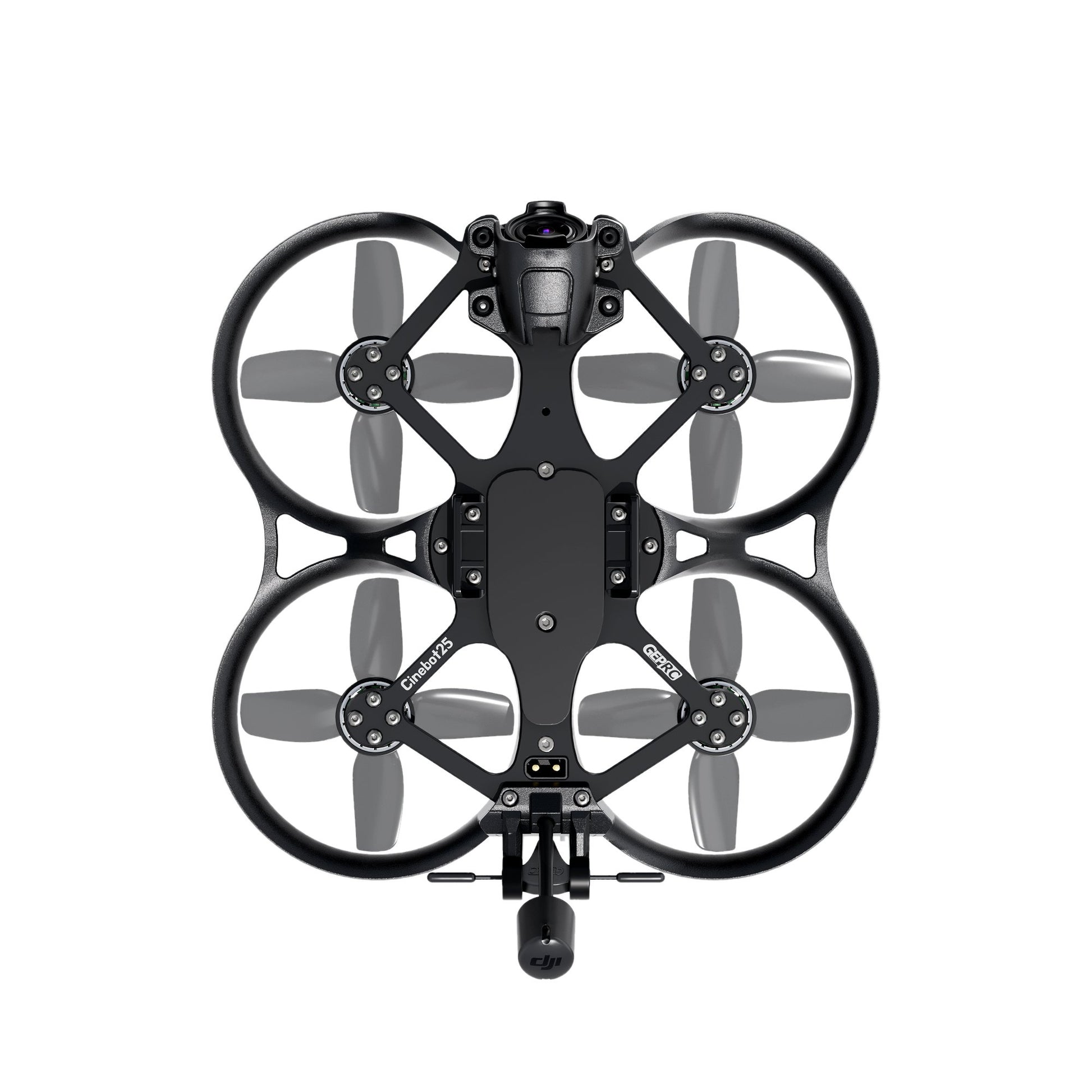

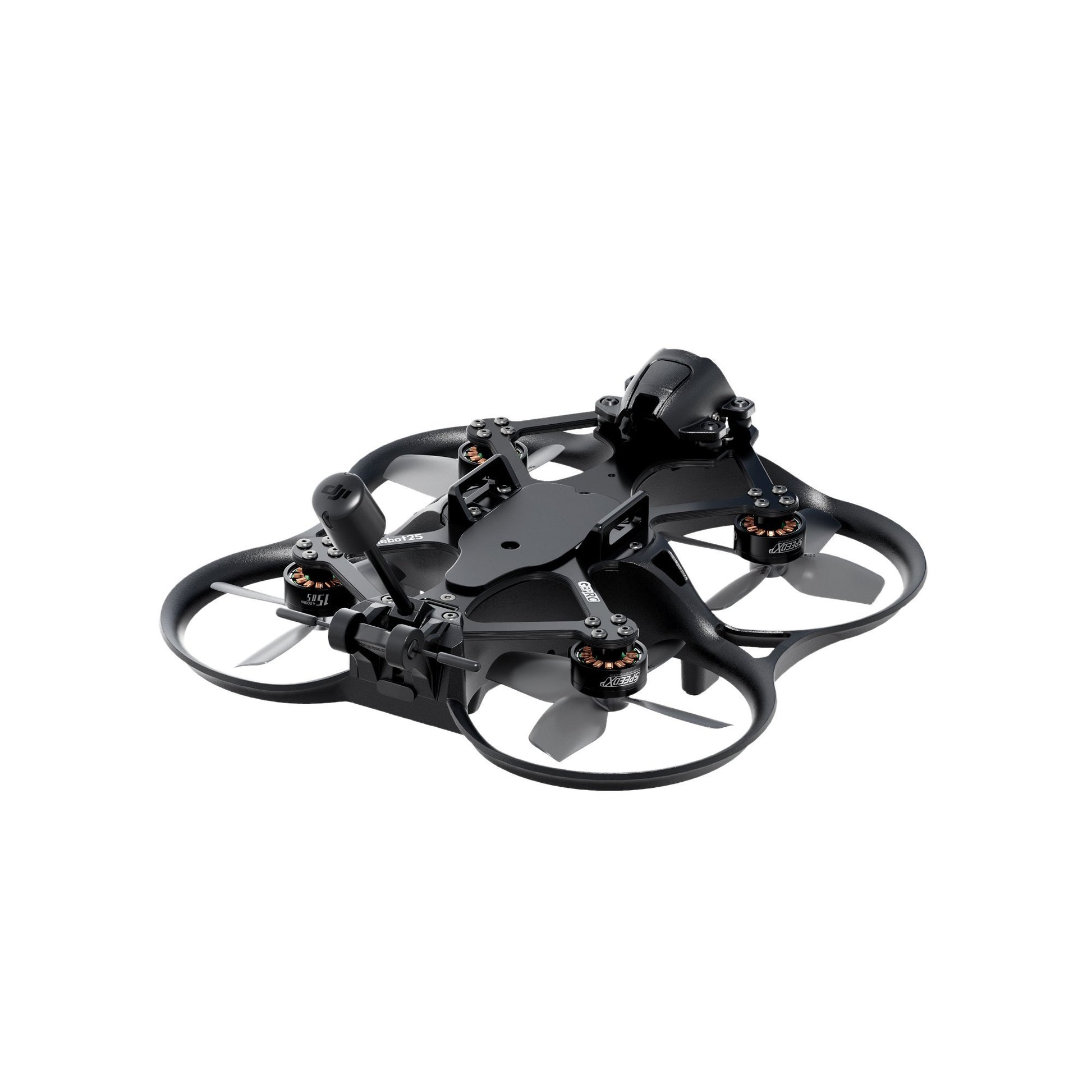

Please note that this version does not include GPS M-10. Cinebot25 S O3 ELRS2.4G FPV Drone Features Integrated exterior design. Equipped with reinforced carbon plate and modified material for one-piece injection in the lower part. The shock-resistant protective cover of the camera ensures better stability when filming. Two performance versions are available: standard with SPEEDX2 1404 engine and enhanced with SPEEDX2 1505 engine. The TYPE-C and BOOT buttons on the back make it easy to set parameters. Optimized silicone T-shaped antenna. The Cinebot25 Lite quadcopter is equipped with a LiHV 4S 720mAh battery that weighs less than 250g. The G4 FC is equipped with the new TAKER G4 45A AIO and has stable processing power for flight. The integrated 45A BL32 ESC has a strong discharge capability that supports up to 128K PWM refresh rate. Compatibility between the O3 VTX and the Cabinet makes it easy to install memory cards and load recordings. A customized receiver mounting stand simplifies the interior space. Expand your battery choices with a comprehensive way of fixing aluminum components and straps. Specifications: Model: FPV Drone Cinebot25 S O3 ELRS2.4G Frame: GEP-CT25 black Wheelbase: 115 mm FC: TAKER G4 45A AIO MCU: STM32G473CEU6 Gyroscope: ICM 42688-P FC firmware: TAKERG4AIO ESC: BLHeli 32Bit 45A Motor: SPEEDX2 1505 4300KV Propellers: HQprop DT63mm x4 Connector: XT30 VTX: O3 AIR unit Camera: O3 camera Antenna: O3 original antenna Receiver: ELRS2.4G Weight: Cinebot25 S O3 PNP version 192.75g ± 1g Recommended battery: LiPo 4S 650mAh-850mAh Flight time: 5′-7’30” (Reference time is based on low speed flight. Actual time depends on individual flight methods. ) Contains: 1 x Cinebot25 Quadcopter 1 x HQprop DT63mmx4 propeller (pack) 2 x non-slip battery pads 1 x 15150mm battery strap 1 x 15*180mm battery strap 1 x GoPro Bare Base 1 x set of spare screws 1 x L-screwdriver 1.5 mm 1 x frequency pairing indicator 1 x damping ball Set of spare screws includes 2 x damping balls for the camera 4 x M2 nuts 6 x M2*6 flat head screws 4 x M2*18 button head screws 4 x M1.6*8 round head screws with collar 4 x M2*5 button head screws 4 x M1.6*10 hexagon socket head screws 2 x M2*12 button head screws 2 x M2 self-locking nuts 2 x T-shaped silicone antenna fasteners silicone elements
