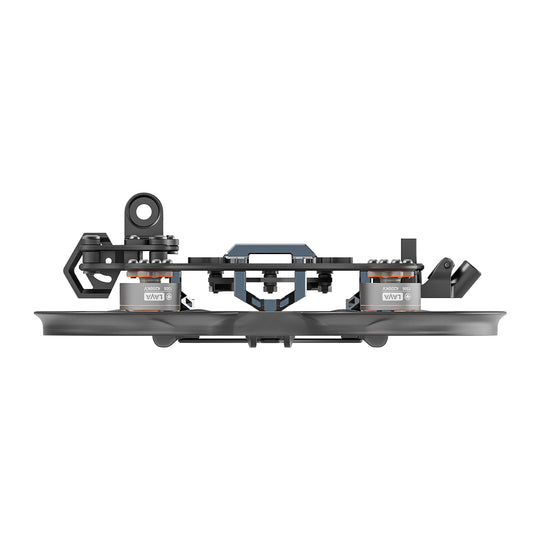

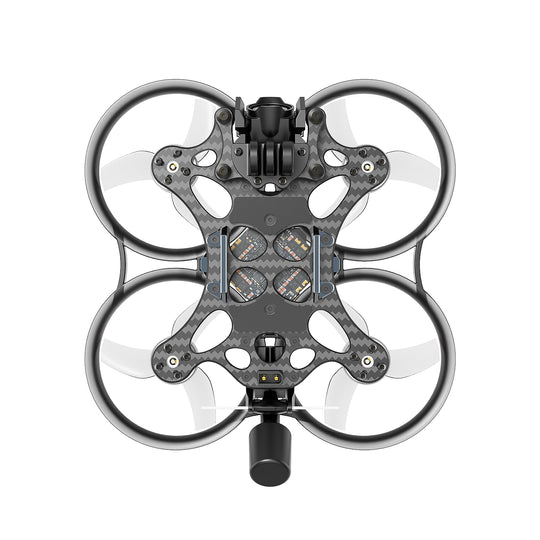

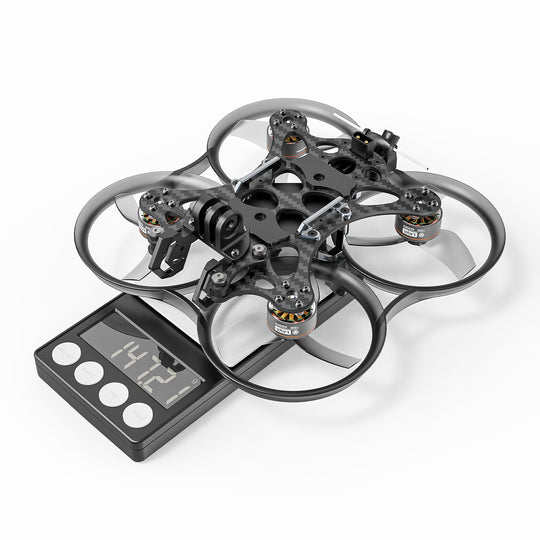

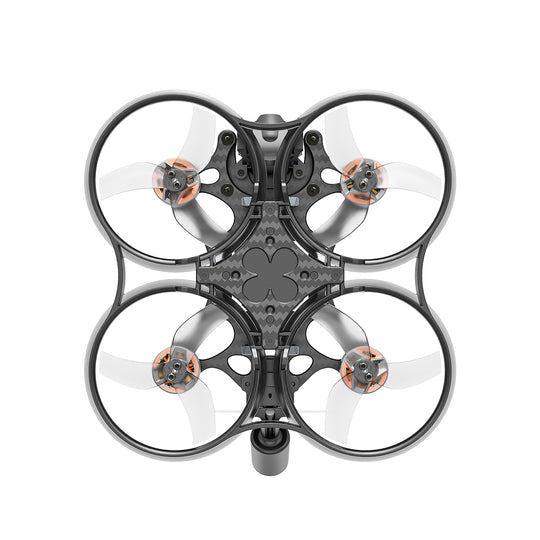

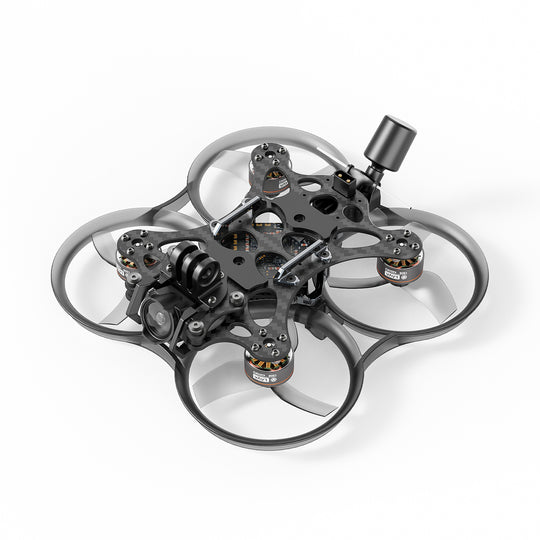

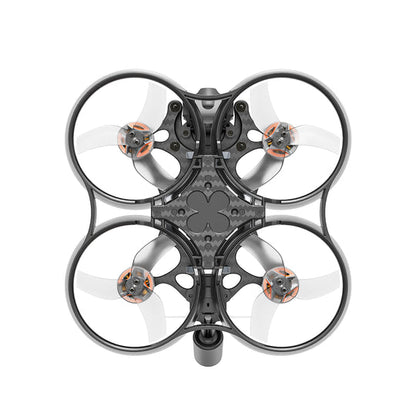

Pavo25 V2 Brushless Quadcopter (PNP, does not include HD Digital VTX)
Pavo25 V2 is the new cinewhoop drone from BETAFPV. The new design can increase additional thrust by 200g CNC 7075 Y-shaped frame that eliminates vibration and bending during flight while accommodating common HD VTX and Naked Action Cams. The new powerful propulsion system boosts power for up to 8 minutes of flight, guaranteeing the smoothest, most powerful and most responsive flight.
Function
- The Pavo25 V2 is specially designed to seamlessly integrate with the DJI O3 air unit, solving the Pavo25's inability to meet O3 compatibility.
- The innovative Y-shaped CNC metal support structure improves the structural strength, torsional and vibration resistance of the whole machine compared to conventional frames, making it respond faster and smoother.
- Propeller shroud design, inspired by a rocket engine, improves lateral stability and increases thrust by 200g compared to non-propeller shroud models, giving the Pavo25 V2 stronger performance and better flight feel.
- The frame is riveted and assembled, and together with the new design, it makes installation easier and has a stronger construction.

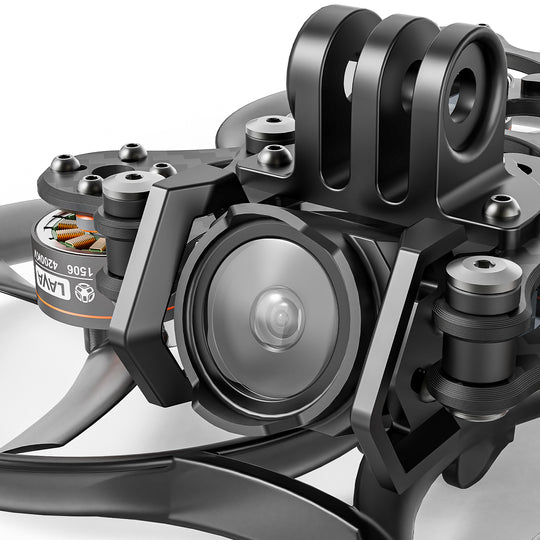

- Offers exceptional mounting options and supports not only DJI O3, Walksnail and HD VTX installations, but also works seamlessly with lightweight cameras such as Naked GoPro 12, DJI Action 2 and InstaGo 3.
- F722 35A AIO Brushless Flight Controller comes with F722 chip, this board provides great performance and high processing speed up to 128k PWM frequency,

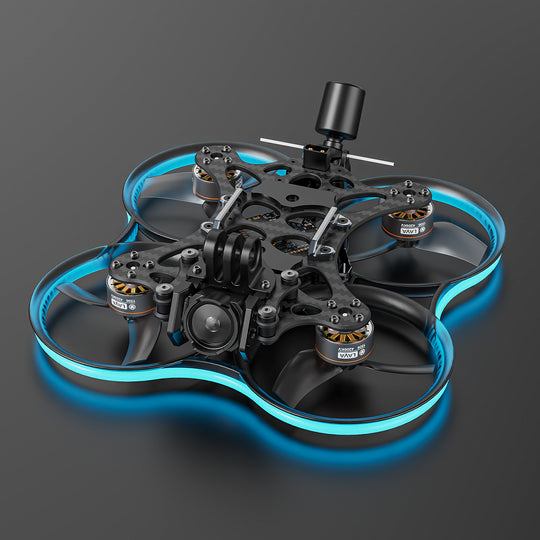

- The COB light strip assembly, which can be turned on and off remotely, allows pilots to enjoy flying in any light conditions.
Specifications
Item: Pavo25 V2 Brushless Quadcopter
Size: 112 mm
FC: F722 35A AIO V2

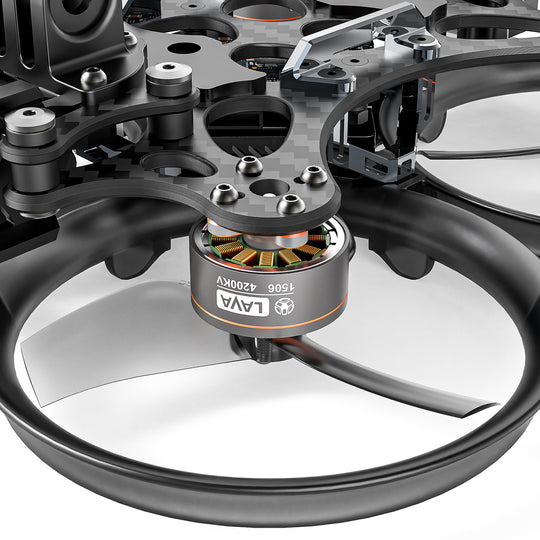

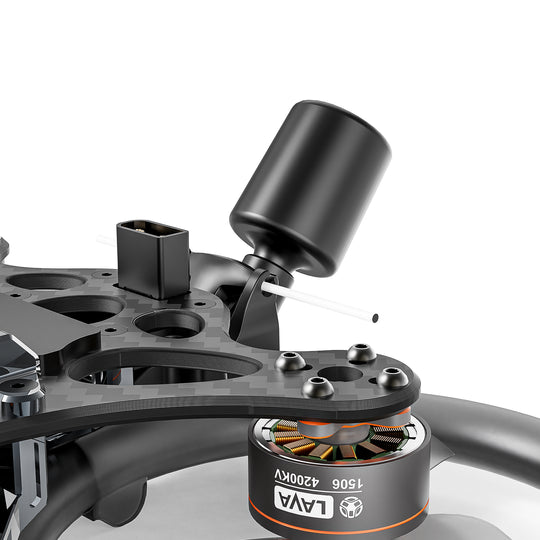

Engine: 1506 | 4200 KV
Battery Connector: Fixed XT30
Frame: Pavo25 V2 Brushless Whoop Frame
VTX Support: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit/RUNCAM Link, Analog Camera
Camera support: DJI O3, Avatar HD Pro Caddx, RUNCAM series 19mm & 20mm HD, Analogue 19mm
Flight time: 6~8 min
Propeller: GF D63 3-Blade
RX version: PNP
Recommended battery: 4S 650mAh – 850mAh
The package contains
1 x Pavo25 V2 Brushless Quadcopter (PNP)
1 x COB Light Strip Accessory Pack
4 x GF D63 3-Blade Props 1.5mm Shaft (Clear Grey)
1 x Gopro Mount
1 x Camera mount (left)
1 x Camera Mount (Right)
4 x M1.6 * 8 Hex Flat Head Screw
4 x M2 * 3 Hex Flat Head Screw
4 x M2 * 8 Hex Flat Head Screw
4 x M2 * 4 Hex Head Screw
2 x M2 * 5 Hex Head Screw
2 x M2 * 8 hex head screw
1 x M5*18 hex head screw
1 x M5 * 5 Anti-loose nut
1 x H1.27 hex key
1 x Service card
1 x Instructions for use of the frame
1 x Flight controller instruction manual
Note: Camera, battery and HD Digital VTX are not included.
