FPV drone BETAFPV Pavo20 Pro Brushless Whoop (for DJI O3 HD Digital VTX) TBS

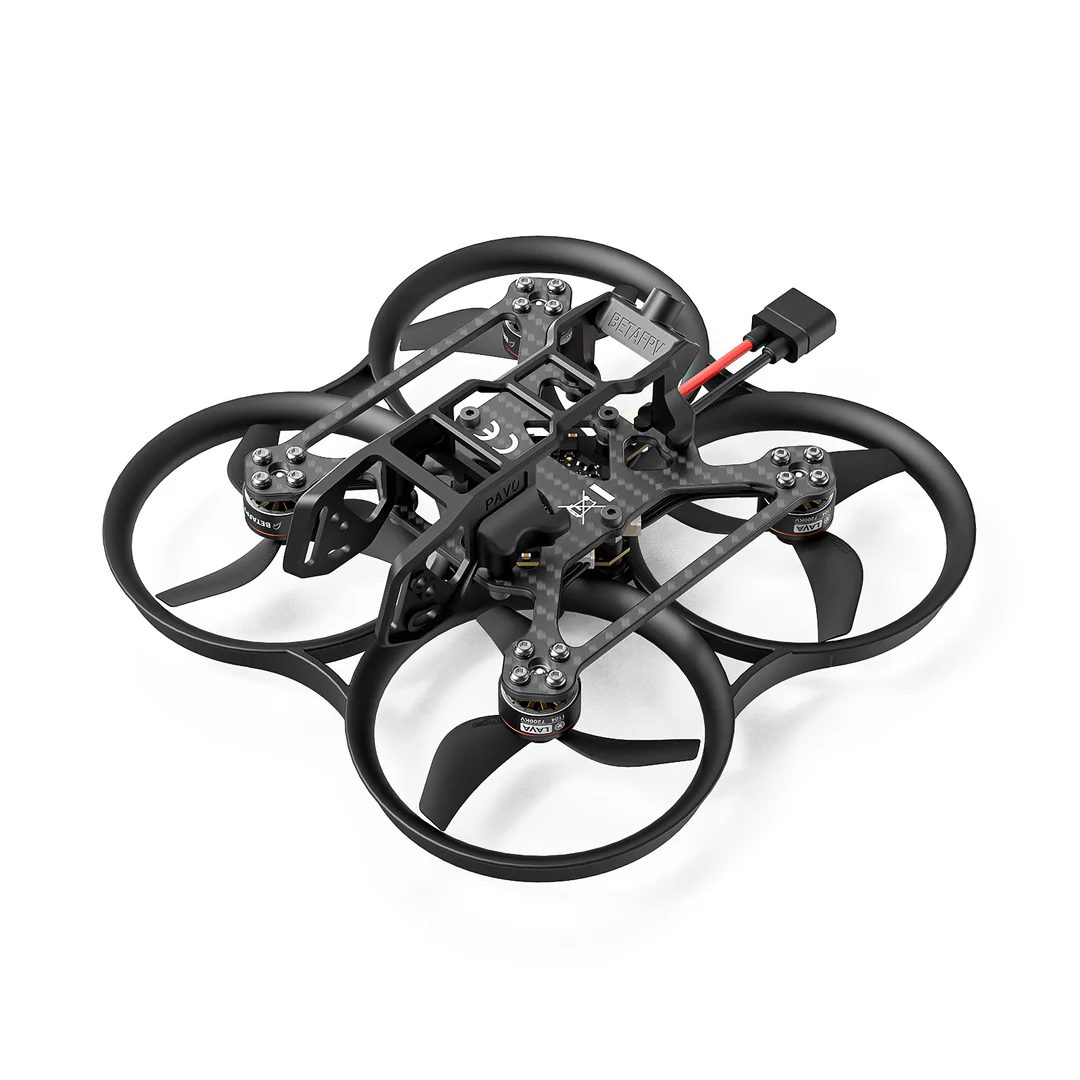

Pavo20 Pro Brushless Whoop Quadcopter is the perfect solution for DJI O3 cinewhoop enthusiasts who want a powerful, lightweight and agile drone tailored for freestyle aerial photography and videography. This quadcopter weighs less than 150g and is equipped with LAVA Series 1104 brushless motors | 7200KV and three-blade Gemfan GF 2218 propellers, which ensure maximum thrust and smooth performance.
Its advanced frame design offers an 8-11% increase in thrust, complemented by a LAVA 3S 550 mAh 75C battery that extends flight time up to 6 minutes and 40 seconds. The design of the drone includes two fixed camera mounting holes, which are designed for wide-angle shots with the DJI O3 camera, while the classic Pavo series rubber shock absorber design minimizes vibrations and creates optimal stability for high-quality shots.
Specifications
- Item: Pavo20 Pro Brushless Whoop Quadcopter
- Wheel base: 93.7 mm
- Weight (without battery, air unit): 66.3g
- Supported VTX: DJI O3 Air Unit, Caddx Vista Kit, RunCam Link
- Supported cameras: DJI O3, Caddx Series, RunCam Series (19mm/20mm)
- Camera filter installation: Vertical
- Battery connector: XT30
- Battery slot: 20mm, unlimited height
- Recommended batteries: LAVA 3S 450 mAh, 550 mAh or 650 mAh (75C)
- Flight controller: F4 2-3S 20A AIO FC V1

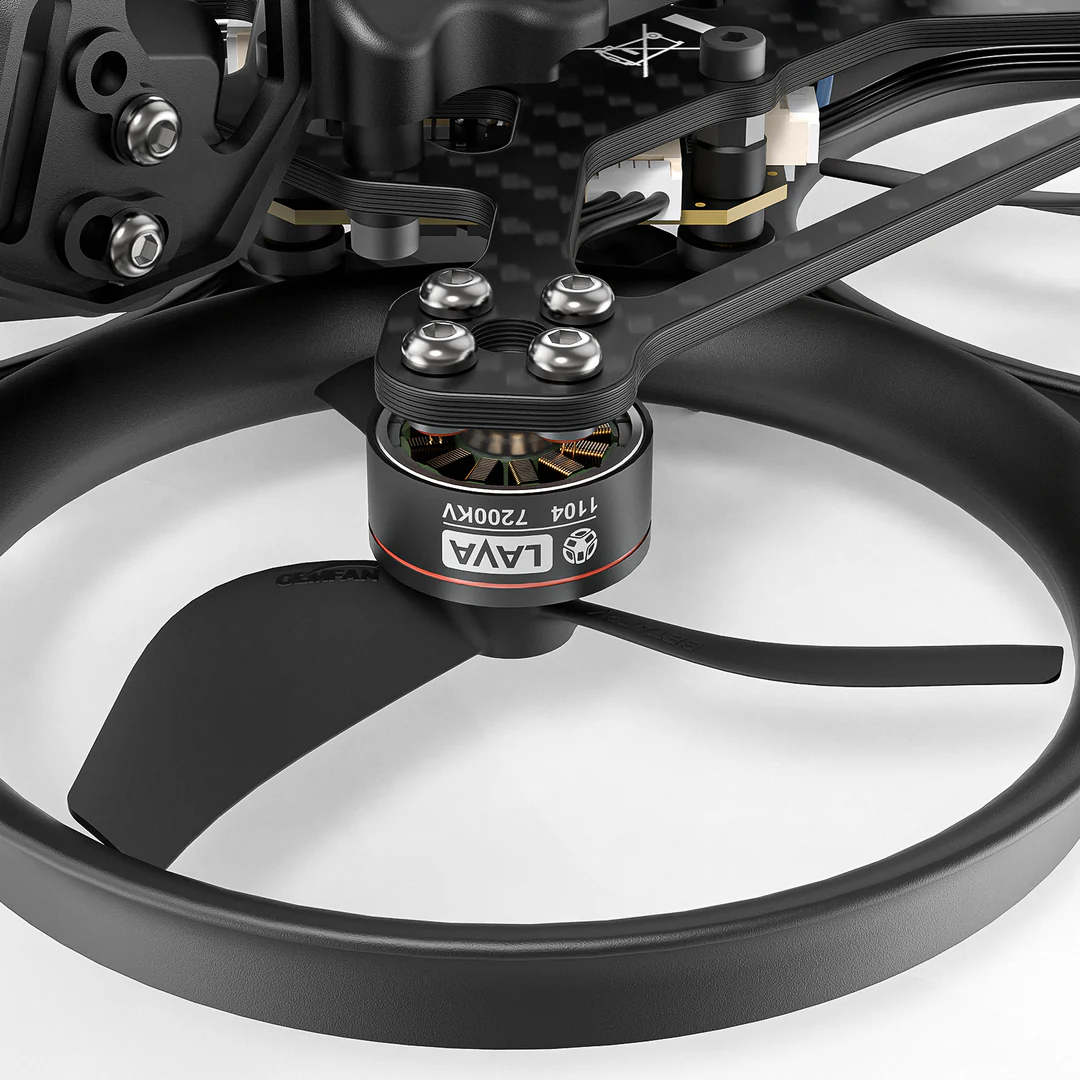

- Engine: LAVA Series 1104 | 7200KV Brushless Motors
- Propeller: Gemfan 2218 3-blade propeller (1.5mm shaft)
- Flight time: Up to 6 minutes and 40 seconds with LAVA 3S 550 mAh battery
- Available RX versions: TBS
Package contents
- 1 x Pavo20 For Whoop Brushless Quadcopter
- 1 x HD VTX mount
- 1 x set of screws for HD VTX bracket
- 1 x Pavo series COB LED strip accessory set (ice blue)
- 4 x Gemfan 2218 3-blade propellers (1.5mm shaft)
- 1 x PCBA | Type C board adapter
- 1 x 4-pin adapter cable
