FPV Camera Kit HDZero Whoop Lite Bundle Nano V3

Name: FPV Camera Kit HDZero Whoop Lite Bundle Nano V3
Brand: Baltic Drones
SKU: HDZ3102
Price: 133.09 EUR
Availability: InStock

FPV Camera Kit HDZero Whoop Lite Bundle Nano V3

Brand: HDZero

€133,09

~~€133,09~~ €133,09

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

FPV Camera Kit HDZero Whoop Lite Bundle Nano V3

FPV Camera + VTX HDZero Whoop Lite Bundle is a lightweight and high-performance digital FPV system designed for ultralight drones and whoops. This package includes the VTX HDZero Whoop Lite transmitter, which provides low latency digital video transmission, and the HDZero Nano V3 camera, which provides sharp and clear images. The kit also includes a dipole antenna, a 40mm MIPI cable for secure connection and four rubber grommets (M3 to M2) for easy mounting.

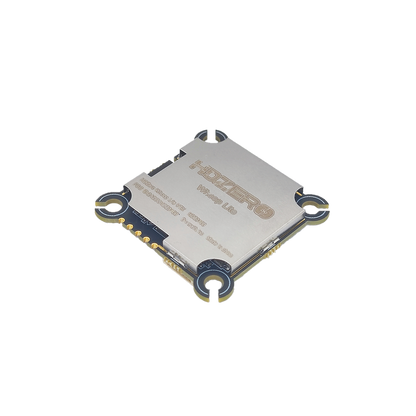

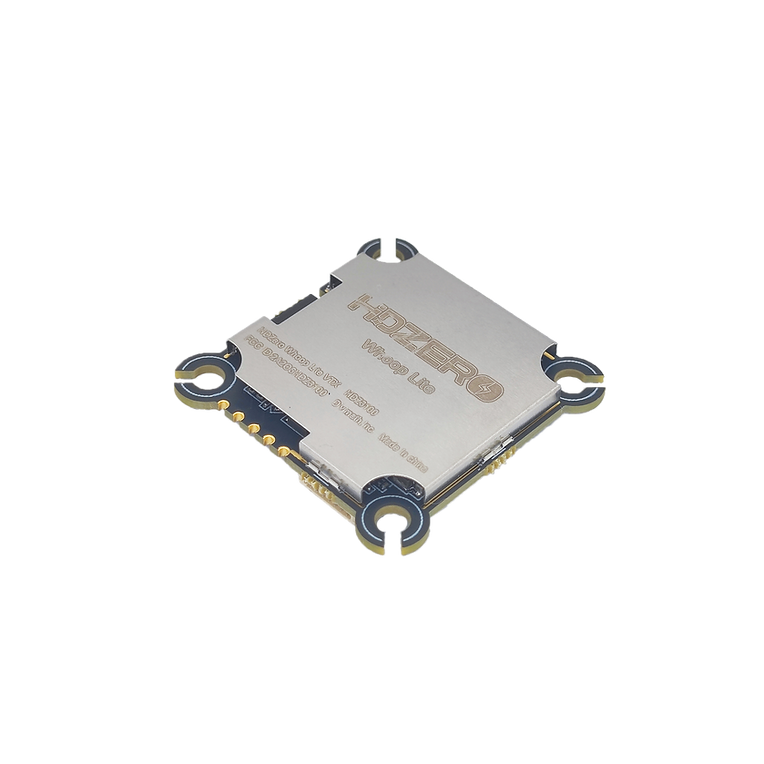

Whoop lite VTX Specifications:

Frequency: 5.725-5.850 GHz
Resolution: 1280×720 @ 60 frames per second
RF power: 25mW / 200mW RF output
RF connector: U.FL
Video connector: MIPI
FC Protocol: Support Smart Audio / MSP
Size: 32.5 x 32.5 mm (29 x 29 mm inner)
Weight: 4.5g / thickness 4mm (without shield)
Power: 7W
Power Input: 7.7W: POWER SUPPLY: 1S-3S
Mounting: 25.5 x 25.2mm M2 soft mount

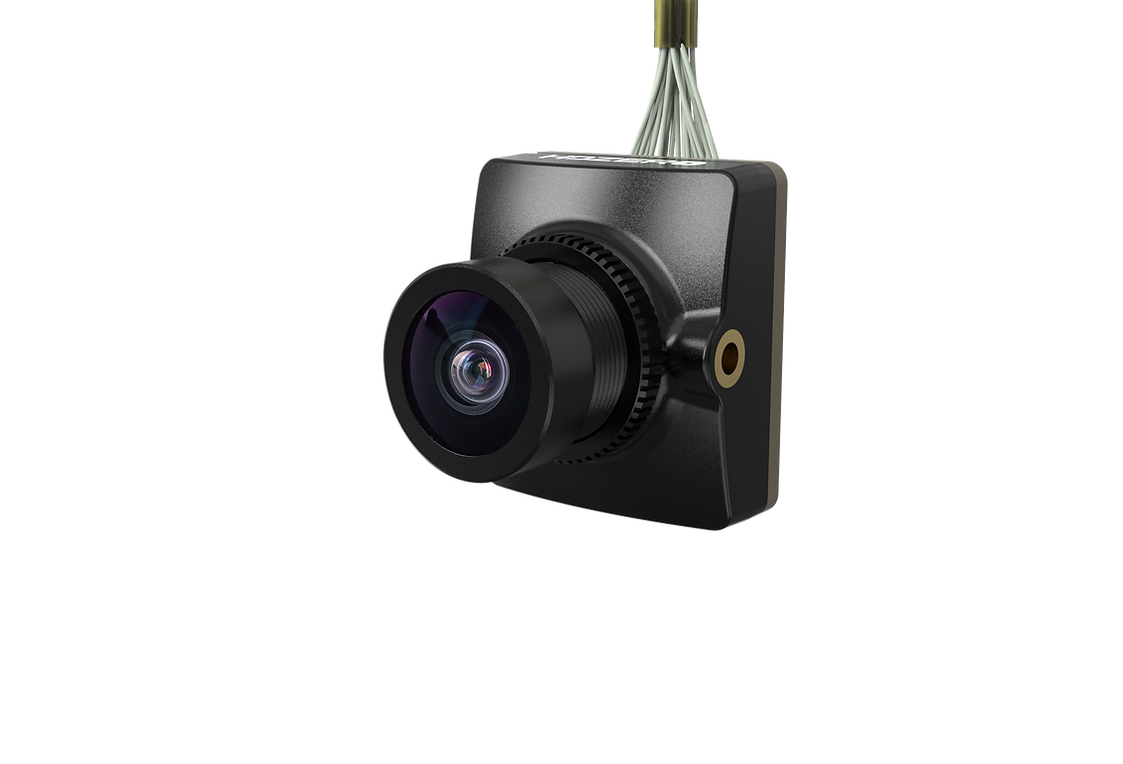

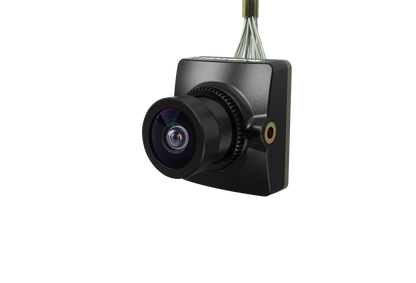

Nano V3 Camera Specifications:

Size: 14 x 16 x 14 mm
Weight: 2.2 g
Sensor: 0.5 inch, up to 10650 mV/Lux-sec / ultra-sensitive CMOS sensor
Field of View (FOV): 1: L: 155° / H: 126° / H: 94°

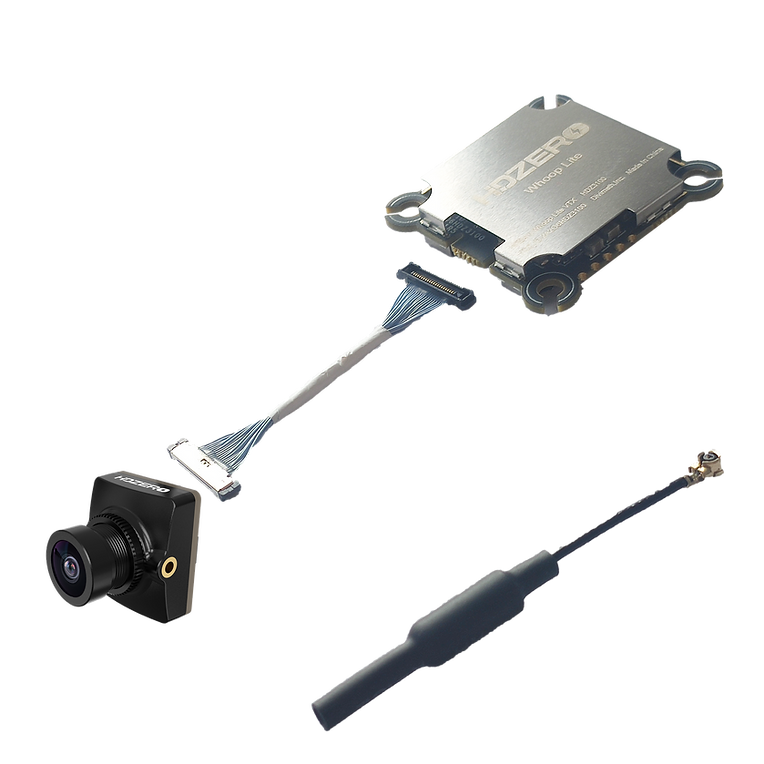

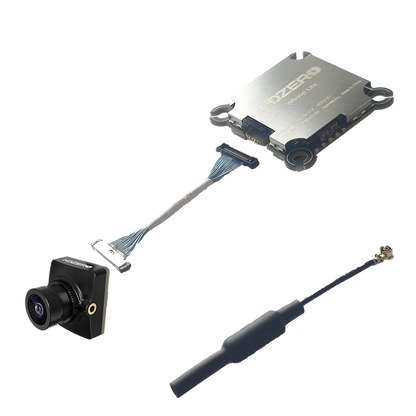

The package contains:

1 x HDZero Whoop Lite VTX
1 x HDZero Nano V3 Camera
1 x dipole antenna
1 x 40mm Mipi cable
4 x rubber grommet (M3 to M2)
