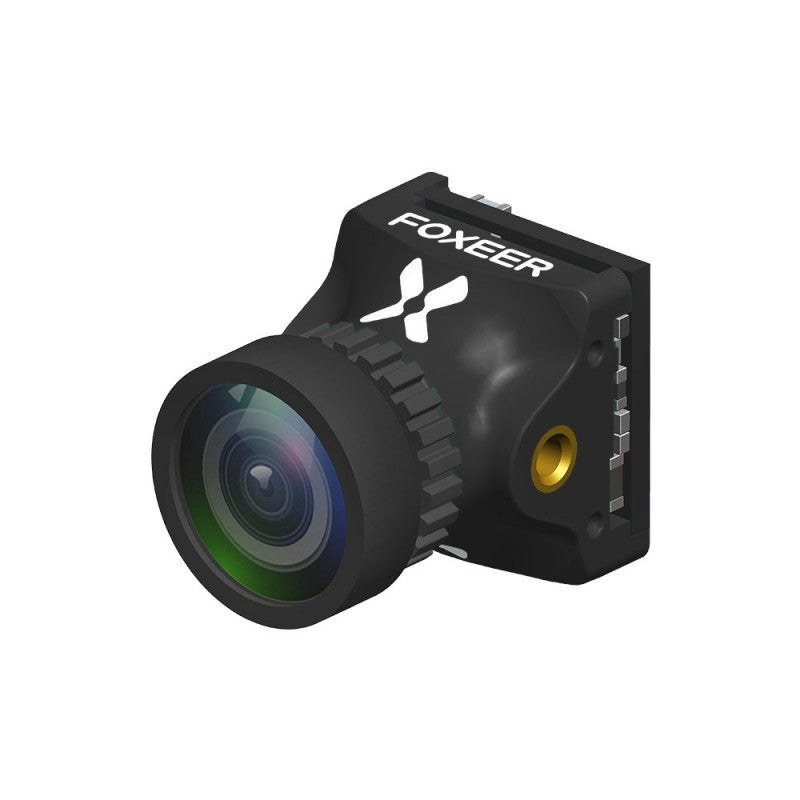

FPV Camera Foxeer Predator V5 Nano Black
The Sony 1/3" CMOS Switchable FPV camera combines high resolution with flexible setup, making it the ideal choice for pilots looking for versatility and performance in a compact design. Designed to seamlessly adapt to different lighting conditions and aspect ratios, this camera is perfect for both racing and freestyle drones.
Key features:
- Sensor: Sony 1/3" CMOS for excellent image quality and clarity.
- Resolution: 1000 TVL for detailed analog output.
- Aspect Ratio: Switchable between 4:3 (default) and 16:9 to customize the display.
- TV system: Switchable between PAL (default) and NTSC according to your settings.
Image capabilities:
-
Field of View (FOV):
- Horizontal (FOV-H): 125°.
- Diagonal (FOV-D): 155°.
- Low light sensitivity: 0.01 Lux for reliable performance in dark environments.
- Dynamic range: Super WDR to handle high contrast scenes.
- Noise reduction: 3DNR and 2DNR for cleaner and sharper visuals.
Customizable modes:
- Modes: Day, Cloudy, Night and LED.
- Quick switching with a long press of the right button.
Functional improvements:
- Flight OSD: Displays voltage, camera name, flight time and crosshair for better orientation.
- Rotate Mode: Supports video rewind for flexible editing options.
-
Shutter speed:
- PAL: 1/25-1/10,000 sec.
- NTSC: 1/30-1/10,000 sec.
Construction and Power:
- Input voltage: Wide range 4.5V-20V for flexible installations.
-
Power consumption:
- 50mA ± 15% @ 12V.
- 115mA ± 15% @ 5V.
-
Compact and lightweight:

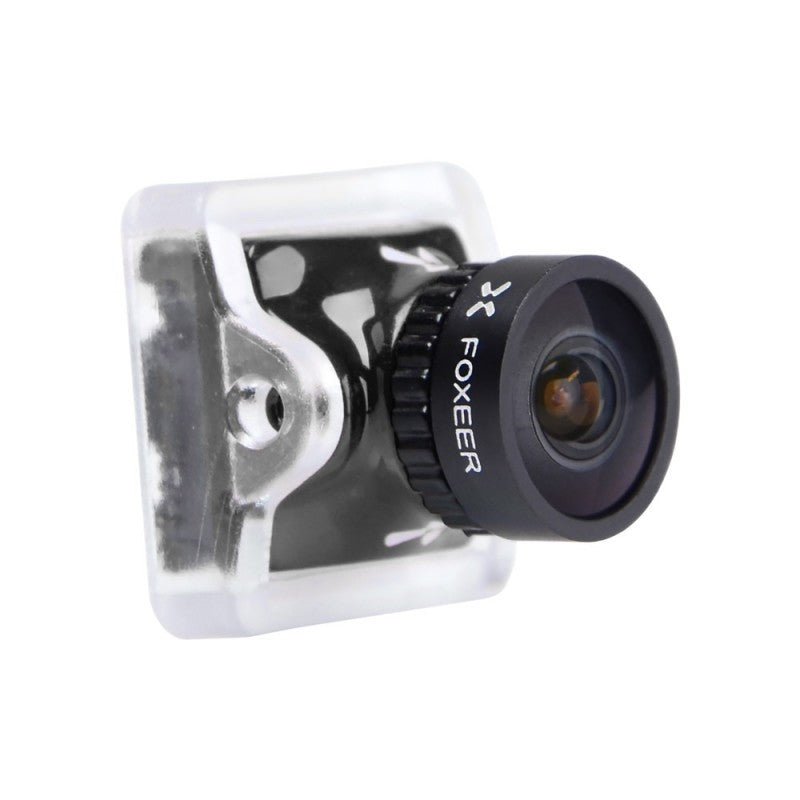

- Dimensions: 14 × 14 mm; 19 × 19 mm with holder.
-
Weight:
- With connector: 4.8 g.
- With terminal block: 4.3 g (without cable).
Resilience and language support:
-
Operating conditions:
- Temperature: -10° to 50°C, humidity up to 90%.
- Storage: -20° to 70°C.
