Warning! This model has been discontinued and will no longer be available. Please see the available alternatives:
- https://www.hobbydrone.cz/en/hd-system-dji-o4-air-unit-pnp-install-version/
- https://www.hobbydrone.cz/en/hd-system-dji-o4-air-unit-pro-pnp-install-version/

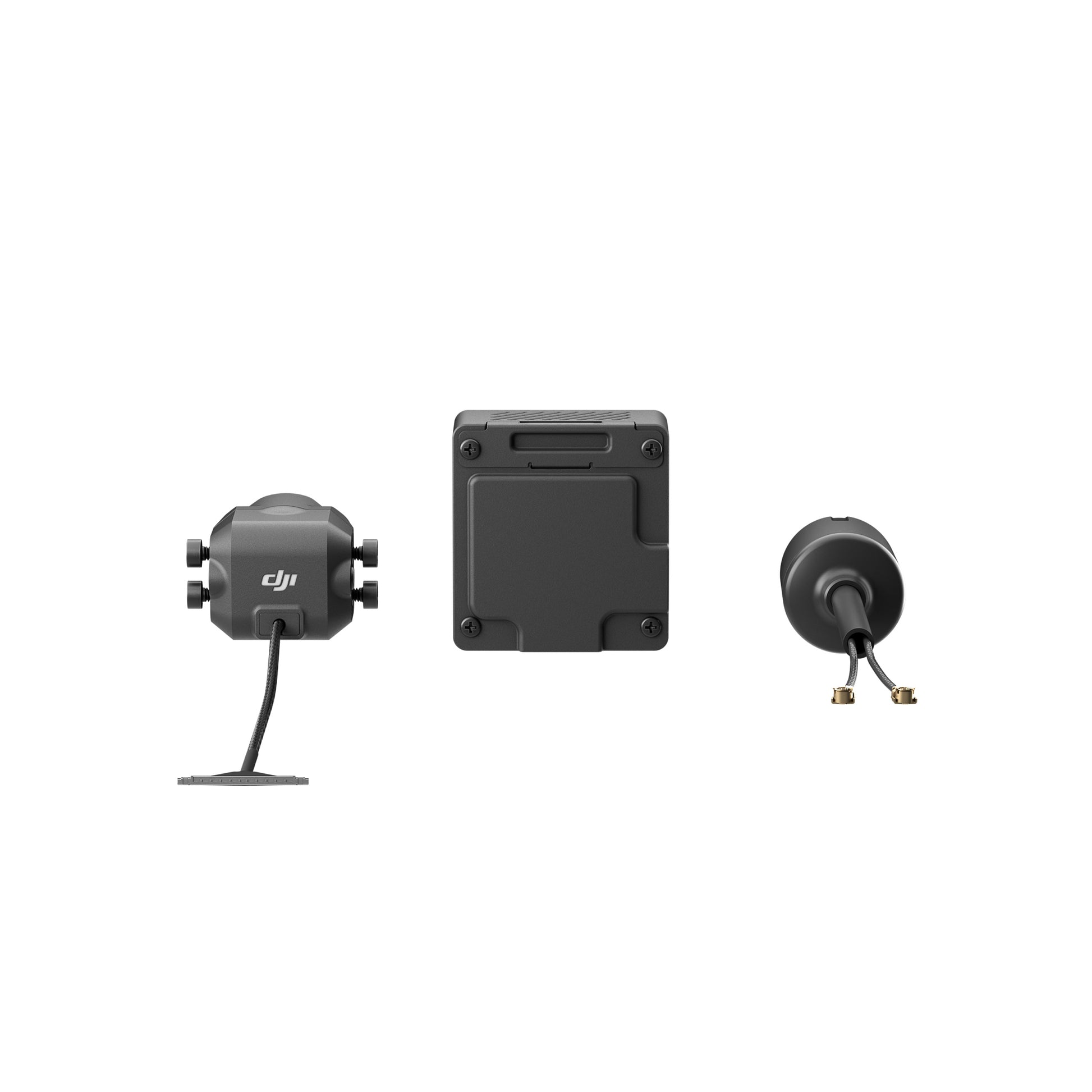

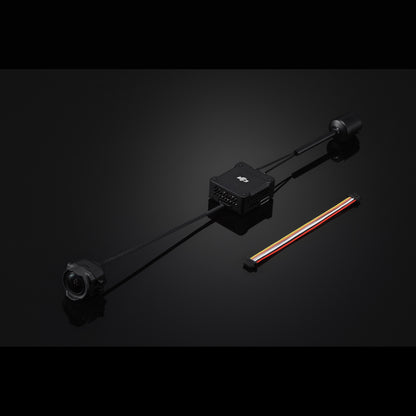

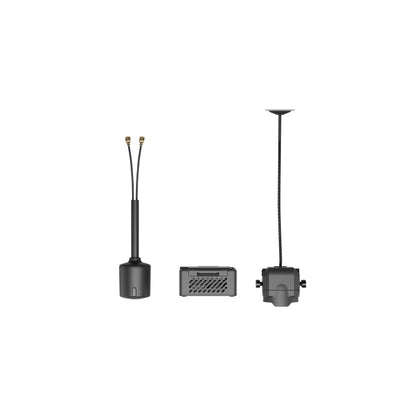

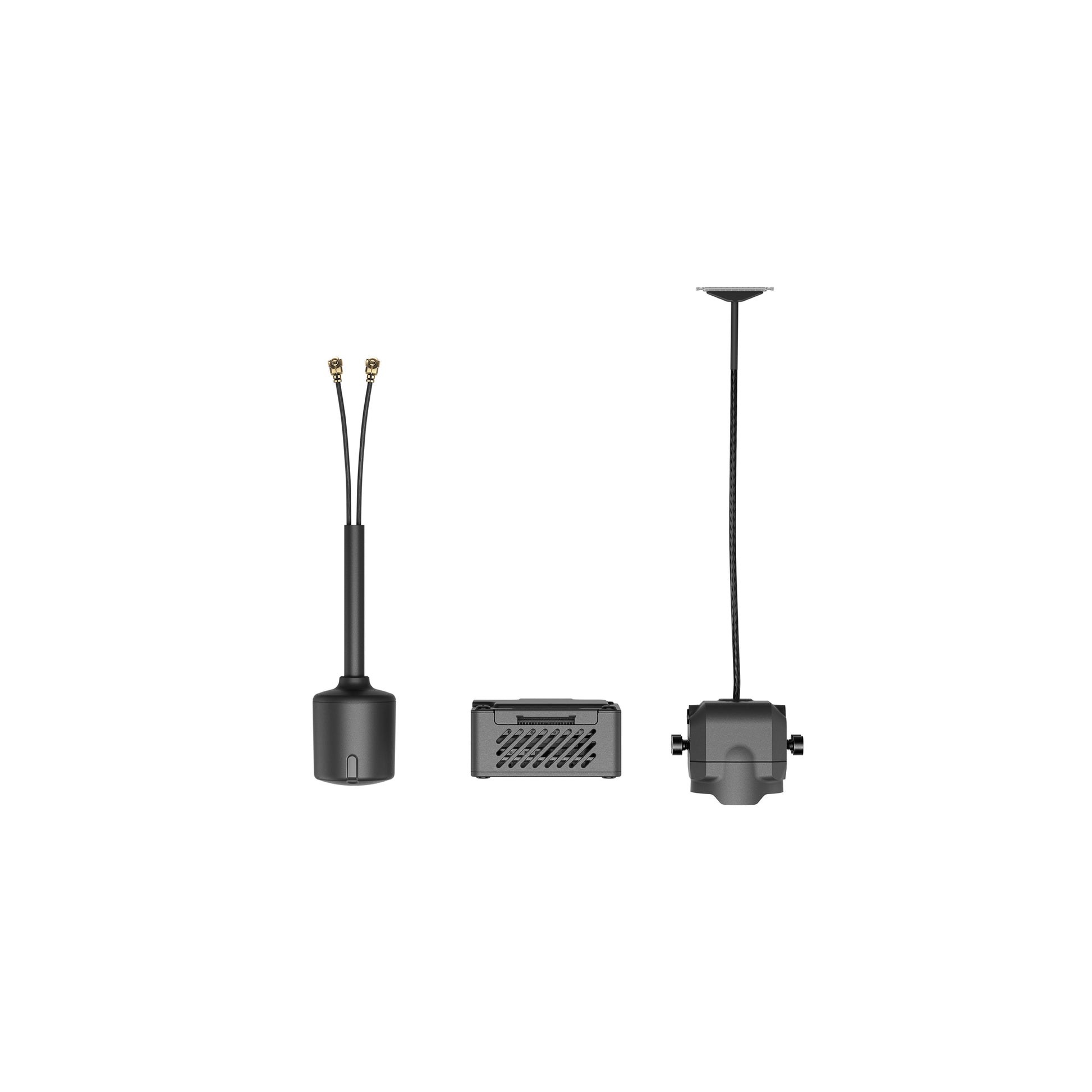

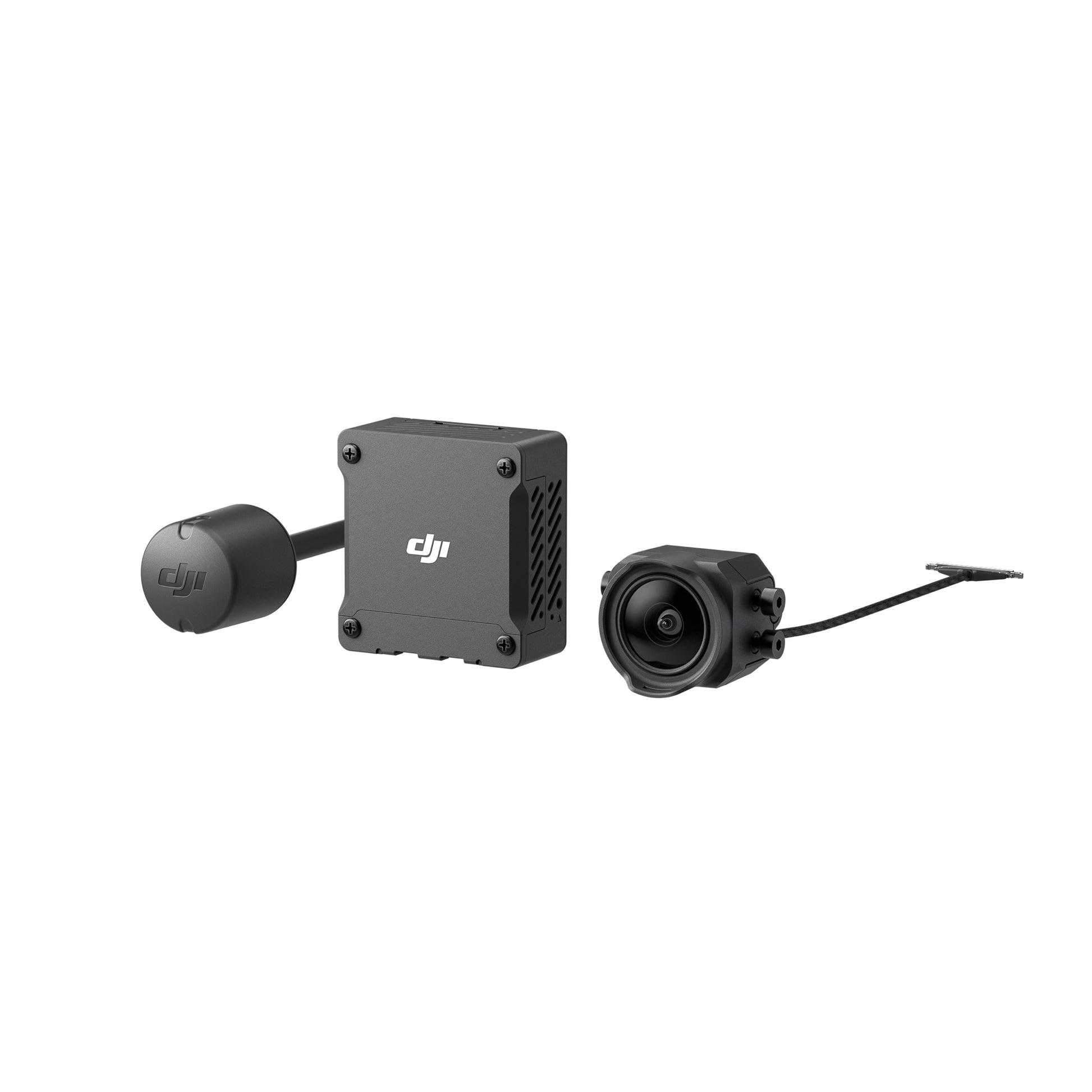

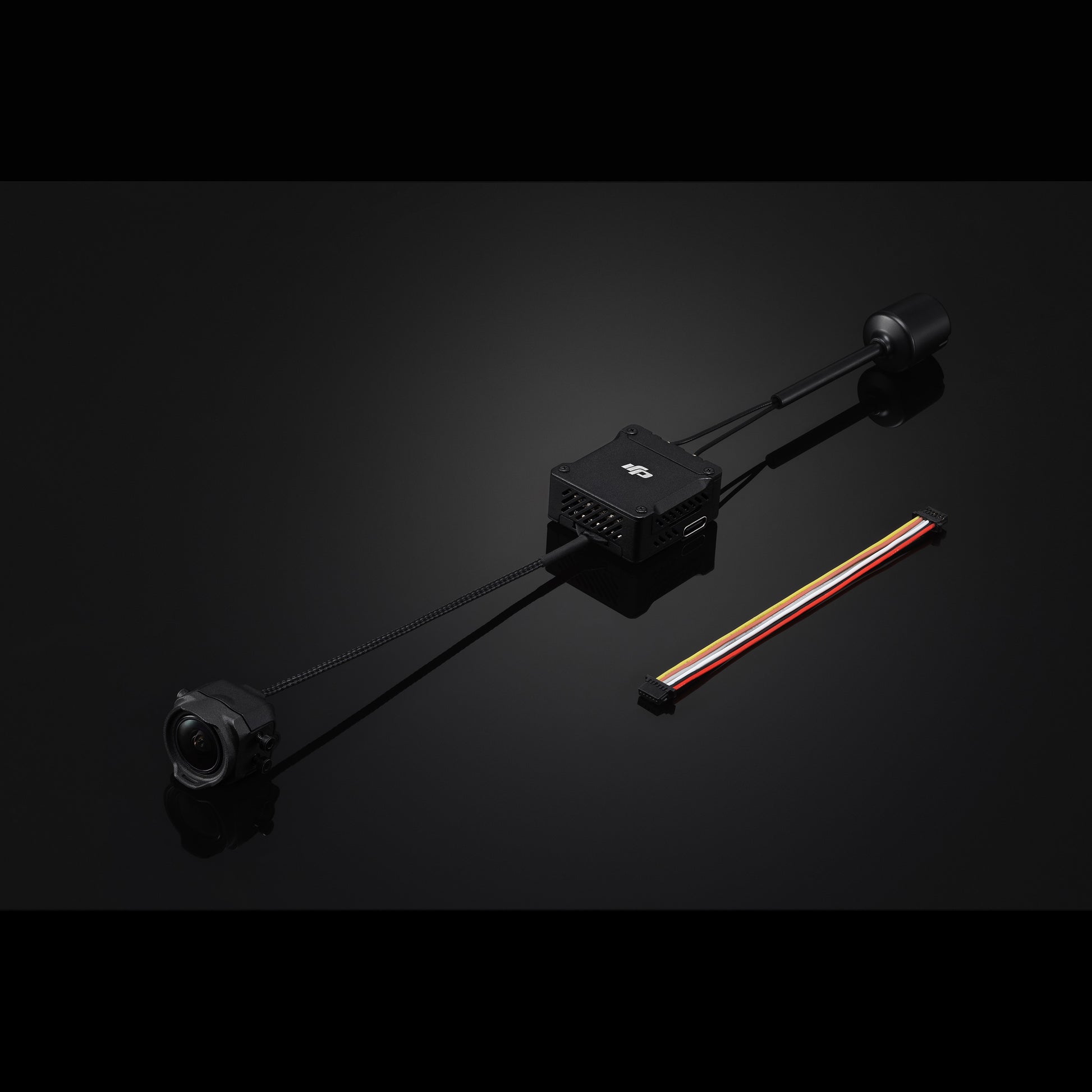

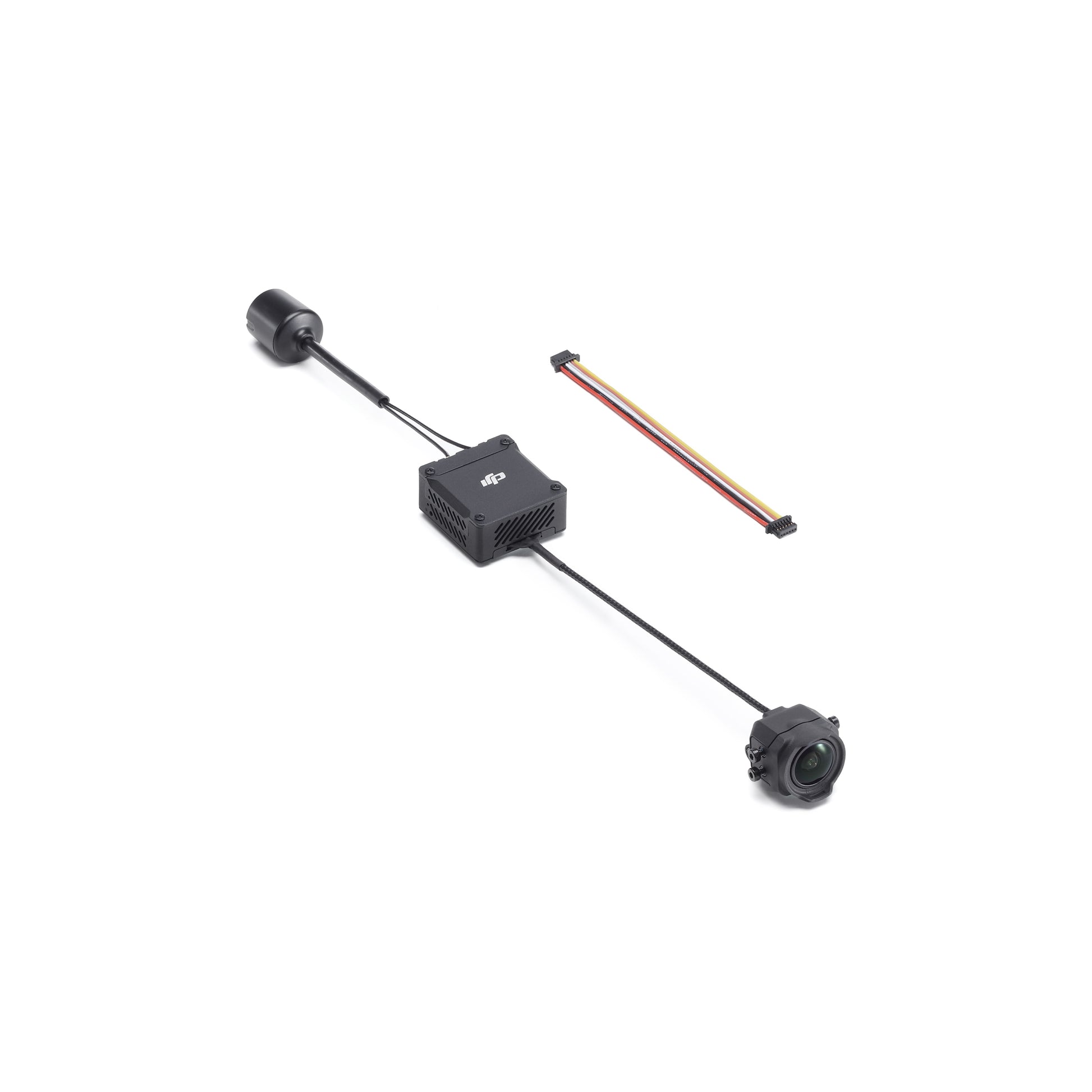

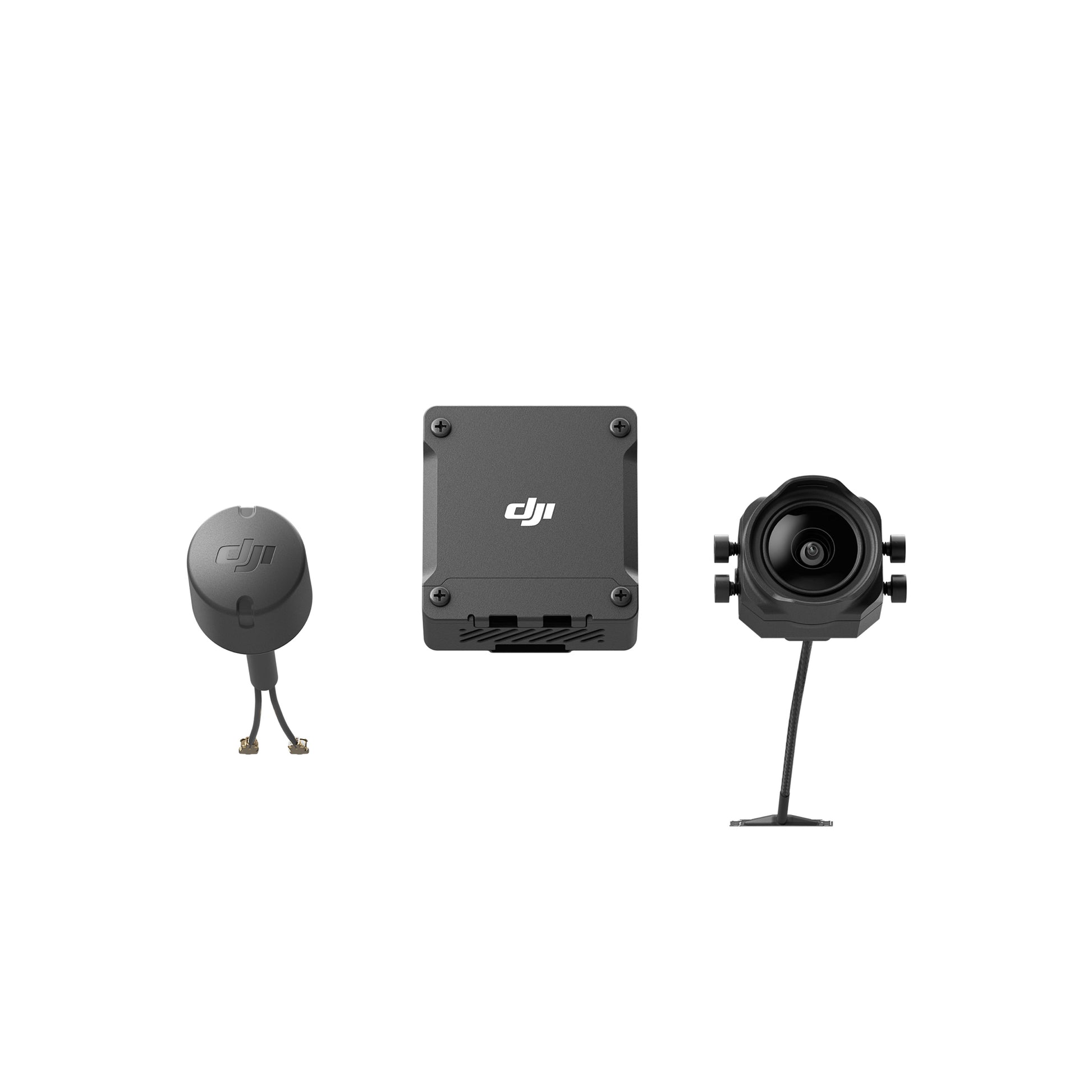

DJI O3 air unit The DJI O3 Air Unit is a digital system powered by the DJI O3+ high-end video transmission system, specially adapted for FPV drones. This system ensures high-quality digital video transmission, covering distances of up to 10 km with minimum latency 1080p at 100 frames per second, while also being able to record 4K video at 120 frames per second. The unit intelligently switches to the optimal frequency and features a unique Canvas mode that allows you to customize the flight data display (OSD) to your preferences. The DJI O3 air unit is compatible with DJI Goggles 2, DJI FPV Goggles V2 and DJI FPV Remote Controller 2. Camera: Sensor: 1/1.7-inch CMOS, effective pixels: 48 MP Lens: FOV: 155°, Equivalent focal length: 12.7mm, Focal length: 2.34mm, Aperture: f/2.8, Focus mode: FF, Focus range: from 0.6m ISO Range: 100-6400 (Auto), 100-25600 (Manual) Shutter: Roller shutter FOV: 155° Video resolution: With DJI Goggles 2: 4K@50/60fps, 2.7K@50/60/100fps, 1080p@50/60/100fps; With DJI FPV Goggles V2: 4K@50/60fps, 2.7K@50/60/100/120fps, 1080p@50/60/100/120fps Video format: MP4 EIS: Supports RockSteady Weight: Approx. 8.3g (coaxial cable included) Air unit: Weight: Air unit (without camera module): Approx. 28g, Air unit (including camera module): Approx. 36.4g, Antenna: Approx. 3 g Dimensions: Transmission module (L×W×H): 32.5×30.5×14.5 mm, Camera module (L×W×H): 21.2×20×19.5 mm, Coaxial cable: 115 mm, 3 in 1 cable: 100 mm, Antenna: 85 mm Communication frequency: 2.400-2.4835 GHz (RX only), 5.725-5.850 GHz (RX and TX) [1] Transmit Power (EIRP): FCC: < 33 dBm, CE: < 14 dBm, SRRC: < 30dBm End-to-End Latency: With DJI FPV Goggles V2: 810p/120fps Video Transmission Quality: Latency is less than 28ms, 810p/60fps Video Transmission Quality: Latency is less than 40ms. With DJI Goggles 2: Video transmission quality 1080p/100fps: Latency is 30ms, Video transmission quality 1080p/60fps: Latency is 40ms. Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC) Flight control system supported: DJI O3 air unit supports Betaflight 4.3.0 and above. Input voltage: 7.4-26.4V Operating Temperature: -10° to 40°C (14° to 104°F) Channels: Supports automatic mode, Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels Channel Information: FCC/SRRC/CE: 40 MHz: Channel 1: 5794.5 MHz, 20 MHz/10 MHz: Channel 1: 5768.5 MHz, Channel 2: 5804.5 MHz, Channel 3: 5839.5 MHz Supported SD cards: microSD (up to 256 GB) Recommended microSD cards: SanDisk Extreme U3 V30 A1 32GB microSDXC, SanDisk Extreme Pro U3 V30 A1 32GB microSDXC, Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC, Kingston Canvas React Plus U3 V90 A1 64GB microSDXC, React8 U9GB Canva React2 U3 Canva React 8 U3 Canva microSDXC, Kingston Canvas React Plus U3 V90 A1 256GB microSDXC, Samsung PRO Plus V30 U3 V30 A2 256 GB microSDXC Supported DJI Goggles: DJI Goggles 2 and DJI FPV Goggles V2 Supported DJI Remote Controller: DJI FPV Remote Controller 2
