Code: SKU:SZ07-K012S
FPV Camera CaddxFPV Polar Vista kit (Silver)
FPV Camera CaddxFPV Polar Vista kit (Silver)
Brand: CaddxFPV
Regular price
€123,88
Regular price
€123,88
Sale price
€123,88
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

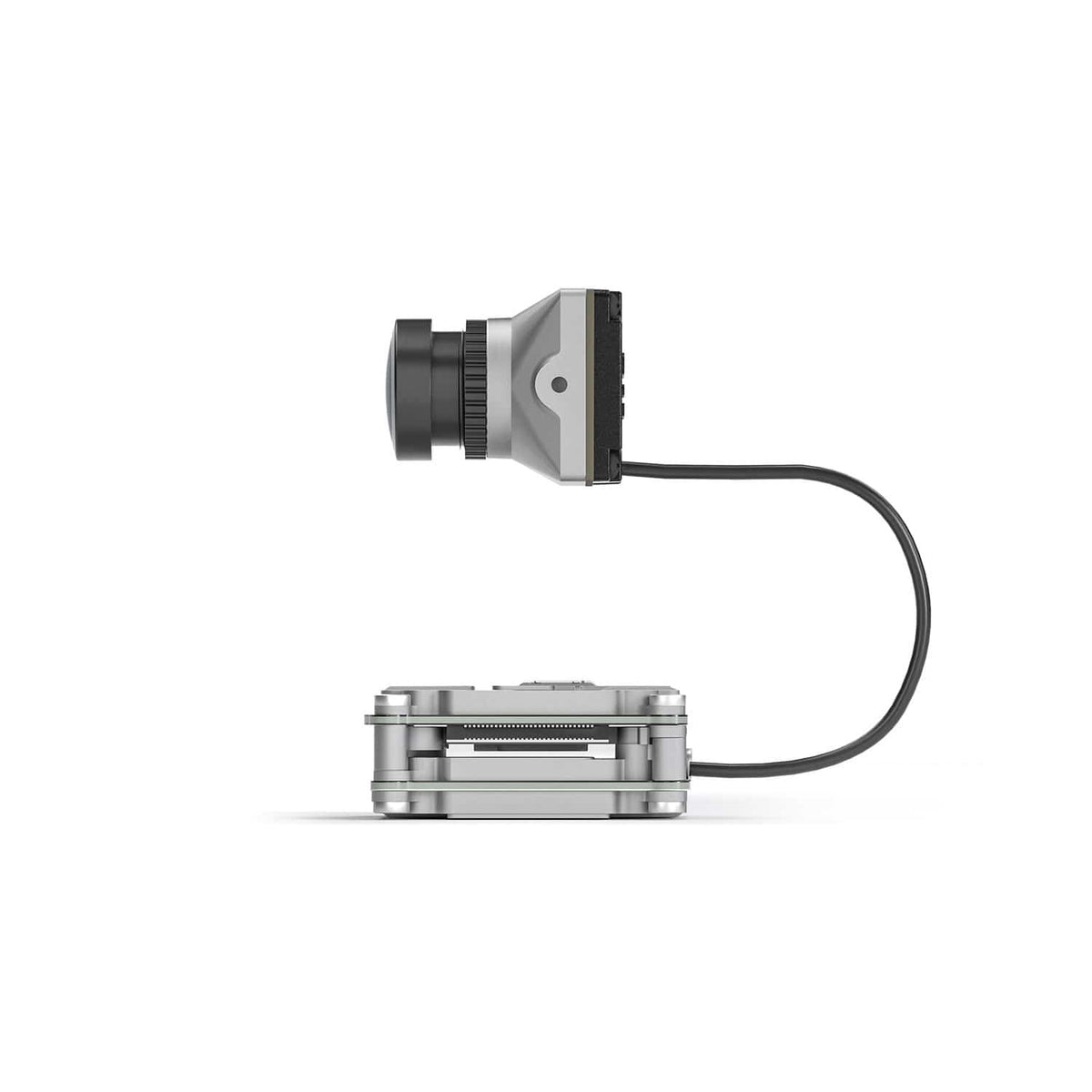

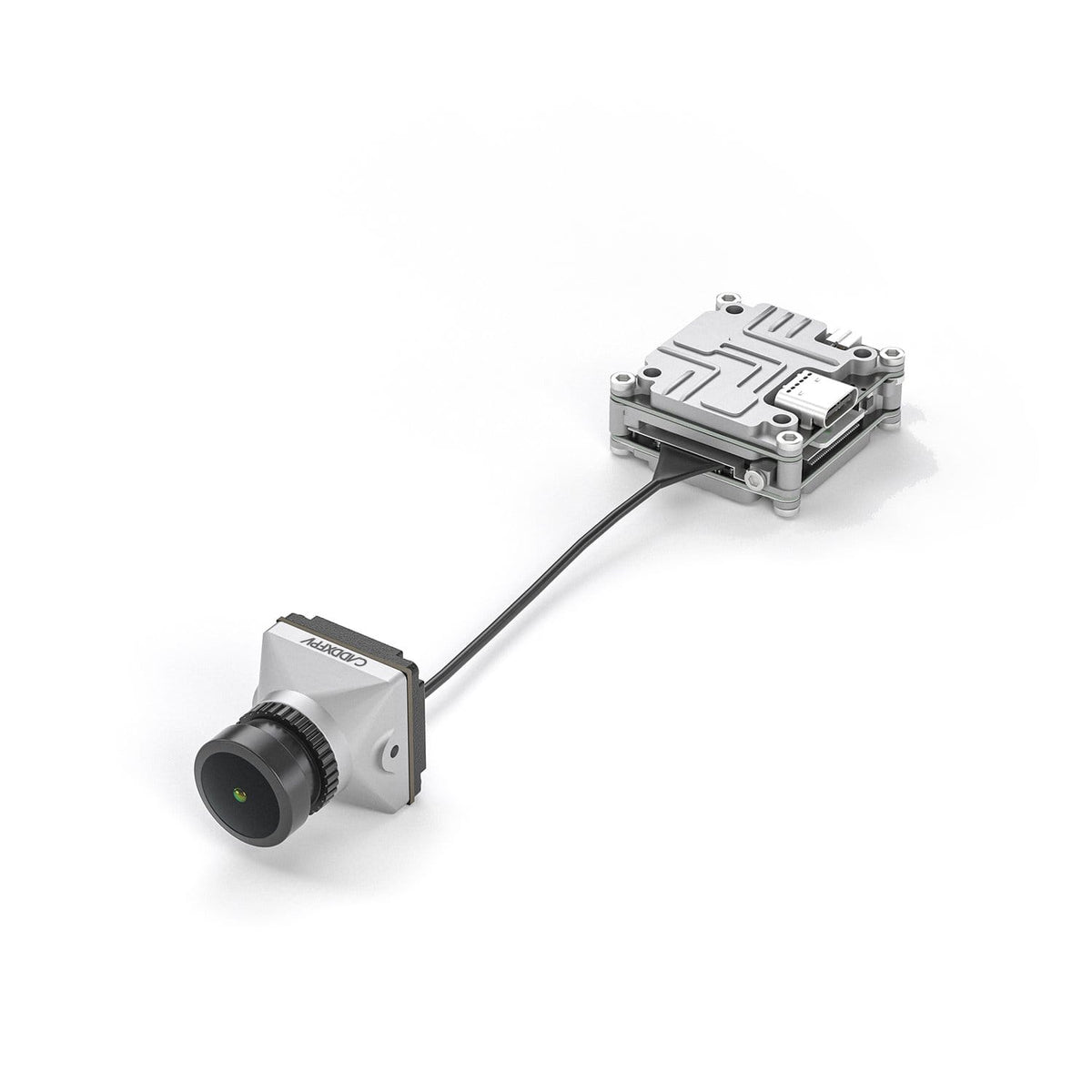

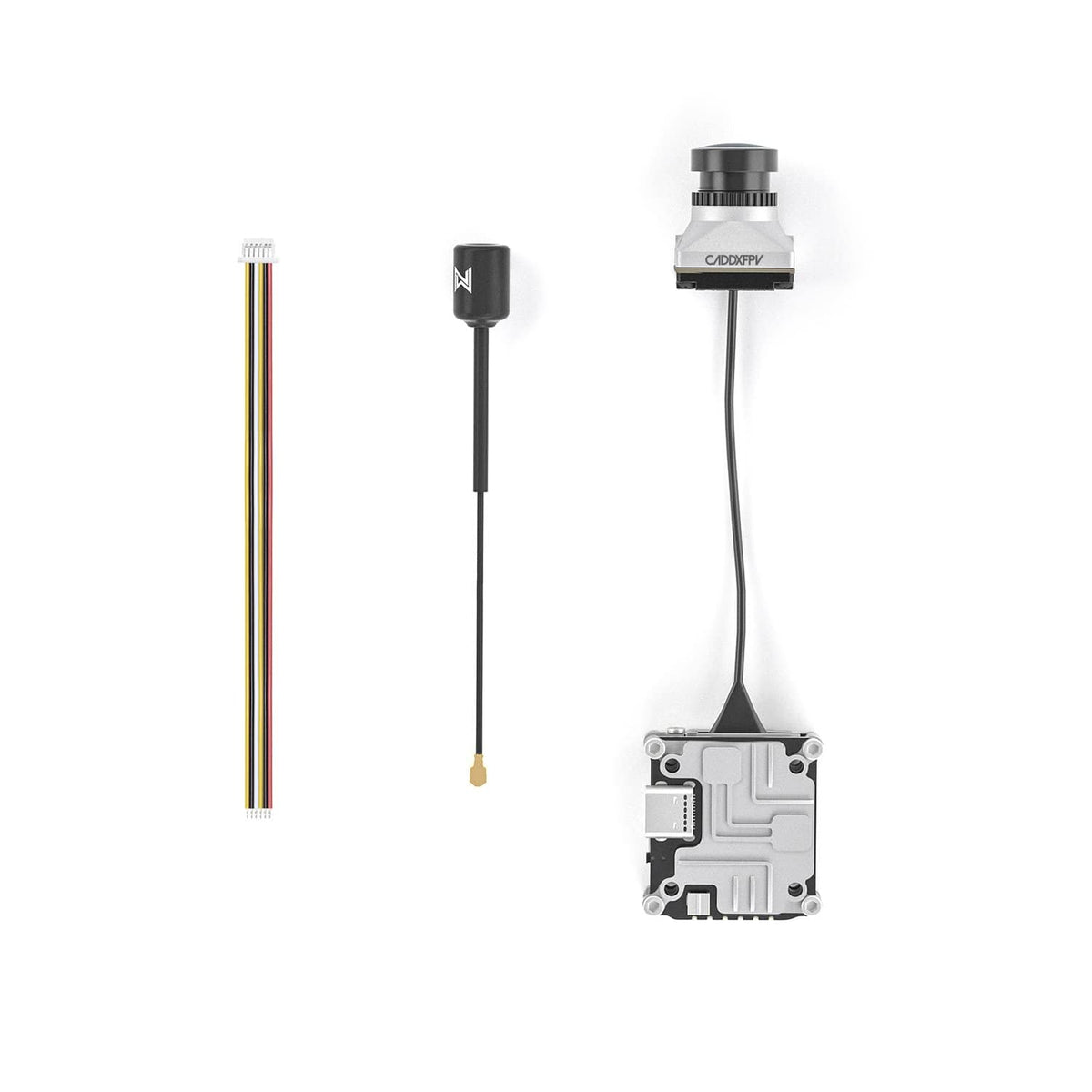

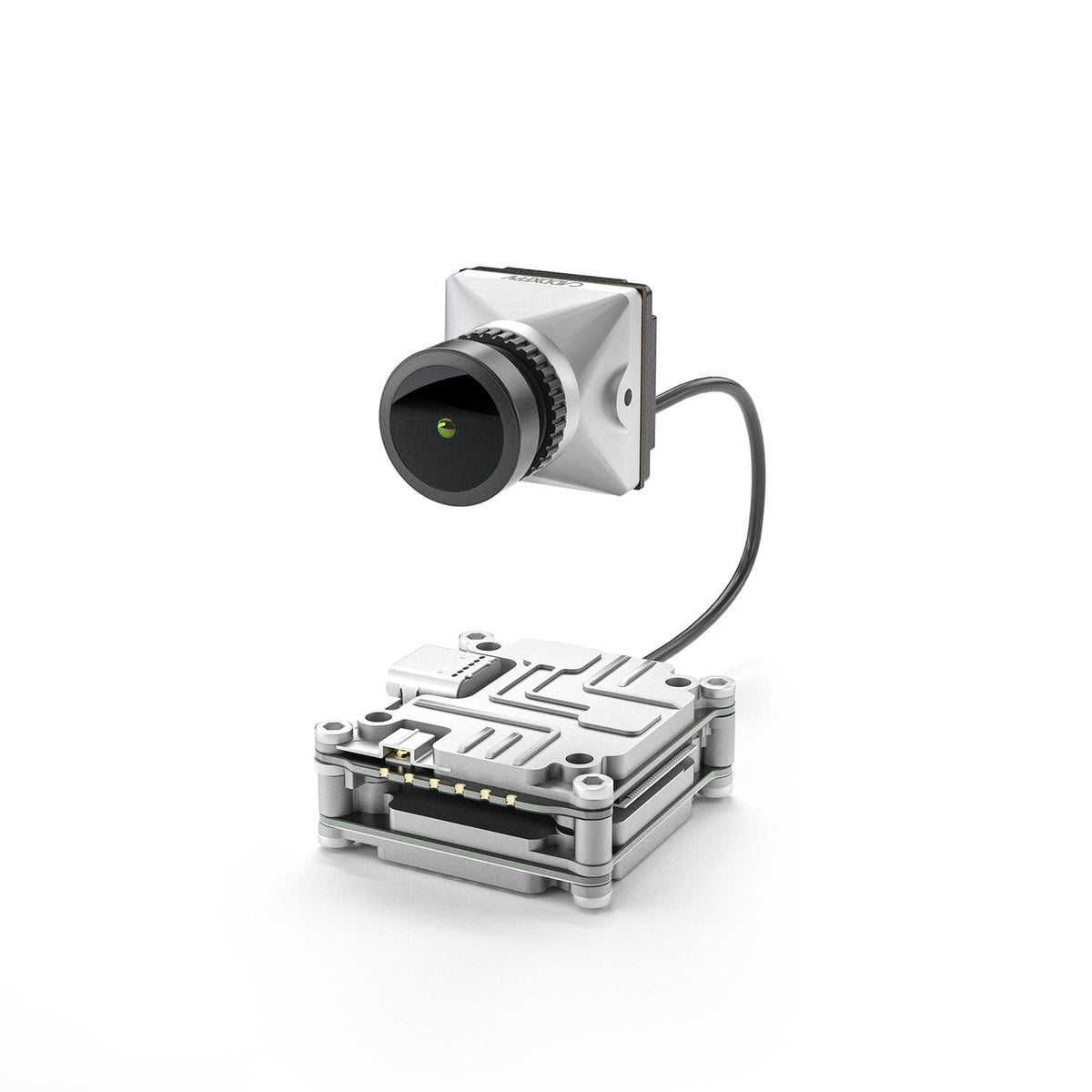

Polar Vista Set (Silver) The Caddx Polar Micro Vista Unit is an advanced video transmission module that supports 5.8GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency of up to 32ms. The Vista unit can be mounted on a racing drone and used with DJI FPV goggles or a remote controller to wirelessly transmit video, control signals and information from the flight controller. Specifications: Transmitter power (EIPP): FCC/SRRC: <30dBm; CE: <14dBm Max. transmission distance: FCC/SRRC: 4km; CE: 0.7 km Operating Temperature Range: 0° to 40°C (32° to 104°F) Image sensor: 1/1.8" inch 2.3Mega starlight sensor Supported flight control system: BetaFlight Min. latency (end-to-end): 720p 60fps<32ms Polar Vista Kit Weight (including camera): 28 g Operating frequency: 5.725-5.850 GHz I/O interface: USB-C, IPEX, 3 in 1 port FOV: 162°(D); 138°(H); 75° (H) Min. Illumination: 0.00003 Lux Antenna weight: 1.5g (IPEX) Polar cam: 24×19×19mm Power consumption: 7.4-26.4V Coaxial cable: 120 mm LENS: F/1.6 & 8Mega Vista: 30 x 29 x 13.5 mm Aspect ratio: 16:9 Antenna: 105 mm The package includes: 1x Caddx Polar Micro Vista Camera Kit (Silver) 6x M2 screws (3/4/5 mm) 4x Sealing ring 1x 3in1 cable
