FPV camera CADDXFPV ECLIPSE 006HD Thermal Kit
FPV camera CADDXFPV ECLIPSE 006HD Thermal Kit
Brand: CaddxFPV
Couldn't load pickup availability
- Description
- Related Files
- Discussion
FPV camera CADDXFPV ECLIPSE 006HD Thermal Kit
CADDXFPV Eclipse 006HD is a high-end thermal FPV camera designed for optimal performance in a variety of conditions. Its high-resolution thermal imaging provides clear and detailed visuals even in low light or total darkness. It is ideal for FPV pilots who need accurate real-time temperature data during flights. The camera's wide field of view and fast frame rate ensure you capture every moment accurately.

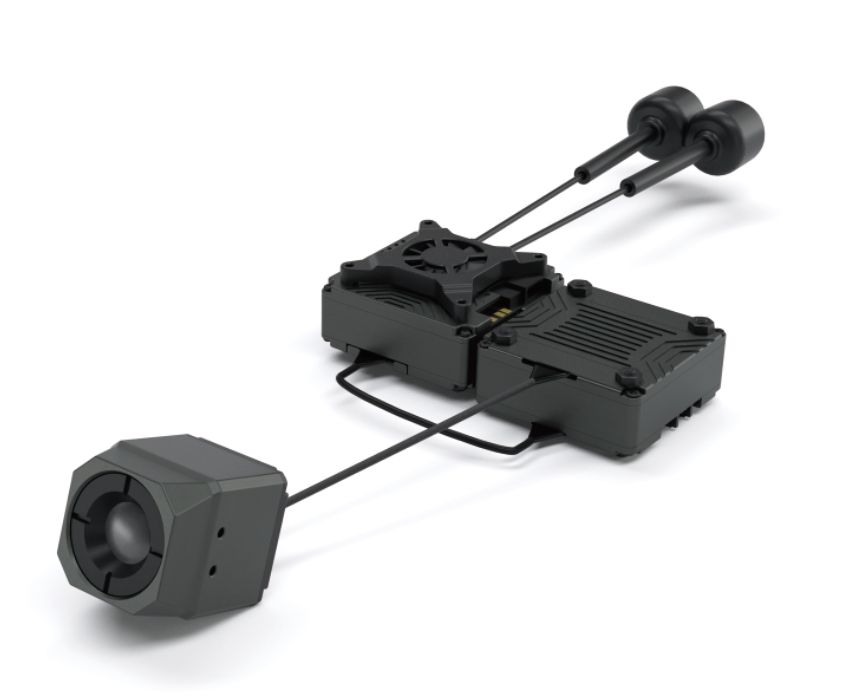

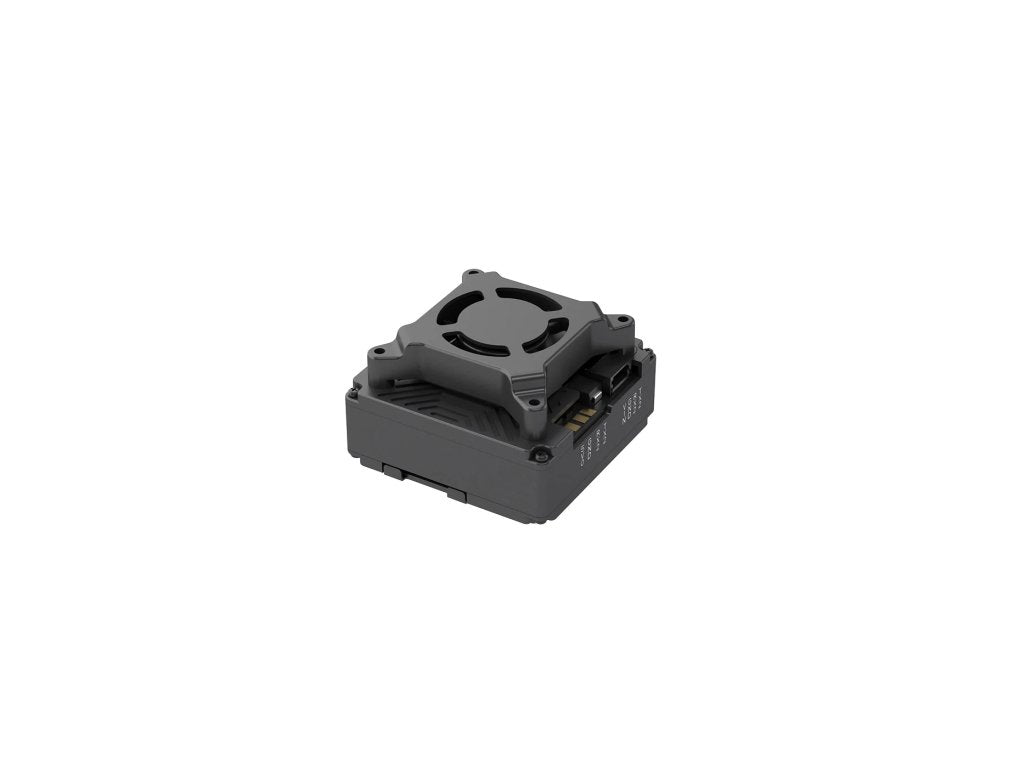

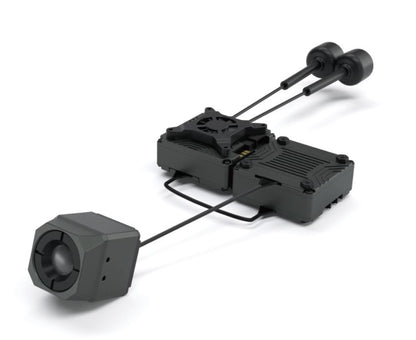

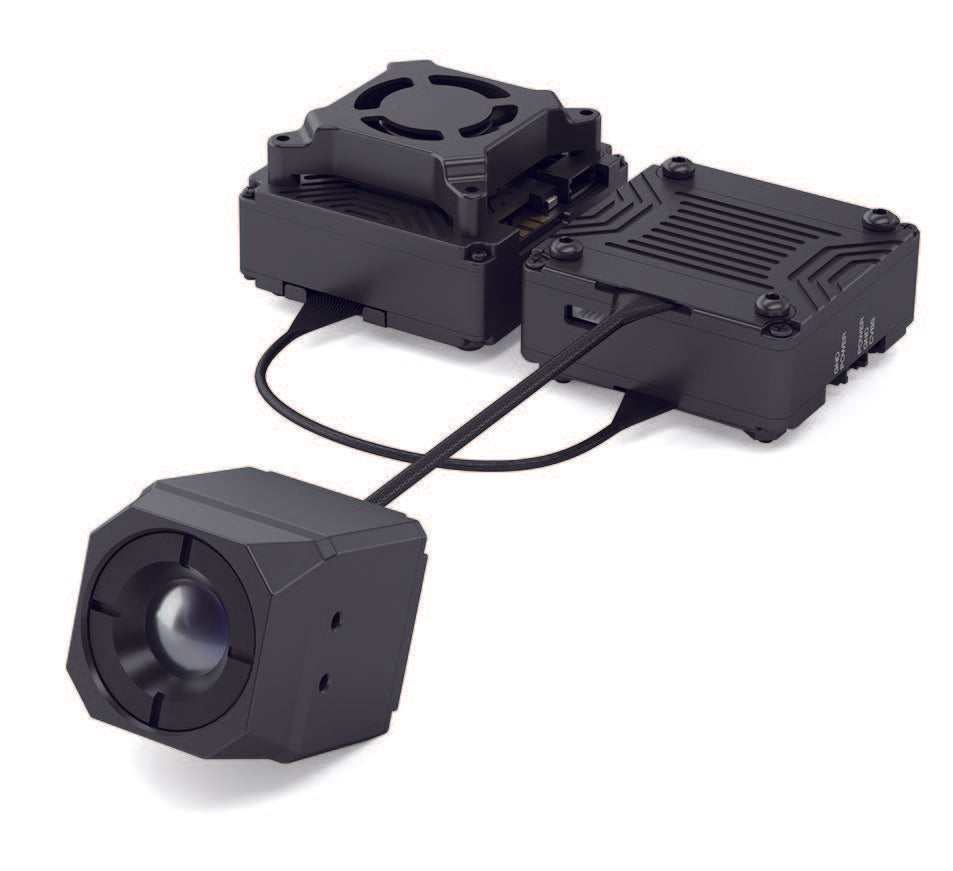

This kit includes Eclipse 006HD thermal camera, Walksnail Avatar GT VTX which provides seamless 1080p video transmission and recording and 2 antennas. This combination ensures reliable performance, making it ideal for use in demanding environments.
Specifications:
Model: Eclipse 006
Detector type: Uncooled vanadium oxide
Resolution: 640x512
Wavelength range: 8-12μm
DISCOVERY: F1.0/9.1mm
Field of vision: 48.3°(H) * 38.6°(V) * 66°(D)
Frame rate: 50fps
Power consumption: <1.5W
Output: PAL
Latency: Average delay 22ms
Antenna: 2 (IPEX)
Power supply voltage: 9V-24V
Temperature: -20°C~60°C
Interface: HD Interface: MIPI
Image quality: Average latency 20ms, Image enhancement
Model: Avatar GT VTX
Communication frequency: 5.725-5.850 GHz
Emitter Power (EIRP): FCC: <30dBm, MAX: 33dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
Recording: 1080p/720p
Channels: 8
Power (W): 2W MAX
Wide power input: 11.1~25.2V
OSD: Canvas Mode
Latency: Average delay 22ms
Antenna: 2 (IPEX)
The package contains:
1x CADDXFPV ECLIPSE 006HD Thermal Kit
