Code: SKU:MN06-20B69

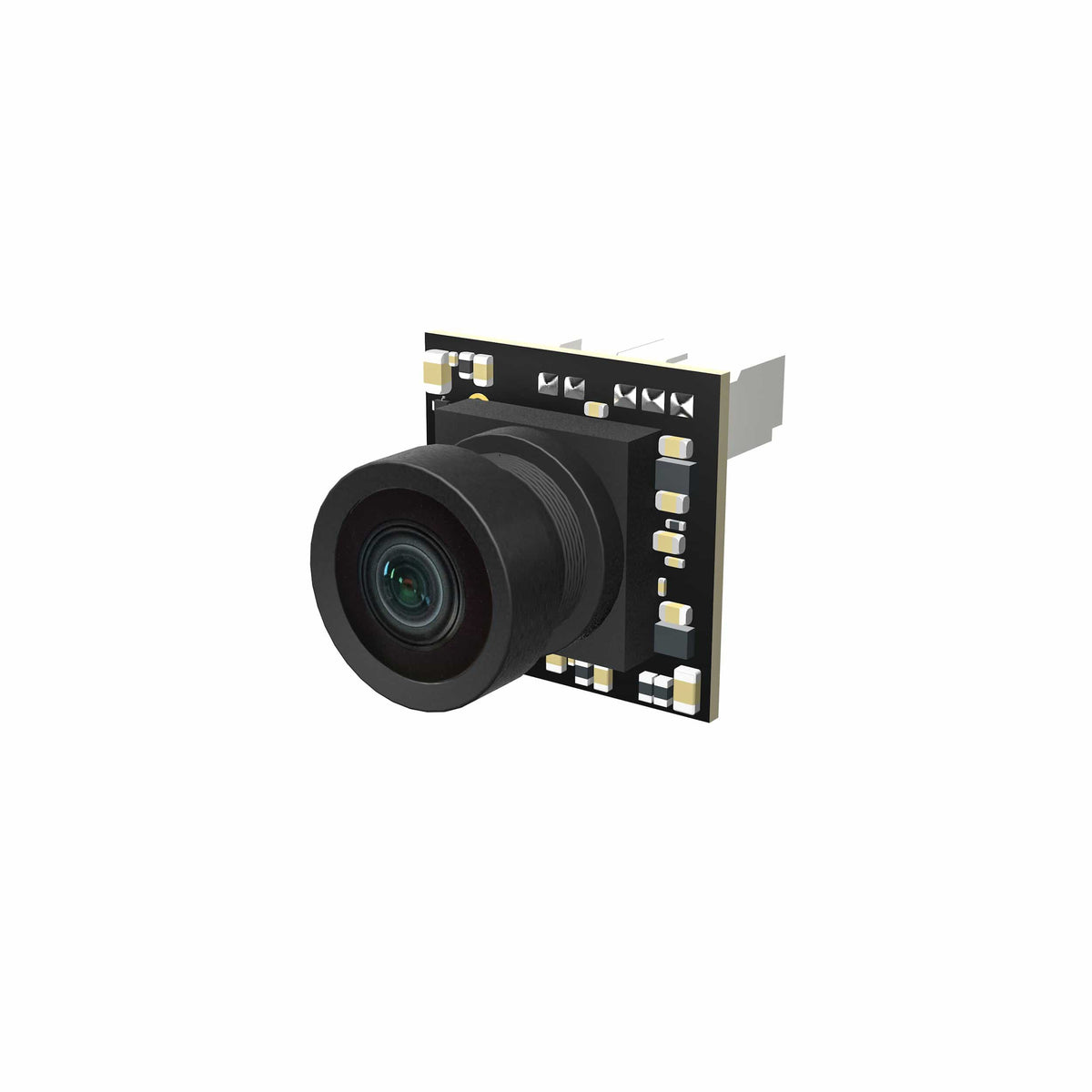

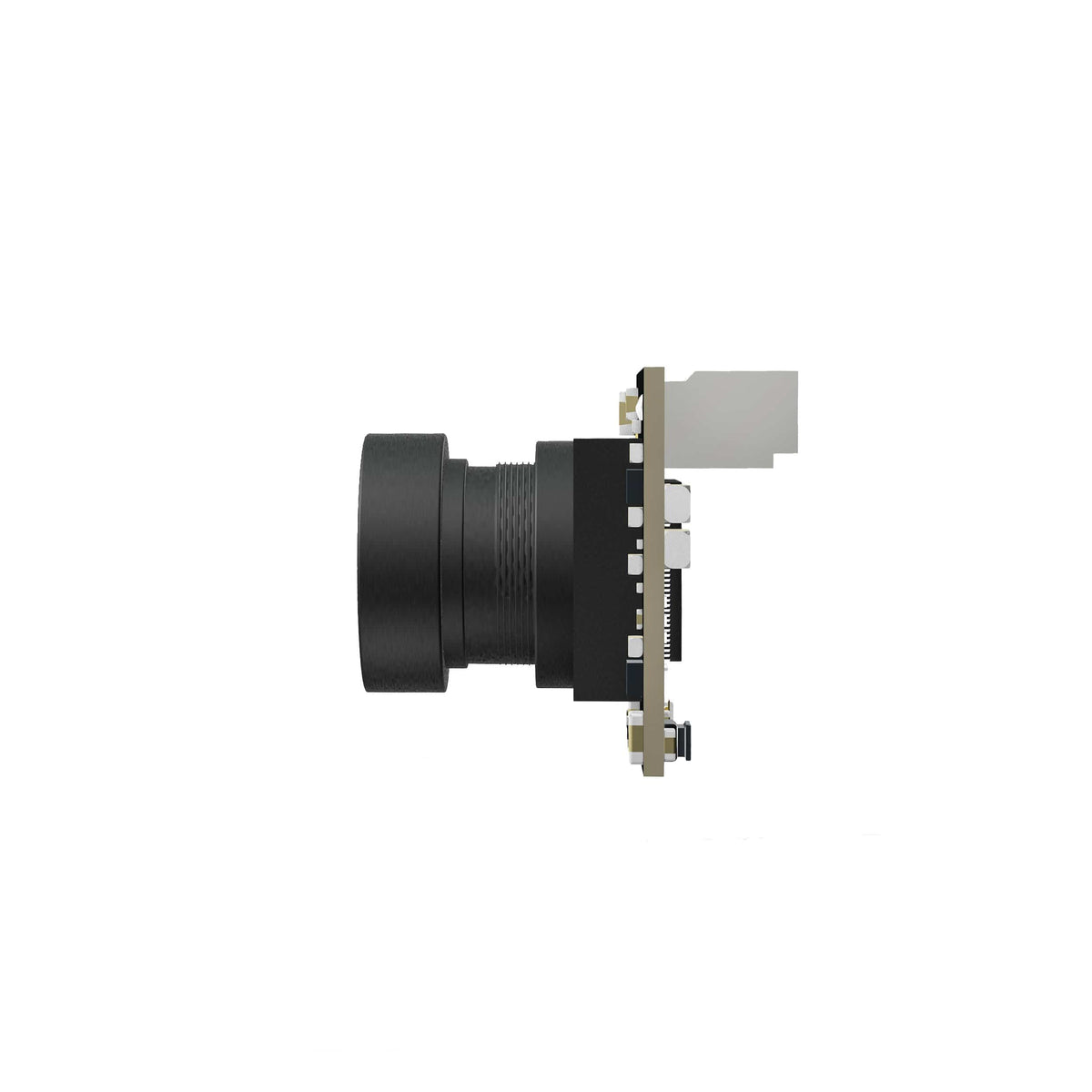

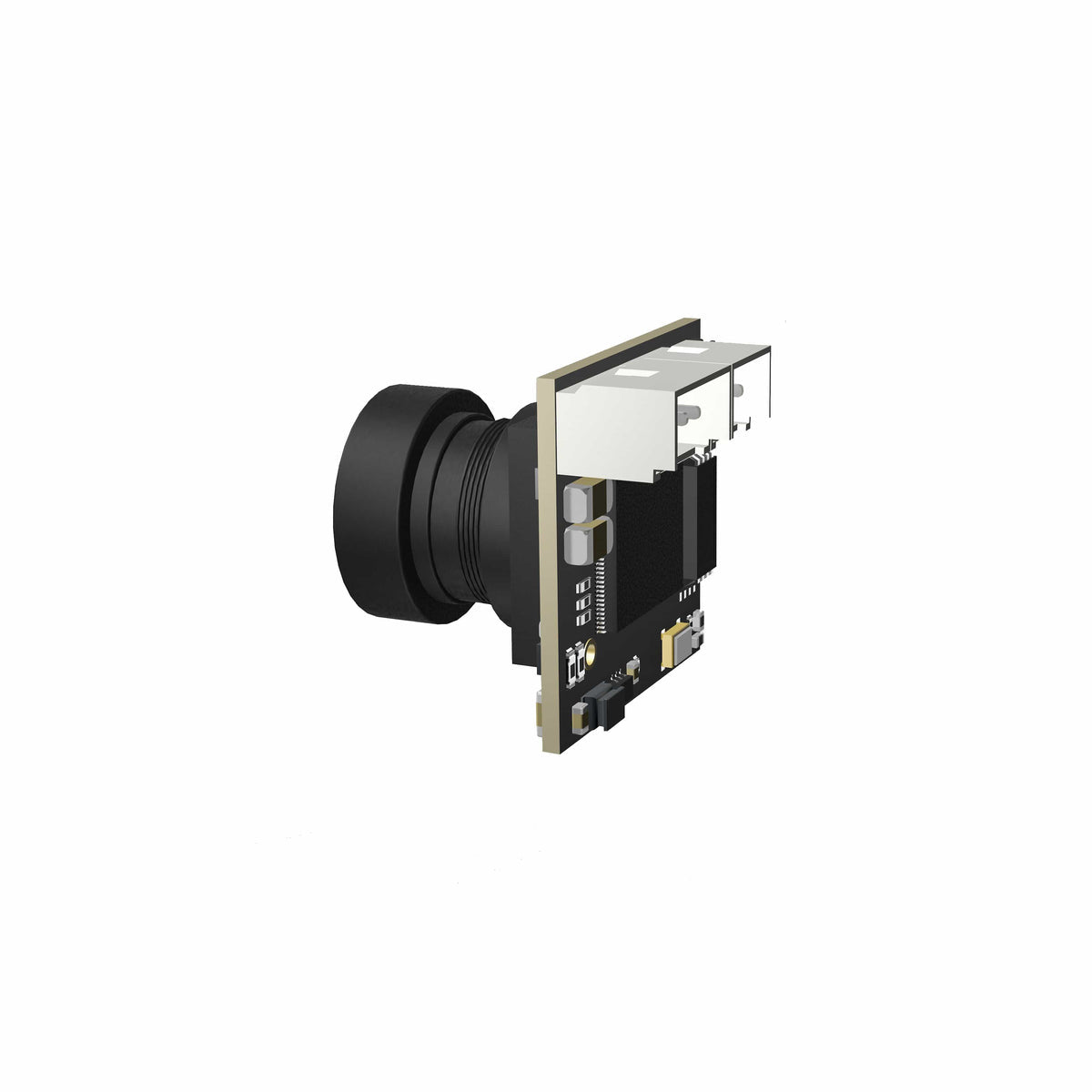

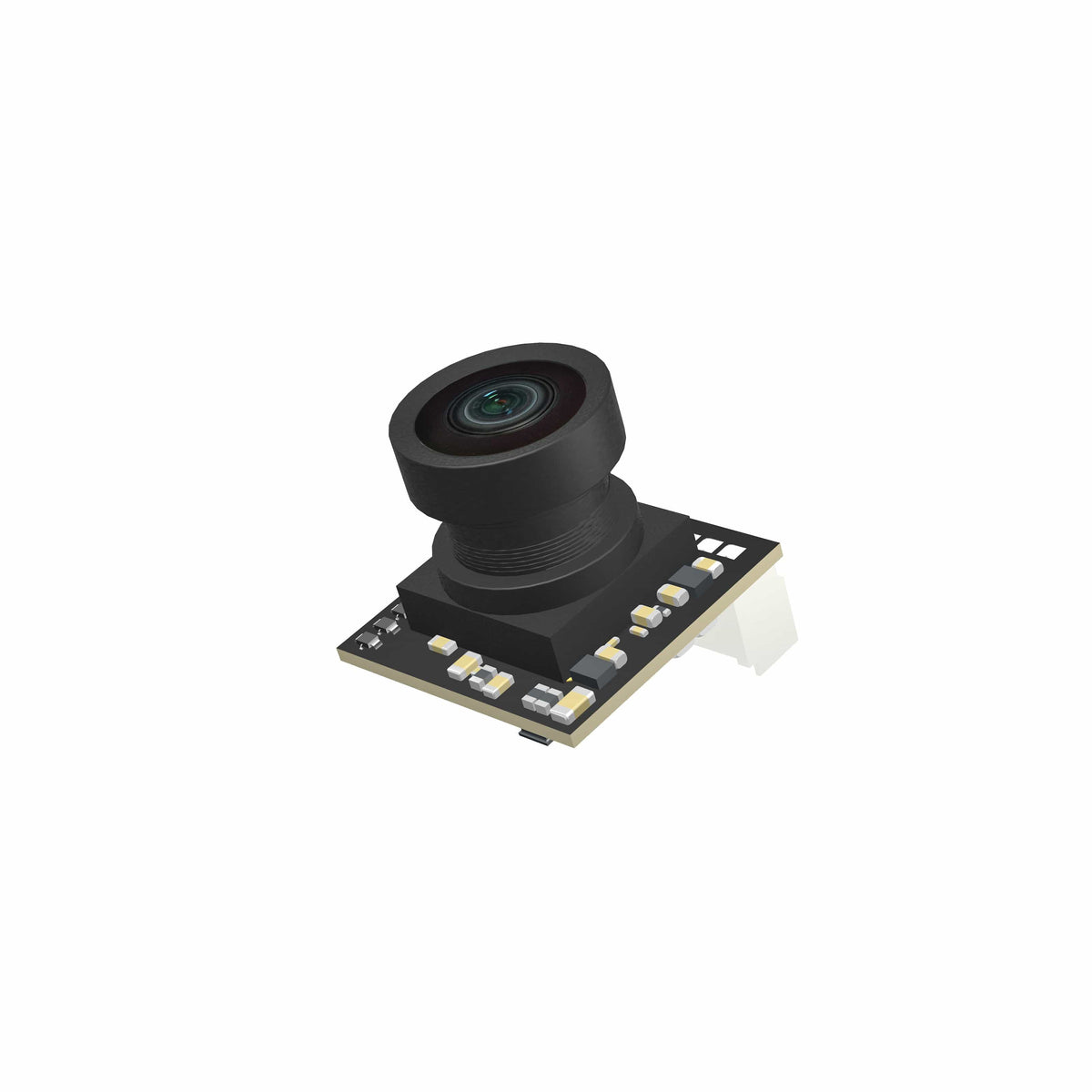

FPV Camera CaddxFPV Caddx Ant lite (16:9)
FPV Camera CaddxFPV Caddx Ant lite (16:9)
Brand: CaddxFPV
Regular price
€14,07
Regular price
€14,07
Sale price
€14,07
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Caddx Ant lite (16:9) The CADDXFPV Ant Lite analog camera is a micro camera that comes with a 1.8mm lens. Like the Caddx Ant camera, the Lite version uses the same electronics and sensors. The only difference is the camera lens and lens mount. The lens chosen for the Lite version was chosen from a dozen options and is slightly sharper than the standard Ant lens. The Ant Lite (FPVCycle Edition) offers a 4:3 or 16:9 camera aspect ratio, NTSC and PAL (switchable), 1/3" CMOS sensor, and global WDR, among other specs that make this camera great for small setups. ! Specifications Model: Caddx Ant lite Aspect ratio: 16:9 Image sensor: 1/3" CMOS sensor Horizontal resolution: 1200 TVL TV system: NTSC and PAL (switchable) Offer: Support Synchronization: Internal Electronic shutter: PAL: 1/50-100,000; NTSC: 1/60-100,000 S/N ratio: >52 dB (AGC OFF) Video output: CVBS Lens: 1.8mm/F2.5 Min. illumination: 0.001 Lux Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14 x 14 mm Wide power input: DC 3.7-18V Working temperature: -20°C +60°C Working humidity: 20%-80% Weight: 1.7g (N.W.) The package includes: 1 x CADDXFPV Ant Lite Analog Camera (FPV Cycle Edition)
