FC BETAFPV F722 2-6S 35A Toothpick Brushless ICM42688 BLHeli_S
FC BETAFPV F722 2-6S 35A Toothpick Brushless ICM42688 BLHeli_S
Brand: BETAFPV
Regular price
€94,99
Regular price
€94,99
Sale price
€94,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Please note! This model has been discontinued and will no longer be shipped. Please see the model that replaced it:
http s://www.hobbydrone.cz/en/f722-35a-aio-toothpick-brushles-fc--icm42688-v2-with-blheli_32-esc/
F722 2-6S 35A Carbonless Toothpick FC ICM42688 BLHeli_S

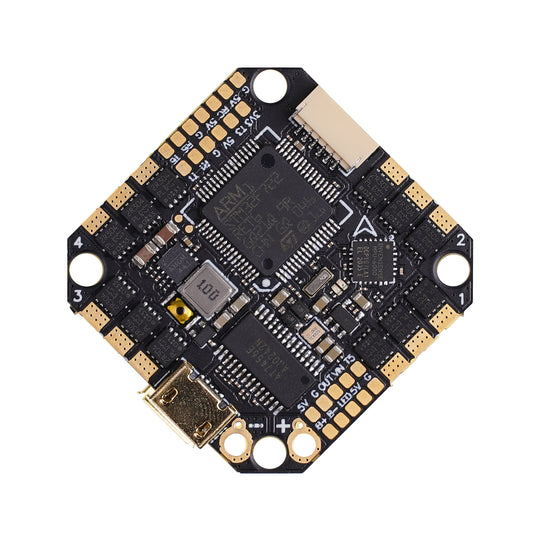

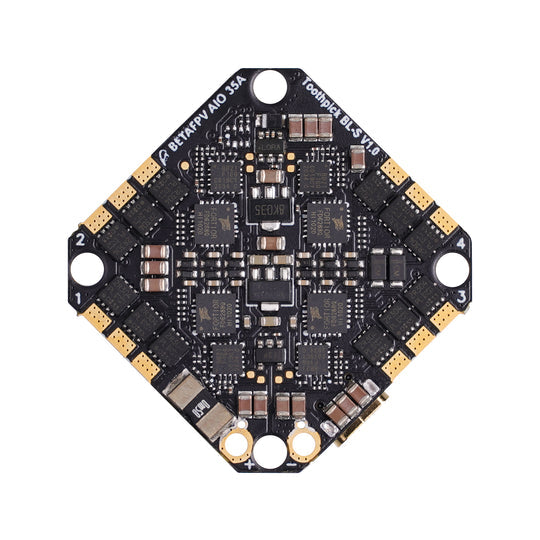

The F722 35A AIO Brushless Flight Controller is equipped with an STM32F722RET6 processor. This board offers enhanced performance and high processing speed, ensuring a stable and smooth flight experience for 4"-5" drones. It features a 6-pin plug-and-play port that allows direct connection to the HD Digital VTX without the need for soldering.
Key Features:
- Sufficient UART Ports: With 6 full UARTs available, the board provides the flexibility to connect various external components such as VTX, GPS and receivers.
-High Current Handling: Capable of handling 35A continuous current (40A surge), supports 2-6S lipo batteries, ensuring robust flight performance for drones.
FC Specifications:
Item: F722 35A AIO Brushless Flight Controller
Weight: 7.06g (BLHeli_S)
CPU: STM32F722RET6
Six-axis: ICM42688
Mounting hole size: 26x26mm
Firmware version: betaflight_4.3.0_STM32F7X2
OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
Support programmable LEDs like WS2812 etc
Built-in current sensor
ESC Specifications:
Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)
Input Voltage: 2S-6S Lipo
Continuous current: 35A
Peak current: 40A
ESC firmware: BLUEJAY G_H_30_48_v0.16 (BLHeli_S)
Indicators: Power Indicator (Red) / FC Indicator (Blue)
Capacity: CS/5x10x13mm/470μF/35V
Connector: 80mm 14AWG silicone cable with XT60
Recommended engines: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series
