Code: SKU:BE13420

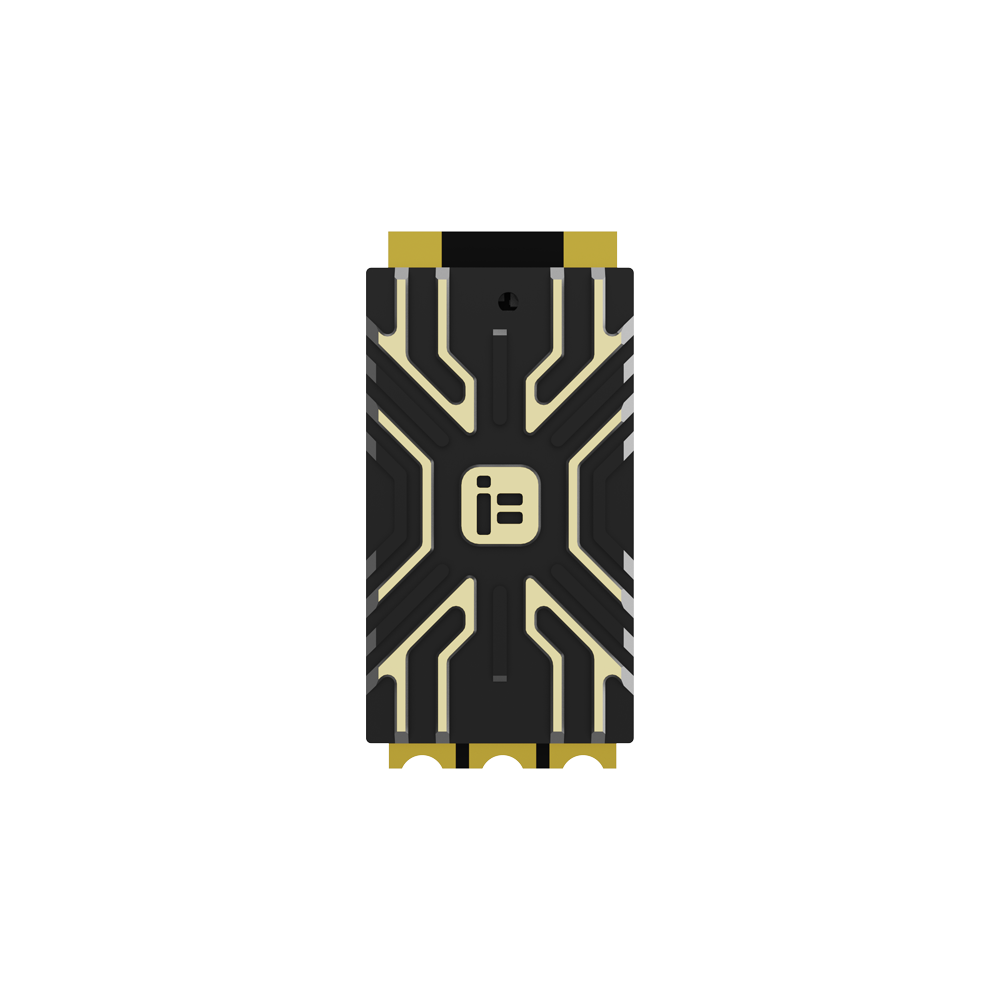

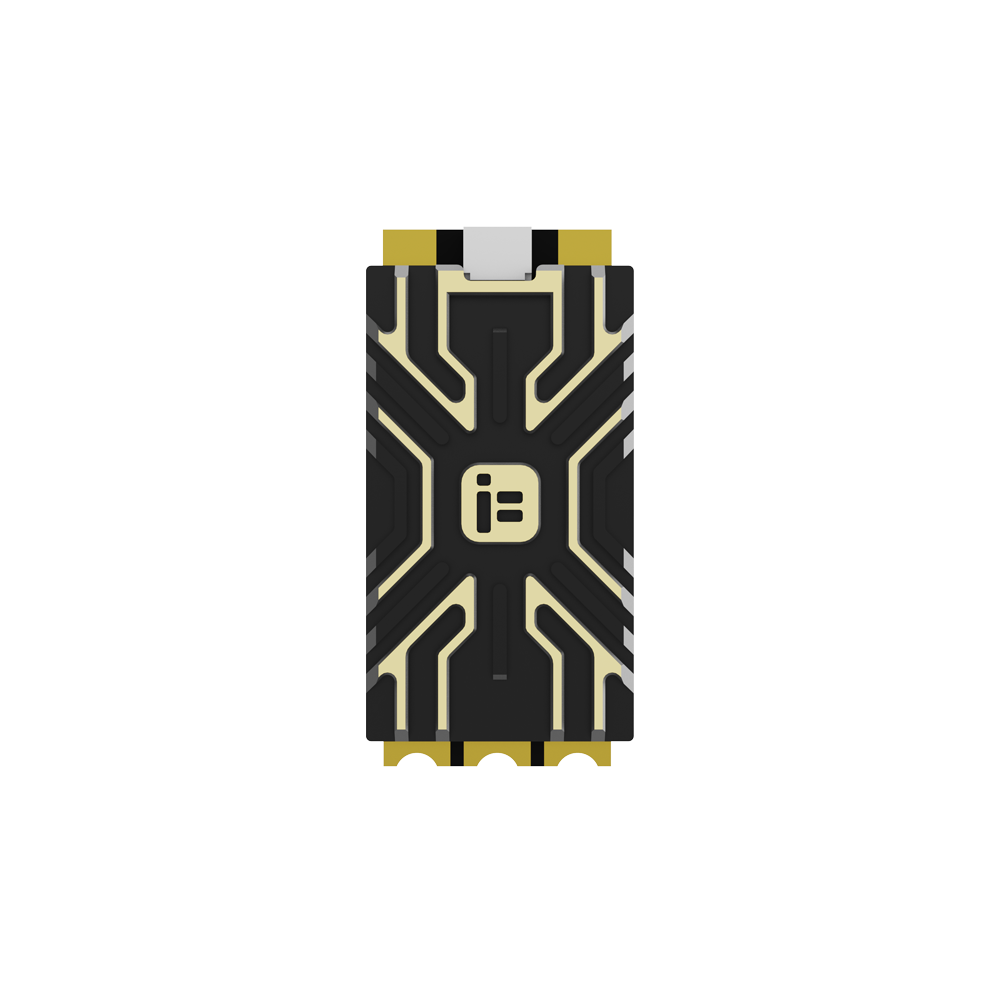

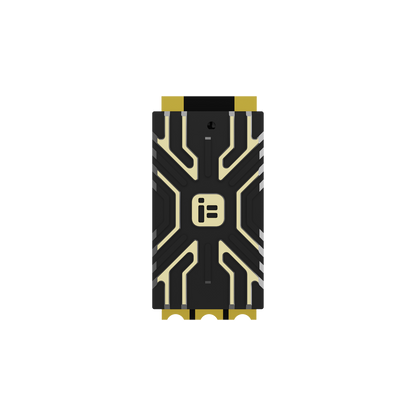

ESC iFlight BLITZ E80 Single
ESC iFlight BLITZ E80 Single
Brand: iFlight
Regular price
€67,89
Regular price
€67,89
Sale price
€67,89
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
BLITZ E80 Single ESC The BLITZ E80 BLHeli Dshot600 Single ESC has been designed to give the motors smooth performance with great stability and durability. 32-bit 48mHz G071 MCU and 11 pieces of TDK MLCC total 240UF Low ESR capacitors bring faster response and smoother flying experience. Function: - input 2-8S (max 8S); - 80A 8 layers 4OZ copper PCB, better operational load capacity; - 11 pcs TDK MLCC total 420UF low ESR capacitors, lower ripple and more stable; - Top MOSFET NTMFS5C430NL, stable and reliable; - 1 * 3528 LED for power-on display; - Rational layout, large solder pad, recesses and semi-circular holes allow each layer to be energized when powered on. Specifications Product name: BLITZ E80 Single ESC Input voltage: 2-8S Max. Continuous current: 80A Max. Explosive current: 100A MCU: G071 BEC: No Firmware: BLHeli32 Current sensor: Yes Telemetry: Supported Target: IFLIGHT_BLITZ_G2 Dimensions: L40 x W17 x W10 mm Weight: 14.5g (±2) Protocol: DShot DShot150/300/600/MultiShot/OneShot PWM Drive Support, support: - Current sensor - Telemetry output - Engine timing - Brake to a stop Electrical diagram: https://drive.google.com/drive/folders/1l10mEOXwERfLqRun0bbHMEJoxXV2RKN2 The package includes: 1 x BLITZ E80 Single ESC 1 x 50V 470UF capacitor 1 x ESC power cables and signal wires
