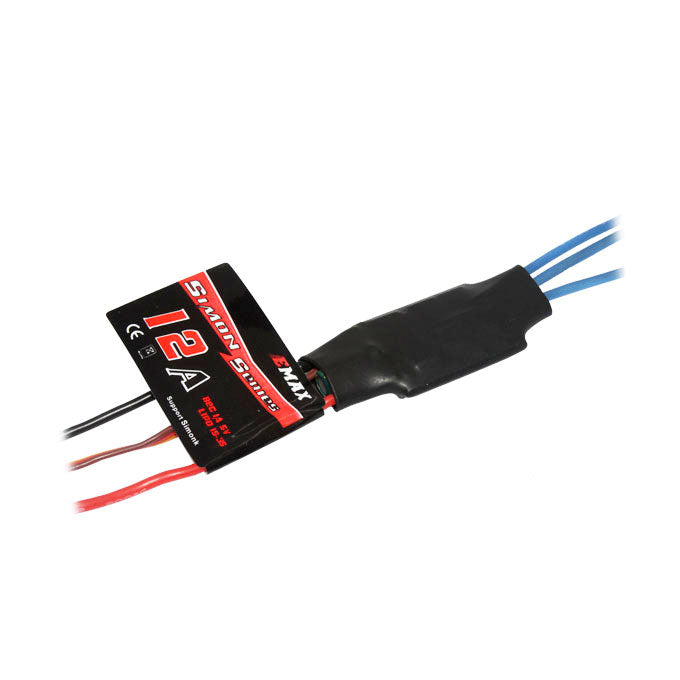

    Emax Simon 12A ESC

Emax Simon Series 12A electronic speed controller for multicopters.

Function:
- Based on Simon K firmware, further optimized for perfect disk performance.
- Low voltage protection, overheating protection and self-check function.
- Separate power supply for MCU and BEC, increasing ESC's ability to eliminate magnetic interference.
- ESC parameters can be set using a program card or transmitter.
- Throttle range can be adjusted to be compatible with different receivers.
- Equipped with built-in linear BEC
- Maximum speed: 210,000 rpm for 2-pole; 70,000 rpm for 6-pole; 35,000 rpm for 12 poles.

Specifications:
Subject: Simon Series 12A
Continuous current: 12A
Breaking current: 15A
Lipo: 1-3S
Programmable: Yes
BEC type: Linear 1A/5V
Weight with wire: 8g
Dimensions: 22 x 17 x 7 mm
