DJI Avata 2 Fly More Combo Drone (3 Batteries)
Experience immersive FPV flying with the DJI Avata 2 Fly More Combo. With DJI Goggles 3 equipped with HD micro-OLED displays and low video latency, you can enjoy a clear and responsive view. The RC Motion 3 controller lets you easily perform amazing aerial maneuvers, including flips, somersaults and drifts.
Capture stunning 4K/60fps HDR video with an ultra-wide 155° field of view, ideal for high-speed low-altitude flights. The improved 1/1.3-inch image sensor improves dynamic range and low-light performance for exceptional shots.
Built-in propeller guards increase safety and agility, while Turtle Mode allows the drone to roll back onto its feet after a crash. Thanks to the binocular fish sensors, you will enjoy stable and safe flights at low altitude and inside buildings. Avata 2 is designed to take your FPV flying to a new level.
Specifications:

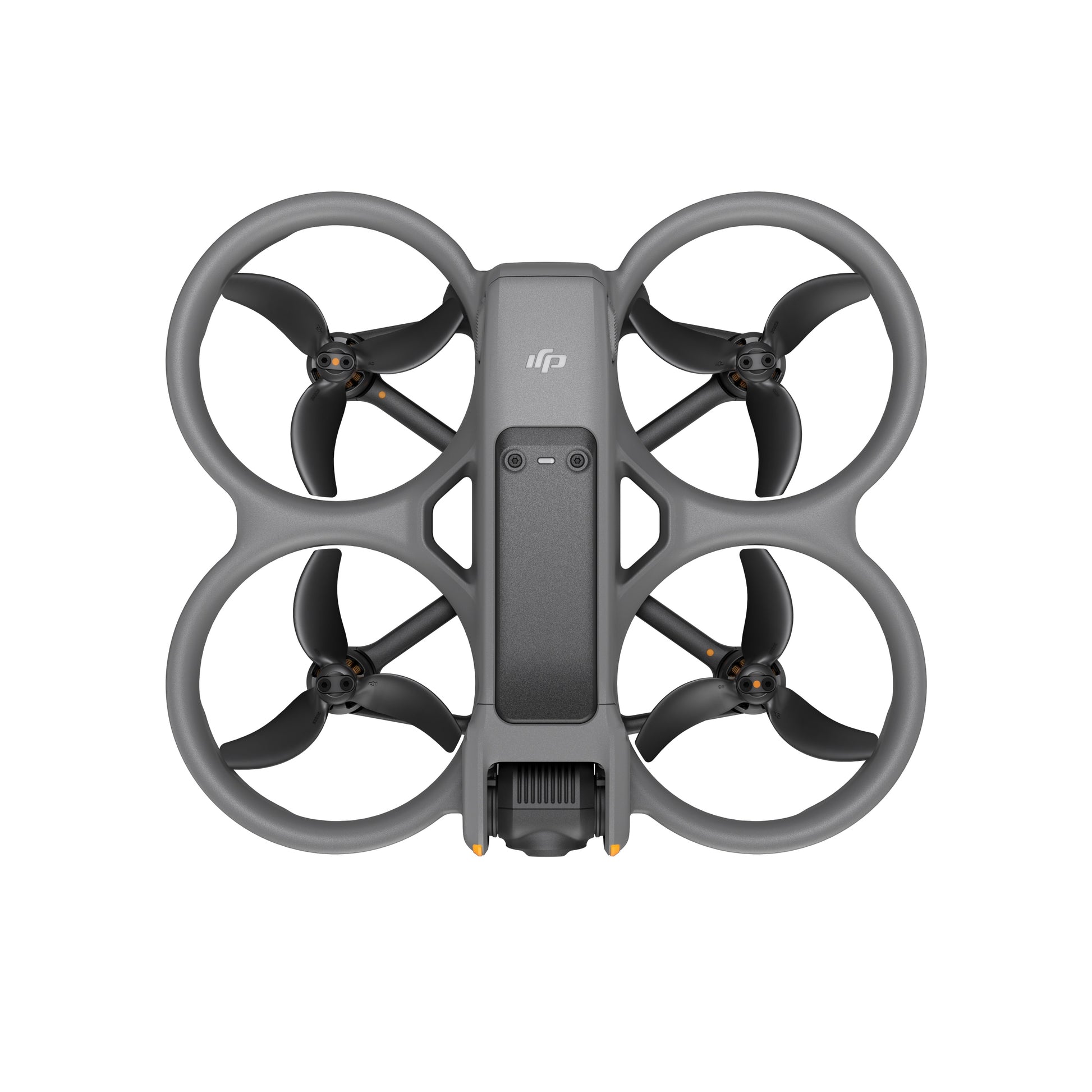

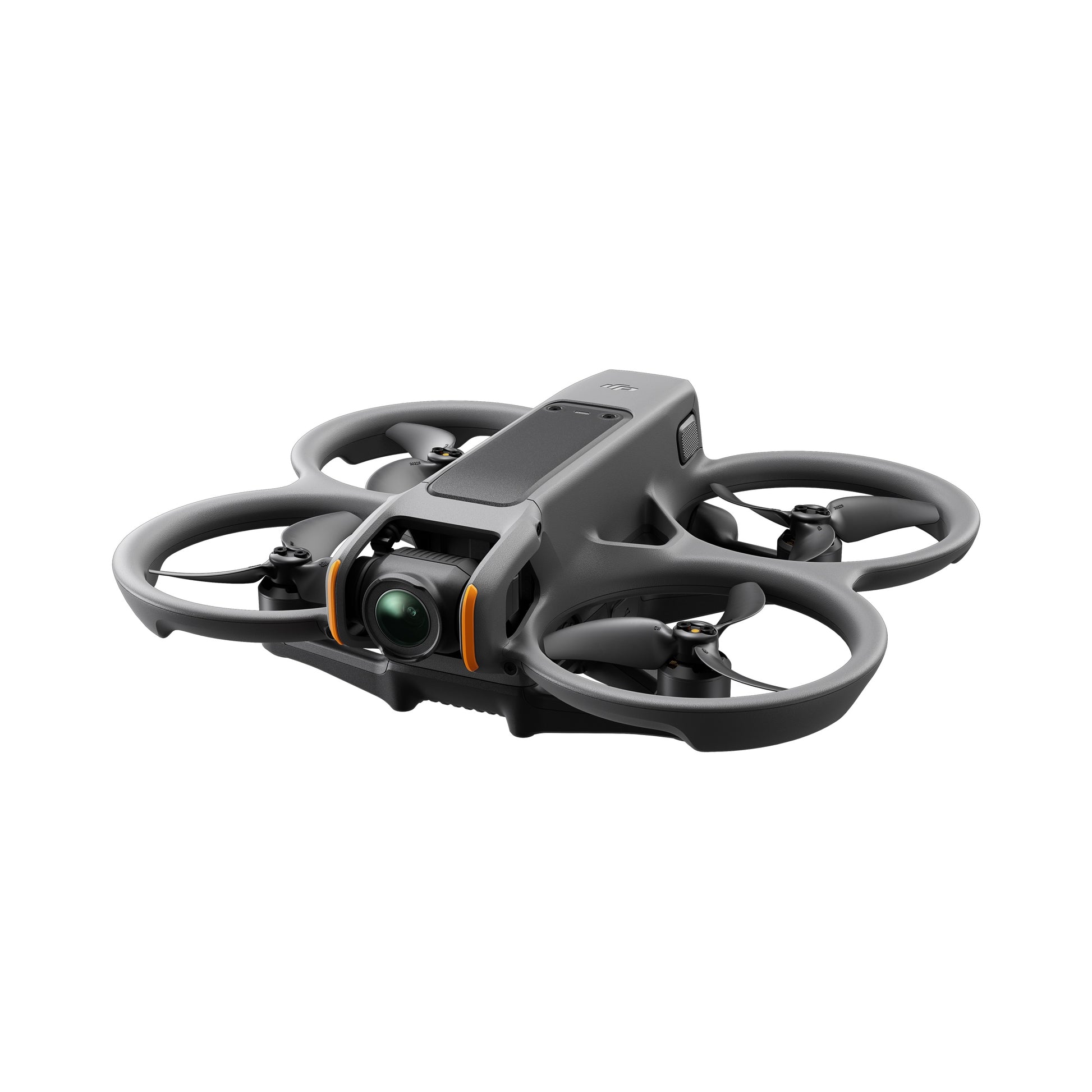

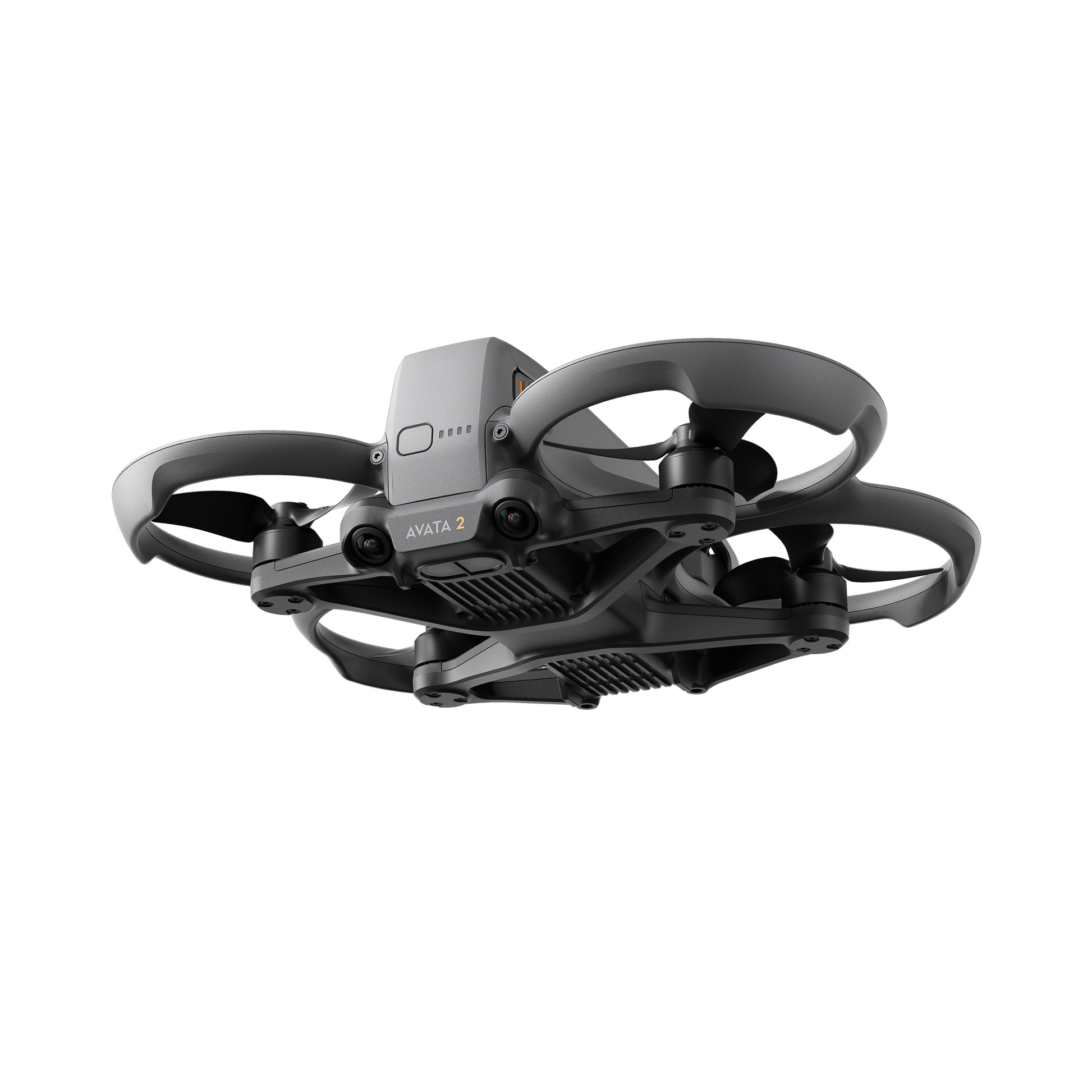

Aircraft: DJI Avata 2
Weight at take-off: Approx. 377 g
Dimensions: 185×212×64 mm
Maximum climb speed: 9 m/s
Maximum descent speed: 9 m/s
Maximum horizontal speed: 27 m/s
Maximum take-off height: 5000 m
Maximum time flight time: 23 minutes
Maximum hover time: 21 minutes
Maximum flight distance: 13 km
Operating temperature: -10° to 40° C
Global navigation satellite system: GPS + Galileo + BeiDou
Internal storage: 46GB
Class: C1 (EU)
Video transmission system: O4
Live quality: 1080p@30/50/60/100fps
Lowest latency with DJI Goggles 3:
- 1080p/100fps video quality: 24ms
- 1080p/60fps video quality: 40ms
Maximum video bitrate: 60 Mbps
Antennas: 4 antennas, 2T4R
Camera
Image sensor: 1/1.3 inch
Effective pixels: 12 MP
Field of view (FOV): 155°
ISO range: 100-25600
Max image size:
- 4000×2256 (16:9)
- 4000×3000 (4:3)
Shooting mode: Single shot
Photo format: JPEG
Video resolution:
- 4K (4:3): 3840×2880@30/50/60fps
- 4K (16:9): 3840×2160@30/50/60/100fps
- 2.7K (4:3): 2688×2016@30/50/60fps
- 2.7K (16:9): 2688×1512@30/50/120fps
- 1080p (4:3): 1440×1080@30/50/120fps
- 1080p (16:9): 1920×1080@30/50/120fps
Video format: MP4 (H.264/H.265)
Maximum video bitrate: 130Mbps
Supported file system: exFAT
Color mode: Standard, D-Log M
Camera field of view: Supports normal mode, wide-angle mode and ultra-wide-angle mode.
Gimbal
Stabilization: Single-axis mechanical gimbal (tilt)
Mechanical range: Tilt -95° to 90°
Control range: Tilt -85° to 80°
Maximum control speed (tilt): 100°/s
Vibration angular range: ±0.01°
Intelligent flight battery
Capacity: 2150 mAh
Weight: About 145 g
Standard voltage: 14.76 V
Maximum charging voltage: 17 V
Battery type: Li-ion
Energy: 31.7 Wh@0.5C
Charging temperature: 5° to 40° C (41° to 104° F)
Charging time:
With charging hub (maximum charging power 60 W):
- From 0 to 100%: approx. 45 minutes
- From 10 to 90%: approx. 30 minutes
Direct charging of the drone (maximum charging power 30 W):
- From 0 to 100%: approx. 88 minutes
- From 10 to 90%: approx. 60 minutes
Recommended charger: DJI 65W Portable Charger, DJI 65W Car Charger, USB Power Delivery charger
Charging hub for batteries
Input: 5-20 V, max. 3 A
Output (energy storage): Max. 65 W
Output (charging): Max. 17 V
Output (USB): 5 V, 2 A
Charging type: Three batteries charged consecutively.
Compatibility: DJI Avata 2 Intelligent Flight Battery

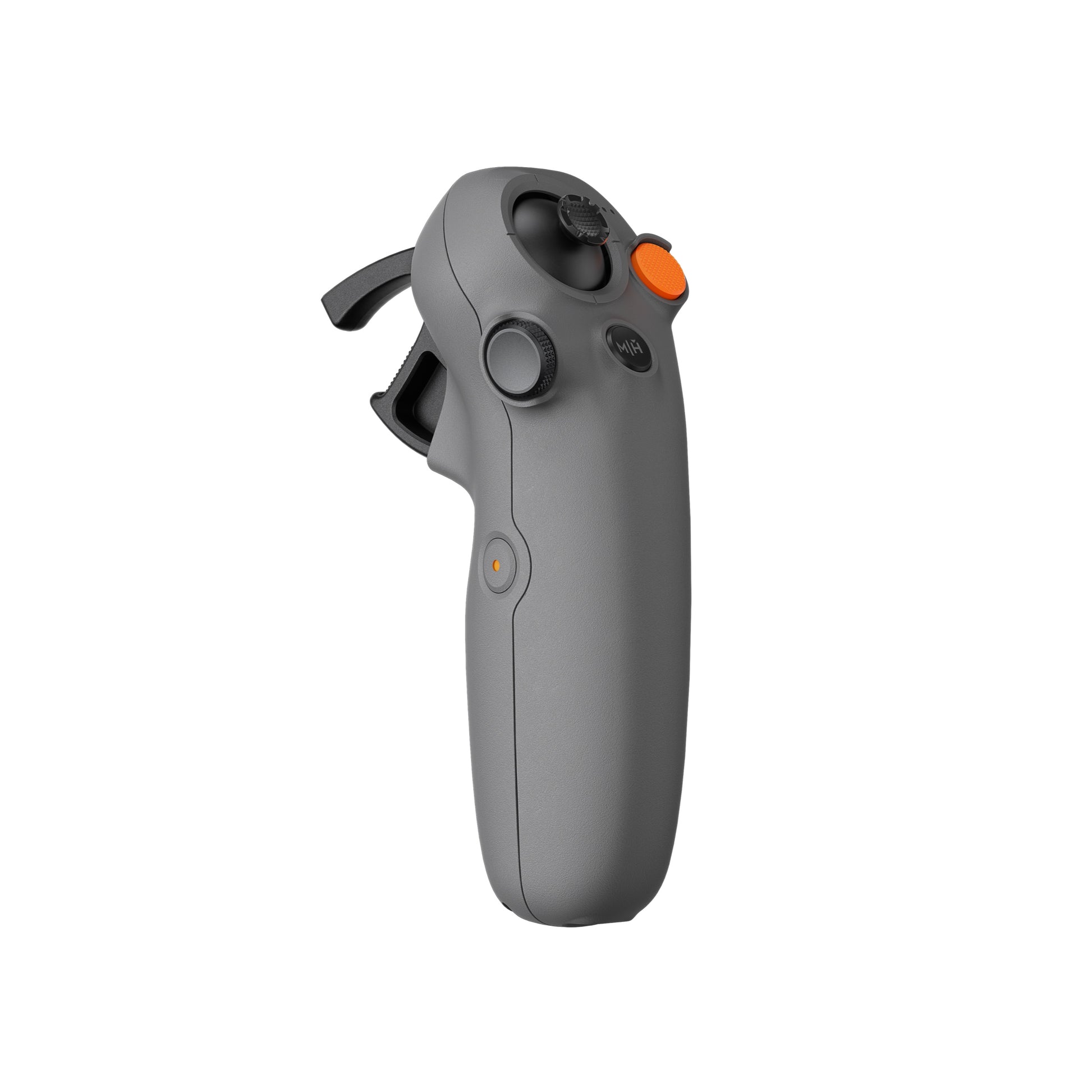

DJI FPV Remote Controller 3
Maximum operating time: About 10 hours
Operating temperature: -10° to 40°C (14° to 104°F)
Charging temperature: 0° to 50°C (32° to 122°F)
Charging time: 2 hours
Charging type: 5V, 2A
Battery capacity: 2600 mAh
Weight: Approx. 240 g
Dimensions: 165×119×62 mm
Operating frequency: 2.400-2.4835 GHz
Transmitter power (EIRP): 2.400 GHz
＜26 dBm (FCC)
＜20 dBm (CE/SRRC/MIC)

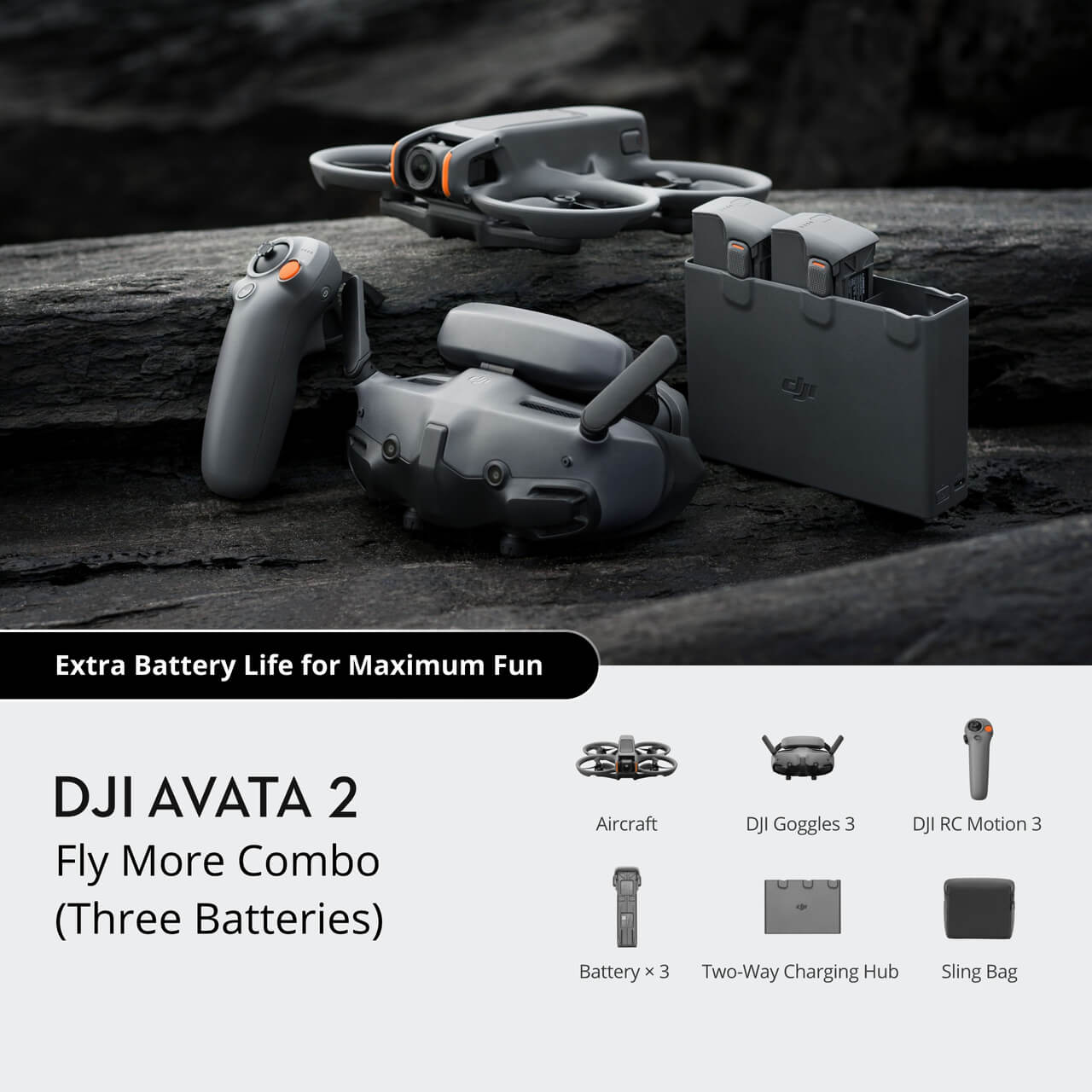

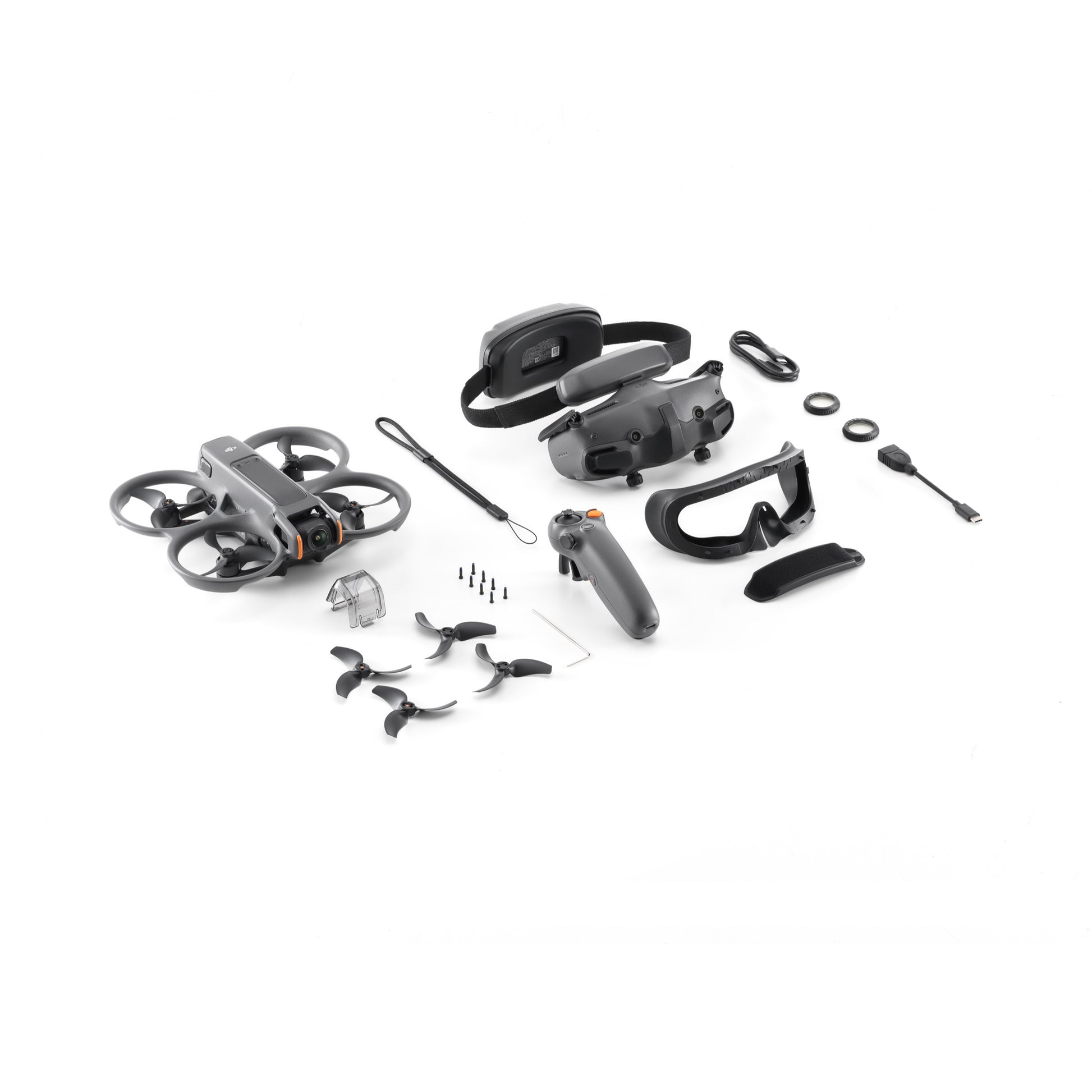

Package includes:
1x DJI Avata 2

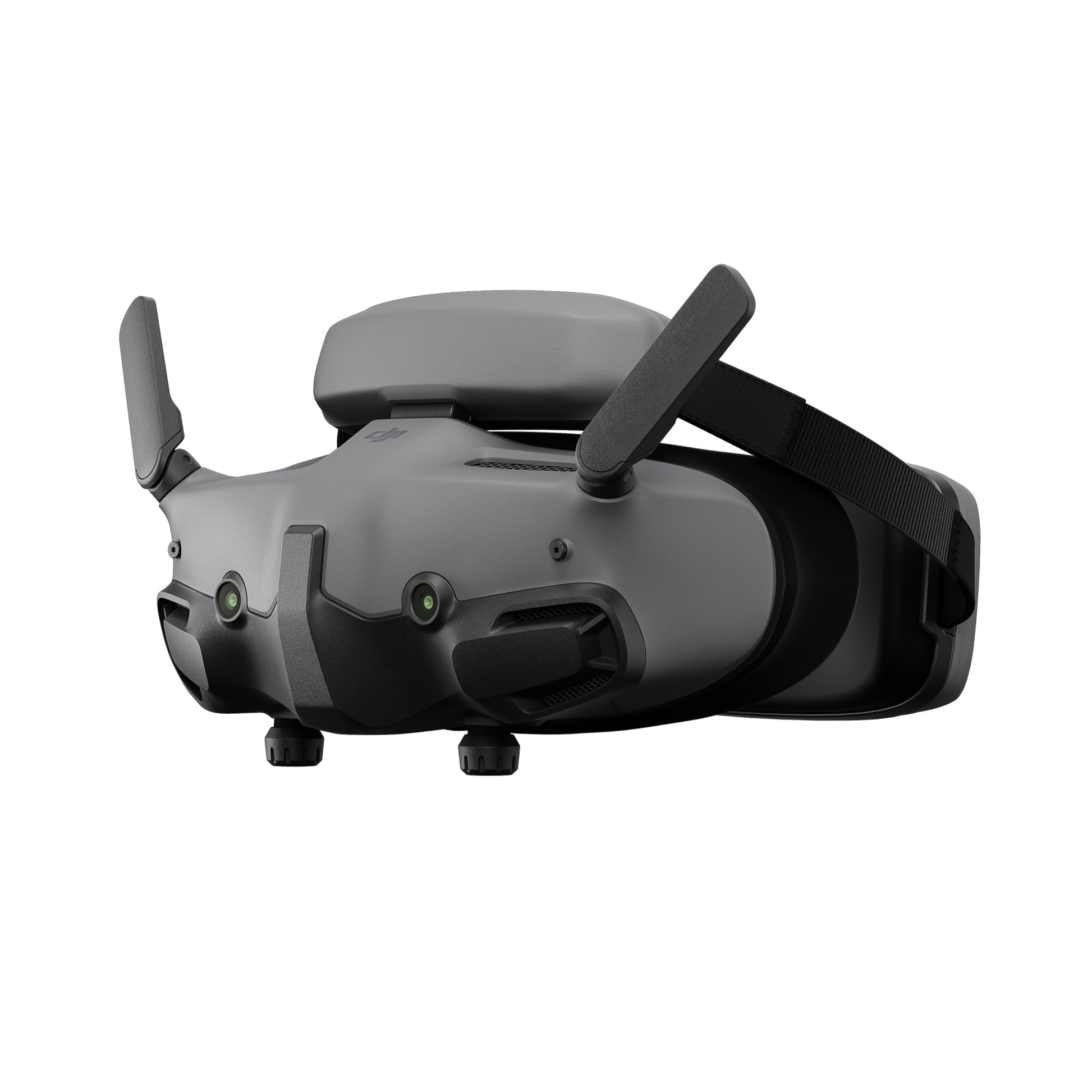

1x DJI Goggles 3
1x DJI RC Motion 3
3x DJI Avata 2 Intelligent Flight Battery
1x DJI Avata 2 Bidirectional Charging Hub
1x DJI Sling Bag
4x DJI Avata 2 Propellers (Pair)
16x DJI Avata 2 Propeller Screws
1x DJI Avata 2 gimbal protection
1x DJI Goggles 3 -2.0D correction lenses (pair)
1x USB-C OTG cable
1x Type-C to Type-C PD cable
1x DJI RC Motion 3 neck strap
1x Screwdriver
