Code: SKU:FW19003762

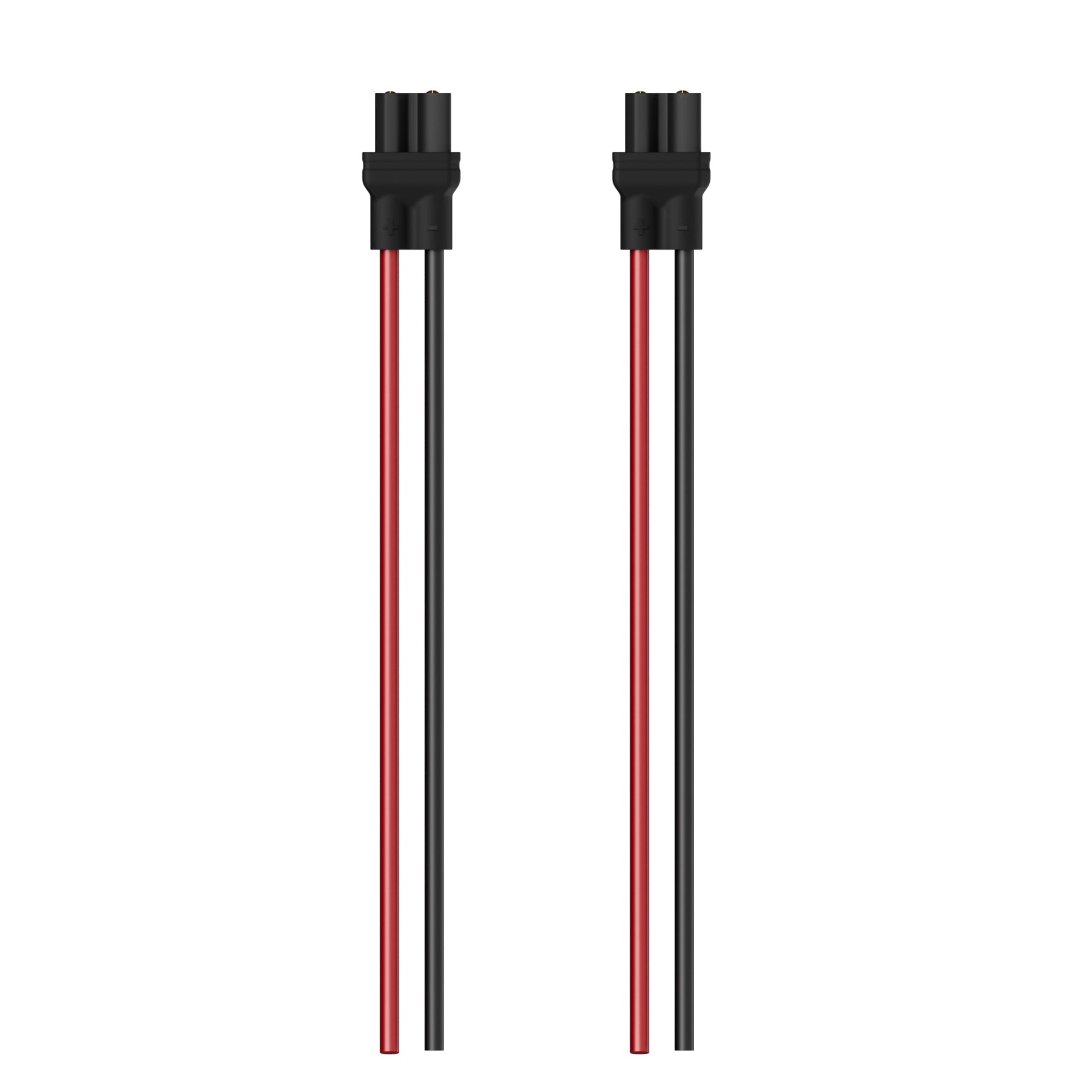

Connector FLYWOO XT30UP-F Black Pigtail 20awg Female (2 pcs)
Connector FLYWOO XT30UP-F Black Pigtail 20awg Female (2 pcs)
Brand: FLYWOO
Regular price
€2,67
Regular price
€2,67
Sale price
€2,67
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Connector FLYWOO XT30UP-F Black Pigtail 20AWG (2 pcs) The FLYWOO XT30UP-F Black Pigtail Connector with 20AWG Silicone Wire is a lightweight and durable solution designed to eliminate common problems such as broken connectors and loose connections in FPV drones and RC models. Thanks to the original casing, the Amass XT30 provides secure connection, easy handling and comfortable insertion and extraction. It is rated for 15 A continuous and up to 30 A peak current, which guarantees efficient energy transfer even in compact assemblies. Non-flammable PA insulation and low contact resistance (0.7 mΩ) ensure safe operation in a wide temperature range. Designed for long life — up to 1000 cycles. Specifications: Model: XT30UP-F Wire gauge: 20AWG Rated current: 15 A Peak current: 30 A Contact resistance: 0.7 mΩ Breakdown resistance: 500 V DC Operating temperature: -20 °C to 120 °C Inflammability class: UL94-V0 Color: Black Insulation material: PA (polyamide) Recommended number of cycles: 1000+ The package contains: 2 × FLYWOO XT30UP-F pigtail connectors (20AWG)
