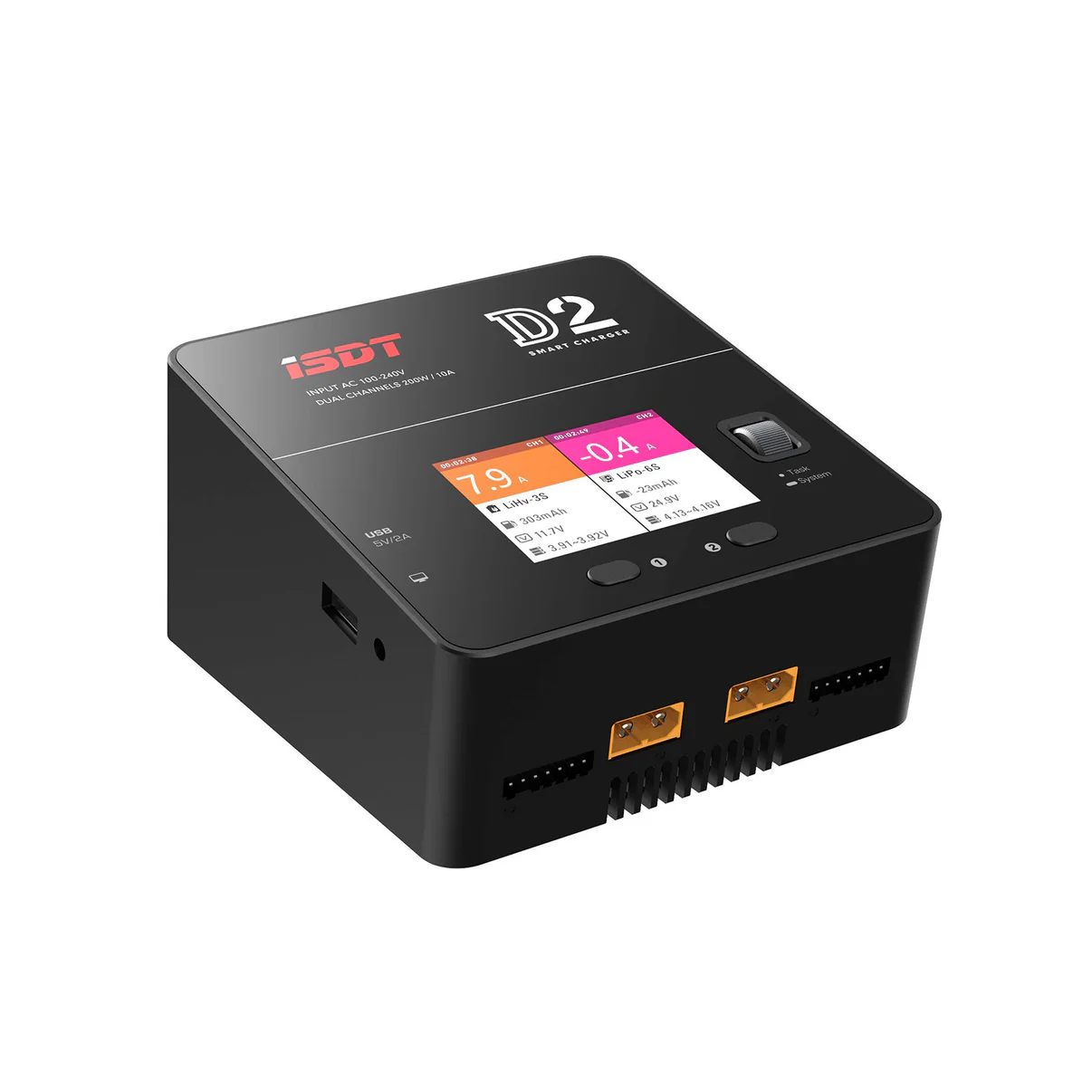

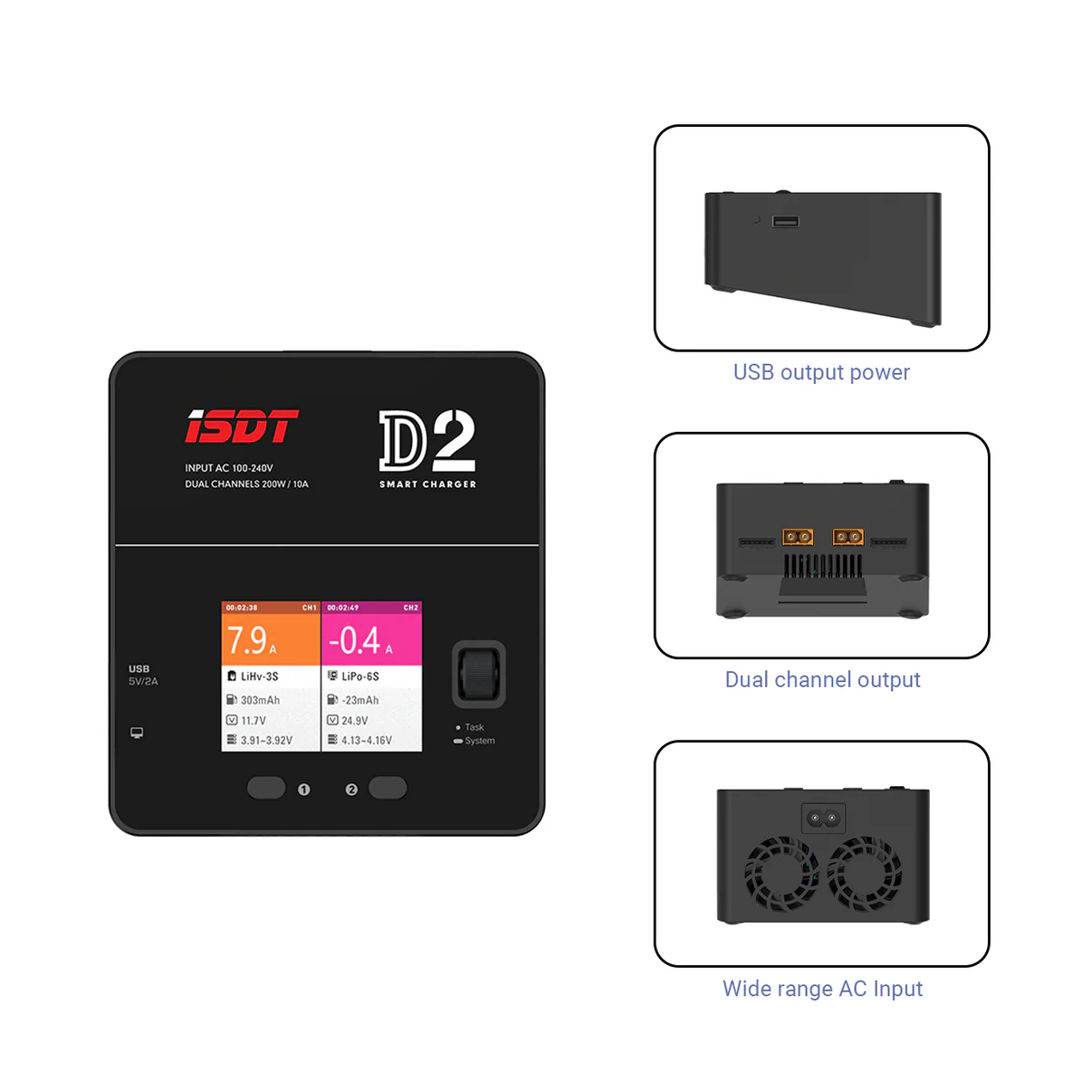

ISDT D2 Mark 2 Charger

Functions

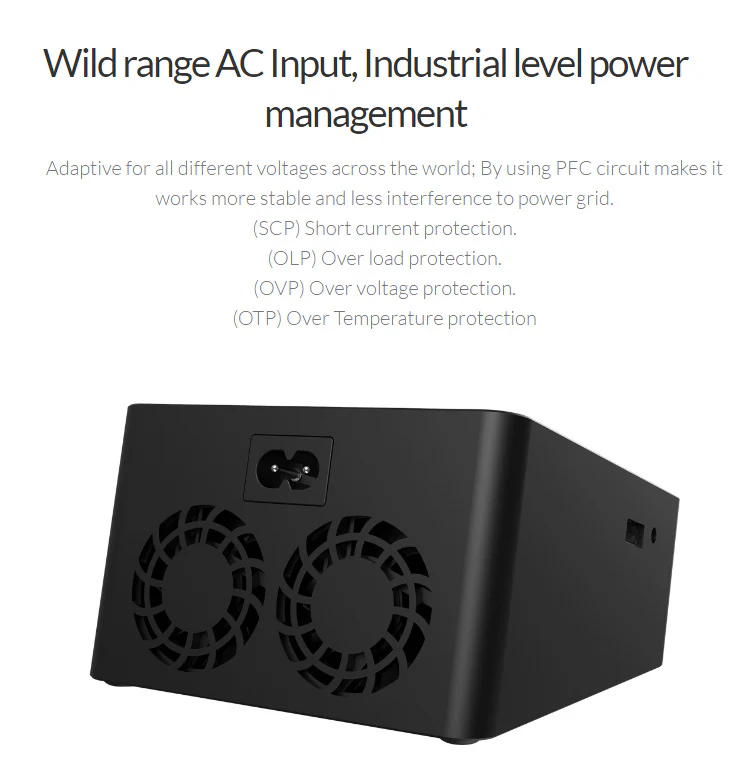

Wide AC Input Range: Designed with industrial power management system, works with AC 100-240V input voltage range.
DC Power Mode: Channel 1 (CH1) can be used as a dedicated DC power supply as needed.

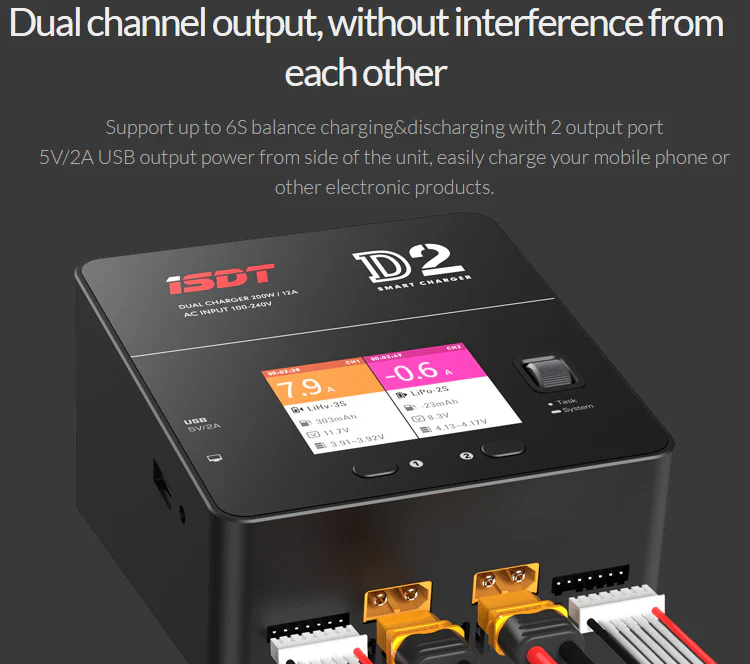

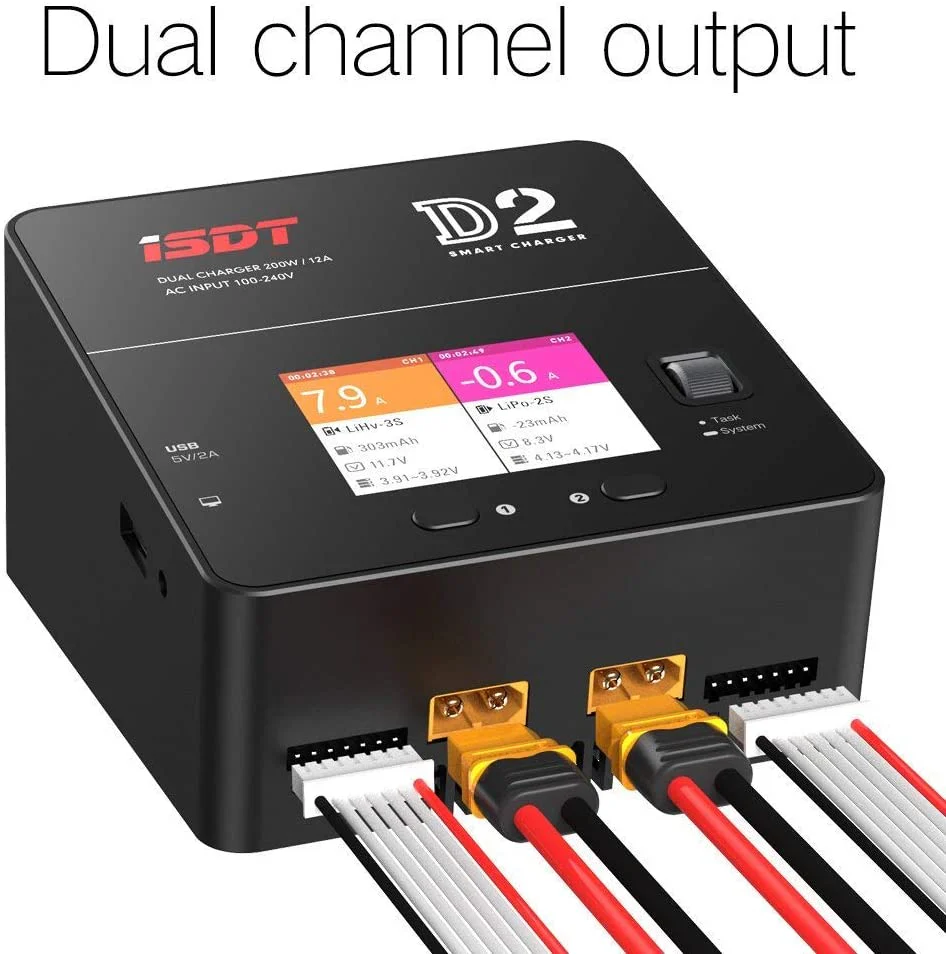

200W Dual Output: Capable of simultaneously charging or discharging two batteries without interfering with each other.
Dual Task Mode: Both channels can charge, discharge or store batteries with identical settings.
Parallel Task Mode: Maximize charging performance by concentrating output on one battery for faster results.
Excellent performance to space ratio: Designed for high energy efficiency.
Advanced Cooling System: Equipped with a dual fan for improved thermal management and extended charger life.
Smart Charging OS: Runs on its own intelligent operating system optimized for charging.
Multi-Language Support: A fully localized interface makes it easy to use in different languages.

Specifications

Input voltage: AC 100-240V
Charging current: 0.1-12.0A per channel (up to 2 channels)
Discharge current: 0.1-1.5A per channel (up to 2 channels)
Maximum charging capacity: 200W
Maximum discharge capacity: 15W per channel
Balance current: 1.5A per cell (for both channels)
Balance cells: Support 2-6S batteries on each channel
Supported battery types:
- LiFe, LiIon, LiPo, LiHv: 1-6S
- NiMH/NiCd: 1-16S
- Lead batteries (Pb): 1-12S
Display: 2.4-inch IPS LCD with 320x240 resolution for clear visibility.
Operating temperature: 0-40°C
Storage temperature: -20 to 60°C
Dimensions: 120 x 108 x 70 mm
Weight: 510g

Package contents

1x ISDT D2 Mark 2 Charger
1x AC power cable
