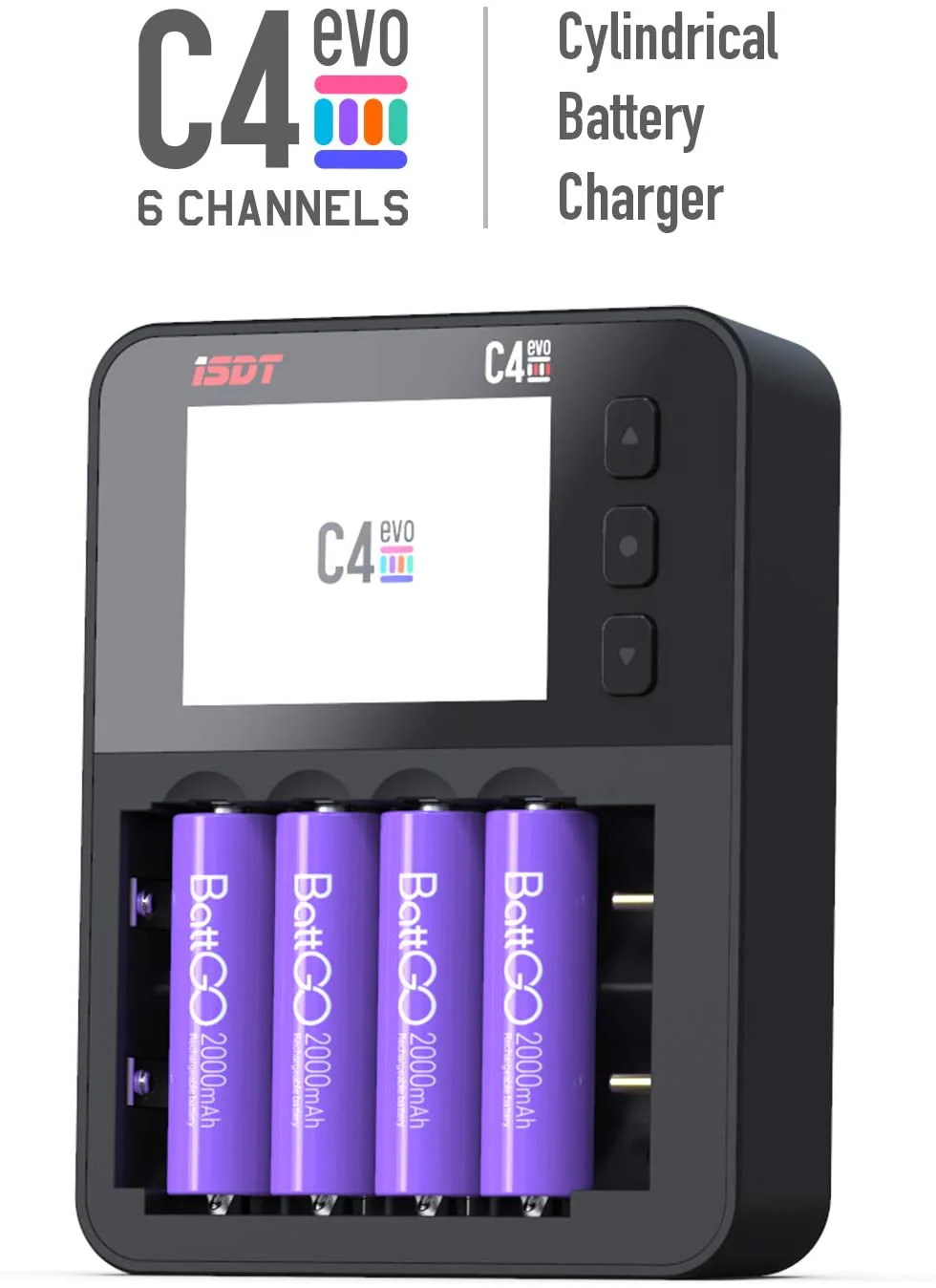

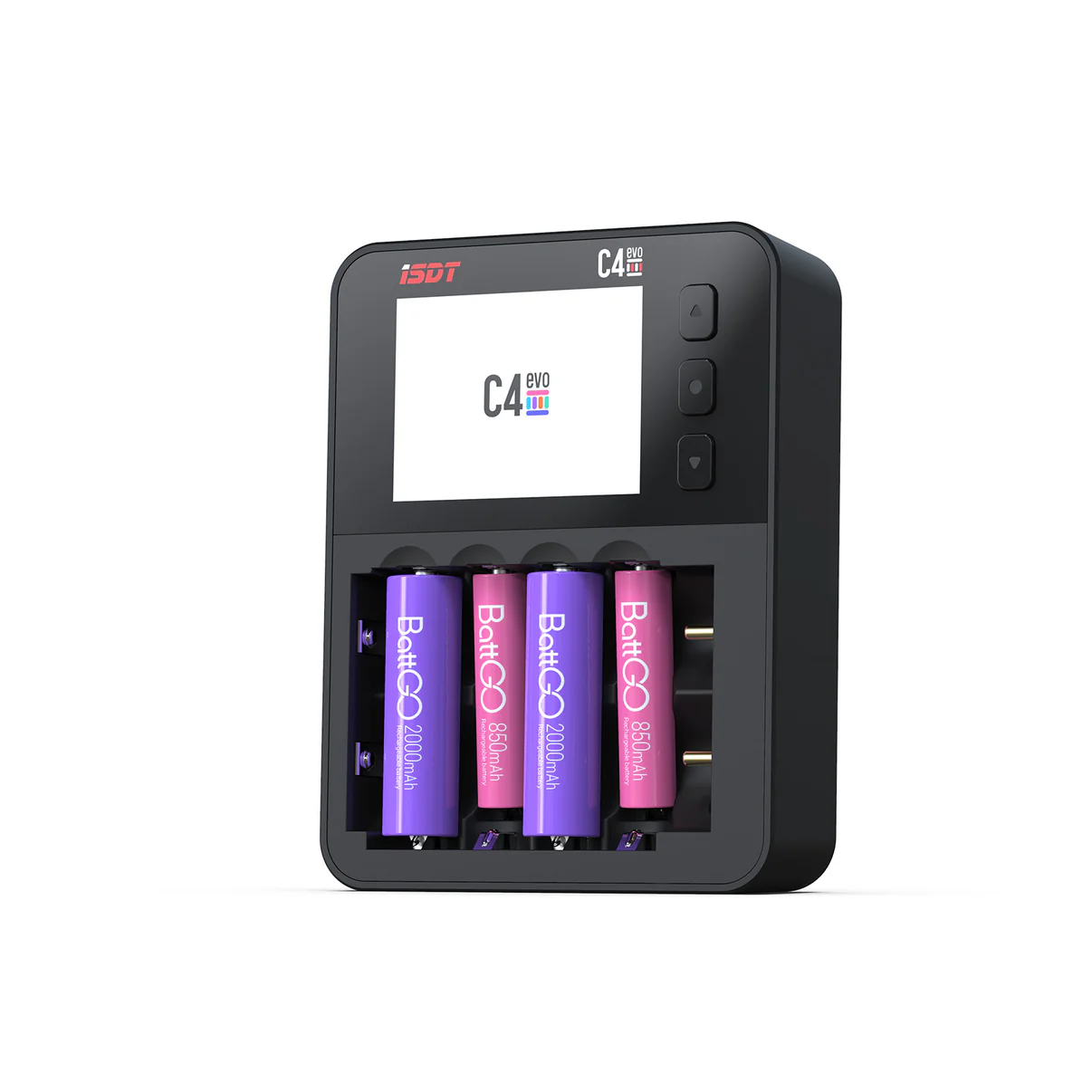

Charger ISDT C4 EVO 36W 6-Channel Smart
Charger ISDT C4 EVO 36W 6-Channel Smart
Brand: ISDT
Couldn't load pickup availability
- Description
- Related Files
- Discussion
C4 EVO Smart Battery Charger is a very versatile and advanced charger that offers six independent charging slots with different functions and supports different types of batteries. Here is a detailed overview of its features and specifications:
Key features:

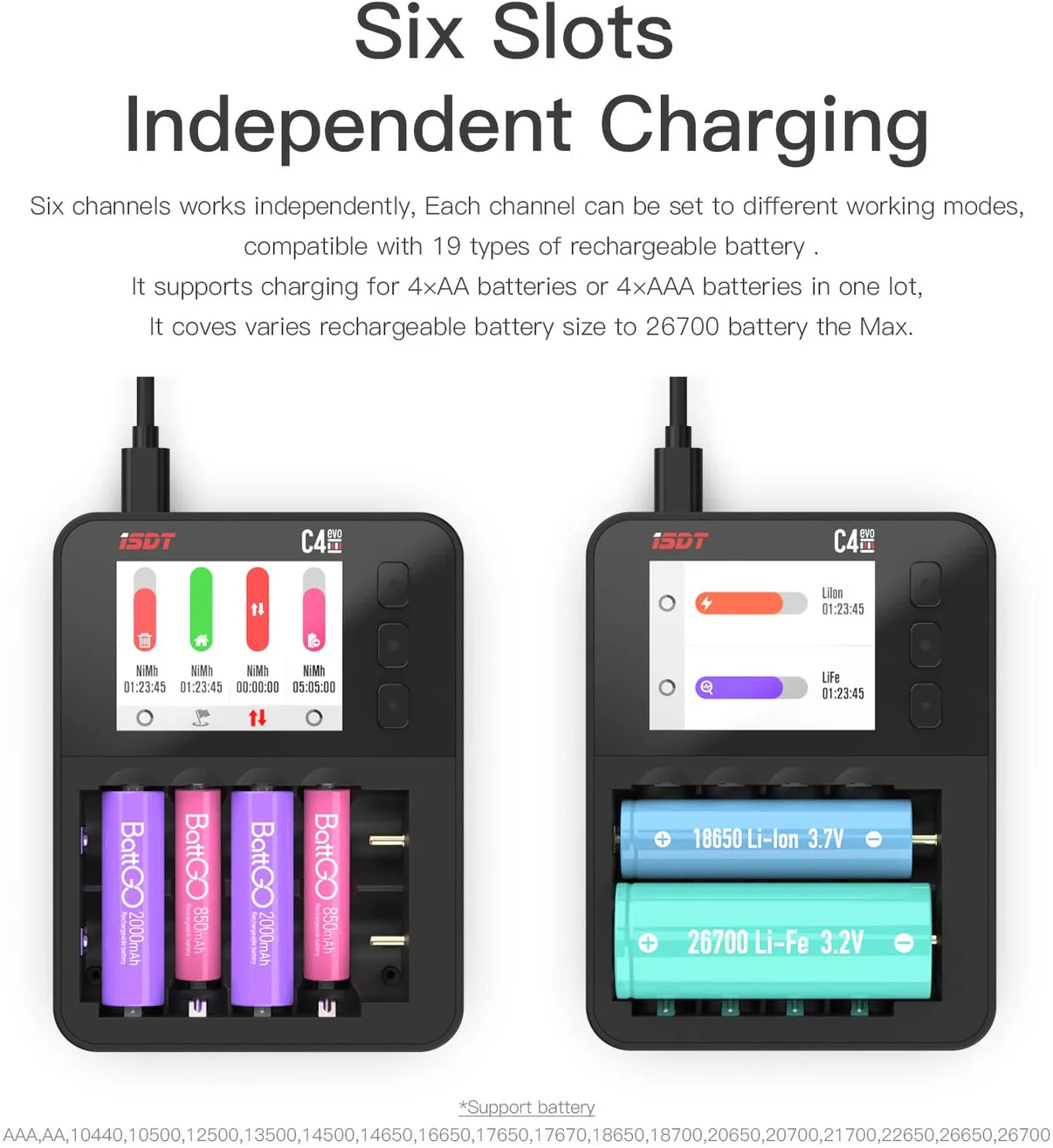

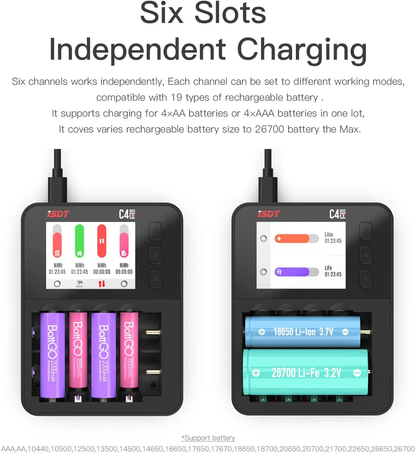

Six independent charging slots:
Each of the six channels operates independently, allowing users to charge different types of batteries simultaneously. It is compatible with 19 types of rechargeable batteries, including popular sizes such as AAA, AA, 18650, 21700 and many more, up to the larger 26700 batteries. It supports charging 4 AA or 4 AAA batteries in one sitting.

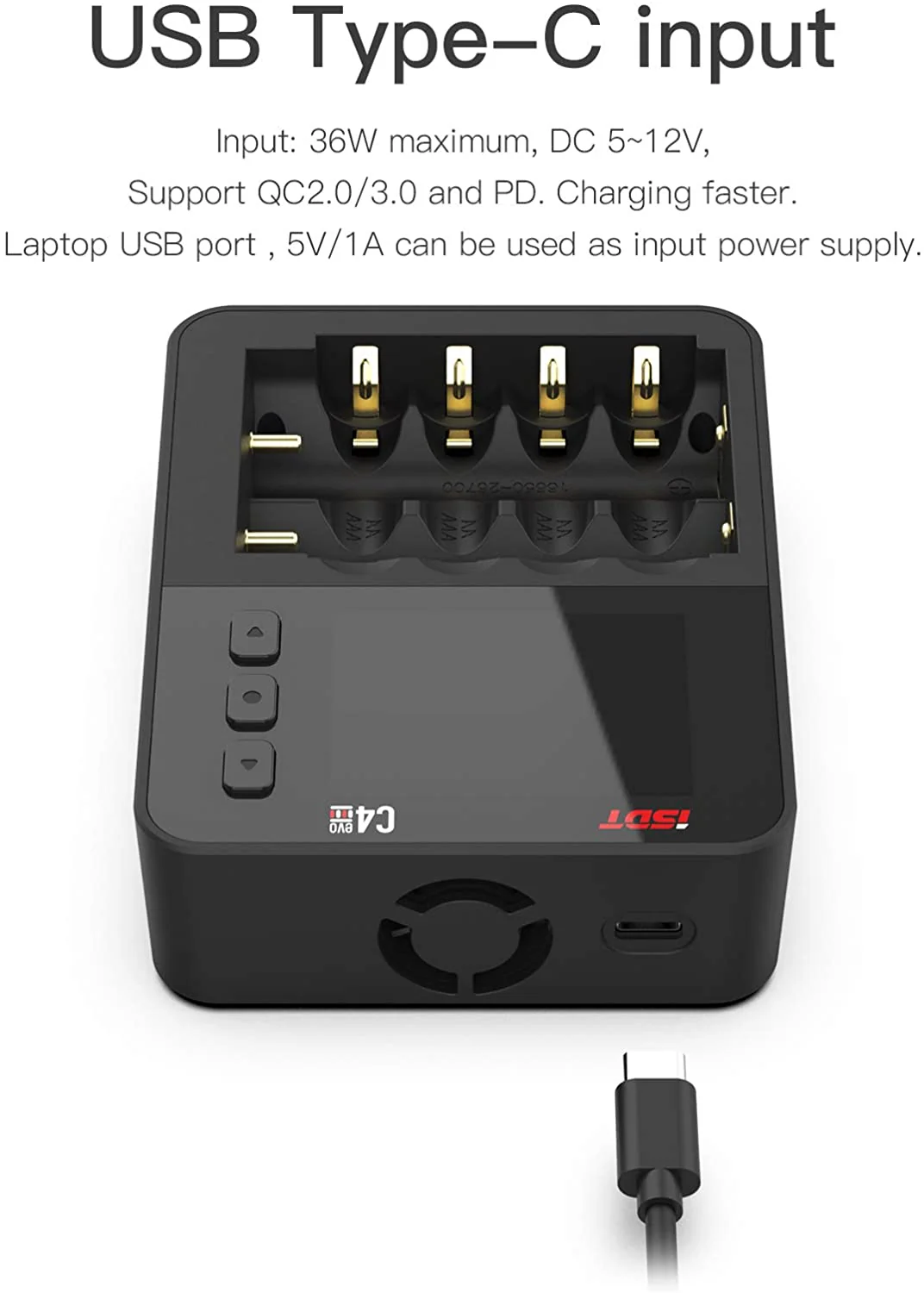

USB Type-C input with fast charging:
The charger supports USB Type-C input with a maximum power of 36W. It works in the voltage range of DC 5~12V and supports QC 2.0/3.0 and PD (Power Delivery) protocols, which enables faster charging. The charger can also be powered from a laptop's USB port (5V 1A).
Real-time monitoring:
C4 EVO constantly monitors charging and discharging processes and provides detailed data such as:
- Charge/discharge percentage
- Battery type
- Charging time
- Battery internal resistance (IR)
- Current temperature
- Voltage, current and capacity change curve This ensures accurate and efficient charging and informs the user about the status of each battery.
Comprehensive battery protection:
The charger automatically adjusts charging parameters for optimal performance and includes various safety features to protect batteries, such as:
- Protection against overheating
- Overcharge protection
- Incorrect polarity protection (in both vertical and horizontal configurations) These protections not only increase safety, but also extend the life of your batteries by charging and discharging correctly.
Quiet fan and gold-plated spring:
The quiet fan function solves the noise problems of previous models and ensures quiet operation. The gold-plated spring increases the durability of the C4 EVO, extending its life thanks to better contact reliability and corrosion resistance.
Operating modes:
- Charging: Standard charging mode.
- Discharge: Removes stored energy from the battery.
- Storage: Prepares the battery for long-term storage.
- Destruction: Safely discharges and disposes of batteries.
- Cycle: Automatically charges and discharges the battery to improve performance and lifespan.
- Activation: Revives overcharged batteries.
- Analysis: Provides detailed analysis of battery performance parameters.
Specifications:
Supported battery types:
- Li-Ion, LiFe, LiHv, NiMH, NiZn, Eneloop
Charging current range:
- Horizontal slots: 0.1 – 3.0A
- Vertical slots: 0.1 – 1.5A
Discharge current range:
- Horizontal slots: 0.1 – 1.5A
- Vertical slots: 0.1 – 1.0A

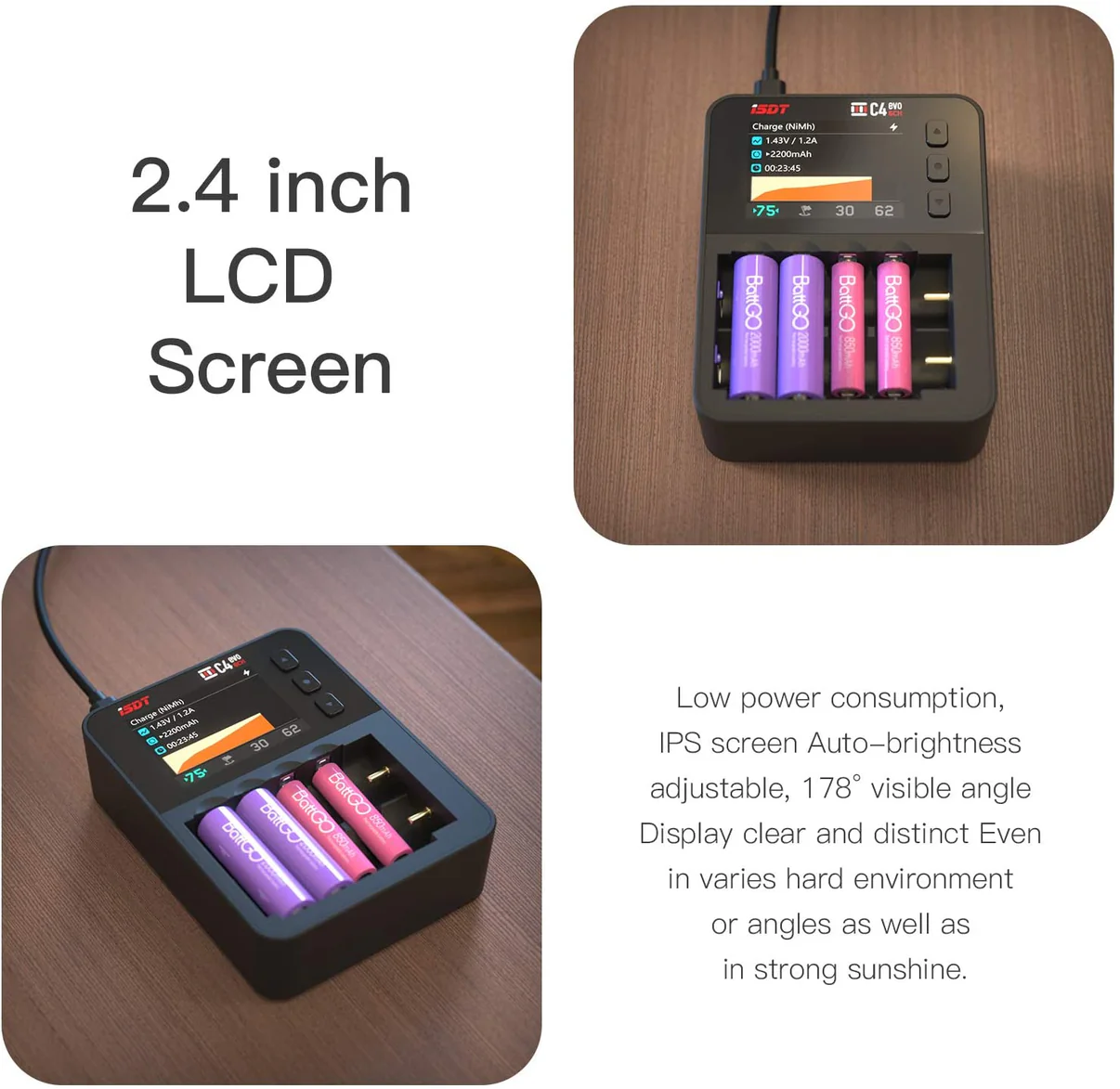

Display:
- 320×240 IPS LCD screen providing clear and detailed information on battery status.
Temperature sensors:
- Equipped with 6 internal temperature monitoring sensors.
External ports:
- USB output via Type-C.
Firmware Update:
- Firmware can be updated, ensuring future features and improvements.
Emergency withdrawal:
- Less than 0.05mA/battery, ensuring minimal power consumption when not in use.
Security Features:
- Incorrect polarity protection: Ensures correct battery insertion with vertical and horizontal protection.
- Protection against overheating: Automatically adjusts operation to prevent overheating.
- Overcharge protection: Prevents batteries from being overcharged, extending their life and increasing safety.
