Charger ISDT C4 AIR 40W 4-Channel Smart
Charger ISDT C4 AIR 40W 4-Channel Smart
Brand: ISDT
Couldn't load pickup availability
- Description
- Related Files
- Discussion

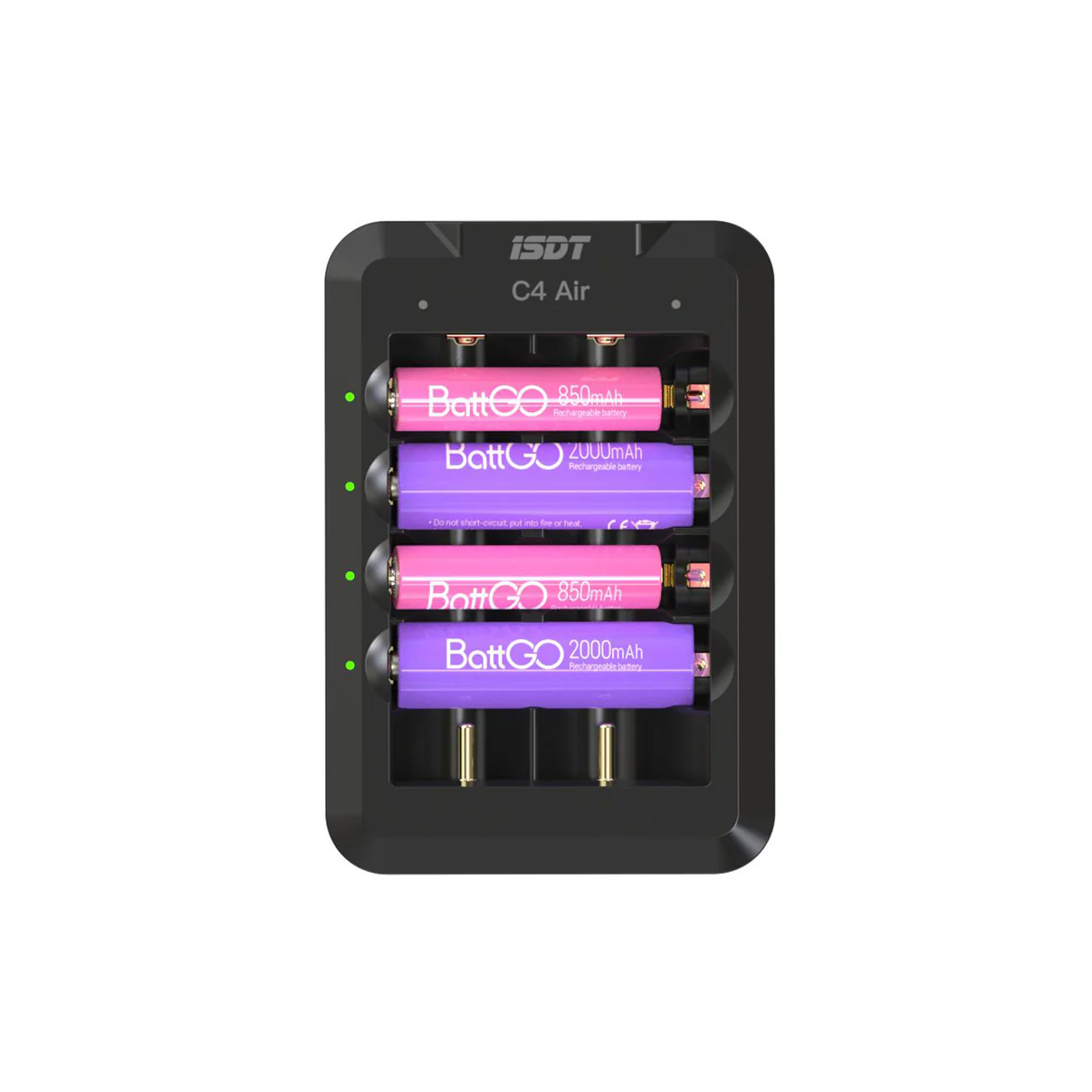

C4 Air Universal 6-Slot Cylindrical Battery Charger is a versatile and compact charging solution designed for a wide range of rechargeable batteries. Thanks to an innovative design that integrates modern features such as control via a mobile app and fast charging, it offers greater comfort and higher performance. Here is an overview of its key features and specifications:
Key features:

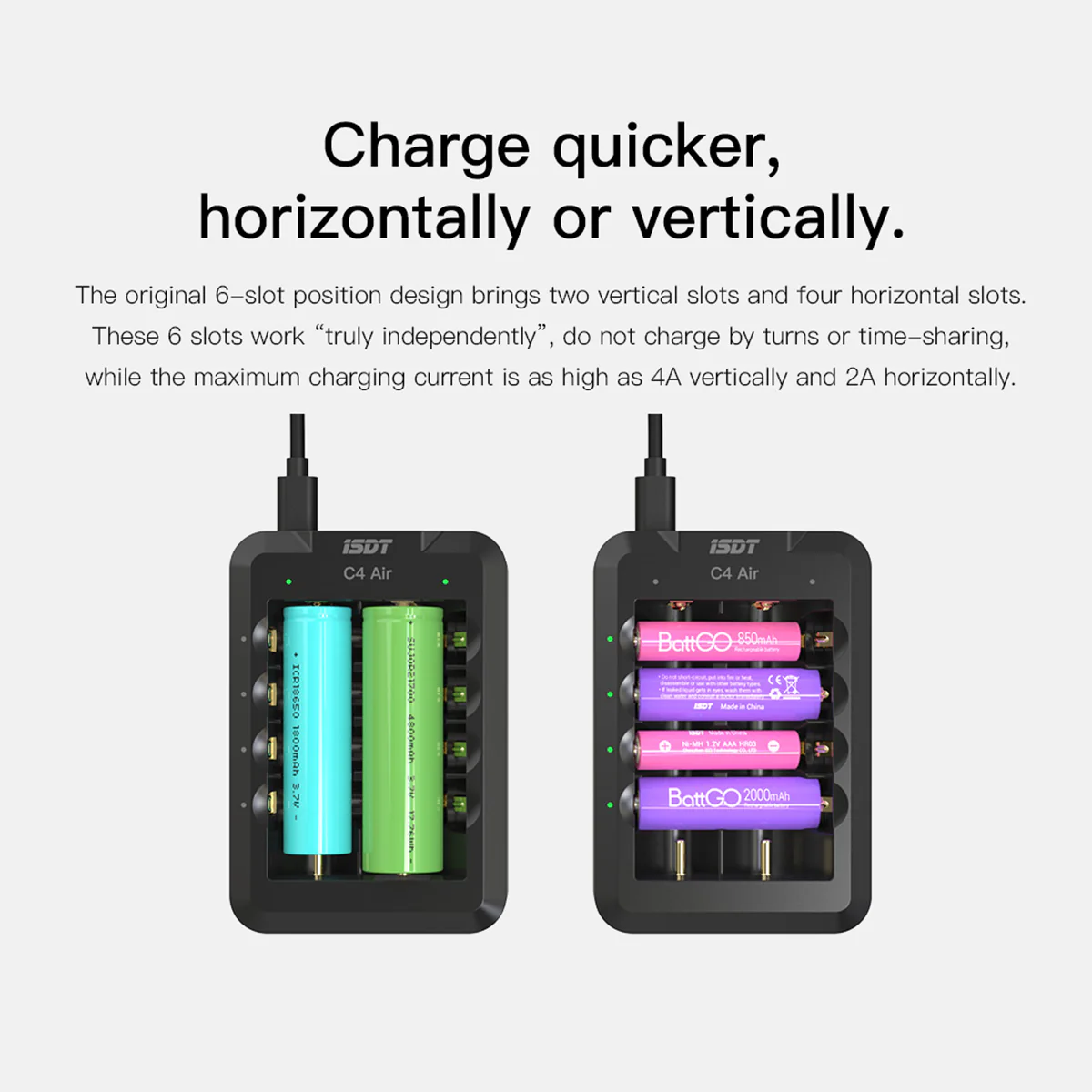

6-slot design for multiple batteries:
The charger has six slots that allow both horizontal and vertical charging of batteries. Up to 4 AA or AAA batteries can be charged horizontally at the same time, while the vertical slot can accommodate larger batteries up to size 26700. This makes it compatible with a wide range of battery types, providing flexibility for users with different needs.

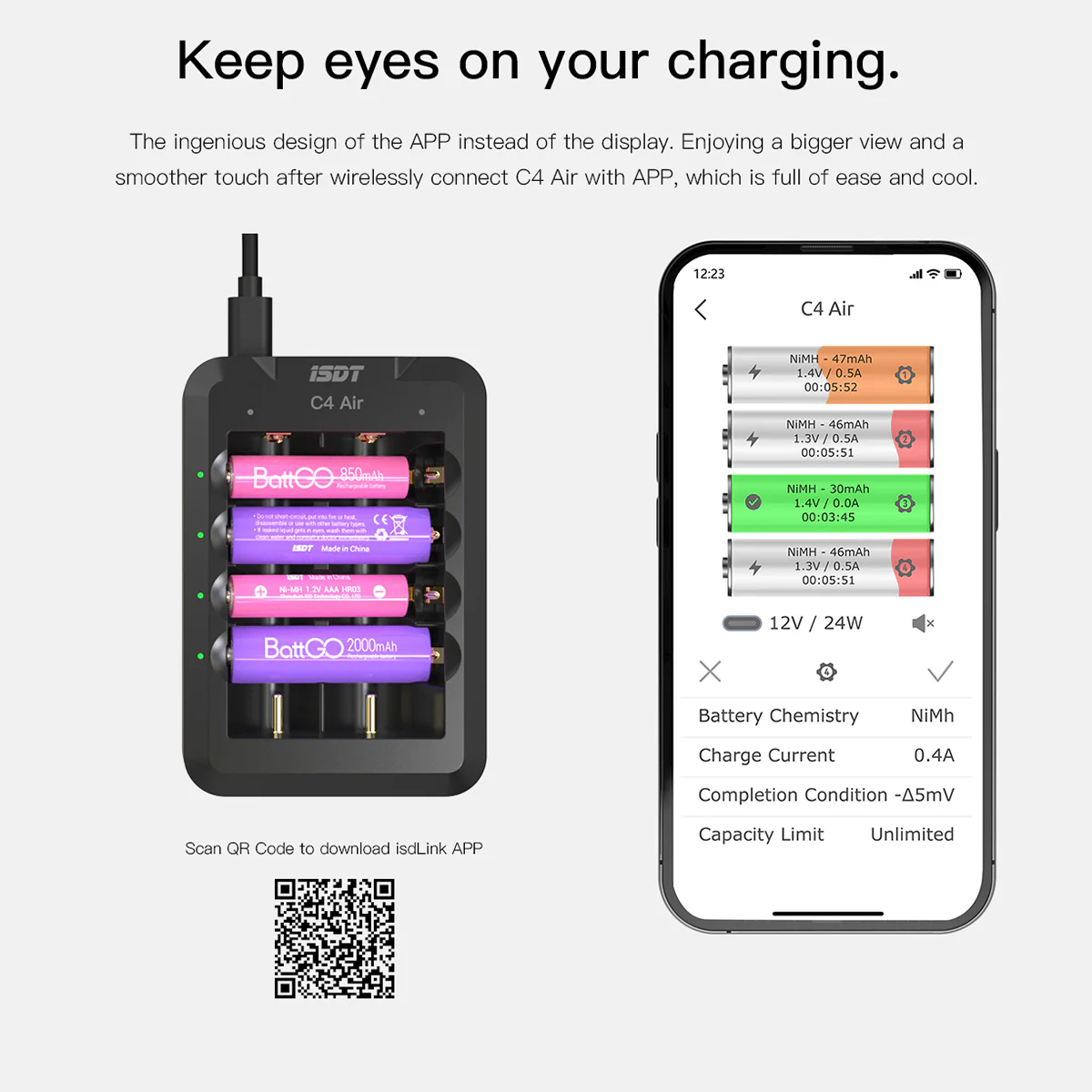

Control via mobile app:
The charger connects wirelessly to a mobile app that allows you to monitor and control the charging process on your smartphone. The app interface provides a clearer display, more detailed information and a more intuitive user experience compared to traditional charger displays. App integration replaces the need for a physical display on the charger and provides a modern and "cool" charging experience with up-to-date information on charging status.

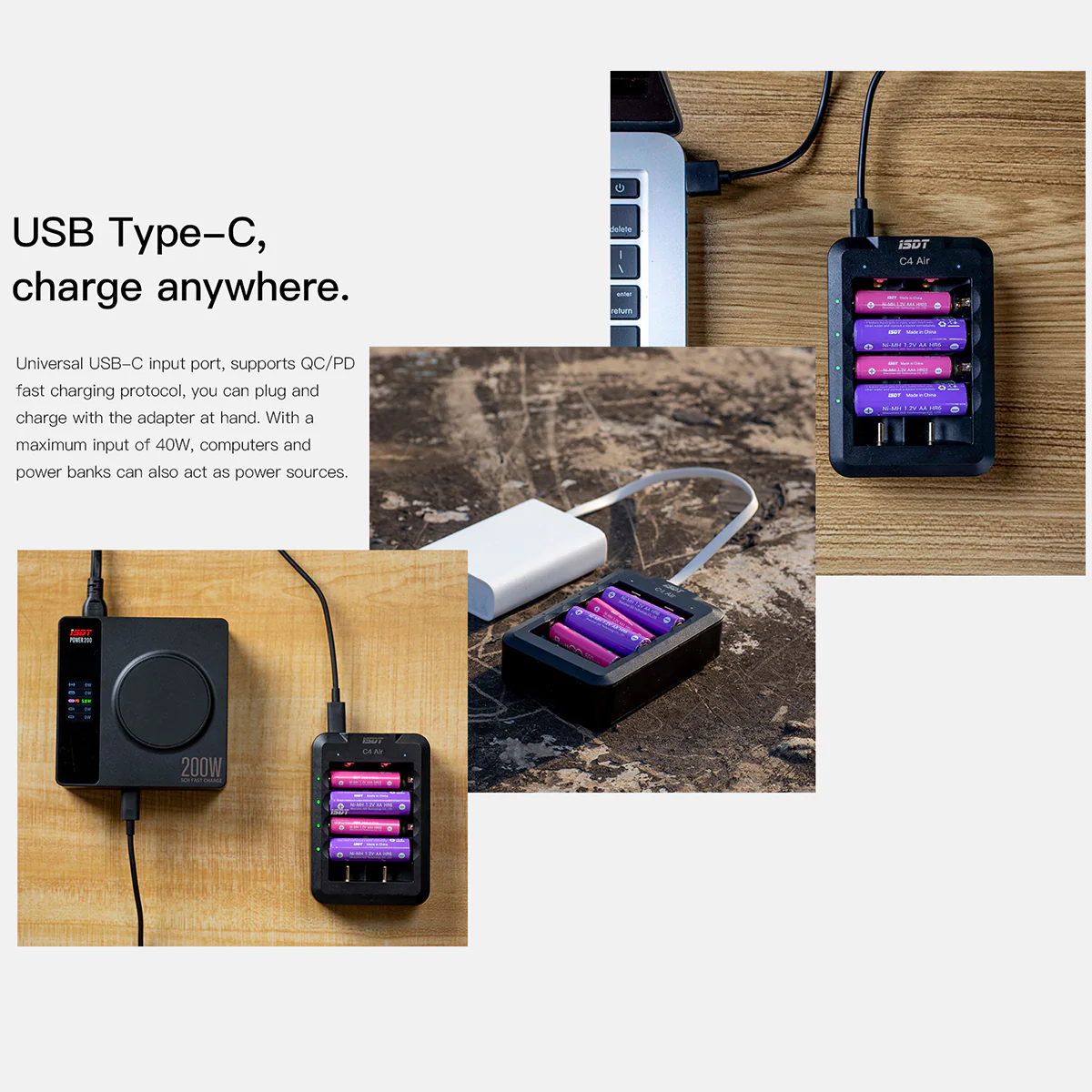

USB-C input with fast charging:
C4 Air is equipped with a USB-C interface that supports QC (Quick Charge) and PD (Power Delivery) fast charging protocols. This allows for faster charging and a wider range of power sources, including power banks, laptops and mains adapters. With a maximum input power of 40W, this charger ensures faster charging times for all compatible battery types.
Advanced battery protection:
The charger automatically adjusts its charging parameters to optimize performance and ensure battery safety. Contains protections such as:
- Prevention of overcharging
- Protection against overheating
- Incorrect polarity protection
- Extending battery life thanks to intelligent charge/discharge management

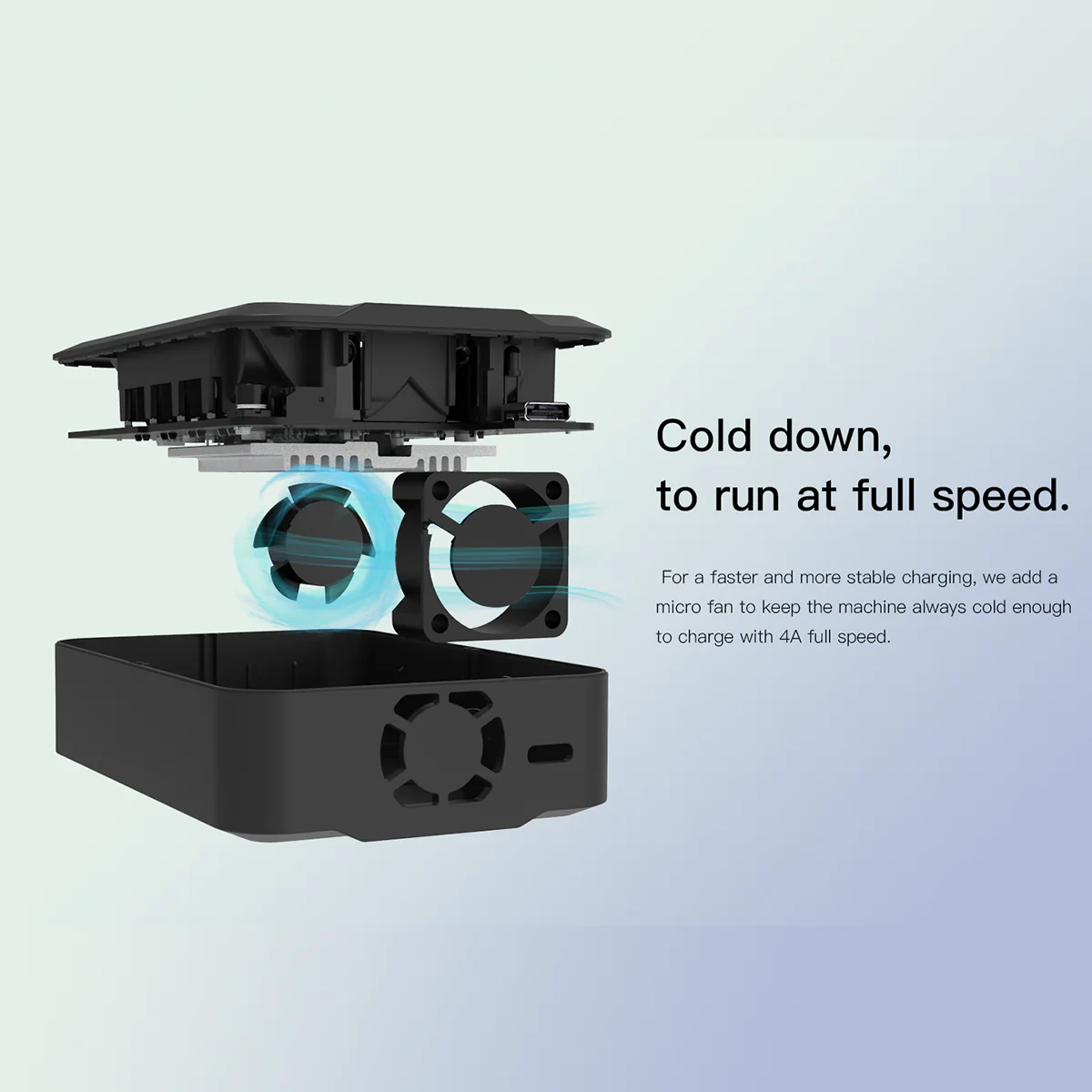

Efficient cooling system:
To maintain a high charging speed without overheating, the C4 Air includes a micro-fan that keeps internal components cool, ensuring stable performance even during fast charging cycles.
Specifications:
Model: C4 Air
Input power: Max. 40W
Number of simultaneously charged batteries: 1 to 4 cylindrical batteries
Supported battery sizes:
- Horizontal slot: up to 51 mm long
-
Vertical slot: up to 72mm long
Compatible sizes include AAA, AA and larger batteries such as 10440, 14500, 18650, 20700, 21700, 26700 and more.
Supported battery types:
- NiMH, NiZn, Li-Ion, LiFe, LiHv
Operating voltage range: 5V to 12V (compatible with QC/PD protocols)
Charging current range:
- Horizontal slots: 0.1A to 2.0A
- Vertical slots: 0.1A to 4.0A
Operating temperature: 0 to 40°C
Dimensions: 106 x 73 x 29 mm
Weight: 115 g
Package Contents: 1 x C4 Air Charger
