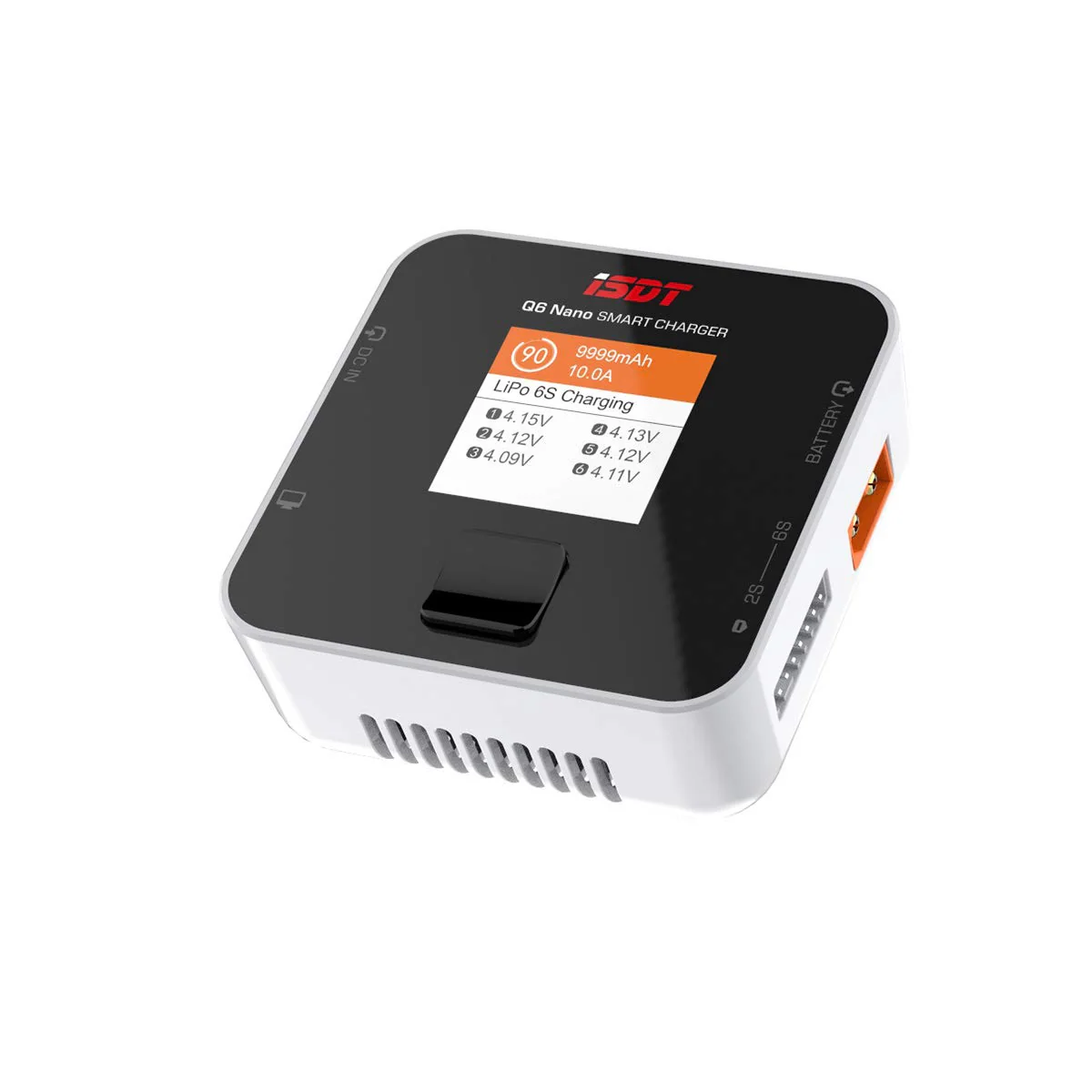

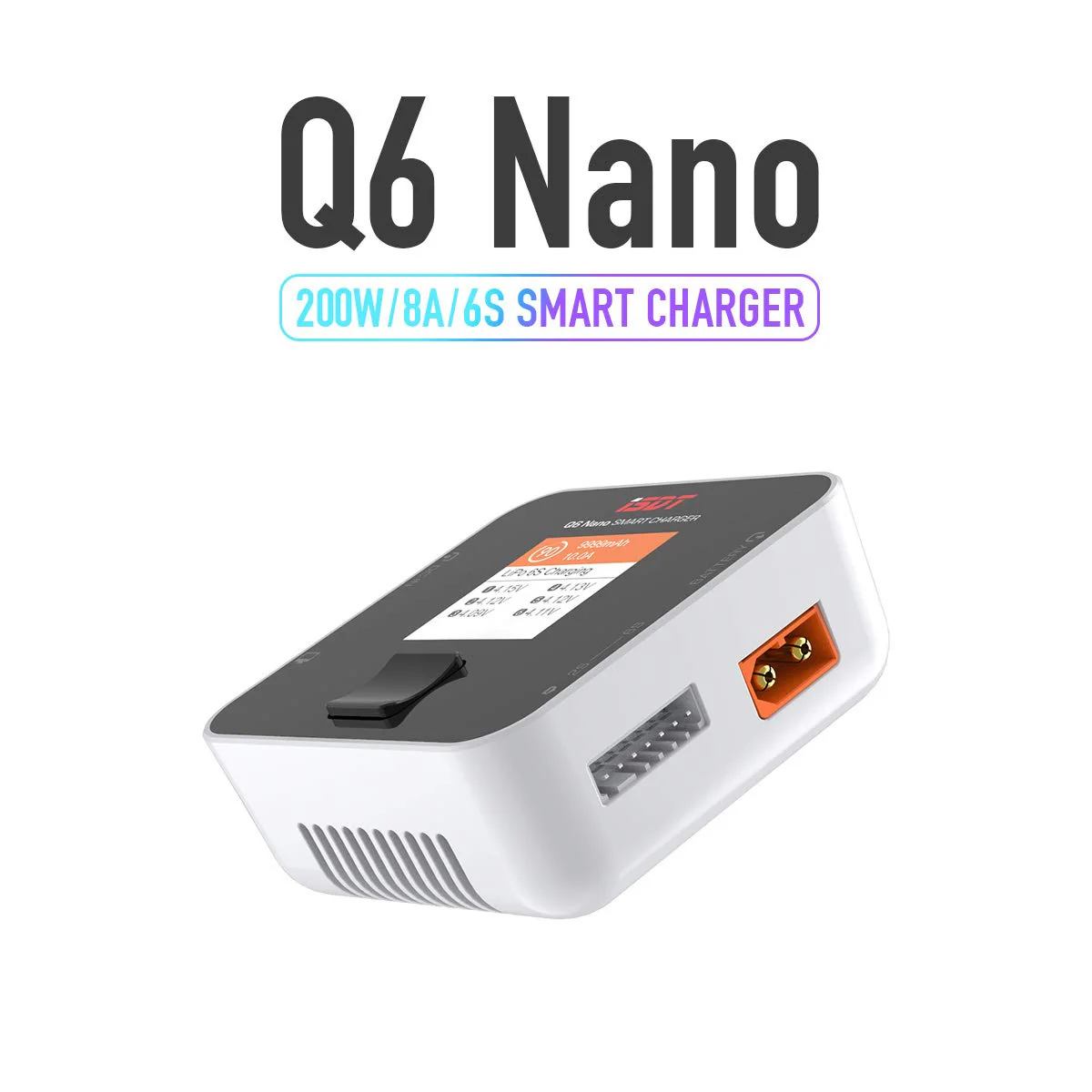

Charger ISDT 200W 9A 1-30V Q6 NANO Smart
Charger ISDT 200W 9A 1-30V Q6 NANO Smart
Brand: ISDT
Regular price
€29,90
Regular price
€29,90
Sale price
€29,90
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Key features:
High performance:
- Supports charging up to 200W with a maximum charging current of 9A, ideal for fast charging 2-6S batteries.

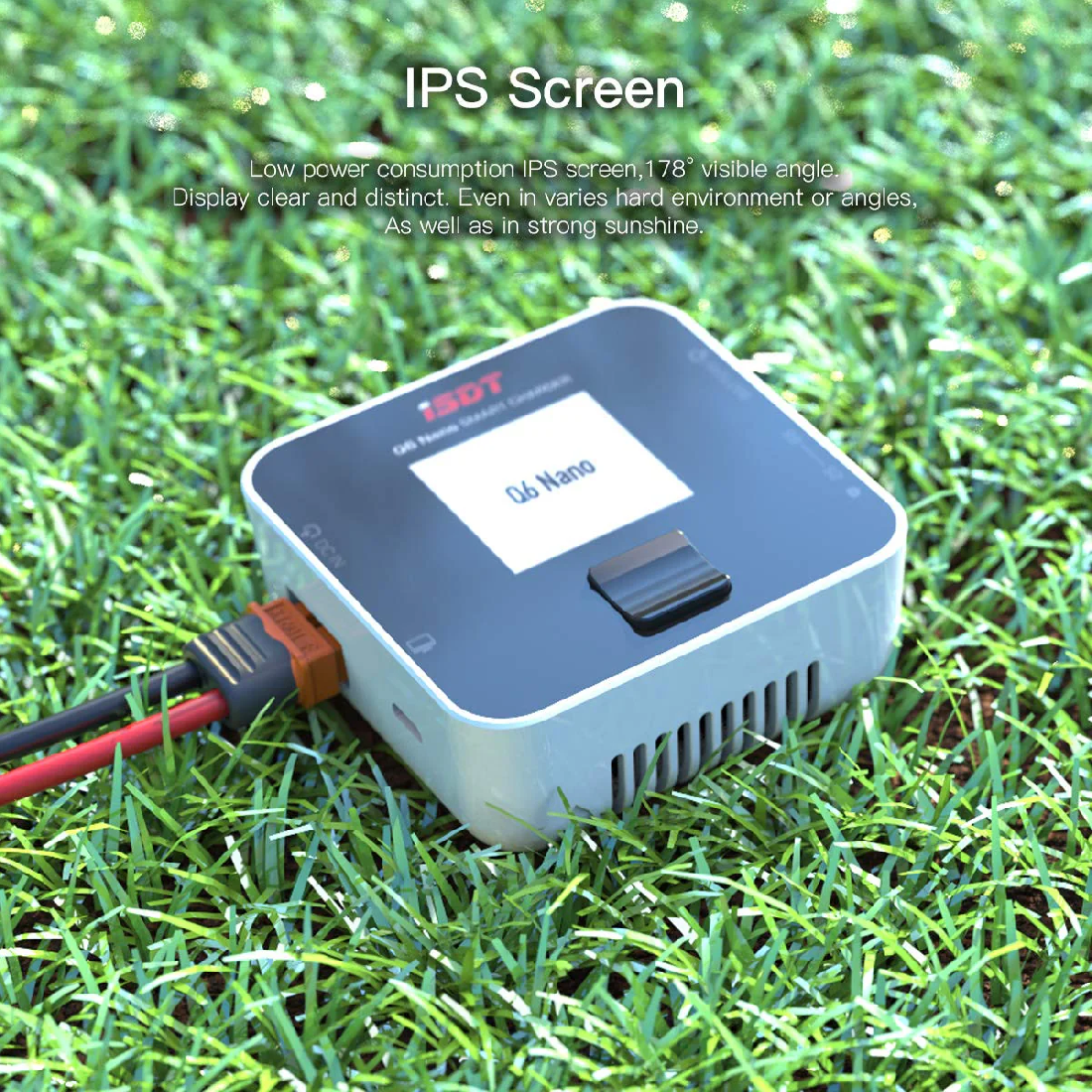

2.4 inch IPS display:
- IPS screen with a resolution of 320 x 240 pixels, designed for low power consumption.
- Offers a viewing angle of 178° with automatic brightness adjustment, ensuring clear visibility even in the sun or at challenging angles.
Advanced cooling system:
- It has an active cooling system with transverse air flow and a ball bearing fan.
- Aluminum heatsinks and silicone thermal pad ensure excellent heat dissipation, increasing performance and safety when charging.
Firmware update option:

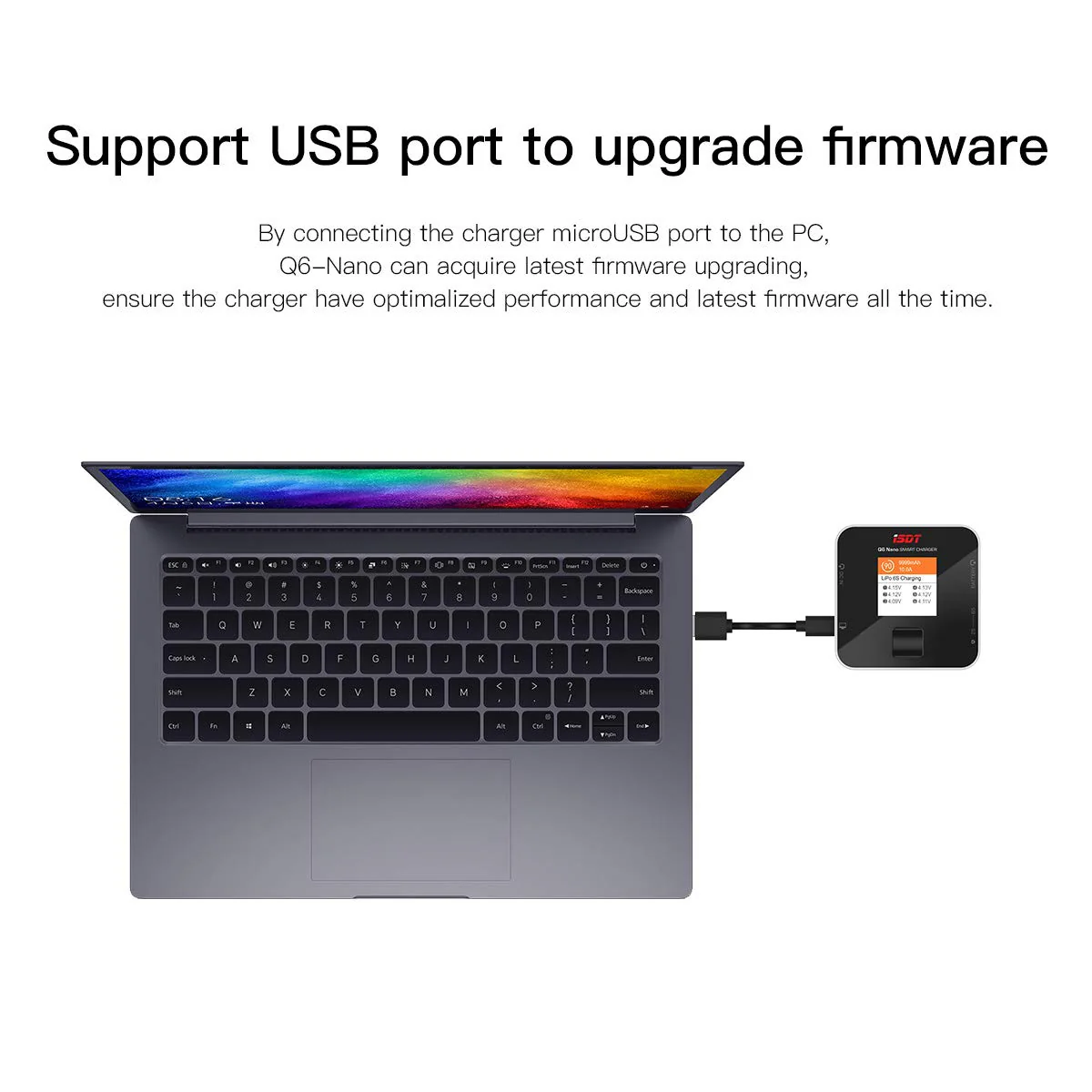

- Supports firmware updates via micro USB port, ensuring the charger is always up to date with the latest software (scOS 2.0).
Sophisticated design:

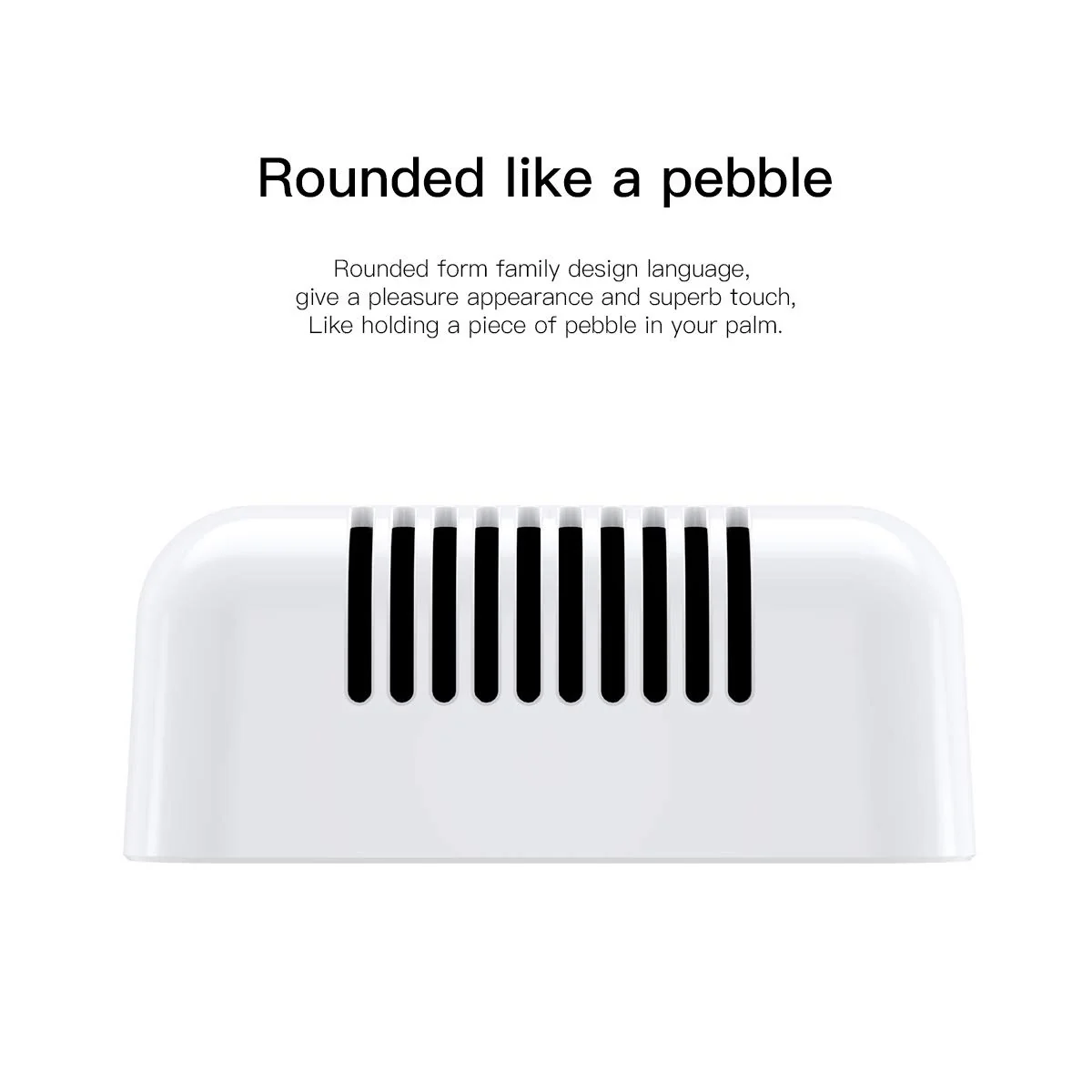

- Pebble rounded design, which provides a pleasant and aesthetic feeling, and is easy to carry in your pocket or bag.
DC input and compatibility:
- DC input voltage range: 7-32V, compatible with a wide range of power supplies.
- XT60 interface for connection cables.
Technical specifications:
- Input voltage: DC 7-32V
- Maximum input current: 12A
- Output voltage: 0-30V
- Charging current: 0.1-8.0A
- Discharge current: 0.1-3.0A
- Max. discharge capacity: 5 W
- Balance cells: 2-6S
- Supported battery types: LiFe, Lilon, LiPo, LiHV (1-6S); NiMH, Cd (1-16S); Pb (1-12S)
Package contents:
- 1 x ISDT Q6 Nano balance charger
- 1 x Manual
