Beta C03 FPV micro camera

The C03 is a lightweight 1.45g 1200TVL camera that has been designed to provide excellent performance for micro FPV quadcopters. It has a 2.1mm lens that provides a 160° field of view, works in a 4:3 aspect ratio, and is equipped with a 1/3'' CMOS sensor for clear and brilliant images. It comes with a BETAFPV Micro Canopy that perfectly fits the C03 camera, making it more convenient for pilots to build quads.

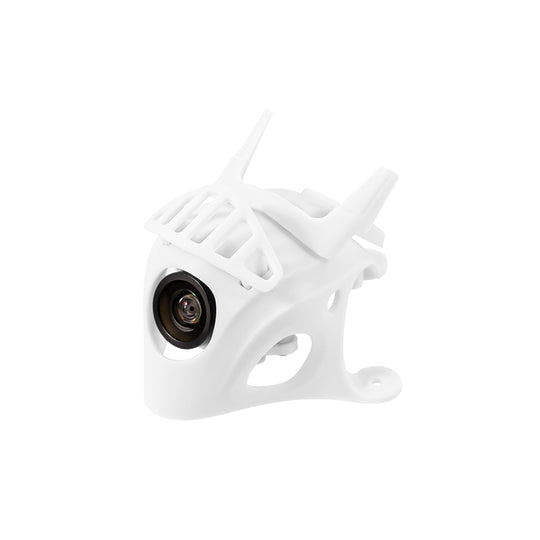

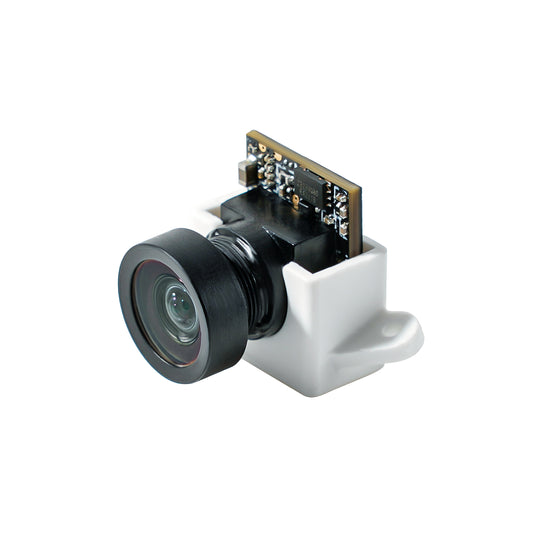

- Comes with BETAFPV Micro Canopy and 20°/30° camera mounts that fully match the C03 camera. This package allows pilots to easily build drone drones.
- The C03 FPV Micro Camera is made of high quality ABS material and covered with BETAFPV Micro Canopy, and it is durable enough to use.

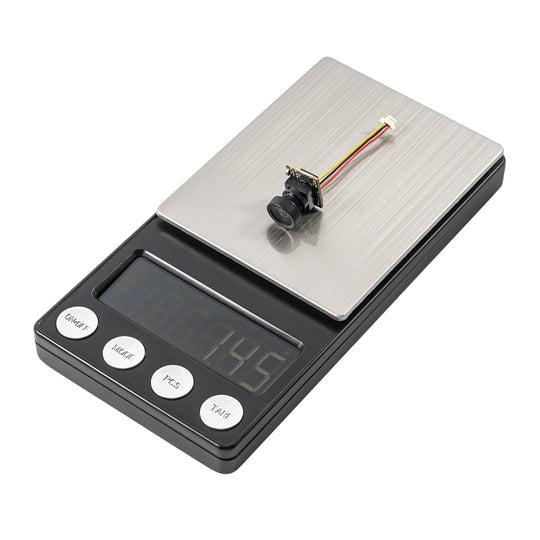

- Miniature and lightweight design, weighs only 1.45g. Perfectly suitable for M03 5.8G VTX for micro drone drone.
- 1200TVL resolution and 1/3" CMOS sensor ensure high quality and clear image
- Global WDR camera, 4:3 aspect ratio, captures a clear dynamic image even in low light conditions
- 2.1mm lens, FOV 160° beyond wide-angle to record wider and more beautiful scenes.

Specifications:
Item: C03 FPV Micro Camera
Image sensor: 1/3" CMOS sensor
Horizontal: 1200TVL with Global WDR
Signal system: NTSC (4:3)
Lens: 2.1mm (M7) FOV 160°
S/N ratio: >50db
Electronic shutter speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power supply: DC 3-5.5V
Current: 100mA@5V / 120mA@3.3V
Case material: ABS

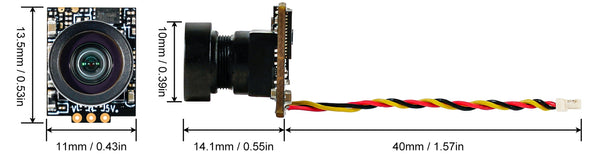

Size: 11x14.1x13.5mm
Net weight: 1.45g
