    BETAFPV M01 AIO Camera 5.8G VTX V2.1 (Pin-Connected)

    BETAFPV M01 AIO Camera 5.8G VTX V2.1 (Pin-Connected)

    Brand: BETAFPV

    €28,99
    €28,99 €28,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    M01 AIO 5.8G VTX V2.1 Camera (Pin Connected)

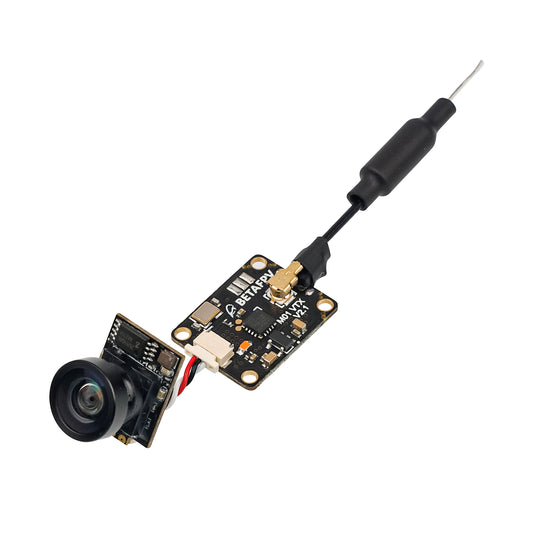

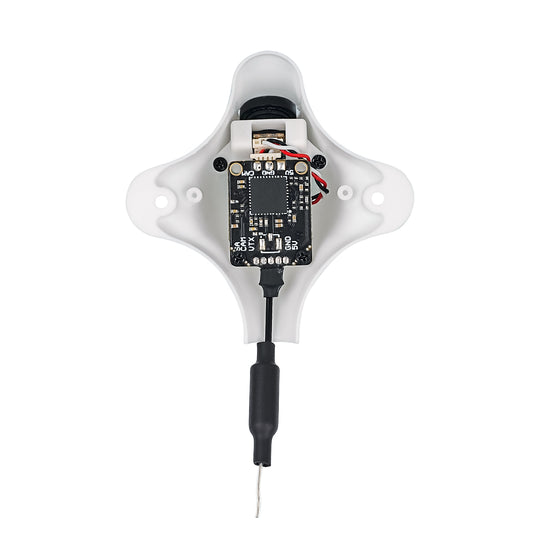

The M01 AIO Camera 5.8G VTX V2.1 is a pin connection version that ensures easy connection with the camera. Weighing just 2.72g, it is remarkably light. This package includes super mini 5.8GHz FPV transmitter, 1200TVL FPV camera (C02) and RG178 antenna with 6 bands and 37 channels in 5.8GHz band with Raceband, perfect for Pro Series and Brushed Whoop Drone. Attached 30° camera tilt.

Specifications:
Item: M01 Camera AIO VTX V2.1
Camera: C02 FPV Micro Camera
TVL: 1200 TVL
FOV: H:120°/H:100°
Video system: NTSC
Horizontal resolution: 640X480 1/4”
Output power: 25mW
Supply voltage: 5V

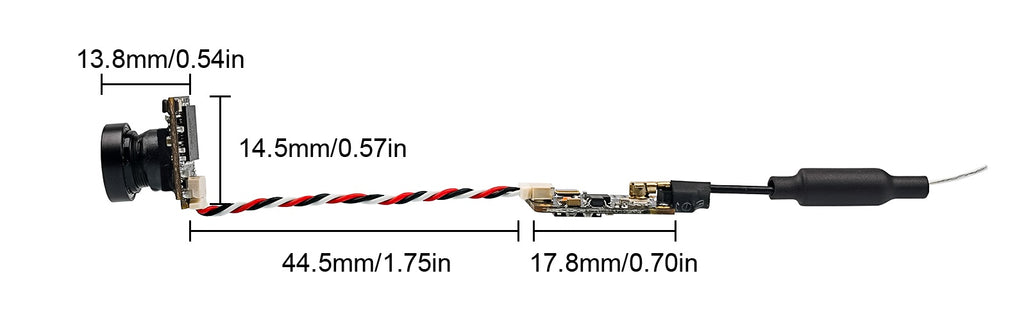

Size: 18x14x4.5mm (VTX)

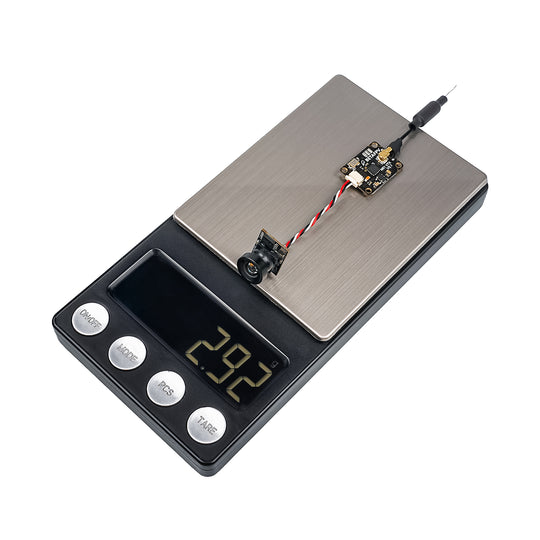

Weight: 2.72g
Antenna: RG178 antenna
Frequency: 5.8 GHz 6 bands 37 channels, with racing band: 5362-5945 MHz
