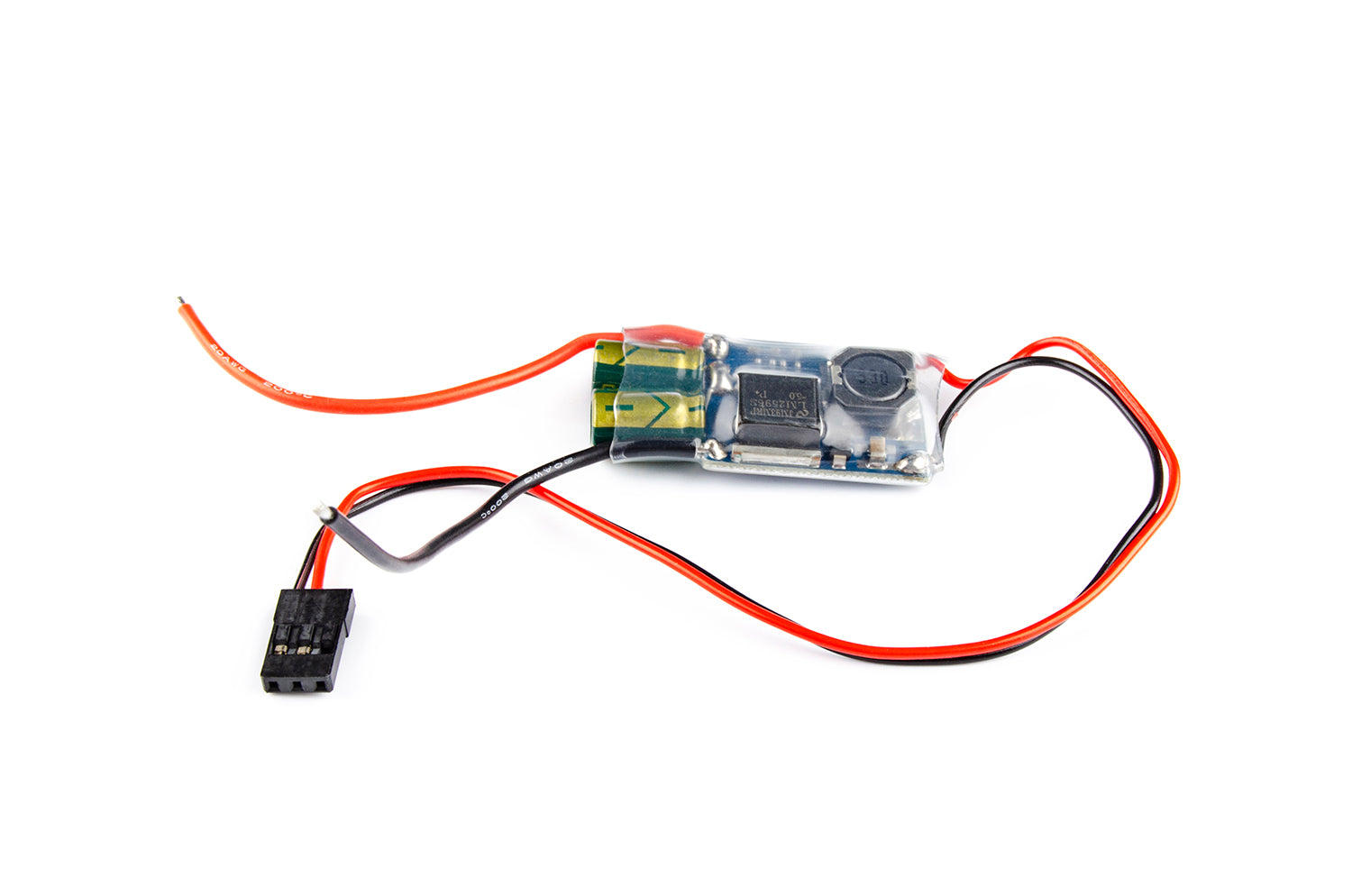

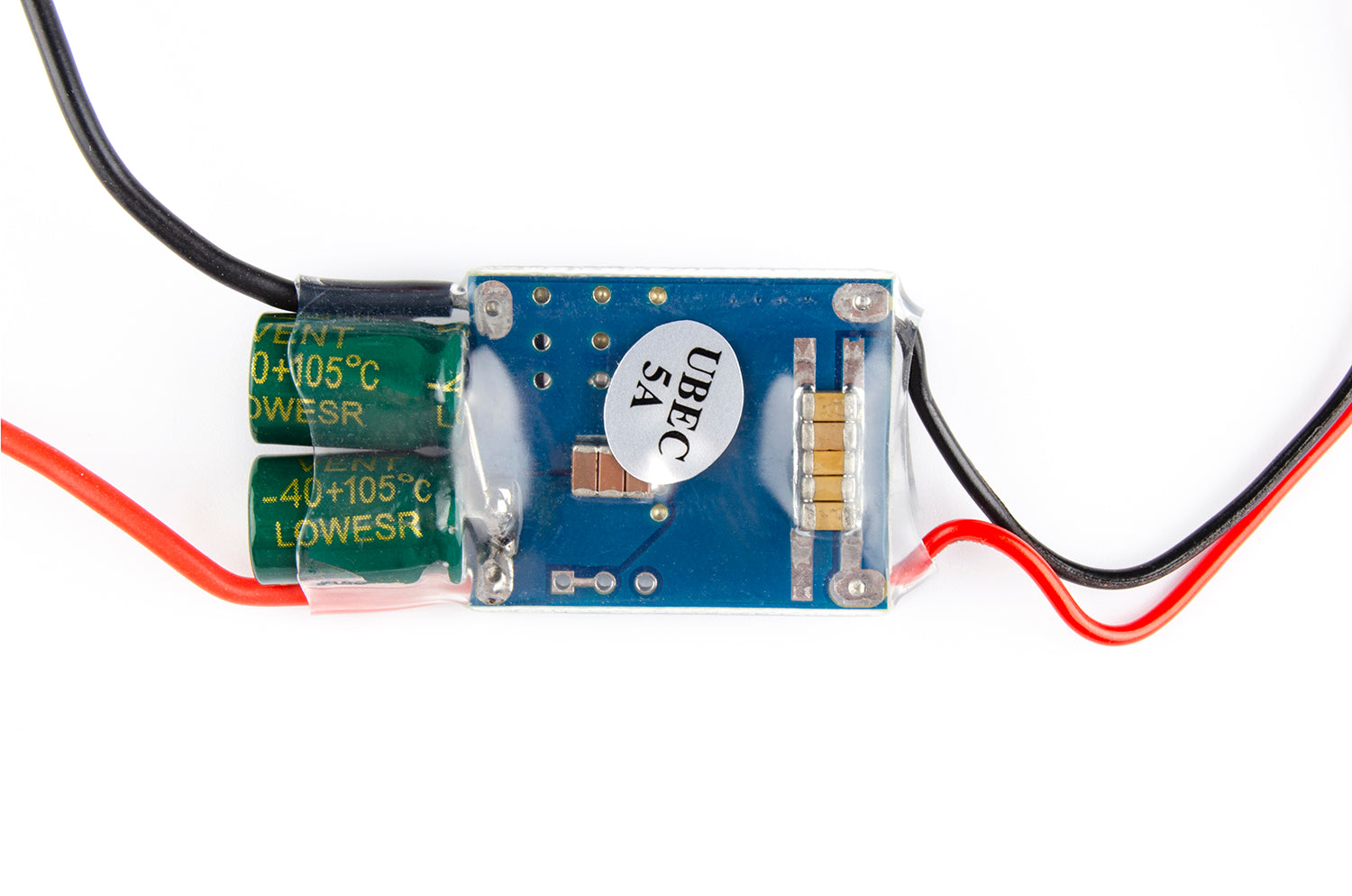

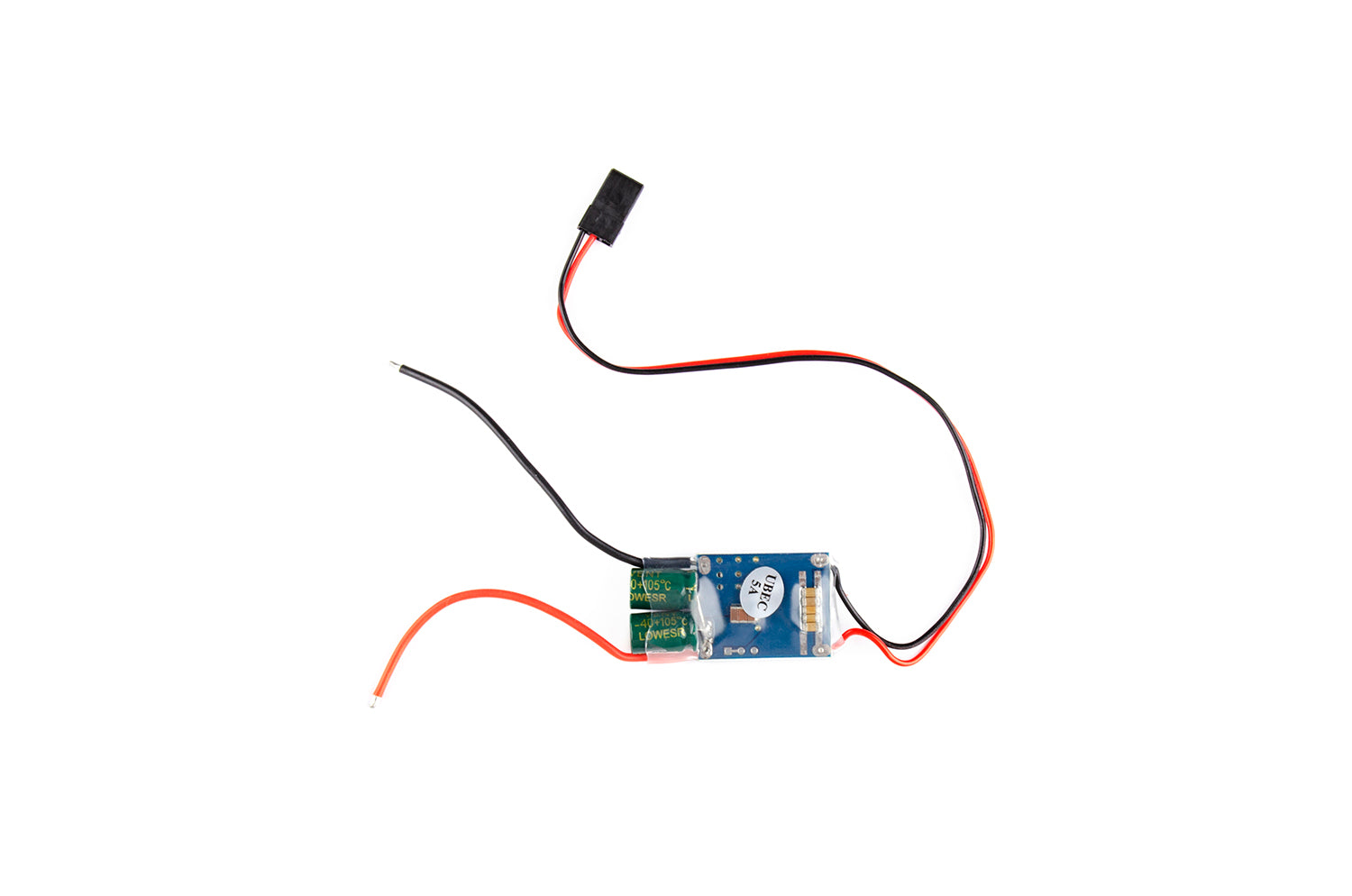

Pilotix 5A UBEC BEC module
The Pilotix 5A UBEC module is a universal voltage regulator for unmanned systems, which ensures a stable supply of on-board electronics. Converts high battery voltage (2 to 7S) to a stable 5V DC voltage that can be used to power receivers, servos, and other system components. Compared to linear BEC regulators, the switching power supply BEC offers significant advantages, especially when using 3S (11.1V) batteries or higher configurations. They reduce heat dissipation and improve overall efficiency.
Features:
- They are designed with a switched-mode power supply structure, operate at a main control frequency of 300 kHz, equipped with over-current and over-temperature protection, and achieve an efficiency of up to 92%.
- Compact and light construction.
- Shielded electronic components that greatly reduce electromagnetic interference and ensure stable operation of the receiver.
- Reverse polarity protection - the UBEC will not be damaged if the power supply is incorrectly connected.
Specifications:
Input voltage: 2S-7S (7.4V - 29.4V)
BEC output: 5.25V ±0.5V (max ~5.75V), 5A continuous, 6A peak (20 seconds).
Dimensions: 41 x 21 x 7mm
Weight: 15g
The package contains:
1x BEC module Pilotix 5A UBEC
