Battery Charger BETAFPV 2S XH2.54

Name: Battery Charger BETAFPV 2S XH2.54
Brand: Baltic Drones
SKU: 01120014_1
Price: 15.96 EUR
Availability: OutOfStock

Battery Charger BETAFPV 2S XH2.54

Brand: BETAFPV

€15,96

~~€15,96~~ €15,96

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

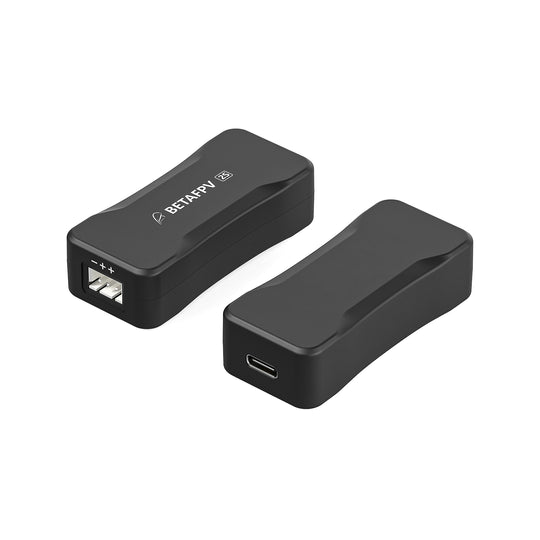

2S battery charger XH2.54

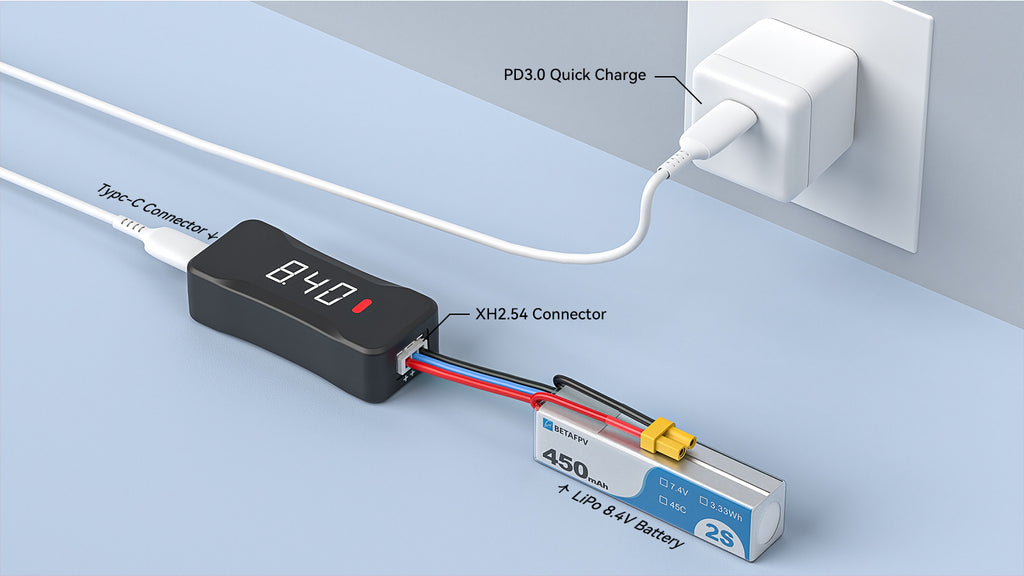

BETAFPV offers 2 versions of the 2S charger and voltage tester, each with different ports - BT3.0 and XH2.54 - capable of charging both LiHV 8.7V and LiPo 8.4V batteries. It not only has a digital display function, but also a 2S battery voltage monitoring function. In addition, it supports PD3.0 fast charging protocol. Fully functional and user-friendly, this compact and portable charger meets the charging needs of 2S quadcopter enthusiasts and allows them to recharge their batteries anytime, anywhere.

This charger is compatible with 2S LiPo batteries (8.4V) and has an XH2.54 battery port. Please note that charging 2S LiHV batteries (8.7V) may lead to undercharging. We recommend using a LiPo 2S battery with a matching balance connector available on the market. If the digital display shows a voltage higher than 8.4V (eg 9V) during charging, immediately disconnect the power and check if there is a problem with the battery or charger.

Note: LiHV (8.7V) means high voltage 2S lithium polymer batteries and LiPo (8.4V) means normal lithium polymer batteries.

Specifications

Battery type: XH2.54-LiPo (charging voltage: 8.4V)
Product color: Black
Input interface: USB Type-C
Input voltage range: 5-12V
Input power: maximum 15W
Maximum input current: 2.5A
Charging protocol: PD3.0

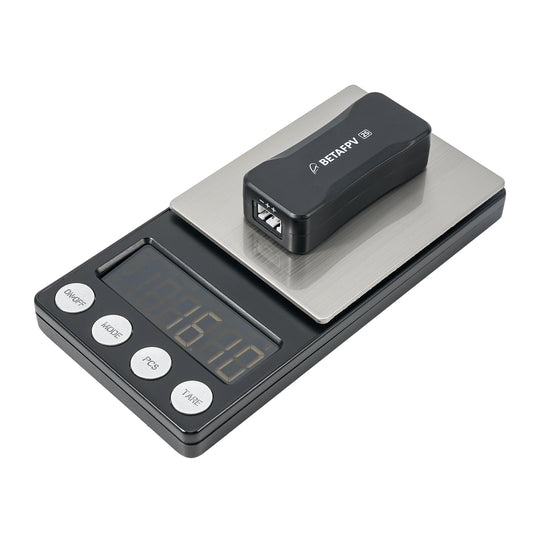

Weight (per charger): 17.0±1.0g
Dimensions (L×W×H): 61*25*17mm
Battery capacity display: The digital LED display shows the total voltage and the voltage of the individual cells of the 2S battery.

Notes for use:
- Pay attention to the polarity marking on the device and do not connect the charger with reversed polarity.
- The 2S charger and voltage tester only supports charging 2S batteries, not 1S batteries.
- The charger can only charge one battery at a time and is not designed to charge two or more batteries at the same time.

The package includes:
1 * 2S battery charger and voltage tester XH2.54
1 * 70 * 50mm Manual in Chinese and English
1 * 100 * 150 mm Anti-static bag
1 * Service Card/Preliminary>
