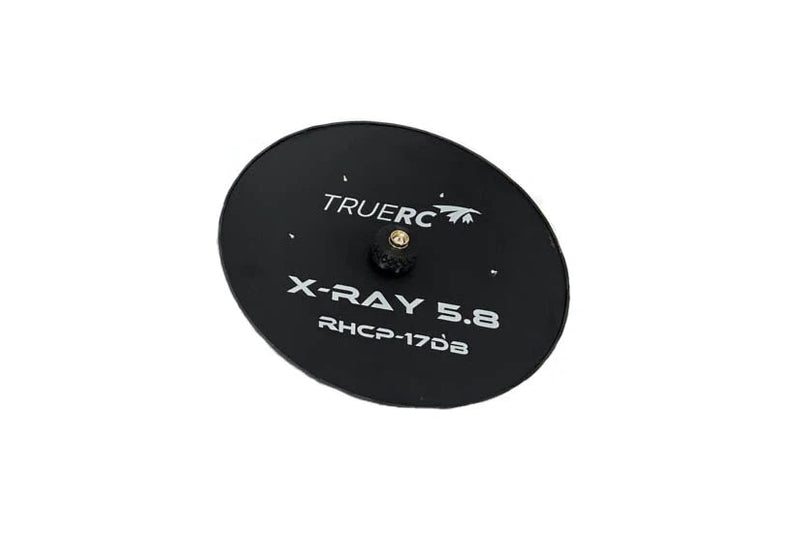

    Antenna TrueRC X-RAY (RHCP)

    Antenna TrueRC X-RAY (RHCP)

    Brand: TrueRC

    €157,85
    €157,85 €157,85
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    X-ray (RHCP)

X-RAY 5.8 is a new development of X-AIR technology. Single feed panel format with very low side lobes, maximizing main lobe efficiency.

Function:
- Very low side lobes and excellent front to rear ratio.
- Excellent axial ratio and high bandwidth efficiency

Specifications:
Frequency: 5.4-6 GHz
Gain: 17-18 dBic
Polarization: RHCP
Beam width*: 60 degrees
Beamwidth @-3dB**: 24deg.
Connector: SMA
Dimensions: diameter 151 mm x 20 mm

*Coverage where income is at least equivalent to omni.
**Coverage where at least 70% of the maximum range is achieved.
