Code: SKU:0608597253375
Antenna TrueRC True-MoX 2.4 RP-SMA
Antenna TrueRC True-MoX 2.4 RP-SMA
Brand: TrueRC
Regular price
€15,77
Regular price
€15,77
Sale price
€15,77
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

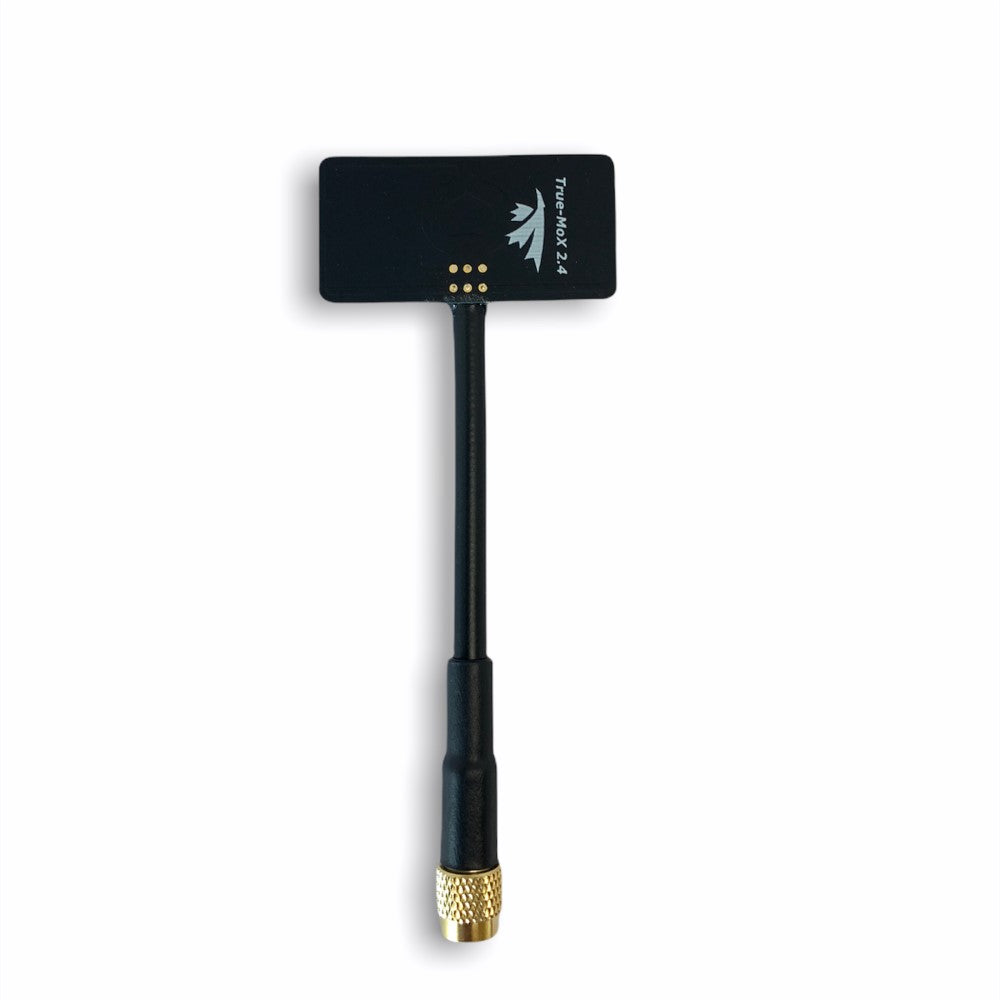

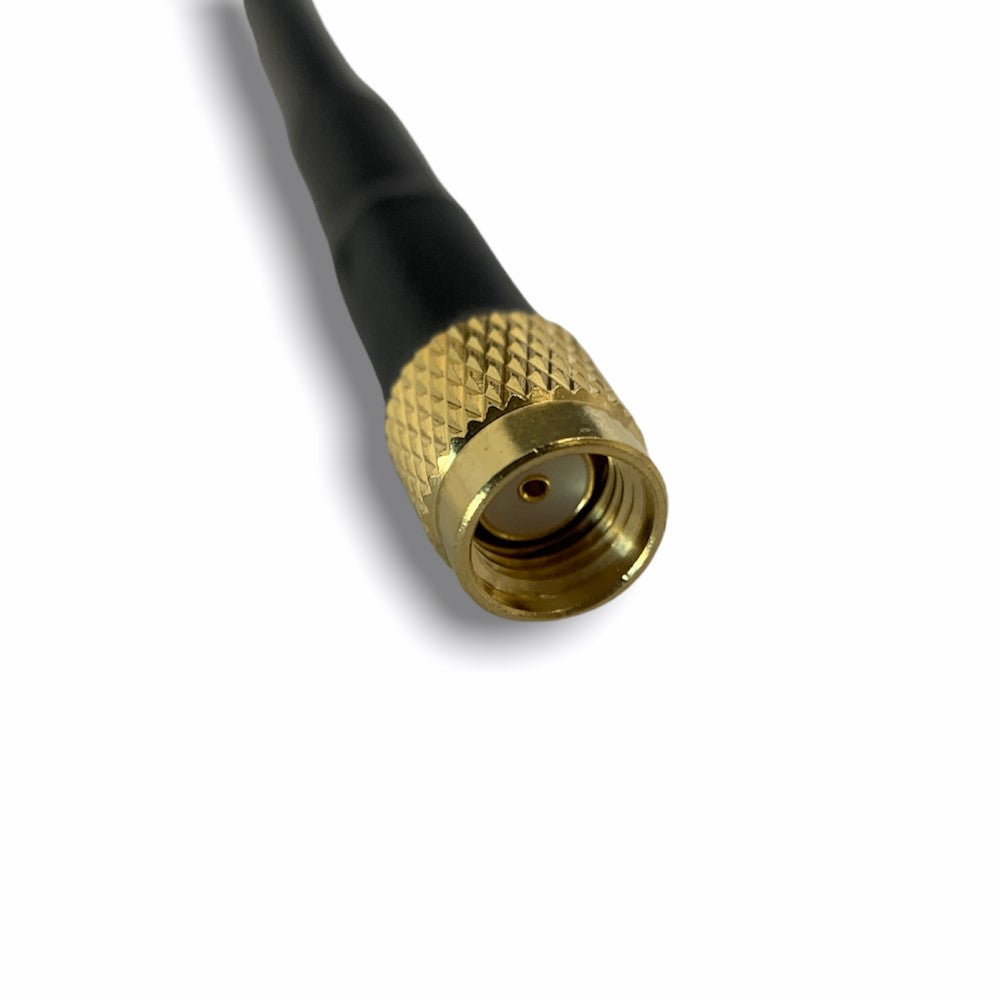

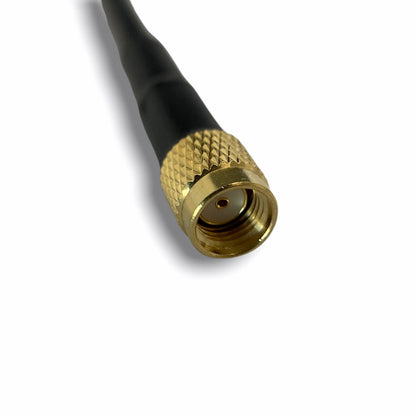

True-MoX 2.4 RP-SMA True-MoX 2.4 is a revision of Moxon using the latest 3D electromagnetic simulation tools and RF rated PCB material. Interactions with the radio or the pilot's body are kept to almost zero thanks to our patented design. Great for IRC Ghost, TBS tracer (RP-SMA) or express LRS (SMA). Note that this is not a patch, do not point the flat part towards the target. Point the long edge of the panel toward the intended flight area. A vertical long edge creates vertical polarization. Specifications: Frequency: 2400-2510MHz Gain: 5.9dBi Beam width*: 156deg Beamwidth @-3dB**: 133deg Connector: RP-SMA Dimensions: 39.5mm x 100mm *Coverage where income is at least equivalent to omni. **Coverage where at least 70% of the maximum range is achieved.
