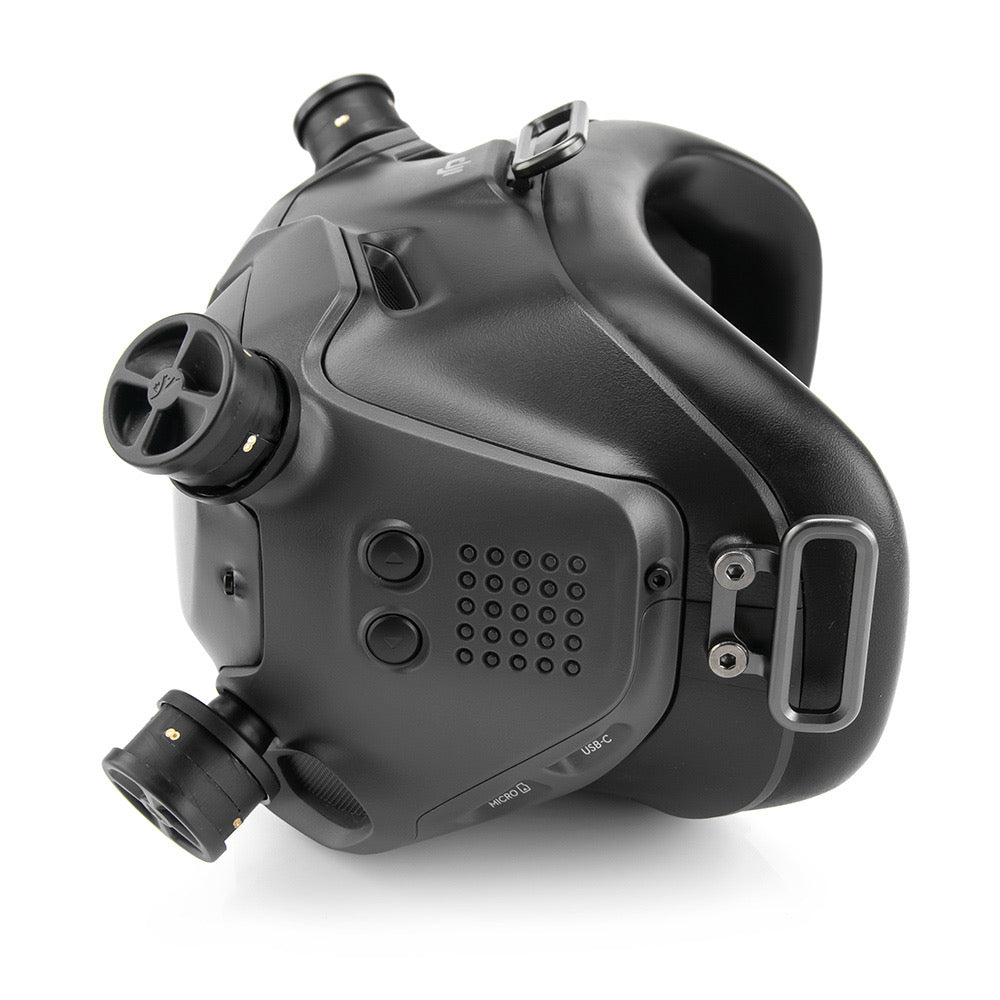

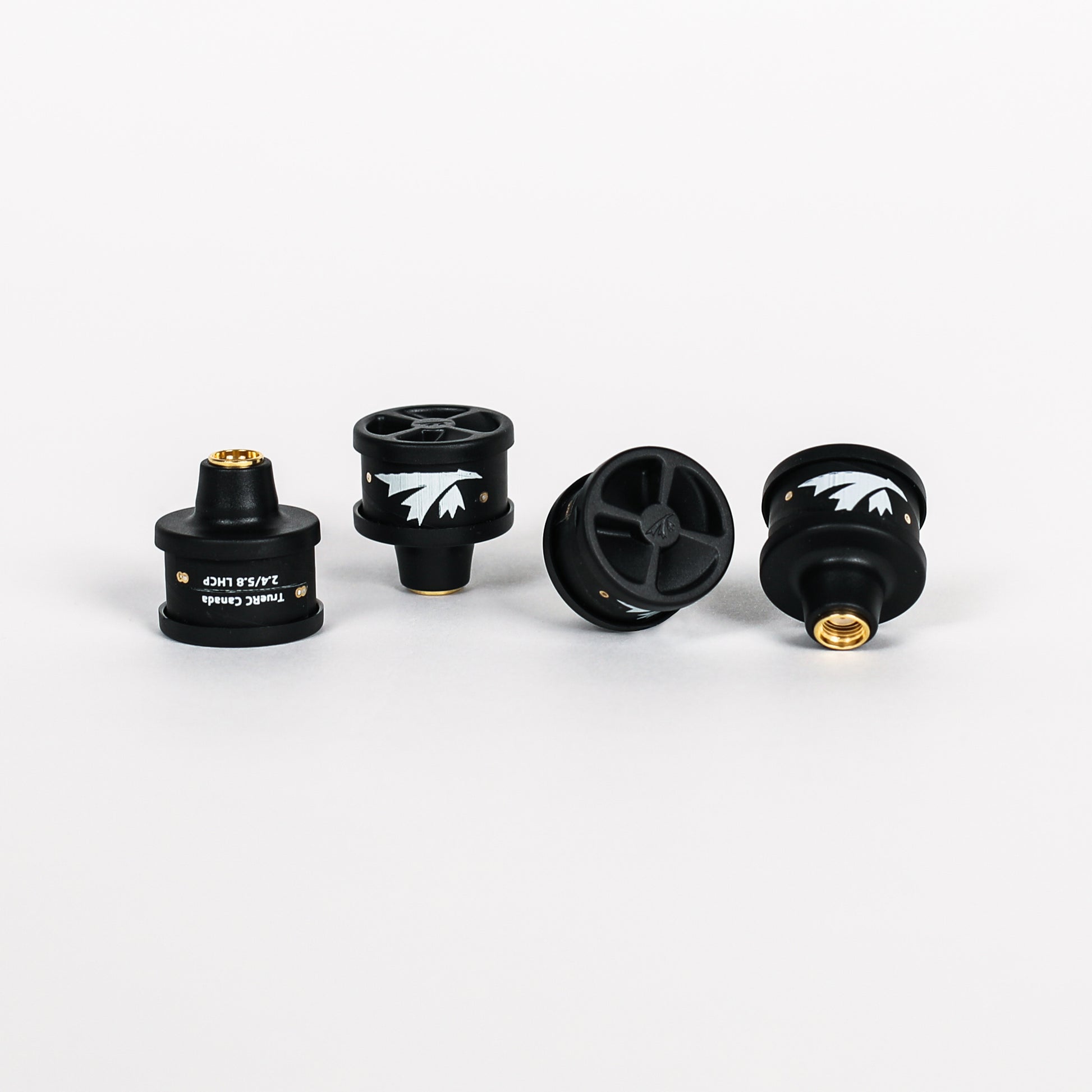

Duality STUBBY Single (RHCP) Duality is a dual-band CP omni covering the 2.4 and 5.8 GHz bands in a single compact package. The drop-in fits DJI FPV V2 goggles so you can keep them on thanks to a much lower profile than standard linear antennas. Each unit is manually tuned on a professional analyzer. Specifications: Gain: 1.7dBic @ 2.4GHz, 2.8dBic @ 5.8GHz Polarization: RHCP Cross-Polar Rejection: -15 to -30 dB, (2.2%) Bandwidth: 2.39GHz-2.52GHz & 5.6GHz-6.1GHz Radiation efficiency: 99% SWR: <=1.5:1 Weight: 5.25g Dimensions: diameter 23.3 mm X height 22.0 mm Connector: RP-SMA The package includes: 1x Duality STUBBY
