Code: SKU:0608597254891

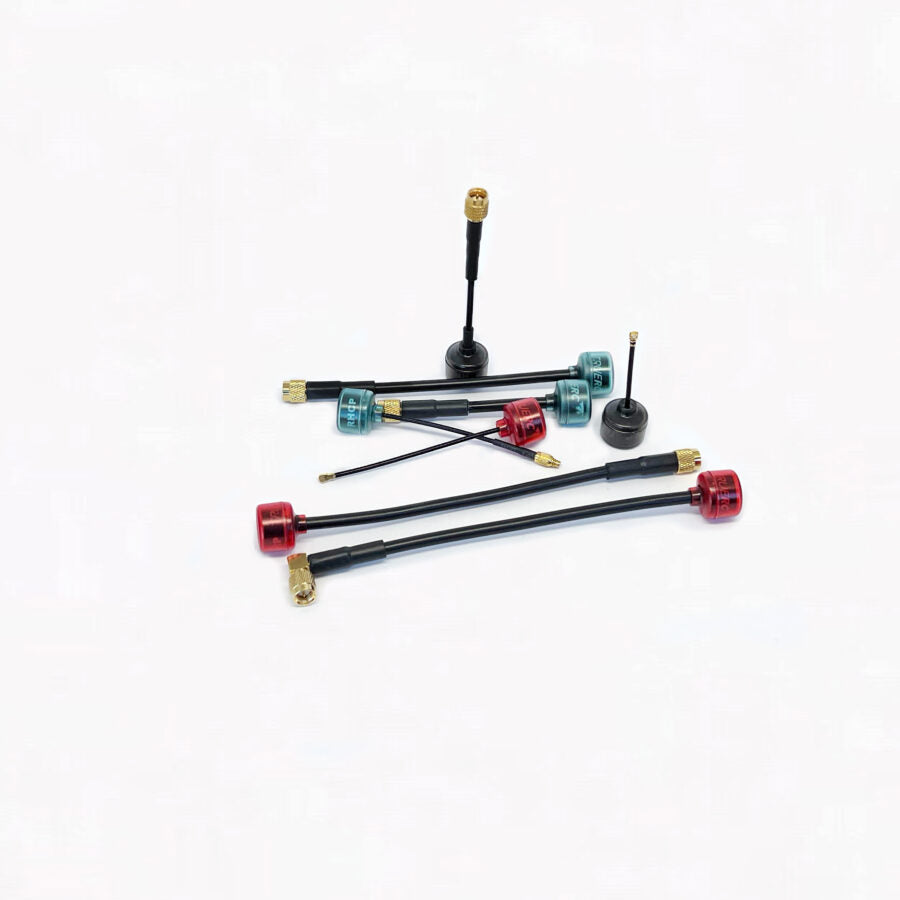

Antenna TrueRC CORE SMA FLEXIBLE 80mm (RHCP, RED)
Antenna TrueRC CORE SMA FLEXIBLE 80mm (RHCP, RED)
Brand: TrueRC
Regular price
€15,77
Regular price
€15,77
Sale price
€15,77
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
CORE SMA FLEXIBLE 80 mm (RHCP, RED) The CORE 5.8 is an omnidirectional antenna that starts with a refined RF design that provides excellent consistency across units and different cable configurations. The CORE 5.8 has a very durable outer shell that protects the antenna from the inevitable falls. It is available in three different colors, with different polarizations, connectors and cables. Function: - Durable polycarbonate, injection molded, ultrasonically welded housing - Clear indication of polarization direction - Smooth radiation pattern with equal gain in all directions - Excellent axial ratio and efficiency - Option of a flexible coaxial cable to absorb shocks - Exclusive serrated True-SMA for easy tightening Specifications: Model: CORE 5.8 Red Connector and cable: SMA flex 80 mm Gain: 1.9dBic Polarization: RHCP Cross-Polar Rejection: -10 to -20dB Bandwidth: 5.5GHz-6.1GHz Radiation efficiency: 98% SWR: <=1.2:1 Weight: Varies by connector/cable option Dimensions (head): diameter 16.9 mm x height 13.1 mm.
